Wireless Local Area Network PC Card
The Intersil WLAN PC Card (Note 1) is
a complete wireless high speed modem
utilizing the Intersil PRISM® Direct
Sequence Spread Spectrum Wireless
Transceiver chip set. It provides a
sophisticated turnkey solution of hardware and software to
system providers or integrators requiring wireless data
communications capability and is ideal for integration into
computer platforms.
Evaluation kits include two WLAN PC cards, Windows 95
Software and documentation to get your evaluation started
quickly. Supporting the IEEE 802.11 network specification for
Direct Sequence Spread Spectrum DSSS signaling the card
is packaged in a PCMCIA Type II extended cover set. Radio
design evaluation can be conducted by using PRISM1KITEV AL (PCMCIA card with an open co ver set and connector
output, two cards per kit) or network performance may be
evaluated by using WLANKITPR1-EVAL (PCMCIA card with
cover set and integrated antenna, 2 cards per kit). The card
provides data rates up to 2Mbps. Outdoor line of sight range
in excess of 1000 feet has been demonstrated and indoor
range of 300 feet, depending on environment, is achievable.
Interoperable Access P oints are available from a number of
suppliers, enabling a total wireless network solution.
Features
• FCC Certified Under Part 15 to Operate in 2.4GHz ISM
Band
• Support for 1 and 2 Megabit Per Second (Mbps) Data
Rates
• Supports the lEEE802.11 Direct Sequence Specification
• Microsoft® Windows® 95 NDlS3 and Microsoft Windows
3.1 NDIS2 Network Drivers Available (ODI Network
Drivers Planned)
• Integrated Microstrip Antenna
• Microcode/BIOS are Contained in Programmable
Nonvolatile Flash Memory
• Radio Range of 300 Feet in an Indoor Environment
(Note 2)
• Completely Covered Assembly is Designed to Fully
Support PCMCIA’s Defined Mechanical and
Environmental Stress Conditions
• Intelligent Power Control, Including Low Power Standby
Mode
NOTES:
1. Throughout this document, all references to ‘PC Card’, ‘WLAN
adapter’, ‘adapter’, or ‘card’ refer to a covered card assembly
conforming to the mechanical size specifications of the PCMCIA
Standard Release 2.0, Type Il Extended (5.0mm) definition.
2. The range will vary in different operating environments dueto
effects such as building construction.
Packaging
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Ordering Information
PART NUMBER DESCRIPTION CARDS/SET
WLANKITPR1-EVAL WLAN Evaluation Kit 2
™
Data Sheet November 1998 File Number
4289.2
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
| Copyright © Intersil Corporation 1999
PRISM and PRISM logo are trademarks of Intersil Corporation.
4-383
Functional Overview
The WLAN PC Card is designed to operate in the 2.4GHz
ISM frequency band, channels 1 to 11, as specified by the
FCC in the USA and ETSI in Europe (refer to Table 3). The
Card will also operate with reduced performance (due to
filter selection) on channel 14, specified for use in Japan.
Radio Transmitters must be certified in a country prior to
use. Refer to Table 4 for a list of countries and agencies that
have approved the WLANKITPR1-EVAL for operation.
The Intersil PRISM Chip Set and AMD PCNet Mobile allows
for high level integration allowing for reduced size,increased
throughput, improved radio performance and faster time to
market. The WLAN PC card implements Direct Sequence
Spread Spectrum DSSS technology providing superior noise
and signal jamming immunity including less severe impact
from unintentional radiators such as microwave ovens. The
user can connect the PC Card in an ad-hoc peer to peer
networking scheme, allowing for instant network setup in any
office environment. By using an access point, the wireless
LAN can be set up to allow for a greater number of users to
interconnect, and to increase the coverage area. With a
portal, the wireless LAN can be easily connected into an
existing wired LAN, allowing for easy expansion of the
service.
To learn more about what the IEEE802.11 is, refer to:
• Tech Brief TB337 “A Brief Tutorial on Spread Spectrum
and Packet Radio” [1].
For a more detailed description of radio operation, please
refer to:
• Data sheet “PRISM 2.4GHz Chip Set” [2] and:
• Application Note AN9624 “PRISM1KIT-EVAL DSSS PC
Card Wireless LAN Description” [3].
For more specific software questions, refer to:
• Application Note AN9666 “Wireless LAN Evaluation Kit
SW Installation and Usage” [4].
The MAC Protocol Handler
(AMD® PCNet™ Mobile) (AM79C930)
The PCNet Mobile device (AM79C930) and its firmware are
responsible for running the 802.11 protocol in the WLAN
card. This section describes thefeatures of IEEE 802.11that
are implemented. Further information can be obtained from
the following documents:
1. AMD PCNet MobiIe WLAN Controller, Firmware Overview (available from AMD)
2. Firmware InterfaceSpecification for IEEE 802.11/D5
(available from AMD)
Contact AMD’s web site:
http://www.amd.com/products/npd/npd.html
select Available Literature
or PCnet Family Drivers
The functions supported by the STA (station) Firmware are:
• DCF (Distributed Coordination Function)
• CSMA/CA (Carrier Sense Multiple Access with
Collision Avoidance)
• Random Backoff
• RTS/CTS Handshake (Ready To Send/Clear To Send)
and NAV Management (Network Allocation Vector)
• MAC Level Acknowledgments (Media Access Control)
• Re-Transmission of Unacknowledged Frames
• Duplicate Detection and Rejection
• Broadcast and Multicast Frames
• Fragmentation and Re-Assembly
• Power Management (Planned)
• Timestamp Synchronization
• Probe Generation
• Beacon Generation in an Ad-Hoc Network
• Probe Response Generation in an Ad-Hoc Network
Card Information Structure
The standard Intersil WLAN PC Card will be supplied with
the following information embedded in the CIS. It should be
noted that in most systems this information is displayed
when the card is inserted. Customization of the CIS for
specific customer requirements is available upon request, to
enable customer information to be displayed when the card
is inserted.
TABLE 1.
FUNCTION NAME CONTENT
Manufacturer’s ID 00
Function ID Network Adapter
Product Revision 5
Manufacturer AMD
Product AM79C930
PROG
LOT
WLANKITPR1-EVAL
AMD® is a registered trademark of Advanced Micro Devices, Inc.
PCNet™ is a trademark of Advanced Micro Devices, Inc.
4-384
Network Driver Software
The Intersil WLAN PC Card will be supplied with NDlS2,
NDIS3 and ODInetwork drivers. These driverswill be tested
with the following network operating systems:
Contact the factory for latest software status or visit our
PRISM web site: http://www.intersil.com/prism/prism.htm
IEEE 802.11 International Agreement and
Frequency Assignments
The IEEE802 LAN committee has forged an international
agreement providing for wireless data communication
standards for thefrequency range of 2.4GHz to 2.4853GHz,
as allocated bythe FCC in the USA, and in the 2.471GHz to
2.497GHz frequency range, as specified by the regulatory
authority in Japan. These standards are designed to focus
the industry to develop highly integrated, low cost,
interoperable WLAN equipment, of which WLANKITPR1EVAL is a prime example.
There are 11 channels specified by the FCC in the 2.4GHz
to 2.4853GHz range, and one channel in the 2.471GHz to
2.497GHz range, for operation in Japan. The ETSl
(European) regulatory body conforms to the USA (FCC)
channel assignments with the exceptions of channels 1 and
2 as shown in Table 3.
The available channels of operation in the 2.4GHz to
2.4853GHz and 2.471GHz to 2.497GHz ranges are as follows:
Agency and Regulatory Body Approvals
The WLAN PC Card will comply to the following standards:
TABLE 2. SOFTWARE COMPATIBILITY TESTING
MANUFACTURER TITLE VERSION DRIVER
Microsoft Windows for Work
Groups
3.11 NDlS2
Microsoft Windows 95 NDlS3
Microsoft Windows NT NDlS3
Novel Netware ODI
IBM OS2 ODI
TABLE 3.
CHANNELIDFCC CHANNEL
FREQUENCIES
ETSI CHANNEL
FREQUENCIES
JAPAN
FREQUENCY
1 2412MHz N/A N/A
2 2417MHz N/A N/A
3 2422MHz 2422MHz N/A
4 2427MHz 2427MHz N/A
5 2432MHz 2432MHz N/A
6 2437MHz 2437MHz N/A
7 2442MHz 2442MHz N/A
8 2447MHz 2447MHz N/A
9 2452MHz 2452MHz N/A
10 2457MHz 2457MHz N/A
11 2462MHz 2462MHz N/A
12 N/A 2467MHz N/A
13 N/A 2472MHz N/A
14 N/A N/A 2484MHz
TABLE 4.
COUNTRY APPROVAL NOTES
USA FCC part 15,
Sec. 15.247,
Sec. 15.107 and 15.109
Approved for
Intentional Radiators
Computer Peripheral
Canada ICAN RSS-210 Approved
Europe ETSI 300.328 Nov 96
EMC prETS 300.826
Planned
NOTES:
3. The Intersil FCC Identification Number is: MRF13316C2
4. The IC Approval Number is: CAN2722102478
WLANKITPR1-EVAL
4-385
Absolute Maximum Ratings Operating Conditions
Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 6.0V (Max)
Storage Temperature (Note 5). . . . . . . . . . . . . . . . . . -20oC to 65oC
Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . 0oC ≤ TA≤ 55oC
Supply Voltage Range. . . . . . . . . . . . . . . . . . . . . . . .4.75V to 5.25V
NOTE:
5. All temperature references refer to ambient conditions.
Caution: These are the absolute maximum ratings for the PC Card product. Exceeding these limits could cause permanent damage to the card.
Electrical Specifications Test conditions supply voltage: 5V ±5%, T
A
= 25oC
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
CURRENT CONSUMPTION
Average Current
(Without Power Saving Mode) (Note 6)
I
CC
2% Transmit 98% Receive - 290 - mA
Average Current
(With Power Saving Mode) (Note 6)
I
CC
2% TX 90% Standby 8% RX - 60 - mA
Continuous Transmit Mode I
CC
- 488 - mA
Continuous Receive Mode I
CC
- 287 - mA
Standby (Note 6) I
CC
Estimated - 30 - mA
PC CARD LOGIC LEVELS
Input HIGH Voltage V
IH
2.4 - VCC +0.2 V
Input LOW Voltage V
IL
0.0 - 0.8 V
Output HIGH Voltage V
OH
-0.4mA lLOAD 2.8 - V
CC
V
Output LOW Voltage V
OL
4mA ILOAD - - 0.45 V
12mA lLOAD - - 0.45 V
24mA ILOAD - - 0.45 V
PC CARD LEAKAGE CURRENT
Input Leakage Current L
IN
-10 - 10 µA
PC CARD LOADING CAPACITANCE
Input Capacitance C
IN
- - 12 pF
Output Capacitance C
OUT
- - 12 pF
ENVIRONMENTAL SPECIFICATIONS
Vibration Vib 10 to 2000Hz, VCC = 0 - - 15 G
Drop Drop - - 75 cm
Torque T 10o Max - - 11 Lb/Ft
2
ESD ESD Non-Operating - - 1500 V
X-RAY X-RAY - - 10K Roentgen
UV UV Wavelength 254nm - - 15K µW/cm
Humidity RH - - 98 %
EMI EMI - - 1K Oersted
WLANKITPR1-EVAL
4-386
RF SYSTEM SPECIFICATION
Antenna Gain AG MAX - 2.5 - dBi
ElRP ElRP - 20 - dBm
Receive Sensitivity RX_S 8% PER, 2mB/s - -88 - dBm
Maximum Receive Level RX_MAX PER <8% - -4 - dBm
Third Order Intercept Point (Input) IIP3 - -24 - dBm
Image Rejection IR PER <8% - 65 - dB
IF Rejection IFR PER <8% - 80 - dB
Adjacent Channel Rejection ACPR PER <8% (Note 7) - 63 - dB
Noise Figure RF Front End NF - 8 - dB
Data Rate (Physical Layer) Rate - 1 and 2 - Mbps
Data Rate (PC to PC) THRGH DQPSK 2Mb Mode - 1.2 - Mbps
NOTES:
6. Refer to Application Note “PRISM Power Management Modes” AN9665. [5]
7. The adjacent channel measurement is carried out on two channels specially separated by 25MHz (5 channels).
Electrical Specifications Test conditions supply voltage: 5V ±5%, T
A
= 25oC (Continued)
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

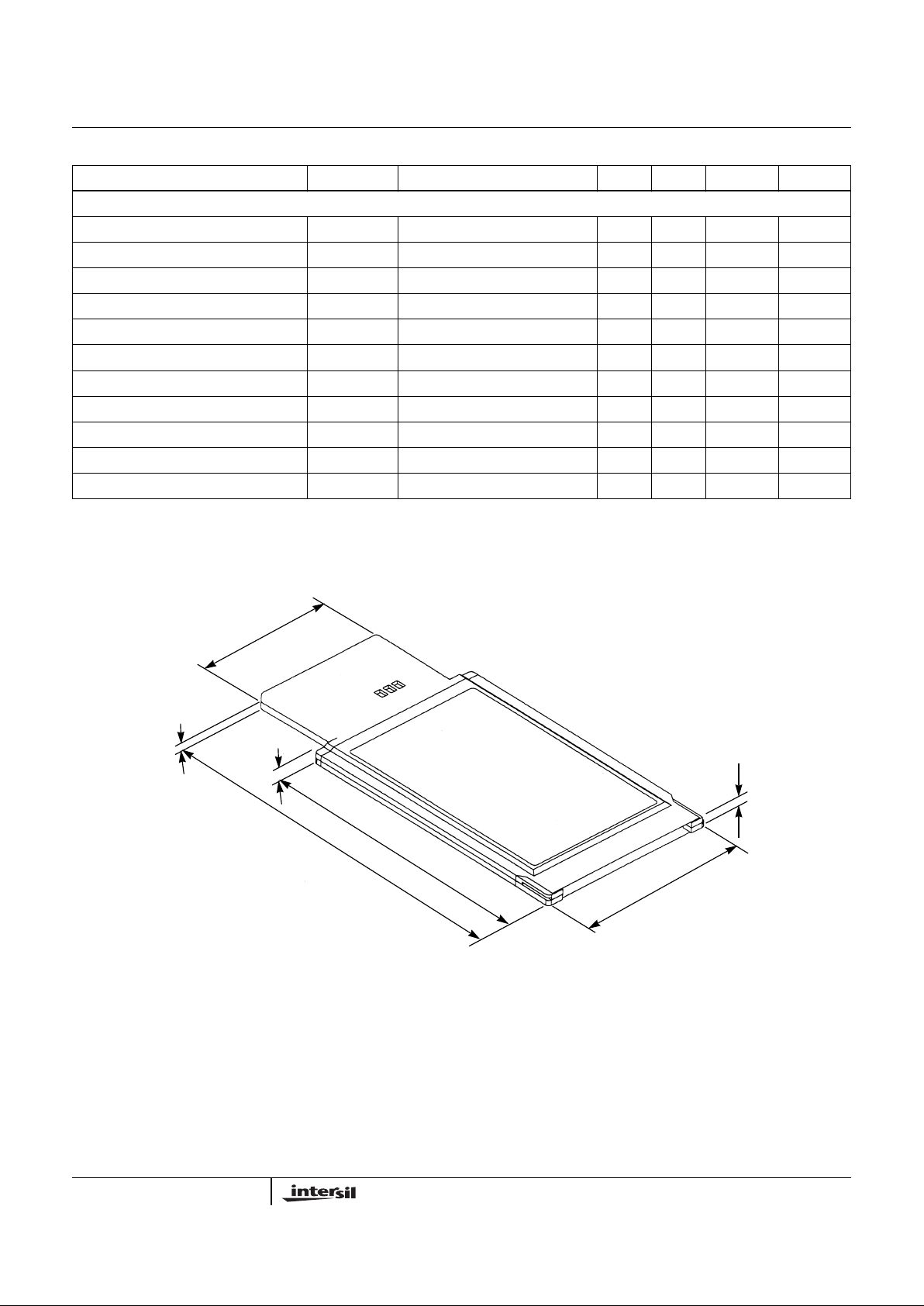

FIGURE 1. DIMENSIONED MECHANICAL DRAWING OF COVERSET
39.6mm
111.3mm
85.6mm
54mm
3.3mm
5.0mm
5.0mm
WLANKITPR1-EVAL
4-387
All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specificationsat any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site http://www.intersil.com
Sales Office Headquarters
NORTH AMERICA
Intersil Corporation
P. O. Box 883, Mail Stop 53-204
Melbourne, FL 32902
TEL: (407) 724-7000
FAX: (407) 724-7240
EUROPE
Intersil SA
Mercure Center
100, Rue de la Fusee
1130 Brussels, Belgium
TEL: (32) 2.724.2111
FAX: (32) 2.724.22.05
ASIA
Intersil (Taiwan) Ltd.
7F-6, No. 101 Fu Hsing North Road
Taipei, Taiwan
Republic of China
TEL: (886) 2 2716 9310
FAX: (886) 2 2715 3029

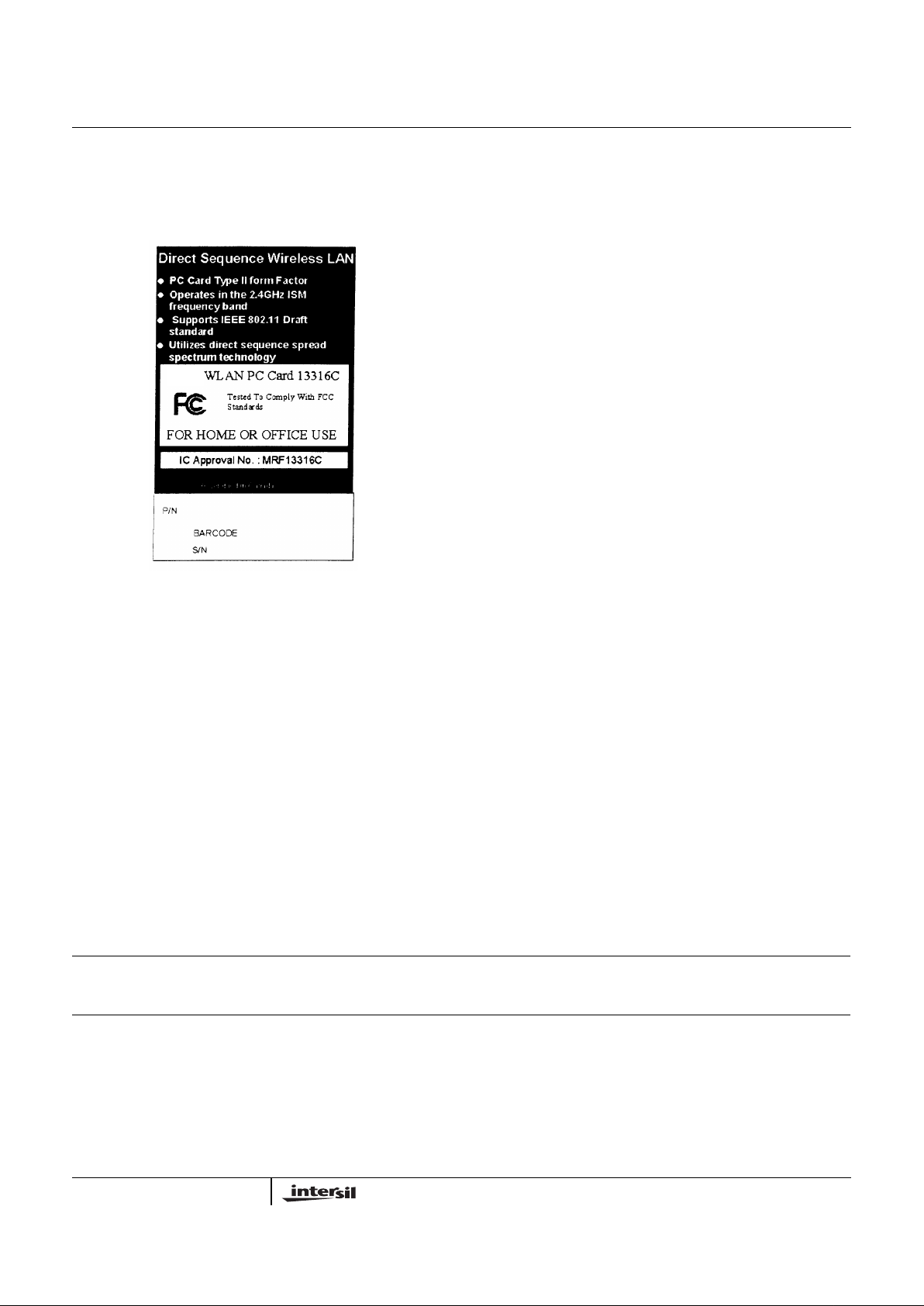

PC Card Labels
The PC Card is offered with generic back label as shown
below. Custom label options are available.
Back PC Card Label
References
For Intersil documents available onthe internet, see web site
http://www.intersil.com/
Intersil AnswerFAX (407) 724-7800.
[1]
TB337 Tech Brief
, Intersil Corporation, “A Brief Tutorial
on Spread Spectrum and Packet Radio”, AnswerFAX
document No. 82337.
[2]
PRISM 2.4GHz Chip SetData Sheet
, Intersil
Corporation, AnswerFAX document No. 4063.
[3]
AN9624 Application Note
, Intersil Corporation,
“PRISM1KIT-EVAL DSSS PC Card Wireless LAN
Description”, AnswerFAX document No. 99624.
[4]
AN9666ApplicationNote
,IntersilCorporation,“Wireless
LAN Evaluation Kit SW Installation and Usage”,
AnswerFAX Document No. 99666.
[5] AN9665 Application Note,IntersilCorporation, “PRISM
Power Management Modes”, AnswerFAX Document
No. 99665.
Further information can be found in the following:
• The PCNetMobile (AM79C930) data sheet,
http://www.amd.com/products/npd/npd.html.
• Intersil PRISM datasheets, web home page,
http://www.intersil.com/prism/prism.htm
• IEEE 802.11 Standards Project (available from the
IEEE, New York, USA).
• PC Card V2.1 Standard
WLANKITPR1-EVAL
Loading...
