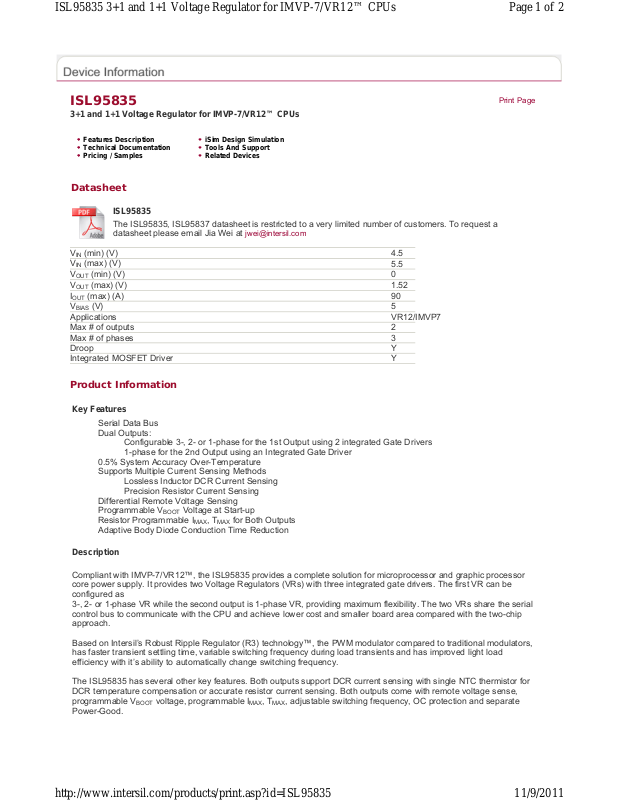

Intersil ISL95835 Datasheet
ISL95835
3+1 and 1+1 Voltage Regulator for IMVP-7/VR12™ CPUs
Features Description iSim Design Simulation
Technical Documentation Tools And Support
Pricing / Samples Related Devices
Datasheet
ISL95835
The ISL95835, ISL95837 datasheet is restricted to a very limited number of customers. To request a
datasheet please email Jia Wei at
jwei@intersil.com
Page 1 of 2ISL95835 3+1 and 1+1 Voltage Regulator for IMVP-7/VR12™ CPUs
Print Page
VIN (min) (V)
VIN (max) (V)
V
(min) (V)
OUT
V
(max) (V)
OUT
I
(max) (A)
OUT
V
(V)
BIAS
4.5
5.5
0
1.52
90
5
Applications VR12/IMVP7
Max # of outputs 2
Max # of phases 3
Droop Y
Integrated MOSFET Driver Y
Product Information
Key Features
Serial Data Bus
Dual Outputs:
Configurable 3-, 2- or 1-phase for the 1st Output using 2 integrated Gate Drivers
1-phase for the 2nd Output using an Integrated Gate Driver
0.5% System Accuracy Over-Temperature
Supports Multiple Current Sensing Methods
Lossless Inductor DCR Current Sensing
Precision Resistor Current Sensing
Differential Remote Voltage Sensing
Programmable V
Resistor Programmable I
Adaptive Body Diode Conduction Time Reduction
Voltage at Start-up
BOOT
MAX
, T
for Both Outputs
MAX
Description
Compliant with IMVP-7/VR12™, the ISL95835 provides a complete solution for microprocessor and graphic processor
core power supply. It provides two Voltage Regulators (VRs) with three integrated gate drivers. The first VR can be
configured as
3-, 2- or 1-phase VR while the second output is 1-phase VR, providing maximum flexibility. The two VRs share the serial
control bus to communicate with the CPU and achieve lower cost and smaller board area compared with the two-chip
approach.
Based on Intersil’s Robust Ripple Regulator (R3) technology™, the PWM modulator compared to traditional modulators,
has faster transient settling time, variable switching frequency during load transients and has improved light load
efficiency with it’s ability to automatically change switching frequency.
The ISL95835 has several other key features. Both outputs support DCR current sensing with single NTC thermistor for
DCR temperature compensation or accurate resistor current sensing. Both outputs come with remote voltage sense,
programmable V
voltage, programmable I
BOOT
MAX
, T
, adjustable switching frequency, OC protection and separate
MAX
Power-Good.
11/9/2011http://www.intersil.com/products/print.asp?id=ISL95835
The ISL95837 can be considered as ISL95835 dedicated for 1+1 application. VR1 and VR2 are both 1-phase VR.
Pricing / Packaging / Samples / O r dering
Page 2 of 2ISL95835 3+1 and 1+1 Voltage Regulator for IMVP-7/VR12™ CPUs
iBuy direct from Intersil
Check distributor inventory
Part No.
ISL95835HRZ Active Hi-Temp Comm
ISL95835HRZ-T Active Hi-Temp Comm
ISL95835IRZ Active Ind
ISL95835IRZ-T Active Ind
iBuy direct - out of stock
Available in RoHS/Pb-Free
Request samples
Design-In
Status Temp. Package MSL
40 Ld QFN
40 Ld QFN T+R
40 Ld QFN
40 Ld QFN T+R
Price
US $
3
3
3
3
The price listed is the manufacturer's suggested retail price for quantities of 1K units. However, prices
in today's market are fluid and may change without notice.
MSL = Moisture Sensitivity Level - per IPC/JEDEC J-STD-020
SMD = Standard Microcircuit Drawing
Technical Documentation
Datasheet(s):
The ISL95835, ISL95837 datasheet is restricted to a very limited number of customers. To request a datasheet please
email Jia Wei at jwei@intersil.com
Tools And Support
iSim Design Simulation
No Models Available
Applications
IMVP-7/VR12 Compliant Computers
Related Devices Parametric Table
ISL6353
ISL6363
ISL6364
ISL6364C
ISL6366
ISL95831
ISL95837
Multiphase PWM Regulator for VR12 DDR Memory Systems
Multiphase PWM Regulator for VR12™ Desktop CPUs
Dual 4-Phase + 1-Phase PWM Controller for VR12/IMVP7 Applications
Dual 4-Phase + 1-Phase PWM Controller for VR12 Desktop Applications
Dual 6-Phase + 1-Phase PWM Controller for VR12/IMVP7 Applications
3+1 Voltage Regulator for IMVP-7/VR12 CPUs
3+1 and 1+1 Voltage Regulator for IMVP-7/VR12™ CPUs
