Application Note 1562

ISL9519EVAL1Z Evaluation Board Setup Procedure

The ISL9519 is a highly integrated battery charger controller for Li-ion/Li-ion polymer batteries with SMBus interface controlling system voltage, charge current and input current limiting. The evaluation board includes a USB to SMBus interface to allow users to control the ISL9519 from a Personal Computer.

What’s Inside

This Evaluation Board Kit contains the following materials:

• Qty (1) ISL9519EVAL1Z Evaluation Board

• Qty (1) USB cable

What is Needed

The following materials are recommended to perform testing:

• One adjustable 25V 6A power supply

• Two adjustable electronic loads with constant current mode and constant voltage mode.

•One Volt Meter

• One 500MHz four-channel oscilloscope with voltage and current probes

• A Personal Computer (PC) with ISL9519 control software and drivers (all available at www.intersil.com)

Note: The National Instruments Runtime Engine must be installed before connecting the evaluation board to your PC. The Runtime Engine contains driver files required by the New Hardware Wizard.

AC ADAPTER

DC POWER SUPPLY

5V TO 20V, 5A

5V – 20V, 5A

INTERSIL

ISL9519EVAL1Z

ISL88731 EVAL2Z REVB

SYSTEM

AC ADAPTER

INPUT

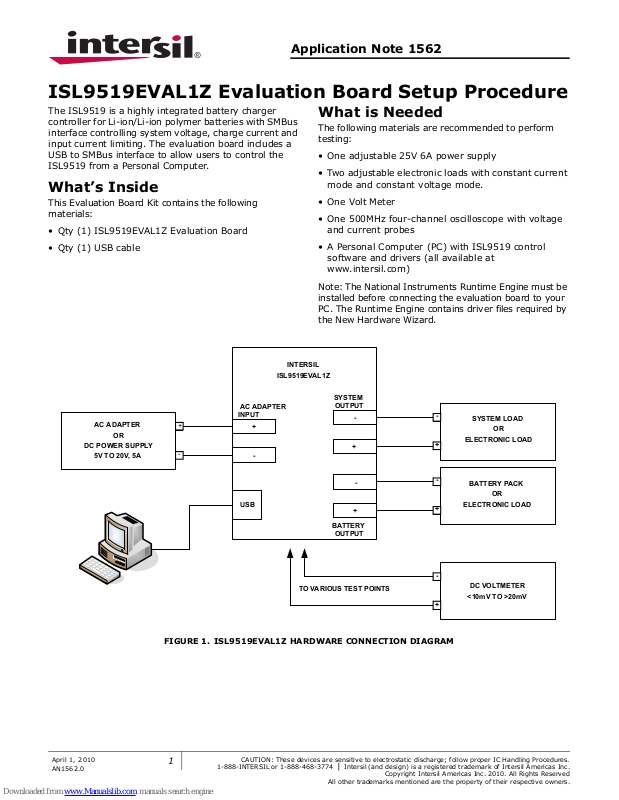

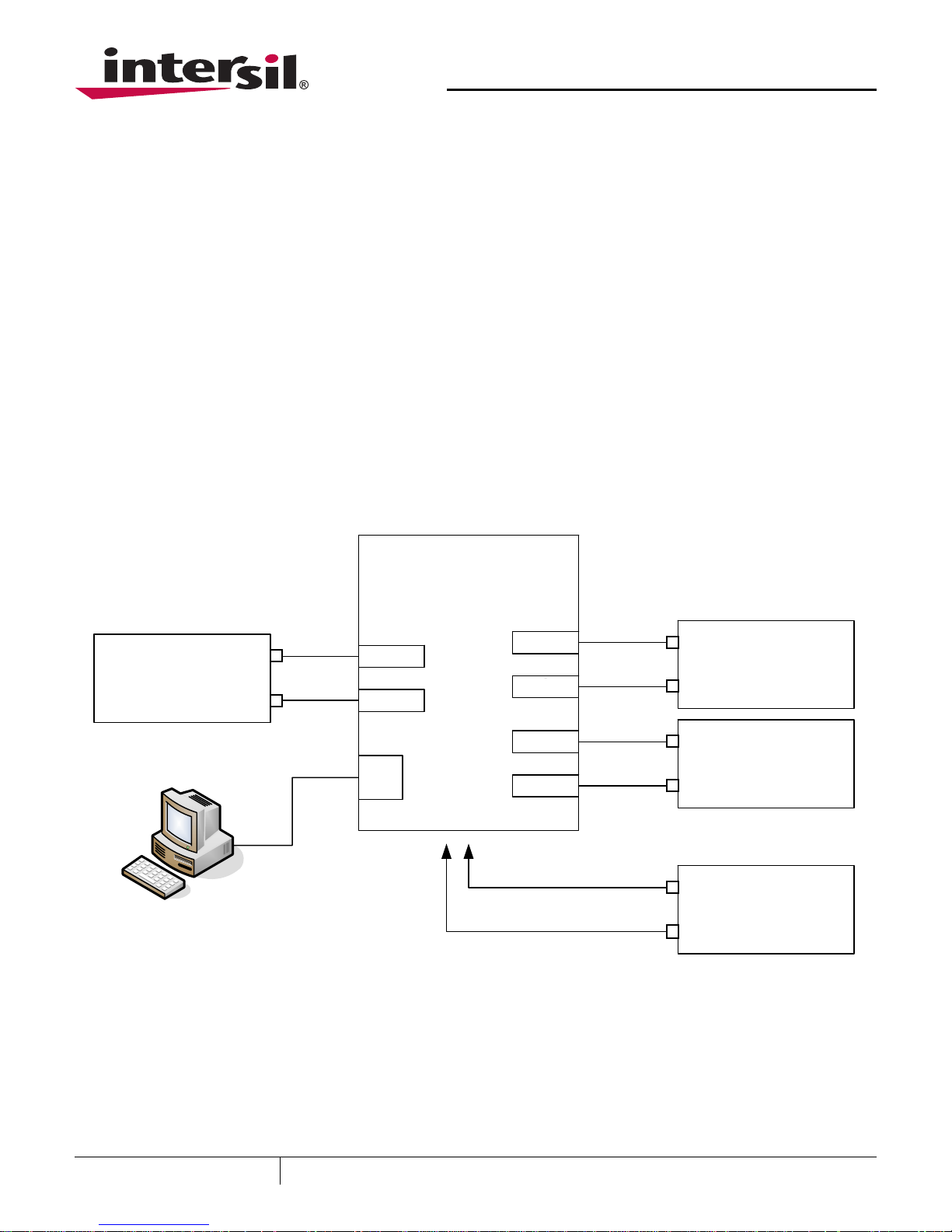

FIGURE 1. ISL9519EVAL1Z HARDWARE CONNECTION DIAGRAM

USB

TO VARIOUS

TO VARIOUS TEST POINTS

TEST POINTS

OUTPUT

BATTERY

OUTPUT

SYSTEM LOAD

ELECTRONIC LOAD

BATTERY PACK

ELECTRONIC LOAD

DC VOLTMETER

<10mV TO >20mV

<10mV to >20v

April 1, 2010 AN1562.0

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Page 2

Application Note 1562

Install the Software

Download the ISL9519 CONTROL Software Installer.zip file from www,intersil.com. Extract it a folder on your PC. Navigate to the folder and double click the “Autoexec.exe” file.

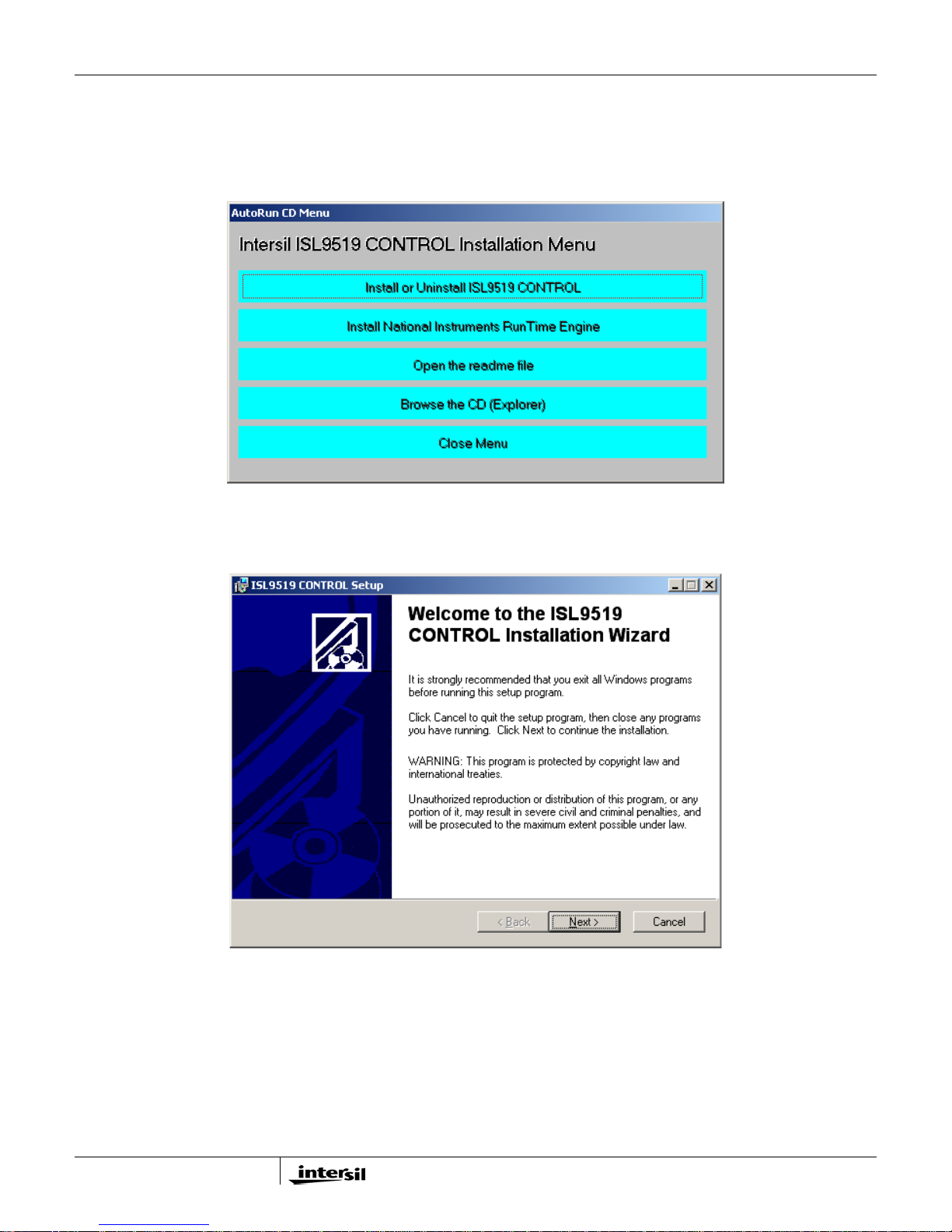

FIGURE 2. ISL9519EVAL1Z CONTROL SOFTWARE INSTALLATION MENU

Click on the “Install or Uninstall ISL9519 Control Software” to run the Installation Wizard.

You should now see a window as shown in Figure 3.

FIGURE 3. ISL9519EVAL1Z INSTALLATION WIZARD

AN1562.0

April 1, 2010

Page 3

Application Note 1562

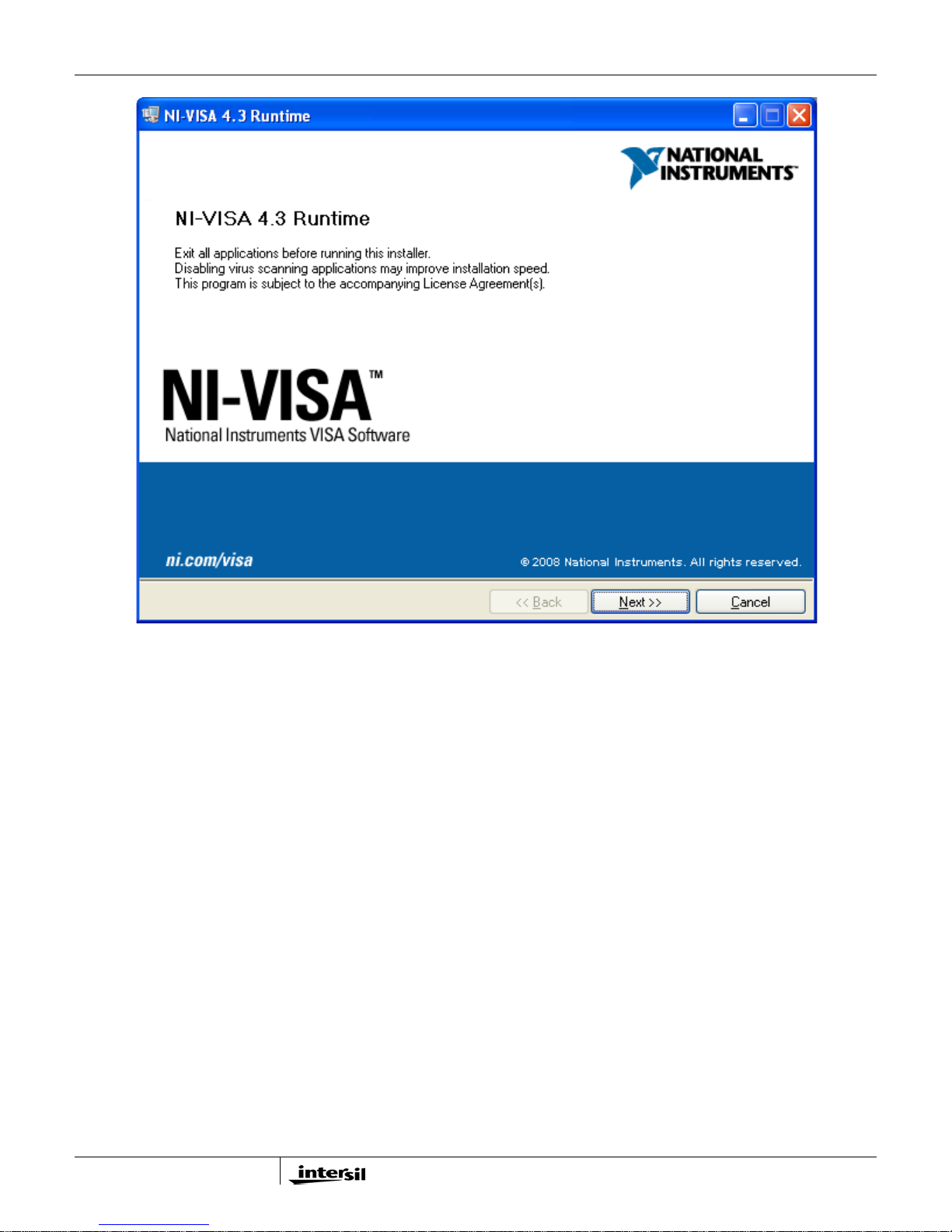

FIGURE 4. NATIONAL INSTRUMENTS RUNTIME ENGINE INSTALLATION WIZARD

In most PCs the National Instruments Runtime Engine will be installed automatically after the ISL9519 software. You should see the window as shown in Figure 4.

Follow the instructions to install the Runtime Engine. If it does not run automatically, click “Install National Instruments Runtime Engine” on the ISL9519 Control Software Installation Menu (see Figure 2). After installation, click on the Close Menu button.

Driver Installation

After installing the National Instruments Run-Time Engine, Connect the ISL9519EVAL1Z to the USB port of your PC.

Note: The SMBus part of the ISL9519 and the USB-SMBus interface are powered by the 5V from the USB port on the PC. It is not necessary to have other power supplies connected to the evaluation board to read or write to the ISL9519.

When WINDOWS detects new hardware, the new hardware wizard should appear. Direct it to look for the driver information file in the “ISL9519 CONTROL Software Installer” folder (extracted from the downloaded file). In some systems, it may be necessary to specify the driver information file (USB-I2C_WDM.inf).

Run the ISL9519 Application

ISL9519 should now appear in your START/ALL Programs list. Click on it to run the application.

Figure 5 shows a screen shot of the ISL9519 user interface.

AN1562.0

April 1, 2010

Page 4

Application Note 1562

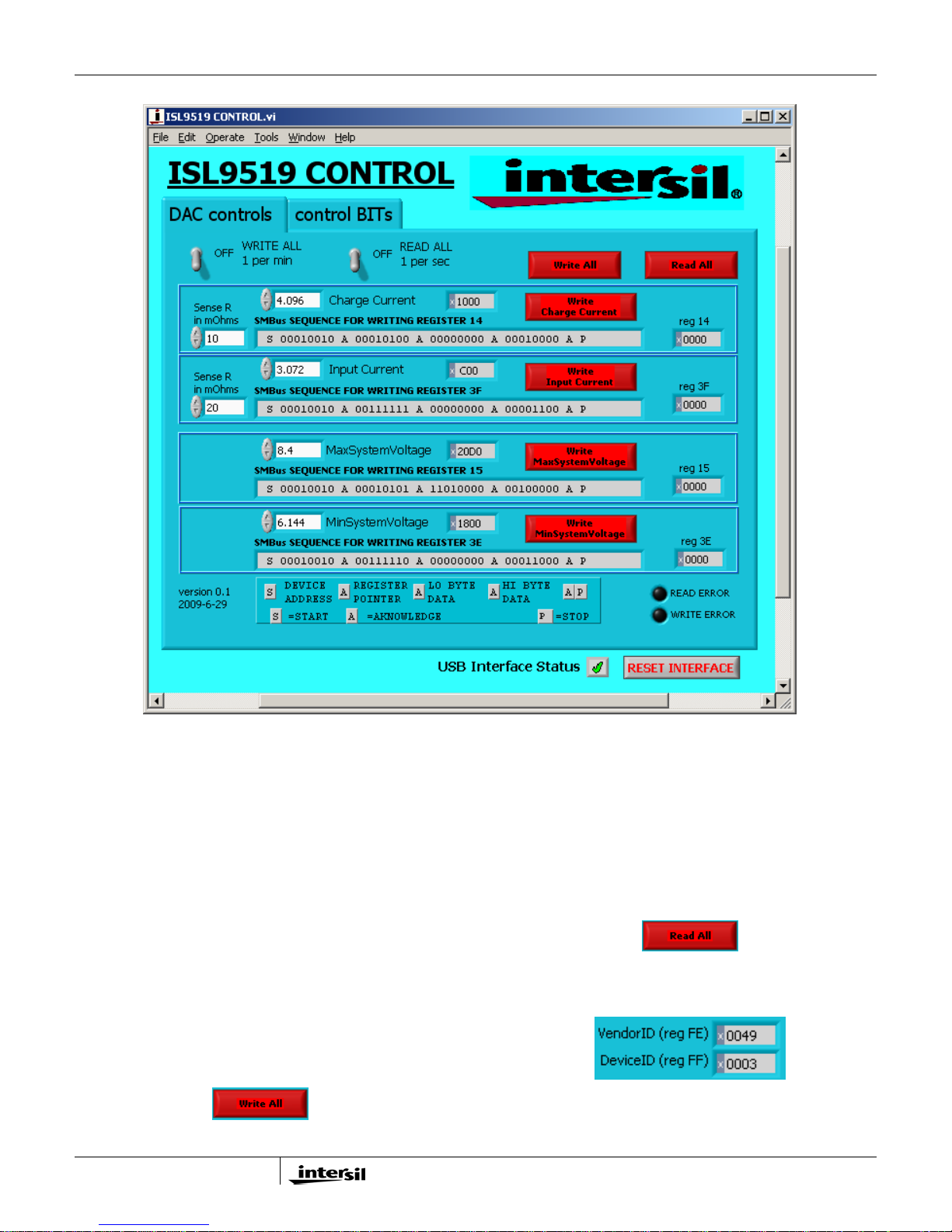

FIGURE 5. ISL9519 CONTROL SOFTWARE SCREEN SHOT

Enable the Output

When power is applied to the ISL9519, the Charge Current and Charge Voltage Registers are 0x0000 and the output is disabled. The output is enabled by writing valid, non-zero values to these 2 registers. See the ISL9519 datasheet for valid values.

The ISL9519 is also disabled if the ACIN pin is below

3.2V. An Input voltage >13.1V will pull ACIN above

3.2V. The minimum input voltage can be adjusted on the evaluation board by changing R

or R7 (see

Figure 11).

Description of the User Interface Controls and Display Information

Clicking the “Write All” button will write the indicated SMBus sequences to Registers 14, 15, 3F and 44 in the ISL9519.

Note: The SMBus part of the ISL9519 and the USB interface are powered by the 5V from the USB port on the PC. It is not necessary to have other power supplies connected to the evaluation board to read or write to the ISL9519.

Clicking on the “Read All” button will read all 6 registers in the ISL9519 and display the results in the grey indicators below the Read All button.

If the device and the interface are operating normally, the VendorID (reg FE) and the DeviceID (reg FF) will display as follows:

If the VendorID (reg FE) and DeviceID (reg FF) remain 0000 it indicates a communication problem.

AN1562.0

April 1, 2010

Page 5

Application Note 1562

If the Visa resource name is blank, it indicates a problem with the USB communication.

Clicking on the “RESET INTERFACE” button may correct the problem. If not, try closing the software, remove power and USB connections from the evaluation board, then reconnect and restart.

Note the register contents are updated ONLY when the Read All button is clicked.

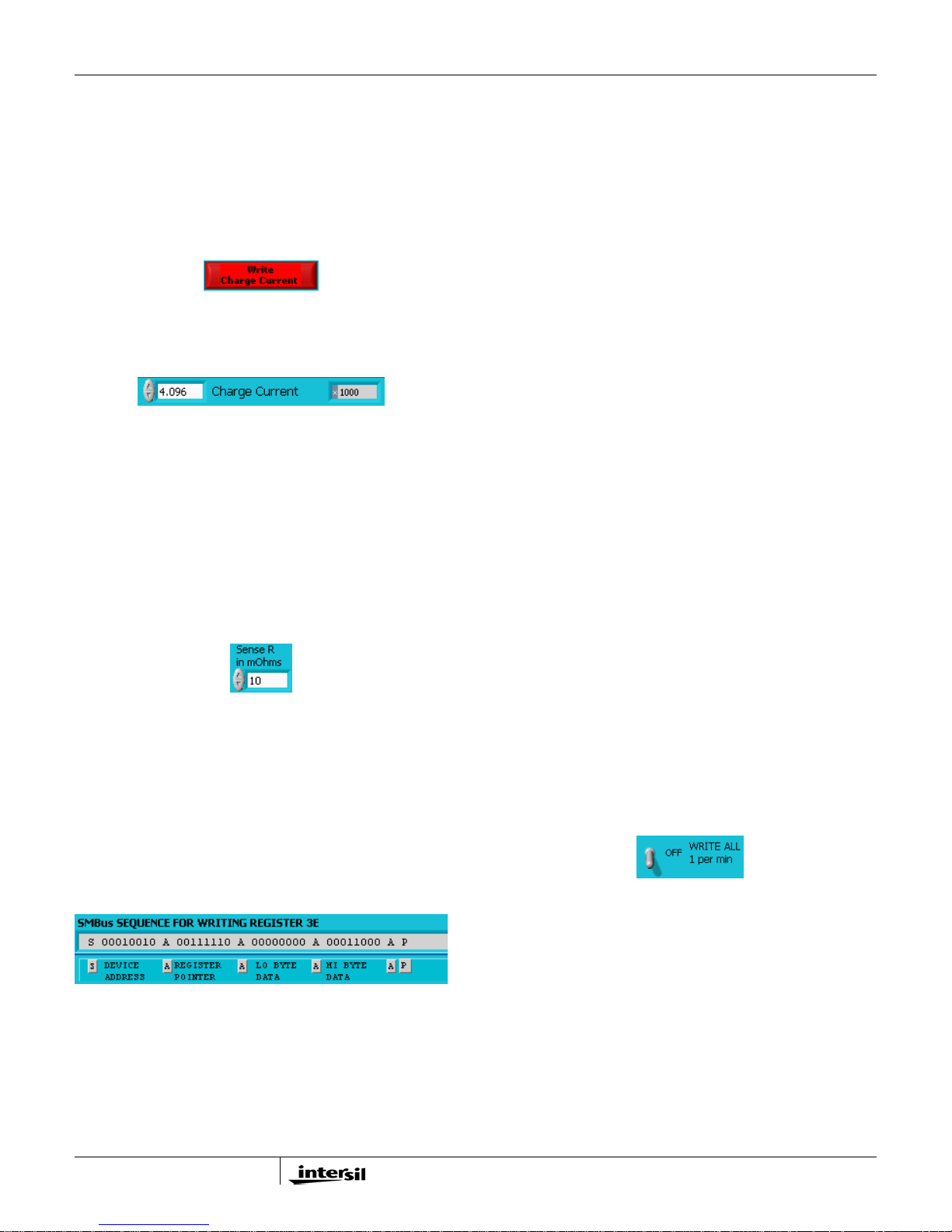

The Write Charge Current Button sends only the charge current to the ISL9519. Other registers are unchanged.

The small white window next to “Charge Current” accepts inputs in Amps, and converts them the hexadecimal (hex) value to be written to the ISL9519 in the grey window. The hex value depends on the value entered in Sense R. The value in the white window will be forced to the nearest valid number that can be produced by the DAC in the ISL9519. That is, after entering 4 and hitting the enter key, the display will change to 3.968. After entering 4.1 and hitting the enter key, the display will change to 4.096. The value can be incremented and decremented with the up/down arrows at the left of the window.

S = the Start condition, A = the Acknowledge, P = the Stop condition.

Note: The LO byte is sent first. The HI byte is sent second.

When writing 0x41A0, 0xA0 is written first and 0x41 is sent second.

Important Note: The SMBus commands are NOT sent until one of the WRITE buttons is clicked (i.e. Write All or Write Charge Current)

Important Note: Max System Voltage Commands that a much higher than the voltage for the number of cells selected by the CELL pin are ignored (not acknowledged). Please refer to the Max System Voltage section of the datasheet for details.

The Write MaxSystem Voltage button writes only the MaxSystem Voltage register. Other registers are unchanged.

The small white window accepts Max System Voltage (in Volts) and calculates the hexadecimal value and the SMBus sequence to write to the ISL9519. The SMBus command is sent when the Write MaxSystem Voltage or Write All button is clicked. See Figure 8.

The Write Input Current button writes only the Charge Current register. Other registers are unchanged. The small white window accepts Input Current Limit in Amps and calculates the hex value and the SMBus sequence to be written to the ISL9519. The Sense R input Is used to calculate the hex value and the SMBus sequence. The SMBus command is sent when the Write Input Current or Write All button is clicked. See Figure 9.

The Sense R inputs are used to calculate the hexadecimal (hex) values and the SMBus sequences for the Charge Current limit and Input Current limit entered in the white boxes. The evaluation board is built with 10mΩ sense resistors. If you change them to another value, enter the new value to get correct calculations.

After entering a number in the white box, hitting the enter key or clicking on another area will enter the value and the resulting hex value and the SMBus sequence will be calculated and displayed.

The ISL9519 will shut down unless it receives MaxSystem Voltage or Charge Current commands every 175s. This is a safety feature that prevents overcharging batteries if bus master has stopped functioning. A toggle switch can be set to tell the software to write all commands every 60 seconds.

AN1562.0

April 1, 2010

Page 6

Application Note 1562

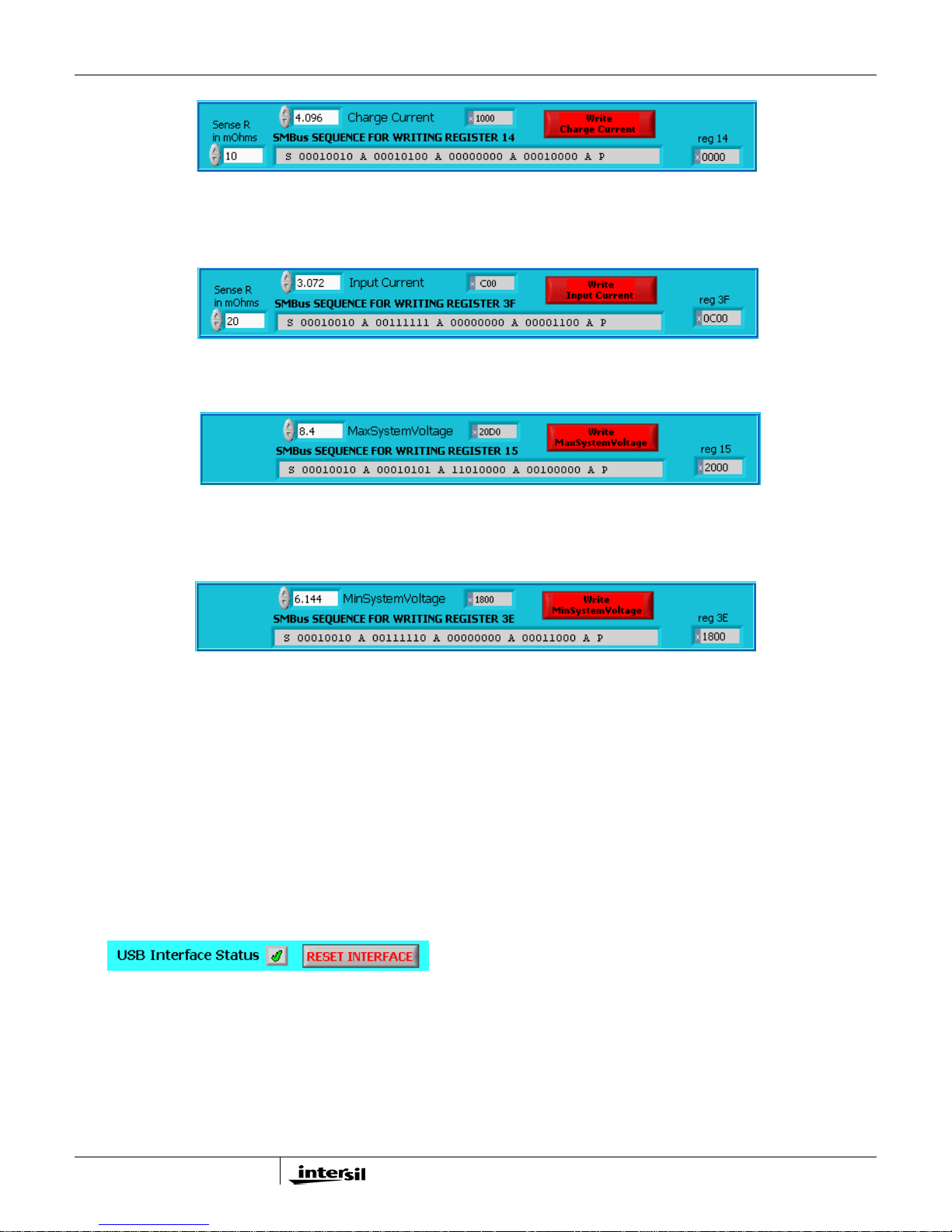

FIGURE 6. WRITE CHARGE CURRENT

FIGURE 7. WRITE INPUT CURRENT

FIGURE 8. WRITE MAX SYSTEM VOLTAGE

FIGURE 9. WRITE MIN SYSTEM VOLTAGE

Interface Troubleshooting

When the evaluation board is connected to the PC by a USB cable and communicates with the interface on the evaluation board a green check mark will appear next to the USB Interface Status.

If there is a red X instead of the green check, it indicates a problem with communication between the PC and the micro controller on the evaluation board. Check and correct the connection of the USB cable to your PC and the evaluation board. Click on the “RESET INTERFACE” button.

If you still get a red X, Close and restart the ISL9519 control software.

If you still get a red X, Open the Device Manager (Control Panel/System/Device Manager) with the ISL9519EVAL1Z evaluation board connected to your USB port. You should see a device named “NI-VISA USB Device”. If it is not in the list of devices, the driver may not be correctly installed. Run the New Hardware wizard.

If you still get a red X, contact an Intersil Field Application Engineer for assistance.

AN1562.0

April 1, 2010

Page 7

Application Note 1562

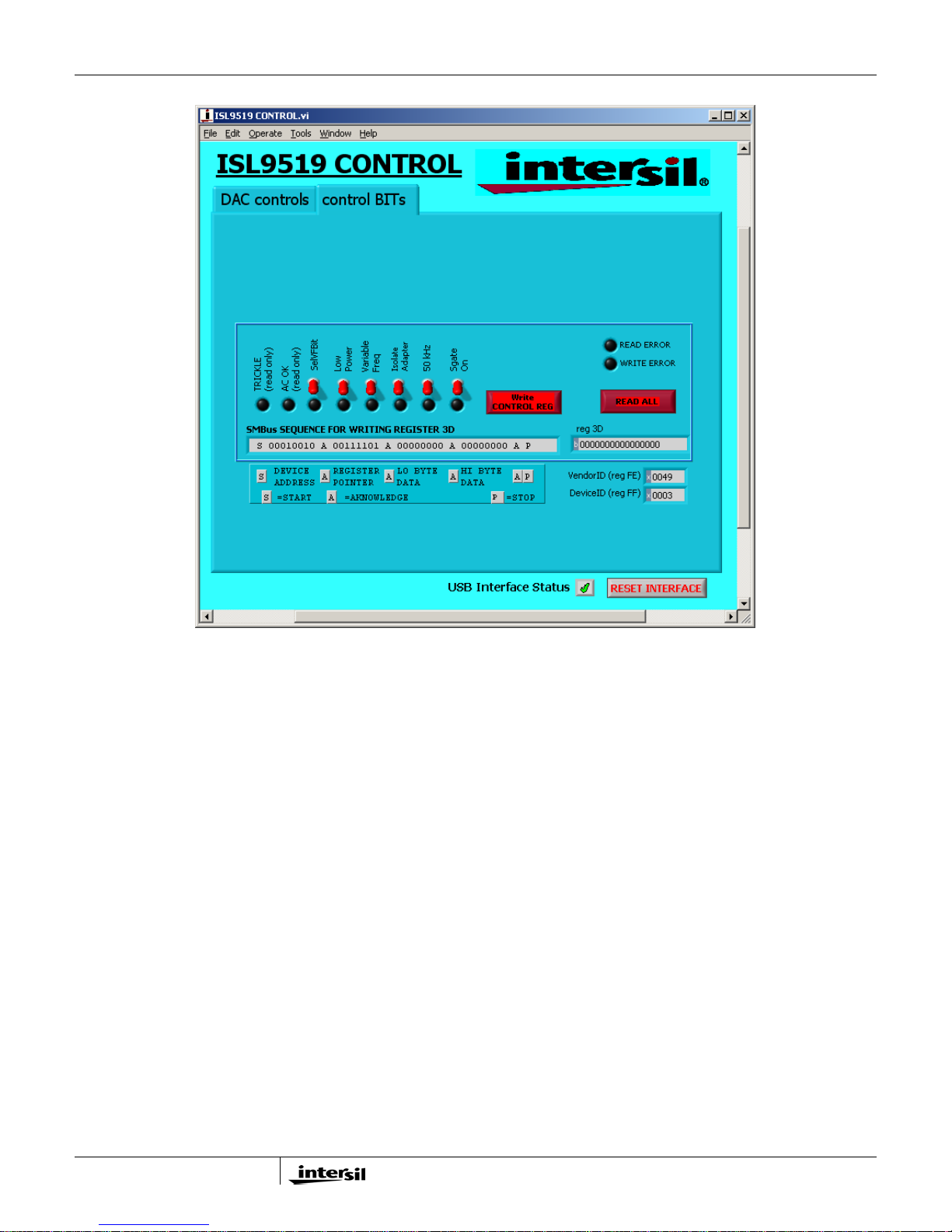

FIGURE 10. WRITE THE CONTROL REGISTER

AN1562.0

April 1, 2010

Page 8

AN1562.0

April 1, 2010

ISL9519EVAL1Z Schematics

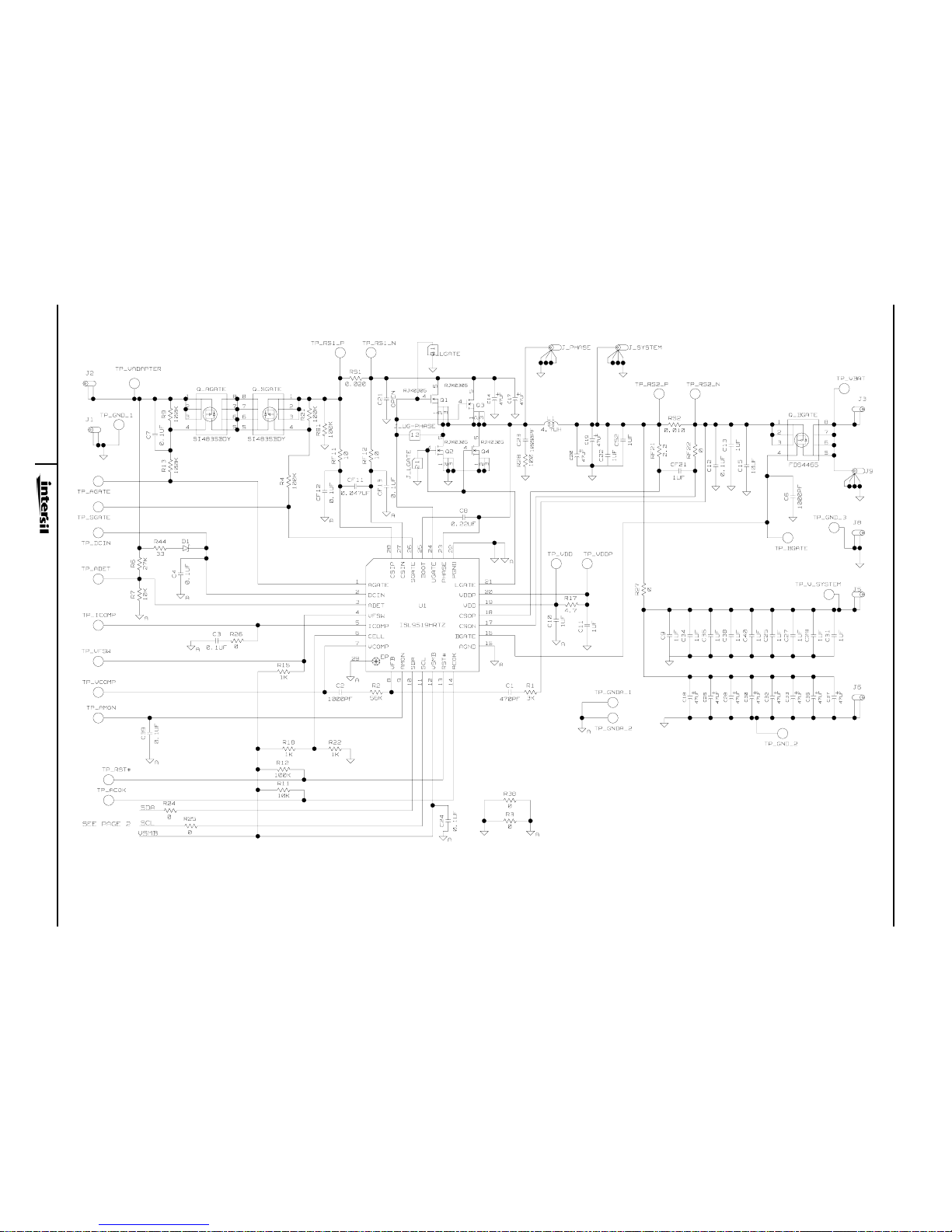

FIGURE 11. ISL9519EVAL1Z SCHEMATIC

SEE PAGE 2

0.1UF

TP_VADAPTER

Q_SGATE

SI4835BDY

27K

1UF

1K1K

0.047UF

0.1UF 1000PF

1UF

47UF

10UF

1UF

0.1UF

0.010

1UF

47UF

1UF

47UF

1UF

47UF

4.7

1UF

4.7UH

0.22UF

OPEN

56K

0.1UF

0.020

100K

100K100K

0.1UF

1000PF

10K

100K

0.1UF

SCL

SDA

0.1UF

470PF

ISL9519HRTZ

10K

VSMB

SI4835BDY

2.2

1UF

TP_VBAT

Q_BGATE

TP_GND_3

TP_BGATE

TP_V_SYSTEM

C31

C29

C27

C25

C37

C35

C33

C32

TP_GND_2

J_SYSTEMJ_PHASE

J_UGATE

TP_RS1_N

C15

C13

C12

TP_RS2_N

RS2

TP_RS2_P

C52

C19

C22

C40

C38

C36

C34

C30

C28

C26

C18

R27

C11

R17

TP_GNDA_1

TP_GNDA_2

C10

C17

R28

TP_VDD

J_UG-PHASE

J_LGATE

C21

R1C1

R38

C24

RS1

TP_RS1_P

R21

R91

Q_AGATE

R13

R44

R11

R12

R26

C39

TP_GND_1

TP_AGATE

TP_SGATE

TP_DCIN

TP_ADET

TP_ICOMP

TP_VFSW

TP_VCOMP

TP_AMON

TP_RST#

R25

R24

TP_ACOK

1011121314

22232425262728

RF11

RF12

R15

R18 R22

CF11

CF13

CF12

CF21

RF21

RF22

C20

TP_VDDP

47UF

C14

100

47UF

1000PF

C23

FDS4465

RJK0305RJK0305

RJK0305

1 2

DCIN

ICOMP

VFSW

CSIN

SGATE

CSIP

UGATE

BOOT

PHASE

PGND

LGATE

VDDP

VDD

CSOP

CSON

BGATE

AGND

ACOK

RST#

VSMB

SCL

SDA

AMON

VFB

VCOMP

CELL

AGATE

ADET

Application Note 1562

Page 9

AN1562.0

April 1, 2010

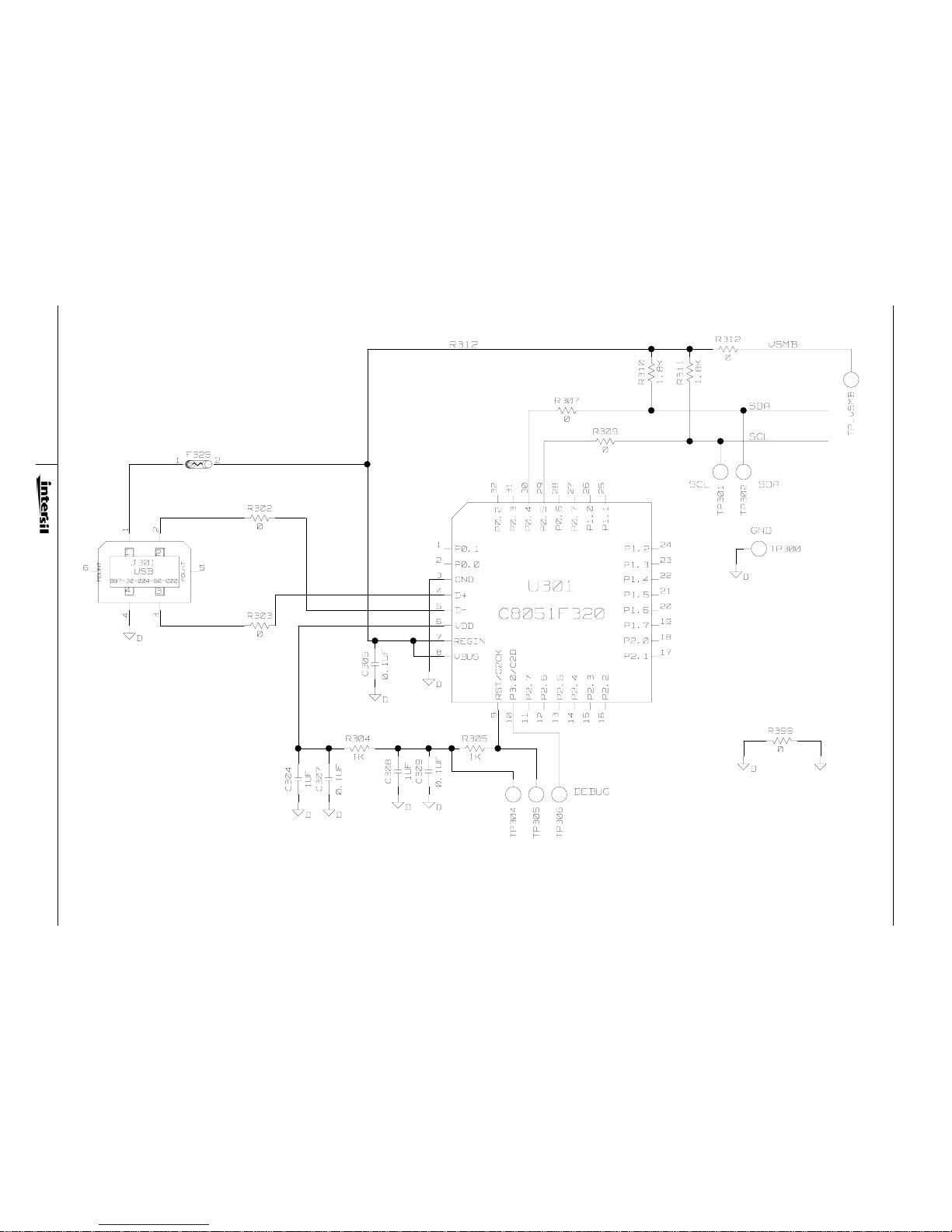

FIGURE 12. ISL9519EVAL1Z SCHEMATIC (USB - SMBUS INTERFACE)

ISL9519EVAL1Z Schematics (Continued)

DEBUG

GND

SCL SDA

J301

C304

C307

R304

R303

R302

F325

C308

C309

C305

R305

TP304

10111213141516

U301

TP305

TP306

R309

R307

R310

R399

TP300

TP301

TP302

R311

R312

TP_VSMB

1.8K

C8051F320

0.1UF

1UF

0.1UF

1UF

897-30-004-90-000

VSMB

SDA

SCL

R312

USB

MOUNT

P0.1

GND

D+

D-

VDD

P3.0/C2D

P2.7

P2.6

P2.5

P2.4

P2.3

P2.2

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

P2.0

P2.1

P0.6

P1.1

P0.3

P0.4

P0.5

P0.7

P0.2

P1.0

P0.0

REGIN

VBUS

RST/C2CK

Application Note 1562

Page 10

ISL9519EVAL1Z Layout

Application Note 1562

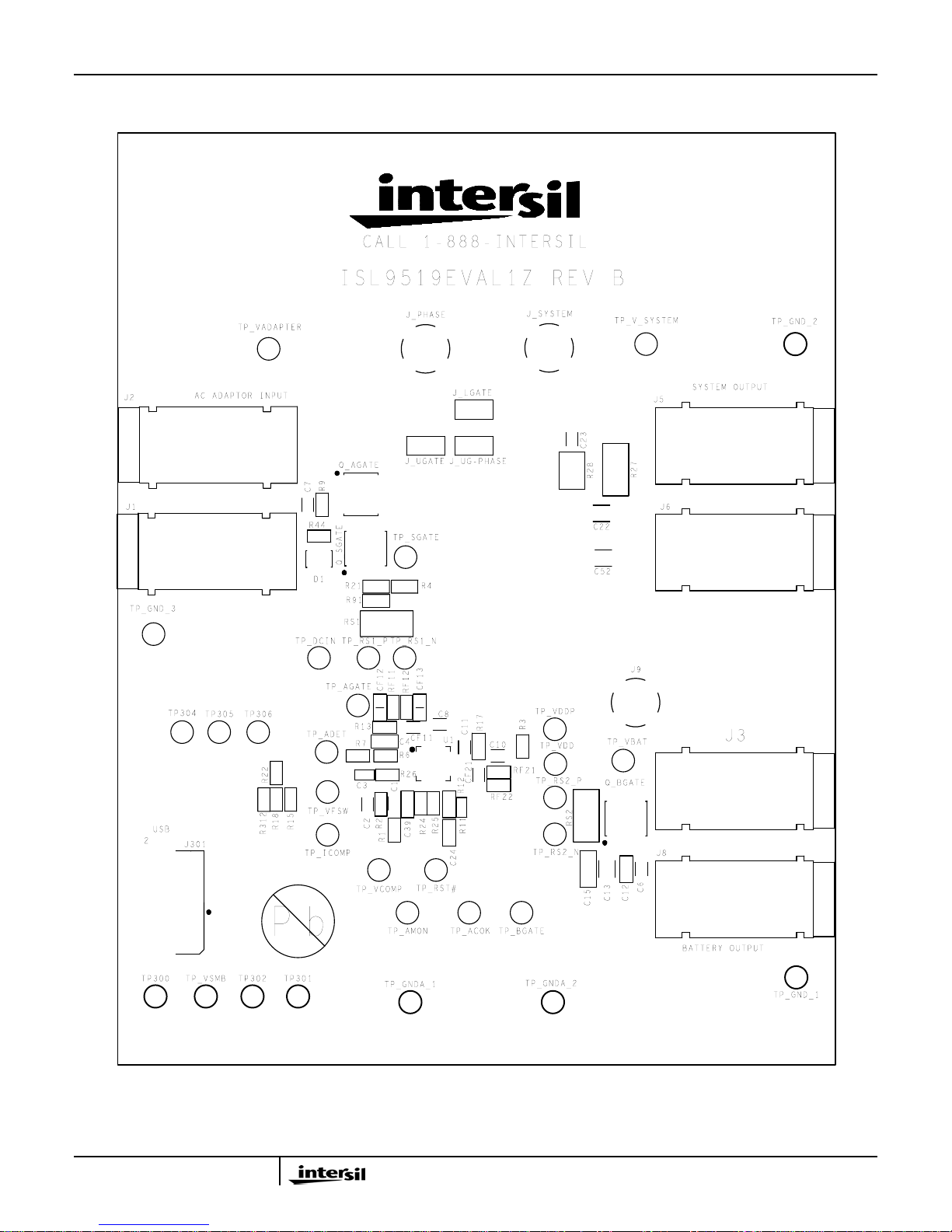

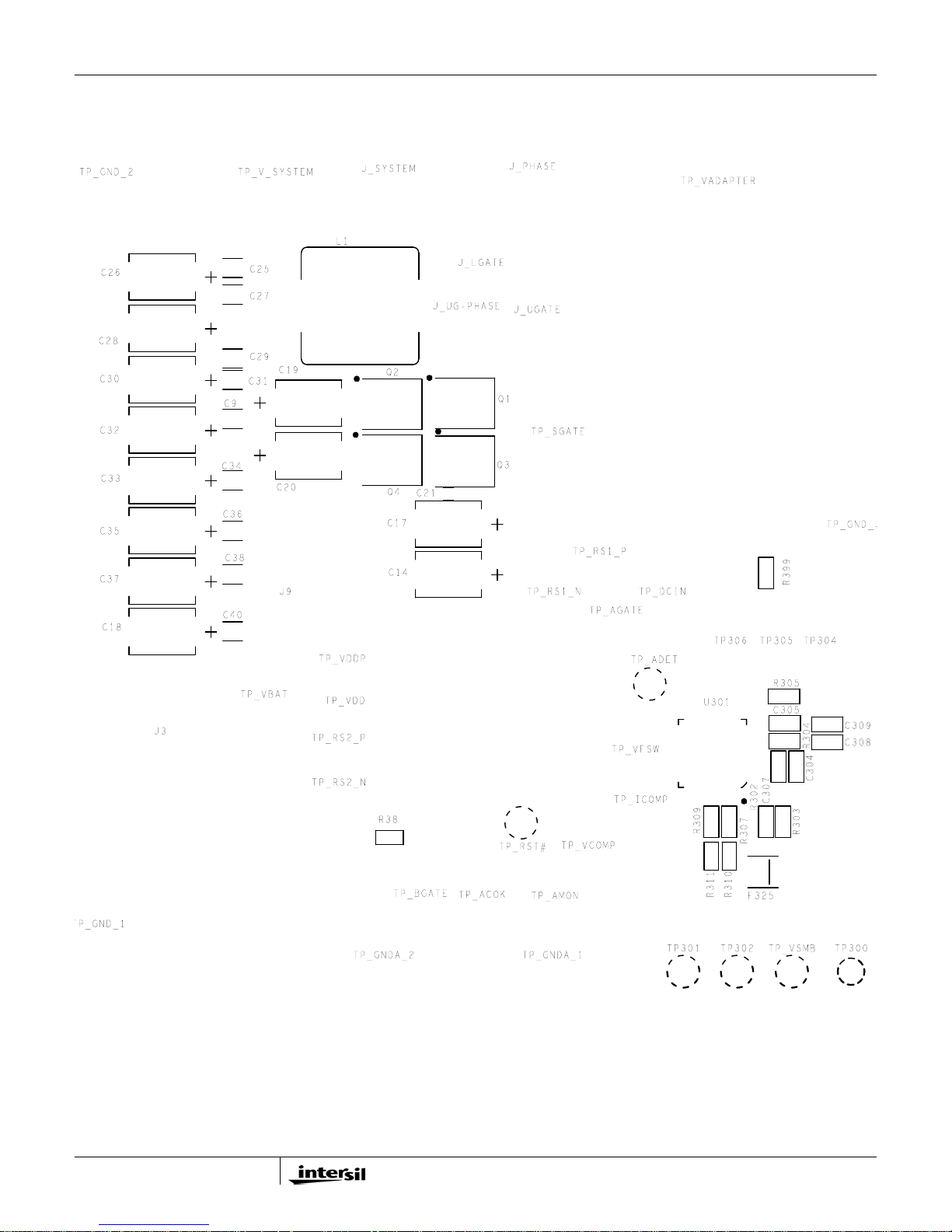

FIGURE 13. ISL9519EVAL1Z REV B TOP SILK SCREEN

AN1562.0

April 1, 2010

Page 11

Application Note 1562

ISL9519EVAL1Z Layout (Continued)

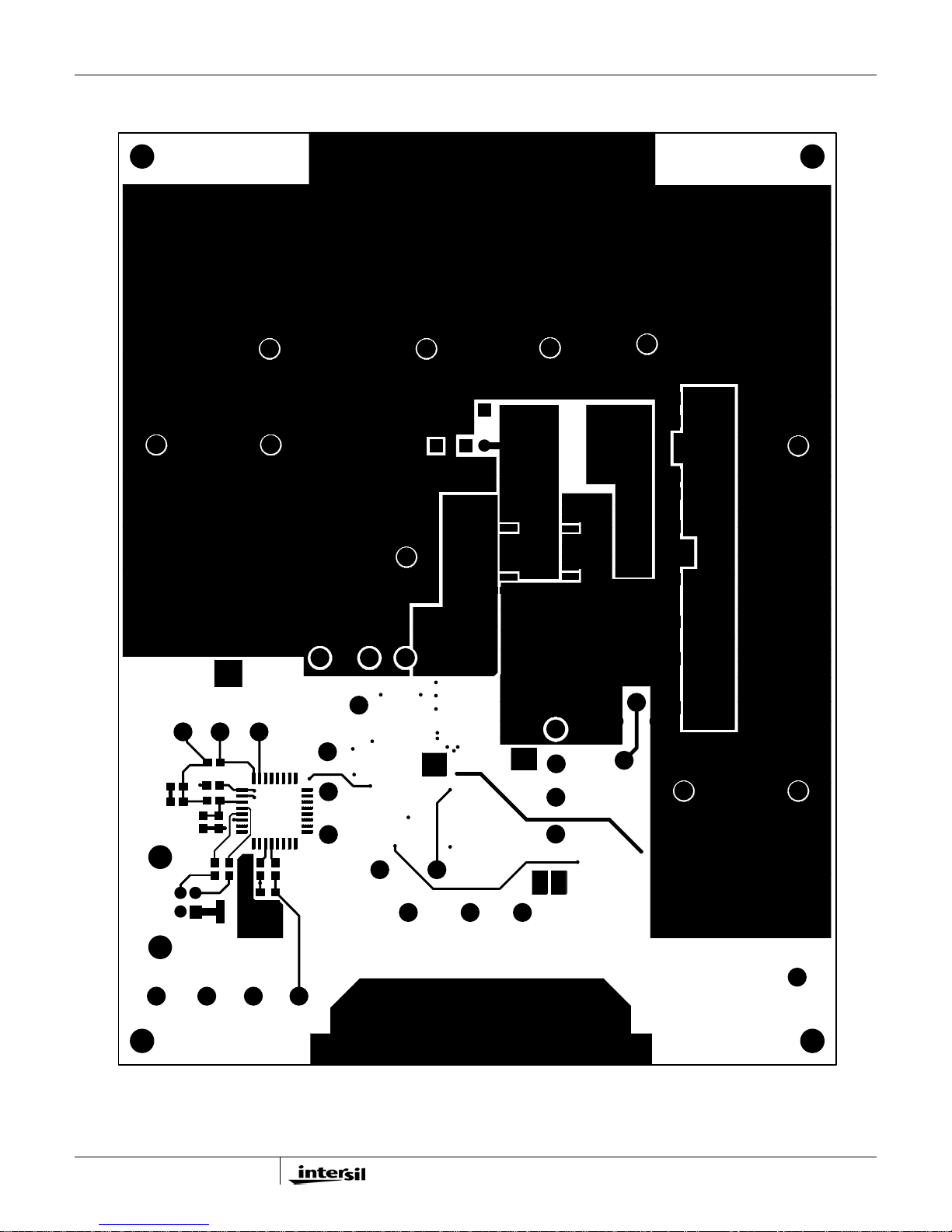

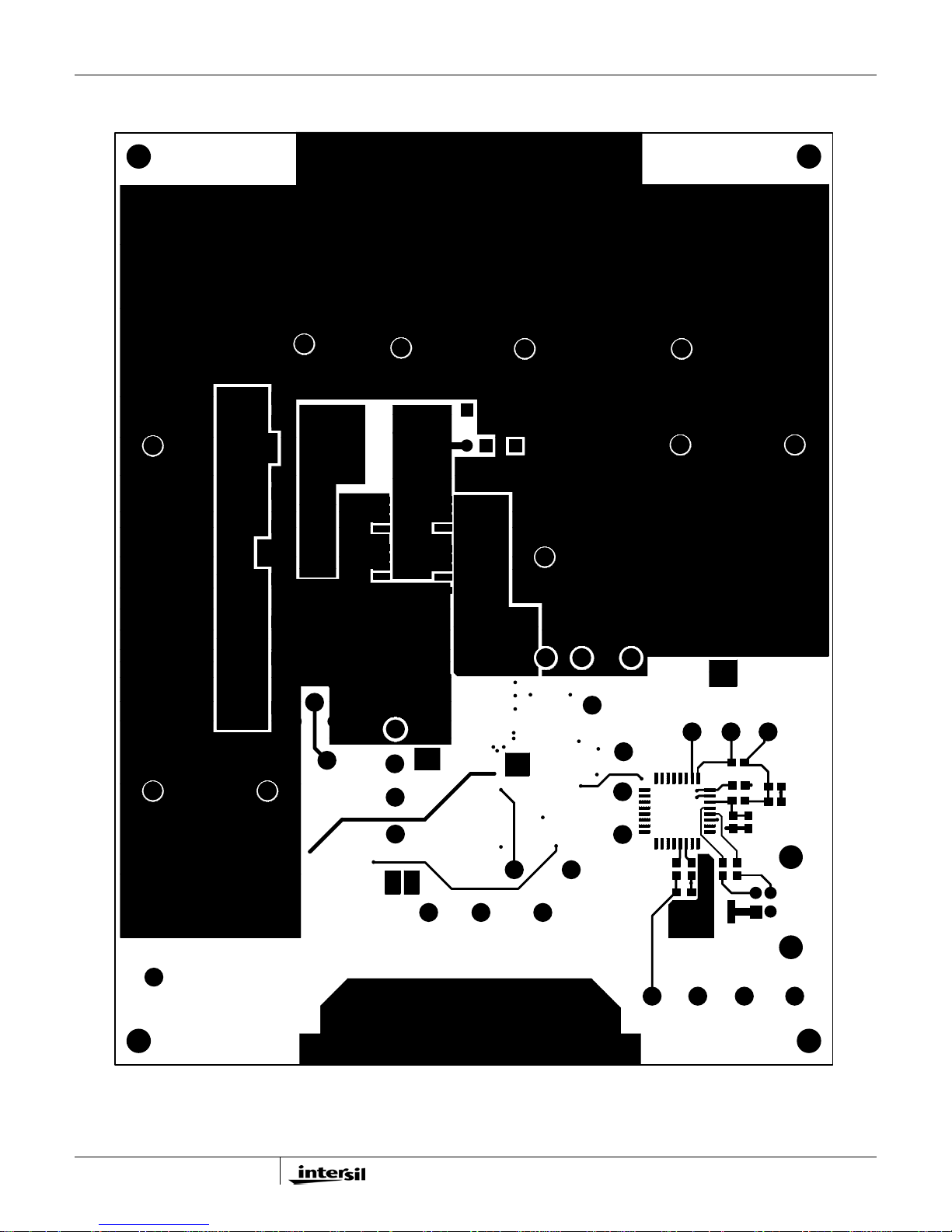

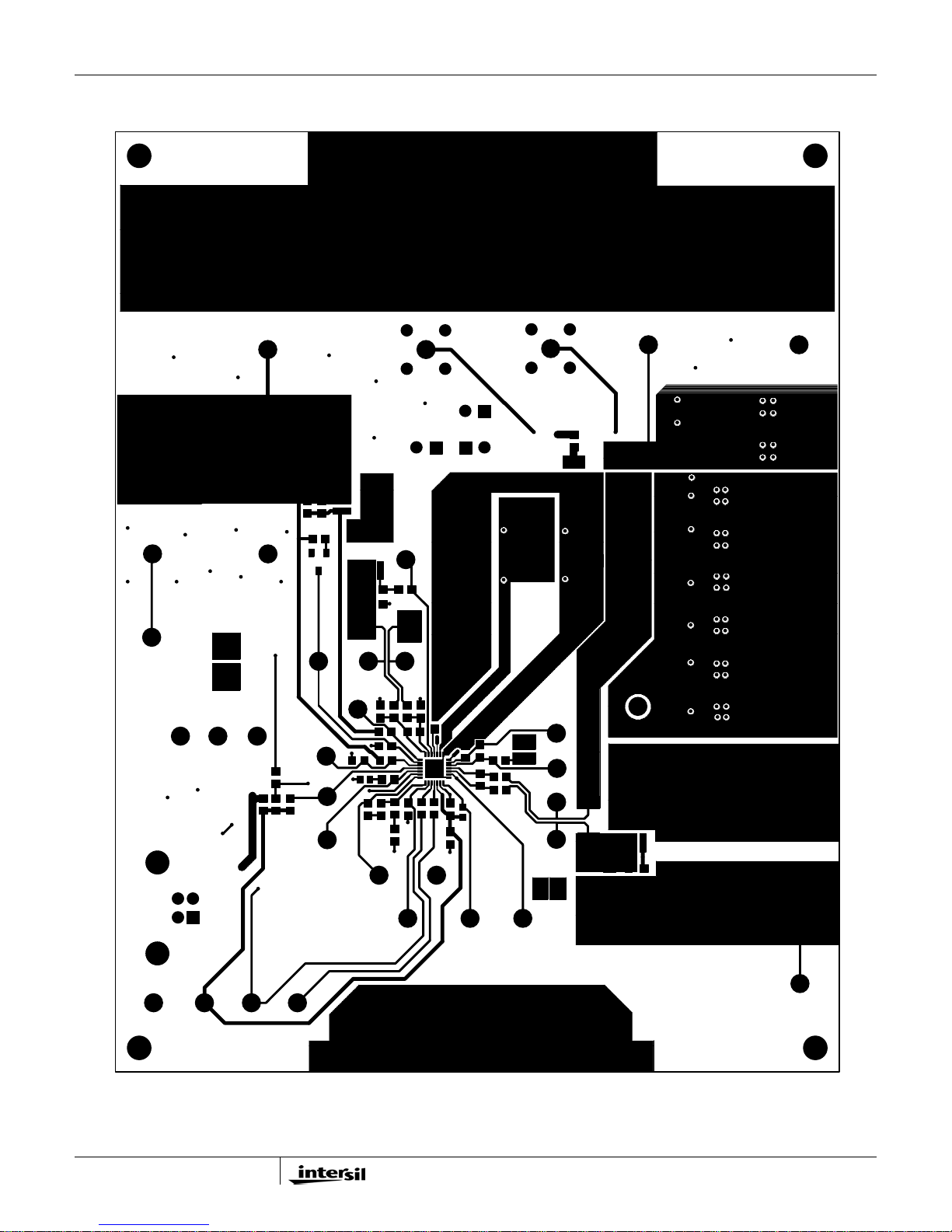

FIGURE 14. ISL9519EVAL1Z REV B TOP LAYER COPPER

AN1562.0

April 1, 2010

Page 12

Application Note 1562

ISL9519EVAL1Z Layout (Continued)

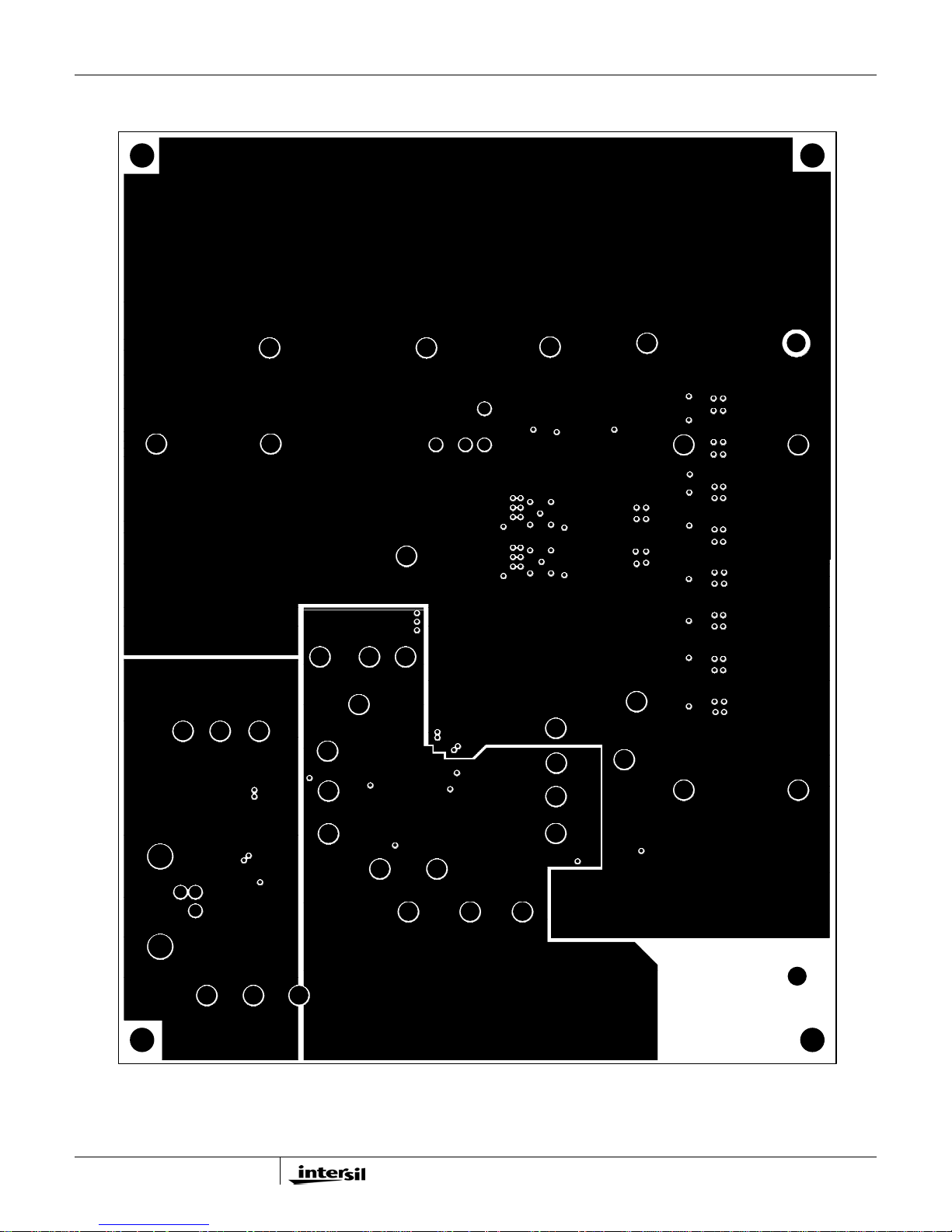

FIGURE 15. ISL9519EVAL1Z REV B LAYER 2 COPPER (VIEWED FROM THE TOP)

AN1562.0

April 1, 2010

Page 13

Application Note 1562

ISL9519EVAL1Z Layout (Continued)

FIGURE 16. ISL9519EVAL1Z REV B LAYER 3 COPPER (TOP VIEW)

AN1562.0

April 1, 2010

Page 14

Application Note 1562

ISL9519EVAL1Z Layout (Continued)

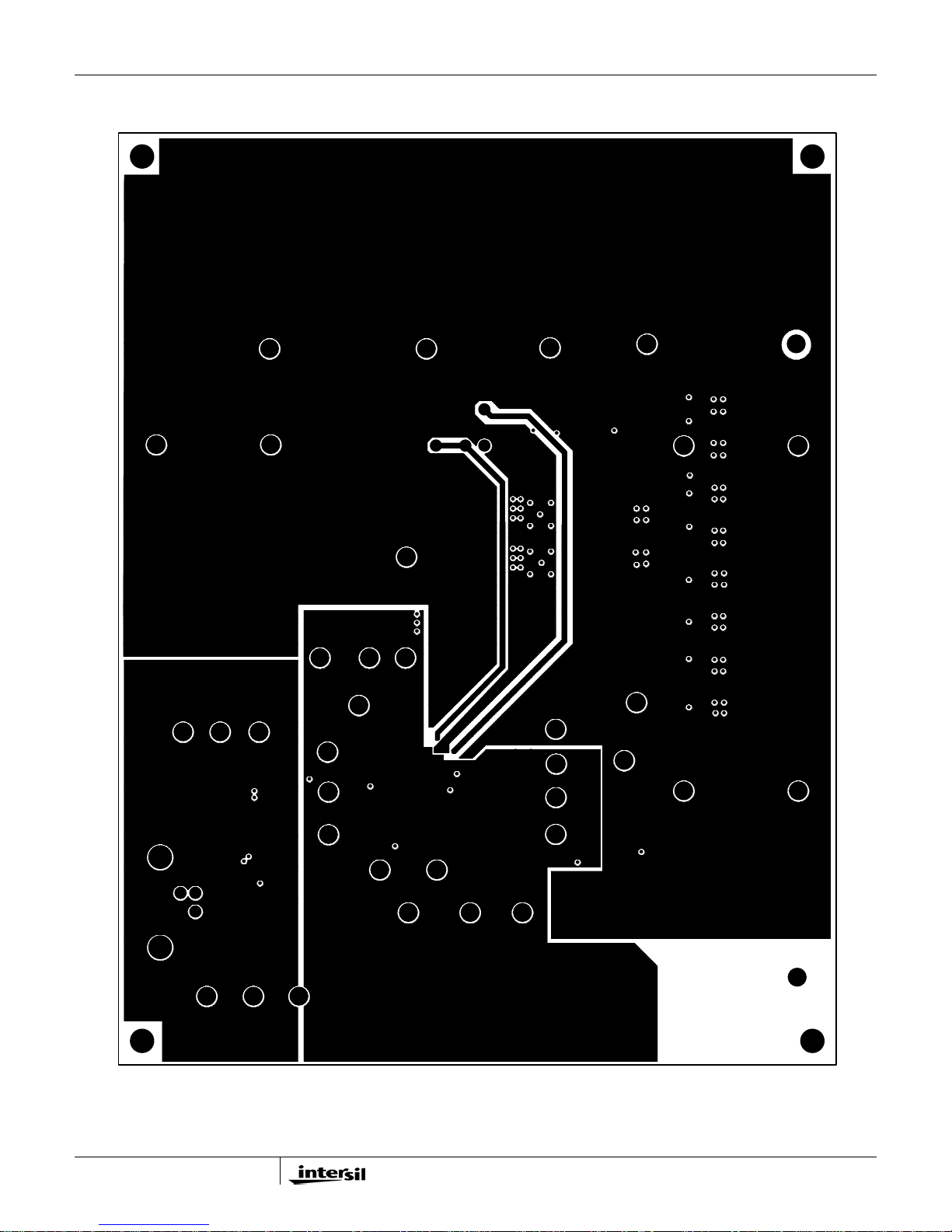

FIGURE 17. ISL9519EVAL1Z REV B BOTTOM COPPER (IF VIEWED FROM THE TOP TO ALIGN WITH OTHER LAYERS)

AN1562.0

April 1, 2010

Page 15

Application Note 1562

ISL9519EVAL1Z Layout (Continued)

FIGURE 18. ISL9519EVAL1Z REV B BOTTOM COPPER (BOTTOM VIEW)

AN1562.0

April 1, 2010

Page 16

Application Note 1562

ISL9519EVAL1Z Layout (Continued)

FIGURE 19. ISL9519EVAL1Z REV B BOTTOM SILK SCREEN

AN1562.0

April 1, 2010

Page 17

Application Note 1562

ISL9519EVAL1Z Bill of Materials

PART NUMBER REF DES VALUE TOL. MANUFACTURER DESCRIPTION

H1045-00471-50V5 C1 470pF 5% GENERIC Multilayer Cap

H1045-00105-6R3V10 C10, C11 1µF 10% GENERIC Multilayer Cap

H1065-00106-25V20 C15 10µF 20% GENERIC Multilayer Cap

H1045-00102-50V5 C2, C6, C23 1000pF 5% GENERIC Multilayer Cap

H1044-OPEN C21 OPEN OPEN GENERIC Multilayer Cap

H1044-00104-25V10 C3 0.1µF 10% GENERIC Multilayer Cap

H1045-00105-6R3V10 CF21 1µF 10% GENERIC Multilayer Cap

H1045-00104-25V10 C4, C5, C7, C12, C24, C39,

CF12, CF13

H1045-00224-25V20 C8 0.22µF 20% GENERIC Multilayer Cap

H1045-00473-25V10 CF11 0.047µF 10% GENERIC Multilayer Cap

BAT54 D1 DIODES 30V Schottky Diode

68000-236 J_LGATE, J_UGATE, J_UG-

PHASE

164-6218 J1, J6, J8 MOUSER Single Point RA PCB Mount (Black)

164-6219 J2, J3, J5 MOUSER Single Point RA PCB Mount (Red)

897-30-004-90-000 J301 MIL-MAX Type B Receptacle USB Connector

131-5031-00 J9, J_PHASE, J_SYSTEM TEKTRONIX Scope Probe Test Point PCB Mount

FDS4465 Q_BGATE Fairchild 30V to 7.4A P-Channel MOSFET

SI4835BDY Q_AGATE, Q_SGATE Siliconix 30V to 7.4A P-Channel MOSFET

H2505-03001-1/16WR1 R1 3k 0.10%GENERIC Metal Film Chip Resistor

0.1µF 10% GENERIC Multilayer Cap

FCI 2 Pin Header 2.54mm (0.100)

Pitch

H2510-01002-1/16W1 R11 10k 1% GENERIC Thick Film Chip Resistor

H2511-01001-1/16W1 R15 1k 1% GENERIC Thick Film Chip Resistor

H2511-004R7-1/16W5 R17 4.7 5% GENERIC Thick Film Chip Resistor

H2505-05602-1/16WR1 R2 56k 0.10%GENERIC Metal Film Chip Resistor

H2520-00R00-1/2W5 R27 0 5% GENERIC Thick Film Chip Resistor

H2514-01000-1/4W5 R28 100 5% GENERIC Thick Film Chip Resistor

H2511-00R00-1/16W1 R3, R24-R26, R38, RF22,

R312

H2511-01003-1/16W1 R4, R12, R21, R91 100k 1% GENERIC Thick Film Chip Resistor

H2511-00330-1/16W5 R44 33 5% GENERIC Thick Film Chip Resistor

H2511-02702-1/16W5 R6 27k 5% GENERIC Thick Film Chip Resistor

H2505-01002-1/16WR1 R7, R18, R22 10k 0.10%GENERIC Metal Film Chip Resistor

H2511-01003-1/10W5 R9, R13 100k 5% GENERIC Thick Film Chip Resistor

H2511-00100-1/16W1 RF11, RF12 10 1% GENERIC Thick Film Chip Resistor

H2511-002R2-1/16W5 RF21 2.2 5% GENERIC Thick Film Chip Resistor

LRC-LRF2010-01-R020-F RS1 0.02 1% IRC LRC/LRF Series Chip Resistor

LRC-LRF2010LF-01-R010-F RS2 0.01 1% IRC LRC/LRF Series Chip Resistor

0 1% GENERIC Thick Film Chip Resistor

(Pb-free)

AN1562.0

April 1, 2010

Page 18

Application Note 1562

ISL9519EVAL1Z Bill of Materials (Continued)

PART NUMBER REF DES VALUE TOL. MANUFACTURER DESCRIPTION

5009 TP_ACIN, TP_ACOK,

TP_AMON, TP_BMON, TP_VFSW, TP_ICOMP, TP_VCOMP, TP_SMB_RST_N

KEYSTONE Compact Yellow Test Point 0.070

Pad 0.041 Thole

5006 TP_DCIN, TP_AGATE,

5005 TP_VDD, TP_VBAT,

5001 TP300 KEYSTONE Miniature Black Test Point 0.100

5007 TP301-TP306, TP_RS1_P,

ISL9519HRTZ U1 INTERSIL Narrow VDC Regulator/Charger

Components below are on the bottom of the board

20TQC47M C14, C17-C20, C26, C28,

H1045-00105-6R3V10 C304, C308 1µF 10% GENERIC Multilayer Cap

H1045-00104-25V10 C305, C307, C309 0.1µF 10% GENERIC Multilayer Cap

H1046-00105-25V10 C9, C13, C22, C25, C27,

MICROSMD050F F325 ? ? RAYCHEM-TYCO PolySwitch SM Resetable Fuse

IHLP-5050CE-01-4R7M L1 4.7µH 20% VISHAY 13mm SMD Inductor

RJK0305 Q1-Q4 HITACHI N-Channel Power MOSFET

H2511-00R00-1/16W1 R302, R303, R307, R309,

H2511-01001-1/16W1 R304, R305 1k 1% GENERIC Thick Film Chip Resistor

H2511-01801-1/16W5 R310, R311 1.8k 5% GENERIC Thick Film Chip Resistor

C8051F320-GQ/PROGREV.02

TP_BGATE, TP_GND_1TP_GND_3, TP_RS1_N, TP_RS2_N, TP_SGATE, TP_GNDA_1, TP_GNDA_2

TP_VDDP, TP_VADAPTER, TP_V_SYSTEM

TP_RS2_P

47µF 20% SANYO TQC Series Hi-Volt Low ESR

C30, C32, C33, C35, C37

1µF 10% GENERIC Multilayer Cap C29, C31, C34, C36, C38, C40, C52

0 1% GENERIC Thick Film Chip Resistor

R399

U301 SILICON

KEYSTONE Compact Black Test Point 0.070

Pad 0.041 Thole

KEYSTONE Compact Red Test Point 0.070 Pad

0.041 Thole

Pad 0.040 Thole

KEYSTONE Compact White Test Point 0.070

Pad 0.041 Thole

(Pb-free)

Capacitor

General Purpose MicroControllers

LABRATORIES

Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that the Application Note or Technical Brief is current before proceeding.

For information regarding Intersil Corporation and its products, see www.intersil.com

AN1562.0

April 1, 2010
