ISL8840AMBEP, ISL8841AMBEP, ISL8842AMBEP,

ISL8843AMBEP, ISL8844AMBEP, ISL8845AMBEP

Data Sheet February 6, 2008

Enhanced Product (EP) High Performance Industry Standard Single-Ended Current Mode PWM Controllers

The ISL884xAMBEP is a high performance drop-in replacement for the popular 28C4x and 18C4x PWM controllers suitable for a wide range of power conversion applications including flyback, forward and boost output configurations. Its fast signal propagation and output switching characteristics make this an ideal product for existing and new designs.

Features include 30V operation, low operating current, 90µA start-up current, adjustable operating frequency to 2MHz, and high peak current drive capability with 20ns rise and fall times.

RISING UVLO

PART NUMBER

ISL8840AMBEP 7.0 100 ISL8841AMBEP 7.0 50 ISL8842AMBEP 14.4 100 ISL8843AMBEP 8.4 100 ISL8844AMBEP 14.4 50 ISL8845AMBEP 8.4 50

(V)

MAX.

DUTY CYCLE (%)

Device Information

The specifications for an Extended Plastic (EP) device are defined in a Vendor Item Drawing (VID), which is controlled by the Defense Supply Center in Columbus (DSCC). “Hot-links” to the applicable VID and other supporting application information are provided on our website.

Pinout

ISL884XAMBEP

(8 LD SOIC)

TOP VIEW

FN6471.1

Features

• Specifications per DSCC VID V62/07621

• Full Mil-Temp Electrical Performance from -55°C to +125°C

• Controlled Baseline with One Wafer Fabrication Site and One Assembly/Test Site

• Full Homogenous Lot Processing in Wafer Fab

• No Combination of Wafer Fabrication Lots in Assembly

• Full Traceability Through Assembly and Test by Date/Trace Code Assignment

• Enhanced Process Change Notification

• Enhanced Obsolescence Management

• Eliminates Need for Up-Screening a COTS Component

• 1A MOSFET Gate Driver

• 90µA Start-up Current, 125µA Maximum

• 35ns Propagation Delay Current Sense to Output

• Fast Transient Response with Peak Current Mode Control

• 30V Operation

• Adjustable Switching Frequency to 2MHz

• 20ns Rise and Fall Times with 1nF Output Load

• Trimmed Ti ming Capacitor Discharge Current for Accurate Deadtime/Maximum Duty Cycle Control

• 1.5MHz Bandwidth Error Amplifier

• Tight Tolerance Voltage Reference Over Line, Load and Temperature

• ±3% Current Limit Threshold

Applications

• Isolated Flyback and Forward Regulators

• Boost Regulators

COMP

RTCT

1 2 3 4

8 7

VREF VDD OUT GND

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

ISL8840AMBEP, ISL8841AMBEP, ISL8842AMBEP, ISL8843AMBEP, ISL8844AMBEP, ISL8845AMBEP

www.BDTIC.com/Intersil

Ordering Information

VENDOR PART NUMBER

(Notes 1, 2)

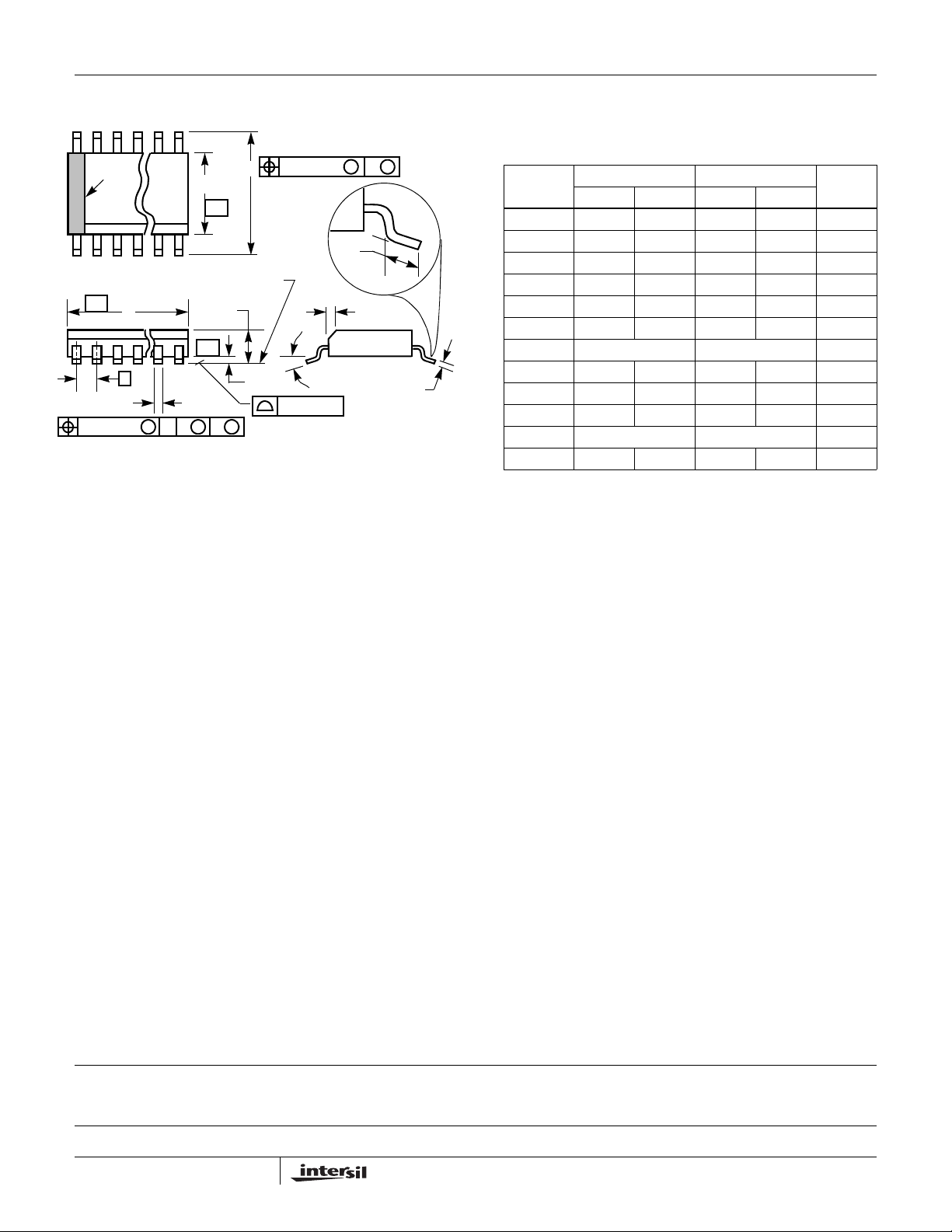

ISL8840AMBEP V62/07621-01XB 8840A MBEP -55 to +125 8 Ld SOIC M8.15 ISL8841AMBEP V62/07621-02XB 8841A MBEP -55 to +125 8 Ld SOIC M8.15 ISL8842AMBEP V62/07621-03XB 8842A MBEP -55 to +125 8 Ld SOIC M8.15 ISL8843AMBEP V62/07621-04XB 8843A MBEP -55 to +125 8 Ld SOIC M8.15 ISL8844AMBEP V62/07621-05XB 8844A MBEP -55 to +125 8 Ld SOIC M8.15 ISL8845AMBEP V62/07621-06XB 8845A MBEP -55 to +125 8 Ld SOIC M8.15

NOTES:

1. Add -TK suffix for 1,000 piece quantity tape and reel.

2. Devices must be procured to the VENDOR PART NUMBER.

VENDOR ITEM DRAWING

NUMBER PART MARKING

TEMPERATURE RANGE

(°C) PACKAGE

DWG. #

PKG.

FN6471.1

February 6, 2008
