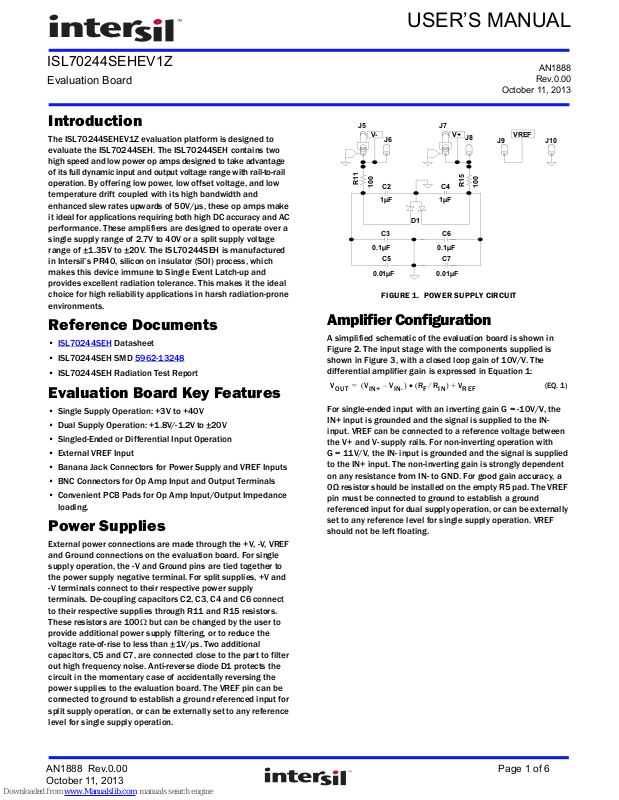

Page 1
USER’S MANUAL
0.01µF0.01µF
R15
R11
D1
C2 C4
C5 C7
J7
J10
J8
J9
J5
J6
100
100
1µF 1µF
VREF
V+V-

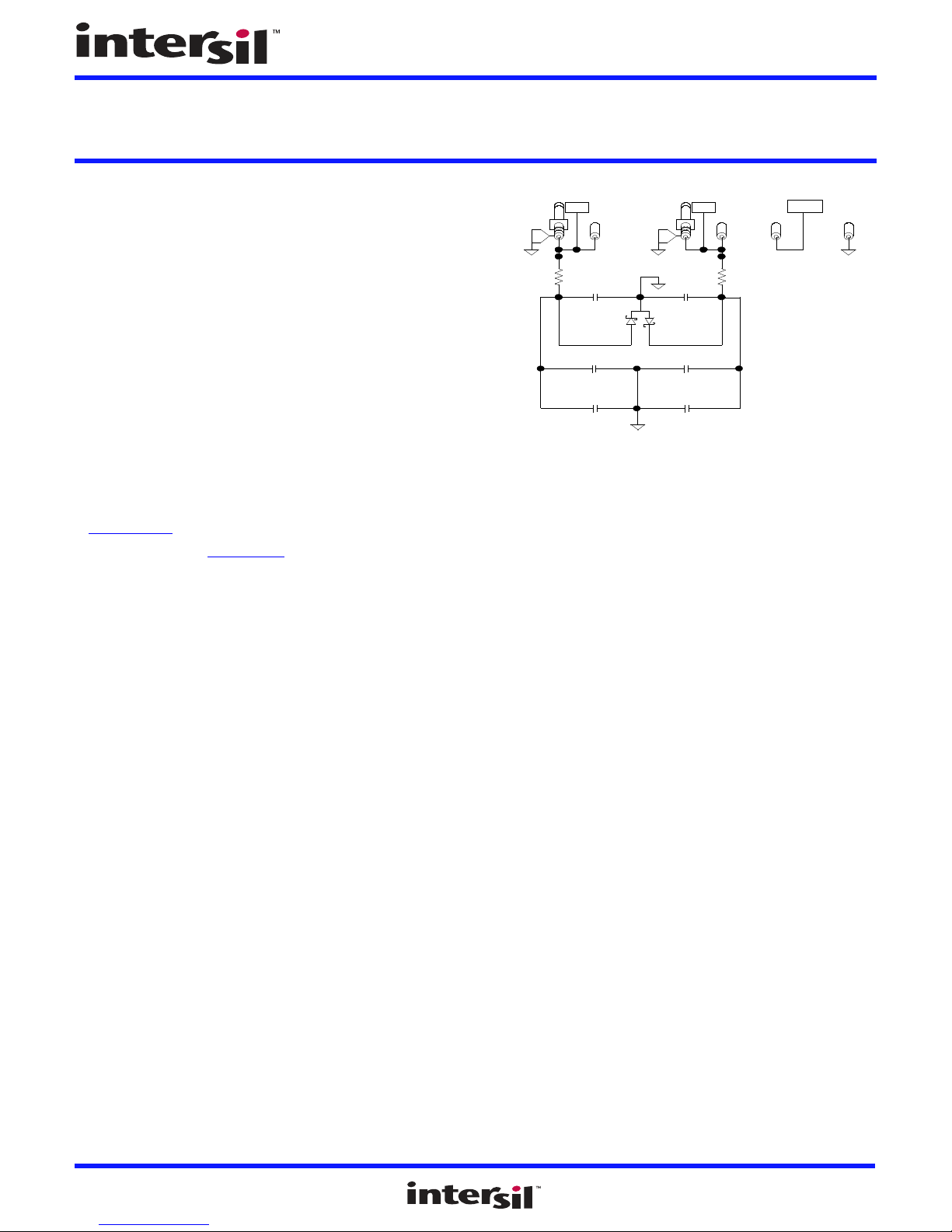

FIGURE 1. POWER SUPPLY CIRCUIT
0.1µF0.1µF
C3 C6
V
OUTVIN+
V
IN-
RF RIN– V
REF
+= (EQ. 1)
ISL70244SEHEV1Z
Evaluation Board
Introduction
The ISL70244SEHEV1Z evaluation platform is designed to
evaluate the ISL70244SEH. The ISL70244SEH contains two
high speed and low power op amps designed to take advantage
of its full dynamic input and output voltage range with rail-to-rail
operation. By offering low power, low offset voltage, and low
temperature drift coupled with its high bandwidth and
enhanced slew rates upwards of 50V/µs, these op amps make
it ideal for applications requiring both high DC accuracy and AC
performance. These amplifiers are designed to operate over a
single supply range of 2.7V to 40V or a split supply voltage
range of ±1.35V to ±20V. The ISL70244SEH is manufactured
in Intersil’s PR40, silicon on insulator (SOI) process, which
makes this device immune to Single Event Latch-up and
provides excellent radiation tolerance. This makes it the ideal
choice for high reliability applications in harsh radiation-prone
environments.
Reference Documents
• ISL70244SEH Datasheet
• ISL70244SEH SMD 5962-13248
• ISL70244SEH Radiation Test Report
AN1888
Rev.0.00
October 11, 2013
Amplifier Configuration
A simplified schematic of the evaluation board is shown in
Figure 2. The input stage with the components supplied is
shown in Figure 3, with a closed loop gain of 10V/V. The
differential amplifier gain is expressed in Equation 1:
Evaluation Board Key Features
• Single Supply Operation: +3V to +40V
• Dual Supply Operation: +1.8V/-1.2V to ±20V
• Singled-Ended or Differential Input Operation
•External VREF Input
• Banana Jack Connectors for Power Supply and VREF Inputs
• BNC Connectors for Op Amp Input and Output Terminals
• Convenient PCB Pads for Op Amp Input/Output Impedance
loading.
Power Supplies
External power connections are made through the +V, -V, VREF
and Ground connections on the evaluation board. For single
supply operation, the -V and Ground pins are tied together to
the power supply negative terminal. For split supplies, +V and
-V terminals connect to their respective power supply
terminals. De-coupling capacitors C2, C3, C4 and C6 connect
to their respective supplies through R11 and R15 resistors.
These resistors are 100 but can be changed by the user to
provide additional power supply filtering, or to reduce the
voltage rate-of-rise to less than ±1V/µs. Two additional
capacitors, C5 and C7, are connected close to the part to filter
out high frequency noise. Anti-reverse diode D1 protects the
circuit in the momentary case of accidentally reversing the
power supplies to the evaluation board. The VREF pin can be
connected to ground to establish a ground referenced input for
split supply operation, or can be externally set to any reference
level for single supply operation.
AN1888 Rev.0.00 Page 1 of 6
October 11, 2013
For single-ended input with an inverting gain G = -10V/V, the
IN+ input is grounded and the signal is supplied to the INinput. VREF can be connected to a reference voltage between
the V+ and V- supply rails. For non-inverting operation with
G = 11V/V, the IN- input is grounded and the signal is supplied
to the IN+ input. The non-inverting gain is strongly dependent
on any resistance from IN- to GND. For good gain accuracy, a
0Ω resistor should be installed on the empty R5 pad. The VREF
pin must be connected to ground to establish a ground
referenced input for dual supply operation, or can be externally
set to any reference level for single supply operation. VREF
should not be left floating.
Page 2
ISL70244SEHEV1Z
IN-
IN+
RF
VREF
IN -
IN +
GND
100k
RREF+
VOUT
ISL70244 (1/2)
VP
V-
0
VN
VCM
IN-
IN+
VREF
V+
RIN-
10k
RIN+
10k
-
+
100k
RL
DNP
C1
R5
R3
J2
J1
R1
R2
R10
R12R6
R9R4
DNP
DNP
DNP
OPEN
DNP
10k 100k
100k
10k
0
VREF
IN+
IN-
OUTPUT
R26
C6
C8
R28
DNP
OPEN
OPEN
0
FROM OUTPUT

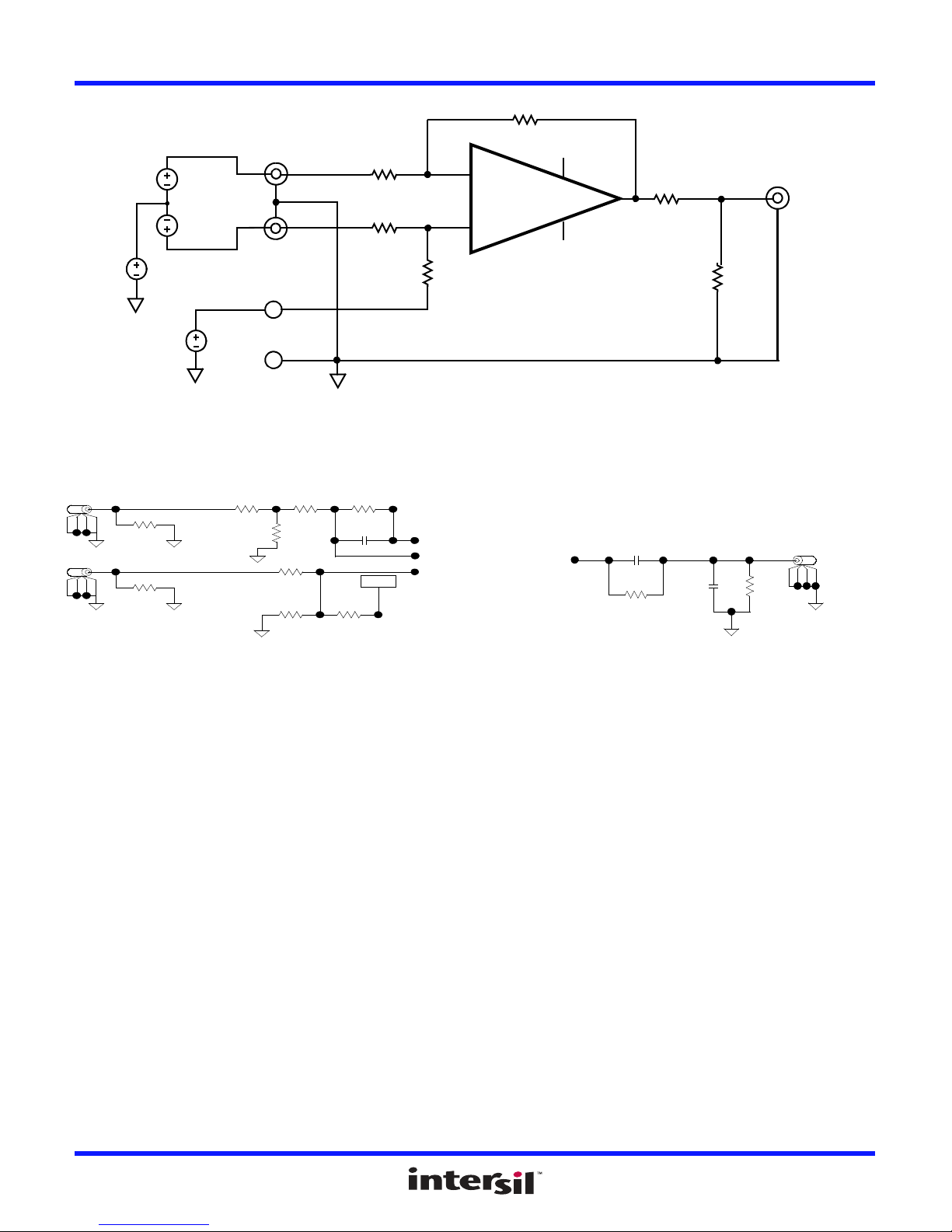

FIGURE 2. BASIC AMPLIFIER CONFIGURATION
FIGURE 3. INPUT STAGE (1/2) FIGURE 4. OUTPUT STAGE (1/2)
User-Selectable Options
Component pads are included to enable a variety of
user-selectable circuits to be added to the amplifier VREF,
inputs, outputs, and the amplifier feedback loops.
A voltage divider (Figure 3, R6 and R12) can be added to
establish a power supply-tracking common mode reference
using the VREF input. The input stages (see Figure 3) have
additional resistor and/or capacitor pads that maybe used to
add voltage divider networks or feedback networks for adding
input attenuation, or to establish input DC offsets through the
VREF pin. The output stages (see Figure 4) have additional
resistor and capacitor placements for loading.
NOTE: Operational amplifiers are sensitive to output
capacitance and may oscillate. In the event of oscillation,
reduce output capacitance by using shorter cables, or add a
resistor in series with the output.
AN1888 Rev.0.00 Page 2 of 6
October 11, 2013
Page 3
ISL70244SEHEV1Z
TABLE 1. ISL70244SEHEV1Z COMPONENTS PARTS LIST
DEVICE # DESCRIPTION COMMENTS
C2, C4 CAP, SMD, 1210, 1µF, 50V, 10%, X7R, ROHS Power Supply Decoupling
C3, C6 CAP, SMD, 0805, 0.1µF, 50V, 10%, X7R, ROHS Power Supply Decoupling
C5, C7 CAP, SMD, 0603, 0.01µF, 50V, 10%, X7R, ROHS Power Supply Decoupling
C1, C8-C12 CAP, SMD, 0603, DNP-PLACE HOLDER, ROHS User selectable capacitors - not populated
D1 DIODE-RECTIFIER, SMD, SOD-123, 2P, 40V, 0.5A, ROHS Reverse Power Protection
U1 ISL70244SEH, DUAL OP-AMP, 10Ld. FLATPACK
R1, R2, R5-R8, R14, R20, R23, R24, RESISTOR, SMD, 0603, 0.1%, MF, DNP-PLACE HOLDER User selectable resistors - not populated
R3, R20-R22 RES, SMD, 0603, 0, 1/10W,TF, ROHS Zero ohm user selectable resistors
R4, R10, R17, R18 RES, SMD, 0603, 10k, 1/10W, 1%, TF, ROHS Gain resistors
R10, R12, R13, R16 RES, SMD, 0603, 100k, 1/10W, 1%, TF, ROHS Gain resistors
AN1888 Rev.0.00 Page 3 of 6
October 11, 2013
Page 4
ISL70244SEHEV1Z

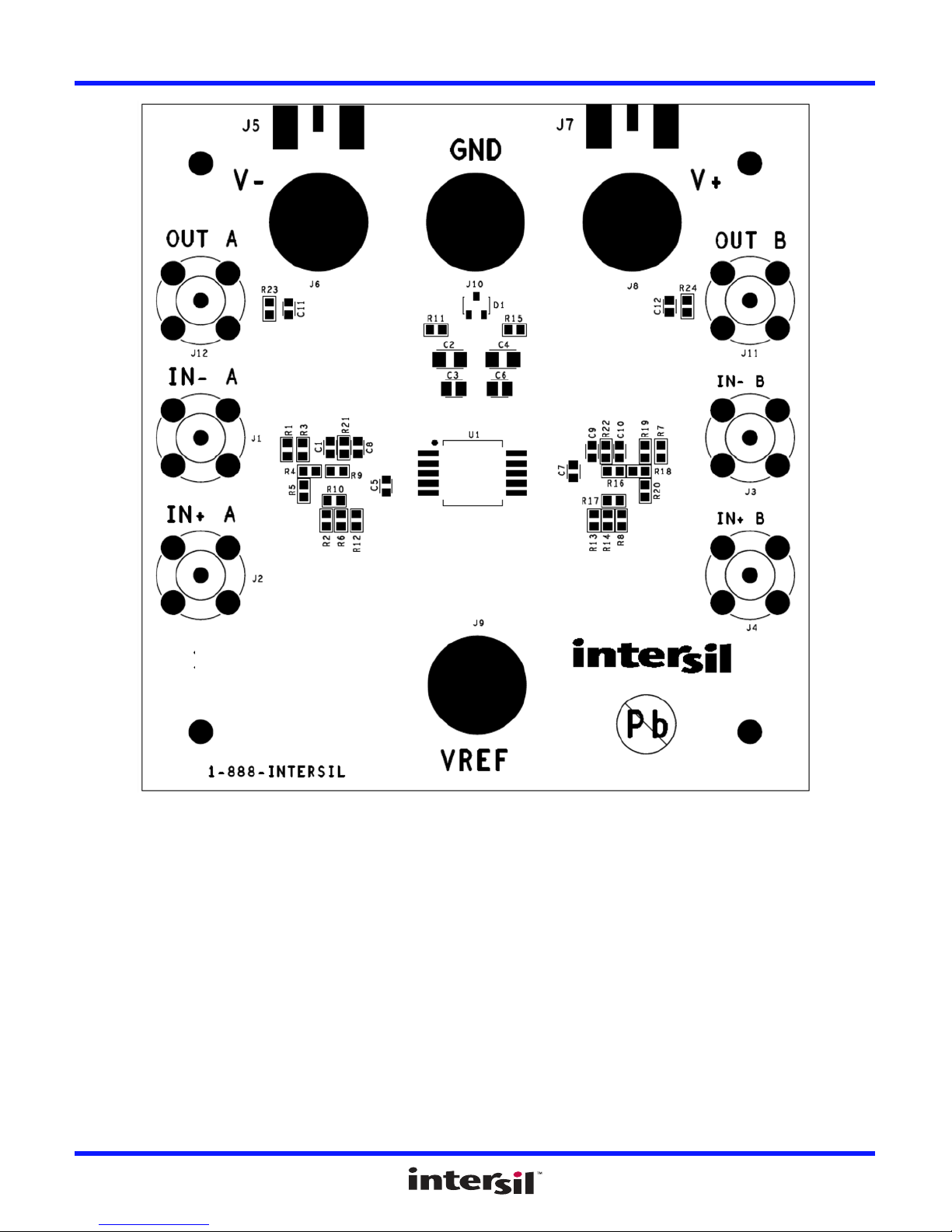

FIGURE 5. ISL70244SEHEV1Z TOP VIEW
AN1888 Rev.0.00 Page 4 of 6
October 11, 2013
Page 5
AN1888 Rev.0.00 Page 5 of 6
October 11, 2013
ISL70244SEHEV1Z

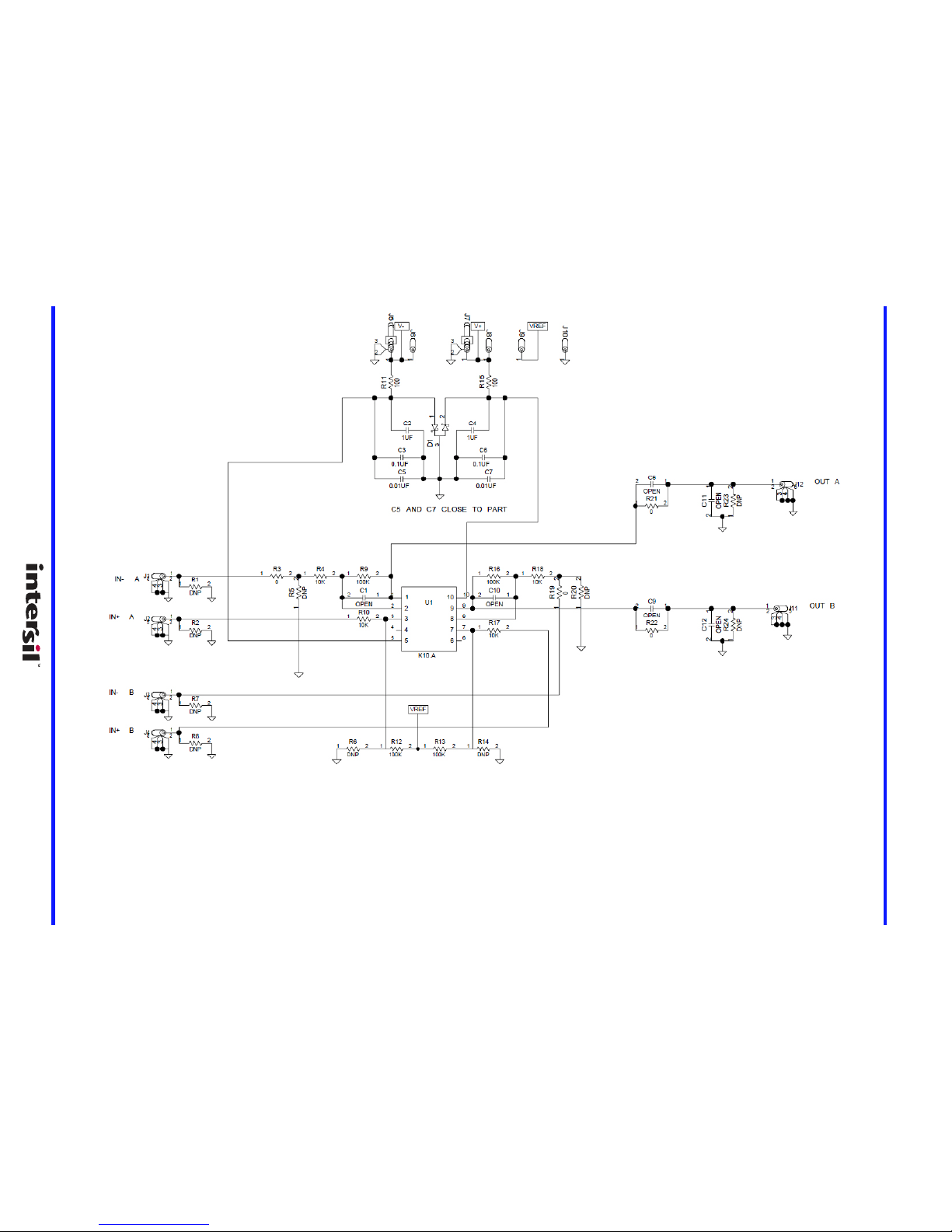

FIGURE 6. ISL70244SEHEV1Z SCHEMATIC DIAGRAM
