intersil ISL6308 DATA SHEET

ISL6308

Data Sheet October 19, 2005

Three-Phase Buck PWM Controller with High Current Integrated MOSFET Drivers

The ISL6308 is a three-phase PWM control IC with integrated MOSFET drivers. It provides a precision voltage regulation system for multiple applications including, but not limited to, high current low voltage point-of-load converters, embedded applications and other general purpose low voltage medium to high current applications.The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families. By reducing the number of external parts, this integration allows for a cost and space saving power management solution.

Output voltage can be programmed using the on-chip DAC or an external precision reference. A two bit code programs the DAC reference to one of 4 possible values (0.6V,

0.9V,1.2V and 1.5V). A unity gain, differential amplifier is provided for remote voltage sensing, compensating for any potential difference between remote and local grounds. The output voltage can also be offset through the use of single external resistor. An optional droop function is also implemented and can be disabled for applications having less stringent output voltage variation requirements or experiencing less severe step loads.

A unique feature of the ISL6308 is the combined use of both DCR and r positioning and overcurrent protection are accomplished through continuous inductor DCR current sensing, while r

current sensing is used for accurate channel-current

DS(ON)

balance. Using both methods of current sampling utilizes the best advantages of each technique.

Protection features of this controller IC include a set of sophisticated overvoltage and overcurrent protection. Overvoltage results in the converter turning the lower MOSFETs ON to clamp the rising output voltage and protect the load. An OVP output is also provided to drive an optional crowbar device. The overcurrent protection level is set through a single external resistor. Other protection features include protection against an open circuit on the remote sensing inputs. Combined, these features provide advanced protection for the output load.

current sensing. Load line voltage

DS(ON)

FN9208.2

Features

• Integrated Multi-Phase Power Conversion

- 1, 2, or 3 Phase Operation

• Precision Output Voltage Regulation

- Differential Remote Voltage Sensing

- ±0.8% System Accuracy Over Temperature (for REF=0.6V and 0.9V)

- ±0.5% System Accuracy Over Temperature (for REF=1.2V and 1.5V)

- Usable for output voltages not exceeding 2.3V

- Adjustable Reference-Voltage Offset

• Precision Channel Current Sharing

- Uses Loss-Less r

DS(ON)

Current Sampling

• Optional Load Line (Droop) Programming

- Uses Loss-Less Inductor DCR Current Sampling

• Variable Gate-Drive Bias - 5V to 12V

• Internal or External Reference Voltage Setting

- On-Chip Adjustable Fixed DAC Reference voltage with 2-bit Logic Input Selects from Four Fixed Reference Voltages (0.6V, 0.9V, 1.2V, 1.5V)

- Reference can be Changed Dynamically

- Can use an External Voltage Reference

• Overcurrent Protection

• Multi-tiered Overvoltage Protection

- OVP Pin to Drive Optional Crowbar Device

• Selectable Operation Frequency up to 1.5MHz per phase

• Digital Soft-Start

• Capable of Start-up in a Pre-Biased Load

• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

• High Current DDR/Chipset core voltage regulators

• High Current, Low voltage DC/DC converters

• High Current, Low voltage FPGA/ASIC DC/DC converters

Ordering Information

PART NUMBER* PART MARKING TEMERATURE (°C) PACKAGE PKG. DWG. #

ISL6308CRZ (Note) ISL6308CRZ 0 to 70 40 Ld 6x6 QFN (Pb-free) L40.6x6

ISL6308IRZ (Note) ISL6308IRZ -40 to 85 40 Ld 6x6 QFN (Pb-free) L40.6x6

ISL6308EVAL1 Evaluation Platform

* Add “-T” suffix for tape and reel. NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate

termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Pinout

ISL6308

ISL6308 (6x6 QFN)

TOP VIEW

REF1

OVP

REF0

39 38 37 36 35 34 33 32 31

ENLL

PGOOD

LGATE1

PVCC1

ISEN1

UGATE1

3PH

2PH

DAC

REF

OFST

VCC

COMP

VDIFF

RGND

11 12 13 14 15 16 17 18 19 20

VSEN

ICOMP

OCSET

GND

ISUM

DROOP

IREF

LGATE3

PVCC3

ISEN3

BOOT1

PHASE1

PHASE2

UGATE2

BOOT2

ISEN2

PVCC2

LGATE2

PHASE3

BOOT3

UGATE3

FN9208.2

October 19, 2005

Block Diagram

ISL6308

ISUM

IREF

RGND

VSEN

VDIFF

ICOMP

ISEN AMP

DROOP OVP

UVP

OVP

OCSET

100µA

+1V

SOFT-START

AND

FAULT LOGIC

0.2V

CLOCK AND

SAWTOOTH

GENERATOR

PGOOD

0.66V

GATE

CONTROL

LOGIC

ENLL

POWER-ON

PROTECTION

RESET

SHOOT-

THROUGH

VCC

PVCC1

BOOT1

UGATE1

PHASE1

LGATE1

PVCC2

BOOT2

REF1

REF0

DAC

REF

COMP

OFST

+150mV

DAC

OFFSET

x 0.82

E/A

∑

CHANNEL CURRENT BALANCE

CHANNEL CURRENT

SENSE

PWM1

PWM2

PWM3

UGATE2

GATE

CONTROL

LOGIC

CHANNEL

DETECT

1 N

GATE

CONTROL

∑

LOGIC

SHOOT-

THROUGH

PROTECTION

SHOOT-

THROUGH

PROTECTION

PHASE2

LGATE2

2PH

3PH

PVCC3

BOOT3

UGATE3

PHASE3

LGATE3

ISEN1 ISEN2 ISEN3

GND

FN9208.2

October 19, 2005

Typical Application - ISL6308

VDIFF

VSEN

RGND

COMP

ISL6308

+12V

PVCC1

BOOT1

UGATE1

+5V

3PH 2PH

VCC

OFST

DAC

REF

REF1

REF0

OVP PGOOD

ISL6308

PHASE1

ISEN1

LGATE1

PVCC2

BOOT2

UGATE2

PHASE2

ISEN2

LGATE2

PVCC3

+12V

LOAD

+12V

GND

ENLL

IREF

DROOP OCSET

BOOT3

UGATE3

PHASE3

ISEN3

ISUMICOMP

LGATE3

FN9208.2

October 19, 2005

ISL6308

Absolute Maximum Ratings

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6V

Supply Voltage, PVCC. . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +15V

Absolute Boot Voltage, V Phase Voltage, V

GND - 8V (<400ns, 20µJ) to 24V (<200ns, V

Upper Gate Voltage, V

Lower Gate Voltage, V

PHASE

UGATE

- 3.5V (<100ns Pulse Width, 2µJ) to V

PHASE

LGATE

GND - 5V (<100ns Pulse Width, 2µJ) to PVCC+ 0.3V

. . . . . . . . GND - 0.3V to GND + 36V

BOOT

. . . . . . . . GND - 0.3V to 15V (PVCC = 12)

BOOT BOOT

= 12V) + 0.3V + 0.3V

. . . . V

PHASE

BOOT-PHASE

- 0.3V to V

. . . . . . . . GND - 0.3V to PVCC + 0.3V

Thermal Information

Thermal Resistance θJA (°C/W) θJC (°C/W)

QFN Package (Notes 1, 2). . . . . . . . . . 32 3.5

Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 150°C

Maximum Storage Temperature Range. . . . . . . . . . . -65°C to 150°C

Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . . 300°C

Input, Output, or I/O Voltage . . . . . . . . . GND - 0.3V to VCC + 0.3V

ESD Classification . . . . . . . . . . . . . . . . . . . . . . . Class I JEDEC STD

Recommended Operating Conditions

VCC Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5V ±5%

PVCC Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . +5V to 12V ±5%

Ambient Temperature (ISL6308CRZ) . . . . . . . . . . . . . . 0°C to 70°C

Ambient Temperature (ISL6308IRZ) . . . . . . . . . . . . . . -40°C to 85°C

CAUTION: Stress above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied.

NOTES:

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See

1. θ

Tech Brief TB379.

2. For θ

, the “case temp” location is the center of the exposed metal pad on the package underside.

Electrical Specifications Recommended Operating Conditions, Unless Otherwise Specified.

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

BIAS SUPPLY AND INTERNAL OSCILLATOR

Input Bias Supply Current I

Gate Drive Bias Current I

VCC POR (Power-On Reset) Threshold VCC Rising 4.25 4.38 4.50 V

PVCC POR (Power-On Reset) Threshold PVCC Rising 4.25 4.38 4.50 V

Oscillator Ramp Amplitude (Note 3) V

Maximum Duty Cycle (Note 3) - 66.6 - %

CONTROL THRESHOLDS

ENLL Rising Threshold -0.66-V

ENLL Hysteresis - 100 - mV

COMP Shutdown Threshold COMP Falling 0.1 0.25 0.4 V

REFERENCE AND DAC

System Accuracy (DAC = 0.6V, 0.9V) DROOP connected to IREF -0.8 - 0.8 %

System Accuracy (DAC = 1.2V, 1.50V) DROOP connected to IREF -0.5 - 0.5 %

DAC Input Low Voltage (REF0, REF1) - - 0.4 V

DAC Input High Voltage (REF0, REF1) 0.8 - - V

External Reference (Note 3) 0.6 1.75 V

OFS Sink Current Accuracy (Negative Offset) R

OFS Source Current Accuracy (Positive Offset) R

; ENLL = high - 15 20 mA

VCC

; ENLL = high; all gate outputs open,

PVCC

= 250kHz

- 0.8 2.00 mA

VCC Falling 3.75 3.88 4.00 V

PVCC Falling 3.75 3.88 4.00 V

= 30kΩ from OFS to VCC 47.5 50.0 52.5 µA

OFS

= 10kΩ from OFS to GND 47.5 50.0 52.5 µA

OFS

-1.50-V

FN9208.2

October 19, 2005

ISL6308

Electrical Specifications Recommended Operating Conditions, Unless Otherwise Specified. (Continued)

PARAMETER TEST CONDITIONS MIN TYP MAX UNITS

ERROR AMPLIFIER

DC Gain (Note 3) R

Gain-Bandwidth Product (Note 3) C

Slew Rate (Note 3) C

Maximum Output Voltage Load = 1mA 3.90 4.20 - V

Minimum Output Voltage Load = -1mA - 0.85 1.0 V

REMOTE SENSE DIFFERENTIAL AMPLIFIER

Input Bias Current (VSEN) (VSEN = 1.5V) 49 55 60 µA

Bandwidth (Note 3) -20-MHz

Slew Rate (Note 3) -8-V/µs

OVERCURRENT PROTECTION

OCSET trip current 93 100 107 µA

OCSET Accuracy OC comparator offset (OCSET and ISUM Difference) -5 0 5 mV

ICOMP Offset ISEN amplifier offset -5 0 5 mV

PROTECTION

Undervoltage Threshold VSEN falling 80 82 84 %VID

Undervoltage Hysteresis VSEN Rising - 3 - %VID

Overvoltage Threshold while IC Disabled 1.62 1.67 1.72 V

Overvoltage Threshold VSEN Rising DAC +

Overvoltage Hysteresis VSEN Falling - 50 - mV

Open Sense-Line Protection Threshold IREF Rising and Falling VDIFF

OVP Output High Drive Voltage I

SWITCHING TIME

UGATE Rise Time (Note 3) t

LGATE Rise Time (Note 3) t

UGATE Fall Time (Note 3) t

LGATE Fall Time (Note 3) t

UGATE Turn-On Non-overlap (Note 3) t

LGATE Turn-On Non-overlap (Note 3) t

GATE DRIVE RESISTANCE (Note 3)

Upper Drive Source Resistance V

Upper Drive Sink Resistance V

Lower Drive Source Resistance V

Lower Drive Sink Resistance V

OVER TEMPERATURE SHUTDOWN

Thermal Shutdown Setpoint (Note 3) - 160 - °C

Thermal Recovery Setpoint (Note 3) - 100 - °C

NOTE:

3. Parameter magnitude guaranteed by design. Not 100% tested.

= 10K to ground - 96 - dB

= 100pF, RL = 10K to ground - 20 - MHz

= 100pF, Load = ±400µA-8-V/µs

125mV

DAC +

150mV

DAC +

175mV

VDIFF + 1VVDIFF

+ 0.9V

= 50mA, VCC = 5V 2.2 3.9 V

OVP

RUGATE; VPVCC

RLGATE; VPVCC

FUGATE; VPVCC

FLGATE; VPVCC

PDHUGATE

PDHLGATE

= 12V, 150mA Source Current 1.25 2.0 3.0 Ω

PVCC

= 12V, 150mA Sink Current 0.9 1.6 3.0 Ω

PVCC

= 12V, 150mA Source Current 0.85 1.4 2.2 Ω

PVCC

= 12V, 150mA Sink Current 0.60 0.94 1.35 Ω

PVCC

= 12V, 3nF Load, 10% to 90% - 26 - ns

= 12V, 3nF Load, 10% to 90% - 18 - ns

= 12V, 3nF Load, 90% to 10% - 18 - ns

= 12V, 3nF Load, 90% to 10% - 12 - ns

; V

= 12V, 3nF Load, Adaptive - 10 - ns

PVCC

; V

= 12V, 3nF Load, Adaptive - 10 - ns

PVCC

+ 1.1V

FN9208.2

October 19, 2005

Timing Diagram

UGATE

LGATE

PDHUGATE

RUGATE

ISL6308

FUGATE

FLGATE

Simplified Power System Diagram

+12V

+5V

REF0,REF1

ENLL

OVP

PGOOD

DAC

ISL6308

CHANNEL1

CHANNEL2

PDHLGATE

RLGATE

OUT

Functional Pin Description

VCC (Pin 6)

Bias supply for the IC’s small-signal circuitry. Connect this pin to a +5V supply and locally decouple using a quality

1.0µF ceramic capacitor.

PVCC1, PVCC2, PVCC3 (Pins 33, 24, 18)

Power supply pins for the corresponding channel MOSFET drive. These pins can be connected to any voltage from +5V to +12V, depending on the desired MOSFET gate drive level. Note that tying PVCC2 OR PVCC3 to GND has the same effect as tying 2PH or 3PH to GND for disabling the corresponding phase

GND (Pin 41)

Bias and reference ground for the IC.

CHANNEL3

ENLL (Pin 37)

This pin is a threshold sensitive (approximately 0.66V) enable input for the controller. Held low, this pin disables controller operation. Pulled high, the pin enables the controller for operation.

FS (Pin 36)

A resistor, placed from FS to ground, will set the switching frequency. Refer to Equation (33) and Figure 23 for proper resistor calculation

3PH and 2PH (Pins 1, 2)

These pins decide how many phases the controller will operate. Tying both pins to VCC allows for 3-phase operation . Tying the 3PH pin to GND causes the controller to operate in 2-phase mode, while connecting both 3PH and 2PH GND will allow for single phase operation.

FN9208.2

October 19, 2005

ISL6308

REF0 and REF1 (Pins 40, 39)

These pins make up the 2-bit input that selects the fixed DAC reference voltage. These pins respond to TTL logic thresholds. The ISL6308 decodes these inputs to establish one of four fixed reference voltages; see “Table 1” for correspondence between REF0 and REF1 inputs and reference voltage settings.

These pins are internally pulled high, to approximately 1.2V, by 40µA (typically) internal current sources; the internal pullup current decreases to 0 as the REF0 and REF1 voltages approach the internal pull-up voltage. Both REF0 and REF1 pins are compatible with external pull-up voltages not exceeding the IC’s bias voltage (VCC).

RGND and VSEN (Pins 10, 11)

RGND and VSEN are inputs to the precision differential remote-sense amplifier and should be connected to the sense pins of the remote load.

ICOMP, ISUM, and IREF (Pins 13, 15, 16)

ISUM, IREF, and ICOMP are the DCR current sense amplifier’s negative input, positive input, and output respectively. For accurate DCR current sensing, connect a resistor from each channel’s phase node to ISUM and connect IREF to the summing point of the output inductors. A parallel R-C feedback circuit connected between ISUM and ICOMP will then create a voltage from IREF to ICOMP proportional to the voltage drop across the inductor DCR. This voltage is referred to as the droop voltage and is added to the differential remote-sense amplifier’s output.

An optional 0.001-0.01µF ceramic capacitor can be placed from the IREF pin to the ISUM pin to help reduce common mode noise that might be introduced by the layout.

DROOP (Pin 14)

This pin enables or disables droop. Tie this pin to the ICOMP pin to enable droop. To disable droop, tie this pin to the IREF pin.

VDIFF (Pin 9)

VDIFF is the output of the differential remote-sense amplifier. The voltage on this pin is equal to the difference between VSEN and RGND added to the difference between IREF and ICOMP. VDIFF therefore represents the VOUT voltage plus the droop voltage.

FB and COMP (Pin 7, 8)

The internal error amplifier’s inverting input and output respectively. FB is connected to VDIFF through an external R or R-C network depending on the desired type of compensation (Type II or III). COMP is tied back to FB through an external R-C network to compensate the regulator.

DAC (Pin 3)

The DAC pin is the direct output of the internal DAC. This pin is connected to the REF pin using a 1-5kΩ resistor. This pin can be left open if an external reference is used.

REF (Pin 4)

The REF input pin is the positive input of the error amplifier. This pin can be connected to the DAC pin using a resistor (1-5kΩ) when the internal DAC voltage is used as the reference voltage. When an external voltage reference is used, it must be connected directly to the REF pin, while the DAC pin is left unconnected. The output voltage will be regulated to the voltage at the REF pin unless this voltage is greater than the voltage at the DAC pin. If an external reference is used at this pin, its magnitude cannot exceed

1.75V.

A capacitor is used between the REF pin and ground to smooth the DAC voltage during soft-start.

OFST (Pin 5)

The OFST pin provides a means to program a DC current for generating an offset voltage across the resistor between FB and VDIFF. The offset current is generated via an external resistor and precision internal voltage references. The polarity of the offset is selected by connecting the resistor to GND or VCC. For no offset, the OFST pin should be left unconnected.

OCSET (Pin 12)

This is the overcurrent set pin. Placing a resistor from OCSET to ICOMP, allows a 100µA current to flow out of this pin, producing a voltage reference. Internal circuitry compares the voltage at OCSET to the voltage at ISUM, and if ISUM ever exceeds OCSET, the overcurrent protection activates.

ISEN1, ISEN2 and ISEN3 (Pins 32, 25, 19)

These pins are used for balancing the channel currents by sensing the current through each channel’s lower MOSFET when it is conducting. Connect a resistor between the ISEN1, ISEN2, and ISEN3 pins and their respective phase node. This resistor sets a current proportional to the current in the lower MOSFET during its conduction interval.

UGATE1, UGATE2, and U G AT E 3 ( P i n s 31, 27, 20)

Connect these pins to the upper MOSFETs’ gates. These pins are used to control the upper MOSFETs and are monitored for shoot-through prevention purposes. Maximum individual channel duty cycle is limited to 66%.

BOOT1, BOOT2, and BOOT3 (Pins 30, 26, 21)

These pins provide the bias voltage for the upper MOSFETs’ drives. Connect these pins to appropriately-chosen external bootstrap capacitors. Internal bootstrap diodes connected to the PVCC pins provide the necessary bootstrap charge.

PHASE1, PHASE2, and PHASE3 (Pins 29, 28, 22)

Connect these pins to the sources of the upper MOSFETs.

These pins are the return path for the upper MOSFETs’ drives.

FN9208.2

October 19, 2005

ISL6308

LGATE1, LGATE2, and LGATE3 (Pins 34, 23, 17)

These pins are used to control the lower MOSFETs and are monitored for shoot-through prevention purposes. Connect these pins to the lower MOSFETs’ gates. Do not use external series gate resistors as this might lead to shootthrough.

PGOOD (Pin 35)

PGOOD is used as an indication of the end of soft-start. It is an open-drain logic output that is low impedance until the soft-start is completed and VOUT is equal to the VID setting. Once in normal operation PGOOD indicates whether the output voltage is within specified overvoltage and undervoltage limits. If the output voltage exceeds these limits or a reset event occurs (such as an overcurrent event), PGOOD becomes high impedance again. The potential at this pin should not exceed that of the potential at VCC pin by more than a typical forward diode drop at any time.

OVP (Pin 38)

Overvoltage protection pin. This pin pulls to VCC when an overvoltage condition is detected. Connect this pin to the gate of an SCR or MOSFET tied across V prevent damage to a load device.

and ground to

combine to form the AC ripple current and the DC load current. The ripple component has three times the ripple frequency of each individual channel current. Each PWM pulse is terminated 1/3 of a cycle after the PWM pulse of the previous phase. The peak-to-peak current for each phase is about 7A, and the dc components of the inductor currents combine to feed the load.

IL1 + IL2 + IL3, 7A/DIV

, 7A/DIV

PWM3, 5V/DIV

IL2, 7A/DIV

PWM2, 5V/DIV

IL1, 7A/DIV

PWM1, 5V/DIV

FIGURE 1. PWM AND INDUCTOR-CURRENT WAVEFORMS

FOR 3-PHASE CONVERTER

Operation

Multi-Phase Power Conversion

Modern low voltage DC/DC converter load current profiles have changed to the point that the advantages of multiphase power conversion are impossible to ignore. The technical challenges associated with producing a singlephase converter that is both cost-effective and thermally viable have forced a change to the cost-saving approach of multi-phase. The ISL6308 controller helps simplify implementation by integrating vital functions and requiring minimal output components. The block diagram on page 3 provides a top level view of multi-phase power conversion using the ISL6308 controller.

Interleaving

The switching of each channel in a multi-phase converter is timed to be symmetrically out of phase with each of the other channels. In a 3-phase converter, each channel switches 1/3 cycle after the previous channel and 1/3 cycle before the following channel. As a result, the three-phase converter has a combined ripple frequency three times greater than the ripple frequency of any one phase. In addition, the peak-topeak amplitude of the combined inductor currents is reduced in proportion to the number of phases (Equations 1 and 2). Increased ripple frequency and lower ripple amplitude mean that the designer can use less per-channel inductance and lower total output capacitance for any performance specification.

Figure 1 illustrates the multiplicative effect on output ripple frequency. The three channel currents (I

, IL2, and IL3)

To understand the reduction of ripple current amplitude in the multi-phase circuit, examine the equation representing an individual channel peak-to-peak inductor current.

VINV

----------------------------------------------------------= LF

–()V

In Equation 1, V

⋅

OUT

⋅⋅

SWVIN

and V

OUT

are the input and output

OUT

(EQ. 1)

voltages respectively, L is the single-channel inductor value, and F

is the switching frequency.

The output capacitors conduct the ripple component of the inductor current. In the case of multi-phase converters, the capacitor current is the sum of the ripple currents from each of the individual channels. Compare Equation 1 to the expression for the peak-to-peak current after the summation of N symmetrically phase-shifted inductor currents in Equation 2. Peak-to-peak ripple current decreases by an amount proportional to the number of channels. Output voltage ripple is a function of capacitance, capacitor equivalent series resistance (ESR), and inductor ripple current. Reducing the inductor ripple current allows the designer to use fewer or less costly output capacitors.

VINNV

------------------------------------------------------------- -------=

CPP,

⋅–()V

⋅

OUT

⋅

OUT

V⋅

(EQ. 2)

Another benefit of interleaving is to reduce input ripple current. Input capacitance is determined in part by the maximum input ripple current. Multi-phase topologies can improve overall system cost and size by lowering input ripple current and allowing the designer to reduce the cost of input capacitance. The example in Figure 2 illustrates input

FN9208.2

October 19, 2005

ISL6308

currents from a three-phase converter combining to reduce the total input ripple current.

The converter depicted in Figure 2 delivers 1.5V to a 36A load from a 12V input. The RMS input capacitor current is

6.1A. Compare this to a single-phase converter also stepping down 12V to 1.5V at 36A. The single-phase converter has a 13.3A RMS input capacitor current. The single-phase converter must use an input capacitor bank with twice the RMS current capacity as the equivalent threephase converter.

INPUT-CAPACITOR CURRENT

CHANNEL 3 INPUT CURRENT

CHANNEL 2 INPUT CURRENT

CHANNEL 1 INPUT CURRENT

FIGURE 2. CHANNEL INPUT CURRENTS AND INPUT-

CAPACITOR RMS CURRENT FOR 3-PHASE CONVERTER

Figures 24, 25 and 26 in the section entitled Input Capacitor Selection can be used to determine the input capacitor RMS

current based on load current, duty cycle, and the number of channels. They are provided as aids in determining the optimal input capacitor solution.

PWM Operation

The timing of each converter leg is set by the number of active channels. The default channel setting for the ISL6308 is three. One switching cycle is defined as the time between the internal PWM1 pulse termination signals. The pulse termination signal is the internally generated clock signal that triggers the falling edge of PWM1. The cycle time of the pulse termination signal is the inverse of the switching frequency set by the resistor between the FS pin and ground. Each cycle begins when the clock signal commands PWM1 to go low. The PWM1 transition signals the internal channel 1 MOSFET driver to turn off the channel 1 upper MOSFET and turn on the channel 1 synchronous MOSFET. In the default channel configuration, the PWM2 pulse terminates 1/3 of a cycle after the PWM1 pulse. The PWM3 pulse terminates 1/3 of a cycle after PWM2.

operation is selected. The 2PH and 3PH inputs can also be used to accomplish this function. Once a PWM pulse transitions low, it is held low for a minimum of 1/3 cycle. This forced off time is required to ensure an accurate current sample. Current sensing is described in the next section. After the forced off time expires, the PWM output is enabled. The PWM output state is driven by the position of the error amplifier output signal, VCOMP, minus the current correction signal relative to the sawtooth ramp as illustrated in Figure 3. When the modified VCOMP voltage crosses the sawtooth ramp, the PWM output transitions high. The internal MOSFET driver detects the change in state of the PWM signal and turns off the synchronous MOSFET and turns on the upper MOSFET. The PWM signal will remain high until the pulse termination signal marks the beginning of the next cycle by triggering the PWM signal low.

Channel Current Balance

One important benefit of multi-phase operation is the thermal advantage gained by distributing the dissipated heat over multiple devices and greater area. By doing this the designer avoids the complexity of driving parallel MOSFETs and the expense of using expensive heat sinks and exotic magnetic materials.

In order to realize the thermal advantage, it is important that each channel in a multi-phase converter be controlled to carry about the same amount of current at any load level. To achieve this, the currents through each channel must be sampled every switching cycle. The sampled currents, I from each active channel are summed together and divided by the number of active channels. The resulting cycle average current, I

, provides a measure of the total load

AVG

current demand on the converter during each switching cycle. Channel current balance is achieved by comparing the sampled current of each channel to the cycle average current, and making the proper adjustment to each channel pulse width based on the error. Intersil’s patented currentbalance method is illustrated in Figure 3, with error correction for channel 1 represented. In the figure, the cycle average current, I sample, I

, to create an error signal IER.

, is compared with the channel 1

AVG

The filtered error signal modifies the pulse width commanded by V I

toward zero. The same method for error signal

to correct any unbalance and force

COMP

correction is applied to each active channel.

If PVCC3 is left open or connected to ground, two channel operation is selected and the PWM2 pulse terminates 1/2 of a cycle after the PWM1 pulse terminates. If both PVCC3 and PVCC2 are left open or connected to ground, single channel

FN9208.2

October 19, 2005

ISL6308

COMP

FILTER

SAWTOOTH SIGNAL

f(s)

AVG

÷ N

PWM1

TO GATE

CONTROL

LOGIC

NOTE: Channel 2 and 3 are optional.

FIGURE 3. CHANNEL 1 PWM FUNCTION AND CURRENT-

BALANCE ADJUSTMENT

Current Sampling

In order to realize proper current balance, the currents in each channel must be sampled every switching cycle. This sampling occurs during the forced off-time, following a PWM transition low. During this time the current sense amplifier uses the ISEN inputs to reproduce a signal proportional to the inductor current, I a scaled version of the inductor current. The sample window opens exactly 1/6 of the switching period, t PWM transitions low. The sample window then stays open the rest of the switching cycle until PWM transitions high again, as illustrated in Figure 4.

The sampled current, at the end of the t proportional to the inductor current and is held until the next switching period sample. The sampled current is used only for channel current balance.

OLD SAMPLE CURRENT

FIGURE 4. SAMPLE AND HOLD TIMING

The ISL6308 supports MOSFET r sample each channel’s current for channel current balance. The internal circuitry, shown in Figure 5 represents channel n of an N-channel converter. This circuitry is repeated for

. This sensed current, I

SAMPLE

PWM

SWITCHING PERIOD

SEN

SAMPLING PERIOD

TIME

DS(ON)

, is simply

SEN

, after the

, is

NEW SAMPLE CURRENT

current sensing to

each channel in the converter, but may not be active depending on the status of the PVCC3 and PVCC2 pins, as described in the PWM Operation section.

SEN

SAMPLE

HOLD

ISL6308 INTERNAL CIRCUIT EXTERNAL CIRCUIT

--------------------------=

DS ON()

ISEN

ISEN(n)

ISEN

CHANNEL N LOWER MOSFET

CHANNEL N UPPER MOSFET

x r

DS ON()

FIGURE 5. ISL6308 INTERNAL AND EXTERNAL CURRENT-

SENSING CIRCUITRY FOR CURRENT BALANCE

The ISL6308 senses the channel load current by sampling the voltage across the lower MOSFET r

DS(ON)

, as shown in Figure 5. A ground-referenced operational amplifier, internal to the ISL6308, is connected to the PHASE node through a resistor, R the voltage drop across the r

. The voltage across R

ISEN

is equivalent to

ISEN

of the lower MOSFET

DS(ON)

while it is conducting. The resulting current into the ISEN pin is proportional to the channel current, I

. The ISEN current is

sampled and held as described in the Current Sampling section. From Figure 5, the following equation for I derived where I

DS ON()

----------------------

⋅=(EQ. 3)

InI

is the channel current.

ISEN

Output Voltage Setting

The ISL6308 uses a digital to analog converter (DAC) to generate a reference voltage based on the logic signals at the REF1, REF0 pins. The DAC decodes the 2-bit logic signals into one of the discrete voltages shown in Table 1. Each REF0 and REF1 pins are pulled up to an internal 1.2V voltage by weak current sources (40µA current, decreasing to 0 as the voltage at the REF0, REF1 pins varies from 0 to the internal 1.2V pull-up voltage). External pull-up resistors or active-high output stages can augment the pull-up current sources, up to a voltage of 5V. The DAC pin must be connected to REF pin through a 1-5kΩ resistor and a filter capacitor (0.022µF) is connected between REF and GND.

The ISL6308 accommodates the use of external voltage reference connected to REF pin if a different output voltage is required. The DAC voltage must be set at least as high as the external reference. The error amp internal noninverting input is the lower of REF or (DAC +300mV).

A third method for setting the output voltage is to use a resistor divider (R

, RS1) from the output terminal (V

OUT

)

FN9208.2

October 19, 2005

ISL6308

to VSEN pin to set the output voltage level as shown in Figure 6. This method is good for generating voltages up to

2.3V (with the REF voltage set to 1.5V).

For this case, the output voltage can be obtained as follows:

OUTVREF

RS1RP1+()

⋅=

--------------------------------- - V R

−

OFSVDROOP

–

(EQ. 4)

It is recommended to choose resistor values of less than 500Ω for R

and RP1 resistors in order to get better output

voltage DC accuracy.

TABLE 1. ISL6308 DAC VOLTAGE SELECTION TABLE

REF1 REF0 VDAC

0 0 0.600V

0 1 0.900V

1 0 1.200V

1 1 1.500V

Voltage Regulation

In order to regulate the output voltage to a specified level, the ISL6308 uses the integrating compensation network shown in Figure 6. This compensation network insures that the steady state error in the output voltage is limited only to the error in the reference voltage (output of the DAC or the external voltage reference) and offset errors in the OFS current source, remote sense and error amplifiers. Intersil specifies the guaranteed tolerance of the ISL6308 to include the combined tolerances of each of these elements, except when an external reference or voltage divider is used, then the tolerances of these components has to be taken into account.

The ISL6308 incorporates an internal differential remotesense amplifier in the feedback path. The amplifier removes the voltage error encountered when measuring the output voltage relative to the controller ground reference point, resulting in a more accurate means of sensing output voltage. Connect the microprocessor sense pins to the noninverting input, VSEN, and inverting input, RGND, of the remote-sense amplifier. The droop voltage, VDROOP, also feeds into the remote-sense amplifier. The remote-sense output, VDIFF, is therefore equal to the sum of the output voltage, VOUT, and the droop voltage. VDIFF is connected to the inverting input of the error amplifier through an external resistor.

The output of the error amplifier, V sawtooth waveform to generate the PWM signals. The PWM signals control the timing of the Internal MOSFET drivers and regulate the converter output so that the voltage at FB is equal to the voltage at REF. This will regulate the output voltage to be equal to Equation 5. The internal and external circuitry that controls voltage regulation is illustrated in Figure 6.

OUTVREFVOFST

± V

–=

DROOP

, is compared to the

COMP

(EQ. 5)

EXTERNAL CIRCUIT ISL6308 INTERNAL CIRCUIT

OFS

OUT

DROOP

SUM

FIGURE 6. OUTPUT VOLTAGE AND LOAD-LINE

COMP

DAC

REF

VDIFF

VSEN

RGND

DROOP

IREF

ICOMP

ISUM

REGULATION WITH OFFSET ADJUSTMENT

VID DAC

ERROR AMPLIFIER

OFS

+ +

ISENSE

AMP

COMP

DIFFERENTIAL

REMOTE-SENSE

AMPLIFIER

Load-Line (Droop) Regulation

In some high current applications, a requirement on a precisely controlled output impedance is imposed. This dependence of output voltage on load current is often termed “droop” or “load line” regulation.

The Droop is an optional feature in the ISL6308. It can be enabled by connecting ICOMP pin to DROOP pin as shown in Figure 6. To disable it, connect the DROOP pin to IREF pin.

As shown in Figure 6, a voltage, V total current in all active channels, I differential remote-sense amplifier. The resulting voltage at the output of the remote-sense amplifier is the sum of the output voltage and the droop voltage. As Equation 4 shows, feeding this voltage into the compensation network causes the regulator to adjust the output voltage so that it’s equal to the reference voltage minus the droop voltage.

The droop voltage, V

, is created by sensing the

DROOP

current through the output inductors. This is accomplished by using a continuous DCR current sensing method.

Inductor windings have a characteristic distributed resistance or DCR (Direct Current Resistance). For simplicity, the inductor DCR is considered as a separate

, proportional to the

DROOP

, feeds into the

OUT

FN9208.2

October 19, 2005

ISL6308

lumped quantity, as shown in Figure 7. The channel current, I

, flowing through the inductor, passes through the DCR.

Equation 6 shows the s-domain equivalent voltage, V

across the inductor.

VLs() ILsL DCR+⋅()⋅=

(EQ. 6)

The inductor DCR is important because the voltage dropped across it is proportional to the channel current. By using a simple R-C network and a current sense amplifier, as shown in Figure 7, the voltage drop across all of the inductors DCRs can be extracted. The output of the current sense amplifier, V currents I

, can be shown to be proportional to the channel

DROOP

, IL2, and IL3, shown in Equation 7.

sL⋅



------------- 1+



DCR

----------------------------- ---------------------------- -----------------

s()

⋅⋅ 1+()

COMPCCOMP

COMP

-----------------------

IL1IL2I

++()DCR⋅⋅⋅=

(EQ. 7)

If the R-C network components are selected such that the R-C time constant matches the inductor L/DCR time constant, then V

is equal to the sum of the voltage

DROOP

drops across the individual DCRs, multiplied by a gain. As Equation 8 shows, V total output current, I

COMP

PHASE1

PHASE2

---------------------

ISUM

ICOMP

DROOP

is therefore proportional to the

DROOP

OUT

DCR⋅⋅=

OUT

VL(s)

INDUCTOR

COMP

DCR

(EQ. 8)

OUT

By simply adjusting the value of RS, the load line can be set to any level, giving the converter the right amount of droop at all load currents. It may also be necessary to compensate for any changes in DCR due to temperature. These changes cause the load line to be skewed, and cause the R-C time constant to not match the L/DCR time constant. If this becomes a problem a simple negative temperature coefficient resistor network can be used in the place of R

to compensate for the rise in DCR due to

COMP

temperature.

Output Voltage Offset Programming

The ISL6308 allows the designer to accurately adjust the offset voltage by connecting a resistor, R pin to VCC or GND. When R

is connected between OFS

OFS

and VCC, the voltage across it is regulated to 1.5V. This causes a proportional current (I and out of the FB pin. If R

OFS

) to flow into the OFS pin

OFS

is connected to ground, the voltage across it is regulated to 0.5V, and I FB pin and out of the OFS pin. The offset current flowing through the resistor between VDIFF and FB will generate the desired offset voltage which is equal to the product (I

OFSxR1

OFS

). These functions are shown in Figures 8 and 9.

VDIFF

OFS

GND

VREF

ISL6308

, from the OFS

OFS

flows into the

OFS

E/A

0.5V

GND

VCC

1.5V

DROOP

ISL6308

IREF

SUM

(Optional)

FIGURE 7. DCR SENSING CONFIGURATION

FIGURE 8. POSITIVE OFFSET OUTPUT VOLTAGE

PROGRAMMING

October 19, 2005

FN9208.2

ISL6308

VDIFF

OFS

VCC

OFS

FIGURE 9. NEGATIVE OFFSET OUTPUT VOLTAGE

PROGRAMMING

ISL6308

VREF

E/A

GND

1.5V

0.5V

VCC

Once the desired output offset voltage has been determined, use the following formulas to set R

For Positive Offset (connect R

0.5 R1⋅

OFS

--------------------------=

OFFSET

OFS

For Negative Offset (connect R

OFS

1.5 R1⋅

--------------------------=

OFFSET

OFS

to GND):

to VCC):

OFS

(EQ. 9)

(EQ. 10)

UGATE voltages during a PWM falling edge and the subsequent UGATE turn-off. If either the UGATE falls to less than 1.75V above the PHASE or the PHASE falls to less than +0.8V, the LGATE is released to turn on.

Internal Bootstrap Device

All three integrated drivers feature an internal bootstrap schottky diode. Simply adding an external capacitor across the BOOT and PHASE pins completes the bootstrap circuit. The bootstrap function is also designed to prevent the bootstrap capacitor from overcharging due to the large negative swing at the PHASE node. This reduces voltage stress on the boot to phase pins.

The bootstrap capacitor must have a maximum voltage rating above PVCC + 5V and its capacitance value can be chosen from the following equation:

GATE

BOOT_CAP

GATE

where Q at V

GS1

control MOSFETs. The ∆V allowable droop in the rail of the upper gate drive. Figure 10 shows the boot capacitor ripple voltage as a function of boot capacitor value and total upper MOSFET gate charge.

1.6

1.4

--------------------------------------

≥

∆V

BOOT_CAP

QG1PVCC•

---------------------------------

GS1

is the amount of gate charge per upper MOSFET

•=

(EQ. 11)

gate-source voltage and NQ1 is the number of

BOOT_CAP

term is defined as the

Advanced Adaptive Zero Shoot-Through Deadtime Control (Patent Pending)

The integrated drivers incorporate a unique adaptive deadtime control technique to minimize deadtime, resulting in high efficiency from the reduced freewheeling time of the lower MOSFET body-diode conduction, and to prevent the upper and lower MOSFETs from conducting simultaneously. This is accomplished by ensuring either rising gate turns on its MOSFET with minimum and sufficient delay after the other has turned off.

During turn-off of the lower MOSFET, the PHASE voltage is monitored until it reaches a -0.3V/+0.8V trip point for a forward/reverse current, at which time the UGATE is released to rise. An auto-zero comparator is used to correct the r detection of the -0.3V phase level during r period. In the case of zero current, the UGATE is released after 35ns delay of the LGATE dropping below 0.5V. During the phase detection, the disturbance of LGATE falling transition on the PHASE node is blanked out to prevent falsely tripping. Once the PHASE is high, the advanced adaptive shoot-through circuitry monitors the PHASE and

drop in the phase voltage preventing false

DS(ON)

conduction

1.2

(µF)

0.8

0.6

BOOT_CAP

0.4

0.2 20nC

0.0

FIGURE 10. BOOTSTRAP CAPACITANCE vs BOOT RIPPLE

50nC

VOLTAGE

= 100nC

GATE

0.30.0 0.1 0.2 0.4 0.5 0.6 0.90.7 0.8 1.0

∆V

BOOT_CAP

(V)

Gate Drive Voltage Versatility

The ISL6308 provides the user flexibility in choosing the gate drive voltage for efficiency optimization. The controller ties the upper and lower drive rails together. Simply applying a voltage from 5V up to 12V on PVCC sets both gate drive rail voltages simultaneously.

FN9208.2

October 19, 2005

ISL6308

Initialization

Prior to initialization, proper conditions must exist on the ENLL, VCC, PVCC and the REF0 and REF1 pins. When the conditions are met, the controller begins soft-start. Once the output voltage is within the proper window of operation, the controller asserts PGOOD.

Enable and Disable

While in shutdown mode, the PWM outputs are held in a high-impedance state to assure the drivers remain off. The following input conditions must be met before the ISL6308 is released from shutdown mode.

1. The bias voltage applied at VCC must reach the internal power-on reset (POR) rising threshold. Once this threshold is reached, proper operation of all aspects of the ISL6308 is guaranteed. Hysteresis between the rising and falling thresholds assure that once enabled, the ISL6308 will not inadvertently turn off unless the bias voltage drops substantially (see Electrical Specifications).

EXTERNAL CIRCUITISL6308 INTERNAL CIRCUIT

VCC

PVCC1

+12V

POR

CIRCUIT

SOFT-START

AND

FAULT LOGIC

FIGURE 11. POWER SEQUENCING USING THRESHOLD-

SENSITIVE ENABLE (ENLL) FUNCTION

2. The voltage on ENLL must be above 0.66V. The EN input allows for power sequencing between the controller bias voltage and another voltage rail. The enable comparator holds the ISL6308 in shutdown until the voltage at ENLL rises above 0.66V. The enable comparator has 100mV of hysteresis to prevent bounce.

3. The driver bias voltage applied at the PVCC pins must reach the internal power-on reset (POR) rising threshold. In order for the ISL6308 to begin operation, PVCC1 is the only pin that is required to have a voltage applied that exceeds POR. However, for 2 or 3-phase operation PVCC2 and PVCC3 must also exceed the POR

ENABLE COMPARATOR

0.66V

10.7kΩ

ENLL

1.40kΩ

threshold. Hysteresis between the rising and falling thresholds assure that once enabled, the ISL6308 will not inadvertently turn off unless the PVCC bias voltage drops substantially (see Electrical Specifications).

When each of these conditions is true, the controller immediately begins the soft-start sequence.

Soft-Start

During soft-start, the DAC voltage ramps linearly from zero to the programmed level. The PWM signals remain in the high-impedance state until the controller detects that the ramping DAC level has reached the output-voltage level. This protects the system against the large, negative inductor currents that would otherwise occur when starting with a preexisting charge on the output as the controller attempted to regulate to zero volts at the beginning of the soft-start cycle. The Output soft-start time, T equal to 64 switching cycles after the ENLL has exceeded its POR level, followed by a linear ramp with a rate determined by the switching period, 1/F

64 DAC+ 1280⋅

--------------------------------------------=

For example, a regulator with 450kHz switching frequency having REF voltage set to 1.2V has TSS equal to 3.55ms.

A 100mV offset exists on the remote-sense amplifier at the beginning of soft-start and ramps to zero during the first 640 cycles of soft-start (704 cycles following enable). This prevents the large inrush current that would otherwise occur should the output voltage start out with a slight negative bias.

The ISL6308 also has the ability to start up into a precharged output as shown in Figure 12, without causing any unnecessary disturbance. The FB pin is monitored during soft-start, and should it be higher than the equivalent internal ramping reference voltage, the output drives hold both MOSFETs off. Once the internal ramping reference exceeds the FB pin potential, the output drives are enabled, allowing the output to ramp from the pre-charged level to the final level dictated by the reference setting. Should the output be pre-charged to a level exceeding the reference setting, the output drives are enabled at the end of the soft-start period, leading to an abrupt correction in the output voltage down to the “reference set” level.

, begins with a delay period

(EQ. 12)

FN9208.2

October 19, 2005

OUTPUT PRECHARGED

ABOVE DAC LEVEL

OUTPUT PRECHARGED

BELOW DAC LEVEL

GND>

FIGURE 12. SOFT-START WAVEFORMS FOR ISL6308-BASED

MULTI-PHASE CONVERTER

(0.5V/DIV)

OUT

ENLL (5V/DIV)

Fault Monitoring and Protection

The ISL6308 actively monitors output voltage and current to detect fault conditions. Fault monitors trigger protective measures to prevent damage to the load.

ISL6308

One common power good indicator is provided for linking to external system monitors. The schematic in Figure 13 outlines the interaction between the fault monitors and the power good signal

Power Good Signal

The power good pin (PGOOD) is an open-drain logic output that transitions high when the converter is operating after soft-start. PGOOD pulls low during shutdown and releases high after a successful soft-start. PGOOD transitions low when an undervoltage, overvoltage, or overcurrent condition is detected or when the controller is disabled by a reset from ENLL or POR. If after an undervoltage or overvoltage event occurs the output returns to within under and overvoltage limits, PGOOD will return high.

Undervoltage Detection

The undervoltage threshold is set at 82% of the REF voltage. When the output voltage (VSEN-RGND) is below the undervoltage threshold, PGOOD gets pulled low. No other action is taken by the controller. PGOOD will return high if the output voltage rises above 85% of the REF voltage.

* Connect DROOP to IREF to disable the Droop feature.

IREF

ISUM

VDIFF

VSEN

DROOP*

+1V

DAC + 150mV

OVP

ICOMP

ISEN

DROOP

RGND

OCSET

SOFT-START, FAULT

AND CONTROL LOGIC

OCSET

100µA

0.82 x DAC

FIGURE 13. POWER GOOD AND PROTECTION CIRCUITRY

ISL6308 INTERNAL CIRCUITRY

PGOOD

Overvoltage Protection

The ISL6308 constantly monitors the difference between the VSEN and RGND voltages to detect if an overvoltage event occurs. During soft-start, while the DAC/REF is ramping up, the overvoltage trip level is the higher of REF plus 150mV or a fixed voltage, V

. The fixed voltage, V

OVP

, is 1.67V.

OVP

Upon successful soft-start, the overvoltage trip level is only REF plus 150mV. OVP releases 50mV below its trip point if it was “REF plus 150mV” that tripped it, and releases 100mV below its trip point if it was the fixed voltage, V

OVP

, that tripped it. Actions are taken by the ISL6308 to protect the load when an overvoltage condition occurs, until the output voltage falls back within set limits.

At the inception of an overvoltage event, all LGATE signals are commanded high, and the PGOOD signal is driven low. This causes the controller to turn on the lower MOSFETs and pull the output voltage below a level that might cause damage to the load. The LGATE outputs remain high until VDIFF falls to within the overvoltage limits explained above. The ISL6308 will continue to protect the load in this fashion as long as the overvoltage condition recurs.

Once an overvoltage condition ends the ISL6308 continues normal operation and PGOOD returns high.

Pre-POR Overvoltage Protection

Prior to PVCC and VCC exceeding their POR levels, the ISL6308 is designed to protect the load from any overvoltage events that may occur. This is accomplished by means of an internal 10kΩ resistor tied from PHASE to LGATE, which turns on the lower MOSFET to control the output voltage until the overvoltage event ceases or the input power supply cuts off. For complete protection, the low side MOSFET

FN9208.2

October 19, 2005

should have a gate threshold well below the maximum voltage rating of the load/microprocessor.

ISL6308

In the event that during normal operation the PVCC or VCC voltage falls back below the POR threshold, the pre-POR overvoltage protection circuitry reactivates to protect from any more pre-POR overvoltage events.

Open Sense Line Protection

In the case that either of the remote sense lines, VSEN or GND, become open, the ISL6308 is designed to detect this and shut down the controller. This event is detected by monitoring the voltage on the IREF pin, which is a local version of V

sensed at the outputs of the inductors.

OUT

If VSEN or RGND become opened, VDIFF falls, causing the duty cycle to increase and the output voltage on IREF to increase. If the voltage on IREF exceeds “VDIFF+1V”, the controller will shut down. Once the voltage on IREF falls below “VDIFF+1V”, the ISL6308 will restart at the beginning of soft-start.

Overcurrent Protection

The ISL6308 detects overcurrent events by comparing the droop voltage, V shown in Figure 13. The droop voltage, set by the external current sensing circuitry, is proportional to the output current as shown in Equation 8. A constant 100µA flows through R

, creating the OCSET voltage. When the droop

OCSET

voltage exceeds the OCSET voltage, the overcurrent protection circuitry activates. Since the droop voltage is proportional to the output current, the overcurrent trip level, I

, can be set by selecting the proper value for R

MAX

as shown in Equation 13.

OCSET

MAXRCOMP

----------------------------------------------------------=

Once the output current exceeds the overcurrent trip level, V

DROOP

will exceed V the converter to begin overcurrent protection procedures. At the beginning of overcurrent shutdown, the controller turns off both upper and lower MOSFETs. The system remains in this state for a period of 4096 switching cycles. If the controller is still enabled at the end of this wait period, it will attempt a soft-start (as shown in Figure 14). If the fault remains, the trip-retry cycles will continue indefinitely until either the controller is disabled or the fault is cleared. Note that the energy delivered during trip-retry cycling is much less than during full-load operation, so there is no thermal hazard.

, to the OCSET voltage, V

DROOP

DCR⋅⋅

⋅

100µ AR

, and a comparator will trigger

OCSET

(EQ. 13)

, as

OUTPUT CURRENT

OUTPUT VOLTAGE

FIGURE 14. OVERCURRENT BEHAVIOR IN HICCUP MODE

General Design Guide

This design guide is intended to provide a high-level explanation of the steps necessary to create a multi-phase power converter. It is assumed that the reader is familiar with many of the basic skills and techniques referenced below. In addition to this guide, Intersil provides complete reference designs that include schematics, bills of materials, and example board layouts for many applications.

Power Stages

The first step in designing a multi-phase converter is to determine the number of phases. This determination

depends heavily on the cost analysis which in turn depends on system constraints that differ from one design to the next. Principally, the designer will be concerned with whether components can be mounted on both sides of the circuit board, whether through-hole components are permitted, the total board space available for power-supply circuitry, and the maximum amount of load current. Generally speaking, the most economical solutions are those in which each phase handles between 25 and 30A. All surface-mount designs will tend toward the lower end of this current range. If through-hole MOSFETs and inductors can be used, higher per-phase currents are possible. In cases where board space is the limiting constraint, current can be pushed as high as 40A per phase, but these designs require heat sinks and forced air to cool the MOSFETs, inductors and heatdissipating surfaces.

MOSFETs

The choice of MOSFETs depends on the current each MOSFET will be required to conduct, the switching frequency, the capability of the MOSFETs to dissipate heat, and the availability and nature of heat sinking and air flow.

FN9208.2

October 19, 2005

ISL6308

LOWER MOSFET POWER CALCULATION

The calculation for the approximate power loss in the lower MOSFET can be simplified, since virtually all of the loss in the lower MOSFET is due to current conducted through the channel resistance (r maximum continuous output current, I

). In Equation 14, IM is the

DS(ON)

is the peak-to-peak inductor current (see Equation 1), and d is the duty cycle (V

OUT/VIN

LOW 1,

DS ON()





-----N



1d–()⋅

LPP,

-------------------------------------+⋅=

(EQ. 14)

An additional term can be added to the lower-MOSFET loss equation to account for additional loss accrued during the dead time when inductor current is flowing through the lower-MOSFET body diode. This term is dependent on the diode forward voltage at I frequency, F

, and the length of dead times, td1 and td2, at

, V

, the switching

D(ON)

the beginning and the end of the lower-MOSFET conduction interval respectively.

LOW 2,

DON()FSW



------

---------+





------

⋅



–

--------2

⋅+⋅⋅=

(EQ. 15)

The total maximum power dissipated in each lower MOSFET is approximated by the summation of P

LOW,1

and P

LOW,2

UPPER MOSFET POWER CALCULATION

In addition to r

losses, a large portion of the upper-

DS(ON)

MOSFET losses are due to currents conducted across the input voltage (V

) during switching. Since a substantially

higher portion of the upper-MOSFET losses are dependent on switching frequency, the power calculation is more complex. Upper MOSFET losses can be divided into separate components involving the upper-MOSFET switching times, the lower-MOSFET body-diode reverserecovery charge, Q

, and the upper MOSFET r

DS(ON)

conduction loss.

When the upper MOSFET turns off, the lower MOSFET does not conduct any portion of the inductor current until the voltage at the phase node falls below ground. Once the lower MOSFET begins conducting, the current in the upper MOSFET falls to zero as the current in the lower MOSFET ramps up to assume the full inductor current. In Equation 16, the required time for this commutation is t approximated associated power loss is P

UP 1,VIN



⋅⋅⋅≈

------



---------+



----





and the

UP,1

(EQ. 16)

At turn on, the upper MOSFET begins to conduct and this transition occurs over a time t approximate power loss is P

UP 2,VIN



⋅⋅⋅≈

–

------

---------



. In Equation 17, the

UP,2



----





(EQ. 17)

A third component involves the lower MOSFET reverserecovery charge, Q

. Since the inductor current has fully

commutated to the upper MOSFET before the lowerMOSFET body diode can recover all of Q through the upper MOSFET across V dissipated as a result is P

VINQrrF

UP 3,

⋅⋅=

UP,3

, it is conducted

. The power

(EQ. 18)

Finally, the resistive part of the upper MOSFET is given in Equation 19 as P

UP 4,rDS ON()

UP,4





-----N



+⋅≈

d⋅

---------12

(EQ. 19)

The total power dissipated by the upper MOSFET at full load can now be approximated as the summation of the results from Equations 16, 17, 18 and 19. Since the power equations depend on MOSFET parameters, choosing the correct MOSFETs can be an iterative process involving repetitive solutions to the loss equations for different MOSFETs and different switching frequencies.

Package Power Dissipation

When choosing MOSFETs it is important to consider the amount of power being dissipated in the integrated drivers located in the controller. Since there are a total of three drivers in the controller package, the total power dissipated by all three drivers must be less than the maximum allowable power dissipation for the QFN package.

Calculating the power dissipation in the drivers for a desired application is critical to ensure safe operation. Exceeding the maximum allowable power dissipation level will push the IC beyond the maximum recommended operating junction temperature of 125°C. The maximum allowable IC power dissipation for the 6x6 QFN package is approximately 4W at room temperature. See Layout Considerations paragraph for thermal transfer improvement suggestions.

When designing the ISL6308 into an application, it is recommended that the following calculation is used to ensure safe operation at the desired frequency for the selected MOSFETs. The total gate drive power losses, P

Qg_TOT

integrated driver’s internal circuitry and their corresponding average driver current can be estimated with Equations 20 and 21, respectively.

, due to the gate charge of MOSFETs and the

FN9208.2

October 19, 2005

ISL6308

Qg_TOTPQg_Q1PQg_Q2IQ

Qg_Q1

Qg_Q2QG2

-- -

PVCC FSWNQ1N

⋅⋅ ⋅⋅⋅=

PVCC FSWNQ2N

⋅⋅⋅⋅=

VCC⋅++=

(EQ. 20)

PHASE

(EQ. 21)



-- -

• QG2NQ2•+



In Equations 20 and 21, P power loss and P loss; the gate charge (Q

N•

Qg_Q1

is the total lower gate drive power

Qg_Q2

• F

PHASE

+•=

SWIQ

is the total upper gate drive

and QG2) is defined at the particular gate to source drive voltage PVCC in the corresponding MOSFET data sheet; I quiescent current with no load at both drive outputs; N and N phase, respectively; N phases. The I

are the number of upper and lower MOSFETs per

VCC product is the quiescent power of the

is the number of active

PHASE

is the driver total

controller without capacitive load and is typically 75mW at 300kHz.

PVCC

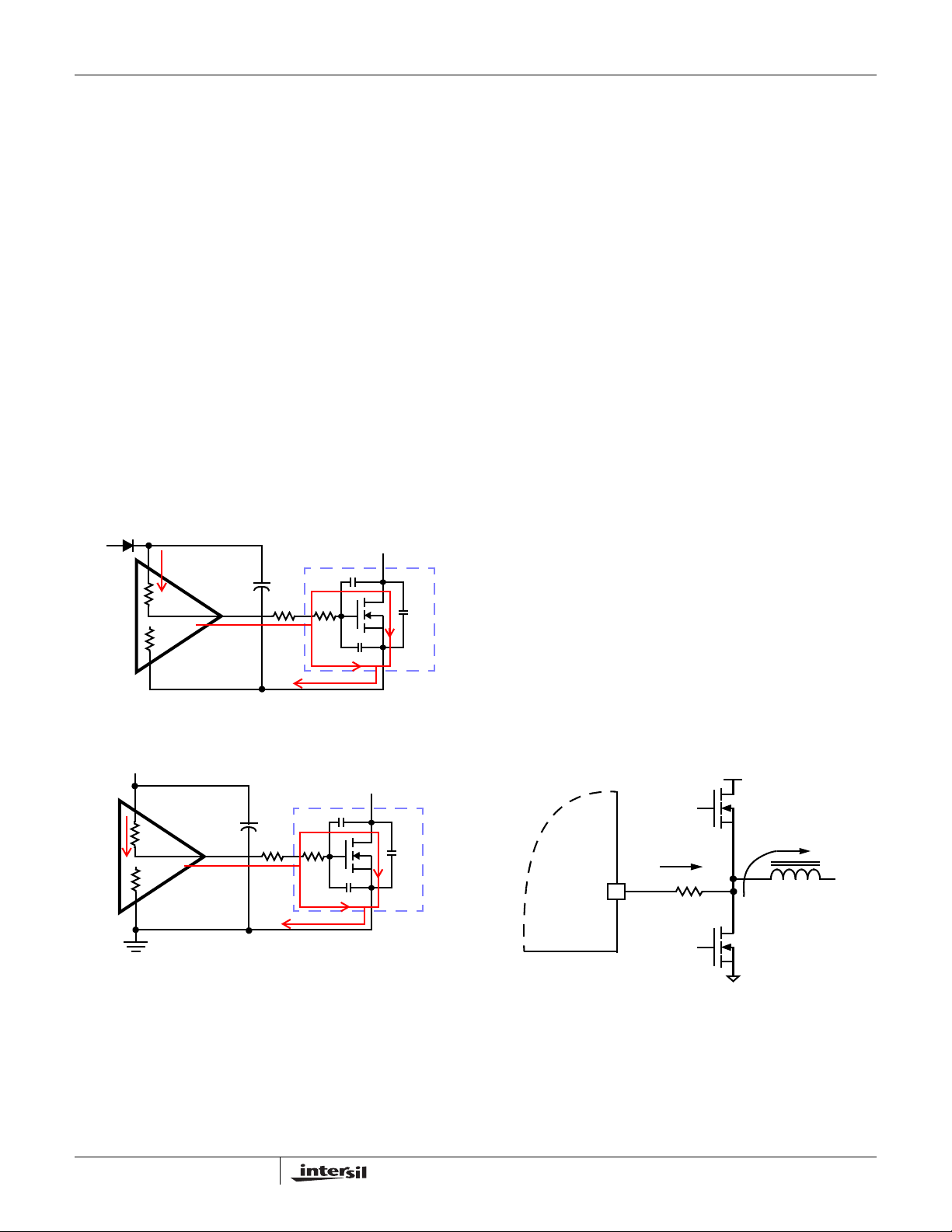

FIGURE 15. TYPICAL UPPER-GATE DRIVE TURN-ON PATH

BOOT

PHASE

HI1

LO1

UGATE

GI1

and R

) and the internal gate resistors (R

GI1

and R

GI2

) of the MOSFETs. Figures 15 and 16 show the typical upper and lower gate drives turn-on transition path. The total power dissipation in the controller itself, P

, can be roughly

estimated as:

DRPDR_UPPDR _LOW PBOOTIQ

BOOT

DR_UP

DR _LOW

EXT1RG1

Qg_Q1

---------------------=



HI1

--------------------------------------





HI1REXT1



HI2

--------------------------------------





HI2REXT2

GI1

-------------+= R N

----------------------------------------+

LO1REXT1

----------------------------------------+

LO2REXT2

LO1

LO2

EXT2RG2

•=

VCC•()+++=

Qg_Q1

---------------------

Qg_Q2

---------------------

GI2

-------------+=

(EQ. 22)

Current Balancing Component Selection

The ISL6308 senses the channel load current by sampling the voltage across the lower MOSFET r Figure 17. The ISEN pins are denoted ISEN1, ISEN2, and ISEN3. The resistors connected between these pins and the respective phase nodes determine the gains in the channel current balance loop.

Select values for these resistors based on the room temperature r operating current, I

of the lower MOSFETs; the full load

DS(ON)

; and the number of phases, N using

Equation 23.

ISEN

DS ON()

----------------------50 10

--------

⋅=

–

⋅

DS(ON)

, as shown in

(EQ. 23)

PVCC

HI2

LO2

LGATE

GI2R

FIGURE 16. TYPICAL LOWER-GATE DRIVE TURN-ON PATH

The total gate drive power losses are dissipated among the resistive components along the transition path and in the bootstrap diode. The portion of the total power dissipated in the controller itself is the power dissipated in the upper drive path resistance, P P

, and in the boot strap diode, P

DR_UP

power will be dissipated by the external gate resistors (R

, the lower drive path resistance,

DR_UP

BOOT

. The rest of the

CHANNEL N UPPER MOSFET

ISEN(n)

ISEN

ISL6308

CHANNEL N LOWER MOSFET

x r

DS ON()

FIGURE 17. ISL6308 INTERNAL AND EXTERNAL CURRENT-

SENSING CIRCUITRY

In certain circumstances, it may be necessary to adjust the value of one or more ISEN resistors. When the components of one or more channels are inhibited from effectively

October 19, 2005

FN9208.2

ISL6308

dissipating their heat so that the affected channels run hotter than desired, choose new, smaller values of R

ISEN

for the affected phases (see the section entitled Channel Current Balance). Choose R

in proportion to the desired

ISEN,2

decrease in temperature rise in order to cause proportionally less current to flow in the hotter phase.

∆T

ISEN 2,

In Equation 24, make sure that ∆T

ISEN

⋅=

∆T

is the desired

----------

temperature rise above the ambient temperature, and ∆T

(EQ. 24)

the measured temperature rise above the ambient temperature. While a single adjustment according to Equation 24 is usually sufficient, it may occasionally be necessary to adjust R

two or more times to achieve

ISEN

optimal thermal balance between all channels.

Load Line Regulation Component Selection (DCR Current Sensing)

For accurate load line regulation, the ISL6308 senses the total output current by detecting the voltage across the output inductor DCR of each channel (As described in the Load Line Regulation section). As Figure 7 illustrates, an R-C network is required to accurately sense the inductor DCR voltage and convert this information into a droop voltage, which is proportional to the total output current.

steps below to ensure the R-C and inductor L/DCR time constants are matched accurately.

1. Capture a transient event with the oscilloscope set to

about L/DCR/2 (sec/div). For example, with L = 1µH and DCR = 1mΩ, set the oscilloscope to 500µs/div.

2. Record ∆V1 and ∆V2 as shown in Figure 18.

3. Select a new value, R

COMP,2

resistor based on the original value, R

, for the time constant

COMP,1

, using the

following equation.

COMP 2,

4. Replace R

V1∆

COMP 1,

COMP

----------

⋅=

∆

with the new value and check to see that

(EQ. 27)

the error is corrected. Repeat the procedure if necessary.

After choosing a new value for R necessary to adjust the value of R

, it will most likely be

COMP

to obtain the desired full

load droop voltage. Use Equation 26 to obtain the new value for R

∆V

OUT

Choosing the components for this current sense network is a two step process. First, R chosen so that the time constant of this R

COMP

and C

must be

COMP

COMP-CCOMP

network matches the time constant of the inductor L/DCR. Then the resistor R

must be chosen to set the current

sense network gain, obtaining the desired full load droop voltage. Follow the steps below to choose the component values for this R-C network.

1. Choose an arbitrary value for C

. The recommended

COMP

value is 0.01µF.

2. Plug the inductor L and DCR component values, and the values for C calculate the value for R

COMP

3. Use the new value for R

chosen in steps 1, into Equation 25 to

COMP

---------------------------------------

⋅

DCR C

COMP

obtained from Equation 25,

COMP

(EQ. 25)

as well as the desired full load current, IFL, full load droop voltage, V calculate the value for R

------------------------ -

DROOP

, and inductor DCR in Equation 26 to

DROOP

COMP

DCR⋅⋅=

(EQ. 26)

Due to errors in the inductance or DCR it may be necessary to adjust the value of R

to match the time constants

COMP

correctly. The effects of time constant mismatch can be seen in the form of droop overshoot or undershoot during the initial load transient spike, as shown in Figure 18. Follow the

TRAN

∆I

FIGURE 18. TIME CONSTANT MISMATCH BEHAVIOR

Compensation

The two opposing goals of compensating the voltage regulator are stability and speed. Depending on whether the regulator employs the optional load-line regulation as described in “Load-Line Regulation”, there are two distinct methods for achieving these goals.

Compensating the Load-Line Regulated Converter

The load-line regulated converter behaves in a similar manner to a peak current mode controller because the two poles at the output filter L-C resonant frequency split with the introduction of current information into the control loop. The final location of these poles is determined by the system function, the gain of the current signal, and the value of the compensation components, R

and C1.

FN9208.2

October 19, 2005

ISL6308

C2 (Optional)

FIGURE 19. COMPENSATION CONFIGURATION FOR

LOAD-LINE REGULATED ISL6308 CIRCUIT

COMP

ISL6308

VDIFF

Since the system poles and zero are affected by the values of the components that are meant to compensate them, the solution to the system equation becomes fairly complicated. Fortunately, there is a simple approximation that comes very close to an optimal solution. Treating the system as though it were a voltage-mode regulator, by compensating the L-C poles and the ESR zero of the voltage mode approximation, yields a solution that is always stable with very close to ideal transient performance.

The feedback resistor, R

, has already been chosen as

outlined in Load-Line Regulation Resistor. Select a target

bandwidth for the compensated system, F0. The target bandwidth must be large enough to assure adequate transient performance, but smaller than 1/3 of the perchannel switching frequency. The values of the compensation components depend on the relationships of F

to the L-C double pole frequency and the ESR zero

frequency. For each of the following three, there is a separate set of equations for the compensation components.

Case 1:

Case 2:

Case 3:

--------------------------- F 2π LC⋅⋅

2R1

--------------------------2π LC⋅⋅

2R1

2π F0V

------------------------------------------------------------

⋅=

0.66 V

0.66 VIN⋅

-------------------------------------------------=

⋅⋅⋅

2π V

OSCR1f0

---------------------------------<≤

2π CESR⋅⋅

------------------------------------------------------------- ---

⋅=

------------------------------------------------------------- -------------------=

2π()

--------------------------------->

2π C ESR⋅⋅

2R1

0.66 VINESR C⋅⋅ ⋅

---------------------------------------------------------------=

2π V

2π()2F

OSC

0.66 V

0.66 VIN⋅

OSCR1

2π F0V

-----------------------------------------------

⋅=

0.66 V

OSCR1F0

OSC

⋅

OSC

ESR⋅⋅

LC⋅⋅⋅ ⋅

LC⋅⋅⋅⋅

L⋅⋅ ⋅

(EQ. 28)

LC⋅⋅⋅ ⋅ ⋅

L⋅⋅⋅⋅

In Equations 28, L is the per-channel filter inductance divided by the number of active channels; C is the sum total of all output capacitors; ESR is the equivalent series resistance of the bulk output filter capacitance; and V

is the peak-to-peak sawtooth signal amplitude as described in the Electrical Specifications.

Once selected, the compensation values in Equations 28 assure a stable converter with reasonable transient performance. In most cases, transient performance can be improved by making adjustments to R value of R

while observing the transient performance on an

. Slowly increase the

oscilloscope until no further improvement is noted. Normally, C

will not need adjustment. Keep the value of C1 from

Equations 28 unless some performance issue is noted.

The optional capacitor C

, is sometimes needed to bypass

noise away from the PWM comparator (see Figure 19). Keep a position available for C

, and be prepared to install a high

frequency capacitor of between 22pF and 150pF in case any leading edge jitter problem is noted.

Compensating the Converter operating without Load-Line Regulation

The ISL6308 multi-phase converter operating without load line regulation behaves in a similar manner to a voltagemode controller. This section highlights the design consideration for a voltage-mode controller requiring external compensation. To address a broad range of applications, a type-3 feedback network is recommended (see Figure 20).

FIGURE 20. COMPENSATION CONFIGURATION FOR

NON-LOAD-LINE REGULATED ISL6308 CIRCUIT

Figure 21 highlights the voltage-mode control loop for a synchronous-rectified buck converter, applicable, with a small number of adjustments, to the multi-phase ISL6308 circuit. The output voltage (V voltage, VREF, level. The error amplifier output (COMP pin voltage) is compared with the oscillator (OSC) modified sawtooth wave to provide a pulse-width modulated wave with an amplitude of V

at the PHASE node. The PWM wave is

smoothed by the output filter (L and C). The output filter capacitor bank’s equivalent series resistance is represented by the series resistor E.

OUT

COMP

VDIFF

ISL6308

) is regulated to the reference

FN9208.2

October 19, 2005

ISL6308

PWM

CIRCUIT

COMP

OSCILLATOR

HALF-BRIDGE

E/A

OSC

DRIVE

ISL6308

VREF

VDIFF

RGND

VSEN

UGATE

PHASE

LGATE

EXTERNAL CIRCUIT

OUT

DCR

ESR

FIGURE 21. VOLTAGE-MODE BUCK CONVERTER

COMPENSATION DESIGN

The modulator transfer function is the small-signal transfer function of V gain, given by d

OUT/VCOMP

MAXVIN/VOSC

filter, with a double pole break frequency at F F

. For the purpose of this analysis, L and DCR represent

. This function is dominated by a DC

, and shaped by the output

and a zero at

the individual channel inductance and its DCR divided by 3 (equivalent parallel value of the three output inductors), while C and ESR represents the total output capacitance and its equivalent series resistance.

---------------------------=

2π LC⋅⋅

---------------------------------=

2π C ESR⋅⋅

The compensation network consists of the error amplifier (internal to the ISL6308) and the external R

1-R3

, C1-C3 components. The goal of the compensation network is to provide a closed loop transfer function with high 0dB crossing frequency (F

; typically 0.1 to 0.3 of FSW) and adequate phase

margin (better than 45 degrees). Phase margin is the difference between the closed loop phase at F

and 180°. The

0dB

equations that follow relate the compensation network’s poles, zeros and gain to the components (R C

) in Figure 20 and 21. Use the following guidelines for

, R2, R3, C1, C2, and

locating the poles and zeros of the compensation network:

1. Select a value for R

(1kΩ to 5kΩ, typically). Calculate

value for R2 for desired converter bandwidth (F0).

⋅⋅

OSCR1F0

---------------------------------------------=

⋅⋅

MAXVINFLC

If setting the output voltage to be equal to the reference set voltage as shown in Figure 21, the design procedure can be followed as presented. However, when setting the output voltage via a resistor divider placed at the input of the differential amplifier (as shown in Figure 6), in order to compensate for the attenuation introduced by the resistor divider, the obtained R

value needs be

multiplied by a factor of (RP+RS)/RP. The remainder of the calculations remain unchanged, as long as the compensated R

2. Calculate C

value is used.

such that FZ1 is placed at a fraction of the FLC,

at 0.1 to 0.75 of FLC (to adjust, change the 0.5 factor to desired number). The higher the quality factor of the output filter and/or the higher the ratio F

, the lower the FZ1

CE/FLC

frequency (to maximize phase boost at FLC).

2π R

3. Calculate C

--------------------------------------------------------=

2π R2C1FCE1–⋅⋅⋅

0.5 F

⋅⋅ ⋅

such that FP1 is placed at FCE.

-----------------------------------------------=

4. Calculate R3 such that FZ2 is placed at FLC. Calculate C3 such that FP2 is placed below FSW (typically, 0.5 to 1.0 times FSW). FSW represents the per-channel switching frequency. Change the numerical factor to reflect desired placement of this pole. Placement of F

lower in

frequency helps reduce the gain of the compensation network at high frequency, in turn reducing the HF ripple component at the COMP pin and minimizing resultant duty cycle jitter.

----------------------=

------------ 1– F

-------------------------------------------------=

⋅⋅ ⋅

2π R

0.7 F

It is recommended a mathematical model is used to plot the loop response. Check the loop gain against the error amplifier’s open-loop gain. Verify phase margin results and adjust as necessary. The following equations describe the frequency response of the modulator (G compensation (G

MOD

----------------------------- -

f()

----------------------------------------------------

f()

sf() R

⋅

f() G

) and closed-loop response (GCL):

⋅

MAXVIN

OSC

1sf() R

------------------------------------------------------------- ---------------------------------------------------------- --

1sf() R

MOD

--------------------------------------------------------------- --------------------------------------------

⋅=

1sf() ESR DCR+()C⋅⋅s

⋅⋅+

2C1

+()⋅⋅

1C1C2

1sf() R

⋅⋅+()1sf() R

3C3

f() GFBf()⋅=

1sf() ESR C⋅⋅+

⋅=

+()C

⋅⋅+

1R3



⋅

 

where s f(), 2π fj⋅⋅=

), feedback

MOD

C1C2⋅



---------------------

⋅⋅+





1C2

f() LC⋅⋅++

FN9208.2

October 19, 2005

ISL6308

COMPENSATION BREAK FREQUENCY EQUATIONS

------------------------------ -=

⋅⋅

2π R

2C1

-------------------------------------------------=

2π R

+()C

⋅⋅

1R3

---------------------------------------------=

2π R

⋅⋅

------------------------------ -=

⋅⋅

2π R

3C3

C1C2⋅

---------------------

1C2

Figure 22 shows an asymptotic plot of the DC/DC converter’s gain vs. frequency. The actual Modulator Gain has a high gain peak dependent on the quality factor (Q) of the output filter, which is not shown. Using the above guidelines should yield a compensation gain similar to the curve plotted. The open loop error amplifier gain bounds the compensation gain. Check the compensation gain at F

against the capabilities of the error amplifier. The closed loop gain, G by adding the modulator gain, G compensation gain, G

, is constructed on the log-log graph of Figure 22

(in dB). This is equivalent to

(in dB), to the feedback

MOD

multiplying the modulator transfer function and the compensation transfer function and then plotting the resulting gain.

MODULATOR GAIN

COMPENSATION GAIN

CLOSED LOOP GAIN

OPEN LOOP E/A GAIN

GAIN

transient response. The output capacitors must supply or sink load current while the current in the output inductors increases or decreases to meet the demand.

In high-speed converters, the output capacitor bank is usually the most costly (and often the largest) part of the circuit. Output filter design begins with minimizing the cost of this part of the circuit. The critical load parameters in choosing the output capacitors are the maximum size of the load step, ∆I, the load-current slew rate, di/dt, and the maximum allowable output-voltage deviation under transient loading, ∆V

. Capacitors are characterized according to

MAX

their capacitance, ESR, and ESL (equivalent series inductance).

At the beginning of the load transient, the output capacitors supply all of the transient current. The output voltage will initially deviate by an amount approximated by the voltage drop across the ESL. As the load current increases, the voltage drop across the ESR increases linearly until the load current reaches its final value. The capacitors selected must have sufficiently low ESL and ESR so that the total outputvoltage deviation is less than the allowable maximum. Neglecting the contribution of inductor current and regulator response, the output voltage initially deviates by an amount

∆V ESL()

-----

⋅ ESR()∆I⋅+≈

(EQ. 29)



--------

log



LOG

FIGURE 22. ASYMPTOTIC BODE PLOT OF CONVERTER GAIN

------------------------------ ---log

MAX

MOD

⋅

OSC

FREQUENCY

A stable control loop has a gain crossing with close to a

-20dB/decade slope and a phase margin greater than 45 degrees. Include worst case component variations when determining phase margin. The mathematical model presented makes a number of approximations and is generally not accurate at frequencies approaching or exceeding half the switching frequency. When designing compensation networks, select target crossover frequencies in the range of 10% to 30% of the per-channel switching frequency, F

Output Filter Design

The output inductors and the output capacitor bank together to form a low-pass filter responsible for smoothing the pulsating voltage at the phase nodes. The output filter also must provide the transient energy until the regulator can respond. Because it has a low bandwidth compared to the switching frequency, the output filter limits the system

The filter capacitor must have sufficiently low ESL and ESR so that ∆V < ∆V

MAX

Most capacitor solutions rely on a mixture of high frequency capacitors with relatively low capacitance in combination with bulk capacitors having high capacitance but limited high-frequency performance. Minimizing the ESL of the high-frequency capacitors allows them to support the output voltage as the current increases. Minimizing the ESR of the bulk capacitors allows them to supply the increased current with less output voltage deviation.

The ESR of the bulk capacitors also creates the majority of the output-voltage ripple. As the bulk capacitors sink and source the inductor ac ripple current (see Interleaving and Equation 2), a voltage develops across the bulk capacitor ESR equal to I

(ESR). Thus, once the output capacitors

C,PP

are selected, the maximum allowable ripple voltage, V

PP(MAX)

LESR()

, determines the lower limit on the inductance.



NV⋅

–



------------------------------------------------------------- -------

⋅≥

⋅⋅

SWVINVPP MAX()

OUT

⋅

OUT

(EQ. 30)

Since the capacitors are supplying a decreasing portion of the load current while the regulator recovers from the transient, the capacitor voltage becomes slightly depleted. The output inductors must be capable of assuming the entire load current before the output voltage decreases more than ∆V

. This places an upper limit on inductance.

MAX

FN9208.2

October 19, 2005

ISL6308

Equation 31 gives the upper limit on L for the cases when the trailing edge of the current transient causes a greater output-voltage deviation than the leading edge. Equation 32 addresses the leading edge. Normally, the trailing edge dictates the selection of L because duty cycles are usually less than 50%. Nevertheless, both inequalities should be evaluated, and L should be selected based on the lower of the two results. In each equation, L is the per-channel inductance, C is the total output capacitance, and N is the number of active channels.

2NCV

⋅⋅⋅

---------------------------------

()

1.25

----------------------------------

()

∆I

()

∆I

NC⋅⋅

∆V

⋅⋅≤

∆V

∆IESR⋅()–⋅≤

MAX

∆I ESR⋅()– VINVO–

MAX

 

(EQ. 31)

(EQ. 32)

Switching Frequency

There are a number of variables to consider when choosing the switching frequency, as there are considerable effects on the upper MOSFET loss calculation. These effects are outlined in MOSFETs, and they establish the upper limit for the switching frequency. The lower limit is established by the requirement for fast transient response and small outputvoltage ripple as outlined in Output Filter Design. Choose the lowest switching frequency that allows the regulator to meet the transient-response requirements.

Switching frequency is determined by the selection of the frequency-setting resistor, R are provided to assist in selecting the correct value for R

[]

10.61 1.035 FSW()log⋅–

. Figure 23 and Equation 33

(EQ. 33)

handle the AC component of the current drawn by the upper MOSFETs which is related to duty cycle and the number of active phases.

0.3

= 0

L,PP

)

RMS/

0.2

0.1

INPUT-CAPACITOR CURRENT (I

= 0.25 I

L,PP

00.4 1.00.2 0.6 0.8

DUTY CYCLE (V

L,PP

= 0.5 I

= 0.75 I

IN/VO

)

FIGURE 24. NORMALIZED INPUT-CAPACITOR RMS

CURRENT FOR 3-PHASE CONVERTER

For a three-phase design, use Figure 24 to determine the input-capacitor RMS current requirement set by the duty cycle, maximum sustained output current (I of the peak-to-peak inductor current (I

), and the ratio

) to IO. Select a

L,PP

bulk capacitor with a ripple current rating which will minimize the total number of input capacitors required to support the RMS current calculated. The voltage rating of the capacitors should also be at least 1.25 times greater than the maximum input voltage. Figures 25 and 26 provide the same input RMS current information for two-phase and single-phase designs respectively. Use the same approach for selecting the bulk capacitor type and number.

200

100

VAL U E (k Ω)

100K

FIGURE 23. R

200K

SWITCHING FREQUENCY (Hz)

vs SWITCHING FREQUENCY

500K

1M 2M

Input Capacitor Selection

The input capacitors are responsible for sourcing the AC component of the input current flowing into the upper MOSFETs. Their RMS current capacity must be sufficient to

0.3

)

RMS/

0.2

0.1

= 0

L,PP

= 0.5 I

L,PP

INPUT-CAPACITOR CURRENT (I

L,PP

00.4 1.00.2 0.6 0.8

= 0.75 I

DUTY CYCLE (V

IN/VO

)

FIGURE 25. NORMALIZED INPUT-CAPACITOR RMS

CURRENT FOR 2-PHASE CONVERTER

October 19, 2005

FN9208.2

ISL6308

0.6

)

RMS

0.4

0.2

= 0

L,PP

= 0.5 I

L,PP

INPUT-CAPACITOR CURRENT (I

FIGURE 26. NORMALIZED INPUT-CAPACITOR RMS

L,PP

00.4 1.00.2 0.6 0.8

CURRENT FOR SINGLE-PHASE CONVERTER

= 0.75 I

DUTY CYCLE (V

)

IN/VO

Low ESL, high-frequency ceramic capacitors are needed in addition to the input bulk capacitors to suppress leading and falling edge voltage spikes. The spikes result from the high current slew rate produced by the upper MOSFET turn on and off. Place them as close as possible to each upper MOSFET drain to minimize board parasitics and maximize suppression.

Layout Considerations

MOSFETs switch very fast and efficiently. The speed with which the current transitions from one device to another causes voltage spikes across the interconnecting impedances and parasitic circuit elements. These voltage spikes can degrade efficiency, radiate noise into the circuit and lead to device overvoltage stress. Careful component layout and printed circuit design minimizes the voltage spikes in the converter. Consider, as an example, the turnoff transition of the upper PWM MOSFET. Prior to turnoff, the upper MOSFET was carrying channel current. During the turnoff, current stops flowing in the upper MOSFET and is picked up by the lower MOSFET. Any inductance in the switched current path generates a large voltage spike during the switching interval. Careful component selection, tight layout of the critical components, and short, wide circuit traces minimize the magnitude of voltage spikes.

There are two sets of critical components in a DC/DC converter using a ISL6308 controller. The power components are the most critical because they switch large amounts of energy. Next are small signal components that connect to sensitive nodes or supply critical bypassing current and signal coupling.

MOSFETs using short, high current pulses, it is important to size them as large and as short as possible to reduce their overall impedance and inductance. Extra care should be given to the LGATE traces in particular since keeping the impedance and inductance of these traces helps to significantly reduce the possibility of shoot-through. Equidistant placement of the controller to the three power trains also helps to keep these traces equally short (equal impedances, resulting in similar driving of both sets of MOSFETs).

The power components should be placed first. Locate the input capacitors close to the power switches. Minimize the length of the connections between the input capacitors, CIN, and the power switches. Locate the output inductors and output capacitors between the MOSFETs and the load. Locate the high-frequency decoupling capacitors (ceramic) as close as practicable to the decoupling target, making use of the shortest connection paths to any internal planes, such as vias to GND immediately next, or even onto the capacitor solder pad.

The critical small components include the bypass capacitors for VCC and PVCC. Locate the bypass capacitors, CBP, close to the device. It is especially important to locate the components associated with the feedback circuit close to their respective controller pins, since they belong to a highimpedance circuit loop, sensitive to EMI pick-up. It is also important to place current sense components close to their respective pins on the ISL6308, including the RISEN resistors, RS, RCOMP, CCOMP. For proper current sharing route three separate symmetrical as possible traces from the corresponding phase node for each RISEN.

A multi-layer printed circuit board is recommended. Figure 27 shows the connections of the critical components for the converter. Note that capacitors C

xxIN

and C

xxOUT

could each represent numerous physical capacitors. Dedicate one solid layer, usually the one underneath the component side of the board, for a ground plane and make all critical component ground connections with vias to this layer. Dedicate another solid layer as a power plane and break this plane into smaller islands of common voltage levels. Keep the metal runs from the PHASE terminal to inductor L

OUT

short. The power plane should support the input power and output power nodes. Use copper filled polygons on the top and bottom circuit layers for the phase nodes. Use the remaining printed circuit layers for small signal wiring. The wiring traces from the IC to the MOSFETs’ gates and sources should be sized to carry at least one ampere of current (0.02” to 0.05”).

It is important to have a symmetrical layout, preferably with the controller equidistantly located from the three power trains it controls. Equally important are the gate drive lines (UGATE, LGATE, PHASE): since they drive the power train

FN9208.2

October 19, 2005

ISL6308

+5V

+12V

REF

HF0

OFST

VDIFF

VSEN RGND

3PH 2PH

VCC

OFST

DAC

REF

REF1

REF0

OVP PGOOD

GND

ISL6308

LOCATE CLOSE TO IC

(MINIMIZE CONNECTION PATH)

COMP

PVCC1

BOOT1

UGATE1

PHASE1

ISEN1

LGATE1

PVCC2

BOOT2

UGATE2

PHASE2

ISEN2

LGATE2

PVCC3

BOOT3

UGATE3

BOOT1

BOOT2

BOOT3

ISEN2

HF01

ISEN1

HF02

HF03

KEY

HEAVY TRACE ON CIRCUIT PLANE LAYER ISLAND ON POWER PLANE LAYER

+12V

ISLAND ON CIRCUIT PLANE LAYER VIA CONNECTION TO GROUND PLANE

HF1

BIN1

LOCATE NEAR SWITCHING TRANSISTORS;

(MINIMIZE CONNECTION PATH)

OUT1

+12V

HF2

BIN2

OUT2

BOUT

HFOUT

)

LOAD

+12V

BIN3

HF3

LOCATE NEAR LOAD;

(MINIMIZE CONNECTION PATH)

ENLL

IREF

DROOP

OCSET

PHASE3

ISEN3

ICOMP

COMP

ISUM

LGATE3

SUM

FIGURE 27. PRINTED CIRCUIT BOARD POWER PLANES AND ISLANDS

OUT3

FN9208.2

October 19, 2005

ISL6308

Quad Flat No-Lead Plastic Package (QFN) Micro Lead Frame Plastic Package (MLFP)

0.15

E1/2 E/2

E2/2

9 CORNER OPTION 4X

7 8

/ /

0.10 C

0.08

(Ne-1)Xe

REF.

0.152XB

INDEX

AREA

SEATING PLANE

(DATUM B)

(DATUM A)

INDEX AREA

0.15

4X P

NX L

1 2 3

AC0.15

BOTTOM VIEW

D1/2

TOP VIEW

SIDE VIEW

NX b

e (Nd-1)Xe

REF.

NX b

SECTION "C-C"

D/2

0.10 BAMC 7

NX k

1 2

L40.6x6

40 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE (COMPLIANT TO JEDEC MO-220VJJD-2 ISSUE C)

MILLIMETERS

SYMBOL

A 0.80 0.90 1.00 A1 - - 0.05 A2 - - 1.00 9 A3 0.20 REF 9

b 0.18 0.23 0.30 5, 8

D 6.00 BSC D1 5.75 BSC 9 D2 3.95 4.10 4.25 7, 8

E 6.00 BSC E1 5.75 BSC 9 E2 3.95 4.10 4.25 7, 8

e 0.50 BSC k0.25 - - L 0.30 0.40 0.50 8

L1 - - 0.15 10

N402 Nd 10 3 Ne 10 3

P- -0.609

θ --129

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd and Ne refer to the number of terminals on each D and E.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be located within the zone indicated. The pin #1 identifier may be either a mold or mark feature.

7. Dimensions D2 and E2 are for the exposed pads which provide improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land Pattern Design efforts, see Intersil Technical Brief TB389.

NOTESMIN NOMINAL MAX

Rev. 1 10/02

9. Features and dimensions A2, A3, D1, E1, P & θ are present when

TERMINAL TIP

FOR ODD TERMINAL/SIDE FOR EVEN TERMINAL/SIDE

Anvil singulation method is used and not present for saw singulation.

10. Depending on the method of lead termination at the edge of the package, a maximum 0.15mm pull back (L1) maybe present. L minus L1 to be equal to or greater than 0.3mm.

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN9208.2

October 19, 2005

intersil ISL6308 DATA SHEET

Specifications and Main Features

Frequently Asked Questions

User Manual
