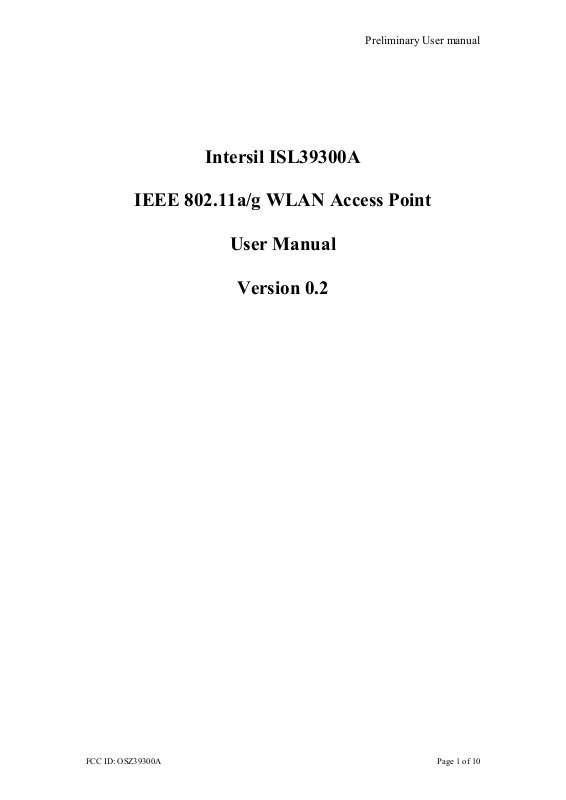

Intersil ISL39300A User Manual

Preliminary User manual

Intersil ISL39300A

IEEE 802.11a/g WLAN Access Point

User Manual

Version 0.2

FCC ID: OSZ39300A Page 1 of 10

Preliminary User manual

Table of Contents

0-INTRODUCTION ....................................................................................................3

1-INSTALLATION PROCEDURE ...........................................................................3

1.1 INSTALLING THE ACCESS POINT.........................................................................3

1.2 INSTALLING THE SOFTWARE DRIVERS ................................................................3

1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE .7

2-REGULATORY INFORMATION......................................................................... 7

2.1 FCC INFORMATION TO USER .............................................................................7

2.2 FCC GUIDELINES FOR HUMAN EXPOSURE ........................................................7

2.3 FCC ELECTRONIC EMISSION NOTICES..............................................................7

2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT.....................................8

2.5 EXPORT RESTRICTIONS .......................................................................................8

2.6 EUROPE - EU DECLARATION OF CONFORMITY.................................................9

3-TECHNICAL SPECIFICATIONS.......................................................................10

FCC ID: OSZ39300A Page 2 of 10

Preliminary User manual

0-Introduction

The Intersil ISL39300A WLAN Access Point (AP) is a complete wireless high speed AP solution.
It conforms to the IEEE 802.11g and IEEE 802.11a protocol and operates in the 2.45 GHz and 5150­5350MHz frequency bands.

It provides a complete reference design evaluation platform of hardware and software to system
providers or integrators requiring wireless data communications capability.

• Fully compliant with the IEEE 802.11g and IEEE 802.11a WLAN standards

• FCC Certified Under Part 15 (pending) to Operate in the 2.45 GHz and 5150-5350MHz Bands

• ETSI Certified Under RTTE directive (pending) to Operate in the 2.45 GHz and 5150-5350MHz
Bands

• Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1
Mbps data rates

• Driver Supports Microsoft Windows ® 98/SE, ME, XP and 2000 (SR1)

1-Installation procedure

1.1 Installing the Access Point

a-Select a suitable location to position the AP (prefereably as high as possible, close to the ceiling).
b-Connect the WAN ethernet connector to the WAN network.
c-Connect the LAN ethernet connector to the LAN network.
d-Connect the power adapter to the 9 VDC connector of the AP.
e-Install driver software from Host PC.

1.2 Installing the software drivers

a-Start windows

b-When windows detects new hardware and asks for drivers, point to directory where the Intersil driver
is located (for example floppy drive, cdrom , harddisk) to install.

c-after drivers are installed, restart windows

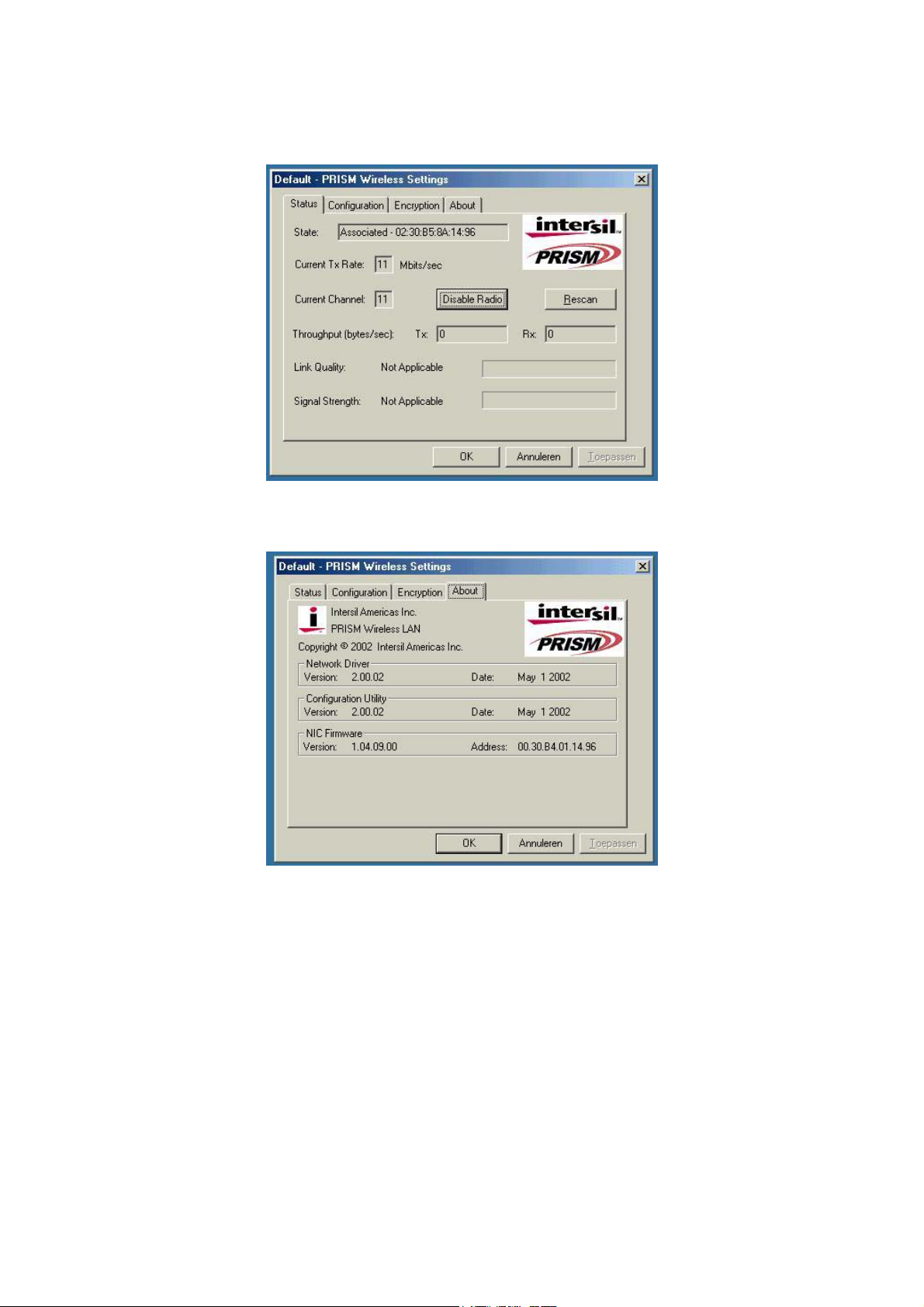

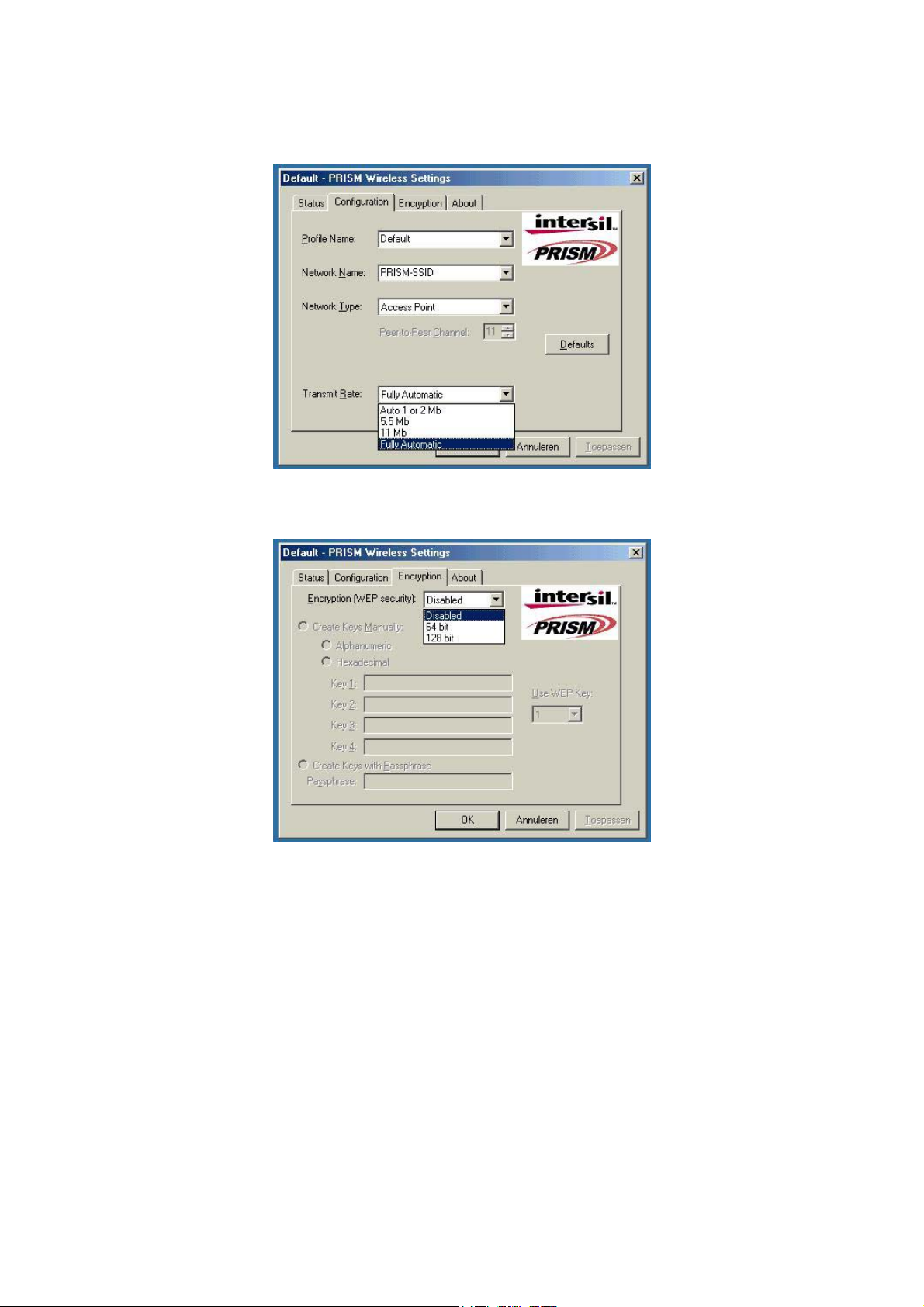

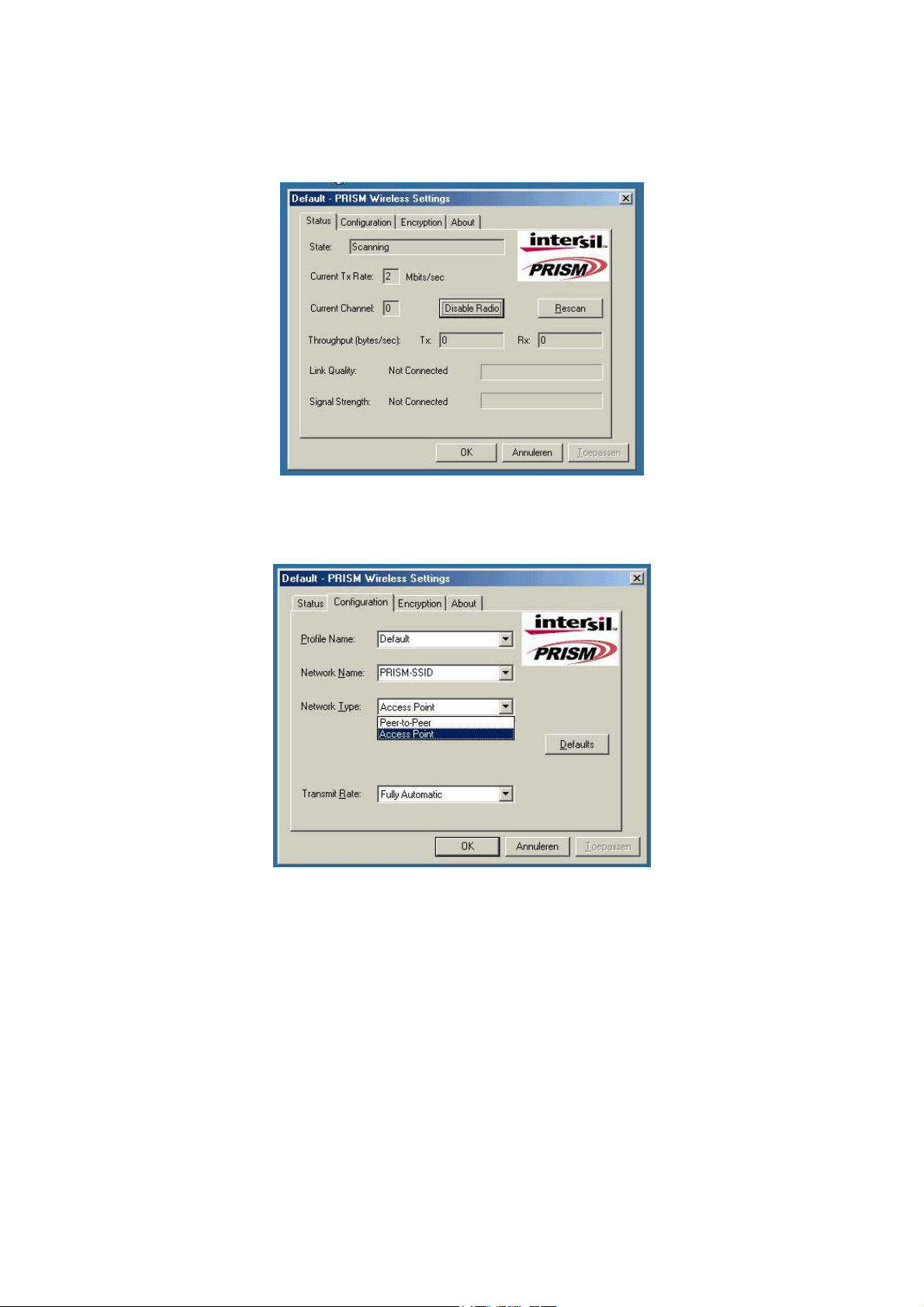

d-the Intersil WLAN icon will appear in system tray on the bottom right of the screen (see yellow
arrow in fig. 01)

fig, 01: Intersil WLAN icon

FCC ID: OSZ39300A Page 3 of 10
