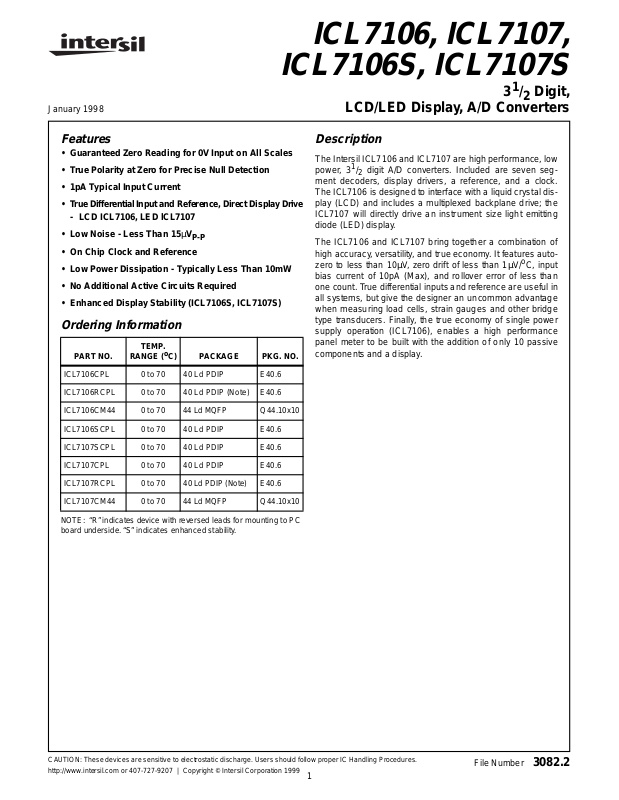

Page 1
January 1998
ICL7106, ICL7107,
ICL7106S, ICL7107S
31/2 Digit,
LCD/LED Display, A/D Converters
Features
• Guaranteed Zero Reading for 0V Input on All Scales
• True Polarity at Zero for Precise Null Detection
• 1pA Typical Input Current
• TrueDifferential Input and Reference, Direct Display Drive
- LCD ICL7106, LED lCL7107
• Low Noise - Less Than 15µV
• On Chip Clock and Reference
• Low Power Dissipation - Typically Less Than 10mW
• No Additional Active Circuits Required
• Enhanced Display Stability (ICL7106S, ICL7107S)
P-P
Ordering Information
TEMP.
PART NO.
ICL7106CPL 0 to 70 40 Ld PDIP E40.6
ICL7106RCPL 0 to 70 40 Ld PDIP (Note) E40.6
ICL7106CM44 0 to 70 44Ld MQFP Q44.10x10
ICL7106SCPL 0 to 70 40 Ld PDIP E40.6
RANGE (oC) PACKAGE PKG. NO.
Description
The Intersil ICL7106 and ICL7107 are high performance, low
power, 3
ment decoders, display drivers, a reference, and a clock.
The ICL7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive; the
ICL7107 will directly drive an instrument size light emitting
diode (LED) display.
The ICL7106 and ICL7107 bring together a combination of
high accuracy, versatility, and true economy. It features autozero to less than 10µV, zero drift of less than 1µV/
bias current of 10pA (Max), and rollover error of less than
one count. True differential inputs and reference are useful in
all systems, but give the designer an uncommon advantage
when measuring load cells, strain gauges and other bridge
type transducers. Finally, the true economy of single power
supply operation (ICL7106), enables a high performance
panel meter to be built with the addition of only 10 passive
components and a display.
1
/2digit A/D converters. Included are seven seg-
o
C, input
ICL7107SCPL 0 to 70 40 Ld PDIP E40.6
ICL7107CPL 0 to 70 40 Ld PDIP E40.6
ICL7107RCPL 0 to 70 40 Ld PDIP (Note) E40.6
ICL7107CM44 0 to 70 44Ld MQFP Q44.10x10
NOTE: “R” indicates device with reversed leads for mounting to PC
board underside. “S” indicates enhanced stability.
CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207 | Copyright © Intersil Corporation 1999
1
File Number 3082.2
Page 2
Pinouts
ICL7106, ICL7107, ICL7106S, ICL7107S
(100’s)
(MINUS)
(1’s)
(10’s)
(1000) AB4
POL
ICL7106, ICL7107 (PDIP)
TOP VIEW
1
V+
2
D1
3
C1
4
B1
5
A1
6
F1
7
G1
8
E1
9
D2
10
C2
11
B2
12
A2
13
F2
14
E2
15
D3
16
B3
17
F3
18
E3
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
+
C
REF
-
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
VG2 (10’s)
C3
(100’s)
A3
G3
BP/GND
REF HI
REF LO
COMMON
G2 (10’s)
(100’s)
BP/GND
ICL7106R, ICL7107R (PDIP)
TOP VIEW
1
OSC 1
2
OSC 2
3
OSC 3
4
TEST
5
6
+
C
REF
C
REF
IN HI
IN LO
A-Z
BUFF
INT
C3
A3
G3
7
-
8
9
10
11
12
13
14
15
V-
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
V+
D1
C1
B1
(1’s)
A1
F1
G1
E1
D2
C2
B2
(10’s)
A2
F2
E2
D3
B3
(100’s)
F3
E3
(1000) AB4
POL
(MINUS)
NC
NC
TEST
OSC 3
NC
OSC 2
OSC 1
V+
D1
C1
B1
ICL7106, ICL7107 (MQFP)
TOP VIEW
+
-
REF
REF
C
REF HI
REF LO
44 43 42 41 40
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17
A1 F1 G1 E1 D2 C2
COMMON
C
39 38 37 36 35 34
IN HI
IN LO
A-Z
BUFF
B2 A2 F2 E2 D3
INT
V-
33
32
31
30
29
28
27
26
25
24
23
2221201918
NC
G2
C3
A3
G3
BP/GND
POL
AB4
E3
F3
B3
2
Page 3
ICL7106, ICL7107, ICL7106S, ICL7107S
Absolute Maximum Ratings Thermal Information
Supply Voltage
ICL7106, V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
ICL7107, V+ to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
ICL7107, V- to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-9V
Analog Input Voltage (Either Input) (Note 1). . . . . . . . . . . . . V+ to V-
Reference Input Voltage (Either Input) . . . . . . . . . . . . . . . . . V+ to V-
Clock Input
ICL7106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TEST to V+
ICL7107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND to V+
Operating Conditions
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . .0oC to 70oC
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation
of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTES:
1. Input voltages may exceed the supply voltages provided the input current is limited to ±100µA.
2. θJA is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications (Note 3)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SYSTEM PERFORMANCE
Thermal Resistance (Typical, Note 2) θJA (oC/W)
PDIP Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
MQFP Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 150oC
Maximum Storage Temperature Range . . . . . . . . . .-65oC to 150oC
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . . 300oC
(MQFP - Lead Tips Only)
Zero Input Reading VIN = 0.0V, Full Scale = 200mV -000.0 ±000.0 +000.0 Digital
Reading
Stability (Last Digit) (ICL7106S, ICL7107S
Only)
Ratiometric Reading VlN = V
Rollover Error -VIN = +VlN≅ 200mV
Linearity Full Scale = 200mV or Full Scale = 2V Maximum
Common Mode Rejection Ratio VCM = 1V, VIN = 0V, Full Scale = 200mV (Note 6) - 50 - µV/V
Noise VIN = 0V, Full Scale = 200mV
Leakage Current Input VlN = 0 (Note 6) - 1 10 pA
Zero Reading Drift VlN = 0, 0oC To 70oC (Note 6) - 0.2 1 µV/oC
Scale Factor Temperature Coefficient VIN = 199mV, 0oC To 70oC,
End Power Supply Character V+ Supply
Current
End PowerSupply Character V-Supply Current ICL7107 Only - 0.6 1.8 mA
Fixed Input Voltage (Note 7) -000.0 ±000.0 +000.0 Digital
Reading
, V
REF
Difference in Reading for Equal Positive and
Negative Inputs Near Full Scale
Deviation from Best Straight Line Fit (Note 6)
(Peak-To-Peak Value Not Exceeded 95% of Time)
(Ext. Ref. 0ppm/oC) (Note 6)
VIN=0(DoesNotIncludeLED Current for ICL7107) - 1.0 1.8 mA
= 100mV 999 999/10001000 Digital
REF
- ±0.2 ±1 Counts
- ±0.2 ±1 Counts
-15- µV
- 1 5 ppm/oC
Reading
COMMON Pin Analog Common Voltage 25kΩ Between Common and
Positive Supply (With Respect to + Supply)
Temperature Coefficient of Analog Common 25kΩ Between Common and
Positive Supply (With Respect to + Supply)
DISPLAY DRIVER ICL7106 ONLY
Peak-To-Peak Segment Drive Voltage
Peak-To-Peak Backplane Drive Voltage
V+ = to V- = 9V (Note 5) 4 5.5 6 V
3
2.4 3.0 3.2 V
- 80 - ppm/oC
Page 4
ICL7106, ICL7107, ICL7106S, ICL7107S
Electrical Specifications (Note 3) (Continued)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DISPLAY DRIVER ICL7107 ONLY
Segment Sinking Current V+ = 5V, Segment Voltage = 3V
(Except Pins 19 and 20) 58- mA
Pin 19 Only 10 16 - mA
Pin 20 Only 47- mA
NOTES:
3. Dissipation rating assumes device is mounted with all leads soldered to printed circuit board.
4. Unless otherwise noted, specifications apply to both the ICL7106 and ICL7107 at TA=25oC, f
circuit of Figure 1. ICL7107 is tested in the circuit of Figure 2.
5. Back plane drive is in phase with segment drive for ‘off’ segment, 180 degrees out of phase for ‘on’ segment. Frequency is 20 times
conversion rate. Average DC component is less than 50mV.
6. Not tested, guaranteed by design.
7. Sample Tested.
= 48kHz. ICL7106 is tested in the
CLOCK
Typical Applications and Test Circuits
+ -
R
C
+
REF
C
5
1
-
REF
COM
C
R
1
R
C
4
OSC 3
TEST
4
REF HI
REF LO
R
3
4039383736353433323130
OSC 1
OSC 2
ICL7106
V+
D1C1B1
123456789
A1F1G1E1D2C2B2
DISPLAY
IN
C
5
C
2
IN HI
IN LO
101112
9V
+
-
R
2
C
3
28
29
27262524232221
V-
INT
A-Z
BUFF
F2
E2
A2
D3
13
14151617181920
DISPLAY
G2
B3
C1 = 0.1µF
= 0.47µF
C
2
= 0.22µF
C
C3
A3
G3
BP
F3
E3
AB4
POL
3
C
= 100pF
4
= 0.02µF
C
5
= 24kΩ
R
1
R
= 47kΩ
2
= 100kΩ
R
3
= 1kΩ
R
4
R
= 1MΩ
5
FIGURE 1. ICL7106 TEST CIRCUIT AND TYPICAL APPLICATION WITH LCD DISPLAY COMPONENTS SELECTED FOR 200mV
FULL SCALE
+5V -5V
R
1
C
R
C
4
OSC 3
TEST
4
REF HI
REF LO
F1
+
C
R
3
4039383736353433323130
OSC 1
OSC 2
V+D1C1B1A1
123456789
+ -
IN
R
5
C
5
R
2
REF
COM
IN HI
C
IN LO
1
-
REF
C
C
2
3
28
29
27262524232221
INT
A-Z
BUFF
V-
G2
ICL7107
E1D2C2B2A2F2E2D3B3F3E3
G1
101112
DISPLAY
13
14151617181920
DISPLAY
C3
C1 = 0.1µF
= 0.47µF
C
2
= 0.22µF
C
A3
G3
GND
AB4
POL
3
C
= 100pF
4
= 0.02µF
C
5
= 24kΩ
R
1
R
= 47kΩ
2
= 100kΩ
R
3
= 1kΩ
R
4
R
= 1MΩ
5
FIGURE 2. ICL7107 TEST CIRCUIT AND TYPICAL APPLICATION WITH LED DISPLAY COMPONENTS SELECTED FOR 200mV
FULL SCALE
4
Page 5
ICL7106, ICL7107, ICL7106S, ICL7107S
Design Information Summary Sheet
• OSCILLATOR FREQUENCY
= 0.45/RC
f
OSC
C
> 50pF; R
OSC
f
(Typ) = 48kHz
OSC
• OSCILLATOR PERIOD
= RC/0.45
t
OSC
• INTEGRATION CLOCK FREQUENCY
CLOCK
= f
OSC
f
• INTEGRATION PERIOD
= 1000 x (4/f
t
INT
• 60/50Hz REJECTION CRITERION
t
INT/t60Hz
or t
• OPTIMUM INTEGRATION CURRENT
= 4µA
I
INT
• FULL SCALE ANALOG INPUT VOLTAGE
(Typ) = 200mV or 2V
V
lNFS
• INTEGRATE RESISTOR
V
R
INT
---------------- -=
I
INFS
INT
• INTEGRATE CAPACITOR
t
()I
C
INT
INT
--------------------------------=
V
INT
• INTEGRATOR OUTPUT VOLTAGE SWING
t
()I
()
V
•V
INT
INT
INT
--------------------------------=
C
INT
MAXIMUM SWING:
(V- + 0.5V) < V
> 50kΩ
OSC
/4
)
OSC
lNT/t60Hz
()
INT
INT
INT
= Integer
< (V+ - 0.5V), V
(Typ) = 2V
INT
• DISPLAY COUNT
V
IN
COUNT 1000
×=
---------------
V
REF
• CONVERSION CYCLE
t
CYC
t
CYC
when f
= t
= t
OSC
CL0CK
x 16,000
OSC
= 48kHz; t
x 4000
CYC
= 333ms
• COMMON MODE INPUT VOLTAGE
(V- + 1V) < V
< (V+ - 0.5V)
lN
• AUTO-ZERO CAPACITOR
0.01µF < C
AZ
< 1µF
• REFERENCE CAPACITOR
0.1µF < C
•V
COM
REF
< 1µF
Biased between Vi and V-.
COM
≅ V+ - 2.8V
•V
Regulation lost when V+ to V- < ≅6.8V
If V
the V
is externally pulled down to (V+ to V-)/2,
COM
circuit will turn off.
COM
• ICL7106 POWER SUPPLY: SINGLE 9V
V+ - V- = 9V
Digital supply is generated internally
≅ V+ - 4.5V
V
GND
• ICL7106 DISPLAY: LCD
Type: Direct drive with digital logic supply amplitude.
• ICL7107 POWER SUPPLY: DUAL ±5.0V
V+ = +5V to GND
V- = -5V to GND
Digital Logic and LED driver supply V+ to GND
• ICL7107 DISPLAY: LED
Type: Non-Multiplexed Common Anode
Typical Integrator Amplifier Output Waveform (INT Pin)
AUTO ZERO PHASE
(COUNTS)
2999 - 1000
SIGNAL INTEGRATE
PHASE FIXED
1000 COUNTS
TOTAL CONVERSION TIME = 4000 x t
5
DE-INTEGRATE PHASE
= 16,000 x t
CLOCK
0 - 1999 COUNTS
OSC
Page 6
ICL7106, ICL7107, ICL7106S, ICL7107S
Detailed Description
Analog Section
Figure 3 shows the Analog Section for the ICL7106 and
ICL7107. Each measurement cycle is divided into three
phases. They are (1) auto-zero (A-Z), (2) signal integrate
(INT) and (3) de-integrate (DE).
Auto-Zero Phase
During auto-zero three things happen. First, input high and
low are disconnected from the pins and internally shorted to
analog COMMON. Second, the reference capacitor is
charged to the reference voltage. Third, a feedback loop is
closed around the system to charge the auto-zero capacitor
C
to compensate for offset voltages in the buffer amplifier,
AZ
integrator,and comparator.Since the comparator is included
in the loop, the A-Z accuracy is limited only by the noise of
the system. In any case, the offset referred to the input is
less than 10µV.
Signal Integrate Phase
During signal integrate, the auto-zero loop is opened, the
internal short is removed, and the internal input high and low
are connected to the external pins. The converter then
integrates the differential voltage between IN HI and IN LO
for a fixed time. This differential voltage can be within a wide
common mode range: up to 1V from either supply. If, on the
other hand, the input signal has no return with respect to the
converter power supply, IN LO can be tied to analog
COMMON to establish the correct common mode voltage. At
the end of this phase, the polarity of the integrated signal is
determined.
De-Integrate Phase
The final phase is de-integrate, or reference integrate. Input
low is internally connected to analog COMMON and input
high is connected across the previously charged reference
capacitor. Circuitry within the chip ensures that the capacitor
will be connected with the correct polarity to cause the
integrator output to return to zero. The time required for the
output to return to zero is proportional to the input signal.
Specifically the digital reading displayed is:
V
IN
---------------
DISPLAY COUNT = 1000
.
V
REF
Differential Input
The input can accept differential voltages anywhere within the
common mode range of the input amplifier,or specifically from
0.5V below the positive supply to 1V above the negative supply. In this range, the system has a CMRR of 86dB typical.
Howev er, care must be exercisedto assure the integrator output does not saturate. A worst case condition would be a large
positive common mode voltage with a near full scale negative
differential input voltage. The negative input signal drives the
integrator positive when most of its swing has been used up
by the positive common mode voltage. For these critical applications the integrator output swing can be reduced to less
than the recommended 2V full scale swing with little loss of
accuracy. The integrator output can swing to within 0.3V of
either supply without loss of linearity.
IN HI
COMMON
IN LO
STRAY STRAY
REF HI
+
C
REF
V+
31
32
30
34
10µA
INT
A-Z
INT
C
REF
REF LO
36
A-Z A-Z
DE- DE+
A-Z AND DE(±)
FIGURE 3. ANALOG SECTION OF ICL7106 AND ICL7107
35
DE-DE+
R
INT
-
C
REF
33
-
+
INPUT
HIGH
N
V-
BUFFER
28 29 27
-
+
V+
1
2.8V
C
AZ
A-Z INT
INTEGRATOR
6.2V
INPUT
LOW
A-Z
-
+
COMPARATOR
C
INT
-
+
TO
DIGITAL
SECTION
6
Page 7
ICL7106, ICL7107, ICL7106S, ICL7107S
Differential Reference
The reference voltage can be generated anywhere within the
powersupply voltage of the converter. The main source of common mode error is a roll-over voltage caused by the reference
capacitor losing or gaining charge to stray capacity on its
nodes. If there is a large common mode voltage, the reference
capacitor can gain charge (increase voltage) when called up to
de-integrate a positive signal but lose charge (decrease voltage) when called up to de-integrate a negative input signal.
This difference in referenceforpositive or negative input voltage
will give a roll-over error. However, by selecting the reference
capacitor such that it is large enough in comparison to the stray
capacitance, this error can be held to less than 0.5 count worst
case. (See Component V alue Selection.)
Analog COMMON
This pin is included primarily to set the common mode
voltage for battery operation (ICL7106) or for any system
where the input signals are floating with respect to the power
supply. The COMMON pin sets a voltage that is approximately 2.8V more negative than the positive supply. This is
selected to give a minimum end-of-life battery voltage of
about 6V. However, analog COMMON has some of the
attributes of a reference voltage. When the total supply
voltage is large enough to cause the zener to regulate (>7V),
the COMMON voltage will have a low voltage coefficient
(0.001%/V), low output impedance (≅15Ω), and a
temperature coefficient typically less than 80ppm/
o
C.
The limitations of the on chip reference should also be
recognized, however. With the ICL7107, the internal heating
which results from the LED drivers can cause some
degradation in performance. Due to their higher thermal resistance, plastic parts are poorer in this respect than ceramic.
The combination of reference Temperature Coefficient (TC),
internal chip dissipation, and package thermal resistance can
increase noise near full scale from 25µVto80µV
. Also the
P-P
linearity in going from a high dissipation count such as 1000
(20 segments on) to a low dissipation count such as 1111(8
segments on) can suffer by a count or more. Devices with a
positive TC reference may require several counts to pull out of
an over-range condition. This is because over-range is a low
dissipation mode, with the three least significant digits
blanked. Similarly, units with a negative TC ma y cycle
between over-range and a non-over-range count as the die
alternately heats and cools. All these problems are of course
eliminated if an external reference is used.
should be since this removes the common mode voltage
from the reference system.
Within the lC, analog COMMON is tied to an N-Channel FET
that can sink approximately 30mA of current to hold the
voltage 2.8V below the positive supply (when a load is trying
to pull the common line positive). However, there is only
10µA of source current, so COMMON may easily be tied to a
more negative voltage thus overriding the internal reference.
V+
V
REF HI
REF LO
ICL7106
ICL7107
FIGURE 4A.
V
ICL7106
ICL7107
REF HI
REF LO
COMMON
FIGURE 4. USING AN EXTERNAL REFERENCE
20kΩ
FIGURE 4B.
6.8V
ZENER
I
V-
V+
6.8kΩ
ICL8069
1.2V
REFERENCE
Z
TEST
The TEST pin serves two functions. On the ICL7106 it is
coupled to the internally generated digital supply through a
500Ω resistor. Thus it can be used as the negative supply for
externally generated segment drivers such as decimal points
or any other presentation the user may want to include on
the LCD display. Figures 5 and 6 show such an application.
No more than a 1mA load should be applied.
The ICL7106, with its negligible dissipation, suffers from
none of these problems. In either case, an external
reference can easily be added, as shown in Figure 4.
Analog COMMON is also used as the input low return during
auto-zero and de-integrate. If IN LO is different from analog
COMMON, a common mode voltage exists in the system
and is taken care of by the excellent CMRR of the converter.
However, in some applications IN LO will be set at a fixed
known voltage (power supply common for instance). In this
application, analog COMMON should be tied to the same
point, thus removing the common mode voltage from the
converter. The same holds true for the reference voltage. If
reference can be conveniently tied to analog COMMON, it
V+
ICL7106
BP
21
TEST
37
FIGURE 5. SIMPLE INVERTER FOR FIXED DECIMAL POINT
1MΩ
TO LCD
DECIMAL
POINT
TO LCD
BACKPLANE
7
Page 8
ICL7106, ICL7107, ICL7106S, ICL7107S
The second function is a “lamp test”. When TEST is pulled
high (to V+) all segments will be turned on and the display
should read “1888”. The TEST pin will sink about 15mA
under these conditions.
CAUTION: In the lamp test mode, the segments have a constant DC
voltage (no square-wave). This may burn the LCD display if maintained for extended periods.
CD4030
GND
V+
TO LCD
DECIMAL
POINTS
V+
BP
ICL7106
TEST
DECIMAL
POINT
SELECT
FIGURE 6. EXCLUSIVE ‘OR’ GATE FOR DECIMAL POINT DRIVE
Digital Section
Figures 7 and 8 show the digital section for the ICL7106 and
ICL7107, respectively. In the ICL7106, an internal digital
ground is generated from a 6V Zener diode and a large
P-Channel source follower. This supply is made stiff to
absorb the relative large capacitive currents when the back
plane (BP) voltage is switched. The BP frequency is the
clock frequency divided by 800. For three readings/sec., this
is a 60Hz square wave with a nominal amplitude of 5V. The
segments are driven at the same frequency and amplitude
and are in phase with BP when OFF, but out of phase when
ON. In all cases negligible DC voltage exists across the
segments.
Figure 8 is the Digital Section of the ICL7107. It is identical
to the ICL7106 except that the regulated supply and back
plane drive have been eliminated and the segment drive has
been increased from 2mA to 8mA, typical for instrument size
common anode LED displays.Since the 1000 output (pin 19)
must sink current from two LED segments, it has twice the
drive capability or 16mA.
In both devices, the polarity indication is “on” for negative
analog inputs. If IN LO and IN HI are reversed,this indication
can be reversed also, if desired.
TYPICAL SEGMENT OUTPUT
INTERNAL DIGITAL GROUND
0.5mA
2mA
V+
SEGMENT
OUTPUT
† THREE INVERTERS
ONE INVERTER SHOWN FOR CLARITY
a
b
1000’s 100’s 10’s 1’s
COUNTER
FROM COMPARATOR OUTPUT
TO SWITCH DRIVERS
CLOCK
†
40 39 38
a
f
b
g
e
c
d
LCD PHASE DRIVER
7
SEGMENT
DECODE
LATCH
COUNTER COUNTER COUNTER
÷4
INTERNAL
DIGITAL
GROUND
f
c
e
SEGMENT
DECODE
7
a
b
g
c
d
LOGIC CONTROL
a
f
g
e
d
7
SEGMENT
DECODE
VTH = 1V
b
c
BACKPLANE
21
÷200
1
V+
6.2V
500Ω
TEST
37
26
V-
OSC 1
OSC 2
OSC 3
FIGURE 7. ICL7106 DIGITAL SECTION
8
Page 9
ICL7106, ICL7107, ICL7106S, ICL7107S
TYPICAL SEGMENT OUTPUT
DIGITAL GROUND
0.5mA
8mA
V+
TO
SEGMENT
† THREE INVERTERS
ONE INVERTER SHOWN FOR CLARITY
OSC 1
a
b
1000’s 100’s 10’s 1’s
COUNTER
TO SWITCH DRIVERS
FROM COMPARATOR OUTPUT
V+
CLOCK
†
40 39 38
OSC 2
OSC 3
a
f
b
g
e
c
d
7
SEGMENT
DECODE
LATCH
COUNTER COUNTER COUNTER
÷4
f
c
e
SEGMENT
DECODE
7
a
b
g
c
d
LOGIC CONTROL
a
f
g
e
d
7
SEGMENT
DECODE
b
c
1
V+
TEST
37
500Ω
27
DIGITAL
GROUND
FIGURE 8. ICL7107 DIGITAL SECTION
System Timing
Figure 9 shows the clocking arrangement used in the
ICL7106 and ICL7107. Two basic clocking arrangements
can be used:
1. Figure 9A. An external oscillator connected to pin 40.
2. Figure 9B. An R-C oscillator using all three pins.
The oscillator frequency is divided by four before it clocks the
decade counters. It is then further divided to form the three
convert-cycle phases. These are signal integrate (1000
counts), reference de-integrate (0 to 2000 counts) and
auto-zero (1000 to 3000 counts). For signals less than full
scale, auto-zero gets the unused portion of reference
de-integrate. This makes a complete measure cycle of 4,000
counts (16,000 clock pulses) independent of input voltage.
For three readings/second, an oscillator frequency of 48kHz
would be used.
To achieve maximum rejection of 60Hz pickup, the signal
integrate cycle should be a multiple of 60Hz. Oscillator
frequencies of 240kHz, 120kHz, 80kHz, 60kHz, 48kHz,
40kHz, 33
tion, Oscillator frequencies of 200kHz, 100kHz, 66
1
/3kHz, etc. should be selected. For 50Hz rejec-
2
/3kHz,
50kHz, 40kHz, etc. would be suitable. Note that 40kHz (2.5
readings/second) will reject both 50Hz and 60Hz (also
400Hz and 440Hz).
INTERNAL TO PART
40 39
GND ICL7107
TEST ICL7106
INTERNAL TO PART
40 39
FIGURE 9. CLOCK CIRCUITS
FIGURE 9A.
R
FIGURE 9B.
÷4
38
÷4
38
C
RC OSCILLATOR
CLOCK
CLOCK
9
Page 10
ICL7106, ICL7107, ICL7106S, ICL7107S
Component Value Selection
Integrating Resistor
Both the buffer amplifier and the integrator have a class A
output stage with 100µA of quiescent current. They can
supply 4µA of drive current with negligible nonlinearity. The
integrating resistor should be large enough to remain in this
very linear region over the input voltage range, but small
enough that undue leakage requirements are not placed on
the PC board. For 2V full scale, 470kΩ is near optimum and
similarly a 47kΩ for a 200mV scale.
Integrating Capacitor
The integrating capacitor should be selected to give the
maximum voltage swing that ensures tolerance buildup will
not saturate the integrator swing (approximately. 0.3V from
either supply). In the ICL7106 or the ICL7107, when the
analog COMMON is used as a reference, a nominal +2V fullscale integrator swing is fine. For the ICL7107 with +5V
supplies and analog COMMON tied to supply ground, a
±3.5V to +4V swing is nominal. For three readings/second
(48kHz clock) nominal values for C
0.10µF, respectively. Of course, if different oscillator frequencies are used, these values should be changed in inverse
proportion to maintain the same output swing.
An additional requirement of the integrating capacitor is that
it must have a low dielectric absorption to prevent roll-over
errors. While other types of capacitors are adequate for this
application, polypropylene capacitors give undetectable
errors at reasonable cost.
Auto-Zero Capacitor
The size of the auto-zero capacitor has some influence on
the noise of the system. For 200mV full scale where noise is
very important, a 0.47µF capacitor is recommended. On the
2V scale, a 0.047µF capacitor increases the speed of recovery from overload and is adequate for noise on this scale.
are 0.22µF and
lNT
Reference Voltage
The analog input required to generate full scale output (2000
counts) is: V
V
should equal 100mV and 1V, respectively. However, in
REF
lN
=2V
. Thus, for the 200mV and 2V scale,
REF
many applications where the A/D is connected to a
transducer, there will exist a scale factor other than unity
between the input voltage and the digital reading. For
instance, in a weighing system, the designer might like to
have a full scale reading when the voltage from the
transducer is 0.662V. Instead of dividing the input down to
200mV, the designer should use the input voltage directly
and select V
= 0.341V. Suitable values for integrating
REF
resistor and capacitor would be 1 20kΩ and 0.22µF. This
makes the system slightly quieter and also avoids a divider
network on the input. The ICL7107 with ±5V supplies can
accept input signals up to ±4V. Another advantage of this
system occurs when a digital reading of zero is desired for
V
≠ 0. Temperature and weighing systems with a variable
IN
fare are examples. This offset reading can be conveniently
generated by connecting the voltage transducer between IN
HI and COMMON and the variable (or fixed) offset voltage
between COMMON and IN LO.
ICL7107 Power Supplies
The ICL7107 is designed to work from ±5V supplies.
However, if a negative supply is not available, it can be
generated from the clock output with 2 diodes, 2 capacitors,
and an inexpensive lC. Figure 10 shows this application. See
ICL7660 data sheet for an alternative.
In fact, in selected applications no negative supply is
required. The conditions to use a single +5V supply are:
1. The input signal can be referenced to the center of the
common mode range of the converter.
2. The signal is less than ±1.5V.
3. An external reference is used.
Reference Capacitor
A 0.1µF capacitor gives good results in most applications.
However, where a large common mode voltage exists (i.e.,
the REF LO pin is not at analog COMMON) and a 200mV
scale is used, a larger value is required to prevent roll-over
error. Generally 1µF will hold the roll-over error to 0.5 count
in this instance.
Oscillator Components
For all ranges of frequency a 100kΩ resistor is recommended
and the capacitor is selected from the equation:
0.45
-----------
RC
For 48kHz Clock (3 Readings/sec),=
f
C 100pF.=
V+
CD4009
V+
OSC 1
OSC 2
OSC 3
ICL7107
GND
V-
V- = 3.3V
FIGURE 10. GENERATING NEGATIVE SUPPLY FROM +5V
IN914
10
0.047
µF
IN914
+
10
µF
-
Page 11
ICL7106, ICL7107, ICL7106S, ICL7107S
Typical Applications
The ICL7106 and ICL7107 may be used in a wide variety of
configurations. The circuits which follow show some of the
possibilities, and serve to illustrate the exceptional versatility
of these A/D converters.
The following application notes contain very useful
information on understanding and applying this part and are
available from Intersil Corporation.
Typical Applications
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
BP
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
100kΩ
100pF
0.1µF
0.47µF
47kΩ
0.22µF
TO BACKPLANE
TO PIN 1
1kΩ 22kΩ
0.01µF
SET V
REF
= 100mV
1MΩ
+
IN
-
+
9V
-
Application Notes
AnswerFAX
NOTE # DESCRIPTION
AN016 “Selecting A/D Converters” 9016
AN017 “The Integrating A/D Converter” 9017
AN018 “Do’s and Don’ts of Applying A/D
Converters”
AN023 “Low Cost Digital Panel Meter Designs” 9023
AN032 “Understanding the Auto-Zero and
Common Mode Performance of the
ICL7136/7/9 Family”
AN046 “Building a Battery-Operated Auto
Ranging DVM with the ICL7106”
AN052 “Tips for Using Single Chip 31/2 Digit A/D
Converters”
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
GND
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
100kΩ
100pF
0.1µF
0.47µF
0.22µF
TO PIN 1
SET V
= 100mV
1kΩ 22kΩ
0.01µF
47kΩ
DOC. #
9018
9032
9046
9052
REF
1MΩ
+5V
+
IN
-
-5V
Values shown are for 200mV full scale, 3 readings/sec., floating
supply voltage (9V battery).
Values shown are for 200mV full scale, 3 readings/sec. IN LO may
be tied to either COMMON for inputs floating with respect to
supplies, or GND for single ended inputs. (See discussion under
Analog COMMON.)
FIGURE 11. ICL7106 USING THE INTERNAL REFERENCE FIGURE 12. ICL7107 USING THE INTERNAL REFERENCE
11
Page 12
t
r
ICL7106, ICL7107, ICL7106S, ICL7107S
Typical Applications
OSC 1
40
OSC 2
39
OSC 3
38
TEST
37
REF HI
36
REF LO
COMMON
C
REF
C
REF
IN HI
IN LO
A-Z
BUFF
INT
VG2
C3
A3
G3
GND
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
(Continued)
100kΩ
100pF
0.1µF
0.47µF
47kΩ
0.22µF
TO PIN 1
1kΩ 10kΩ
SET V
= 100mV
1.2V (ICL8069)
1MΩ
0.01µF
REF
10kΩ
V+
+
IN
-
-
V
IN LO is tied to supply COMMON establishing the correct common mode
voltage. If COMMON is not shorted to GND, the input voltage may floa
with respect to the power supply and COMMON acts as a pre-regulato
for the reference. If COMMON is shorted to GND, the input is single
ended (referred to supply GND) and the pre-regulator is overridden.
FIGURE 13. ICL7107 WITH AN EXTERNAL BAND-GAP
REFERENCE (1.2V TYPE)
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
BP/GND
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
100kΩ
100pF
0.1µF
0.047µF
470kΩ
0.22µF
TO PIN 1
25kΩ 24kΩ
SET V
= 100mV
1MΩ
0.01µF
REF
V+
+
IN
-
V-
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
GND
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
100kΩ
100pF
0.1µF
0.47µF
0.22µF
47kΩ
TO PIN 1
1kΩ 100kΩ
0.01µF
SET V
REF
= 100mV
1MΩ
+5V
6.8V
+
IN
-
-5V
Since low TC zeners have breakdown voltages ~ 6.8V, diode must
be placed across the total supply (10V). As in the case of Figure 14,
IN LO may be tied to either COMMON or GND.
FIGURE 14. ICL7107 WITH ZENER DIODE REFERENCE
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
GND
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
100kΩ
100pF
0.1µF
0.47µF
0.22µF
47kΩ
TO PIN 1
1kΩ 10kΩ
SET V
= 100mV
1.2V (ICL8069)
1MΩ
0.01µF
REF
15kΩ
+
+5V
IN
-
An external reference must be used in this application, since the
voltage between V+ and V- is insufficient for correct operation of the
internal reference.
FIGURE 15. ICL7106 AND ICL7107: RECOMMENDED
COMPONENT VALUES FOR 2V FULL SCALE
FIGURE 16. ICL7107 OPERATED FROM SINGLE +5V
12
Page 13
ICL7106, ICL7107, ICL7106S, ICL7107S
Typical Applications
40
OSC 1
39
OSC 2
38
OSC 3
37
TEST
36
REF HI
C
REF
C
REF
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
GND
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO DISPLAY
REF LO
COMMON
(Continued)
TO PIN 1
100kΩ
100pF
0.1µF
0.47µF
47kΩ
0.22µF
V+
The resistor values within the bridge are determined by the desired
sensitivity.
FIGURE 17. ICL7107 MEASUREING RATIOMETRICVALUES OF
QUAD LOAD CELL
V+
OSC 1
OSC 2
OSC 3
TEST
REF HI
C
REF
C
REF
IN HI
IN LO
A-Z
BUFF
INT
G2
C3
A3
G3
BP
40
39
38
37
36
35
TO
LOGIC
34
GND
33
32
31
30
29
28
27
26
V-
V25
24
23
22
21
O /RANGE
U /RANGE
CD4023 OR
74C10
TO LOGIC
V
CC
CD4077
1
V+
D1
2
C1
3
B1
4
A1
5
F1
6
G1
7
E1
8
D2
9
C2
10
B2
11
A2
12
F2
13
E2
14
D3
15
B3
16
F3
17
E3
18
AB4
19
POL
20
REF LO
COMMON
FIGURE 19. CIRCUIT FOR DEVELOPING UNDERRANGE AND
OVERRANGE SIGNAL FROM ICL7106 OUTPUTS
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
V G2
C3
A3
G3
BP
40
39
38
37
36
35
34
0.1µF
33
32
31
30
29
28
27
26
25
24
23
22
21
TO PIN 1
100kΩ
100pF
0.01µF
47kΩ
0.22µF
TO DISPLAY
SCALE
FACTOR
ADJUST
100kΩ 1MΩ
100kΩ 220kΩ
ZERO
ADJUST
0.47µF
TO BACKPLANE
22kΩ
SILICON NPN
MPS 3704 OR
SIMILAR
9V
A silicon diode-connected transistor has a temperature coefficient of
about -2mV/oC. Calibration is achieved by placing the sensing
transistor in ice water and adjusting the zeroing potentiometer for a
000.0 reading. The sensor should then be placed in boiling water
and the scale-factor potentiometer adjusted for a 100.0 reading.
FIGURE 18. ICL7106 USED AS A DIGITAL CENTIGRADE
THERMOMETER
+5V
OSC 1
OSC 2
OSC 3
TEST
REF HI
C
REF
C
REF
IN HI
IN LO
A-Z
BUFF
INT
G2
C3
A3
G3
BP
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
V-
V25
24
23
22
21
TO LOGIC
V
CC
12kΩ
The LM339 is required to
ensure logic compatibility
with heavy display loading.
O /RANGE
U /RANGE
CD4023 OR
74C10
1
V+
D1
2
C1
3
B1
4
A1
5
F1
6
G1
7
E1
8
D2
9
C2
10
B2
11
A2
12
F2
13
E2
+
-
+
-
+
-
-
+
14
15
16
17
18
19
20
33kΩ
D3
B3
F3
E3
AB4
POL
REF LO
COMMON
FIGURE 20. CIRCUIT FOR DEVELOPING UNDERRANGE AND
OVERRANGE SIGNALS FROM ICL7107 OUTPUT
13
Page 14
ICL7106, ICL7107, ICL7106S, ICL7107S
Typical Applications
OSC 1
OSC 2
OSC 3
TEST
REF HI
REF LO
C
REF
C
REF
COMMON
IN HI
IN LO
A-Z
BUFF
INT
VG2
C3
A3
G3
BP
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TO PIN 1
100kΩ
100pF
0.1µF
TO DISPLAY
Test is used as a common-mode reference level to ensure compatibility with most op amps.
(Continued)
1kΩ 22kΩ
0.47µF
47kΩ
0.22µF
TO BACKPLANE
10µF
10µF
SCALE FACTOR ADJUST
(V
= 100mV FOR AC TO RMS)
REF
470kΩ
1µF
4.3kΩ
+
9V
-
100pF
(FOR OPTIMUM BANDWIDTH)
10kΩ
1µF
1N914
10kΩ
5µF
1µF
0.22µF
CA3140
2.2MΩ
+
-
100kΩ
AC IN
FIGURE 21. AC TO DC CONVERTER WITH ICL7106
+5V
LED
SEGMENTS
ICL7107
DM7407
130Ω
130Ω
130Ω
FIGURE 22. DISPLAY BUFFERING FOR INCREASED DRIVE CURRENT
14
Page 15
ICL7106, ICL7107, ICL7106S, ICL7107S
Dual-In-Line Plastic Packages (PDIP)
N
D1
-C-
E1
-B-
A1
A2
E
A
L
e
C
S
C
L
e
A
e
INDEX
AREA
BASE
PLANE
SEATING
PLANE
D1
B1
1 2 3 N/2
-AD
e
B
0.010 (0.25) C AMB
NOTES:
1. Controlling Dimensions: INCH. Incaseofconflict between English
and Metric dimensions, the inch dimensions control.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
3. Symbols are defined in the “MO SeriesSymbolList”inSection 2.2
of Publication No. 95.
4. Dimensions A, A1 and L are measuredwiththepackageseated in
JEDEC seating plane gauge GS-3.
5. D, D1,andE1 dimensions donotinclude moldflashor protrusions.
Mold flash or protrusions shall not exceed 0.010 inch (0.25mm).
6. E and are measured with the leads constrained to be per-
e
pendicular to datum .
A
-C-
7. eB and eC are measured at the lead tips with the leads unconstrained. eC must be zero or greater.
8. B1 maximum dimensions do not include dambar protrusions.
Dambar protrusions shall not exceed 0.010 inch (0.25mm).
9. N is the maximum number of terminal positions.
10. Corner leads (1,N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3, E28.3,
E42.6 will have a B1 dimension of 0.030 - 0.045 inch (0.76 - 1.14mm).
E40.6 (JEDEC MS-011-AC ISSUE B)
40 LEAD DUAL-IN-LINE PLASTIC PACKAGE
INCHES MILLIMETERS
SYMBOL
A - 0.250 - 6.35 4
A1 0.015 - 0.39 - 4
A2 0.125 0.195 3.18 4.95 -
B 0.014 0.022 0.356 0.558 B1 0.030 0.070 0.77 1.77 8
C 0.008 0.015 0.204 0.381 -
C
B
D 1.980 2.095 50.3 53.2 5
D1 0.005 - 0.13 - 5
E 0.600 0.625 15.24 15.87 6
E1 0.485 0.580 12.32 14.73 5
e 0.100 BSC 2.54 BSC e
A
e
B
0.600 BSC 15.24 BSC 6
- 0.700 - 17.78 7
L 0.115 0.200 2.93 5.08 4
N40 409
NOTESMIN MAX MIN MAX
Rev. 0 12/93
15
Page 16
ICL7106, ICL7107, ICL7106S, ICL7107S
Metric Plastic Quad Flatpack Packages (MQFP/PQFP)
E
E1
0.40
0.016
0o MIN
0o-7
-H-
-A-
o
MIN
D
D1
-D-
Q44.10x10 (JEDEC MO-108AA-2 ISSUE A)
44 LEAD METRIC PLASTIC QUAD FLATPACK PACKAGE
SYM-
BOL
INCHES MILLIMETERS
NOTESMIN MAX MIN MAX
A - 0.093 - 2.35 A1 0.004 0.010 0.10 0.25 A2 0.077 0.083 1.95 2.10 -
-B-
B 0.012 0.018 0.30 0.45 6
B1 0.012 0.016 0.30 0.40 -
D 0.510 0.530 12.95 13.45 3
D1 0.390 0.398 9.90 10.10 4, 5
E 0.510 0.530 12.95 13.45 3
e
PIN 1
E1 0.390 0.398 9.90 10.10 4, 5
L 0.026 0.037 0.65 0.95 -
N44 447
e 0.032 BSC 0.80 BSC -
SEATING
PLANE
A
0.10
0.004
D
S
B
B1
0.13/0.23
0.005/0.009
-C-
S
o
5o-16
A2
o
L
5o-16
A1
0.20
M
0.008
0.13/0.17
0.005/0.007
BASE METAL
WITH PLATING
A-B
C
NOTES:
1. Controlling dimension: MILLIMETER. Converted inch
dimensions are not necessarily exact.
2. All dimensions and tolerances per ANSI Y14.5M-1982.
3. Dimensions D and E to be determined at seating plane .
4. Dimensions D1 and E1 to be determined at datum plane
-H-
.
5. Dimensions D1 and E1 do not include mold protrusion.
Allowable protrusion is 0.25mm (0.010 inch) per side.
6. Dimension B does not include dambar protrusion. Allowable
dambar protrusion shall be 0.08mm (0.003 inch) total.
7. “N” is the number of terminal positions.
Rev. 1 1/94
-C-
All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site http://www.intersil.com
Sales Office Headquarters
NORTH AMERICA
Intersil Corporation
P. O. Box 883, Mail Stop 53-204
Melbourne, FL 32902
TEL: (407) 724-7000
FAX: (407) 724-7240
EUROPE
Intersil SA
Mercure Center
100, Rue de la Fusee
1130 Brussels, Belgium
TEL: (32) 2.724.2111
FAX: (32) 2.724.22.05
16
ASIA
Intersil (Taiwan) Ltd.
7F-6, No. 101 Fu Hsing North Road
Taipei, Taiwan
Republic of China
TEL: (886) 2 2716 9310
FAX: (886) 2 2715 3029
Loading...
