intersil ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E DATA SHEET

...

ICL3221E, ICL3222E, ICL3223E,

ICL3232E, ICL3241E, ICL3243E

Data Sheet June 22, 2007

±15kV ESD Protected, +3V to +5.5V, 1Microamp, 250kbps, RS-232 Transmitters/Receivers

The Intersil ICL32xxE devices are 3.0V to 5.5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at V they provide

±15kV ESD protection (IEC61000-4-2 Air Gap

and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and automatic powerdown functions (except for the ICL3232E), reduce the standby supply current to a 1µA trickle. Small footprint packaging, and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 250kbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V-only systems, mixed 3.3V and 5.0V systems, and 5.0V-only systems.

The ICL324XE are 3-driver, 5-receiver devices that provide a complete serial port suitable for laptop or notebook computers. Both devices also include noninverting always-active receivers for “wake-up” capability.

The ICL3221E, ICL3223E and ICL3243E, feature an automatic powerdown function which powers down the on-chip power-supply and driver circuits. This occurs when an attached peripheral device is shut off or the RS-232 cable is removed, conserving system power automatically without changes to the hardware or operating system. These devices power up again when a valid RS-232 voltage is applied to any receiver input.

Table 1 summarizes the features of the devices represented by this data sheet, while Application Note AN9863 summarizes the features of each device comprising the ICL32xxE 3V family.

PART

NUMBER

ICL3221E 1 1 0 250 Yes No Yes Yes ICL3222E 2 2 0 250 Yes No Yes No ICL3223E 2 2 0 250 Yes No Yes Yes ICL3232E 2 2 0 250 No No No No ICL3241E 3 5 2 250 Yes No Yes No ICL3243E 3 5 1 250 No No Yes Yes

NUMBER

OF Tx

NUMBER

OF Rx

= 3.0V. Additionally,

TABLE 1. SUMMARY OF FEATURES

NUMBER OF

MONITOR

RECEIVERS

)

OUTB

DATA RATE

(kbps)

Features

• ESD Protection for RS-232 I/O Pins to ±15kV (IEC61000)

• Drop in Replacements for MAX3221E, MAX3222E, MAX3223E, MAX3232E, MAX3241E, MAX3243E, SP3243E

• ICL3221E is a Low Power, Pin Compatible Upgrade for 5V MAX221E

• ICL3222E is a Low Power, Pin Compatible Upgrade for 5V MAX242E, and SP312E

• ICL3232E is a Low Power Upgrade for HIN232E, ICL232 and Pin Compatible Competitor Devices

• RS-232 Compatible with V

= 2.7V

• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

• Latch-Up Free

• On-Chip Voltage Converters Require Only Four External

0.1µF Capacitors

• Manual and Automatic Powerdown Features

• Guaranteed Mouse Driveability (ICL324XE Only)

• Receiver Hysteresis For Improved Noise Immunity

• Guaranteed Minimum Data Rate . . . . . . . . . . . . . 250kbps

• Wide Power Supply Range . . . . . . . Single +3V to +5.5V

• Low Supply Current in Powerdown State. . . . . . . . . . . 1µA

• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

• Any System Requiring RS-232 Communication Ports

- Battery Powered, Hand-Held, and Portable Equipment

- Laptop Computers, Notebooks, Palmtops

- Modems, Printers and other Peripherals

- Digital Cameras

- Cellular/Mobile Phones

Related Literature

• Technical Brief TB363 “Guidelines for Handling and Processing Moisture Sensitive Surface Mount Devices (SMDs)”

RECEIVER

ENABLE

FUNCTION?

READY

OUTPUT?

MANUAL

POWER-DOWN?

FN4910.19

AUTOMATIC

POWERDOWN

FUNCTION?

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Ordering Information

TEMPERA TURE RANGE

P A R T N U M B ER PART MARKING

ICL3221ECA* ICL 3221ECA 0 to +70 16 Ld SSOP M16.209 ICL3221ECAZ* (Note) ICL32 21ECAZ 0 to +70 16 Ld SSOP (Pb-free) M16.209 ICL3221ECAZA* (Note) ICL32 21ECAZ 0 to +70 16 Ld SSOP (Pb-free) M16.209 ICL3221ECV* 3221 ECV 0 to +70 16 Ld TSSOP M16.173 ICL3221ECVZ* (Note) 3221 ECVZ 0 to +70 16 Ld TSSOP (Pb-free) M16.173 ICL3221EIA* ICL 3221EIA -40 to +85 16 Ld SSOP M16.209 ICL3221EIAZ* (Note) ICL32 21EIAZ -40 to +85 16 Ld SSOP (Pb-free) M16.209 ICL3221EIV* 3221 EIV -40 to +85 16 Ld TSSOP M16.173 ICL3221EIVZ* (Note) 3221 EIVZ -40 to +85 16 Ld TSSOP (Pb-free) M16.173 ICL3222ECA* ICL 3222ECA 0 to +70 20 Ld SSOP M20.209 ICL3222ECAZ* (Note) ICL32 22ECAZ 0 to +70 20 Ld SSOP (Pb-free) M20.209 ICL3222ECP ICL3222ECP 0 to +70 18 Ld PDIP E18.3 ICL3222ECPZ ICL3222ECPZ 0 to +70 18 Ld PDIP** E18.3 ICL3222ECV* ICL 3222ECV 0 to +70 20 Ld TSSOP M20.173 ICL3222ECVZ* (Note) ICL32 22ECVZ 0 to +70 20 Ld TSSOP (Pb-free) M20.173 ICL3222EIA* ICL 3222EIA -40 to +85 20 Ld SSOP M20.209 ICL3222EIAZ* (Note) ICL32 22EIAZ -40 to +85 20 Ld SSOP (Pb-free) M20.209 ICL3222EIB* ICL3222EIB -40 to +85 18 Ld SOIC M18.3 ICL3222EIBZ* (Note) 3222EIBZ -40 to +85 18 Ld SOIC (Pb-free) M18.3 ICL3222EIV* ICL 3222EIV -40 to +85 20 Ld TSSOP M20.173 ICL3222EIVZ* (Note) ICL32 22EIVZ -40 to +85 20 Ld TSSOP (Pb-free) M20.173 ICL3223ECA* ICL 3223ECA 0 to +70 20 Ld SSOP M20.209 ICL3223ECAZ* (Note) ICL32 23ECAZ 0 to +70 20 Ld SSOP (Pb-free) M20.209 ICL3223ECV* ICL 3223ECV 0 to +70 20 Ld TSSOP M20.173 ICL3223ECVZ* (Note) ICL32 23ECVZ 0 to +70 20 Ld TSSOP (Pb-free) M20.173 ICL3223EIA* ICL 3223EIA -40 to +85 20 Ld SSOP M20.209 ICL3223EIAZ* (Note) ICL32 23EIAZ -40 to +85 20 Ld SSOP (Pb-free) M20.209 ICL3223EIV* ICL 3223EIV -40 to +85 20 Ld TSSOP M20.173 ICL3223EIVZ* (Note) ICL32 23EIVZ -40 to +85 20 Ld TSSOP (Pb-free) M20.173 ICL3232ECA* ICL 3232ECA 0 to +70 16 Ld SSOP M16.209 ICL3232ECAZ* (Note) 3232 ECAZ 0 to +70 16 Ld SSOP (Pb-free) M16.209 ICL3232ECB* ICL3232ECB 0 to +70 16 Ld SOIC M16.3 ICL3232ECBZ* (Note) 3232ECBZ 0 to +70 16 Ld SOIC (Pb-free) M16.3 ICL3232ECBN* 3232ECBN 0 to +70 16 Ld SOIC M16.15 ICL3232ECBNZ* (Note) 3232ECBNZ 0 to +70 16 Ld SOIC (Pb-free) M16.15 ICL3232ECV-16* 3232E CV-16 0 to +70 16 Ld TSSOP M16.173 ICL3232ECV-16Z* (Note) 3232E CV-16Z 0 to +70 16 Ld TSSOP (Pb-free) M16.173 ICL3232ECV-20* ICL3232 ECV-20 0 to +70 20 Ld TSSOP M20.173 ICL3232ECV-20Z *(Note) ICL3232 ECV-20Z 0 to +70 20 Ld TSSOP (Pb-free) M20.173 ICL3232EIA* ICL3232 EIA -40 to +85 16 Ld SSOP M16.209

(°C) PACK AGE PKG. DWG. #

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Ordering Information (Continued)

TEMPERA TURE RANGE

P A R T N U M B ER PART MARKING

ICL3232EIAZ* (Note) 3232 EIAZ -40 to +85 16 Ld SSOP (Pb-free) M16.209 ICL3232EIB* ICL3232EIB -40 to +85 16 Ld SOIC M16.3 ICL3232EIBZ* (Note) 3232EIBZ -40 to +85 16 Ld SOIC (Pb-free) M16.3 ICL3232EIBNZ* (Note) 3232EIBNZ -40 to +85 16 Ld SOIC (Pb-free) M16.15 ICL3232EIV-16* 3232E IV-16 -40 to +85 16 Ld TSSOP M16.173 ICL3232EIV-16Z* (Note) 3232E IV-16Z -40 to +85 16 Ld TSSOP (Pb-free) M16.173 ICL3232EIV-20* ICL3232 EIV-20 -40 to +85 20 Ld TSSOP M20.173 ICL3232EIV-20Z* (Note) ICL3232 EIV-20Z -40 to +85 20 Ld TSSOP (Pb-free) M20.173 ICL3241ECA* ICL 3241ECA 0 to +70 28 Ld SSOP M28.209 ICL3241ECAZ* (Note) ICL3241 ECAZ 0 to +70 28 Ld SSOP (Pb-free) M28.209 ICL3241ECB* ICL3241ECB 0 to +70 28 Ld SOIC M28.3 ICL3241ECBZ* (Note) ICL3241ECBZ 0 to +70 28 Ld SOIC (Pb-free) M28.3 ICL3241ECV* ICL3241 ECV 0 to +70 28 Ld TSSOP M28.173 ICL3241ECVZ* (Note) ICL3241 ECVZ 0 to +70 28 Ld TSSOP (Pb-free) M28.173 ICL3241EIA* ICL 3241EIA -40 to +85 28 Ld SSOP M28.209 ICL3241EIAZ* (Note) ICL3241 EIAZ -40 to +85 28 Ld SSOP (Pb-free) M28.209 ICL3241EIB* ICL3241EIB -40 to +85 28 Ld SOIC M28.3 ICL3241EIBZ* (Note) ICL3241EIBZ -40 to +85 28 Ld SOIC (Pb-free) M28.3 ICL3241EIV* ICL3241 EIV -40 to +85 28 Ld TSSOP M28.173 ICL3241EIVZ* (Note) ICL3241 EIVZ -40 to +85 28 Ld TSSOP (Pb-free) M28.173 ICL3243ECA* ICL 3243ECA 0 to +70 28 Ld SSOP M28.209 ICL3243ECAZ* (Note) ICL32 43ECAZ 0 to +70 28 Ld SSOP (Pb-free) M28.209 ICL3243ECB* ICL3243ECB 0 to +70 28 Ld SOIC M28.3 ICL3243ECBZ* (Note) ICL3243ECBZ 0 to +70 28 Ld SOIC (Pb-free) M28.3 ICL3243ECV* ICL3243 ECV 0 to +70 28 Ld TSSOP M28.173 ICL3243ECVZA* (Note) ICL3243 ECVZ 0 to +70 28 Ld TSSOP (Pb-free) M28.173 ICL3243ECVZ* (Note) ICL3243 ECVZ 0 to +70 28 Ld TSSOP (Pb-free) M28.173 ICL3243EIA* ICL 3243EIA -40 to +85 28 Ld SSOP M28.209 ICL3243EIAZ* (Note) ICL32 43EIAZ -40 to +85 28 Ld SSOP (Pb-free) M28.209 ICL3243EIV* ICL3243 EIV -40 to +85 28 Ld TSSOP M28.173 ICL3243EIVZ* (Note) ICL3243 EIVZ -40 to +85 28 Ld TSSOP (Pb-free) M28.173

NOTES: *Add “-T” suffix for tape and reel.

**Pb-free PDIPs can be used for through hole wave solder processing only. They are not intended for use in Reflow solder processing applications. NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 10 0% ma tte tin plat e termination finish, which are RoHS compliant and comp at ib le with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb -free requireme nts of IPC/JEDEC J STD-020.

(°C) PACK AGE PKG. DWG. #

FN4910.19

June 22, 2007

Pinouts

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

(16 LD SSOP, TSSOP)

C1+

2 3

V+

C1-

C2+

C2-

V-

R1IN

ICL3221E

TOP VIEW

FORCEOFF

VCC GND

T1OUT

13 12

FORCEON

T1IN INVALID

R1OUT

T2OUT

(18 LD PDIP, SOIC)

C1+

2 3

V+

C1-

C2+

C2-

V-

7 8

R2IN

ICL3222E

TOP VIEW

18 17 16 15 14 13 12 11 10

SHDN VCC GND T1OUT R1IN R1OUT T1IN T2IN R2OUT

ICL3222E

(20 LD SSOP, TSSOP)

TOP VIEW

C1+

2 3

V+

C1-

C2+

C2-

V-

T2OUT

R2IN

R2OUT

ICL3232E

(16 LD SOIC, SSOP, TSSOP-16)

TOP VIEW

C1+

V+

2 3

C1-

C2+

C2-

V-

T2OUT

R2IN

7 8

20 19 18 17 16 15 14 13 12 11

16 15 14 13 12 11 10

SHDN VCC GND T1OUT R1IN R1OUT NC T1IN T2IN NC

VCC GND T1OUT R1IN R1OUT T1IN T2IN R2OUT

(20 LD SSOP, TSSOP)

C1+

2 3

V+

C1-

C2+

C2-

V-

T2OUT

R2IN

R2OUT

(20 LD TSSOP-20)

C1+

2 3

V+

C1-

C2+

C2-

V-

T2OUT

R2IN

ICL3223E

TOP VIEW

ICL3232E

TOP VIEW

FORCEOFF VCC

GND

18 17

T1OUT

R1IN

R1OUT FORCEON

14 13

T1IN

T2IN

INVALID

VCC

GND

T1OUT

R1IN

R1OUT

15 14

T1IN

T2IN R2OUT

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Pinouts (Continued)

(28 LD SOIC, SSOP, TSSOP)

C2+

C2-

2 3

V-

R1IN

4 5

R2IN

R3IN

R4IN

R5IN

T1OUT

T2OUT

T3OUT

T3IN

T2IN

T1IN

Pin Descriptions

ICL3241E

TOP VIEW

28 27 26 25 24 23 22 21 20 19 18 17 16 15

C1+ V+ VCC GND C1EN SHDN R1OUTB R2OUTB R1OUT R2OUT R3OUT R4OUT R5OUT

ICL3243E

(28 LD SOIC, SSOP, TSSOP)

TOP VIEW

C2+

C2-

V-

R1IN R2IN

R3IN

R4IN

R5IN

T1OUT

T2OUT T3OUT

T3IN

T2IN

T1IN

C1+

V+

VCC

GND

C1-

FORCEON

FORCEOFF

INVALID

21 20

R2OUTB R1OUT

R2OUT

R3OUT

17 16

R4OUT R5OUT

PIN FUNCTION

VCC System power supply input (3.0V to 5.5V).

V+ Internally generated positive transmitter supply (+5.5V).

V- Internally generated negative transmitter supply (-5.5V).

GND Ground connection.

C1+ External capacitor (voltage doubler) is connected to this lead.

C1- External capacitor (voltage doubler) is connected to this lead.

C2+ External capacitor (voltage inverter) is connected to this lead.

C2- External capacitor (voltage inverter) is connected to this lead. TIN TTL/CMOS compatible transmitter Inputs.

TOUT ±15kV ESD Protected

RIN ±15kV ESD Protected

, RS-232 level (nominally ±5.5V) transmitter outputs. , RS-232 compatible receiver inputs.

ROUT TTL/CMOS level receiver outputs.

ROUTB TTL/CMOS level, noninverting, always enabled receiver outputs.

INVALID

SHDN

FORCEOFF

Active low output that indicates if no valid RS-232 levels are present on any receiver input. Active low receiver enable control; doesn’t disable R

OUTB

outputs. Active low input to shut down transmitters and on-board power supply, to place device in low power mode. Active low to shut down transmitters and on-chip power supply. This overrides any automatic circuitry and FORCEON (see T able 2).

FORCEON Active high input to override automatic powerdown circuitry thereby keeping transmitters active. (FORCEOFF

must be high).

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Typical Operating Circuits

TTL/CMOS

LOGIC LEVELS

+3.3V

0.1µF

OUT

ICL3221E

C3 (OPTIONAL CONNECTION, NOTE)

0.1µF 2

C1+

C1-

C2+

C2-

FORCEOFF

FORCEON

GND

INVALID

V+

V-

5kΩ

0.1µF

TO POWER CONTROL LOGIC

OUT

RS-232 LEVELS

NOTE: The negative terminal of C3 can be connected to either VCC or GND

ICL3222E

C3 (OPTIONAL CONNECTION, NOTE)

+3.3V

TTL/CMOS

LOGIC LEVELS

0.1µF C

0.1µF

OUT

0.1µF 2

C1+

C1-

C2+

C2-

V+

V-

5kΩ

GND

5kΩ

SHDN

0.1µF

OUT

RS-232 LEVELS

NOTE: The negative terminal of C3 can be connected to either VCC or GND

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Typical Operating Circuits (Continued)

+3.3V

0.1µF C

0.1µF

TTL/CMOS

LOGIC LEVELS

OUT

ICL3223E

0.1µF

C1+

C1-

C2+

C2-

FORCEON

FORCEOFF

GND

V+

V-

5kΩ

INVALID

0.1µF

910

TO POWER CONTROL LOGIC

OUT

RS-232 LEVELS

ICL3232E

C3 (OPTIONAL CONNECTION, NOTE)

+3.3V

TTL/CMOS

LOGIC LEVELS

0.1µF C

0.1µF

OUT

0.1µF

C1+

C1-

C2+

C2-

5kΩ

V+

V-

0.1µF

OUT

GND

NOTE: The negative terminal of C3 can be connected to either VCC or GND

RS-232 LEVELS

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Typical Operating Circuits (Continued)

ICL3241E ICL3243E

TTL/CMOS

LOGIC

LEVELS

+3.3V

0.1µF

C1+

C1C2+

C2-

12 11

OUTB

OUT

SHDN

GND

V+

V-

5kΩ

518

5kΩ

617

5kΩ

716

5kΩ

815

5kΩ

OUT

0.1µF

RS-232 LEVELS

+3.3V

TTL/CMOS

LOGIC

LEVELS

0.1µF C

0.1µF

OUTB

OUT

TO POWER

CONTROL

LOGIC

0.1µF 28

C1+

C1-

C2+

C2-

12 11

FORCEON

FORCEOFF

INVALID

GND

V+

V-

5kΩ

0.1µF

OUT

518

617

716

815

OUT

RS-232 LEVELS

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Absolute Maximum Ratings Thermal Information

VCC to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 6V

V+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 7V

V- to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3V to -7V

V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V

Input Voltages

, FORCEOFF, FORCEON, EN, SHDN . . . . . . . . . -0.3V to 6V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25V

Output Voltages

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±13.2V

OUT

, INVALID. . . . . . . . . . . . . . . . . . . . . . . . -0.3V to VCC +0.3V

OUT

Short Circuit Duration

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous

OUT

ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . See Specification Table

Operating Conditions

Temperature Range

ICL32xxECX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C

ICL32xxEIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and result in failures not covered by warranty.

NOTE:

is measured with the component mounted on a low effective thermal conductivity test board in free air. See Tech Brief TB379 for details.

1. θ

Thermal Resistance (Typical, Note 1)

(°C/W)

18 Ld PDIP Package* . . . . . . . . . . . . . . . . . . . . . . . 80

16 Ld Wide SOIC Package . . . . . . . . . . . . . . . . . . . 100

16 Ld Narrow SOIC Package. . . . . . . . . . . . . . . . . . 115

18 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . 75

28 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . 75

16 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 135

20 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 122

16 Ld TSSOP Package . . . . . . . . . . . . . . . . . . . . . . 145

20 Ld TSSOP Package . . . . . . . . . . . . . . . . . . . . . . 140

28 Ld SSOP and TSSOP Packages . . . . . . . . . . . . 100

Maximum Junction Temperature (Plastic Package) . . . . . . +150°C

Maximum Storage Temperature Range. . . . . . . . . .-65°C to +150°C

*Pb-free PDIPs can be used for through hole wave solder processing only. They are not intended for use in Reflow solder processing applications.

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

Electrical Specifications Test Conditions: V

Typicals are at T

PARAMETER TEST CONDITIONS

= 3V to 5.5V, C1 - C4 = 0.1µF; Unless Otherwise Specified.

= +25°C

TEMP

(°C)

MIN

(Note 3) TYP

MAX

(Note 3) UNITS

DC CHARACTERISTICS

Supply Current, Automatic Powerdown

All RIN Open, FORCEON = GND, FORCEOFF = V (ICL3221E, ICL3223E, ICL3243E Only)

25 - 1.0 10 µA

Supply Current, Powerdown FORCEOFF = SHDN = GND (Except ICL3232E) 25 - 1.0 10 µA Supply Current,

Automatic Powerdown Disabled

All Outputs Unloaded, FORCEON = FORCEOFF SHDN

= V

VCC = 3.0V, ICL3241, ICL3243

= 3.0V, ICL3223 25 - 0.7 3.0 mA

= 3.15V, ICL3221,

ICL3222, ICL3223, ICL3232

25 - 0.3 1.0 mA

LOGIC AND TRANSMITTER INPUTS AND RECEIVER OUTPUTS

Input Logic Threshold Low T Input Logic Threshold High T

Input Leakage Current T Output Leakage Current

, FORCEON, FORCEOFF, EN, SHDN Full - - 0.8 V

, FORCEON,

FORCEOFF

, FORCEON, FORCEOFF, EN, SHDN Full - ±0.01 ±1.0 µA

, EN, SHDN

FORCEOFF = GND or EN = V

VCC = 3.3V Full 2.0 - - V

= 5.0V Full 2.4 - - V

Full - ±0.05 ±10 µA

(Except ICL3232E) Output Voltage Low I Output Voltage High I AUTOMATIC POWERDOWN (ICL3221E, ICL3223E, ICL3243E Only, FORCEON = GND, FORCEOFF = V Receiver Input Thresholds to

= 1.6mA Full - - 0.4 V

OUT

= -1.0mA Full V

OUT

- 0.6 V

)

- 0.1 - V

ICL32xxE Powers Up (see Figure 6) Full -2.7 - 2.7 V

Enable Transmitters Receiver Input Thresholds to

ICL32xxE Powers Down (see Figure 6) Full -0.3 - 0.3 V

Disable Transmitters INVALID INVALID Output Voltage High I

Output Voltage Low I

= 1.6mA Full - - 0.4 V

OUT

= -1.0mA Full V

OUT

- 0.6 - - V

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Electrical Specifications Test Conditions: V

Typicals are at T

PARAMETER TEST CONDITIONS

Receiver Threshold to Tr ansmitter s Enabled Delay (t

Receiver Positive or Negative Threshold to INVALID (t

)

INVH

Receiver Positive or Negative Threshold to INVALID (t

)

INVL

)

High Delay

Low Delay

= 3V to 5.5V, C1 - C4 = 0.1µF; Unless Otherwise Specified.

= +25°C (Continued)

TEMP

(°C)

25 - 100 - µs

25 - 1 - µs

25 - 30 - µs

MIN

(Note 3) TYP

MAX

(Note 3) UNITS

RECEIVER INPUTS

Input Voltage Range 25 -25 - 25 V Input Threshold Low V

Input Threshold High V

= 3.3V 25 0.6 1.2 - V

= 5.0V 25 0.8 1.5 - V

= 3.3V 25 - 1.5 2.4 V

= 5.0V 25 - 1.8 2.4 V

Input Hysteresis 25 - 0.5 - V Input Resistance 25 3 5 7 kΩ

TRANSMITTER OUTPUTS

Output Voltage Swing All Transmitter Outputs Loaded with 3kΩ to Ground Full ±5.0 ±5.4 - V Output Resistance V

= V+ = V- = 0V, Transmitter Output = ±2V Full 300 10M - Ω

Output Short-Circuit Current Full - ±35 ±60 mA Output Leakage Current V

= ±12V, VCC = 0V or 3V to 5.5V,

OUT

Automatic Powerdown or FORCEOFF

= SHDN = GND

Full - - ±25 µA

MOUSE DRIVEABILITY (ICL324XE Only) Transmitter Output Voltage

(see Figure 9)

= T2IN = GND, T3IN = VCC, T3

to GND, T1

OUT

and T2

OUT

Loaded with 2.5mA Each

Loaded with 3kΩ

OUT

Full ±5--V

TIMING CHARACTERISTICS

Maximum Data Rate R Receiver Propagation Delay Receiver Input to Receiver

= 3kΩ, CL = 1000pF, One Transmitter Switching Full 250 500 - kbps

25 - 0.15 - µs 25 - 0.15 - μs

Output, C

= 150pF

PHL

PLH

Receiver Output Enable Time Normal Operation (Except ICL3232E) 25 - 200 - ns Receiver Output Disable Time Normal Operation (Except ICL3232E) 25 - 200 - ns

to t

Transmitter Skew t Receiver Skew t Transition Region Slew Rate V

PHL PHL

= 3kΩ to 7kΩ,

Measured from 3V to -3V or

(Note 2) 25 - 100 - ns

PLH

to t

PLH

= 3.3V,

= 150pF to 2500pF 25 4 - 30 V/μs

= 150pF to 1000pF 25 6 - 30 V/μs

25 - 50 - ns

-3V to 3V

ESD PERFORMANCE

RS-232 Pins (TOUT, RIN) Human Body Model 25 - ±15 - kV

IEC61000-4-2 Contact Discharge 25 - ±8-kV IEC61000-4-2 Air Gap Discharge 25 - ±15 - kV

All Other Pins Human Body Model 25 - ±2-kV

NOTE:

2. Transmitter skew is measured at the transmitter zero crossing points.

3. Parts are 100% tested at +25°C. Full temp limits are guaranteed by bench and tester characterization

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Detailed Description

ICL32xxE interface ICs operate from a single +3V to +5.5V supply, guarantee a 250kbps minimum data rate, require only four small external 0.1μF capacitors, feature low power consumption, and meet all ElA RS-232C and V.28 specifications. The circuit is divided into three sections: charge pump, transmitters and receivers.

Charge-Pump

Intersil’s new ICL32xxE family utilizes regulated on-chip dual charge pumps as voltage doublers, and voltage inverters to generate ±5.5V transmitter supplies from a V low as 3.0V . This allows these devi ce s to maint ai n RS-232 compliant output levels over the ±10% tolerance range of

3.3V powered systems. The efficient on-chip power supplies require only four small, external 0.1μF capacitors for the voltage doubler and inverter functions at V “Capacitor Selection” on page 14., and Table 3 for capacitor recommendations for other operating conditions. The charge pumps operate discontinuously (i.e., they turn off as soon as the V+ and V- supplies are pumped up to the nominal values), resulting in significant power savings.

Transmitters

The transmitters are proprietary, low dropout, inverting drivers that translate TTL/CMOS inputs to EIA/TIA-232 output levels. Coupled with the on-chip ±5.5V supplies, these transmitters deliver true RS-232 levels over a wide range of single supply system voltages.

Except for the ICL3232E, all transmitter outputs disable and assume a high impedance state when the device enters the powerdown mode (see Table 2). These outputs may be driven to ±12V when disabled.

All devices guarantee a 250kbps data rate for full load conditions (3kΩ and 1000pF), V

≥ 3.0V, with one

transmitter operating at full speed. Under more typical conditions of V

≥ 3.3V, RL = 3kΩ, and CL = 250pF, one

transmitter easily operates at 900kbps. Transmitter inputs float if left unconnected, and may cause

increases. Connect unused inputs to GND for the best

performance.

Receivers

All the ICL32xxE devices contain standa rd in ve rting receivers that three-state (except for the ICL3232E) via the EN or FORCEOFF control lines. Additionally, the two ICL324XE products include noninverting (monitor) receivers (denoted by the ROUTB label) that are always active, regardless of the state of any control lines. All the receivers convert RS-232 signals to CMOS output levels and accept inputs up to ±25V while presenting the required 3kW to 7kW input impedance (see Figure 1) even if the power is off (VCC = 0V). The receivers’ Schmitt trigger input stage uses hysteresis to increase noise immunity and decrease errors due to slow input signal transitions.

supply as

= 3.3V. See

The ICL3221E, ICL3222E, ICL3223E, ICL3241E inverting receivers disable only when EN

is driven high. ICL3243E receivers disable during forced (manual) powerdown, but not during automatic powerdown (see Table 2).

ICL3241E and ICL3243E monitor receivers remain active even during manual powerdown and forced receiver disable, making them extremely useful for Ring Indicator monitoring. Standard receivers drivi ng powered down peripherals must be disabled to prevent current flow through the peripheral’s protection diodes (see Figures 2 and 3). This renders them useless for wake up functions, but the corresponding monitor receiver can be dedicated to this task as shown in Figure 3.

XIN

-25V ≤ V

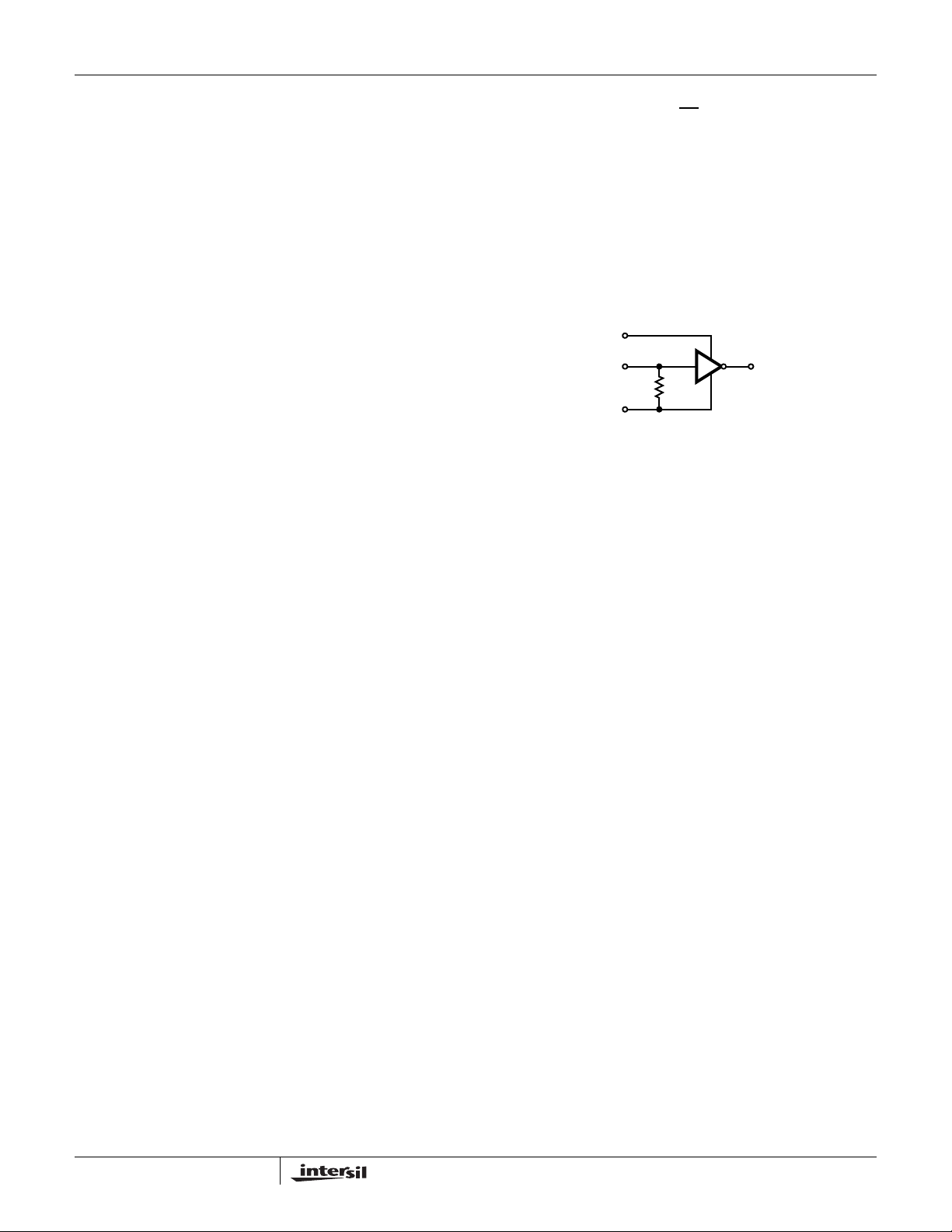

FIGURE 1. INVERTING RECEIVER CONNECTIONS

RIN

≤ +25V

GND

5kΩ

GND ≤ V

XOUT

ROUT

≤ V

Low Power Operation

These 3V devices require a nominal supply current of

0.3mA, even at V

= 5.5V, during normal operation (not in

powerdown mode). This is considerably less than the 5mA to 1 1mA current required by comparable 5V RS-232 devices, allowing users to reduce system power simply by switching to this new family.

Pin Compatible Replacements for 5V Devices

The ICL3221E, ICL3222E, ICL3232E are pin compatible with existing 5V RS-232 transceivers - See the “Features” section on page 1 for details.

This pin compatibility coupled with the low I operating supply range, make the ICL32xxE potential lower power, higher pe rformance drop-in re placement s for existing 5V applications. As long as the ±5V RS-232 output swings are acceptable, and transmitter input pull-up resistors aren’t required, the IICL32xxE should work in most 5V applications.

When replacing a device in an existing 5V application, it is acceptable to terminate C

to VCC as shown on the “Typical

Operating Circuits” on page 6. Nevertheless, terminate C GND if possible, as slightly better performance results from this configuration.

and wide

Powerdown Functionality (Except ICL3232E)

The already low current requirement drops significantly when the device enters powerdown mode. In powerdown, supply current drops to 1µA, because the on-chip charge pump turns off (V+ collapses to V transmitter outputs three-state. Inverting receiver outputs may or may not disable in powerdown; refer to Table 2 for details. This micro-power mode makes these devices ideal for battery powered and portable applications.

, V- collapses to GND), and the

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Software Controlled (Manual) Powerdown

Most devices in the ICL32xxE family provide pins that allow the user to force the IC into the low power, standby state.

On the ICL3222E and ICL3241E, the powerdown control is via a simple shutdown (SHDN enables normal operation, while driving it low forces the IC into its powerdown state. Connect SHDN powerdown function isn’t needed. Note that all the receiver outputs remain enabled during shutdown (see Table 2). For the lowest power consumption during powerdown, the receivers should also be disabled by driving the EN high (see next section, and Figures 2 and 3).

) pin. Driving this pin high

to VCC if the

input

The ICL3221E, ICL3223E, and ICL3243E utilize a two pin approach where the FORCEON and FORCEOFF determine the IC’s mode. For always enabled operation, FORCEON and FORCEOFF

are both strapped high. To switch between active and powerdown modes, under logic or software control, only the FORCEOFF

input need be driven. The FORCEON state isn’t critical, as FORCEOFF dominates over FORCEON. Nevertheless, if strictly manual control over powerdown is desired, the user must strap FORCEON high to disable the automatic powerdown circuitry. ICL3243E inverting (standard) receiver outputs also disable when the device is in manual powerdown, thereby eliminating the possible current path through a shutdown peripheral’s input protection diode (see Figures 2 and 3).

TABLE 2. POWERDOWN AND ENABLE LOGIC TRUTH TABLE

RS-232

SIGNAL

PRESENT

RECEIVER

INPUT?

ICL3222E, ICL3241E

N/A L N/A L High-Z Active Active N/A Manual Powerdown N/A L N/A H High-Z High-Z Active N/A Manual Powerdown with Receiver

N/A H N/A L Active Active Active N/A Normal Operation N/A H N/A H Active High-Z Active N/A Normal Operation withReceiver

ICL3221E, ICL3223E

No H H L Active Active N/A L Normal Operation

No H H H Active High-Z N/A L Yes H L L Active Active N/A H Normal Operation Yes H L H Active High-Z N/A H

No H L L High-Z Active N/A L Powerdown Due to Auto Powerdown

No H L H High-Z High-Z N/A L Yes L X L High-Z Active N/A H Manual Powerdown Yes L X H High-Z High-Z N/A H Manual Powerdown with Receiver

No L X L High-Z Active N/A L Manual Po werdow n

No L X H High-Z High-Z N/A L Manual Powerdown with Receiver

ICL3243E

No H H N/A Active Active Active L Normal Operation

Yes H L N/A Active Active Active H Normal Operation

No H L N/A High-Z Active Active L Powerdown Due to Auto Powerdown

Yes L X N/A High-Z High-Z Active H Manual Powerdown

No L X N/A High-Z High-Z Active L Manual Powerdown

NOTE:

4. Applies only to the ICL3241E and ICL3243E.

FORCEOFF

OR SHDN

INPUT

FORCEON

INPUTENINPUT

TRANSMITTER

OUTPUTS

RECEIVER

OUTPUTS

OUTB

OUTPUTS

(NOTE 4)

INVALID OUTPUT MODE OF OPERATION

Disabled

(Auto Powerdown Disabled)

(Auto Powerdown Enabled)

Logic

Disabled

(Auto Powerdown Disabled)

(Auto Powerdown Enabled)

Logic

inputs

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

The INVALID output always indicates whether or not a valid RS-232 signal is present at any of the receiver inputs (see Table 2), giving the user an easy way to determine when the interface block should power down. In the case of a disconnected interface cable where all the receiver inputs are floating (but pulled to GND by the internal receiver pull down resistors), the INVALID

logic detects the invalid levels and drives the output low. The power management logic then uses this indicator to power down the interface block. Reconnecting the cable restores valid levels at the receiver inputs, INVALID logic wakes up the interface block. INVALID

switches high, and the power management

can also be used to indicate the DTR or RING INDICATOR signal, as long as the other receiver inputs are floating, or driven to GND (as in the case of a powered down driver). Connecting FORCEOFF

and FORCEON together disables the automatic powerdown feature, enabling them to function as a manual SHUTDOWN

POWERED

DOWN

UART

GND

FIGURE 2. POWER DRAIN THROUGH POWERED DOWN

PERIPHERAL

input (see Figure 4).

OUT = VCC

= GND

SHDN

CURRENT FLOW

OLD

RS-232 CHIP

FORCEOFF

CPU

PWR

MGT

LOGIC

I/O

UART

FORCEON

INVALID

ICL3221E, ICL3223E, ICL3243E

FIGURE 4. CONNECTIONS FOR MANUAL POWERDOWN

WHEN NO VALID RECEIVER SIGNALS ARE PRESENT

With any of the above control schemes, the time required to exit powerdown, and resume transmission is only 100µs. A mouse, or other application, may need more time to wake up from shutdown. If automatic powerdown is being utilized, the RS-232 device will reenter powerdown if valid receiver levels aren’t reestablished within 30µs of the ICL32xxE powering up. Figure 5 illustrates a circuit that keeps the ICL32xxE from initiating automatic powerdown for 100ms after powering up. This gives the slow-to-wake peripheral circuit time to reestablish valid RS-232 output levels.

POWER

MANAGEMENT

UNIT

MASTER POWERDOWN LINE

0.1µF

1MΩ

TRANSITION

DETECTOR

WAKE-UP

POWERED

DOWN

UART

LOGIC

FORCEOFF = GND OR SHDN

OUTB

HI-Z

OUT =

OUT

= GND, EN = V

ICL324XE

OUT

FIGURE 3. DISABLED RECEIVERS PREVENT POWER DRAIN

FORCEOFF

ICL3221E, ICL3223E, ICL3243E

FORCEON

FIGURE 5. CIRCUIT TO PREVENT AUTO POWERDOWN FOR

100ms AFTER FORCED POWERUP

Automatic Powerdown (ICL3221E, ICL3223E, ICL3243E Only)

Even greater power savings is available by using the devices which feature an automatic powerdown fu nction. When no valid RS-232 voltages (see Figure 6) are sensed on any receiver input for 30µs, the charge pump and transmitters powerdown, thereby reducing supply current to 1µA. Invalid receiver levels occur whenever the driving peripheral’s outputs are shut off (powered down) or when the RS-232 interface cable is disconnected. The ICL32xxE powers back up whenever it detects a valid RS-232 voltage level on any receiver input. This automatic powerdown feature provides additional system power savings without changes to the existing operating system.

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

2.7V

0.3V

-0.3V

-2.7V

FIGURE 6. DEFINITION OF VALID RS-232 RECEIVER LEVELS

VALID RS-232 LEVEL - ICL32xxE IS ACTIVE

INDETERMINATE - POWERDOWN MAY OR

MAY NOT OCCUR

INVALID LEVEL - POWERDOWN OCCURS AFTER 30µs

INDETERMINATE - POWERDOWN MAY OR

MAY NOT OCCUR

VALID RS-232 LEVEL - ICL32xxE IS ACTIVE

Automatic powerdown operates when the FORCEON input is low, and the FORCEOFF

input is high. Tying FORCEON high disables automatic powerdown, but manual powerdown is always available via the overriding FORCEOFF

input.

Table 2 summarizes the automatic powerdown functionality. Devices with the automatic powerdown feature include an

INVALID

output signal, which switches low to indicate that invalid levels have persisted on all of the receiver inputs for more than 30µs (see Figure 7). INV ALID

switches high 1µs after detecting a valid RS-232 level on a receiver input. INVALID

operates in all modes (forced or automatic powerdown, or forced on), so it is also useful for systems employing manual powerdown circuitry. When automatic powerdown is utilized, INVALID

= 0 indicates that the

ICL32xxE is in powerdown mode. The time to recover from automatic powerdown mode is

typically 100µs.

(standard) receiver outputs placing them in a high impedance state. This is useful to eliminate supply current, due to a receiver output forward biasing the protection diode, when driving the input of a powered down (V

= GND)

peripheral (see Figure 2). The enable input has no effect on transmitter nor monitor (R

OUTB

) outputs.

Capacitor Selection

The charge pumps require 0.1µF capacitors for 3.3V operation. For other supply voltages refer to Table 3 for capacitor values. Do not use values smaller than those listed in Table 3. Increasing the capacitor values (by a factor of 2) reduces ripple on the transmitter outputs and slightly reduces power consumption. C increased without increasing C increase C

without also increasing C2, C3, and C4 to

maintain the proper ratios (C When using minimum required capacitor values, make sure

that capacitor values do not degrade excessively with temperature. If in doubt, use capacitors with a larger nominal value. The capacitor’s equivalent series resistance (ESR) usually rises at low temperatures and it influences the amount of ripple on V+ and V-.

TABLE 3. REQUIRED CAPACITOR VALUES

(V)

3.0 to 3.6 0.1 0.1

4.5 to 5.5 0.047 0.33

3.0 to 5.5 0.1 0.47

, C3, and C4 can be

’s value, however, do not

to the other capacitors).

(µF)

, C3, C

(µF)

RECEIVER

INPUTS

TRANSMITTER

OUTPUTS

INVALID

OUTPUT

FIGURE 7. AUTOMATIC POWERDOWN AND INVALID

V+

V-

TIMING DIAGRAMS

INVL

AUTOPWDN

INVH

INVALID

}

REGION

PWR UP

Receiver ENABLE Control (ICL3221E, ICL3222E, ICL3223E, ICL3241E Only)

Several devices also feature an EN input to control the receiver outputs. Driving EN

high disables all the inverting

Power Supply Decoupling

In most circumstances a 0.1µF bypass capacitor is adequate. In applications that are particularly sensitive to power supply noise, decouple V capacitor of the same value as the charge-pump cap acitor C

to ground with a

Connect the bypass capacitor as close as possible to the IC.

Operation Down to 2.7V

ICL32xxE transmitter outputs meet RS-562 levels (±3.7V), at full data rate, with V

as low as 2.7V. RS-562 levels

typically ensure interoperability with RS-232 devices.

Transmitter Outputs when Exiting Powerdown

Figure 8 shows the response of two transmitter outputs when exiting powerdown mode. As they activate, the two transmitter outputs properly go to opposite RS-232 levels, with no glitching, ringing, nor undesirable transients. Each transmitter is loaded with 3kΩ in parallel with 2500pF. Note that the transmitters enable only when the magnitude of the supplies exceed approximately 3V.

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

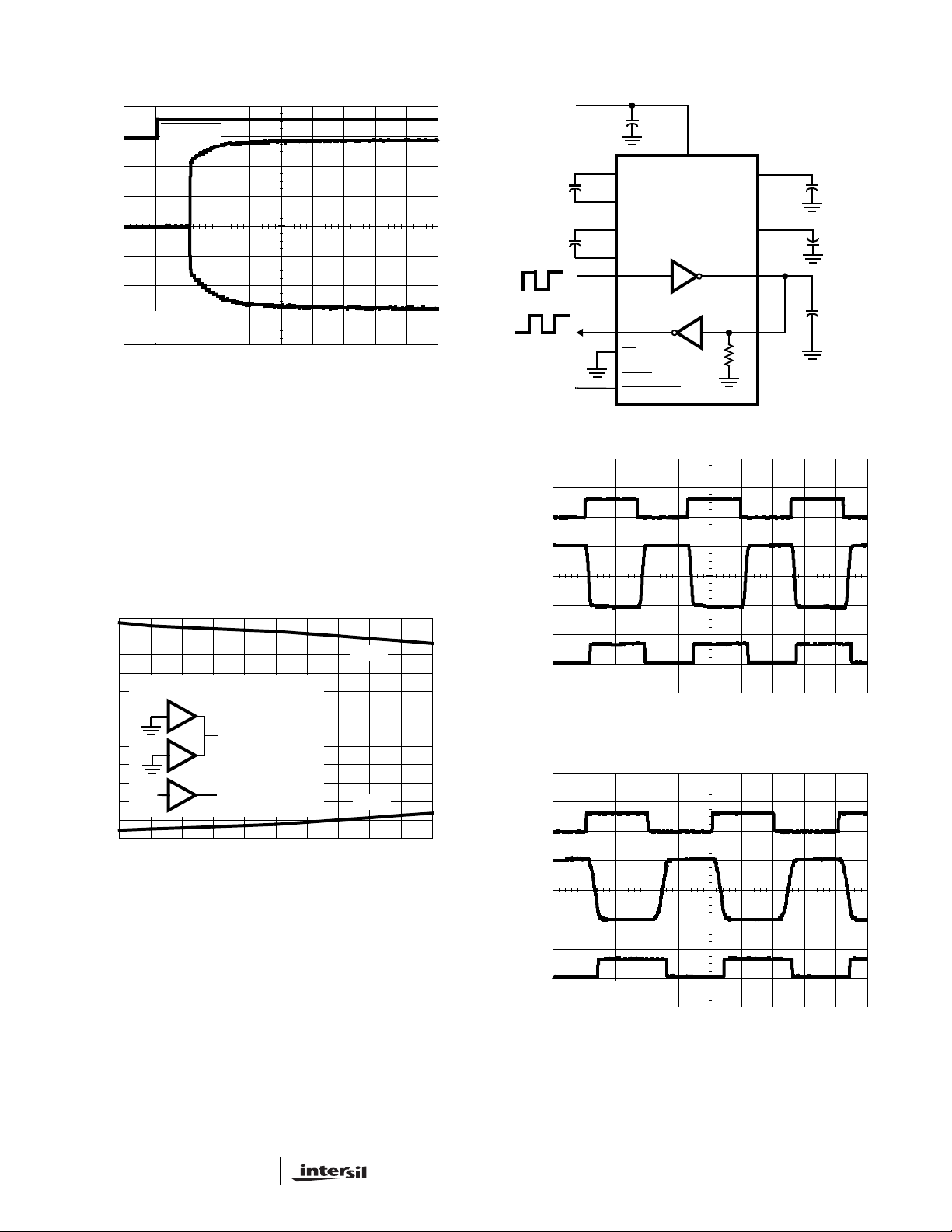

5V/DIV

2V/DIV

FORCEOFF

VCC = +3.3V C1 - C4 = 0.1µF

TIME (20µs/DIV)

FIGURE 8. TRANSMITTER OUTPUTS WHEN EXITING

POWERDOWN

Mouse Driveability

The ICL3241E and ICL3243E have been specifically designed to power a serial mouse while operating from low voltage supplies. Figure 9 shows the transmitter output voltages under increasing load current. The on-chip switching regulator ensures the transmitters will supply at least

±5V during worst case conditions (15mA for paralleled

V+ transmitters, 7.3mA for single V- transmitter). The Automatic Powerdown feature does not work with a mouse, so FORCEOFF

6 5 4 3 2 1 0

-1

-2

-3

-4

-5

TRANSMITTER OUTPUT VOLTAGE (V)

-6 0246810

FIGURE 9. TRANSMITTER OUTPUT VOLTAGE vs LOAD

and FORCEON should be connected to VCC.

OUT

= 3.0V

OUT

ICL3241E, ICL3243E

13579

LOAD CURRENT PER TRANSMITTER (mA)

CURRENT (PER TRANSMITTER, i.e., DOUBLE CURRENT AXIS FOR TOTAL V

OUT

OUT+

OUT

CURRENT)

0.1µF

C1+

C1-

ICL32xxE

C2+

C2-

OUT

EN SHDN OR

FORCEOFF

OUT

V+

V-

FIGURE 10. TRANSMITTER LOOPBACK TEST CIRCUIT

5V/DIV

OUT

VCC = +3.3V C1 - C4 = 0.1µF

5µs/DIV

FIGURE 11. LOOPBACK TEST AT 120kbps

5V/DIV

OUT

1000pF

High Data Rates

The ICL32xxE maintain the RS-232 ±5V minimum transmitter output voltages even at high data rates. Figure 10 details a transmitter loopback test circuit, and Figure 11 illustrates the loopback test result at 120kbps. For this test, all transmitters were simultaneously driving RS-232 loads in parallel with 1000pF, at 120kbps. Figure 12 shows the loopback results for a single transmitter driving 1000pF and an RS-232 load at 250kbps. The static transmitters were also loaded with an RS-232 receiver.

OUT

VCC = +3.3V C1 - C4 = 0.1µF

2µs/DIV

FIGURE 12. LOOPBACK TEST AT 250kbps

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Interconnection with 3V and 5V Logic

The ICL32XX directly interface with 5V CMOS and TTL logic families. Nevertheless, with the ICL32XX at 3.3V, and the logic supply at 5V , AC, HC, and CD4000 outputs can drive ICL32XX inputs, but ICL32XX outputs do not reach the minimum V

for

these logic families. See T able 4 for more information.

TABLE 4. LOGIC FAMILY COMPATIBILITY WITH VARIOUS

SUPPLY VOLTAGES

SYSTEM

POWER-SUPPLY

VOLTAGE (V)

3.3 3.3 Compatible with all CMOS

5 5 Compatible with all TTL and

5 3.3 Compatible with ACT and HCT

SUPPL Y

VOLT AG E ( V ) COMPATIBILITY

families.

CMOS logic families.

CMOS, and with TTL. ICL32XX outputs are incompatible with AC, HC, and CD4000 CMOS inputs.

±15kV ESD Protection

All pins on ICL32XX devices include ESD protection structures, but the ICL32xxE family incorporates advanced structures which allow the RS-232 pins (transmitter outputs and receiver inputs) to survive ESD events up to ±15kV. The RS-232 pins are particularly vulnerable to ESD damage because they typically connect to an exposed port on the exterior of the finished product. Simply touching the port pins, or connecting a cable, can cause an ESD event that might destroy unprotected ICs. These new ESD structures protect the device whether or not it is powered up, protect without allowing any latchup mechanism to activate, and don’t interfere with RS-232 signals as large as ±25V.

Human Body Model (HBM) Testing

As the name implies, this test method emulate s the ESD event delivered to an IC during human handling. The tester

delivers the charge through a 1.5kΩ current limiting resistor, making the test less severe than the IEC61000 test which utilizes a 330Ω limiting resistor. The HBM method determines an IC’s ability to withstand the ESD transients typically present during handling and manufacturing. Due to the random nature of these events, each pin is tested with respect to all other pins. The RS-232 pins on “E” family devices can withstand HBM ESD events to ±15kV.

IEC61000-4-2 Testing

The IEC61000 test method applies to finished equipment, rather than to an individual IC. Therefore, the pins most likely to suffer an ESD event are those that are exposed to the outside world (the RS-232 pins in this case), and the IC is tested in its typical application configuration (power applied) rather than testing each pin-to-pin combination. The lower current limiting resistor coupled with the larger charge storage capacitor yields a test that is much more severe than the HBM test. The extra ESD protection built into this device’s RS-232 pins allows the design of equipment meeting level 4 criteria without the need for additional board level protection on the RS-232 port.

AIR-GAP DISCHARGE TEST METHOD

For this test method, a charged probe tip moves toward the IC pin until the voltage arcs to it. The current waveform delivered to the IC pin depends on approach speed, humidity, temperature, etc., so it is difficult to obtain repeatable results. The “E” device RS-232 pins withstand ±15kV air-gap discharges.

CONTACT DISCHARGE TEST METHOD

During the contact discharge test, the probe contacts the tested pin before the probe tip is energized, thereby eliminating the variables associated with the air-gap discharge. The result is a more repeatable and predictable test, but equipment limits prevent testing devices at voltages higher than ±8kV . All “E” family devices survive ±8kV contact discharges on the RS-232 pins.

Typical Performance Curves V

1 TRANSMITTER AT 250kbps 1 OR 2 TRANSMITTERS AT 30kbps

-2

-4

TRANSMITTER OUTPUT VOLTAGE (V)

-6

FIGURE 13. TRANSMITTER OUTPUT VOLTAGE vs LOAD

1000 2000 3000 4000 50000

LOAD CAPACITANCE (pF)

CAPACITANCE

= 3.3V, TA = +25°C

OUT

-SLEW

SLEW RATE (V/ms)

0 1000 2000 3000 4000 5000

FIGURE 14. SLEW RATE vs LOAD CAPACITANCE

+SLEW

LOAD CAPACITANCE (pF)

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Typical Performance Curves V

ICL3221E

40 35 30 25 20 15

SUPPLY CURRENT (mA)

5 0

0 1000 2000 3000 4000 5000

LOAD CAPACITANCE (pF)

= 3.3V, TA = +25°C (Continued)

250kbps

120kbps

20kbps

FIGURE 15. SUPPL Y CURRENT vs LOAD CAP ACIT ANCE

WHEN TRANSMITTING DATA

ICL324XE

250kbps

ICL3222E, ICL3223E, ICL3232E

40 35 30

25 20 15

SUPPLY CURRENT (mA)

5 0

0 1000 2000 3000 4000 5000

LOAD CAPACITANCE (pF)

250kbps

120kbps

20kbps

FIGURE 16. SUPPL Y CURRENT vs LOAD CAP ACITANCE

WHEN TRANSMITTING DATA

3.5

3.0 ICL3221E, ICL3222E, ICL3223E, ICL3232E

2.5

NO LOAD ALL OUTPUTS STATIC

120kbps

SUPPLY CURRENT (mA)

1000

2000

LOAD CAPACITANCE (pF)

3000

20kbps

4000

FIGURE 17. SUPPL Y CURRENT vs LOAD CAP ACIT ANCE

WHEN TRANSMITTING DATA

Die Characteristics

SUBSTRATE POTENTIAL (POWERED UP):

GND

TRANSISTOR COUNT:

ICL3221E: 286 ICL3222E: 338 ICL3223E: 357 ICL3232E: 296 ICL324XE: 464

5000

2.0

1.5

1.0

SUPPLY CURRENT (mA)

0.5

ICL324XE

2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 SUPPLY VOLTAGE (V)

ICL324XE

FIGURE 18. SUPPLY CURRENT vs SUPPLY VOLTAGE

PROCESS:

Si Gate CMOS

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Dual-In-Line Plastic Packages (PDIP)

-C-

-B-

INDEX

AREA

BASE

PLANE

SEATING

PLANE

12 3 N/2

-AD

0.010 (0.25) C AM BS

NOTES:

1. Controlling Dimensions: INCH. In case of conflict between English and Metric dimensions, the inch dimensions control.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication No. 95.

4. Dimensions A, A1 and L are measured with the package seated in JEDEC seating plane gauge GS-3.

5. D, D1, and E1 dimensions do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.010 inch (0.25mm).

6. E and are measured with the leads constrained to be perpendic-

7. e

ular to datum .

and eC are measured at the lead tips with the leads unconstrained.

must be zero or greater.

-C-

8. B1 maximum dimensions do not include dambar protrusions. Dambar protrusions shall not exceed 0.010 inch (0.25mm).

9. N is the maximum number of terminal positions.

10. Corner leads (1, N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3, E28.3 may have a B1 dimension of 0.030 - 0.045 inch (0.76 - 1.14mm).

E18.3 (JEDEC MS-001-BC ISSUE D)

18 LEAD DUAL-IN-LINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A - 0.210 - 5.33 4

A1 0.015 - 0.39 - 4

A2 0.115 0.195 2.93 4.95 -

B 0.014 0.022 0.356 0.558 -

B1 0.045 0.070 1.15 1.77 8, 10

C 0.008 0.014 0.204 0.355 -

D 0.845 0.880 21.47 22.35 5

D1 0.005 - 0.13 - 5

E 0.300 0.325 7.62 8.25 6

E1 0.240 0.280 6.10 7.11 5

e 0.100 BSC 2.54 BSC -

0.300 BSC 7.62 BSC 6

- 0.430 - 10.92 7

L 0.115 0.150 2.93 3.81 4

N18 189

NOTESMIN MAX MIN MAX

Rev. 2 11/03

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Small Outline Plastic Packages (SOIC)

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

h x 45°

0.25(0.010) C AM BS

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of 0.61mm (0.024 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

0.10(0.004)

M16.15 (JEDEC MS-012-AC ISSUE C)

16 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0532 0.0688 1.35 1.75 -

A1 0.0040 0.0098 0.10 0.25 -

B 0.013 0.020 0.33 0.51 9 C 0.0075 0.0098 0.19 0.25 D 0.3859 0.3937 9.80 10.00 3 E 0.1497 0.1574 3.80 4.00 4 e 0.050 BSC 1.27 BSC H 0.2284 0.2440 5.80 6.20 h 0.0099 0.0196 0.25 0.50 5 L 0.016 0.050 0.40 1.27 6 N16 167

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 1 6/05

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Thin Shrink Small Outline Plastic Packages (TSSOP)

INDEX AREA

123

0.05(0.002)

-AD

0.10(0.004) C AM BS

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

0.10(0.004)

GAUGE

PLANE

0.25

0.010

NOTES:

1. These package dimensions are within allowable dimensions of JEDEC MO-153-AB, Issue E.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed

0.15mm (0.006 inch) per side.

4. Dimension “E1” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.15mm (0.006 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. Dimension “b” does not include dambar protrusion. Allowable dambar protrusion shall be 0.08mm (0.003 inch) total in excess of “b” dimension at maximum material condition. Minimum space between protrusion and adjacent lead is 0.07mm (0.0027 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact. (Angles in degrees)

M16.173

16 LEAD THIN SHRINK SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A-0.043 - 1.10 -

A1 0.002 0.006 0.05 0.15 -

A2 0.033 0.037 0.85 0.95 -

b 0.0075 0.012 0.19 0.30 9 c 0.0035 0.008 0.09 0.20 D 0.193 0.201 4.90 5.10 3

E1 0.169 0.177 4.30 4.50 4

e 0.026 BSC 0.65 BSC -

E 0.246 0.256 6.25 6.50 L 0.020 0.028 0.50 0.70 6 N16 167

NOTESMIN MAX MIN MAX

Rev. 1 2/02

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Small Outline Plastic Packages (SSOP)

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

GAUGE

PLANE

0.25

0.010

0.25(0.010) C AM BS

0.10(0.004)

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.20mm (0.0078 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.20mm (0.0078 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. Dimension “B” does not include dambar protrusion. Allowable dambar protrusion shall be 0.13mm (0.005 inch) total in excess of “B” dimension at maximum material condition.

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

M16.209 (JEDEC MO-150-AC ISSUE B)

16 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A - 0.078 - 2.00 A1 0.002 - 0.05 - A2 0.065 0.072 1.65 1.85 -

B 0.009 0.014 0.22 0.38 9

C 0.004 0.009 0.09 0.25 -

D 0.233 0.255 5.90 6.50 3

E 0.197 0.220 5.00 5.60 4

e 0.026 BSC 0.65 BSC -

H 0.292 0.322 7.40 8.20 -

L 0.022 0.037 0.55 0.95 6

N16 167

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 3 6/05

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Small Outline Plastic Packages (SOIC)

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

h x 45°

0.25(0.010) C AM BS

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of 0.61mm (0.024 inch)

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

0.10(0.004)

M16.3 (JEDEC MS-013-AA ISSUE C)

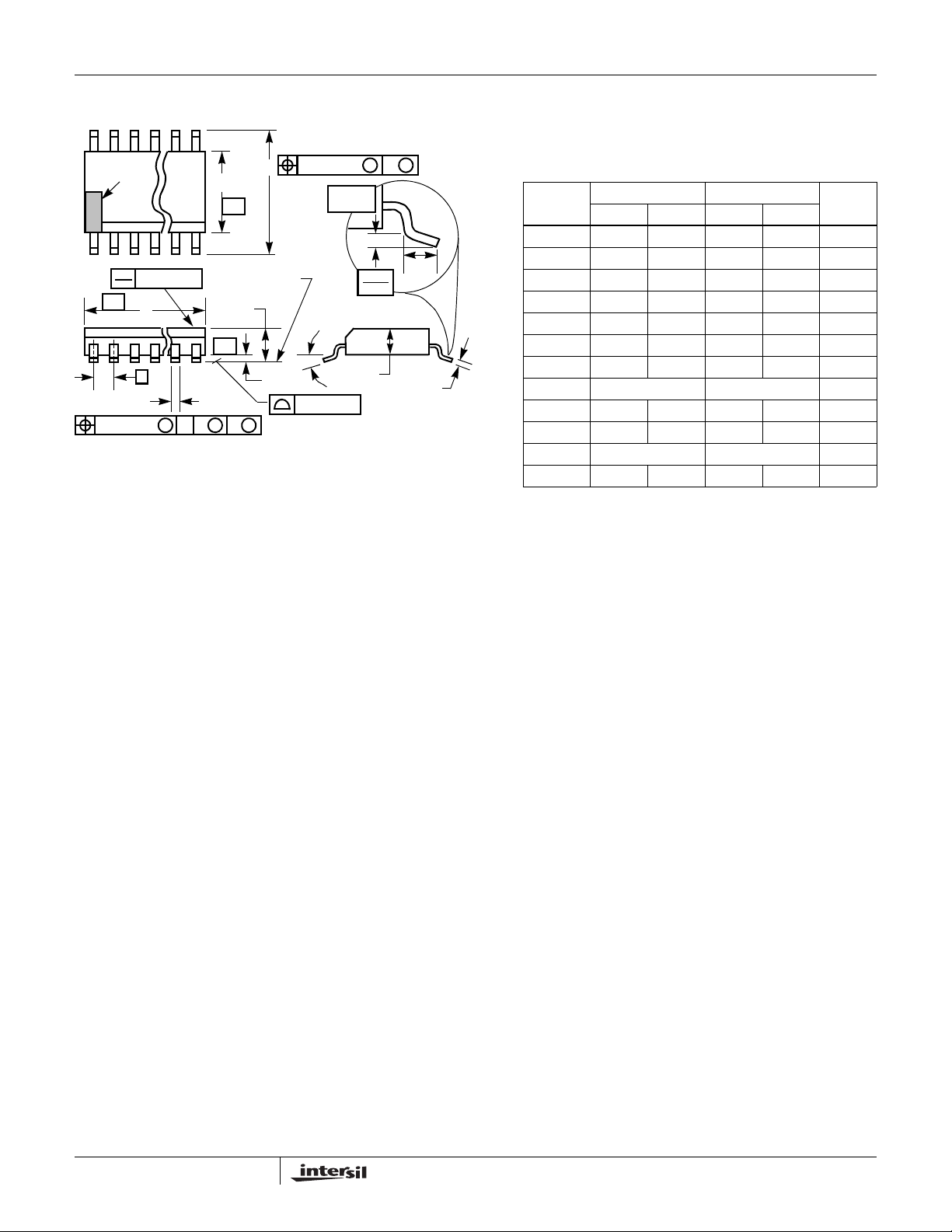

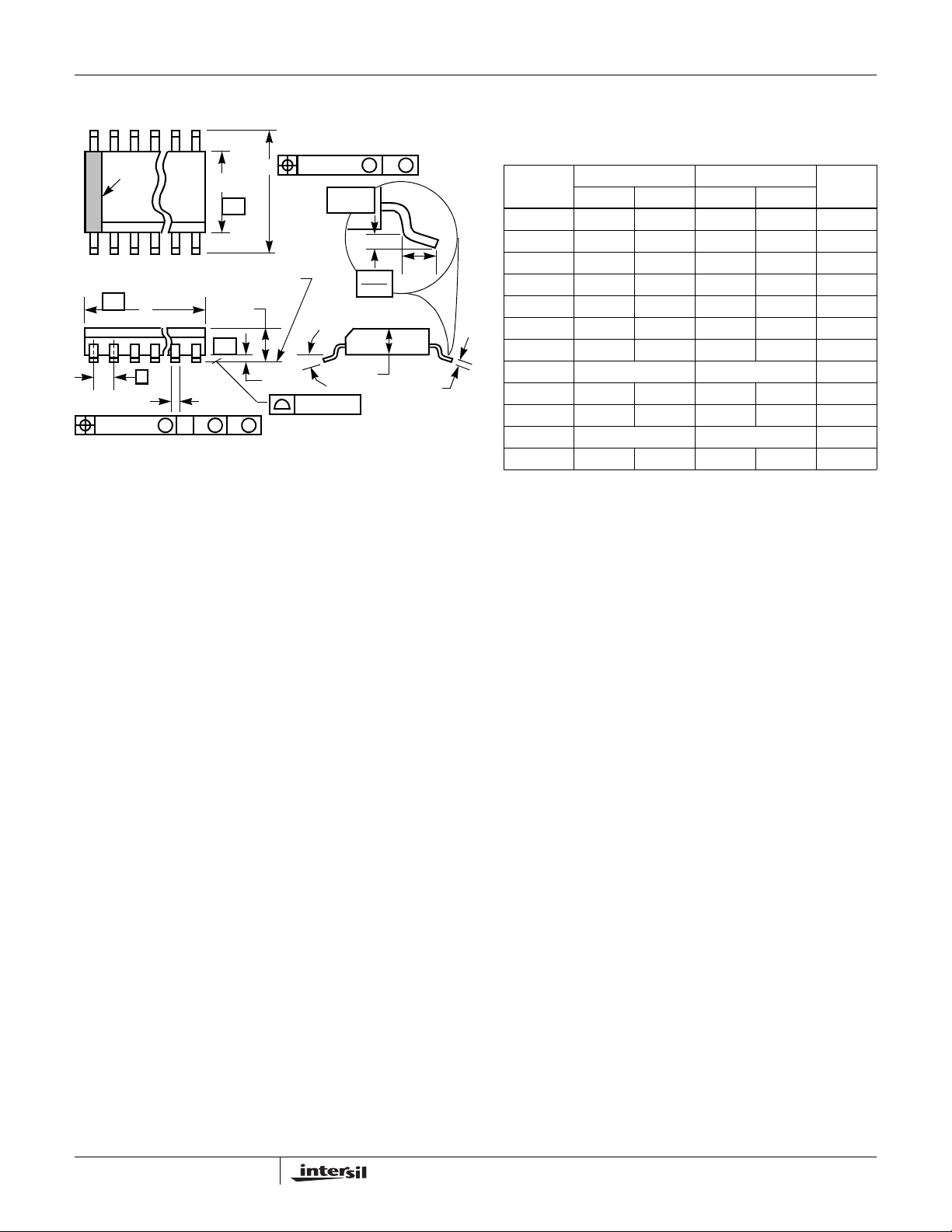

16 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0926 0.1043 2.35 2.65 -

A1 0.0040 0.0118 0.10 0.30 -

B 0.013 0.0200 0.33 0.51 9 C 0.0091 0.0125 0.23 0.32 D 0.3977 0.4133 10.10 10.50 3 E 0.2914 0.2992 7.40 7.60 4

e 0.050 BSC 1.27 BSC -

H 0.394 0.419 10.00 10.65 -

h 0.010 0.029 0.25 0.75 5 L 0.016 0.050 0.40 1.27 6

N16 167

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 1 6/05

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Small Outline Plastic Packages (SOIC)

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

h x 45°

0.25(0.010) C AM BS

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of 0.61mm (0.024 inch)

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

0.10(0.004)

M18.3 (JEDEC MS-013-AB ISSUE C)

18 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0926 0.1043 2.35 2.65 -

A1 0.0040 0.0118 0.10 0.30 -

B 0.013 0.0200 0.33 0.51 9 C 0.0091 0.0125 0.23 0.32 D 0.4469 0.4625 11.35 11.75 3 E 0.2914 0.2992 7.40 7.60 4

e 0.050 BSC 1.27 BSC -

H 0.394 0.419 10.00 10.65 -

h 0.010 0.029 0.25 0.75 5 L 0.016 0.050 0.40 1.27 6

N18 187

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 1 6/05

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Thin Shrink Small Outline Plastic Packages (TSSOP)

INDEX AREA

123

0.05(0.002)

-AD

0.10(0.004) C AM BS

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

0.10(0.004)

GAUGE PLANE

0.25

0.010

NOTES:

1. These package dimensions are within allowable dimensions of JEDEC MO-153-AC, Issue E.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E1” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.15mm (0.006 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact. (Angles in degrees)

M20.173

20 LEAD THIN SHRINK SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A-0.047 - 1.20 - A1 0.002 0.006 0.05 0.15 A2 0.031 0.051 0.80 1.05 -

b 0.0075 0.0118 0.19 0.30 9

c 0.0035 0.0079 0.09 0.20 -

D 0.252 0.260 6.40 6.60 3

E1 0.169 0.177 4.30 4.50 4

e 0.026 BSC 0.65 BSC -

E 0.246 0.256 6.25 6.50 -

L 0.0177 0.0295 0.45 0.75 6

N20 207

Rev. 1 6/98

NOTESMIN MAX MIN MAX

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Shrink Small Outline Plastic Packages (SSOP)

INDEX AREA

123

-AD

0.25(0.010) C AMB

-B-

SEATING PLANE

-C-

0.25(0.010) B

GAUGE

PLANE

0.10(0.004)

0.25

0.010

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section

2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed

0.20mm (0.0078 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.20mm (0.0078 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. Dimension “B” does not include dambar protrusion. Allowable dambar protrusion shall be 0.13mm (0.005 inch) total in excess of “B” dimension at maximum material condition.

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

M20.209 (JEDEC MO-150-AE ISSUE B)

20 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.068 0.078 1.73 1.99 A1 0.002 0.008’ 0.05 0.21 A2 0.066 0.070’ 1.68 1.78

B 0.010’ 0.015 0.25 0.38 9

C 0.004 0.008 0.09 0.20’

D 0.278 0.289 7.07 7.33 3

E 0.205 0.212 5.20’ 5.38 4

e 0.026 BSC 0.65 BSC

H 0.301 0.311 7.65 7.90’

L 0.025 0.037 0.63 0.95 6

N20 207

0 deg. 8 deg. 0 deg. 8 deg.

NOTESMIN MAX MIN MAX

Rev. 3 11/02

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Thin Shrink Small Outline Plastic Packages (TSSOP)

INDEX AREA

123

0.05(0.002)

-AD

0.10(0.004) C AM BS

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

0.10(0.004)

GAUGE PLANE

0.25

0.010

NOTES:

1. These package dimensions are within allowable dimensions of JEDEC MO-153-AE, Issue E.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E1” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.15mm (0.006 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact. (Angles in degrees)

M28.173

28 LEAD THIN SHRINK SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A-0.047 - 1.20 - A1 0.002 0.006 0.05 0.15 A2 0.031 0.051 0.80 1.05 -

b 0.0075 0.0118 0.19 0.30 9

c 0.0035 0.0079 0.09 0.20 -

D 0.378 0.386 9.60 9.80 3

E1 0.169 0.177 4.30 4.50 4

e 0.026 BSC 0.65 BSC -

E 0.246 0.256 6.25 6.50 -

L 0.0177 0.0295 0.45 0.75 6

N28 287

Rev. 0 6/98

NOTESMIN MAX MIN MAX

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Shrink Small Outline Plastic Packages (SSOP)

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

GAUGE

PLANE

0.25

0.010

0.25(0.010) C AM BS

0.10(0.004)

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed

0.20mm (0.0078 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.20mm (0.0078 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. Dimension “B” does not include dambar protrusion. Allowable dambar protrusion shall be 0.13mm (0.005 inch) total in excess of “B” dimension at maximum material condition.

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

M28.209 (JEDEC MO-150-AH ISSUE B)

28 LEAD SHRINK SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A - 0.078 - 2.00 A1 0.002 - 0.05 - A2 0.065 0.072 1.65 1.85 -

B 0.009 0.014 0.22 0.38 9

C 0.004 0.009 0.09 0.25 -

D 0.390 0.413 9.90 10.50 3

E 0.197 0.220 5.00 5.60 4

e 0.026 BSC 0.65 BSC -

H 0.292 0.322 7.40 8.20 -

L 0.022 0.037 0.55 0.95 6

N28 287

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 2 6/05

FN4910.19

June 22, 2007

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E

Small Outline Plastic Packages (SOIC)

INDEX AREA

123

-AD

0.25(0.010) C AM BS

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

0.10(0.004)

h x 45

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed

0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of

0.61mm (0.024 inch)

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

M28.3 (JEDEC MS-013-AE ISSUE C)

28 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0926 0.1043 2.35 2.65 -

A1 0.0040 0.0118 0.10 0.30 -

B 0.013 0.0200 0.33 0.51 9 C 0.0091 0.0125 0.23 0.32 D 0.6969 0.7125 17.70 18.10 3 E 0.2914 0.2992 7.40 7.60 4

e 0.05 BSC 1.27 BSC -

H 0.394 0.419 10.00 10.65 -

h 0.01 0.029 0.25 0.75 5 L 0.016 0.050 0.40 1.27 6

N28 287

Rev. 0 12/93

NOTESMIN MAX MIN MAX

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN4910.19

June 22, 2007

intersil ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E DATA SHEET

Specifications and Main Features

Frequently Asked Questions

User Manual
