HIP6601, HIP6603
Data Sheet January 2000
Synchronous-Rectified Buck MOSFET
Drivers
The HIP6601 and HIP6603 are high frequency, dual
MOSFET drivers specifically designed to drive two power
N-Channel MOSFETs in a synchronous-rectified buck
converter topology. These drivers combined with a HIP630x
Multi-Phase Buck PWM controller and Intersil UltraFETs™
form a complete core-voltage regulator solution for
advanced microprocessors.
The HIP6601 drivesthe lower gate in a synchronous-rectifier
bridge to 12V, while the upper gate can be independently
driven over a range from 5V to 12V. The HIP6603 drives
both upper and lower gates over a range of 5V to 12V. This
drive-voltage flexibility provides the advantage of optimizing
applications involving trade-offs between switching losses
and conduction losses.
The output drivers in the HIP6601 and HIP6603 have the
capacity to efficiently switch power MOSFETs at frequencies
up to 2MHz. Each driver is capable of driving a 3000pF load
with a 30ns propagation delay and 50ns transition time. Both
products implement bootstrapping on the upper gate with
only an external capacitor required. This reduces
implementation complexity and allows the use of higher
performance, cost effective, N-Channel MOSFETs. Adaptive
shoot-through protection is integrated to prevent both
MOSFETs from conducting simultaneously.
File Number 4819
Features
• Drives Two N-Channel MOSFETs
• Adaptive Shoot-Through Protection
• Internal Bootstrap Device
• Supports High Switching Frequency
- Fast Output Rise Time
- Propagation Delay 30ns
• Small 8 Lead SOIC Package
• Dual Gate-Drive Voltages for Optimal Efficiency
• Three-State Input for Bridge Shutdown
• Supply Under Voltage Protection
Applications
• Core Voltage Supplies for Intel Pentium® III, AMD®
Athlon™ Microprocessors
• High Frequency Low Profile DC-DC Converters
• High Current Low Voltage DC-DC Converters
Pinout
HIP6601CB/HIP6603CB
(SOIC)
TOP VIEW
Ordering Information
TEMP. RANGE
PART NUMBER
HIP6601CB 0 to 85 8 Ld SOIC M8.15
HIP6603CB 0 to 85 8 Ld SOIC M8.15
(oC) PACKAGE PKG. NO.
Block Diagram
PVCC
VCC
+5V
10K
PWM
CONTROL
LOGIC
10K
SHOOT-
THROUGH
PROTECTION
UGATE
BOOT
PWM
GND
BOOT
UGATE
PHASE
1
2
3
4
8
7
6
5
PHASE
PVCC
VCC
LGATE
† VCC FOR HIP6601
PVCC FOR HIP6603
†
LGATE
GND
1
UltraFET™ is a trademark of Intersil Corporation. 1-888-INTERSIL or 321-724-7143
Pentium® is a registered trademark of Intel Corporation. AMD® is a registered trademark of Advanced Micro Devices, Inc.
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
| Copyright © Intersil Corporation 2000
Typical Application
HIP6601, HIP6603
+5V
BOOT
VCC
PWM
PVCC
DRIVE
HIP6601
UGATE
PHASE
LGATE
+12V
+12V
PGOOD
VID
VFB
VSEN
FS
+5V
VCC
MAIN
CONTROL
HIP6301
GND
COMP
PWM1
PWM2
PWM3
ISEN1
ISEN2
ISEN3
VCC
PWM
VCC
PWM
+5V
PVCC
DRIVE
HIP6601
+5V
PVCC
DRIVE
HIP6601
BOOT
UGATE
PHASE
LGATE
BOOT
UGATE
PHASE
LGATE
+VCORE
+12V
2
HIP6601, HIP6603
Absolute Maximum Ratings Thermal Information
Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V
Supply Voltage (PVCC) . . . . . . . . . . . . . . . . . . . . . . . . . VCC + 0.3V
BOOT Voltage (V
Input Voltage (V
UGATE. . . . . . . . . . . . . . . . . . . . . .V
LGATE . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to V
- V
BOOT
) . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to 7V
PWM
). . . . . . . . . . . . . . . . . . . . . . . .15V
PHASE
- 0.3V to V
PHASE
BOOT
PVCC
+ 0.3V
+ 0.3V
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7). . . . .3kV
Machine Model (Per EIAJ ED-4701 Method C-111). . . . . . . .200V
Operating Conditions
Ambient Temperature Range. . . . . . . . . . . . . . . . . . . . .0oC to 85oC
Maximum Operating Junction Temperature . . . . . . . . . . . . . . 125oC
Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V ±10%
Supply Voltage Range, PVCC . . . . . . . . . . . . . . . . . . . . . 5V to 12V
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Electrical Specifications Recommended Operating Conditions, Unless Otherwise Noted
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
VCC SUPPLY CURRENT
Bias Supply Current I
Power Supply Current I
VCC
PVCC
POWER-ON RESET
VCC Rising Threshold 9.7 9.9 10.0 V
VCC Falling Threshold 9.0 9.1 9.2 V
PWM INPUT
Input Current I
PWM
PWM Rising Threshold 3.6 3.7 - V
PWM Falling Threshold - 1.3 1.4 V
UGATE Rise Time TR
LGATE Rise Time TR
UGATE Fall Time TF
LGATE Fall Time TF
UGATE Turn-Off Propagation Delay TPDL
LGATE Turn-Off Propagation Delay TPDL
UGATEVPVCC
LGATEVPVCC
UGATEVPVCC
LGATEVPVCC
UGATEVVCC
LGATEVVCC
Shutdown Window 1.5 - 3.6 V
Shutdown Holdoff Time - 230 - ns
OUTPUT
Upper Drive Source Impedance R
Upper Drive Sink Impedance R
Lower Drive Source Impedance R
Lower Drive Sink Impedance R
UGATEVVCC
UGATEVVCC
LGATE
LGATE
HIP6601, f
HIP6603, f
HIP6601, f
HIP6603, f
V
= 0 or 5V (See Block Diagram) - 500 - µA
PWM
= V
= V
= V
= V
= V
= V
= 12V, V
V
= V
VCC
= 12V, V
V
= 12V, V
VCC
V
= 12V, V
VCC
V
= 12V, V
VCC
V
= V
VCC
Thermal Resistance θJA (oC/W)
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Maximum Junction Temperature (Plastic Package) . . . . . . . .150oC
Maximum Storage Temperature Range. . . . . . . . . . -65oC to 150oC
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . .300oC
(SOIC - Lead Tips Only)
= 1MHz, V
PWM
= 1MHz, V
PWM
= 1MHz, V
PWM
= 1MHz, V
PWM
= 12V, 3nF load - 20 - ns
VCC
= 12V, 3nF load - 50 - ns
VCC
= 12V, 3nF load - 20 - ns
VCC
= 12V, 3nF load - 20 - ns
VCC
= 12V, 3nF load - 30 - ns
PVCC
= 12V, 3nF load - 20 - ns
PVCC
= 5V - 2.5 3.0 Ω
PVCC
= 12V - 7.0 7.5 Ω
PVCC
= 5V - 2.3 2.8 Ω
PVCC
= 12V - 1.0 1.3 Ω
PVCC
= 5V - 4.5 5.0 Ω
PVCC
= 12V - 9.0 9.5 Ω
PVCC
= 12V - 1.5 2.9 Ω
PVCC
= 12V - 4.4 6.2 mA
PVCC
= 12V - 2.5 3.6 mA
PVCC
= 12V - 200 430 µA
PVCC
= 12V - 1.8 3.3 mA
PVCC
3
HIP6601, HIP6603
Functional Pin Description
UGATE (Pin 1)
Upper gate drive output. Connect to gate of high-side power
N-Channel MOSFET.
BOOT (Pin 2)
Floating bootstrap supply pin for the upper gate drive.
Connect the bootstrap capacitor between this pin and the
PHASE pin. The bootstrap capacitor provides the charge to
turn on the upper MOSFET. See the Internal Bootstrap
Device section under DESCRIPTION for guidance in
choosing the appropriate capacitor value.
PWM (Pin 3)
The PWM signal is the control input for the driver . The PWM
signal can enter three distinct states during operation, see the
three-statePWMInputsection under DESCRIPTION forfurther
details. Connect this pin to the PWM output of the controller.
GND (Pin 4)
Bias and reference ground. All signals are referenced to this
node.
LGATE (Pin 5)
Lower gate drive output. Connect to gate of the low-side
power N-Channel MOSFET.
VCC (Pin 6)
Connect this pin to a +12V bias supply. Place a high quality
bypass capacitor from this pin to GND.
PVCC (Pin 7)
For the HIP6601, this pin supplies the upper gate drive bias.
Connect this pin from +12V down to +5V.
For the HIP6603, this pin supplies both the upper and lower
gate drive bias. Connect this pin to either +12V or +5V.
PHASE (Pin 8)
Connect this pin to the source of the upper MOSFET and the
drain of the lower MOSFET. The PHASE voltage is
monitored for adaptive shoot-through protection. This pin
also provides a return path for the upper gate drive.
Description
Operation
Designed for versatility and speed, the HIP6601 and HIP6603
dual MOSFET drivers control both high-side and low-side NChannel FETs from one externally provided PWM signal.
The upper and lower gates are held low until the driver is
initialized. Once the VCC voltage surpasses the VCC Rising
Threshold (See Electrical Specifications), the PWM signal
takes control of gate transitions. A rising edge on PWM
initiates the turn-off of the lower MOSFET (see Timing
Diagram). After a short propagation delay [TPDL
lower gate begins to fall. Typical fall times [TF
LGATE
provided in the Electrical Specifications section. Adaptive
shoot-through circuitry monitors the LGATE voltage and
determines the upper gate delay time [TPDH
UGATE
on how quickly the LGATE voltage drops below 1.0V. This
prevents both the lower and upper MOSFETs from
conducting simultaneously or shoot-through. Once this delay
period is complete the upper gate drive begins to rise
[TR
] and the upper MOSFET turns on.
UGATE
LGATE
] are
] based
], the
Timing Diagram
PWM
UGATE
LGATE
TPDL
LGATE
TPDH
UGATE
TF
LGATE
4
TR
UGATE
TPDL
UGATE
TPDH
TF
LGATE
UGATE
TR
LGATE
HIP6601, HIP6603
A falling transition on PWM indicates the turn-off of the upper
MOSFET and the turn-on of the lower MOSFET. A short
propagation delay [TPDL
upper gate begins to fall [TF
] is encountered before the
UGATE
]. Again, the adaptive
UGATE
shoot-through circuitry determines the lower gate delay time,
TPDH
. The PHASE voltage is monitored and the lower
LGATE
gate is allowed to rise after PHASE drops below 0.5V. The
lower gate then rises [TR
], turning on the lower
LGATE
MOSFET.
Three-State PWM Input
A unique feature of the HIP660X drivers is the addition of a
shutdown window to the PWM input. If the PWM signal
enters and remains within the shutdown window for a set
holdoff time, the output drivers are disabled and both
MOSFET gates are pulled and held low.The shutdown state
is removed when the PWM signal moves outside the
shutdown window. Otherwise, the PWM rising and falling
thresholds outlined in the ELECTRICAL SPECIFICATIONS
determine when the lower and upper gates are enabled.
Adaptive Shoot-Through Protection
Both drivers incorporate adaptive shoot-through protection
to prevent upper and lower MOSFETs from conducting
simultaneously and shorting the input supply. This is
accomplished by ensuring the falling gate has turned off one
MOSFET before the other is allowed to rise.
During turn-off of the lower MOSFET, the LGATE voltage is
monitored until it reaches a 1.0V threshold, at which time the
UGATE is released to rise. Adaptive shoot-through circuitry
monitors the PHASE voltage during UGATE turn-off. Once
PHASE has dropped below a threshold of 0.5V, the LGATE
is allowed to rise. PHASE continues to be monitored during
the lower gate rise time. If the PHASE voltage exceeds the
0.5V threshold during this period and remains high for longer
than 2µs, the LGATE transitions low. Both upper and lower
gates are then held low until the nextrising edge of the PWM
signal.
Power-On Reset (POR) Function
During initial startup, the VCC voltage rise is monitored and
gate drives are held low until a typical VCC rising threshold
of 9.9V is reached. Once the rising VCC threshold is
exceeded, the PWM input signal takes control of the gate
drives. If VCC drops below a typical VCC falling threshold of
9.1V during operation, then both gate drives are again held
low. This condition persists until the VCC voltage exceeds
the VCC rising threshold.
Internal Bootstrap Device
Both drivers feature an internal bootstrap device. Simply
adding an external capacitor across the BOOT and PHASE
pins completes the bootstrap circuit.
The bootstrap capacitor must have a maximum voltage
rating above VCC + 5V. The bootstrap capacitor can be
chosen from the following equation:
Q
GATE
----------------------- -
≥
C
BOOT
∆V
BOOT
Where Q
charge the gate of the upper MOSFET. The ∆V
is the amount of gate charge required to fully
GATE
BOOT
term is
defined as the allowable droop in the rail of the upper drive.
As an example, suppose a HUF76139 is chosen as the
upper MOSFET. The gate charge, Q
, from the data
GATE
sheet is 65nC for a 10V upper gate drive. We will assume a
200mV droop in drive voltage over the PWM cycle. We find
that a bootstrap capacitance of at least 0.325µF is required.
The next larger standard value capacitance is 0.33µF.
Gate Drive Voltage Versatility
The HIP6601 and HIP6603 provide the user total flexibility in
choosing the gate drive voltage. The HIP6601 lower gate
drive is fixed to VCC [+12V], but the upper drive rail can
range from 12V down to 5V depending on what voltage is
applied to PVCC. The HIP6603 ties the upper and lower
drive rails together. Simply applying a voltage from 5V up to
12V on PVCC will set both driver rail voltages.
Power Dissipation
Package power dissipation is mainly a function of the
switching frequency and total gate charge of the selected
MOSFETs. Calculating the power dissipation in the driver for
a desired application is critical to ensuring safe operation.
Exceeding the maximum allowable power dissipation level
will push the IC beyond the maximum recommended
operating junction temperature of 125
allowable IC power dissipation for the SO8 package is
approximately 800mW. When designing the driver into an
application, it is recommended that the following calculation
be performed to ensure safe operation at the desired
frequency for the selected MOSFETs. The power dissipated
by the driver is approximated as:
3
P 1.05f
where f
-- -
VUQUVLQ
sw
2
is the switching frequency of the PWM signal. V
sw
+
I
+=
L
and VL represent the upper and lower gate rail voltage. Q
and QL is the upper and lower gate charge determined by
MOSFET selection and any external capacitance added to
the gate pins. The I
DDQVCC
product is the quiescent power
of the driver and is typically 30mW.
The power dissipation approximation is a result of power
transferred to and from the upper and lower gates. But, the
internal bootstrap device also dissipates power on-chip
during the refresh cycle. Expressing this power in terms of
the upper MOSFET total gate charge is explained below.
DDQ
o
C. The maximum
V
CC
U
U
5
HIP6601, HIP6603
The bootstrap device conducts when the lower MOSFET or
it’s body diode conducts and pulls the PHASE node toward
GND.While the bootstrap device conducts, a current path is
formed that refreshes the bootstrap capacitor. Since the
upper gate is driving a MOSFET, the charge removed from
the bootstrap capacitor is equivalent to the total gate charge
of the MOSFET.Therefore, the refresh power required by the
bootstrap capacitor is equivalent to the power used to
charge the gate capacitance of the MOSFET.
P
REFRESH
where Q
1
-- -
f
Q
==
SW
2
is the total charge removed from the bootstrap
LOSS
LOSS
V
PVCC
1
-- -
f
QUV
SW
2
U
capacitor and provided to the upper gate load.
The 1.05 factor is a correction factor derived from the
followingcharacterization. The base circuit for characterizing
the drivers for different loading profiles and frequencies is
provided. C
and CL are the upper and lower gate load
U
capacitors. Decoupling capacitors [0.15µF] are added to the
PVCC and VCC pins. The bootstrap capacitor value is
0.01µF.
In Figure 1, C
and CL values are the same and frequency
U
is varied from 50kHz to 2MHz. PVCC and VCC are tied
together to a +12V supply. Curves do exceed the 800mW
cutoff, but continuous operation above this point is not
recommended.
Figure 2 shows the dissipation in the driver with 3nF loading
on both gates and each individually. Note the higher upper
gate power dissipation which is due to the bootstrap device
refresh cycle. Again PVCC and VCC are tied together and to
a +12V supply.
Test Circuit
+5V OR +12V
+12V
PVCC
0.15µF
VCC
0.15µF
PWM
0.01µF
BOOT
HIP660X
GND
UGATE
PHASE
LGATE
2N7002
C
L
2N7002
100kΩ
C
U
1000
PVCC = VCC = 12V
800
CU = CL = 3nF
600
400
POWER (mW)
CU = CL = 2nF
200
0 500 1000 1500 2000
CU = CL = 4nF
= CL = 5nF
C
U
FREQUENCY (kHz)
CU = CL = 1nF
FIGURE 1. POWER DISSIPATION vs FREQUENCY
1000
PVCC = VCC = 12V
800
CU = CL = 3nF
600
CU = 3nF
400
POWER (mW)
200
0 500 1000 1500 2000
FREQUENCY (kHz)
CL = 3nF
FIGURE 2. 3nF LOADING PROFILE

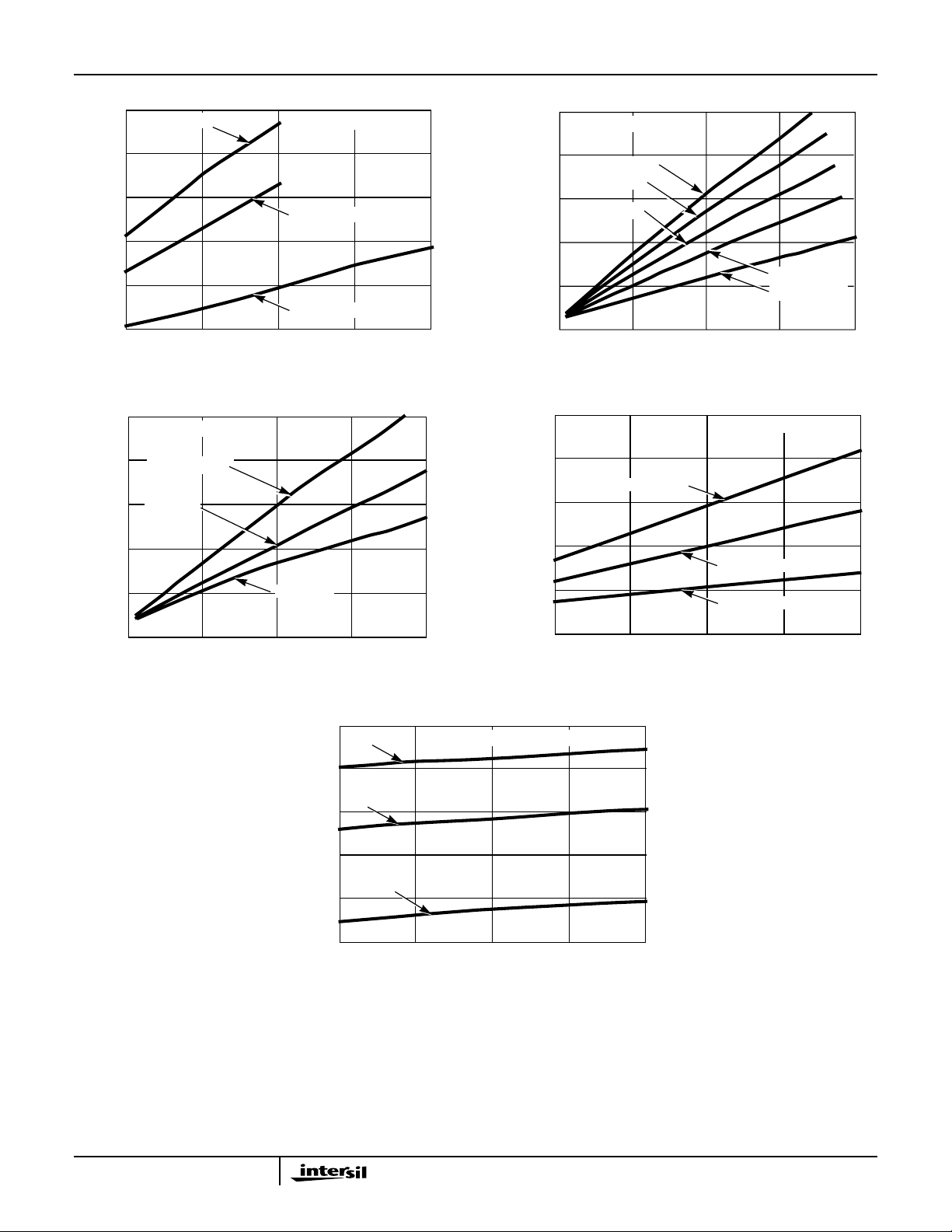

The impact of loading on power dissipation is shown in
Figure 3. Frequency is held constant while the gate
capacitors are varied from 1nF to 5nF. VCC and PVCC are
tied together and to a +12V supply. Figures 4 through 6
show the same characterization for the HIP6603 with a +5V
supply on PVCC and VCC tied to a +12V supply.
Since both upper and lower gate capacitance can vary,
Figure 7 shows dissipation curves versus lower gate
capacitance with upper gate capacitance held constant at
three different values. These curves apply only to the
HIP6601 due to power supply configuration.
6
HIP6601, HIP6603
600
FREQUENCY = 800kHz
500
400
300
POWER (mW)
200
100
1.0 2.0 3.0 4.0 5.0
GATE CAPACITANCE (CU = CL), (nF)
PVCC = VCC = 12V
FREQUENCY = 500kHz
FREQUENCY = 200kHz
400
PVCC = 5V VCC = 12V
320
240
160
POWER (mW)
CU = CL = 5nF
CU = CL = 4nF
CU = CL = 3nF
C
80
0 500 1000 1500 2000
FREQUENCY (kHz)
U
CU = CL = 1nF
FIGURE 3. POWER DISSIPATION vs LOADING FIGURE 4. POWER DISSIPATION vs FREQUENCY (HIP6603)
300
240
180
120
POWER (mW)
60
PVCC = 5V
CU = CL = 3nF
CU = 3nF
VCC = 12V
CL = 1nF
250
200
FREQUENCY = 800kHz
150
100
POWER (mW)
50
PVCC = 5V
FREQUENCY = 500kHz
FREQUENCY = 200kHz
= CL = 2nF
VCC = 12V
0
0 500 1000 1500 2000
FREQUENCY (kHz)
1.0 2.0 3.0 4.0 5.0
GATE CAPACITANCE (CU = CL), (nF)
FIGURE 5. 3nF LOADING PROFILE (HIP6603) FIGURE 6. VARIABLE LOADING PROFILE (HIP6603)
400
CU = 5nF
350
CU = 3nF
300
200
POWER (mW)
CU = 1nF
150
100
1.0 2.0 3.0 4.0 5.0
PVCC = 5V VCC = 12V
FREQUENCY (kHz)
FIGURE 7. POWER DISSIPATION vs LOADING (HIP6601)
7
HIP6601, HIP6603

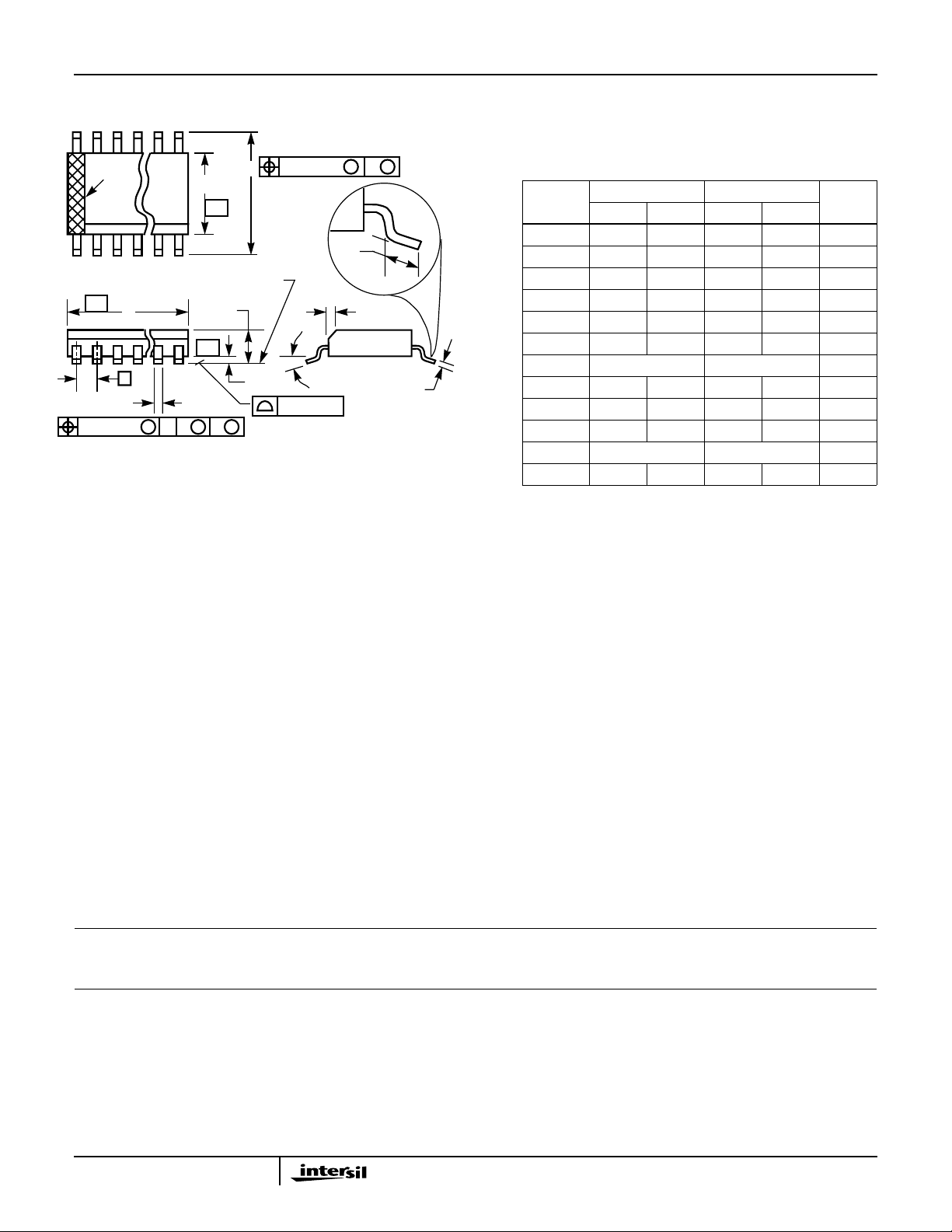

Small Outline Plastic Packages (SOIC)
N
INDEX
AREA
123
-A-
E
-B-
SEATING PLANE
D
A
-C-
0.25(0.010) BM M
H
L
h x 45
o
α
e
B
0.25(0.010) C AM BS
M
NOTES:
1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of
Publication Number 95.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
3. Dimension “D” does not include mold flash, protrusions or gate burrs.
Mold flash,protrusionandgateburrs shall not exceed 0.15mm (0.006
inch) per side.
4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per
side.
5. The chamfer on the body is optional. If it is not present, a visual index
feature must be located within the crosshatched area.
6. “L” is the length of terminal for soldering to a substrate.
7. “N” is the number of terminal positions.
8. Terminal numbers are shown for reference only.
9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater
above the seating plane, shall not exceed a maximum value of
0.61mm (0.024 inch).
10. Controlling dimension: MILLIMETER. Converted inch dimensions
are not necessarily exact.
A1
C
0.10(0.004)
M8.15 (JEDEC MS-012-AA ISSUE C)
8 LEAD NARROW BODY SMALL OUTLINE PLASTIC
PACKAGE
INCHES MILLIMETERS
SYMBOL
A 0.0532 0.0688 1.35 1.75 -
A1 0.0040 0.0098 0.10 0.25 -
B 0.013 0.020 0.33 0.51 9
C 0.0075 0.0098 0.19 0.25 D 0.1890 0.1968 4.80 5.00 3
E 0.1497 0.1574 3.80 4.00 4
e 0.050 BSC 1.27 BSC -
H 0.2284 0.2440 5.80 6.20 -
h 0.0099 0.0196 0.25 0.50 5
L 0.016 0.050 0.40 1.27 6
N8 87
o
α
0
o
8
o
0
o
8
Rev. 0 12/93
NOTESMIN MAX MIN MAX
-
All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site www.intersil.com
Sales Office Headquarters
NORTH AMERICA
Intersil Corporation
P. O. Box 883, Mail Stop 53-204
Melbourne, FL 32902
TEL: (321) 724-7000
FAX: (321) 724-7240
8
EUROPE
Intersil SA
Mercure Center
100, Rue de la Fusee
1130 Brussels, Belgium
TEL: (32) 2.724.2111
FAX: (32) 2.724.22.05
ASIA
Intersil (Taiwan) Ltd.
7F-6, No. 101 Fu Hsing North Road
Taipei, Taiwan
Republic of China
TEL: (886) 2 2716 9310
FAX: (886) 2 2715 3029
Loading...
