CD4070BMS
CD4077BMS

CMOS Quad Exclusive OR and

Exclusive NOR Gates

Features

• High Voltage Types (20V Rating)

• CD4070BMS - Quad Exclusive OR Gate

• CD4077BMS - Quad Exclusive NOR Gate

• Medium Speed Operation

- tPHL, tPLH = 65ns (Typ.) at VDD = 10V, CL = 50pF

• 5V, 10V and 15V Parametric Ratings

• Standardized, Symmetrical Output Characteristics

• 100% Tested for Quiescent Current at 20V

• Maximum Input Current of 1µA at 18V Over Full Pack-

age Temperature Range; 100nA at 18V and +25

o

C

• Noise Margin (Over Full Package/Temperature Range)

- 1V at VDD = 5V

- 2V at VDD = 10V

- 2.5V at VDD = 15V

• Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Specifications for Description of
‘B’ Series CMOS Devices”

Applications

• Logical Comparators

• Parity Generators and Checkers

• Adders/Subtractors

Description

CD4070BMS contains four independent Exclusive OR gates.
The CD4077BMS contains four independent Exclusive NOR
gates.

The CD4070BMS and CD4077BMS provide the system
designer with a means for direct implementation of the
Exclusive OR and Exclusive NOR functions, respectively.

The CD4070BMS and CD4077BMS are supplied in these 14
lead outline packages:

Braze Seal DIP H4Q
Frit Seal DIP H1B
Ceramic Flatpack *H4F †H3W
*CD4070B Only †CD4077B Only

Pinouts

CD4070BMS

TOP VIEW

A

1

B

2

J = A⊕B

K = C⊕D

VSS

3
4

C

5

D

6
7

CD4077BMS

TOP VIEW

A

1

B

2

J =

A⊕B

3

K =

C⊕D

4

C

5

D

6

VSS

7

Functional Diagram

1

A

2

C⊕D

G⊕H

E⊕F

B

5

C

6

D

8

E

9

F

12

G

13

H

CD4070BMS

1

A

2

B

5

C

6

D

8

E

9

F

12

G

13

H

J = A⊕B
K = C⊕D

M = G⊕H
L = E⊕F

VSS = 7
VDD = 14

J = A⊕B
K =

M =
L =

VDD

14

H

13

G

12

M = G⊕H

11

L = E⊕F

10

F

9

E

8

VDD

14

H

13

G

12

M =

11

L =

10

F

9

E

8

G⊕H

E⊕F

3

J

4

K

10

L

11

M

3

J

4

K

10

L

11

M

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143 | Copyright © Intersil Corporation 1999

7-455

CD4077BMS

File Number

3322

Specifications CD4070BMS, CD4077BMS

Absolute Maximum Ratings Reliability Information

DC Supply Voltage Range, (VDD) . . . . . . . . . . . . . . . -0.5V to +20V

(Voltage Referenced to VSS Terminals)

Input Voltage Range, All Inputs . . . . . . . . . . . . .-0.5V to VDD +0.5V

DC Input Current, Any One Input . . . . . . . . . . . . . . . . . . . . . . . .±10mA

Operating Temperature Range. . . . . . . . . . . . . . . . -55

Package Types D, F, K, H

Storage Temperature Range (TSTG) . . . . . . . . . . . -65

o

C to +125oC

o

C to +150oC

Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . . +265

At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for

10s Maximum

TABLE 1. DC ELECTRICAL PERFORMANCE CHARACTERISTICS

PARAMETER SYMBOL CONDITIONS (NOTE 1)

Supply Current IDD VDD = 20V, VIN = VDD or GND 1 +25

VDD = 18V, VIN = VDD or GND 3 -55oC-2µA

Input Leakage Current IIL VIN = VDD or GND VDD = 20 1 +25

VDD = 18V 3 -55oC -100 - nA

Input Leakage Current IIH VIN = VDD or GND VDD = 20 1 +25oC - 100 nA

VDD = 18V 3 -55oC - 100 nA
Output Voltage VOL15 VDD = 15V, No Load 1, 2, 3 +25oC, +125oC, -55oC - 50 mV
Output Voltage VOH15 VDD = 15V, No Load (Note 3) 1, 2, 3 +25oC, +125oC, -55oC 14.95 - V
Output Current (Sink) IOL5 VDD = 5V, VOUT = 0.4V 1 +25oC 0.53 - mA
Output Current (Sink) IOL10 VDD = 10V, VOUT = 0.5V 1 +25oC 1.4 - mA
Output Current (Sink) IOL15 VDD = 15V, VOUT = 1.5V 1 +25oC 3.5 - mA
Output Current (Source) IOH5A VDD = 5V, VOUT = 4.6V 1 +25oC - -0.53 mA
Output Current (Source) IOH5B VDD = 5V, VOUT = 2.5V 1 +25oC - -1.8 mA
Output Current (Source) IOH10 VDD = 10V, VOUT = 9.5V 1 +25oC - -1.4 mA
Output Current (Source) IOH15 VDD = 15V, VOUT = 13.5V 1 +25oC - -3.5 mA
N Threshold Voltage VNTH VDD = 10V, ISS = -10µA 1 +25oC -2.8 -0.7 V
P Threshold Voltage VPTH VSS = 0V, IDD = 10µA 1 +25oC 0.7 2.8 V
Functional F VDD = 2.8V, VIN = VDD or GND 7 +25oC VOH >

VDD = 20V, VIN = VDD or GND 7 +25oC
VDD = 18V, VIN = VDD or GND 8A +125oC
VDD = 3V, VIN = VDD or GND 8B -55oC

Input Voltage Low

VIL VDD = 5V, VOH > 4.5V, VOL < 0.5V 1, 2, 3 +25oC, +125oC, -55oC - 1.5 V

(Note 2)
Input Voltage High

VIH VDD = 5V, VOH > 4.5V, VOL < 0.5V 1, 2, 3 +25oC, +125oC, -55oC 3.5 - V

(Note 2)
Input Voltage Low

(Note 2)
Input Voltage High

(Note 2)

VIL VDD = 15V, VOH > 13.5V,

VOL < 1.5V

VIH VDD = 15V, VOH > 13.5V,

VOL < 1.5V

NOTES: 1. All voltages referenced to device GND, 100% testing being

implemented.

2. Go/No Go test with limits applied to inputs.

Thermal Resistance . . . . . . . . . . . . . . . . θ

Ceramic DIP and FRIT Package. . . . . 80oC/W 20oC/W

Flatpack Package . . . . . . . . . . . . . . . . 70

Maximum Package Power Dissipation (PD) at +125oC

For TA = -55
For TA = +100

o

C

Device Dissipation per Output Transistor . . . . . . . . . . . . . . . 100mW

o

C to +100oC (Package Type D, F, K). . . . . . 500mW

o

C to +125oC (Package Type D, F, K) . . . . .Derate

Linearity at 12mW/oC to 200mW

ja

o

C/W 20oC/W

For TA = Full Package Temperature Range (All Package Types)

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175oC

GROUP A

LIMITS

SUBGROUPS TEMPERATURE

o

C-2µA

2 +125oC - 200 µA

o

C -100 - nA

2 +125oC -1000 - nA

2 +125oC - 1000 nA

VOL <

VDD/2

VDD/2

1, 2, 3 +25oC, +125oC, -55oC- 4 V

1, 2, 3 +25oC, +125oC, -55oC11 - V

3. For accuracy, voltage is measured differentially to VDD. Limit
is 0.050V max.

θ

jc

UNITSMIN MAX

V

7-456

Specifications CD4070BMS, CD4077BMS

TABLE 2. AC ELECTRICAL PERFORMANCE CHARACTERISTICS

GROUP A

PARAMETER SYMBOL CONDITIONS (NOTES 1, 2)

Propagation Delay TPHL

TPLH

Transition Time TTHL

TTLH

NOTES:

1. CL = 50pF, RL = 200K, Input TR, TF < 20ns.

2. -55oC and +125oC limits guaranteed, 100% testing being implemented.

PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE

Supply Current IDD VDD = 5V, VIN = VDD or GND 1, 2 -55oC, +25oC- 1 µA

Output Voltage VOL VDD = 5V, No Load 1, 2 +25oC, +125oC,

Output Voltage VOL VDD = 10V, No Load 1, 2 +25oC, +125oC,

Output Voltage VOH VDD = 5V, No Load 1, 2 +25oC, +125oC,

Output Voltage VOH VDD = 10V, No Load 1, 2 +25oC, +125oC,

Output Current (Sink) IOL5 VDD = 5V, VOUT = 0.4V 1, 2 +125oC 0.36 - mA

Output Current (Sink) IOL10 VDD = 10V, VOUT = 0.5V 1, 2 +125oC 0.9 - mA

Output Current (Sink) IOL15 VDD = 15V, VOUT = 1.5V 1, 2 +125oC 2.4 - mA

Output Current (Source) IOH5A VDD = 5V, VOUT = 4.6V 1, 2 +125oC - -0.36 mA

Output Current (Source) IOH5B VDD = 5V, VOUT = 2.5V 1, 2 +125oC - -1.15 mA

Output Current (Source) IOH10 VDD = 10V, VOUT = 9.5V 1, 2 +125oC - -0.9 mA

Output Current (Source) IOH15 VDD =15V, VOUT = 13.5V 1, 2 +125oC - -2.4 mA

Input Voltage Low VIL VDD = 10V , VOH > 9V, VOL < 1V 1, 2 +25oC, +125oC,

Input Voltage High VIH VDD = 10V, VOH > 9V , VOL < 1V 1, 2 +25oC, +125oC,

VDD = 5V, VIN = VDD or GND 9 +25oC - 280 ns

VDD = 5V, VIN = VDD or GND 9 +25oC - 200 ns

TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS

VDD = 10V, VIN = VDD or GND 1, 2 -55oC, +25oC- 2 µA

VDD = 15V, VIN = VDD or GND 1, 2 -55oC, +25oC- 2 µA

SUBGROUPS TEMPERATURE

10, 11 +125oC, -55oC - 378 ns

10, 11 +125oC, -55oC - 270 ns

+125oC-30µA

+125oC-60µA

+125oC - 120 µA

-55oC

-55oC

-55oC

-55oC

-55oC 0.64 - mA

-55oC 1.6 - mA

-55oC 4.2 - mA

-55oC - -0.64 mA

-55oC - -2.0 mA

-55oC - -2.6 mA

-55oC - -4.2 mA

-55oC

-55oC

LIMITS

UNITSMIN MAX

LIMITS

UNITSMIN MAX

-50mV

-50mV

4.95 - V

9.95 - V

-3V

7-V

7-457

Specifications CD4070BMS, CD4077BMS

TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued)

LIMITS

PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE

Propagation Delay TPHL

TPLH

Transition Time TTHL

TTLH

Input Capacitance CIN Any Input 1, 2 +25oC - 7.5 pF

NOTES:

1. All voltages referenced to device GND.

2. The parameters listed on Table 3 are controlled via design or process and are not directly tested. These parameters are characterized
on initial design release and upon design changes which would affect these characteristics.

3. CL = 50pF, RL = 200K, Input TR, TF < 20ns.

TABLE 4. POST IRRADIATION ELECTRICAL PERFORMANCE CHARACTERISTICS

PARAMETER SYMBOL CONDITIONS NOTES TEMPERATURE

Supply Current IDD VDD = 20V, VIN = VDD or GND 1, 4 +25oC - 7.5 µA
N Threshold Voltage VNTH VDD = 10V, ISS = -10µA 1, 4 +25oC -2.8 -0.2 V
N Threshold Voltage

Delta
P Threshold Voltage VTP VSS = 0V, IDD = 10µA 1, 4 +25oC 0.2 2.8 V
P Threshold Voltage

Delta
Functional F VDD = 18V, VIN = VDD or GND 1 +25oC VOH >

Propagation Delay Time TPHL

NOTES: 1. All voltages referenced to device GND.

2. CL = 50pF, RL = 200K, Input TR, TF < 20ns.

∆VTN VDD = 10V, ISS = -10µA 1, 4 +25oC-±1V

∆VTP VSS = 0V, IDD = 10µA 1, 4 +25oC-±1V

TPLH

VDD = 10V 1, 2, 3 +25oC - 130 ns
VDD = 15V 1, 2, 3 +25oC - 100 ns
VDD = 10V 1, 2, 3 +25oC - 100 ns
VDD = 15V 1, 2, 3 +25oC - 80 ns

LIMITS

VOL <
VDD = 3V, VIN = VDD or GND
VDD = 5V 1, 2, 3, 4 +25oC - 1.35 x

3. See Table 2 for +25oC limit.

4. Read and Record

VDD/2

VDD/2

+25oC

Limit

UNITSMIN MAX

UNITSMIN MAX

V

ns

TABLE 5. BURN-IN AND LIFE TEST DELTA PARAMETERS +25OC

PARAMETER SYMBOL DELTA LIMIT

Supply Current - MSI-1 IDD ± 0.2µA
Output Current (Sink) IOL5 ± 20% x Pre-Test Reading
Output Current (Source) IOH5A ± 20% x Pre-Test Reading

TABLE 6. APPLICABLE SUBGROUPS

MIL-STD-883

CONFORMANCE GROUP

Initial Test (Pre Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A
Interim Test 1 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A
Interim Test 2 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A

PDA (Note 1) 100% 5004 1, 7, 9, Deltas

Interim Test 3 (Post Burn-In) 100% 5004 1, 7, 9 IDD, IOL5, IOH5A

METHOD GROUP A SUBGROUPS READ AND RECORD

7-458

Specifications CD4070BMS, CD4077BMS

TABLE 6. APPLICABLE SUBGROUPS (Continued)

MIL-STD-883

CONFORMANCE GROUP

PDA (Note 1) 100% 5004 1, 7, 9, Deltas
Final Test 100% 5004 2, 3, 8A, 8B, 10, 11
Group A Sample 5005 1, 2, 3, 7, 8A, 8B, 9, 10, 11
Group B Subgroup B-5 Sample 5005 1, 2, 3, 7, 8A, 8B, 9, 10, 11, Deltas Subgroups 1, 2, 3, 9, 10, 11

Subgroup B-6 Sample 5005 1, 7, 9

Group D Sample 5005 1, 2, 3, 8A, 8B, 9 Subgroups 1, 2 3

NOTE: 1. 5% Parameteric, 3% Functional; Cumulative for Static 1 and 2.

CONFORMANCE GROUPS

Group E Subgroup 2 5005 1, 7, 9 Table 4 1, 9 Table 4

FUNCTION OPEN GROUND VDD 9V ± -0.5V

Static Burn-In 1
Note 1

Static Burn-In 2
Note 1

Dynamic Burn­In Note 1

Irradiation
Note 2

NOTE:

1. Each pin except VDD and GND will have a series resistor of 10K ± 5%, VDD = 18V ± 0.5V

2. Each pin except VDD and GND will have a series resistor of 47K ± 5%; Group E, Subgroup 2, sample size is 4 dice/wafer, 0 failures,
VDD = 10V ± 0.5V

3, 4, 10, 11 1, 2, 5-9, 12, 13 14

3, 4, 10, 11 7 1, 2, 5, 6, 8,

- 7 14 3, 4, 10, 11 1, 5, 8, 12 2, 6, 9, 13

3, 4, 10, 11 7 1, 2, 5, 6, 8,

METHOD GROUP A SUBGROUPS READ AND RECORD

TABLE 7. TOTAL DOSE IRRADIATION

MIL-STD-883

METHOD

TABLE 8. BURN-IN AND IRRADIATION TEST CONNECTIONS

PRE-IRRAD POST-IRRAD PRE-IRRAD POST-IRRAD

9, 12-14

9, 12-14

TEST READ AND RECORD

OSCILLATOR

50kHz 25kHz

All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate
and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see web site http://www.intersil.com

Sales Office Headquarters

NORTH AMERICA

Intersil Corporation
P. O. Box 883, Mail Stop 53-204
Melbourne, FL 32902
TEL: [phone]
FAX: [phone]

EUROPE

Intersil SA
Mercure Center
100, Rue de la Fusee
1130 Brussels, Belgium
TEL: [phone]
FAX: [phone]

459

ASIA

Intersil (Taiwan) Ltd.
Taiwan Limited
7F-6, No. 101 Fu Hsing North Road
Taipei, Taiwan
Republic of China
TEL: [phone]
FAX: [phone]

Schematics

CD4070BMS, CD4077BMS

VDD

p

B*

2 (5, 9, 12)

A*

1 (6, 8, 13)

ALL INPUTS PROTECTED BY

*

CMOS PROTECTION NETWORK

n

VSS

VDD

p

n

VSS

FIGURE 1. SCHEMATIC DIAGRAM FOR CD4070BMS (1 OF 4 IDENTICAL GATES)

VDD

n

p

p

TRUTH TABLE CD4070BMS

1 OF 4 GATES

p

n

p

J

3 (4, 10, 11)

n

ABJ

000
101
011
110

1 = High Level

VDD

0 = Low Level
J = A⊕B

VSS

VSS

VDD

p

B*

2 (5, 9, 12)

A*

1 (6, 8, 13)

ALL INPUTS PROTECTED BY

*

CMOS PROTECTION NETWORK

n

VSS

VDD

p

n

VSS

VDD

p

n

p

n

TRUTH TABLE CD4077BMS

1 OF 4 GATES

p

J

n

3 (4, 10, 11)

n

ABJ

001
100
010
111

1 = High Level

VDD

0 = Low Level
J = A⊕B

VSS

VSS

FIGURE 2. SCHEMATIC DIAGRAM FOR CD4077BMS (1 OF 4 IDENTICAL GATES)

7-460

CD4070BMS, CD4077BMS

Typical Performance Characteristics

AMBIENT TEMPERATURE (TA) = +25oC

30

25

20

15

10

5

OUTPUT LOW (SINK) CURRENT (IOL) (mA)

0 5 10 15

GATE-TO-SOURCE VOLTAGE (VGS) = 15V

10V

5V

DRAIN-TO-SOURCE VOLTAGE (VDS) (V)

FIGURE 3. TYPICAL OUTPUT LOW (SINK) CURRENT

CHARACTERISTICS

DRAIN-TO-SOURCE VOLTAGE (VDS) (V)

AMBIENT TEMPERATURE (TA) = +25oC

GATE-TO-SOURCE VOLTAGE (VGS) = -5V

-10V

AMBIENT TEMPERATURE (TA) = +25oC

15.0

12.5

10.0

7.5

5.0

2.5

OUTPUT LOW (SINK) CURRENT (IOL) (mA)

0 5 10 15

GATE-TO-SOURCE VOLTAGE (VGS) = 15V

10V

5V

DRAIN-TO-SOURCE VOLTAGE (VDS) (V)

FIGURE 4. MINIMUM OUTPUT LOW (SINK) CURRENT

CHARACTERISTICS

0-5-10-15

0

-5

-10

-15

-20

DRAIN-TO-SOURCE VOLTAGE (VDS) (V)

AMBIENT TEMPERATURE (TA) = +25oC

GATE-TO-SOURCE VOLTAGE (VGS) = -5V

-10V

0-5-10-15

0

-5

-10

-25

-15V

-30

FIGURE 5. TYPICAL OUTPUT HIGH (SOURCE) CURRENT

CHARACTERISTICS

AMBIENT TEMPERATURE (TA) = +25oC

200

150

100

50

TRANSITION TIME (tTHL, tTLH) (ns)

0

0 40 60 80 10020

SUPPLY VOLTAGE (VDD) = 5V

10V
15V

LOAD CAPACITANCE (CL) (pF)

-15V

OUTPUT HIGH (SOURCE) CURRENT (IOH) (mA)

FIGURE 6. MINIMUM OUTPUT HIGH (SOURCE) CURRENT

CHARACTERISTICS

AMBIENT TEMPERATURE (TA) = +25oC

300

200

100

PROPAGATION DELAY TIME (tPHL, tPLH) (ns)

0 40 60 80 10020

SUPPLY VOLTAGE (VDD) = 5V

LOAD CAPACITANCE (CL) (pF)

-15

OUTPUT HIGH (SOURCE) CURRENT (IOH) (mA)

10V

15V

FIGURE 7. TYPICAL TRANSITION TIME AS A FUNCTION OF

LOAD CAPACITANCE

FIGURE 8. TYPICAL PROPAGATION DELAY TIME AS A

FUNCTION OF LOAD CAPACITANCE

7-461

CD4070BMS, CD4077BMS

Typical Performance Characteristics (Continued)

AMBIENT TEMPERATURE (TA) = +25oC
LOAD CAPACITANCE (CL) = 50pF

300

200

100

PROPAGATION DELAY TIME (tPHL, tPLH) (ns)

0 5 10 15 20

SUPPLY VOLTAGE (VDD) (V)

FIGURE 9. TYPICAL PROPAGATION DELAY TIME AS A

FIGURE 10. TYPICAL DYNAMIC POWER DISSIPATION AS A

FUNCTION OF SUPPLY VOLTAGE

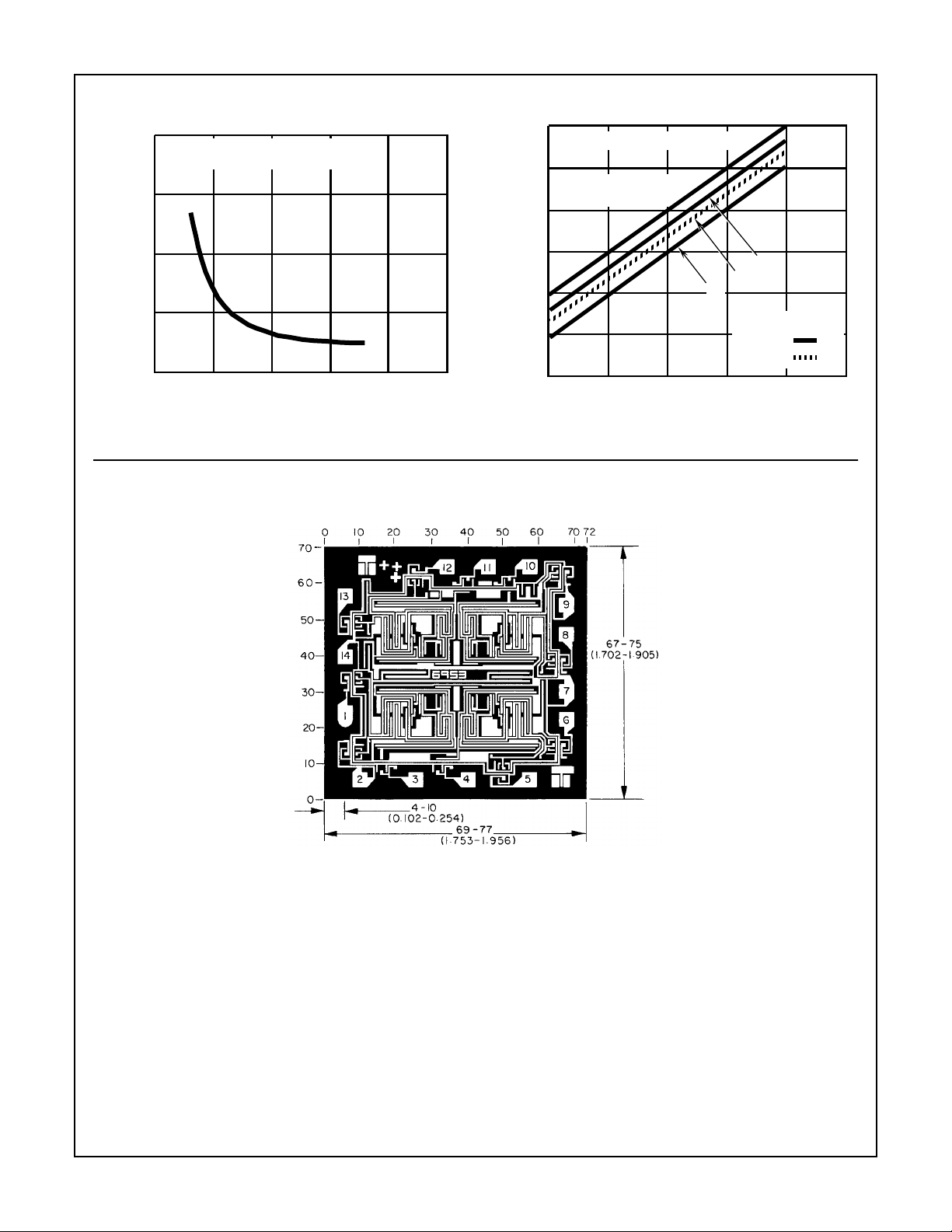

Chip Dimensions and Pad Layout

POWER DISSIPATION PER GATE (PD) (µW)

5

10

6

AMBIENT TEMPERATURE (TA) = +25oC

4
2

4

10

6
4
2

3

10

6
4
2

2

10

6
4
2

10

6
4
2

1

6
4
2

-1

10

10

SUPPLY VOLTAGE
(VDD) = 15V

-1

864286422

11010210

INPUT FREQUENCY (fI) (kHz)

FUNCTION OF INPUT FREQUENCY

10V

10V

5V

LOAD CAPACITANCE
CL = 50pF
CL = 15pF

28642 864

864

3

4

10

CD4077BMSH

Dimensions and pad layout for CD4070BMSH are
identical

Dimensions in parenthesis are in millimeters and are
derived from the basic inch dimensions as indicated.
Grid graduations are in mils (10

-3

inch).

METALLIZATION: Thickness: 11kÅ − 14kÅ, AL.
PASSIVATION: 10.4kÅ - 15.6kÅ, Silane
BOND PADS: 0.004 inches X 0.004 inches MIN
DIE THICKNESS: 0.0198 inches - 0.0218 inches

7-462
