BASIC PHONE
Model 98380
OPERATING INSTRUCTIONS
This Interquartz telephone has been manufactured to very high standards and
is very easy to use. Please read this manual carefully to find out how to use the
features.
Contents
1. Important Notes ..................................................................................... 2
Intended use ........................................................................................ 2
Telephone facilities ................................................................................ 2
REN number ........................................................................................ 3
Emergency calls ................................................................................... 3
2. Installation ............................................................................................... 4
Connection ........................................................................................... 4
Wall mounting ........................................................................................ 4
3. Telephone Features .............................................................................. 5
4. Operating Instructions ....................................................................... 7
5. PABX and System Usage .................................................................... 8
6. Maintenance and Problem Solving .................................................. 9
7. Warranty and Service ....................................................................... 10
Figure 1 General Appearance ............................................................. 3

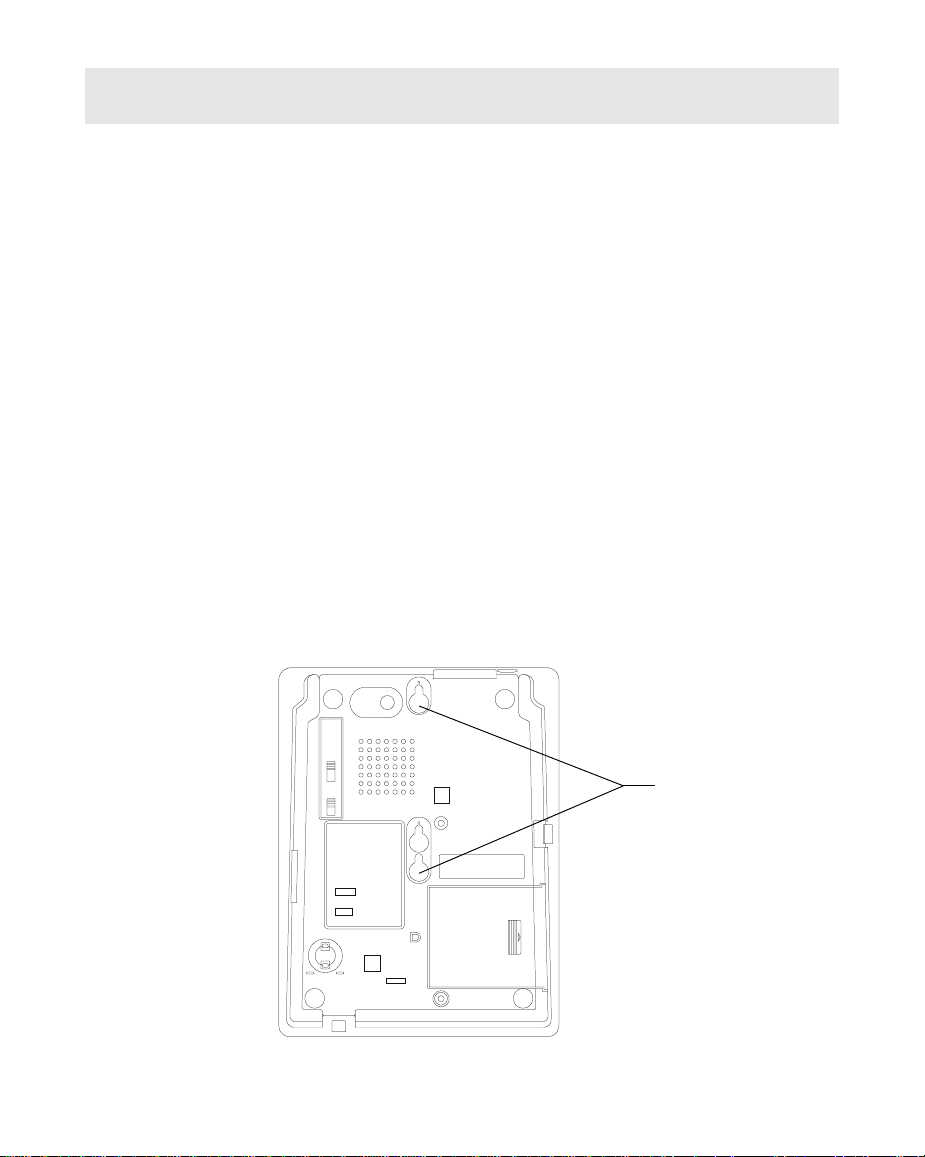

Figure 2 Wall Mounting ....................................................................... 4

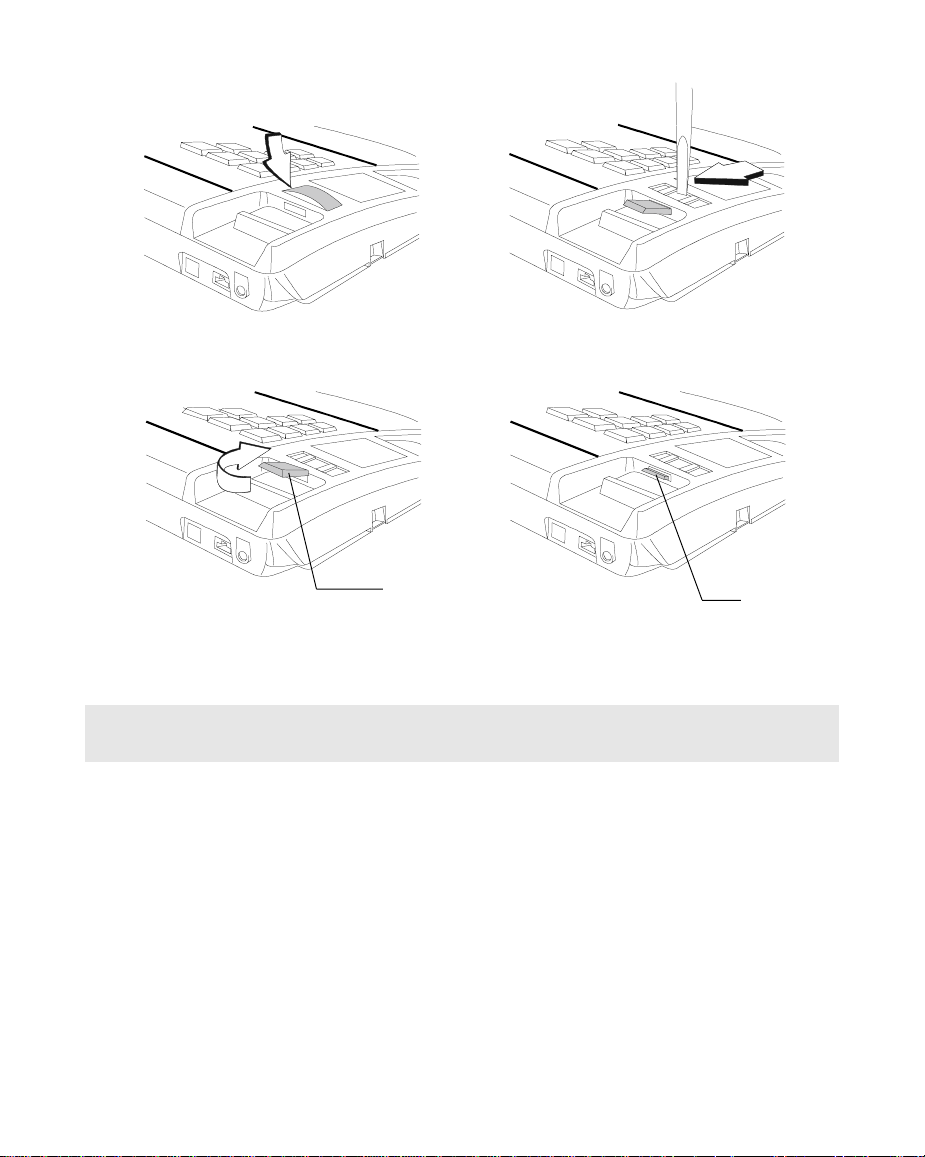

Figure 3 Handset Retainer for Wall Mount .......................................... 5

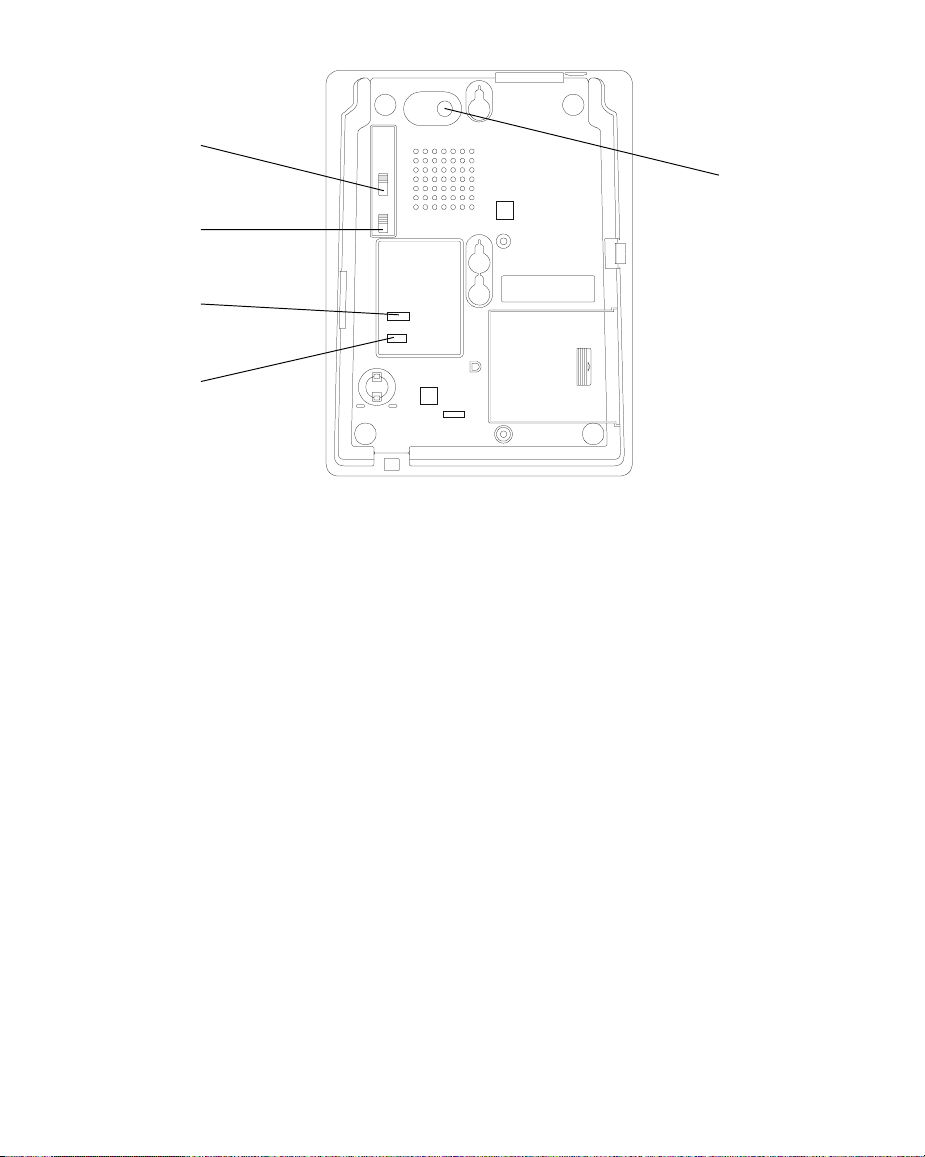

Figure 4 Switch Location ..................................................................... 6

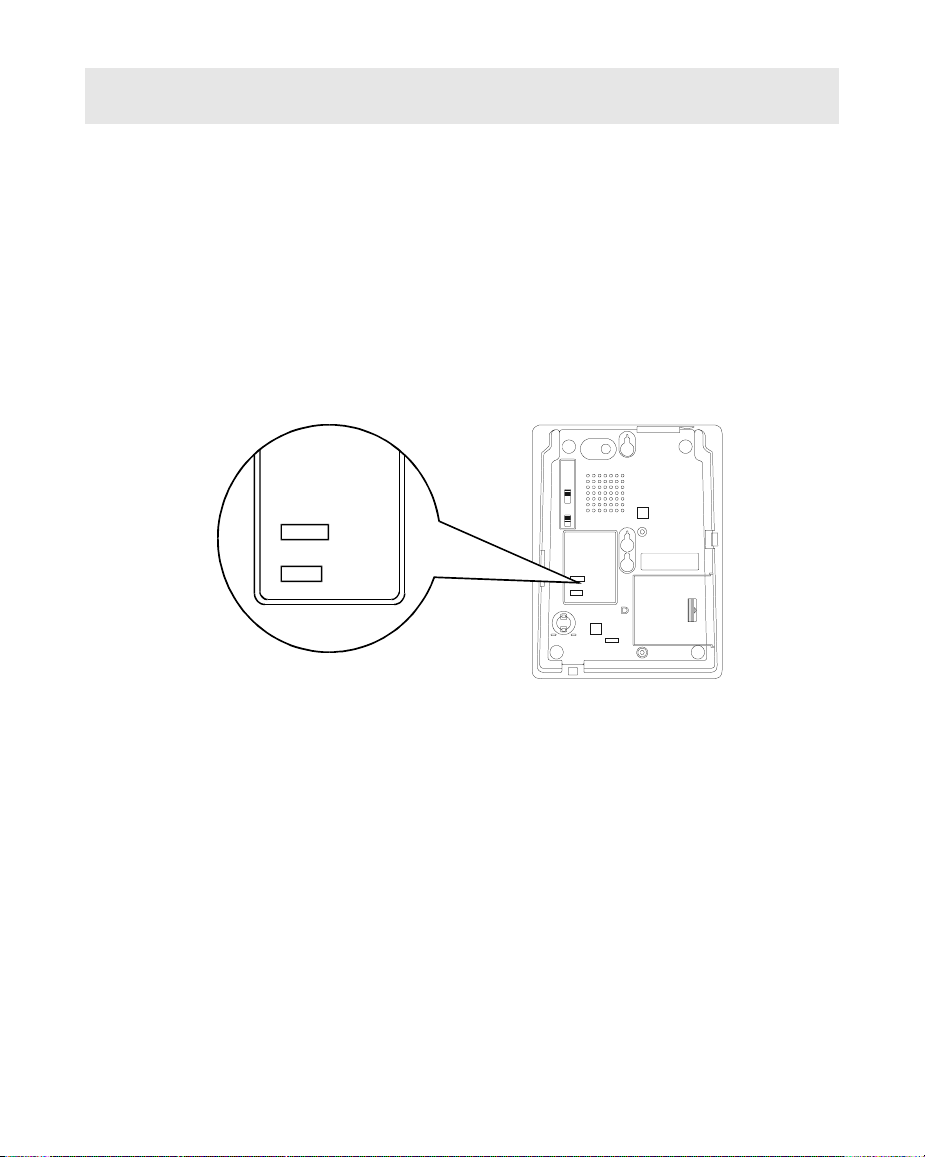

Figure 5 Recall Switch ........................................................................ 8
1
1. Important Notes
Intended use
This apparatus is intended for use on 2 wire analogue PSTN and PABX circuits
within the United Kingdom.
Declaration of Conformity
I
nterquartz (UK) Limited declares under its sole responsibility that this product
Model: BASIC PHONE
98380 XWA
Is in conformity with the following relevant harmonised standards
Health & Safety 73/23/EEC
Electromagnetic Compatibility 89/336/EEC
Following the provisions of Council Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment.
A J Roberts April 2000
Director
Telephone facilities
This telephone has been designed for the use of the following facilities:
- operation in the absence of proceed indication
- recall ( earth or timed break selectable )
- selectable pulse or tone signalling
- access pause insertion
- ringer volume control
- ringer pitch control
- ringing indicator
2
REN number
The Ren number of this telephone is 1.
If you wish to connect any other equipment to the line, simply add the
REN numbers of each piece together and ensure that the total does not
exceed 4. If too many phones are connected to the line, the circuit may
be overloaded any your telephone may not ring.
Not all telephones have the same REN.
If a British Telecom phone is supplied unmarked, you can assume that it
has a REN of 1
Emergency calls
"999" calls can be made on this telephone, for the purpose of making
calls to the emergency service. An access code may also be required, if
the phone is connected to a PABX.
MUTE BUTTON
HANDSET
CORD
IN THE FRONT
OF THE HANDSET
HANDSET
Figure 1 General Appearance
3
RINGER
INDICATOR
KEYPAD
RECALL
BUTTON
REDIAL
BUTTON
