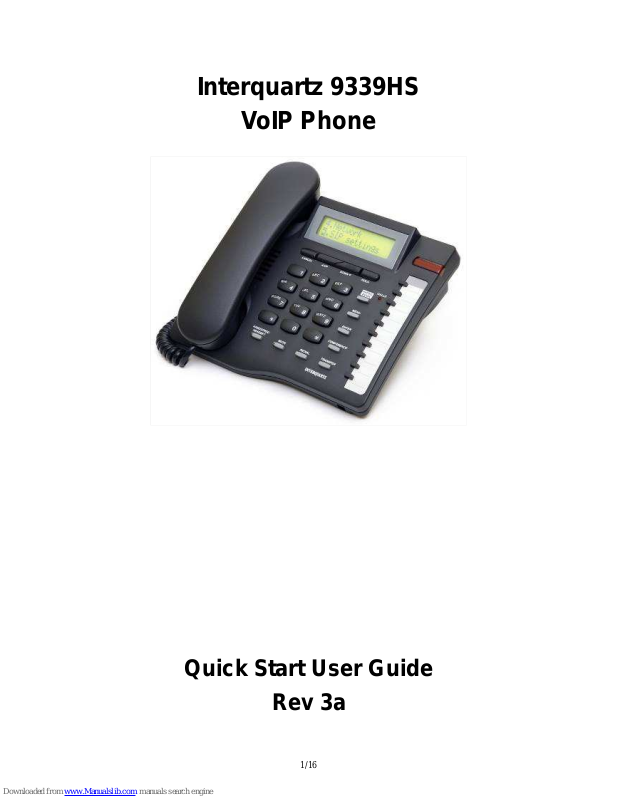

1/16
Interquartz 9339HS
VoIP Phone
Quick Start User Guide
Rev 3a
2/16
9339HS VoIP Phone Quick Start Up Guide
The 9339HS VoIP (Voice over Internet Protocol) Phone provides a cost-saving solution for
small business/home users’ telecommunication needs. This phone is designed in a
user-friendly way and is very easy to operate. It complies with the SIP (Session Initiation
Protocol) protocol open standard, which can be easily used with most existing VoIP services.
With the built in LCD display, the user can easily configure the VoIP Phone for first time
installation in a few minutes. Moreover, the 9339HS also provides rich telephone features such
as a phone book, speed dials, call history, last number redial, call forward, transfer, volume
adjustment and speakerphone etc. It is your best VoIP solution for new generation
communication.
3/16
Installation
Step 1：：：：Unpack the phone
VoIP Phone
Handset
Power Adaptor (Use only Power Supplies listed in the user instructions)
Network cable
Handset Cord
4/16
Step 2：：：：Connection
Connect the handset to the phone body with the handset cord by plugging it into
the jack on the left hand side of phone. Connect the Headset if necessary.
Connect the network cable to the WAN port, such as NAT, HUB and ADSL for
broadband connection.
If you would like to have PC online at the same time, please connect the PC port
to your PC using another network (RJ45) cable.
Plug in the AC power adaptor to the electrical outlet and connect to the DC 6V
jack. (Important: Do not interrupt this process by unplugging the power or lifting
the receiver on your phone during the startup process. Interruption of start up may
result in interruption of the service. Wait until the indicators and backlight stop
blinking before setup.)
5/16
Step 3：：：：Booting Up
After the power is connected, the phone will boot up automatically. The LCD will display as
below:
L o a d i n g P r o g r a m !
All LED indicators and LCD backlight ON and blink once.
I n i t i a l i z e d
I P P H O N E
B o o t u p
. . . .
The LCD will automatically update the date and time. The format is shown below:
M M - D D h h : m m
N o s e r v i c E
MM – Month
DD – Day
hh – hour
mm – minutes
Wait approximately 10 seconds the unit is ready to configure the phone.
Default Setting: WAN Port set to DHCP client mode; NAT is enabled and PC Port set to
DHCP server mode.
If the network cable has not been connected or if there is no NAT, HUB and ADSL on line, the
LCD will display as below:
0 1 - 0 1 0 0 : 0 0
E t h e r N e t E r r o r !
Loading...
