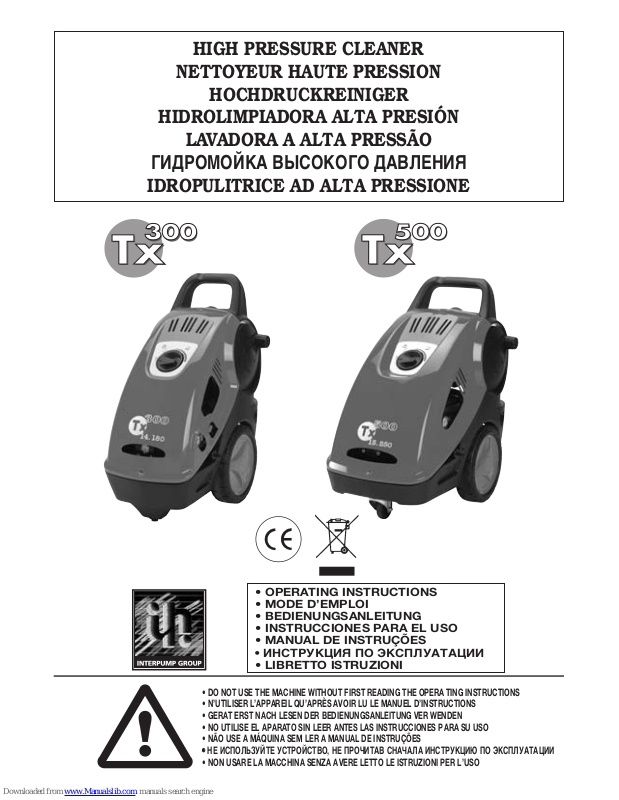

Page 1

HIGH PRESSURE CLEANER

NETTOYEUR HAUTE PRESSION

HOCHDRUCKREINIGER

HIDROLIMPIADORA ALTA PRESIÓN

LAVADORA A ALTA PRESSÃO

ГИДРОМОЙКА ВЫСОКОГО ДАВЛЕНИЯ

IDROPULITRICE AD ALTA PRESSIONE

• OPERATING INSTRUCTIONS

• MODE D’EMPLOI

• BEDIENUNGSANLEITUNG

• INSTRUCCIONES PARA EL USO

• MANUAL DE INSTRUÇÕES

• ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

• LIBRETTO ISTRUZIONI

• DO NOT USE THE MACHINE WITHOUT FIRST READING THE OPERA TING INSTRUCTIONS

• N’UTILISER L’APPAREIL QU’APRÈS AVOIR LU LE MANUEL D’INSTRUCTIONS

• GERAT ERST NACH LESEN DER BEDIENUNGSANLEITUNG VER WENDEN

• NO UTILISE EL APARATO SIN LEER ANTES LAS INSTRUCCIONES PARA SU USO

• NÃO USE A MÁQUINA SEM LER A MANUAL DE INSTRUÇÕES

••

НЕ ИСПОЛЬЗУЙТЕ УСТРОЙСТВО, НЕ ПРОЧИТАВ СНАЧАЛА ИНСТРУКЦИЮ ПО ЭКСПЛУАТАЦИИ

• NON USARE LA MACCHINA SENZA AVERE LETTO LE ISTRUZIONI PER L’USO

300

500

Page 2

INDEX

Models - Modèles - Modelle - Modelos - Модель - Modelli

TX 300 10-130.2 TX 300 12-100.2 TX 300 13-160.3 TX 300 14-180.3

TX 500 15-200.3 TX 500 18-170.3 TX 500 21-150.3 TX 500 15-250.3 TX 500 21-200.3

ENGLISH............................................................................................ pag. 4

FRANÇAIS

....................................................................................... pag. 21

DEUTSCH

......................................................................................... pag. 38

ESPAÑOL

.......................................................................................... pag. 55

PORTUGUÉS

................................................................................ pag. 72

РУССКИЙ

..................................................................................................................................................................................

стр..89

ITALIANO

.......................................................................................... pag. 106

Page 3

• CONTROL DEVICES

Before connecting the machine to the water and electrical supplies, it is necessary to know the function of the contr ols on the machine. This must be done in accor dance with the descriptions in the Instruction Manual, taking reference to the relevant instructions and illustrations.

• DISPOSITIFS DE CONTRÔLE

Avant de brancher l’appareil sur les réseaux d’alimentation d’eau et d’électricité, il est nécessair e de bien connaître le fonctionnement de ses dispositifs de contrôle. Effectuer cette opération en vous référant aux instructions données dans ce manuel et aux indications et illustrations y r elatives.

• BEDIENUNGS - UND KONTROLLVORRICHTUNGEN

Bevor Sie das Gerät mit Wasser - und Stromanschlüssen verbinden ist es notwending, daß Sie die Bedienungs-und Kontrollvorrichtungen des Gerätes verstehen. Bitte lesen Sie die Beschr eibungen und Illustrationen der Bedienungsanleitung.

• DISPOSITIVOS DE PUESTA EN MARCHA Y CONTROL

Antes de conectar el equipo a las redes de alimentación de agua y electricidad, es necesario conocer sus dispositivos de puesta en marcha y control. Efectuar estas operaciones siguiendo las indicaciones que figuran en el manual de istrucciones así como de sus ilustraciones grafícas correspondientes.

• DISPOSITIVO DE COMANDO E CONTROLO

Antes da ligação às redes de alimentação hídrica e eléctrica, é necessário saber qual a função dos dispositivos de comando e controlo da máquina. Efectuar esta operação conforme descrito no Manual de Instruções.

• УСТРОЙСТВА УПРАВЛЕНИЯ

Перед тем, как подсоединить изделие к источникам воды и электроэнергии, необходимо изучить его устройства управления. Это необходимо сделать в соответствии с описаниями, содержащимися в настоящей Инструкции по экплуатации, уделяя внимание соответствующим инструкциям и иллюстрациям.

• DISPOSITIVI DI COMANDO E CONTROLLO

Prima dell’allacciamento alla rete di alimentazione idrica ed elettrica è necessario conoscer e la funzione dei dispositivi di comando e controllo della macchina. Effettuare questa operazione seguendo quanto descritto nel Manuale Istruzioni facendo riferimento alle indicazioni e illustrazioni relative.

TTTTXXXX333300000000 ---- TTTTXXXX555500000000 sssseeeerrrriiiieeeess

Page 4

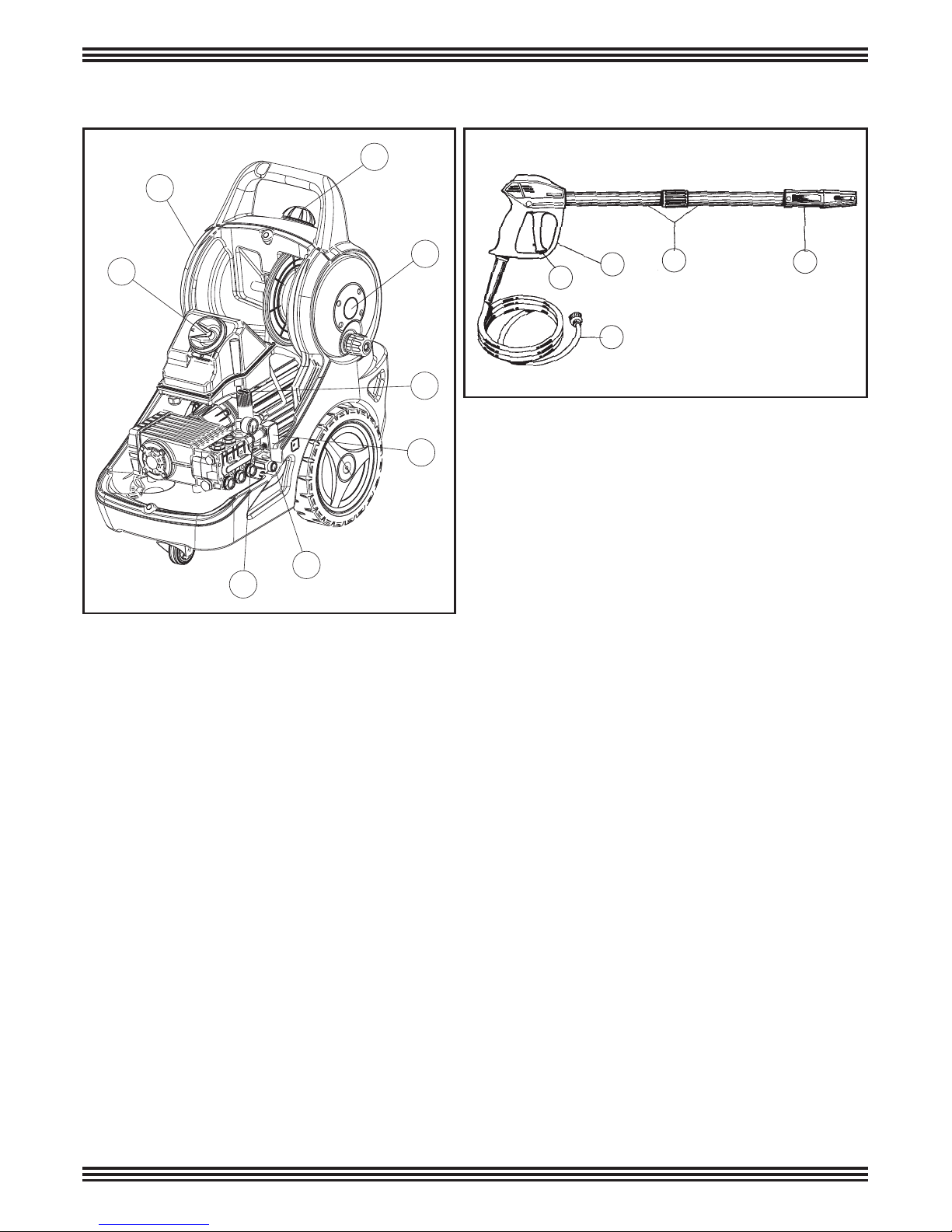

STANDARD EQUIPMENT

 ON/OFF switch and Chemical regulator (CHEM)  Pressure gauge  Inlet hose connection (INLET)  Tank cap  Pressure adjusting knob  Cable roller  Hose reel  Total stop  Automatic gun  Lance  Rototek or Multireg 99  High pressure hose  Safety lock

ÉQUIPEMENT STANDARD

 Interrupteur Marche/Arrêt et molette de dosage du détergent (CHEM)

 Manomètre  Raccord d’alimentation eau (INLET)  Bouchon réservoir  Bouton de régulation de la pr ession  Enrouleur de câble  Enrouleur de tuyau  Stop total  Pistolet  Lance  Rototek ou Multireg 99  Tuyau haute pression  Cran de sûreté

STANDARDAUSRÜSTUNG

 EIN/AUS Schalter mit Dosierung des Reinigungsmittels  Manometer  Wasseranschluß (INLET)  Behälterdeckel  Druckregelgriff  Kabeltrommel  Schlauchtrommel  Total stop  Spritzpistole  Lanze  Rototek oder Multireg 99  Hochdruckschlauch  Sicherheitssperre

EQUIPO STANDARD

 Interruptor y mando de r egulación detergente (CHEM)  Mánometro  Entrada (INLET)  Tapón depósito  Mando de regulación de la presión  Enrollador de cable  Enrollador de manguera  Stop total  Pistola  Lanza  Rototek ó Multireg 99  Manguera de alta presión  Seguro

EQUIPAMENTO STANDARD

 Interruptor lig/des (ON/OFF) e r egulador de detergente (CHEM)

 Indicador de pressão  Entrada de agua (INLET)  Tampa do depósito  Manipulo de ajuste de pr essão  Enrolador do cabo  Enrolador da mangueira  Dispositivo Total stop  Pistóla automática  Lança  Bico (ROTOTEK ou MULTIREG 99)  Lanço de tubo de alta pr essão  Travão

EQUIPAGGIAMENTO STANDARD

 Interruttore e regolatore detersivo (CHEM)  Manometro  Entrata (INLET)  Tappo serbatoio  Comando regolatore di pressione  Avvolgicavo  Avvolgitubo  Dispositivo Total stop  Pistola  Lancia  Rototek o Multireg 99  Tubo alta pressione  Sicura

СТАНДАРТНОЕ ОБОРУДОВАНИЕ

 Выключатель и регулятор моющих средств (CHEM)  Манометр  Входное шланговое присоединение (INLET)  Крышка резервуара  Регулятор давления  Кабельный барабан  Барабан для наматывания шланга  Устройство для полной остановки  Пистолет  Гидромонитор  Rototek или Multireg 99  Шланг высокого давления  Предохранитель

Page 5

TABLE OF CONTENTS

1 - Description of symbols on the high pr essure cleaner....................................... 5

2 - Technical specifications of the TX 300 - TX 500 series

high pressure cleaner........................................................................................ 6

3 - Product use....................................................................................................... 7

3.1 • Designated use................................................................................... 7

4 - Preliminary operations....................................................................................... 7

4.1 • Unpacking........................................................................................... 7

4.2 • Identification label............................................................................... 8

5 - Installation......................................................................................................... 8

5.1 • Connection high pressure outlet......................................................... 8

5.2 • Connection to water supply................................................................ 9

5.3 • Connection to electric system............................................................ 10

5.3.1 • Cut-out switch (Only the United States).................................... 11

5.4 • Use of extention cord......................................................................... 11

5.5 • Start-up............................................................................................... 12

6 - General warnings.............................................................................................. 13

7 - Chemical product use....................................................................................... 16

7.1 • Chemical suction ............................................................................... 16

8 - Use of "ROTOTEK" or "MULTIREG 99"............................................................ 16

9 - Precautions againt freezing, and instructions for storage.................................... 17

10 - Maintenance...................................................................................................... 17

10.1 • Oil change......................................................................................... 17

10.2 • Inlet filter............................................................................................ 18

10.3 • Replacement of high pressure nozzle .............................................. 18

11 - Machine scrapping............................................................................................ 19

12 - Trouble shooting............................................................................................... 20

ENGLISH

«Translated from the original instructions»

Page 6

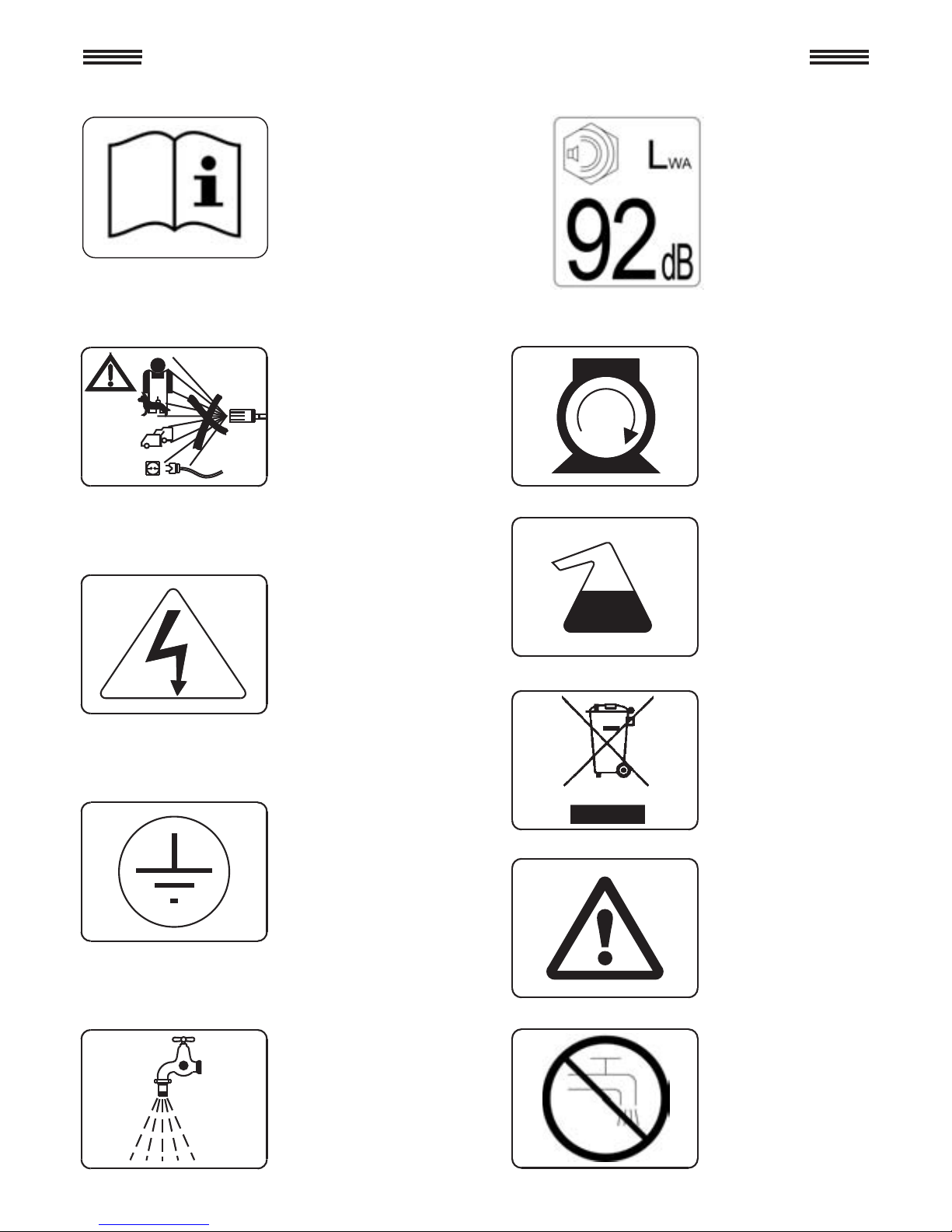

1 - DESCRIPTION OF SYMBOLS ON THE HIGH PRESSURE CLEANER

Do not direct the jet against persons or animals power outlets or the machine itself.

Motor start

Warning! Risk of electrocution

Chemical (detergent)

Grounding

Special waste. Do not dispose of this product in normal household garbage

Water inlet

Warning sign

Read the instruction manual before use.

Garanted sound power level.

Machine not prearranged for connection to the mains potable water supply.

Page 7

TX 300 - TX 500 SERIES HIGH PRESSURE CLEANERS TECHNICAL SPECIFICA TIONS

TX 300

10-130.2

SINGLE

PHASE

TX 300

12-100.2

SINGLE

PHASE

TX 300

13-160.2 13-160.3

THREE PHASE

TX 300

14-180.2 14-180.3

THREE PHASE

TX 500

15-200.2 15-200.3

THREE PHASE

TX 500

18-170.2 18-170.3

THREE PHASE

TX 500

21-150.2 21-150.3

THREE PHASE

TX 500

15-250.2 15-250.3

THREE PHASE

TX 500

21-200.2 21-200.3

THREE PHASE

MODEL

Voltage Amps

V A

Capacitor Motor protection

Isolating class insulation Motor protection grade

IPX5

°C

m/sec

Max. water inlet temp

°F

140

Max suction depth

High pressure hose TX 300 High pressure hose TX 500

8 m - 26,24 ft

15 m - 49,21 ft

Steel reinforced rubber Internal diameter 1/4"

Steel reinforced rubber Internal diameter 5/16"

Mass

dry

(max.)

Dimensions

inches

706x430x860 (h) 27,8x17x33,9 (h)

825x495x860 (h)

32,5x19,5x33,9 (h)

70µF

FFFFF FFFF

3,28

Noise level

Lance vibration*

230-240

14,0

V A

P.S.I.

Overpressure peak limit

Recoil thrust of jet

Absorbed motor power

Cycle

1885

2320

< 27

3,0

Thermal

l/min.

Flow rate

G.P.M.

USA

Equivalent washing impact with rotating nozzle jet

E.W. MPa

E.W. P.S.I.

3200

2.64

Working pressure

MPa

E.W. bar

230

160

bar

P.S.I.

MPa

bar

130

70µF

230-240

14,0

1450

1885

< 29

3,0

2465

3.17

170

130

100

230-240

14,5

400-415

8,4

2320

2755

< 39

4,6

27,5

4000

3.43

275

190

160

230-240

18,0

400-415

10,5

2610

3045

< 45

5,5

4400

3.69

310

210

180

230-240

25,5

400-415

14,7

2900

3335

< 50

7,5

4950

3.96

340

230

200

230-240

25,5

400-415

14,7

2465

2900

< 56

7,5

4200

4.75

290

200

170

230-240

25,5

400-415

14,7

2175

2610

< 61

7,5

3700

5.55

260

180

150

230-240

29,5

400-415

17,0

3625

4060

< 56

9,0

42,5

6150

3.96

425

280

250

230-240

29,5

400-415

17,0

2900

3335

< 70

9,0

4950

5.55

340

230

200

Max inlet pressure

* (Reference Standard EN60335-2-79).

TX 300 Kg 62 - Ibs 136.5 / TX 500 Kg 92 - Ibs 203

TX 300 Kg 80 - Ibs 176.5 / TX 500 Kg 115 - Ibs 253.5

MPa 1 - bar 10 - P.S.I. 145

Fixed nozzle A(8) than 2,5

Rotating nozzle A(8) 9,5 (uncertainly 1,5)

Lp dB(A) 74 (uncertainly 1,5) - Lw dB(A) 92

TX 500

15-200.6 15-200.8

THREE PHASE

3.96

340

4950

2900

200

3335

230

< 50

7,5

230

25,5

400

14,7

E.W. bar / MPa / P.S.I.: specific jet pressure in bar / MPa / P.S.I.

Page 8

WE CONGRATULATE YOU on your choice that shows your level of technical knowledge and love of beautiful objects.

In fact, you have pur chased a highly technological machine pr oduced by the world's largest manufacturer of high pressure cleaner pumps.

This machine is so useful and versatile that you will use it for many years.

THIS BOOKLET IS AN INTEGRAL P ART OF YOUR MACHINE AND SHOULD BE CAREFULLY READ BEFORE PROCEEDING WITH INST ALLATION, START-UP AND USE.

This booklet contains important safety information and instructions for use and maintenance of the high pressure cleaners series TX300 and TX500 and should be kept in a safe place.

3. PRODUCT USE

The machine is exclusively designed for washing, by way of a pr essurized water jet, objects, things or any surface suitable for cleaning by a pr essurized water jet with the possibility of adding liquid detergent.

ATTENTION: this appliance was designed for use of deter gents recommended by the manufacturer. The use of other chemical pr oducts may jeopardize the safety of the appliance itself.

The liquid detergent additives must be chosen in consideration of the chemical compatibility with the components of the pump and of the surface to be cleaned. IMPORTANT: use only detergents that are biodegradable, and in any case complying with the regulations applicable in the country where they are used.

3.1 DESIGNATED USE

4. PRELIMINARY OPERATIONS

4.1 UNPACKING

Unpack and make sure that the machine is complete and undamaged. If the machine appears damaged in any way , do not use the machine and consult our dealer.

For shipping reasons some parts may be included separately . In this case assemble parts as indicated in this booklet.

Keep all packaging materials (bags, boxes, tape) out of r each of children.

THE DESTINATION OF USE OF THIS MACHINE MUST BE STRICTLY ADHERED TO. ANY OTHER USE MUST BE CONSIDERED AS INCORRECT.

THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR DAMAGES CAUSED BY INCORRECT USE OF THE MACHINE.

THE MACHINE MUST NOT BE TAMPERED WITH FOR ANY REASON. IN CASES OF TAMPERING THE MANUFACTURER DECLINES ANY RESPONSABILITY ON THE FUNCTIONING AND SAFETY OF THE MACHINE.

IT IS FORBIDDEN TO STORE OR USE THE UNIT IN ENVIRONMENTS WITH POTENTIALLY EXPLOSIVE ATMOSPHERE.

Page 9

Before using this machine make sure that it has an ID label. If it is without, do not use the machine and consult your dealer immediately.

The identification label with technical specifications is placed on the tr olley and is always visible. Check that the electrical specifications of your power outlet (V/Hz) are the same as those shown on the label.

4.2 - ID LABEL

5 - INSTALLATION

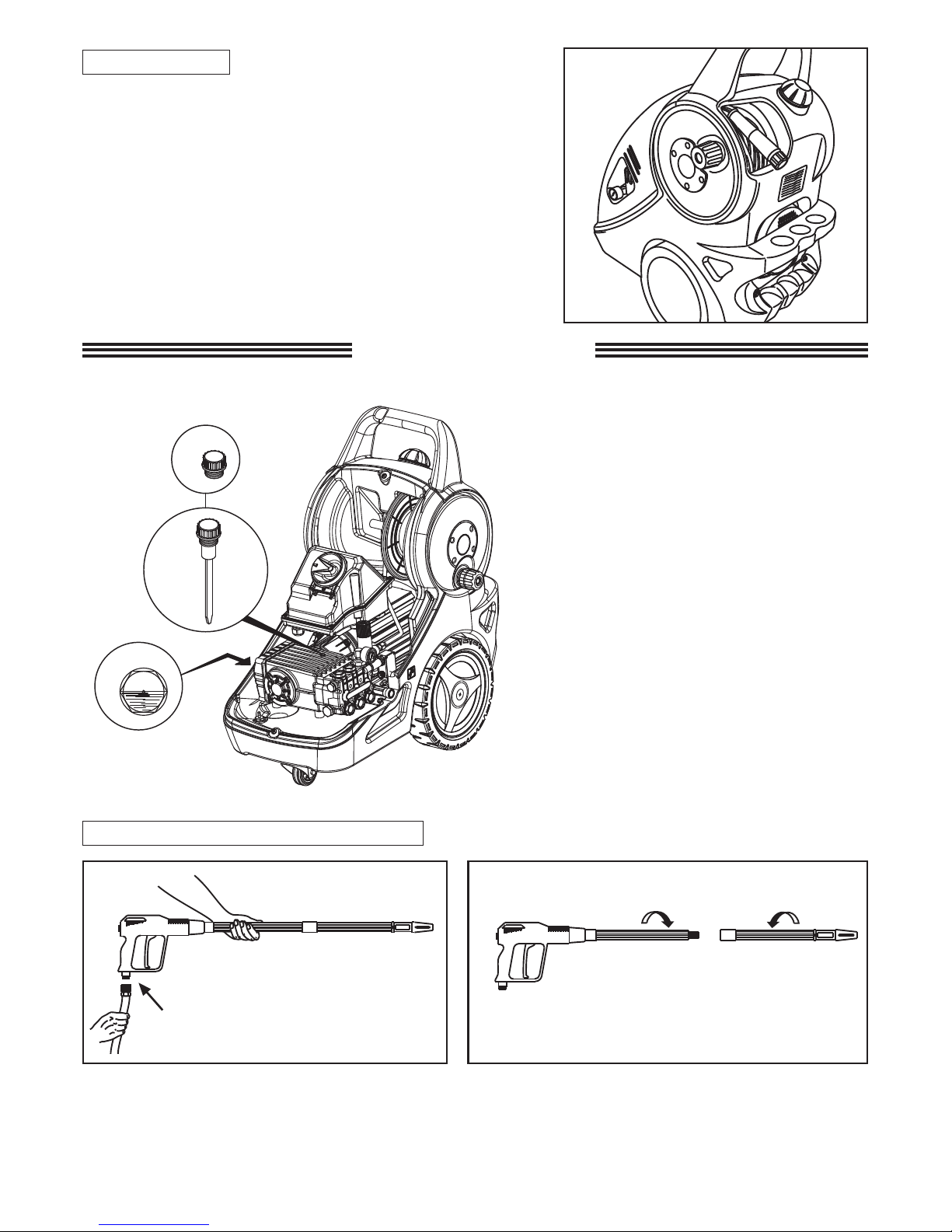

5.1 HIGH PRESSURE CONNECTION

1 - Connect one end of the high pr essure hose to the end of the automatic gun (A).

2 - Complete the assembly by coupling the extension to the gun/lance and tighten firmly (B).

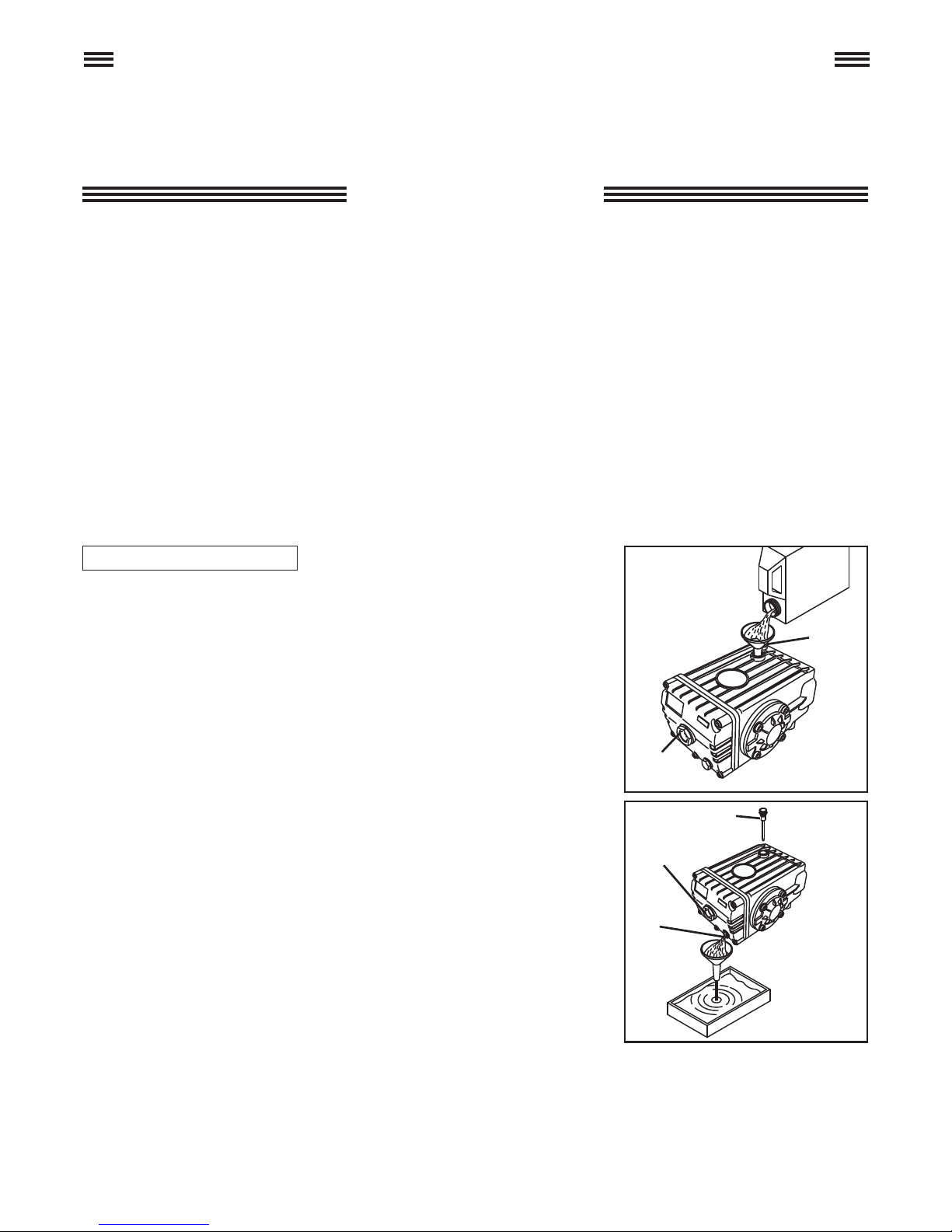

• Replace the r ed travel plug (fig.1) with the vented black/yellow dipstick provided (fig.2).

• Check that the oil in the sight glass is at the half-way level (fig.3).

Page 10

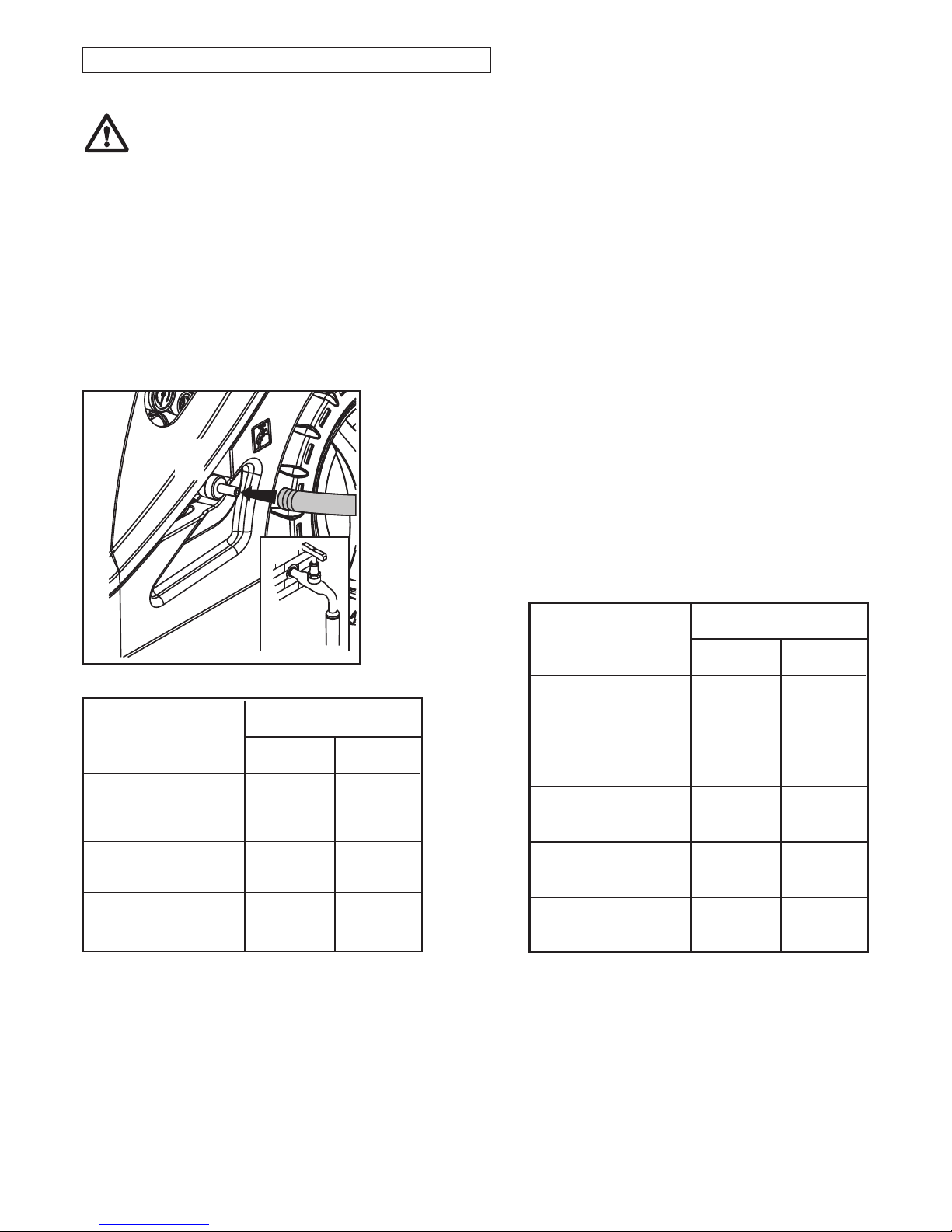

5.2 - CONNECTION TO THE WATER SUPPLY

1- The maximum temperature of the inlet water must not exceed 60°C (140°F).

2. WARNING: You can connect the machine INLET fitting (B) to the mains water supply (A) only by installing:

• an approved check valve in compliance with IEC EN 61770 on the mains water supply outlet.

• and using a hose with inside diameter of at least 13 mm. (1/2”) in compliance with IEC EN 61770.

3- Since the water flow decreases according to the length of the hose, make sure that the quan-

tity of water supplied to the machine is not less than the quantities indicated in the chart below.

4- The pressure of the inlet water must not exceed 1 MPa (10 bar).

ATTENTION: The water supply which enters into the washer is not drinkable.

IMPORTANT

The water supplied to the machine must be clean. Running the unit without water, or with water which is dirty, contains grit or corrosive liquids, causes serious damage to the machine.

TX 300 10-130.2

TX 300 12-100.2

TX 300 13-160.2 TX 300 13-160.3

TX 300 14-180.2 TX 300 14-180.3

FLOW RATE OF

WATER SUPPLY

MODEL

L/min.

G.P.M. USA

15 15

3.96

4.49

FLOW RATE OF

WATER SUPPLY

MODEL

L/min.

G.P.M. USA

4.49

5.29

4.49

TX 500 15-200.2 TX 500 15-200.3

TX 500 18-170.2 TX 500 18-170.3

TX 500 21-150.2 TX 500 21-150.3

TX 500 15-250.2 TX 500 15-250.3

TX 500 21-200.2 TX 500 21-200.3

If the user wishes to power the washer by means of free suction, simply emerge the end of the supply tube in the water to be suctioned. The maximum suction depth consider ed as the distance in height between the water surface and the pump is 1m (see technical specifications table).

Page 11

5.3 - CONNECTION TO ELECTRICAL SYSTEM

1 - Check that the voltage of the electrical system (mains) is the same as indicated on the ID label of the machine. 2 - Check that the plug complies with local safety r egulations, and that it is pr ovided with ground connection (earth). 3 - Ensure that the outlet is protected by a "cut-out" (differential magnetic-thermal switch with sensitivity of less than 30mA per 30ms) or that a device is pr esent which can test the earthing circuit. 4 - Do not connect other appliances to the same power outlet while using the machine. 5 - Insert the plug only after checking that the machine switch is in the OFF position.

The TX300 and TX500 series in standar d version are supplied without electric plug.

The assembly of the electrical plug must be done in conformity with IEC rule n. 60364-1 and must be effected by qualified personnel, respecting following prescriptions:

1- Use a plug which complies with the local safety r egulations and which must necessarily be grounded. 2- Make sure that the cord/plug connection is perfectly sealed and water-tight. 3- Use plugs that conform to the indications on the ID T ag. 4- Unwind the power cord completely from the cable roller in order to avoid overheating. 5- Do not crush on the power cor d. 6- Do not use the high pr essure cleaner if the electric cable is damaged. 7- If the power cord is damaged, its replacement can be effected only by the technical service personnel or by a qualified technician.

In case of dir ect connection without plug, the connection to the electric network must be in compliance with the standard IEC 60364-1 and must be made by a qualified installer . If a plug connector is used as a sectioning device, this must be in an easily accessible position. In the threephase models the three power leads of the power cord can be connected to any of the three phases from the power network. The fourth, green-yellow lead must be connected to the ground pin.

The washer must only be connected to a power mains with a maximum network impedance of Zmax=0.11 Ω.

WARNING: IN CASE OF POWER F AILURE DURING OPERA TION TURN OFF THE UNIT FOR SAFETY REASONS.

Page 12

5.4 - USE OF CORDS

If an extension cor d is used, make sur e that plug and r eceptacle are of a water-tight type. In any case they must be raised fr om the ground in order to avoid possible contact with water.

Use only extension cables with the same number of conductors as those of the machine cable, including the earthing cable, and with a suitable plug/socket for the cable used. Only use extension cords for outdoor use. Said type of cable is marked "Suitable for outdoor use." Store inside when not in use. Do not use damaged extension cor ds. Cables should not be located near sour ces of heat or sharp edges. Always disconnect the plug from the socket before removing the extension cord from the product. Do not pull the cable to pull the plug out of the outlet. Do not touch the plug or connections with wet hands.

WARNING

USE OF INADEQUATE

EXTENSION CORDS

MAY CAUSE SAFETY

HAZARDS

SELECTION TABLE

Voltage

230÷240 230÷240 400÷415

Extension

cord length

Cord section

Up to 20 m

From 20 to 50 m

Up to 50 m

2,5

5.3.1 - CUT-OUT SWITCH (Only the United States)

This UL version high-pressure washer is equipped with a cut-out switch contained in the power cable plug. Said equipment provides extra protection against the risk of electric shock. When replacing the plug or cable, use the same components including the cut-out device.

Page 13

5.5 - START-UP

- Before starting up and using the machine, make sur e that it is positioned on the gr ound or leaning against a stable support and that the r esting surface is level or with a minimum slope.

- Before use of the TX500 models, block movement of the front wheel by means of the appro-

priate brake.

- It is ESSENTIAL to ensure that the suction filter is clean before use. (see maintenance chap-

ter – 10.2 suction).

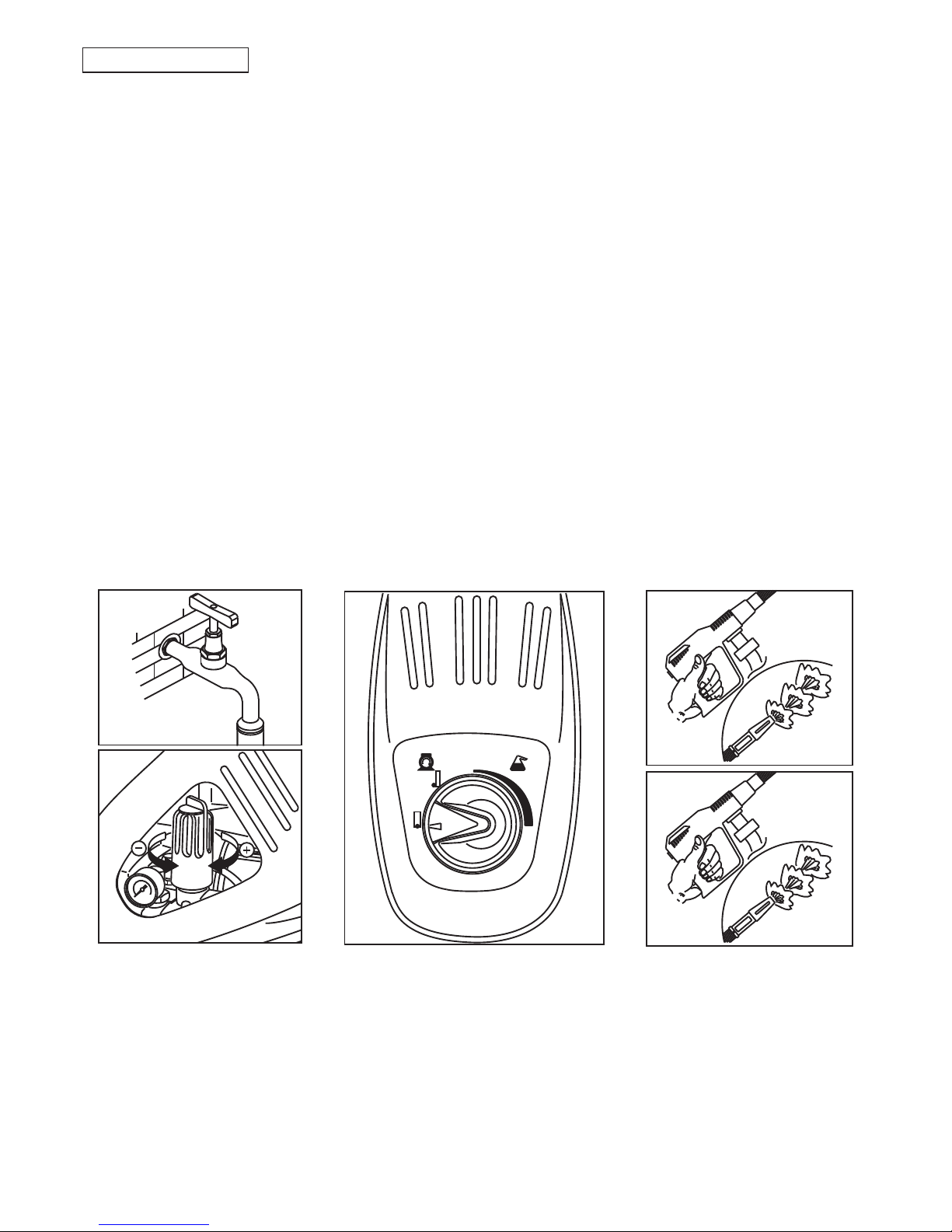

A- ON/OFF switch B- Chemical dosing knob.

1- Open water supply 2- Turn selection knob to position 1. 3- Open the gun with nozzle end up and keep in open position to allow air to escape fr om the

hose.

4 - Adjust water pressure by rotating the regulator knob.

WARNING: the "TOTAL STOP" device stops the motor approximately 20 seconds after the gun is closed.

5- The high pressure water jet generates a reaction force on the lance, therefore you should

hold the lance firmly with both hands.

6- When you have finished working, tur n off the machine by turning the knob on position 0. 7- Open the gun to release remaining pressure from the hose.

72-6

Page 14

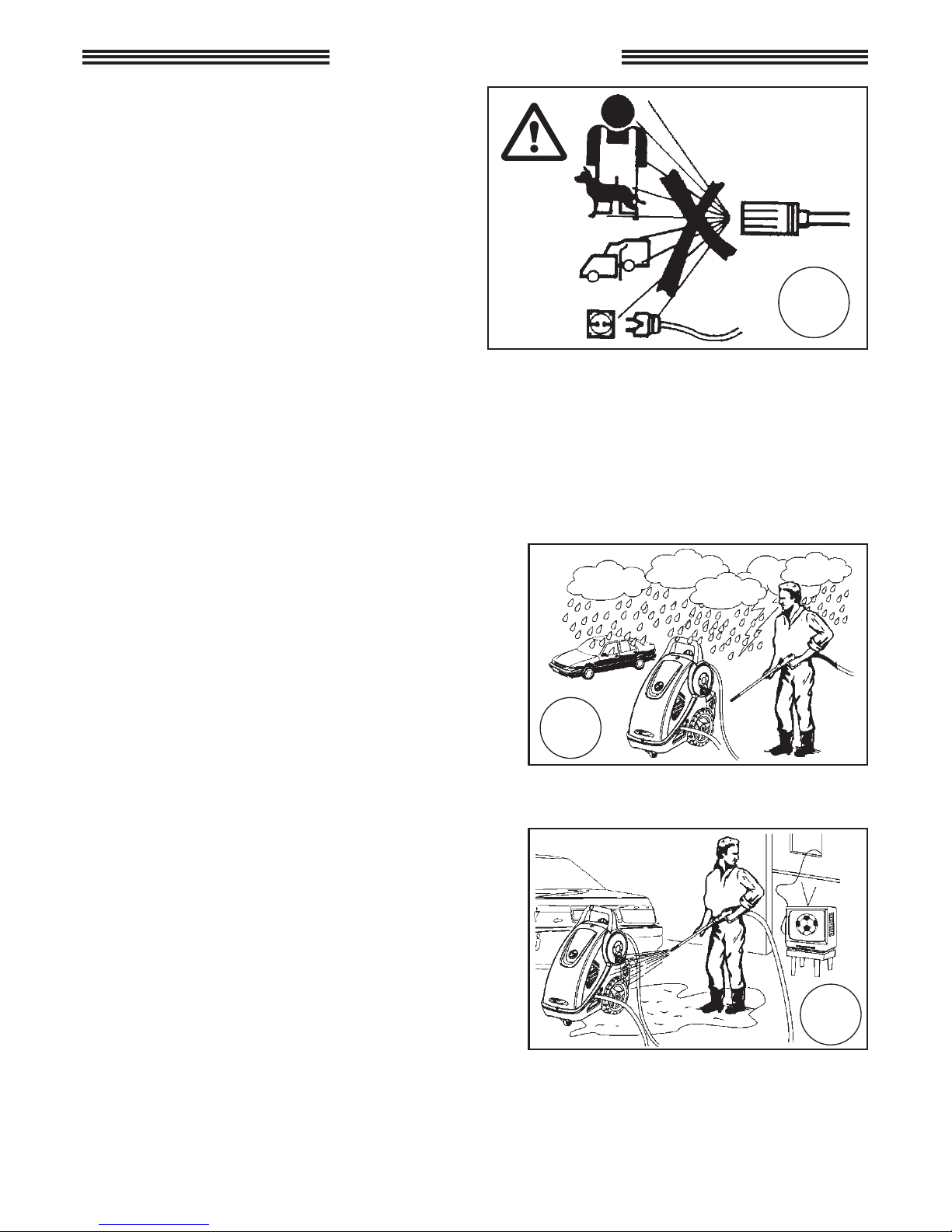

6 - GENERAL WARNINGS



High pressure cleaners can be used neither by childr en nor by non authorized persons. Children must be supervised to pr event them from playing with the machine.



Keep this machine out of r each of childr en

at all times.



This equipment was not designed to be used by persons with reduced physical, sensorial or mental capabilities, or with limited experience or knowledge, unless a person responsible for their safety pr ovides them with supervision or the instructions for the use of the equipment.



Only operate the machine in safety conditions, avoiding any potentially danger ous situation for the user and others. The machine operator should:

• Avoid to operate the machine on unbalanced surfaces;

• Remember that the high pr essure water jet causes a recoil effect on the pistol. The r ecoil values are indicated in the technical specifications table;

• Use protective clothing.

• W ear pr otective goggles and rubber slipproof boots

• Avoid dispersing substances that ar e polluting, toxic or harmful in any way .



ATTENTION: Risk of explosion. Do not spray

flammable liquids.



The high pressure water jet may be dangerous if used incorrectly. Never direct the jet at persons and/or animals, electrical appliances or the machine itself. Do not use the machine when persons and/or animal are within the range of its high pr essure jet. Do not direct the jet against yourself or other persons to clean clothes or shoes.

Page 15



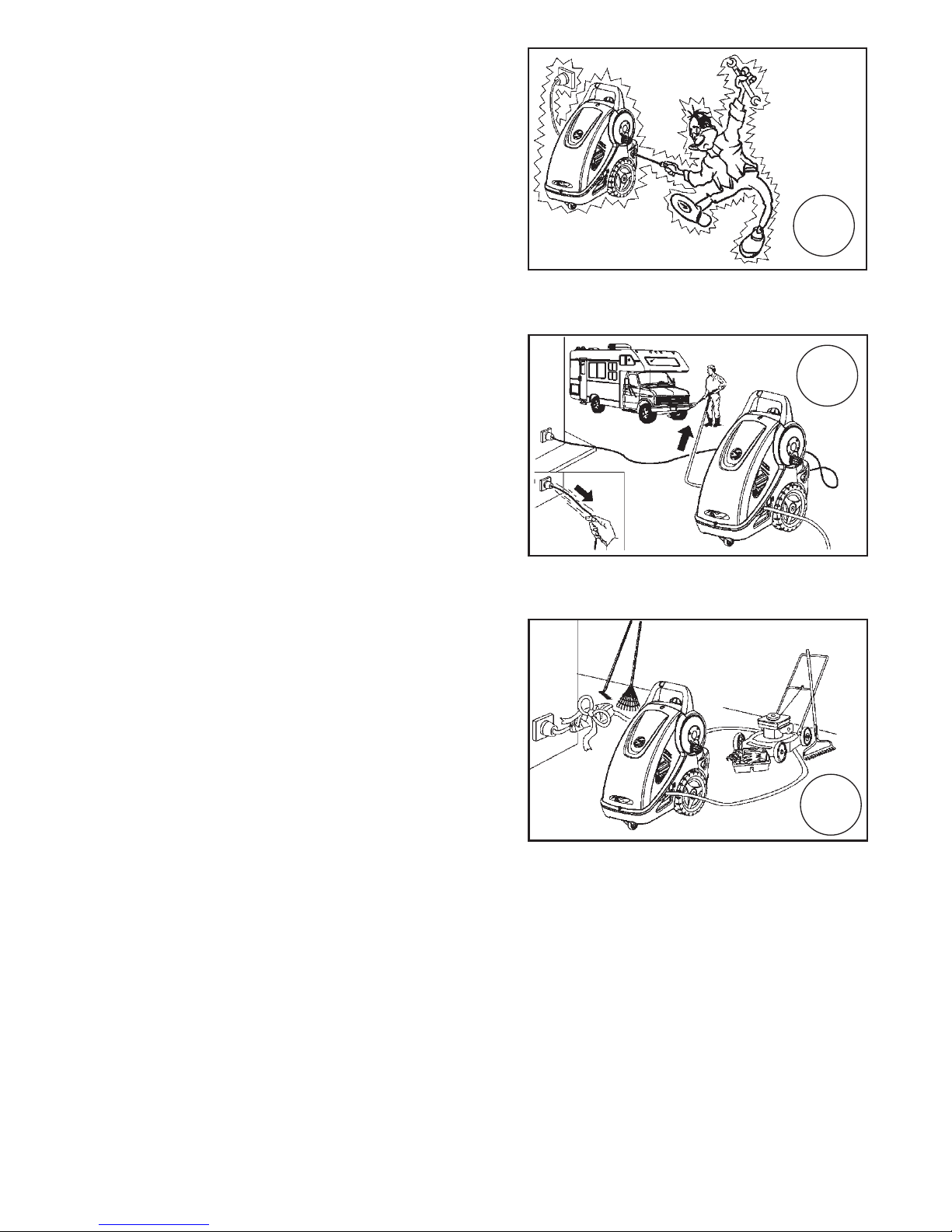

This machine has been built in conformity with current safety regulations. Use of electric appliances requires the observations of a few simple rules:

Do not touch electric parts when the machine is on. Inspection, maintenance and repairs should be carried out by qualified personnel. In any case unplug the machine befor e performing any of the above operations.



Do not pull the cord to disconnect the power supply and do not pull on the hose to move the machine.



ATTENTION: high pr essure flexible hoses, high pr essure connectors, safety devices, electrical connections and spray guns ar e important for the safety of the device.



Do not start the unit if the power cor d is damaged. Apply to qualified personnel for its replacement. Replacement cords should have the same technical specifications as the original cord. Do not carry out repairs on the electrical cord and avoid cord damage.



Do not start the unit if the high pr essure hose, connectors and the gun ar e damaged. By replacement make sure that the new components have at least the same rating as the original components.The technical specifications of the hose should be printed on the hose itself (max pressure, production date, manufacturer).

Page 16



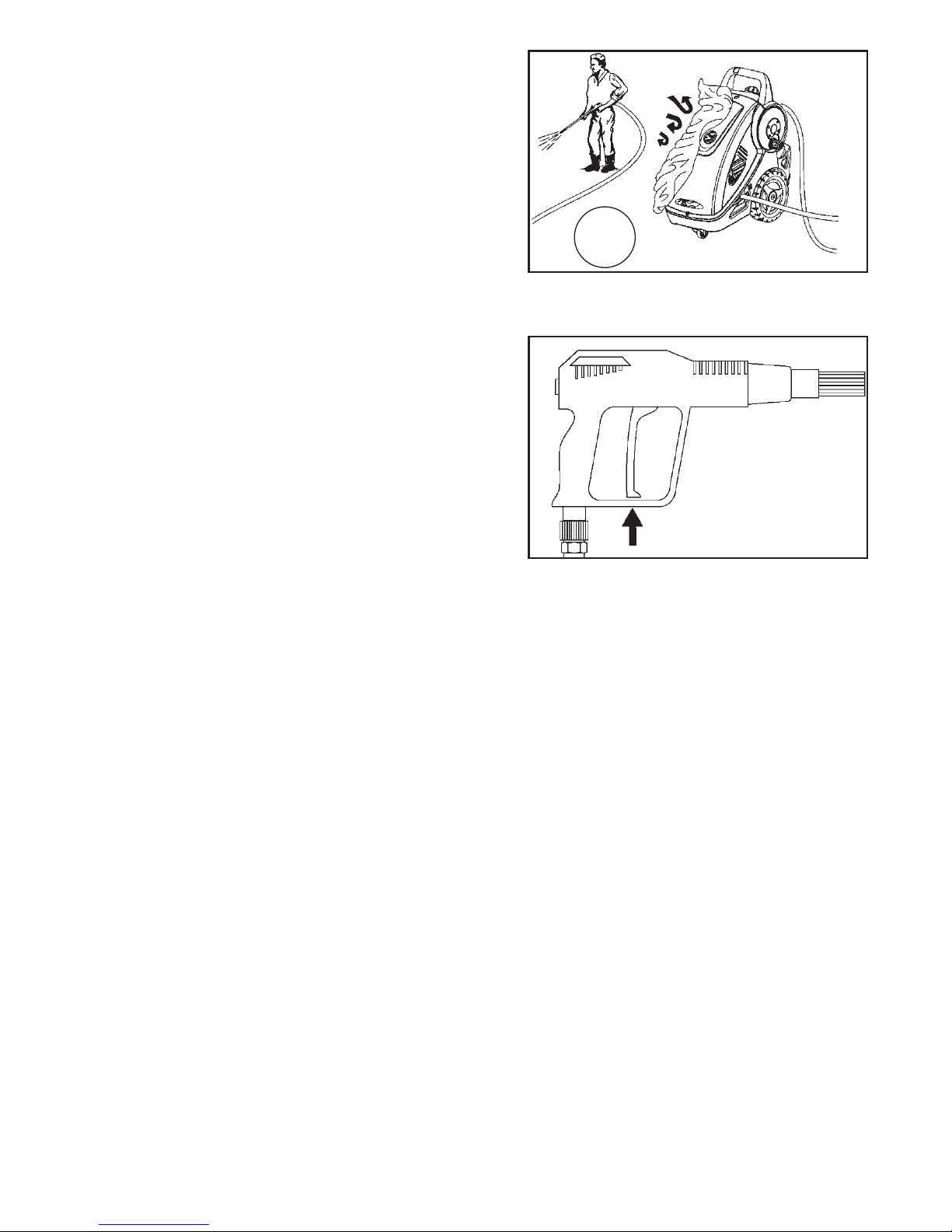

Avoid covering the machine during use and

use the machine in a well ventilated ar ea.



When the machine is of f insert the safety device on the gun to avoid accidental opening.



The unit is equipped with a thermal pr otector which trips and electrically disconnects the motor when it overheats. If this event occurs, turn the selection knob on the unit to the "0" position (machine OFF). Read carefully the troubleshooting guide before starting the unit again.



To ensure the security of the machine, use only original spare parts and accessories supplied

by the manufacturer.

THE MANUFACTURER CANNOT BE HELD RESPONSABLE FOR ANY DAMAGE CAUSED BY DISRESPECTING THE DESIGNA TED USES OF THIS MACHINE, IT'S INSTRUCTIONS AND W ARNINGS INDICA TED IN THIS BOOKLET.

Page 17

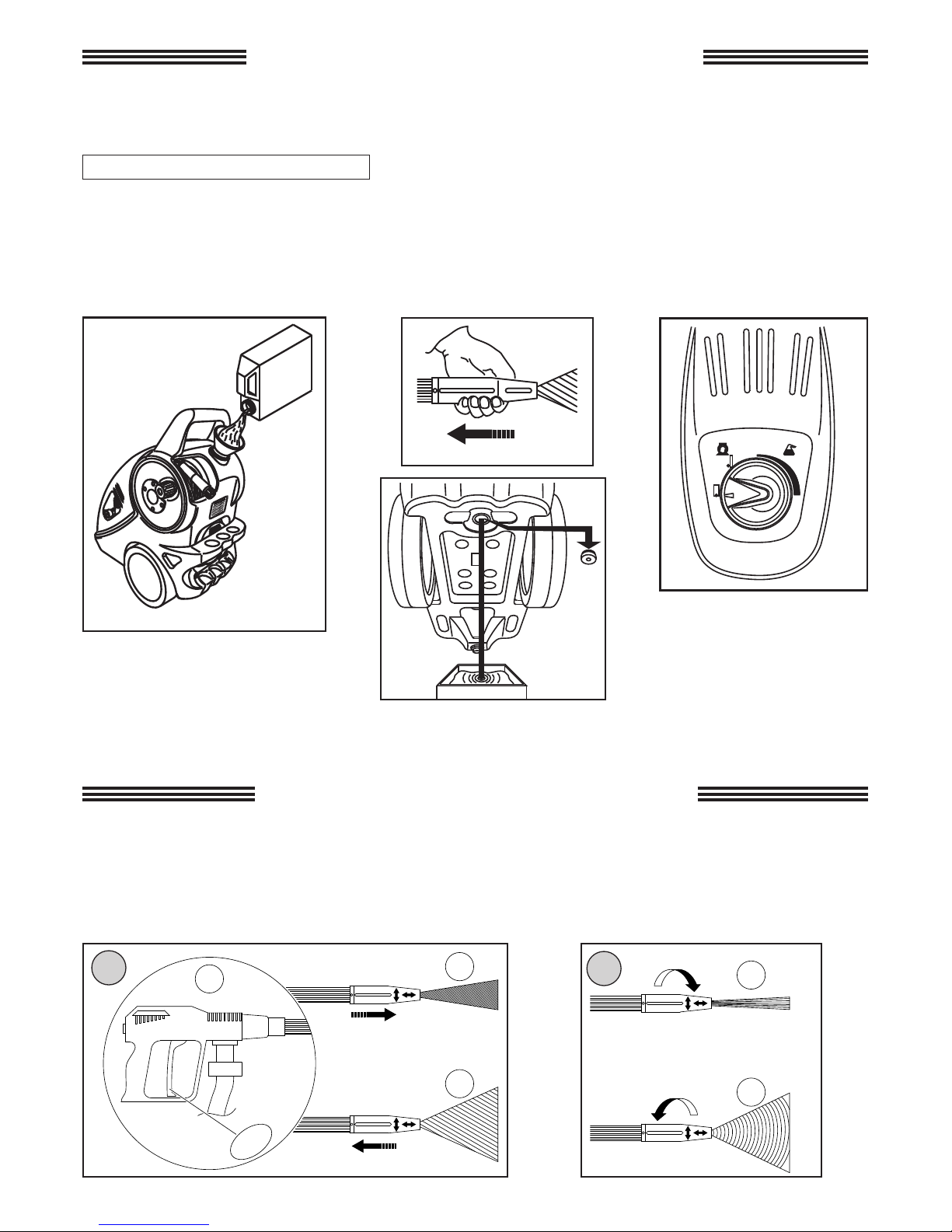

7 - HOW TO USE CHEMICAL PRODUCTS

8 - USE OF ROTOTEK OR MULTIREG 99

Pressure selection must be carried out with closed gun (1)

A - selection of the pr essure

• High pressure (2)

• Low pressure (3)

B - selection of the jet

• straight pin jet (4)

• fan jet (5)

The TX 300 and TX 500 series high pressure cleaners have been constructed to permit the suction and mixing of detergents and other liquids from the internal tank.

7.1 -

CHEMICAL SUCTION

Fill as shown in fig.1. Select low pr essure mode on Multir eg or Rototek nozzle (Fig. 2). Adjust the desired quantity of detergent by turning the knob (Fig. 3). To drain the tank, unscrew the cap on the bottom of the machine (Fig. 4). After use, rinse the chemical suction cir cuit with plain water. Capacity of built-in tank: TX300 18 liters – TX500 25 liters.

OFF

fig.1

fig.2

fig.3

fig.4

In the event of direct contact with detergent additives, follow instructions provided by the manufacturer and/or product retailer and rinse the affected body part with clean water.

Page 18

9 - PRECAUTIONS AGAINST FREEZING AND INSTRUCTIONS FOR STORAGE

If the machine is stored where temperatures fall below the freezing level, it is advisable to suck antifreeze (similar to that used for automobiles) into the pump before storage. In any case keep the machine in a warm room for a couple of minutes before use.

• Check oil level periodically through the sight glass A or the

dipstick B.

• Oil must be changed after the first 50 hours of operation of

the machine. Subsequent oil changes must be carried out every 300 hours of machine operation.

• In any case it is advisable to change the oil at least once a

year.

• Oil type: SAE 15W40 Mineral.

• Oil capacity: TX300 0.37 liter – TX500 1.1 liter.

• Unscrew the drain plug C placed under the pump and the oil

dipstick B.

• Let all the oil drip into a tank and bring it to an authorised

disposal center.

• Screw back the drain plug and fill the new oil fr om the top

bore D up to the half-way level of sight glass A.

10 - MAINTENANCE

10.1 - OIL CHANGE

• Maintenance and repairs should always be performed by trained and authorised personnel.

• Before carrying out any cleaning, maintenance and/or parts r eplacement, disconnect the

machine from the power mains, removing the plug from the power outlet.

• Proper maintenance favours a longer duration of operation and impr oved performance.

• Periodically check the conditions of the washer, pressurised parts (pipe, fittings, lance) and

the electrical cable (see "General warnings for use"). Check for any water or oil leaks and/or malfunctions. If necessary, replace affected parts. The list of specific machine components and cir cuit diagrams are contained in the booklet "SPARE PARTS NOMENCLATURE".

Contact Interpump Group customer service in the event of any doubts.

Page 19

10.3 - REPLACEMENT OF HIGH PRESSURE NOZZLE

Periodically it is necessary to replace the high pressure nozzle as this is a component subject to normal wear during use. This wear can generally be noticed by a decr ease of the working pressure. Contact your dealer if you wish to pur chase a new nozzle.

Remove filter from water inlet.

Blow the filter with air.

Wash the filter under a water tap.

10.2 - INLET FILTER

Before using the machine it is IMPORTANT to make sure that the filter is clean. Wash the filter under a water tap or blow it with air to r emove completely all dirt particles. Remember that a well-cleaned filter means good performance and long life for your machine.

Page 20

11 - DISPOSAL OF THE MACHINE

• In case of no further use of the machine, it is advisable to disconnect the power cor d making the machine inoperative.

• Keep out of reach of children.

• This machine is considered "special waste", disassemble and gather homogeneous parts for recycling.

• Do not used recycled parts as spare parts.

Information on the disposal of electric and electr onic equipment in compliance with dir ective 2002/96 CE (RAEE).

1. Within the European Union

Warning: do not use the normal house trash bin to dispose of this product.

Used electric and electronic equipment must be handled separately and in compliance with the regulations relating to the treatment, recovery and recycling of the said products.

In accordance with the regulations applied in the member States, private users resident in the EU can take used electric and electronic equipment free of charge to designated collection centers*. In some countries * the local dealer , too, can withdraw the old product free of charge if the user purchases a new , similar product.

For more information contact your local campetent authorities.

If you experience difficulties in locating an authorized disposal center,

consult the dealer from whom you purchased the product.

The correct disposal of this product will contribute to ensure that the waste is submitted to the required treatment, recovery and recycling, preventing the potential negative impact on environment and human health, which could be caused by an unsuitable disposal of the waste.

The national regulations provide sanctions against whoever unlawfully disposes of or abandons waste of electric or electronic equipment.

2. In countries outside the European Union.

If you wish to dispose of this product, contact your local authorities to get information about the correct disposal method.

Warning: the product is marked with this symbol, which means that electric and electronic products should not be disposed of with the normal house-hold waste. A separate collection system is foreseen for these products.

Page 21

12 - TROUBLE SHOOTING

(FOR QUALIFIED PERSONNEL)

TROUBLE

CAUSE REMEDY

The pump is running but maximum pressure is not obtained

Air sucked into pump

Worn or dirty valves Unloader packings worn Nozzle worn or incorrect Piston packings worn Dirty filter

Check suction hose and fittings Clean or replace Check and/or replace Check and/or replace Check and/or replace Check and/or clean

Fluctuating pressure Damaged, dirty or clogged valves

Air is being sucked

Worn packings Dirty filter

Check, clean and/or replace Check suction hose and fittings Check and/or replace Check and/or clean

Pressure decreases

Worn nozzle Dirty or stuck valves Bypass packings worn Piston packing worn Dirty filter

Substitute nozzle Check, clean and/or replace Check and/or replace Check and/or replace Check and/or clean

Excessive noise Air suction

Damaged, dirty or stuck valves

Worn bearings Water temperature too high

Dirty filter

Check suction hose and fittings

Check, clean and/or replace

Check and/or replace Lower water temperature to under 60°C Check and/or clean

Presence of water in oil Piston packings and oil seals wor n

High air humidity

Check and/or replace Change oil twice as frequently as that advised

Water dripping from under pump Piston packings worn

Packing o-rings worn

Check packings Replace O.R.

Oil leakage

Oil seals worn

Replace oil seal

The motor does not start when switched on

The plug is not well connected No power supply

Check plug, cord and switch

The motor stops The thermal protector has tripped

due to overheating

- Release the gun trigger to the off position and engage the safety lock.

- Turn the selector knob to the "0" (OFF) position in or der to avoid accidental restarts.

- Check that the mains voltage is the prescribed one.

- Let the motor cool for a few minutes befor e r estarting the unit, by tur ning the switch to the "I" (ON) position and pulling the gun trigger. If the unit does not start, bring back the switch to the "0" (OFF) position.

- Repeat the operation until the unit starts.

The motor hums but does not run when turned on

System voltage is lower to the minimum advised The pump is stuck or frozen Extension cord incorrect

Check that your power source is adequate See page 17 Check the extension cord table on page 11

Page 22

123

EC DECLARATION OF CONFORMITY (In accordance with Annex II of European Directive 2006/42/CE)

The manufacturer INTERPUMP GROUP S.p.A. - Via E. Fermi, 25 - 42049 S. ILARIO D'ENZA (RE) - Italy DECLARES under sole responsibility that the machine identified and described as follows: Machine type: Portable high pressure washer (EEE category: household appliance) Trademark: INTERPUMP GROUP Model: TX 300 - TX 500 complies with the requirements of the directives listed below and subsequent updates:

- Machinery Directive 2006/42/CE

- Low Voltage Directive 2006/95/EC

- Electromagnetic compatibility Directive 2004/108/EC

- Directive 2011/65/EU - RoHS on the restriction of the use of certain hazardous substances in electrical and electronic equipment The equipment does not contain more than the specified concentrations of restricted substances listed in Annex II except for the applications exempted from the restriction listed in Annex III.

- Waste electrical and electronic equipment directive 2012/19/EU

- Directive 2000/14/EC on noise emission in the environment Conformity evaluation pursuant to Annex V Sound power: Lw= 88 dB(A) - Guaranteed sound power: Lw= 92 dB(A)

The manufacturer, through company measures, guarantees that all machinery manufactured conform to what has been declared. Standards applied:

• EN 60335-1 • EN 60335-2-79 • EN 55014-1/2 • EN 61000-3-2/3/11 • EN 62233 • EN 50581

Person authorised to compile the technical file Name: Maurizio Novelli

Address: INTERPUMP GROUP S.p.A. Via E. Fermi, 25 - 42049 S. ILARIO D'ENZA (RE) - Italy

Person authorized to draw up the declaration: CEO Mr. Paolo Marinsek

Reggio Emilia May/2014 Signature___________________________________

DÉCLARATION DE CONFORMITÉ CE (Conformément à l'annexe II de la Directive Européenne 2006/42/CE)

Le fabricant INTERPUMP GROUP S.p.A. - Via E. Fermi, 25 - 42049 S. ILARIO D'ENZA (RE) - Italie DÉCLARE sous sa seule responsabilité que la machine identifiée et décrite comme suit : Type de machine: Nettoyeur mobile à haute pression - (catégorie d'appareils AEE) Marque de fabrique: INTERPUMP GROUP Modèle: TX 300 - TX 500 Est conforme aux spécifications des directives énumérées ci-dessous et mises à jour suivantes :

- Directive Machines 2006/42/CE

- Directive de basse tension 2006/95/CE

- Directive de compatibilité électromagnétique 2004/108/CE

- Directive relative à la limitation de l'utilisation de certaines substances dangereuses dans les équipements électriques et électroniques 2011/65/UE - RoHS L'équipement ne contient pas de substances assorties de restrictions concernant l'utilisation en concentration plus élevée que celles énumérées à l'annexe II, sauf pour des applications exemptées des restrictions énumérées à l'annexe III.

- Directive sur les rebuts d'appareillages électriques et électroniques 2012/19/UE

- Directive 2000/14/CE sur le bruit ambiant Évaluation de la conformité à l'annexe V Puissance sonore : Lw= 88 dB(A) - Puissance sonore garantie : Lw= 92 dB(A)

Le fabricant, par des accords d'entreprise, veille à ce que toutes les machines produites soient conformes à ce qui est déclaré.

Normes appliquées:

• EN 60335-1 • EN 60335-2-79 • EN 55014-1/2 • EN 61000-3-2/3/11 • EN 62233 • EN 50581

Personne autorisée à réaliser le manuel technique Nom : Maurizio Novelli

Adresse: INTERPUMP GROUP S.p.A. Via E. Fermi, 25 - 42049 S. ILARIO D'ENZA (RE) - Italie

Personne autorisée à rédiger la déclaration : L'administrateur délégué Ing. Paolo Marinsek

Reggio Emilia Mai/2014 Signature ___________________________________

Page 23
