INSTRUCTION MANUAL

www.interphone.com

Page 2

full-face open-face ﬂip-up

Page 3

SILICONE GREASE

Page 4

Manuale di istruzioni

Instruction manual

Mode d’emploi

Manual operativo

Bedienungsanleitungen

Page 5

TABLE OF CONTENTS

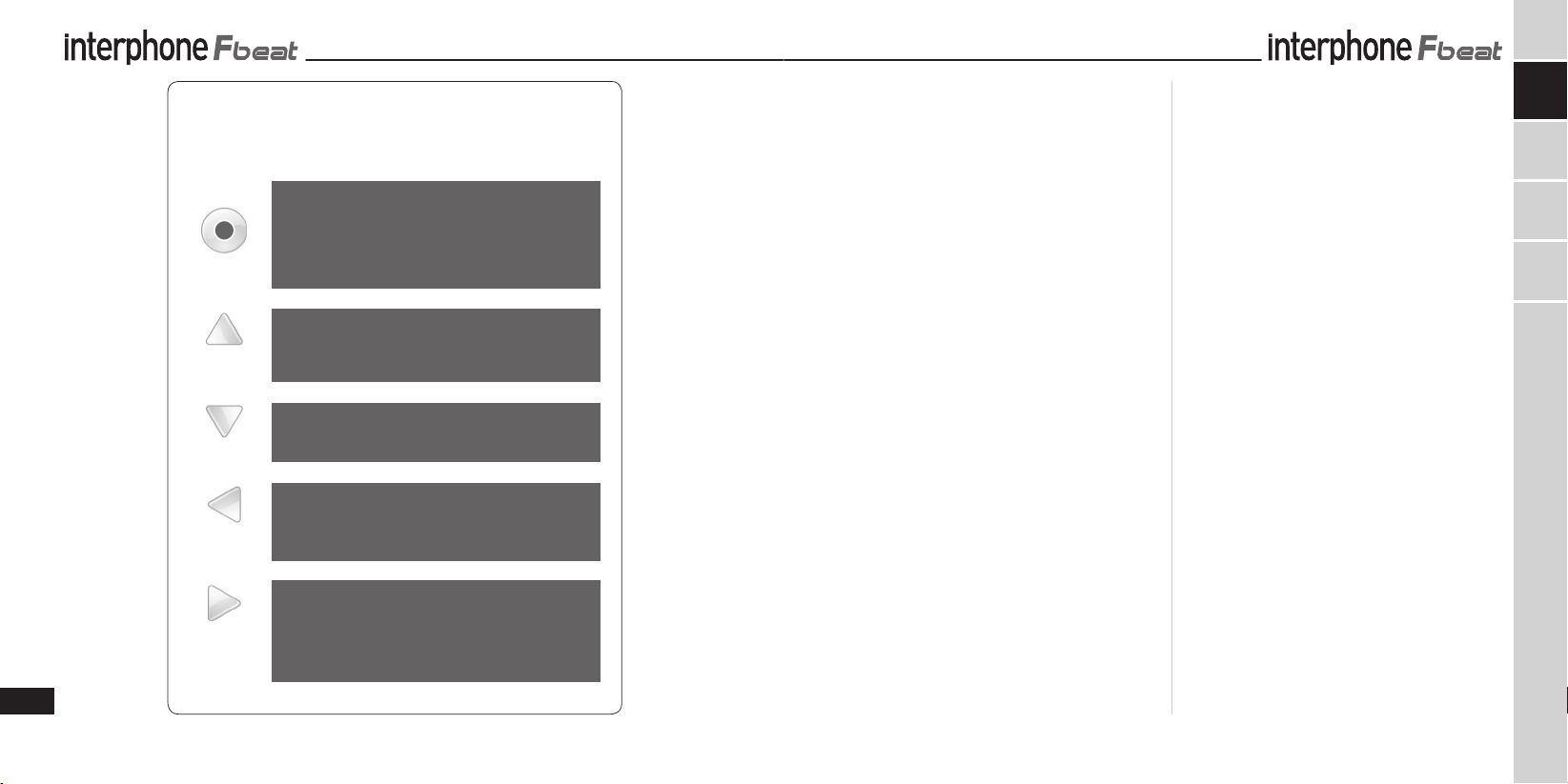

FBEAT BUTTON DIAGRAM

MFB BUTTON

ON  press for 3 seconds OFF - press for 5 seconds INTERCOM/ON - press brieﬂy INTERCOM/OFF - press brieﬂy

MFB

DOWN

VOL. +

VOL. –

VOICE CALL/ON - hold down until you hear the beep (3 seconds) VOICE CALL/OFF - hold down until you hear the beep (3 seconds)

UP BUTTON

MUSIC/PLAY  hold down until you hear the beep (3 seconds) MUSIC/PAUSE  hold down until you hear the beep (3 seconds) NEXT SONG  press brieﬂy

DOWN BUTTON

BEGIN SONG  press once NEXT SONG  press once or twice

+ VOLUME BUTTON

INCREASE VOLUME  press multiple times ENABLE VOICE RESPONSE:  hold down until you hear the beep (9 seconds)

 VOLUME BUTTON

REDUCE VOLUME  press multiple times MUTE/ON - hold down until you hear the beep (3 seconds) MUTE/OFF - press brieﬂy DISABLE VOICE RESPONSE:  hold down until you hear the beep (9 seconds)

PRESENTATION .......................................10

FUNCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CHARACTERISTICS ....................................10

NOTES ON AUTONOMY ...............................11

CONTENTS OF THE PACKAGE .........................11

PRODUCT DESCRIPTION ..............................11

CARE AND MAINTENANCE ............................11

1.0 PREPARATION/ASSEMBLY ........................12

1.1 Mounting the bracket on the helmet .............12

1.2 Audio section ...................................12

1.3 Charging ........................................13

1.4 Turning on/oﬀ ...................................13

2.0 PAIRING ...........................................13

2.1 Telephone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.2 Intercom ........................................13

2.3 Audio GPS ......................................13

3.0 USE. ...............................................13

3.1 Telephone function ..............................13

3.2 Intercom function ...............................14

3.3 Telephone + Intercom function ..................14

3.4 Voice response (VOX ) ...........................14

3.5 Voice call ........................................14

3.6 Bluetooth® Music ................................14

Page 6

INTERPHONE FBEAT is a Bluetooth® helmet system for entertainment and information while driving a motorcycle.

INTERPHONE FBEAT is compatible with all mobile phones and GPS navigators with Bluetooth® technology. The module is covered by a special Weather Protection Skin membrane making it fully waterproof. Its aerodynamics have been designed to avoid any disturbances generated by air turbulence, and to allow water, if raining, to slide away. Its controls and shape have been designed to allow for quick and easy identiﬁcation and access while riding wearing gloves.

INSTALLATION INTERPHONE FBEAT can be installed on any helmet, with-

out aﬀecting its structure or ﬁnish. Once installed, it can be removed at any time. INTERPHONE FBEAT does not change the helmet’s certiﬁcation.

WHILE DRIVING

Always give priority to driving your vehicle, not to telephone calls. During a telephone conversation, or while using the intercom, reduce your speed and concentrate on your driving. In bad weather and/or heavy traﬃc, we recommend pulling over and stopping before answering. Always ride carefully and in accordance with the current highway code.

WHEN STOPPED To avoid theft, if leaving the helmet on the motorcycle, INTERPHONE FBEAT is ﬁtted with a quick release button to al-

low you to remove the external Bluetooth® module and take it with you.

FUNCTIONS Telephone functions

• Voice response

• Voice call

• Use of independent telephone on both units

Intercom Functions

• Driver-passenger connection

• Intercom communication with activation button

• Phone call notication

GPS functions

• Bluetooth® GPS audio instructions

• Phone call notication

Stereo functions

• Wireless hi- stereo connection with mobile phones and

Bluetooth® A2DP MP3 players

• Music control using InterphoneFBEAT buttons

• Automatic resumption of the song from the exact point

when temporarily interrupted

• Phone call notication

CHARACTERISTICS

• Full duplex communication

• DSP lter

(digital cancellation of wind and background noise)

• Automatic volume adjustment

(speed and noise compensation)

• Fully waterproof (IP67)

• Installation in just 5 minutes

• Removable control panel

• Lithium battery

• Active use autonomy: up to 12 hours

(Considering that the average use time, alternating the vari-

ous functions, is shorter)

• Standby duration: up to 700 hours

• Recharge time 3 hours

• Weight: 83g including ear phones and microphone

NOTES ON AUTONOMY

Active use autonomy is indicative. It has been calculated by alternating the use of all the INTERPHONE FBEAT functions and, given the varied use of these; it can vary signiﬁcantly from one use to another. During Intercom communication, one of the two Interphone or INTERPHONE FBEAT devices has greater battery consumption: this phenomenon is due to the wireless search procedure the one of the control units performs to remain connected to the other and can also lead to 60/90 minute autonomy diﬀerence. On long journeys, to optimise battery duration, we advise enabling Intercom mode only when you wish to communicate, remaining in stand-by or an alternative mode when not actually communicating.

Contents of the package

a) Bluetooth® control panel b) Stereo earphone equipped with a microphone with foam

windscreen, on a ﬂexible arm (universal) d) Removable clip-on support e) Permanent adhesive-based support f ) USB cable for recharging i) Velcro adhesive strips

j) Clip adapter

k) Screwdriver l) Instruction manual

NOTES: in the package containing two FBEAT kits, components

a - b - d - e - i - j - k are doubled.

Product description

InterphoneFBEAT Bluetooth® module

1) Multi-purpose button

2) Menu UP button

3) Menu DOWN button

4) + Volume button

5) - Volume button

6) Multifunction LED

7) Multifunction LED

8) Multifunction socket

9) Bluetooth® module connection guide

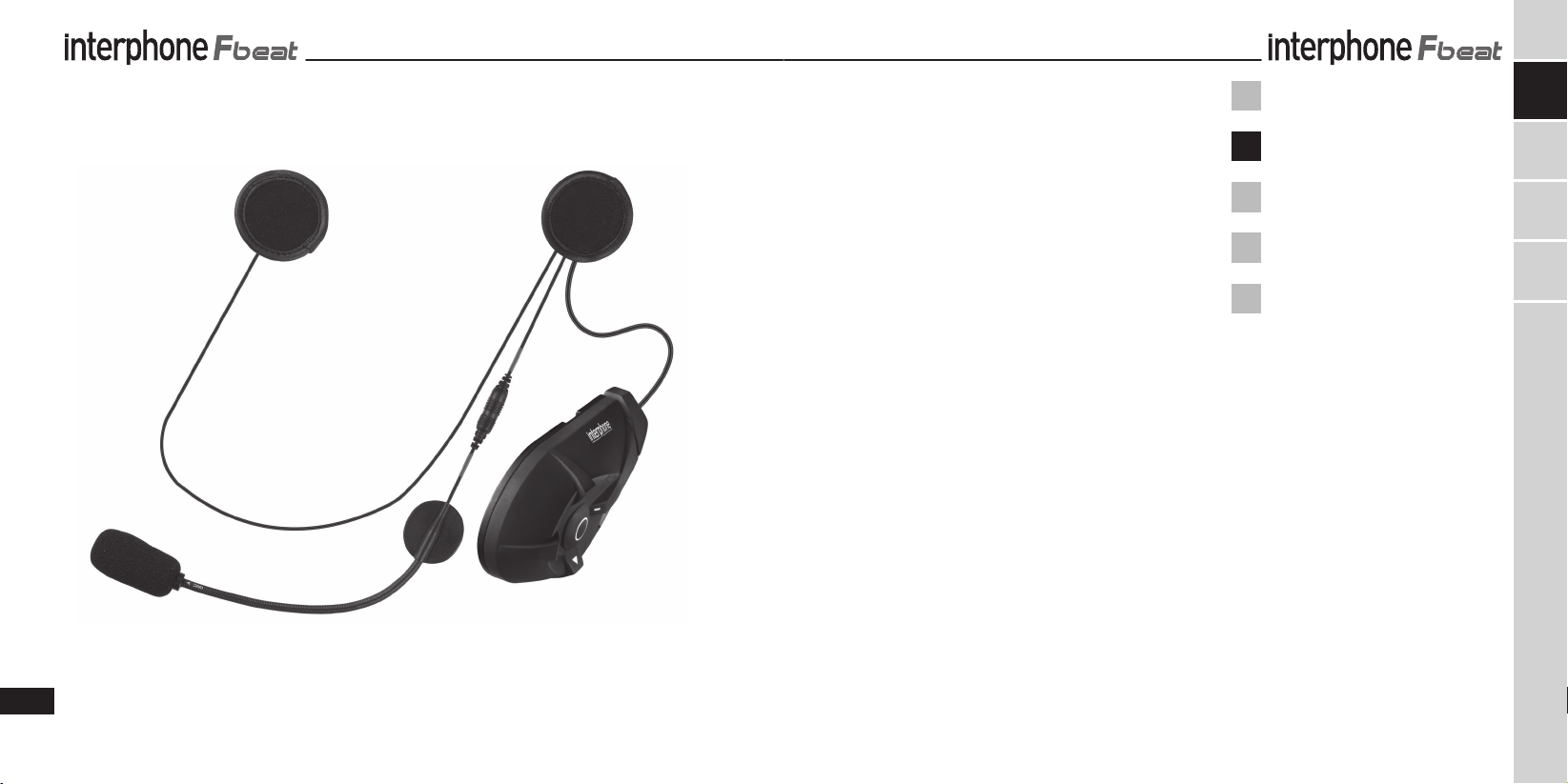

Audio unit for open-face, modular and full-face helmets:

10) Left earphone

11) Right earphone

13) Microphone connectors (B or C)

14) Microphone with foam windscreen

15) Connection plug

16) Recharge socket

Care and maintenance

If not using the kit for long periods of time, the battery must be charged every two/three months, to avoid damage. To clean, use a damp sponge and mild soap, if necessary. Do not use solvents or degreasing products to clean the module. Important note: to prevent water from seeping in through the audio connector and damaging the module during cleaning, be sure to insert the plug from the audio section into the socket, as when the unit is installed and used on the helmet. The kit is watertight only when the audio plug is inserted.

WARNINGS: If radio interference is high due to the vicinity of repeaters, high voltage towers or various kinds of radio signals, intercom communication and/or the InterphoneFBEAT device itself could shut down. To restore operation, try moving away from the area of interference and/or turn the InterphoneFBEAT oﬀ and then back on.

Assistance and Warranty

This product is covered by a warranty that complies with the laws in the country where the unit was purchased. All information necessary for product assistance or spare parts can

be found on our website www.interphone.com.

Page 7

1.0 PREPARATION/ASSEMBLY

InterphoneFBEAT is a modular audio kit made up of a Bluetooth® module (the core of the system) (A), a double slide support system for the module (E/D) and an audio kit with a double microphone to be installed inside the helmet (C/B) Before conﬁguring the InterphoneFBEAT, you should check the website for software updates that could improve the performance of the FBEAT. If there are any updates, installation is recommended. Verify compatibility with the operating system on your PC, then download the ﬁle and the attached instructions that will guide you through the update process.

1.1 Mounting the bracket on the helmet

The InterphoneFBEAT has two mounting systems (small plates) (E/D) that you can install on the helmet. Choose the system that is better suited to the type of helmet you are using. Equipped with a sliding latch system, the plates support and lock the FBEAT Bluetooth® module into position. One system is applied using an adhesive system (E), and the other uses a clip (D). Thanks to the sliding latch system on the plates, the FBEAT module can easily be removed for recharging, updating, security against theft, and use on other helmets that have already been prepared with other kits designed for each type of helmet. The kits for an additional helmet all consist of an audio section with earphones/microphone, along with two support plates for the module. The kits for an additional helmet are optional and can have a diﬀerent structure and operation. For more information, consult the accessory section on our website,

www.interphone.com

We recommend using the adhesive plate (E) since it is more aerodynamic and can be placed wherever you like on the surface of the helmet. This allows you to choose point that best suits the shape of the helmet shell to maximize appearance and adhesion. On the other hand, the adhesive plate cannot be repositioned. Once it is applied, it cannot be removed because the 3M adhesive that provides its excellent holding power does not allow for a change of position. If the plate is removed, it must be replaced with a new one. Carefully choose the most suitable point before application.

The clip-on plate (D) is better for those who do not want

to apply permanent adhesive to their helmet or would like

to be able to remove the plate and use the helmet with no accessories installed. The clip-on plate requires that the helmet allow part of the plate to be inserted between helmet shell and cheekpad. The cheekpads on some helmets are glued or have special seals that prevent the plate from being inserted correctly or require the helmet to be modiﬁed, which not everyone is willing to do. In these cases, it’s better to choose the adhesive plate. Both brackets can only be installed on the left side of the helmet.

Installation with (adhesive) plate

Take the adhesive plate, but do not remove the protective ﬁlm on the back. Place the plate on the left side of the helmet shell. Now, move it around and ﬁnd the position where it will adhere and function best. Before applying it, mount the FBEAT module on the plate and check whether the position you chose could disturb the driver by causing interference or discomfort (check visor, opening, etc...). Carefully clean and degrease the point chosen for applying the plate. Do not use strong detergents that could ruin the paint on the helmet. After cleaning the helmet shell, remove the protective ﬁlm from the double-sided adhesive strip and apply the plate on the helmet. Press quickly on the plate to attach the strip ﬁrmly. After application, it is a good idea to let the 3M adhesive act on the helmet for 12 hours before using the helmet.

Installation with the clip-on (removable) plate

Check the type of helmet you have and make sure that the clip can be inserted between helmet shell and cheekpad. Otherwise, use the adhesive plate. Take the clip-on plate, loosen the two screws and remove the rear section. On the left side of the helmet, locate the most suitable point for inserting the clip, slide the rear section of the clip in between the helmet shell and the cheekpad, and let the end (with the holes for the screws) protrude on the outside. Now,

try to join the front section of the clip onto the rear section.

Depending on the thickness/radius of the helmet, it may be necessary to use the adapter (J) to compensate for the distance between the two sections so that the clip still adheres to the helmet shell when the screws are tightened. Tighten the screws with the screwdriver provided. Do not use excessive force when tightening the screws. You could break all or part of the clip. If you are also using the adapter for the clip, you must replace the two screws installed in the clip with the longer ones supplied with the unit.

1.2 Installing the audio section

Wear the helmet and locate the exact point where your

ears are positioned inside.

If the internal fabric of the helmet allows it, try to apply

the two earphones in the audio kit directly at the points

you determined. The Velcro on the back of the earphone

will often adhere perfectly to the material in the helmet

without the need to use the fabric strip (I) with double-

adhesive. Otherwise, if the material is unmanageable,

apply the strip of fabric at the point you previously deter-

mined and place the earphone on the strip.

Put on the helmet once again and check whether the ear-

phones are correctly positioned. They must be centred

and come slightly in contact with your ears.

If the helmet allows it, it’s a good idea to insert the ear-

phones under the cheekpad fabric, which requires more

time and care to accomplish but makes the internal kit

almost invisible and more comfortable.

Thread the cable with plug under the cheekpad and

around the helmet while trying not to lay it over itself or

twist it. Then, pull it out on the left side as far as it will

go. Afterwards, when the plug is connected to the FBEAT

module mounted on the support, you can push the ex-

cess cable back inside and leave only as much as you

need on the outside.

Microphone (B) - if possible, slide the microphone arm

through the hole in the chin strap and below the cheek-

pad so that the microphone is more stable and less ob-

trusive. It should be possible to position the microphone

with foam windscreen (14) in front of your mouth, but it

may be left slightly to the side of the mouth.

After installation is complete, make sure that the wording

MIC on the foam windscreen on the microphone arm fac-

es your mouth and preferably points toward your eyes.

1.3 Recharging

The InterphoneFBEAT must be charged before use.

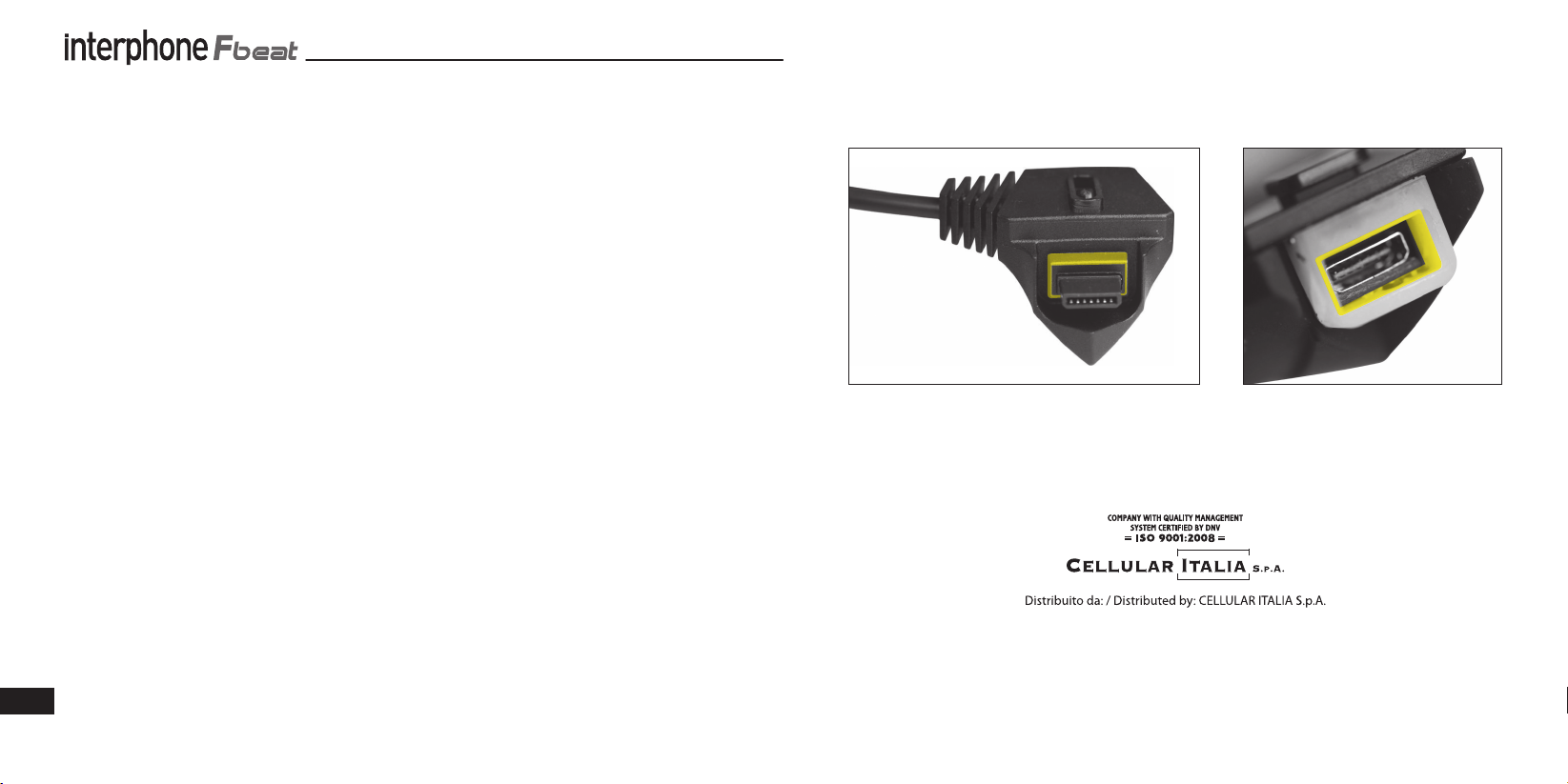

Once mounted on the helmet, connect the recharger ca-

ble provided (F) to a USB port, then insert the recharger

cable plug into the outlet on the audio kit connector (16)

correctly inserted in the InterphoneFBEAT module.

The charge LED turns orange (7) during charging.

When the battery is fully charged, the LED will turn green.

About two hours are needed to charge the FBEAT mod-

ule completely. Two modules can be charged together in

around three hours.

We recommend turning the module oﬀ before recharg-

ing the FBEAT.

1.4 Turning on/oﬀ TURNING ON

Press and hold the MFB button for approximately 3 seconds. The speaker will sound an acoustic warning and the LEDs will begin ﬂashing quickly for around 3 seconds. Subsequently, in stand-by mode, the LED will ﬂash approximately once every 5 seconds.

TURNING OFF

Press and hold the MFB button. The speaker will sound a prolonged acoustic warning and the LED will ﬂash red prior to turning oﬀ.

2 PAIRING

2.1 Telephone Pairing

The INTERPHONE FBEAT can be paired to a mobile phone. After having turned the INTERPHONE FBEAT oﬀ, press and hold the MFB button until the warning light alternates red

and blue ashes. This will take about 8 seconds.

When the light is ﬂashing red/blue alternately perform the device search from your telephone (refer to the telephone or navigator manual). The telephone or navigator will detect the INTERPHONE FBEAT. Simply select it, and enter the numerical code 0000. To use with a mobile telephone and GPS navigator at the same time, see point 2.3.

2.2 Intercom Pairing

After having turned the INTERPHONE FBEAT oﬀ, press and hold the MFB button until the warning light alternates red

and blue ashes. This will take about 8 seconds.

When both LEDs ﬂash red/blue alternately, press and release the MFB button on one of the two INTERPHONE FBEATs. The two INTERPHONE FBEATs are connected when both LEDs show a ﬁxed blue light.

2.3 Audio GPS Pairing

For an audio connection, GPS NAVIGATORS use the TELEPHONE (headset) proﬁle: to pair the phone during use of the navigator you must use the speciﬁc function on the GPS device. For further information and settings, please consult the navigator manual.

3 USE

3.1 Telephone function

To answer a call: when a call comes in, the speaker sounds a warning tone or the telephone ring: to answer, brieﬂy press the MFB button.

Page 8

To end a call: simply press and release the MFB button. Voice call: some telephones allow you to make a voice call simply by pressing the MFB button for about 3 seconds. To refuse a call: press and hold the MFB button for approximately 4 seconds. To refuse a call in VOX mode follow the instructions in the VOX FUNCTIONS section.

Volume adjustments: to adjust the volume, press the Volume + or Volume - keys depending upon the volume desired.

3.2 Intercom function

To enable the Intercom function: to activate a conversation in the Intercom proﬁle, press the MFB button on one of the two INTERPHONE FBEATs. An audible warning will advise you when connection has occurred. Conversation in intercom mode is full-duplex. To disable intercom function, simply press and release the MFB button.

Volume adjustments: to adjust the volume, press the Volume + or Volume - keys depending upon the volume desired.

3.3 Telephone + Intercom function

With this combination, the connection to the telephone function takes priority.

• During a telephone conversation, intercom communication

is not permitted.

• In order to activate the Intercom function, no telephone call

must be under way: press the MFB button for about 3 seconds. An audible signal will advise you that connection has been made. Conversation in intercom mode is full-duplex.

• To end a conversation in intercom mode, simply press and

release the MFB button.

• During an intercom conversation, you can answer or refuse

an incoming telephone call. Intercom communication will be interrupted and re-activated automatically at the end of the call.

• To answer a telephone call, press and release the MFB button.

• To end a telephone call, press and release the MFB button.

• To refuse the incoming call, press and hold the MFB button

for approximately 4 seconds.

• To adjust the volume, press the Volume + or Volume - keys depending upon the volume desired.

3.4 Voice response (VOX )

The voice response function allows you to answer a call without having to press any buttons. Voice response activation: press and hold the Volume + button until the third beep. An acoustic sound will advise you that the operation is complete.

Voice response deactivation: press and hold the Volume -

button until the third beep. An acoustic sound will advise you that the operation is complete. To answer a call: when receiving a call, simply say a word (e.g. ‘HELLO’) within ten seconds, to activate the line. To refuse a call: when receiving a call, simply allow ten seconds to pass and it will be refused.

3.5 Voice call

The voice call function allows you to make a call without using the telephone keys. INTERPHONE FBEAT is compatible with the voice call functions on various Bluetooth® mobile phones. To activate it and access the commands, refer to the mobile phone instruction manual. Please refer to Use - Telephone section.

3.6 Bluetooth® Music

If you’ve paired a mobile phone or GPS unit that can handle MP3 ﬁles and send them using the A2DP Bluetooth® stereo proﬁle, you can listen and manage music from the FBEAT. You can play/pause by pressing the UP button for two seconds, forward/reverse through songs by brieﬂy pressing the

UP or DOWN buttons, and adjust the volume by pressing the

buttons repeatedly until the desired level is reached. Music cannot be shared by two or more users. Each user can only listen to and control the music coming from his or her player. If you don’t have a phone, or if your phone does not have MP3/Bluetooth®, you can use an MP3 Bluetooth® player to send audio using the A2DP stereo proﬁle.

WE RECOMMEND CHECKING FOR UPDATES ON THE WEBSITE

WWW.INTERPHONE.COM

Federal Communications Commission (FCC) Statement Industry Canada (IC) Statement

15.21 You are cautioned that changes or modiﬁcations not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.

15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC/IC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

(Applicable in those countries of the European Union with recycling systems) The symbol shown on this product or on its documents indicates that the product must not be disposed of with other domestic refuse at the end of its life cycle. To avoid damage to the environment or to health caused by the inappropriate disposal of refuse, the user is requested to separate this product from other refuse and to recycle it responsibly to favour the sustainable re-use of material resources. Domestic users are invited to contact the sales point where the product was purchased or the local oﬃce with information regarding recycling of this type of product. Business users are invited to contact their suppliers and to check terms and conditions of purchase. This product must not be disposed of together with other commercial refuse.

This product bears the CE mark in conformity with the regulations of the R & TTE Directive (99/5/EC). Cellular Italia S.p.A. hereby declares that this product conforms to essential standards and other norms under Directive 1999/5/EC. The user is forbidden from making variations or modiﬁcations of any kind to the device. Any variations or modiﬁcations not expressly approved by Cellular Italia S.p.A. will cancel the user’s authorisation for the use of the device. The Bluetooth® trademark is the property of Bluetooth® SIG, Inc. For further information please consult http://www.cellularline.com

This product has an embedded, non-replaceable battery, do not attempt to open the product or remove the battery as this may cause in-

jury and damage the product. Please contact the local recycling facility

for removal of the battery. The embedded, non-replaceable battery is designed to last the life time of the product.

equipment oﬀ and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause undesired operation of the device.

FCC/IC RF Radiation Exposure Statement:

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the speciﬁc operating instructions for satisfying RF exposure compliance. This transmit-

ter must not be co-located or operating in conjunction with any other

antenna or transmitter.

0560

Page 9

IMPORTANT INFORMATION

IMPORTANT INFORMATION ON THE PRODUCT BATTERY

Do not store the device without charging it. Failure to do so may irreversibly damage the capacity of the battery. Recharge the battery completely every TWO months.

IMPORTANT INFORMATION ON PRODUCT WATERPROOFING

The external unit (control unit), mated to the connector on the audio kit, is classied IP67 as per the IEC60529 standard, when

used with the sealer provided in the package. Therefore, the control unit, when mated to the connector on the audio kit, may be submerged in a meter of freshwater for a maximum of 30 (thirty) minutes.

Despite this classiﬁcation, the device is not immune to greater stresses, such as prolonged immersion or high-pressure jets of water.

Using the device in conditions of bad weather, at high speeds, may be equivalent to subjecting it to a high-pressure jet of water.

FOLLOW THESE SUGGESTIONS CAREFULLY TO PREVENT DAMAGE TO THE DEVICE:

Do not immerse the device in freshwater over one metre deep for more than 30 minutes.

Do not store the device when it is wet: dry it with a clean, soft cloth. Dry any water or moisture in the control unit

connector and/or the audio kit connector by applying warm air for at least 10 minutes. This will keep the contacts from corroding.

Keep the device away from salt water, ionised water, beverages and other liquids. If the device is exposed to liquids other than freshwater, wash it with cold, freshwater and dry it carefully with a clean, soft cloth.

Keep the device away from high-pressure jets of water.

Be sure to reapply the sealer supplied in the package if the sealer disappears when the device is used for a prolonged period of time.

Be sure the connector on the audio kit is inserted into the control unit completely. Otherwise, complete

protection against water and dust is not guaranteed.

NOTE

For excellent waterprooﬁng, apply a thin layer of silicone on the parts highlighted in the image below.

Via Lambrakis, 1/A -42122 Reg gio Emilia - Italy

tel +39 0522 33 40 02 - fax +39 0522 33 40 01

www.interphone.com

ISTRINTERPHFBEAT
