Page 1

User’s Manual

EasyCoder

7421

P/N 066386-002

™

EasyCoder

7421 Printer

Page 2

Intermec Technologies Corporation 6001 36th Avenue West P.O. Box 4280 Everett, WA 98203-9280

U.S. technical and service support: 1.800.755.5505 U.S. media supplies ordering information: 1.800.227.9947

Canadian technical and service support: 1.800.687.7043 Canadian media supplies ordering information: 1.800.267.6936

Outside U.S. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

The word Intermec, the Intermec logo, JANUS, IRL, TRAKKER, Antares, Adara, Duratherm, EZBuilder, EasyCoder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are trademarks of Intermec Corporation.

Throughout this manual, trademarked names may be used. Rather than put a trademark ( or ) symbol in every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement.

The software contained in the 7421 Printer and the accompanying materials are copyrighted. Unauthorized copying of the software, including software that has been modified, merged, or included with other software, or the written materials is expressly forbidden without the prior written consent of Intermec. All right, title, and interest in all copies of this software are and shall at all times remain the sole and exclusive property of Intermec. Customer may be held legally responsible for any copyright infringement that is caused or encouraged by its failure to abide by these terms.

Page 3

Contents

Before You Begin vii

Operating the Printer

Getting to Know Your Printer 1-3

Learning How to Operate the Printer 1-5

Loading Media Into the Printer 1-7

Inserting the Optional Memory Card 1-20

Warranty Information vii Safety Summary vii Warnings, Cautions, and Notes viii About This Manual ix

Understanding the Power Light 1-5 Using the Feed/Pause Button 1-6

Using the Peel-Off Option 1-7 Loading Fanfold Media 1-16

Configuring the Printer

Configuring the Printer 2-3

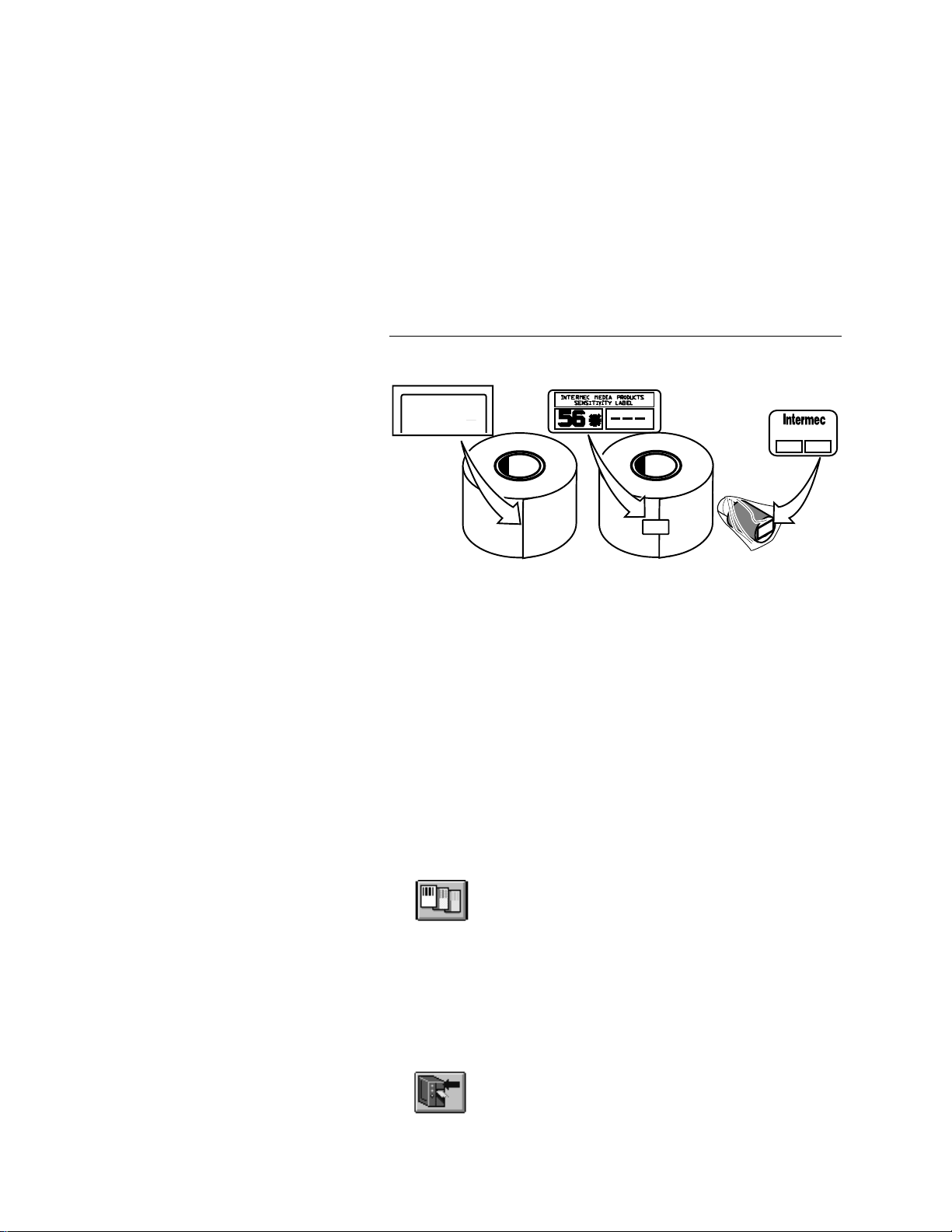

Setting the Media Sensitivity Number 2-3

Setting the MSN for Intermec Media and

Ribbon 2-5

Setting the MSN for Other Media and Ribbon

2-6 Adjusting the Print Darkness 2-8 Adjusting the Label Gap Sensor 2-9

Communicating With the Printer 2-10

iii

Page 4

Printing a Test Label 2-11

Using the Printhead Loading Modes 2-12

Maintaining the Printer

Maintenance Schedule 3-3

Tools for Cleaning the Printer 3-5

Cleaning the Printhead 3-6 Cleaning the Printer Covers 3-7 Cleaning the Drive Roller and Peel-Off Bar 3-8 Cleaning the Label Sensors 3-10

Troubleshooting

Troubleshooting Checklist 4-3

Printer Operation Problems 4-4

Print Quality Problems 4-5

Communication Problems 4-6

Using Data Line Print Mode 4-6 Preventing Data Loss 4-7 Resetting the Printer to Factory Defaults 4-8

Printer Specifications

Printer Specifications A-3

Printer Options A-5

Bar Code Symbologies Supported A-6

Page 5

Communications Reference

About Communications B-3

Serial Communication Protocols B-3

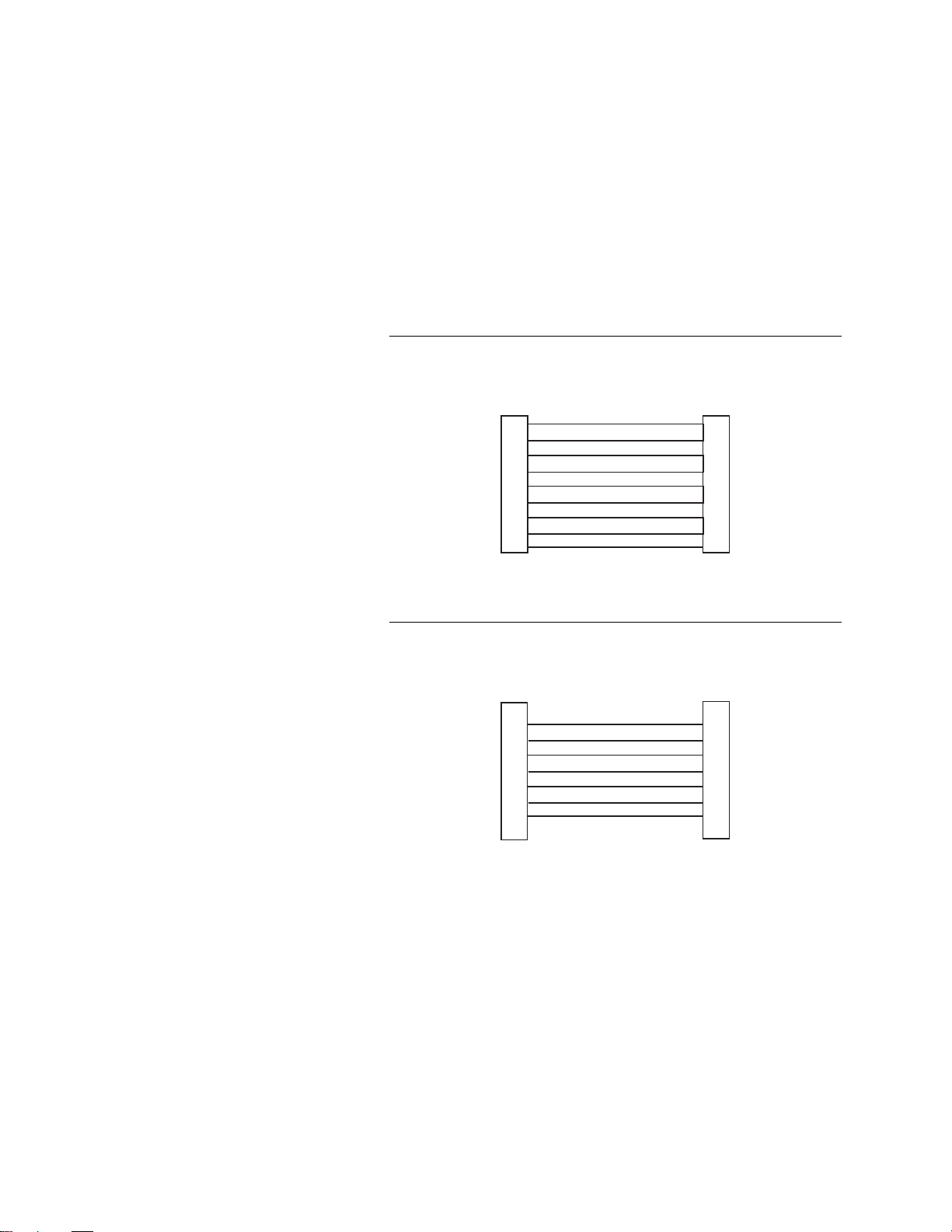

RS-232 Serial Interface B-8

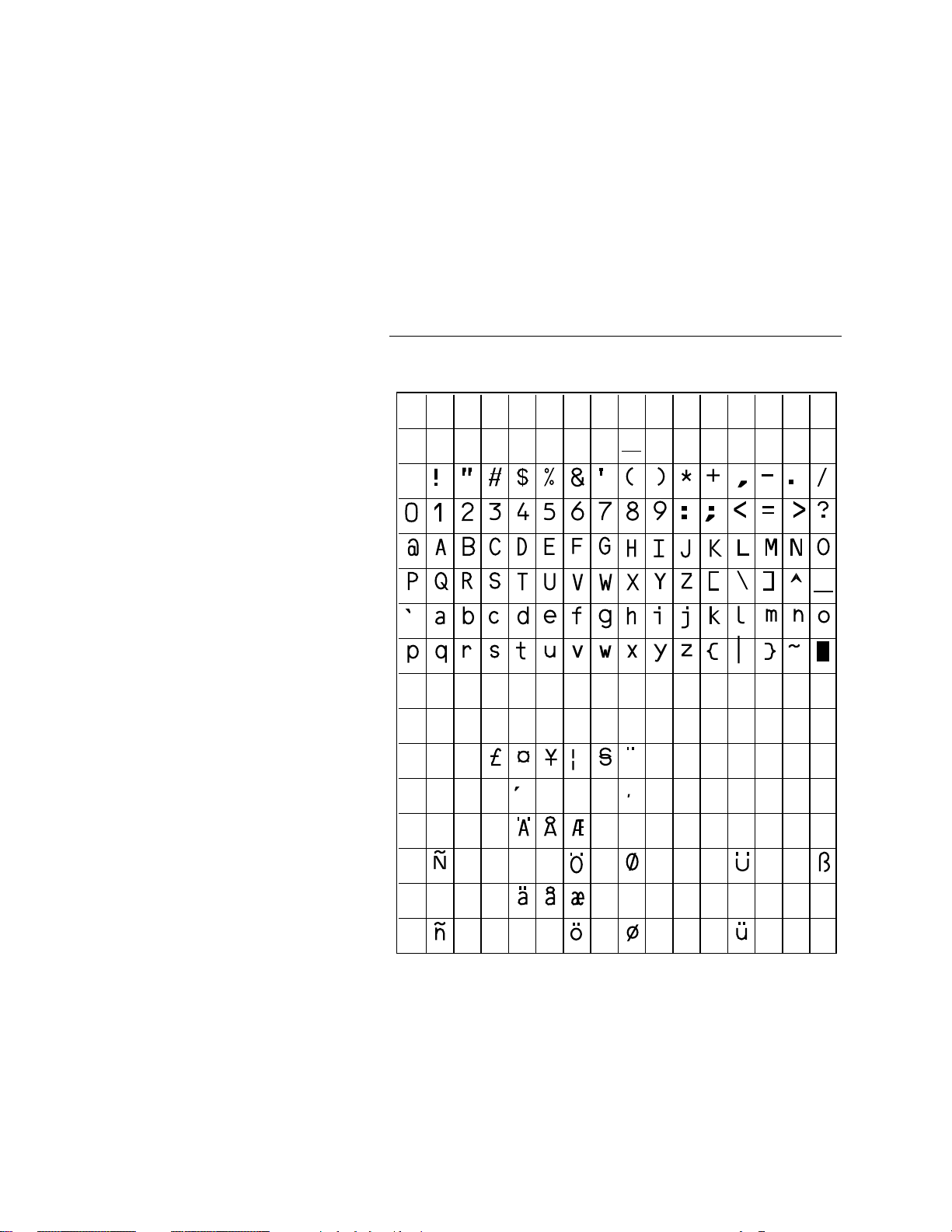

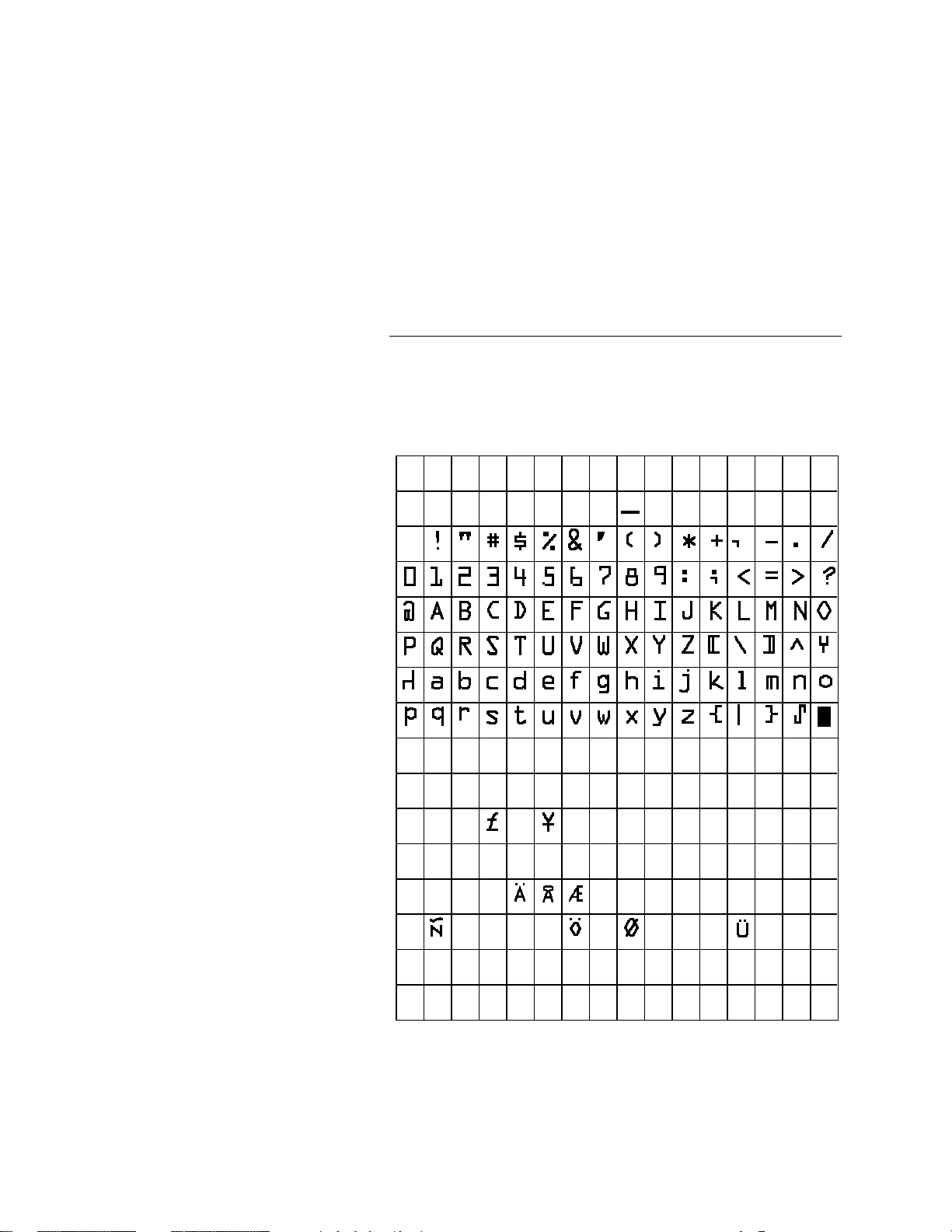

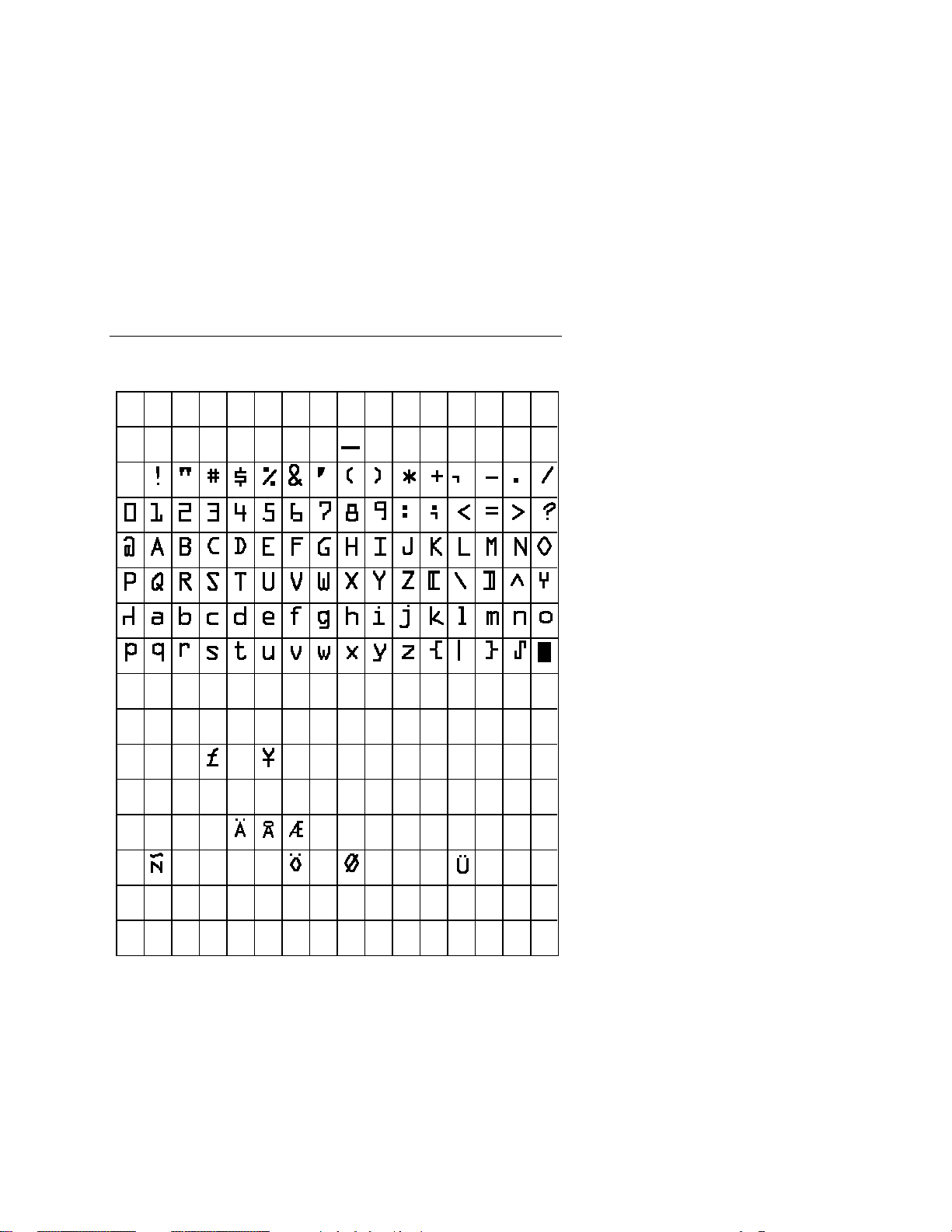

Character Sets

International Character Sets C-3

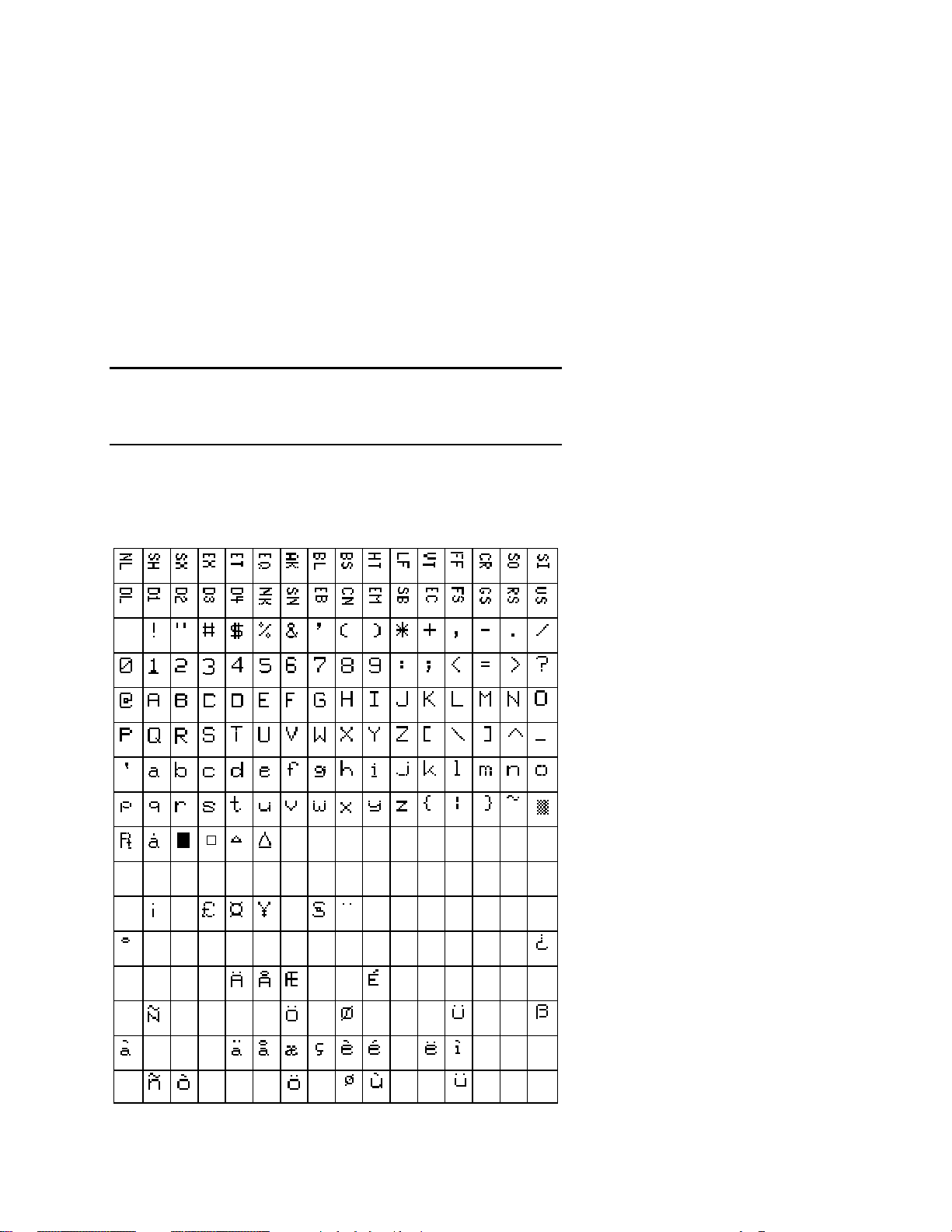

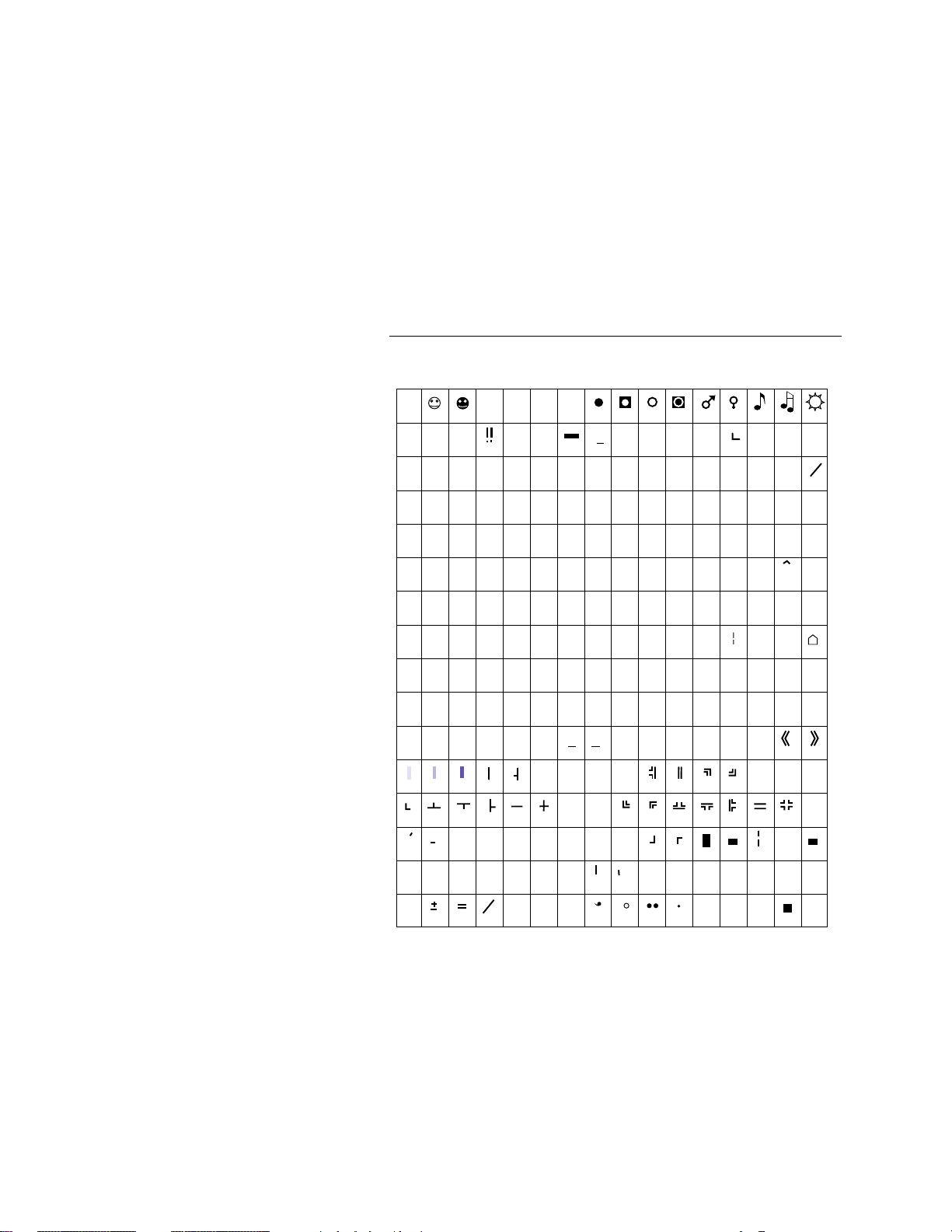

Extended Character Sets C-7

Index

Page 6

Page 7

Before You Begin

This section introduces you to standard warranty provisions, safety precautions, warnings and cautions, terms, and sources of additional product information. A documentation roadmap is also provided to help you find information.

Warranty Information

To receive a copy of the standard warranty provision for this product, contact your local Intermec sales organization. In the U.S. call 1.800.755.5505, and in Canada call 1.800.688.7043. Otherwise, refer to the Worldwide Sales & Service list that was shipped with this manual for the address and telephone number of your Intermec sales organization.

Safety Summary

Your safety is extremely important. Read and follow all warnings and cautions in this book before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

Do not repair or adjust alone Do not repair or adjust energized equipment alone under any circumstances. Someone capable of providing first aid must always be present for your safety.

First aid Always obtain first aid or medical attention immediately after an injury. Never neglect an injury, no matter how slight it seems.

Resuscitation Begin resuscitation immediately if someone is injured and stops breathing. Any delay could result in death. To work on or near high voltage, you should be familiar with approved industrial first aid methods.

Energized equipment Never work on energized equipment unless authorized by a responsible authority. Energized electrical equipment is dangerous. Electrical shock from energized equipment can cause death. If you must perform authorized emergency work on energized equipment, be sure that you comply strictly with approved safety regulations.

vii

Page 8

Warnings, Cautions, and Notes

jury

quip

The warnings, cautions, and notes in this manual use these formats.

Warning

A warnin

rocedure, practice, condition, or statement that must be strictl death or serious in workin

Avertissement

Un avertissement vous alerte d’une

rocédure de fonctionnement, d’une méthode, d’un état ou d’un ra strictement res de mort ou de blessures manupulant l’équipement.

Caution

A caution alerts

rocedure, practice, condition, or statement that must be strictl e corru

warns you of an operatin

observed to avoid

to the persons

on the equipment.

ort qui doit être

ecté pour éviter l’occurrence

raves aux personnes

ou to an operatin

observed to prevent

ment damage or destruction, or

tion, or loss of data.

Conseil

Une

récaution vous avertit d’une procédure

onctionnement, d’une méthode, d’un état ou d’un ra res

ecté pour empêcher l’endommagement ou la destruction de l’é l’altération ou la perte de données.

Notes: Notes are statements that either provide extra information

about a topic or contain special instructions for handling a particular condition or set of circumstances.

ort qui doit être strictement

ement, ou

viii

Page 9

About This Manual

This manual contains all of the information necessary to operate, configure, maintain, and troubleshoot the 7421 bar code label printer. This manual was written for all users who need to know how to use the printer to print labels.

What You Will Find in This Manual

This table summarizes the information in each chapter of this manual:

For Information On Refer To

Operating the printer Chapter 1, “Operating the Printer.”

Explains the printer front panel, tells you how to load media for self-strip, load fanfold media, and insert the optional memory card.

Configuring the printer Chapter 2, “Configuring the Printer.”

Explains how to configure the printer for optimal performance. You will learn how to set the media sensitivity number, the print darkness, adjust the label sensors, and print a test label.

Routine maintenance Chapter 3, “Maintaining the Printer.”

Shows how to maintain the printer.

Troubleshooting Chapter 4, “Troubleshooting.” Instructs

how to clear error messages and troubleshoot programming or configuration problems.

Printer specifications and options

Communications, printer protocols, and printer interfaces

Character sets Appendix C, “Character Sets.” Contains

Appendix A, “Printer Specifications.” Lists the specifications for the printer, the available options, and the supported symbologies.

Appendix B, “Communications Reference.” Defines the communications protocol and the interfaces that the printer uses to communicate.

tables for the character sets that your printer supports.

Page 10

Terms

Listed below are special terms used throughout the manual. “Printer” refers to the 7421 bar code label printer. “Media” is the general term used to describe the label stock (roll,

fanfold, or tag) on which the printer prints labels. “Label” refers to the individual labels of your media. “Host” refers to a personal computer or other computer that

communicates with the printer. A “symbol” or “bar code symbol” consists of alphanumeric

characters encoded in a bar code format.

Other Intermec Manuals

The following manuals provide additional information about printing labels with your bar code printer.

Intermec Part

Manual

EasyCoder 7421 Printer Setup Guide IPL Programming Reference Manual 9161B Installation Manual 9180 Network Controller User’s Manual Data Communications Reference Manual RF System User’s Manual The Bar Code Book

Number

066387 066396 049572 054292 044737 053574 051241

Page 11

Operating the Printer

Page 12

Page 13

This chapter introduces the 7421 printer and explains features and options that are not covered in the

Guide

EasyCoder 7421 Printer Setup

Getting to Know Your Printer

Features of your printer include:

• Support for either direct thermal or thermal transfer printing

applications.

• High resolution 203 dots per inch (dpi) printhead.

• Ability to store downloaded formats, fonts, or graphics in

removable memory cartridges.

• An easy to use software application called PrintSet. PrintSet

makes configuring your printer and printing a test label effortless. See the PrintSet online help for more information on how to use the application.

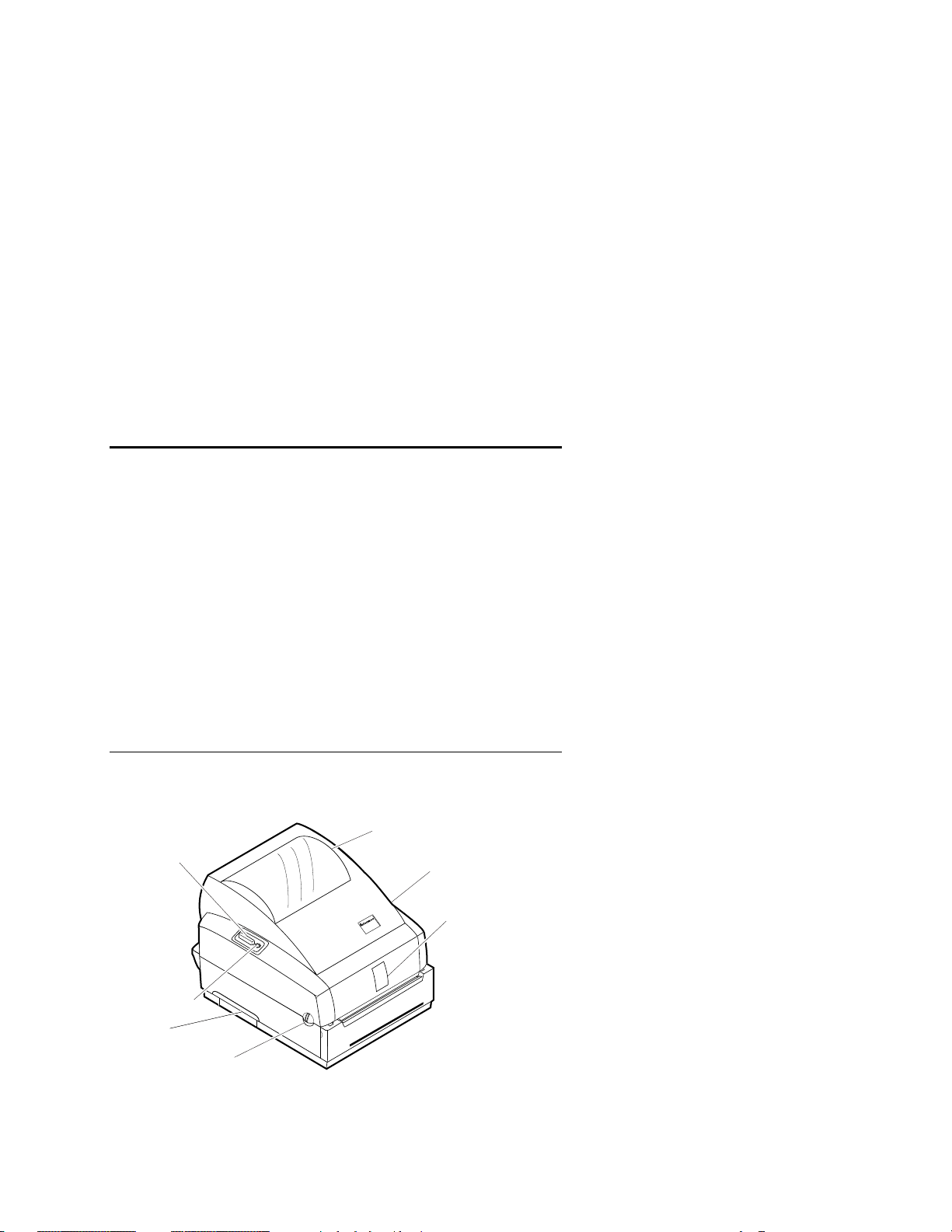

Use the following illustrations to familiarize yourself with your printer.

Front View

Feed/Pause button

Memory card slot cover

Power light

Cover release

Media window

EasyCoder

7422

Media cover

Label taken sensor

7421U.001

1-3

Page 14

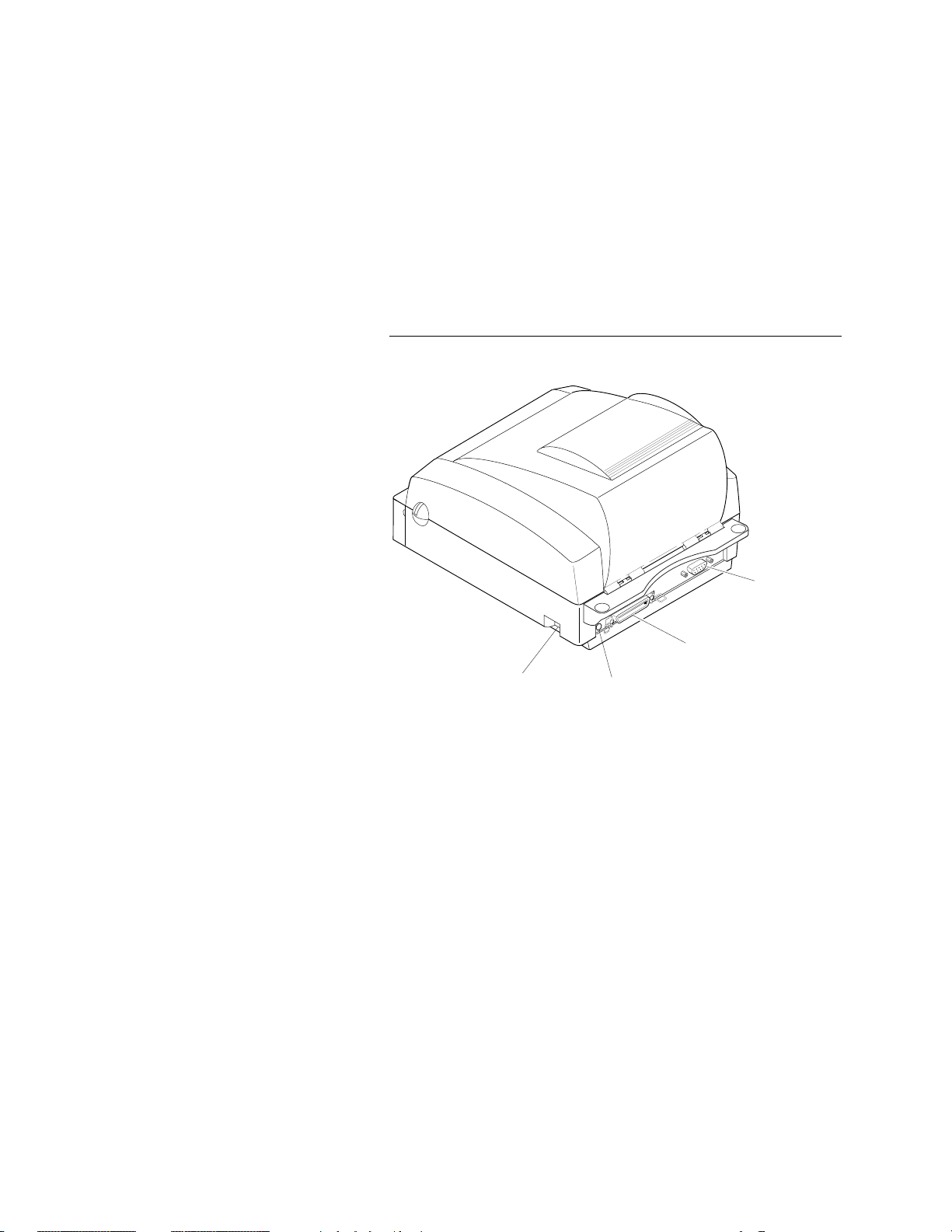

Back View

Serial communications port

Parallel

On/Off switch

Power cord connector

communications port

Several options are available for use with your printer. See Appendix A for complete descriptions of these options.

7421U.002

1-4

Page 15

Learning How to Operate the Printer

To operate the printer, you need to understand: Power light The Power light helps you determine when the

printer is on or off, or if there is a problem with the printer. Feed/Pause button The Feed/Pause button allows you to feed

out media, pause the printer, and print a hardware configuration label.

Understanding the Power Light

Use the Power light to monitor the status of the printer:

Light State Indication

Green Off

On Flashing

Red On

Flashing

Orange On

Flashing

Power off Power on Receiving data

System fault Over-temperature

Media fault Paused

Over-Temperature If the printer overheats, the Power light flashes red and the printer stops. Do not try to troubleshoot or adjust the printer—just allow it enough time to cool down and it will resume operation on its own.

Media or System Faults If the Power light turns red or orange and remains on, your printer is experiencing a media or system fault. For help, see Chapter 4, “Troubleshooting.”

1-5

Page 16

Using the Feed/Pause Button

The Feed/Pause button, located on the left side of the printer, performs these functions depending on the printer mode:

Printer Mode You Want To What to Do

Idle Feed out one label

or a minimum specified amount of media.

Continuously feed media.

Take the printer offline.

Printing Pause the printer. Press and release the Feed/Pause

Cancel the current print job.

Powered on for the first time

Print the hardware configuration label.

Print the software configuration label

Press and release the Feed/Pause button.

Press and hold the Feed/Pause button. When you release the button, the media stops feeding.

Press the Feed/Pause button twice. Press the button again to bring the printer online.

button. Press and release the button again to resume printing.

Press and hold the Feed/Pause button until the printer stops printing.

Press and hold the Feed/Pause button while you turn on the printer.

Press the Feed/Pause button after the hardware configuration label stops printing.

1-6

Print the pitch label.

Press the Feed/Pause button after the software configuration label stops printing.

Page 17

Loading Media Into the Printer

In addition to loading roll media in the printer, you can:

• Use the peel-off option.

• Load fanfold media.

You can load media with the printer power turned on or off. The following procedures for loading media assume that you have turned on the printer. Refer to the EasyCoder 7421 Printer Setup Guide for instructions on loading rolls of media.

Using the Peel-Off Option

Use the peel-off option in printing applications where you want to apply labels to a surface immediately. After printing a label, the printer presents the label with the backing removed.

Note: You should find a small label with a three-digit sensitivity number printed on it attached to your roll of media or a 15-digit number stamped on the side of the media roll. Save this information. You will need it to set the correct media sensitivity number. For help, see “Setting the Media Sensitivity Number” in Chapter 2.

Note: Intermec does not recommend using fanfold media with the peel-off option.

1-7

Page 18

To load labels using the peel-off option

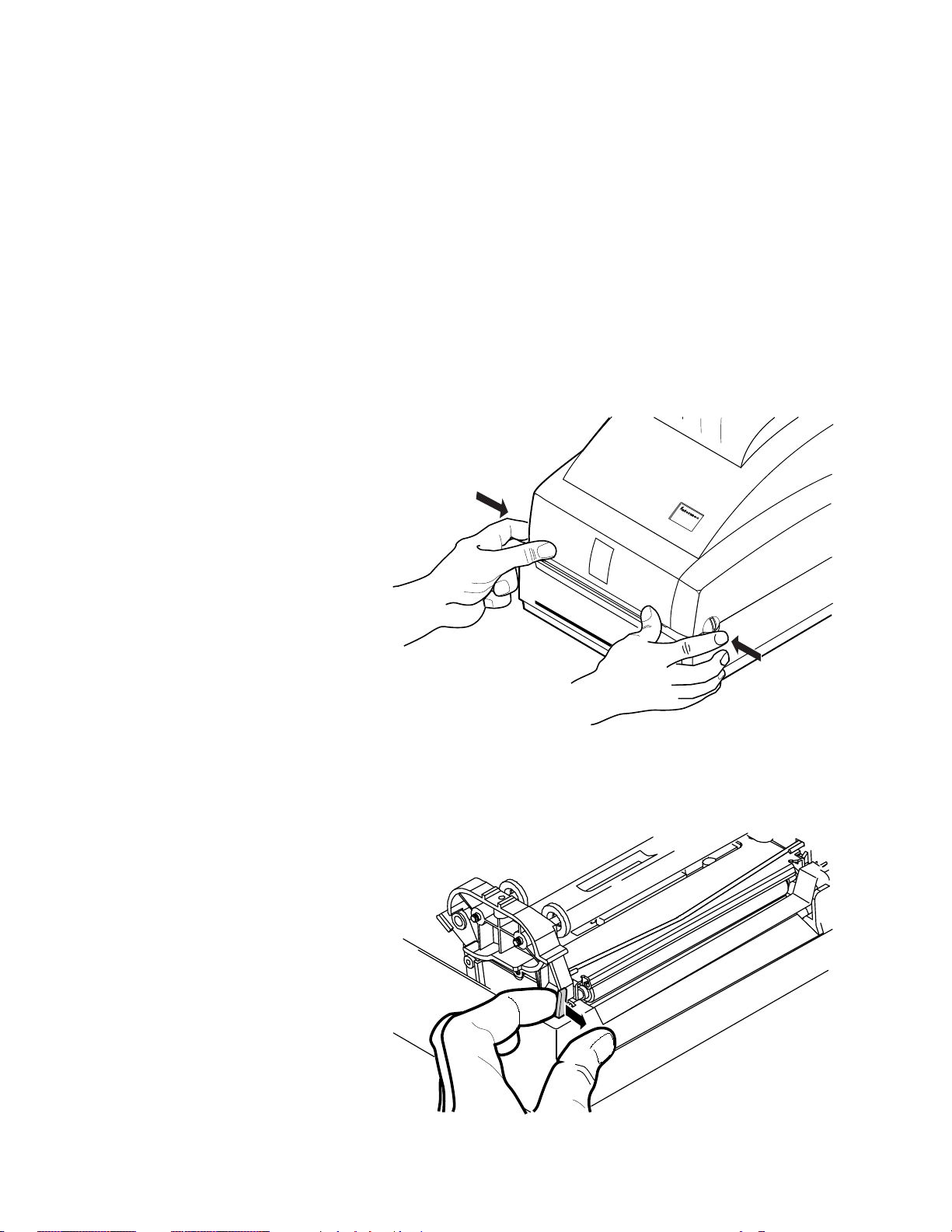

1. Open the top cover of the printer.

EasyCoder

7421

7421U.003

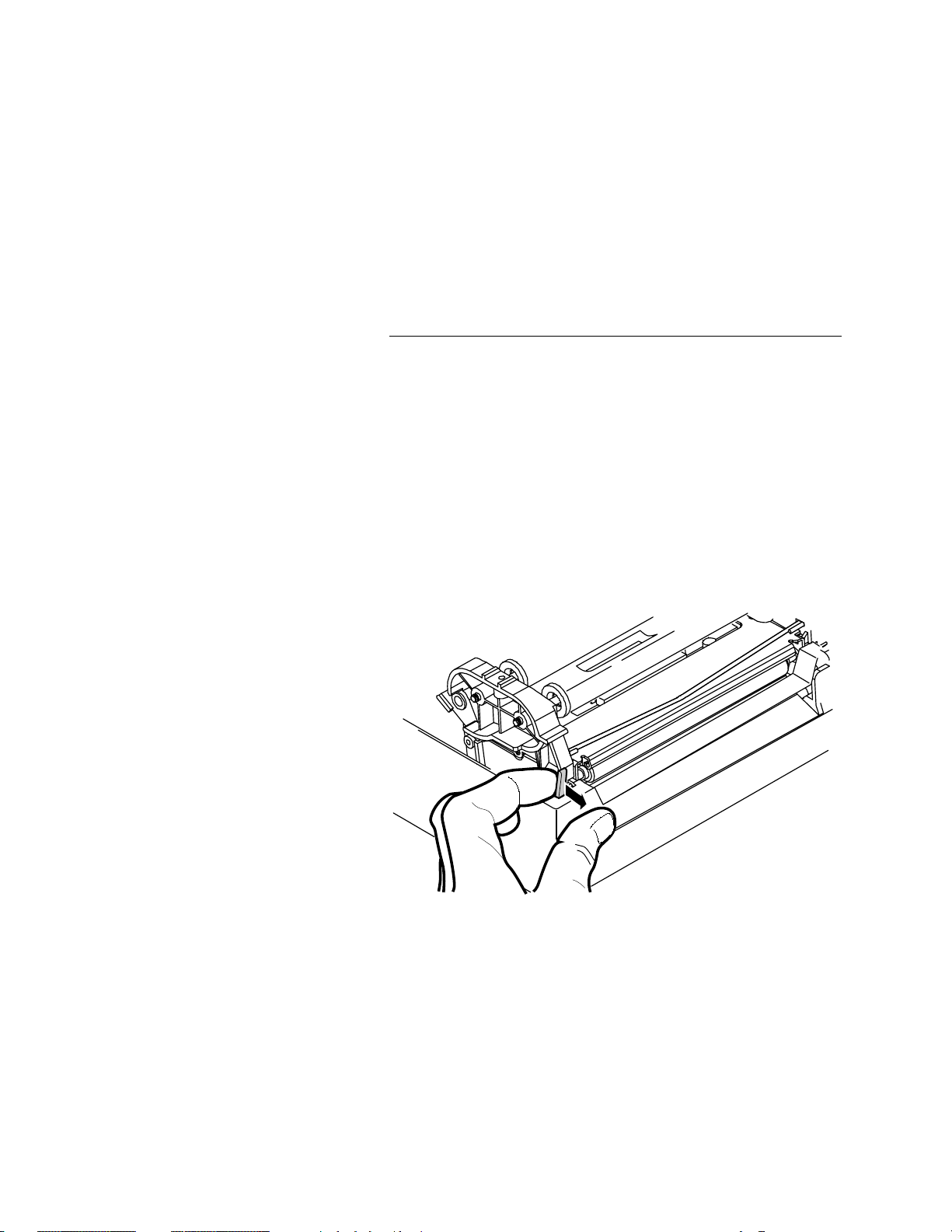

2. Open the printhead assembly by pulling the yellow release lever toward the front of the printer.

1-8

7421U.005

Page 19

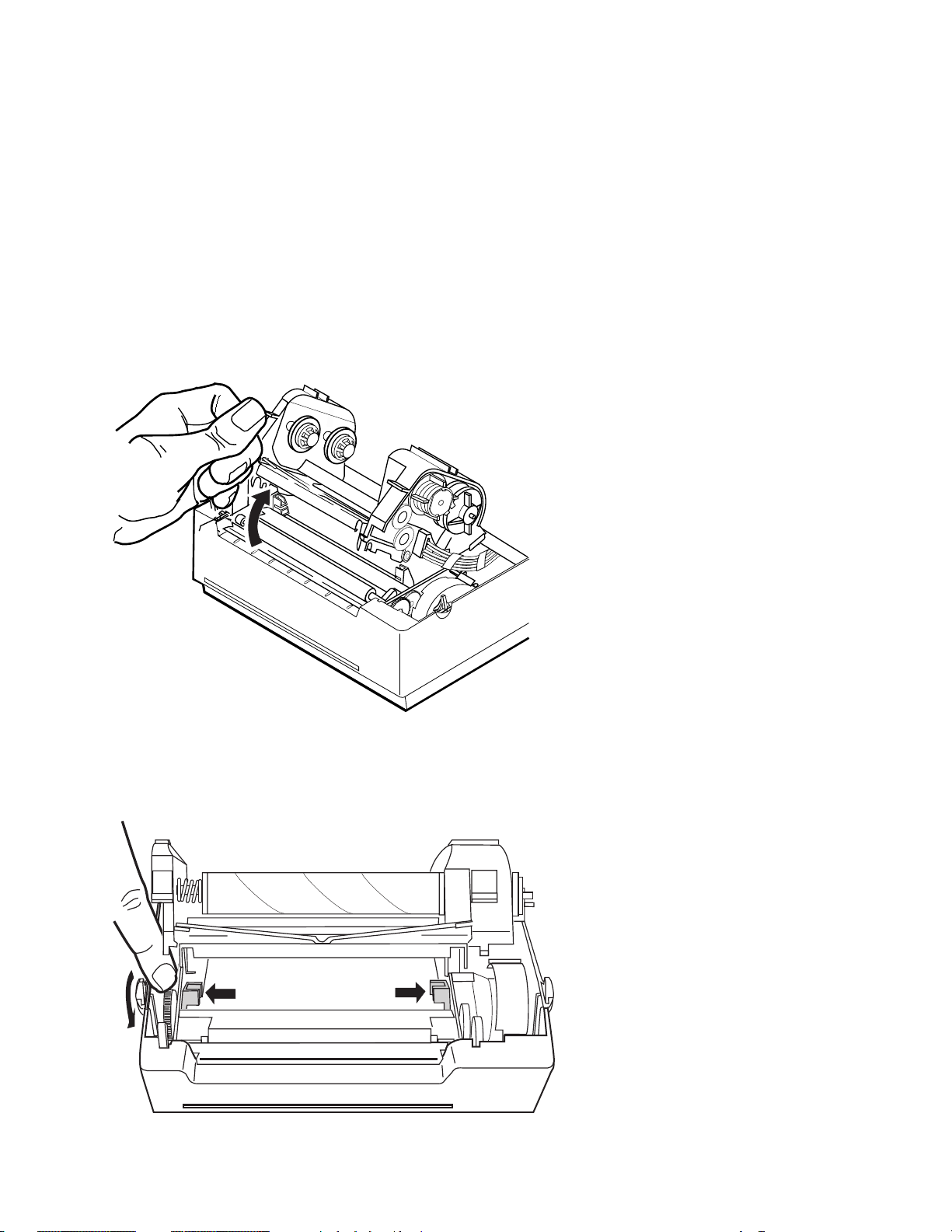

3. Lift the printhead up into the full open position.

7421U.006

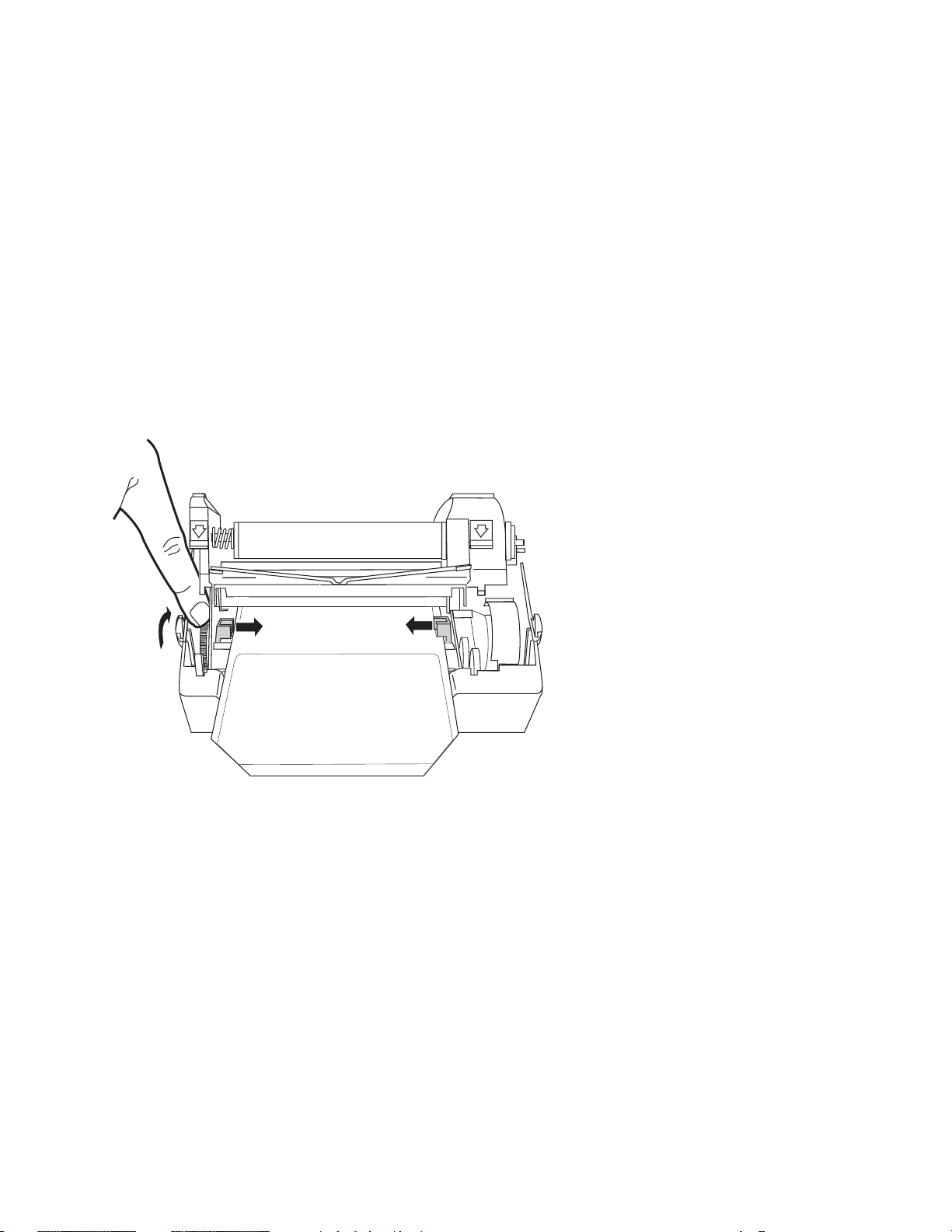

4. Adjust the guide tabs to their widest position by winding the yellow adjustment roller toward the front of the printer.

7421U.009

1-9

Page 20

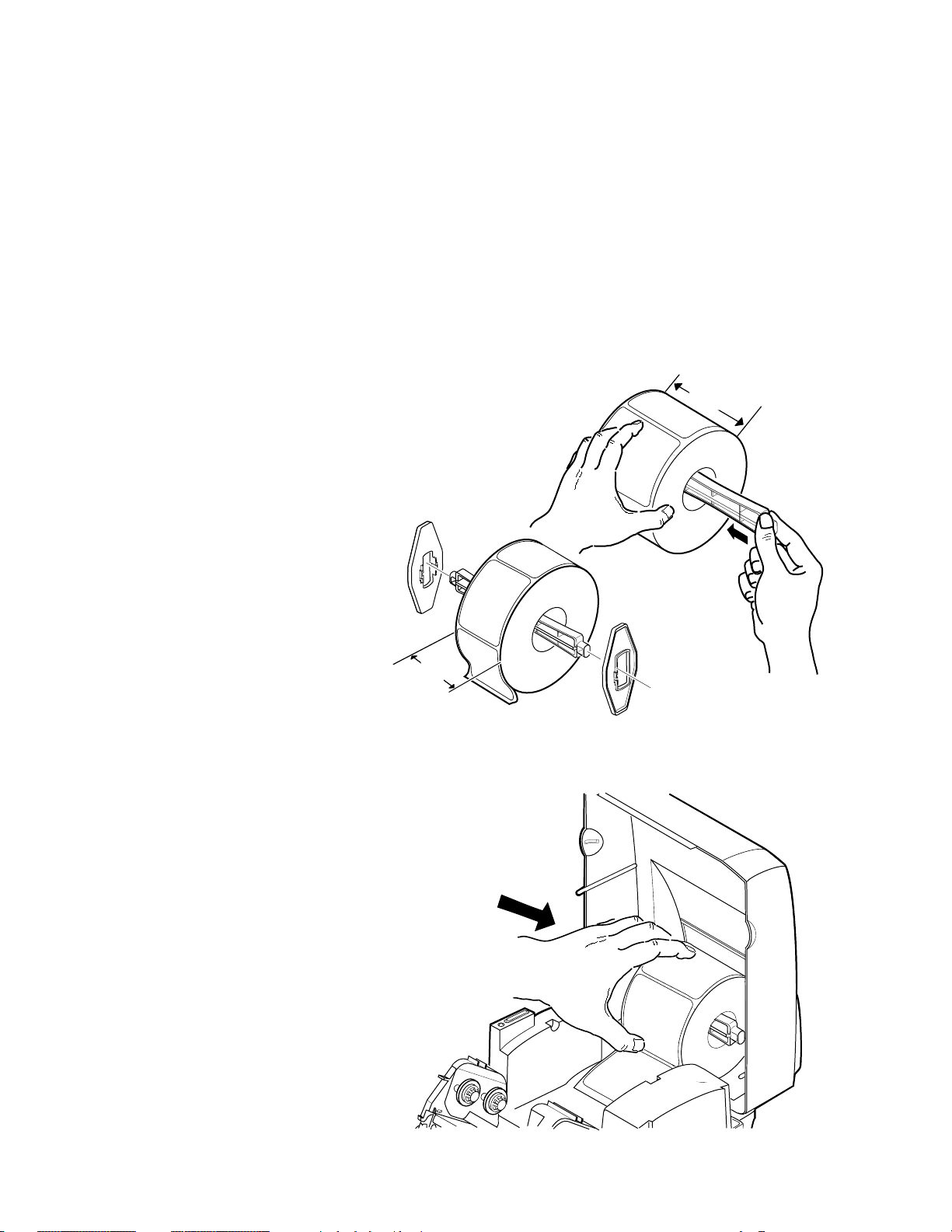

5. Insert the spindle into the roll of media.

(102mm)

<3.9"

(99mm)

7421U.011

6. Place the roll inside the top cover so that the end feeds from the top.

1-10

7421U.012

Page 21

7. Insert the end of the roll into the printer and out the front of the printer.

Note: It is easier to insert the media through the printer mechanism if you cut the corners off the end of the first label.

7421U.013

1-11

Page 22

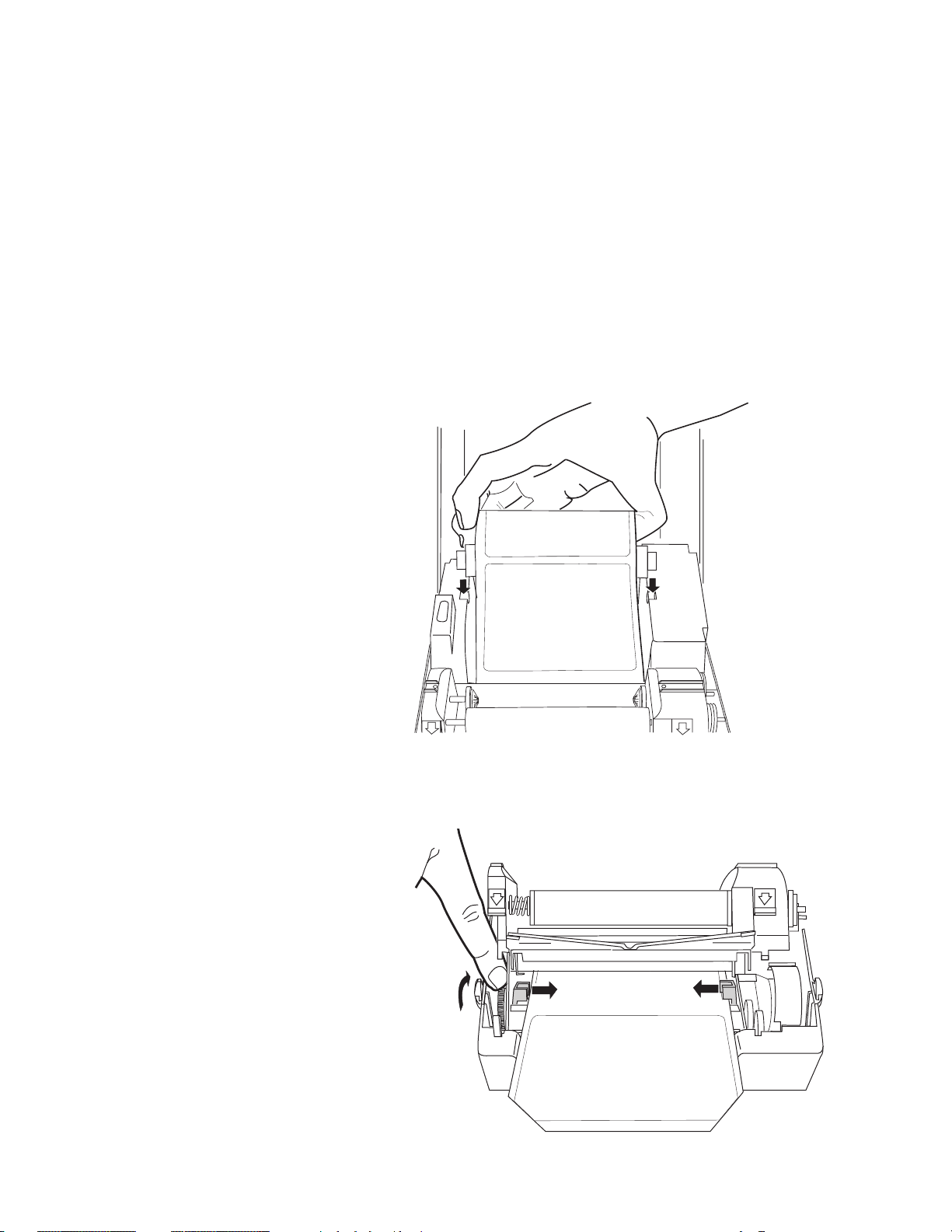

8. Rewind the excess paper onto the media roll while placing the spindle into the holder slots on the printer.

7421U.014

9. Center the labels in the printer path and adjust the label guides so that they just touch the edges of the label liner.

1-12

7421U.015

Page 23

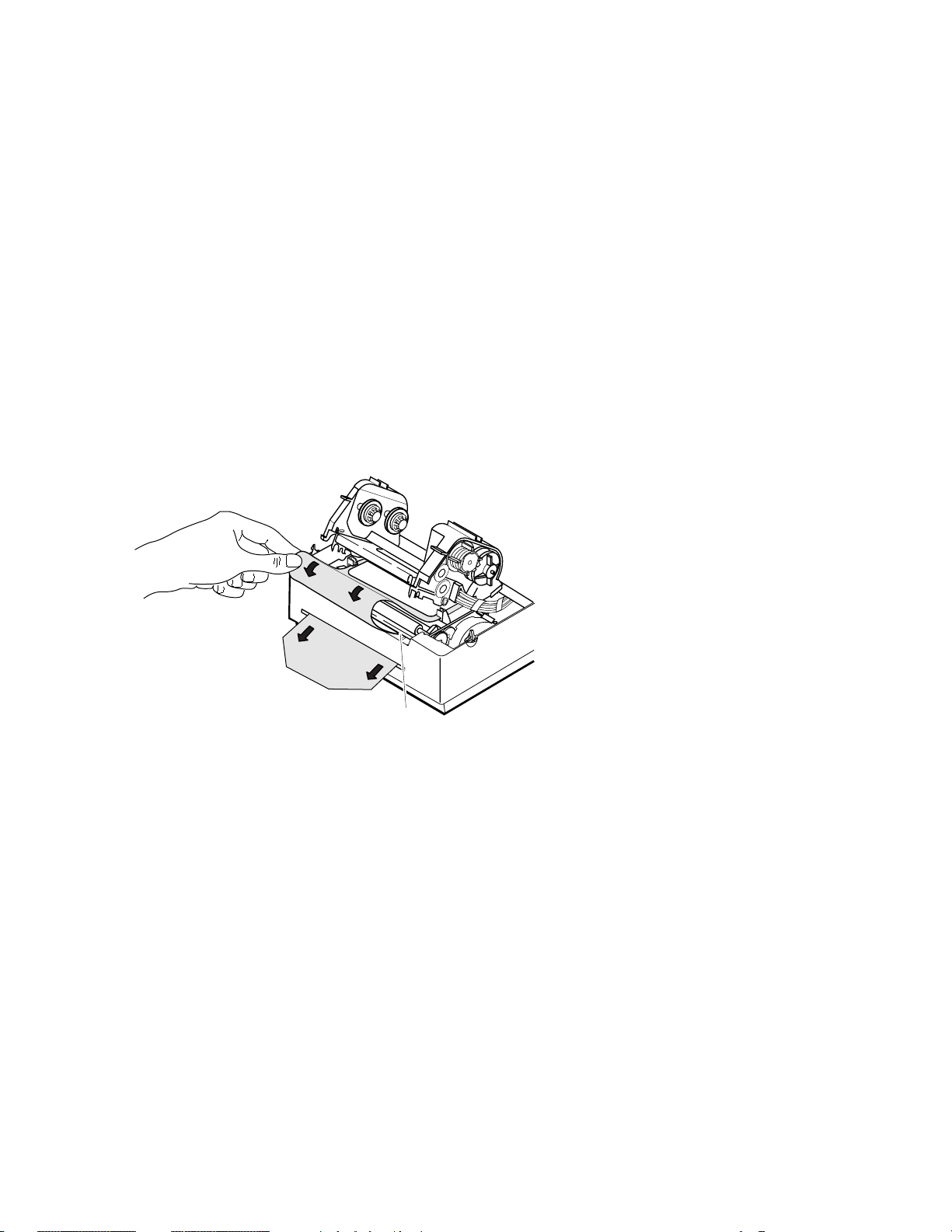

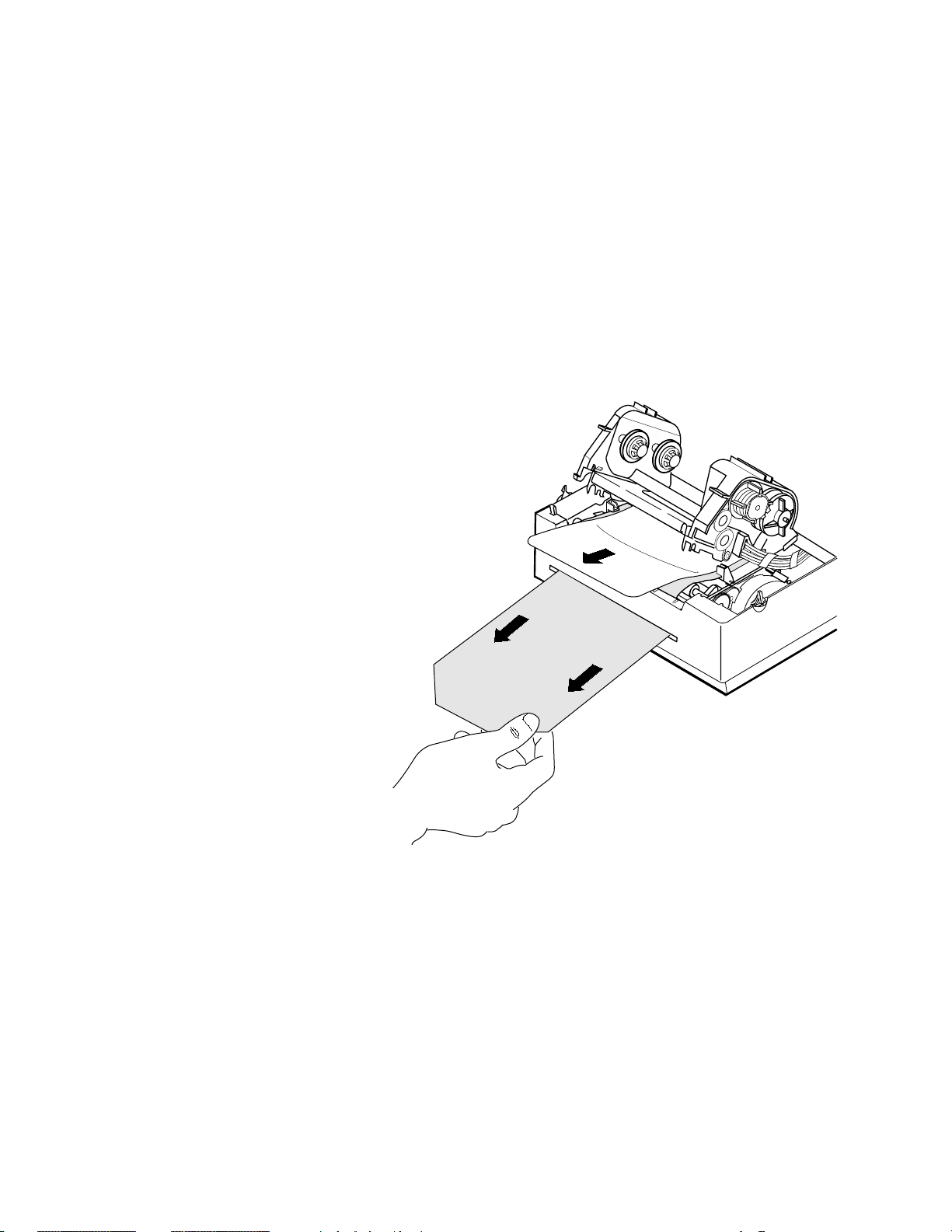

10. Pull the labels through the printer until at least two full labels (approximately 6 inches or 15 cm) are sticking out the front of the printer. Peel the first two labels from the label liner.

11. Insert the label liner between the front of the printer and the peel-off bar until the liner appears out the bottom slot.

Peel-off bar

7421U.016

1-13

Page 24

12. Pull the label liner out of the bottom slot until the liner is tight across the peel-off bar.

7421U.017

1-14

Page 25

13. Lower the printhead assembly and lock it into the operating position by pressing down firmly on both sides of the printhead. Lower the printer cover.

7421U.010

14. Activate the label taken sensor by pressing in on the top of the sensor. The printer is now ready for printing.

Label taken

sensor

EasyCoder

7422

7421U.018

1-15

Page 26

Loading Fanfold Media

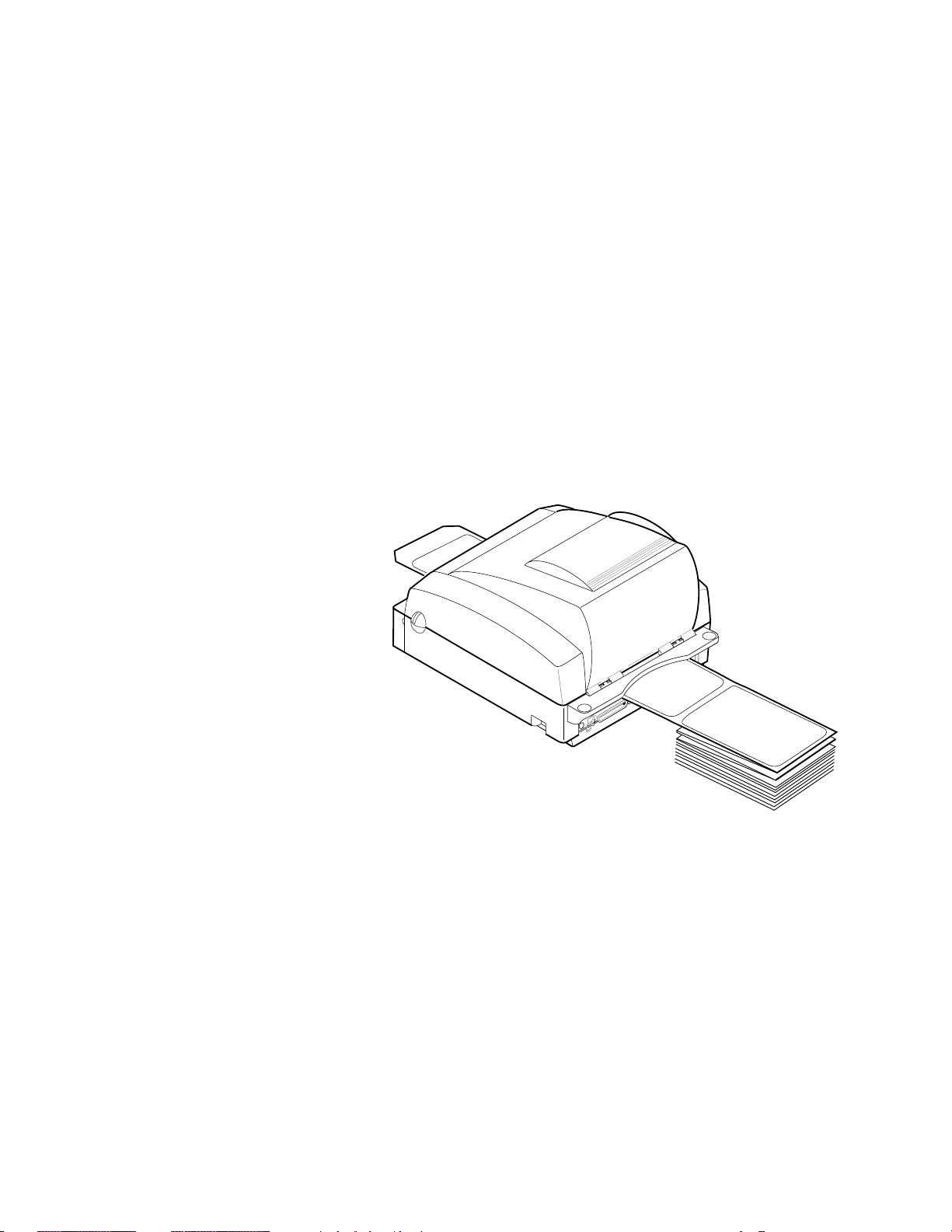

In fanfold printing, you place a stack of fanfold media at the rear of the printer and feed it into the printer through a slot in the rear cover.

To load media for fanfold printing

1. Open the top cover and remove the spindle from the printer. Save the spindle for use with roll media.

2. Open the printhead assembly by pulling the yellow release lever (on the left side of the printer) toward the front of the printer.

1-16

7421U.019

Page 27

3. Lift the printhead up into the full open position.

7421U.020

4. Adjust the guide tabs to their widest position by winding the yellow adjustment roller toward the front of the printer.

7421U.022

1-17

Page 28

5. Place the fanfold media slightly lower than the slot in the printer back cover and insert the media through the slot, into the printer mechanism, and out the front of the printer.

Note: It is easier to insert the media through the printer mechanism if you cut the corners off the end of the first label of the media. Note how the corners of the media have been cut in the illustration below.

1-18

7421U.023

Page 29

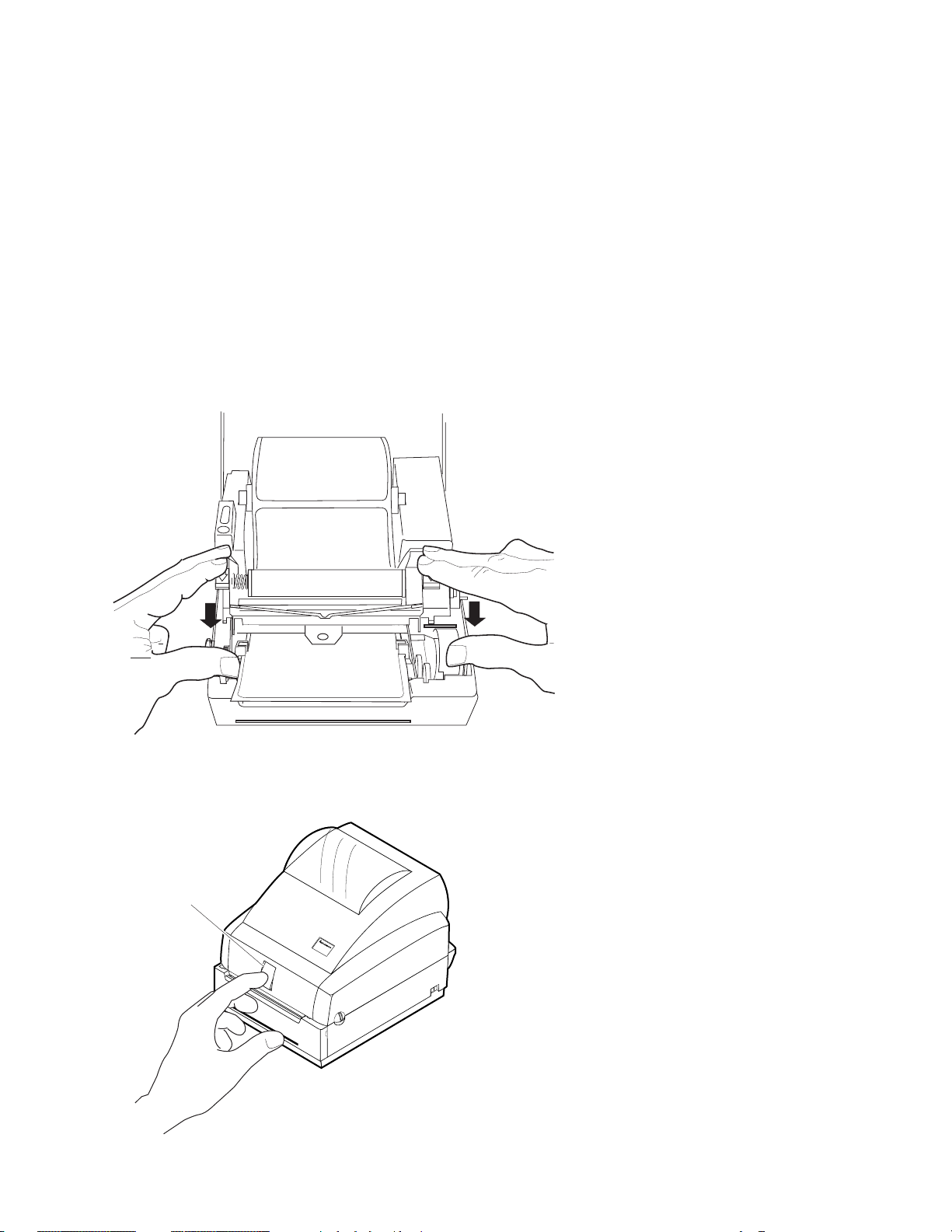

6. Center the labels in the printer path and adjust the label guides so that they just touch the edges of the label liner. Wind the yellow adjustment roller toward the rear of the printer.

7421U.015

7. Lower the printhead assembly and lock it into the operating position by pressing down firmly on both sides of the printhead. Lower the printer cover.

1-19

Page 30

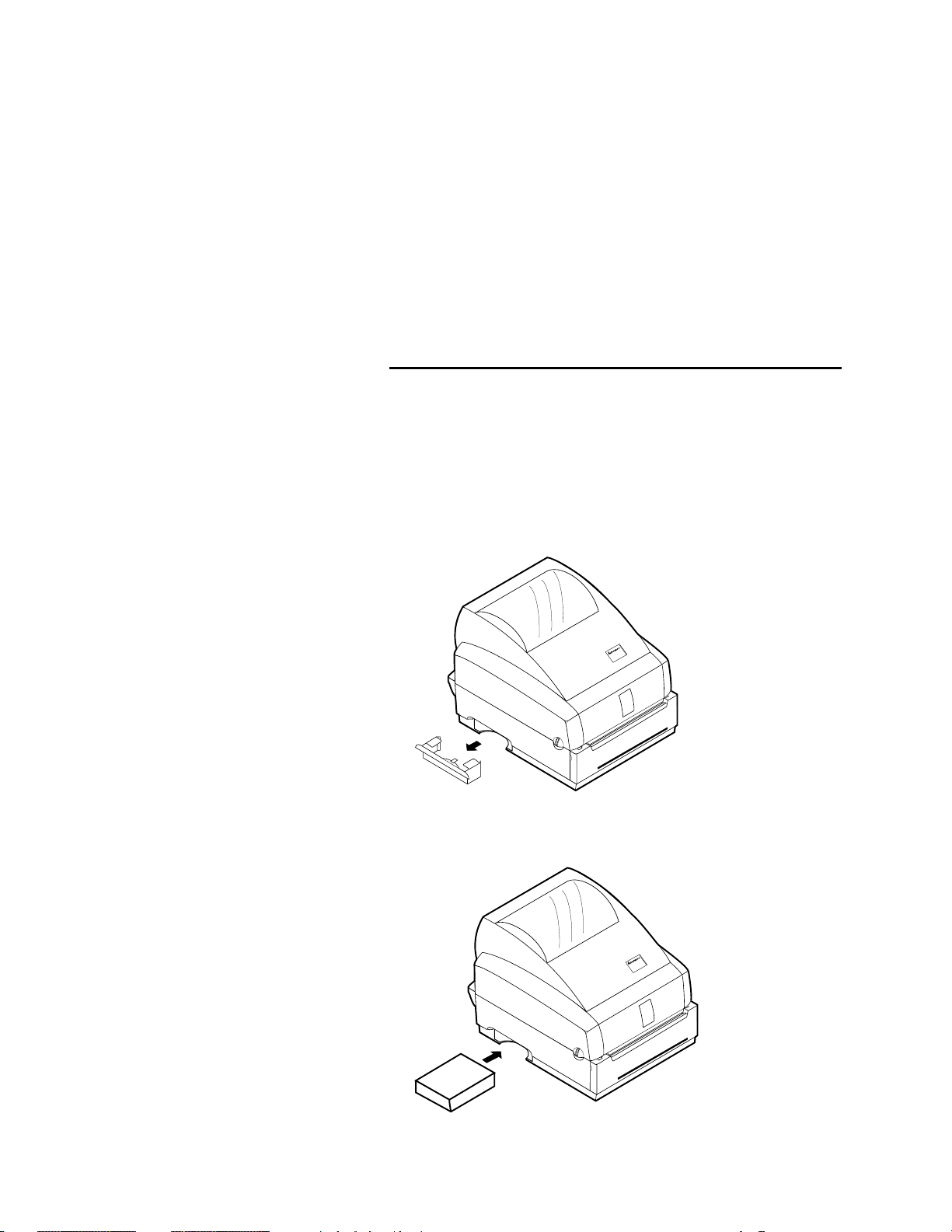

Inserting the Optional Memory Card

Use the optional memory card to store label formats, fonts, and graphics in permanent memory. To order a memory card, contact your Intermec representative.

To insert the optional memory card

1. Turn the printer power off.

2. Remove the memory card slot cover.

7422

EasyCoder

7421U.028

3. Insert the memory card, label side up, into the memory card slot. Push firmly to engage the memory card.

7422

EasyCoder

7421U.027

1-20

Page 31

Configuring the Printer

Page 32

Page 33

HelvC

NugFont

Co de 39

Use this chapter to learn how to configure your 7421 printer, communicate with a PC, and print a test label with PrintSet.

Configuring the Printer

You are now ready to configure the printer by downloading data from the host to the printer. For your printer to operate most effectively, you need to configure:

• the media sensitivity number

• the print darkness

• the label gap sensors

Setting the Media Sensitivity Number

Media sensitivity is important because you use it to optimize print quality. The three digit media sensitivity number (MSN) specifies the amount of heat required by the printhead to image a label. The amount of heat that each roll of media or ribbon requires is unique due to different chemistries and manufacturing processes.

Intermec has developed heating schedules (the amount of heat required to image a label) to produce the highest possible print quality for Intermec media and ribbon combinations on Intermec printers. Look for the three digit media sensitivity number on:

• the side of the media roll. Use the last three digits (140 in the

example) of the 15 digit number stamped on the roll for the media sensitivity number.

• a small label attached to the roll of media.

• a small label attached to the plastic bag of your ribbon roll.

Your label may be different from this example, but it will contain the media sensitivity number.

2-3

Page 34

HelvC

NugFont

Co de 39

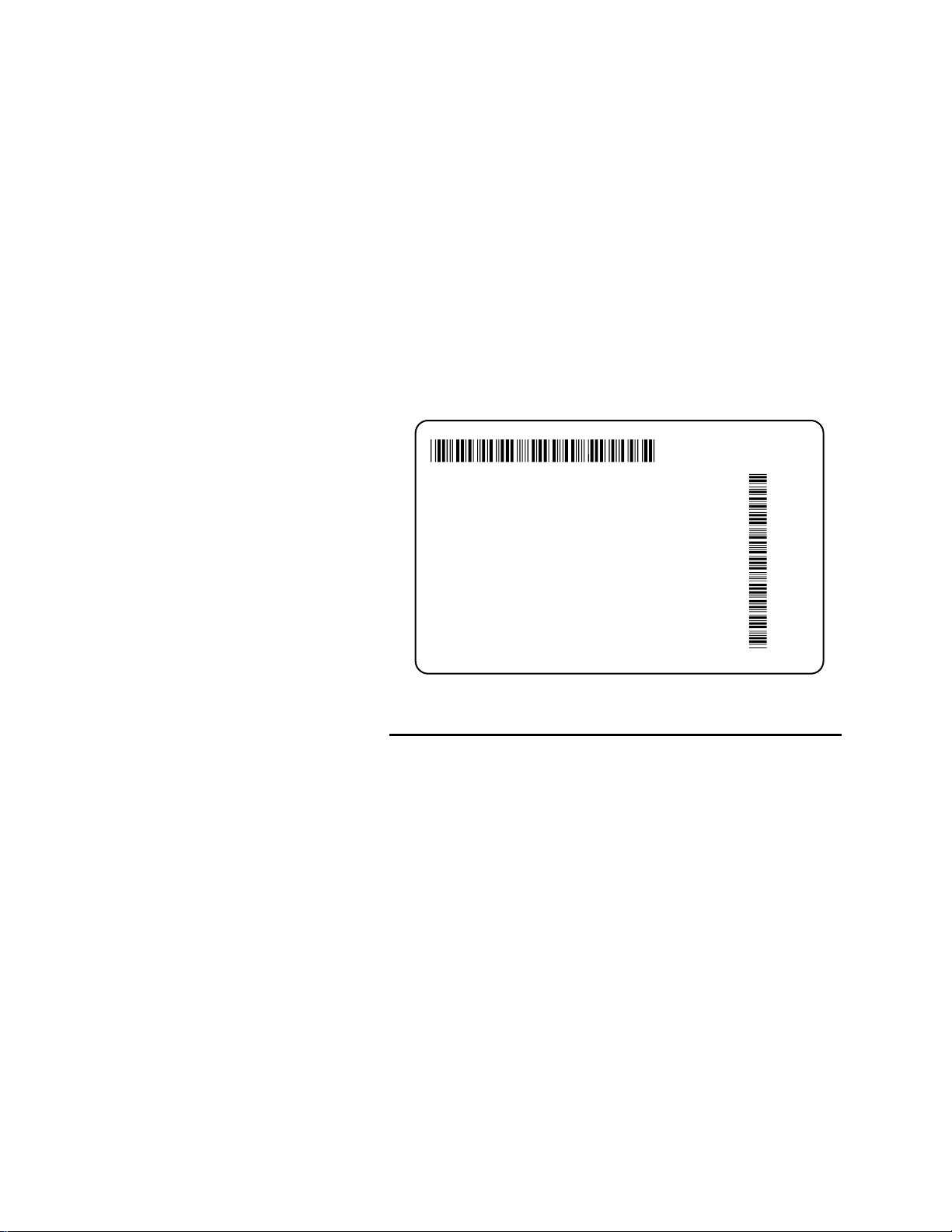

Finding Your Media Sensitivity Number

120066102605140

SENSITIVITY NUMBER

5✩7

120066102605140

7421U.030

Note: Some ribbon rolls have the media sensitivity number printed on the inside core.

Use this three-digit number to optimize print quality and print speed on your printer. You can achieve the best print quality on the printer by using only Intermec ribbon and media products. The default sensitivity setting for thermal transfer media is 567. For direct thermal media, the default sensitivity setting is 180.

To change the media sensitivity number with PrintSet

1. Start the PrintSet application software.

2. Click the Paper type button.

3. In the Print Quality Setup dialog box, enter your three-digit number in the Media Sensitivity Number field.

4. Click OK.

5. Download your change to the printer by pressing the button to send command updates to the attached printer.

2-4

Page 35

HelvC

NugFont

Co de 39

Setting the MSN for Intermec Media and Ribbon

For direct thermal media, use the three-digit media sensitivity number located on the roll of media to set the media sensitivity number. You can also use the values from the tables in the next section.

For thermal transfer media, you need to look in two places to determine the sensitivity number. The media sensitivity number on each roll of thermal transfer media or ribbon has an asterisk (*) in place of one of the digits. On thermal transfer media, the number contains the first and second digits, with an asterisk in place of the third digit. One the thermal transfer ribbon, the number contains the first and third digits, with an asterisk in place of the second digit.

To optimize the sensitivity number for thermal transfer media, you combine the digits like this:

Media or Ribbon Sensitivity Number Description

Thermal transfer media

Thermal transfer ribbon

56* The asterisk reserves the

third digit to identify the ribbon’s sensitivity number.

5*7 The asterisk reserves the

second digit to identify the media’s sensitivity number.

567

Optimal media sensitivity number

2-5

Page 36

HelvC

NugFont

Co de 39

Setting the MSN for Other Media and Ribbon

If you are not using Intermec media and ribbon, or if you misplaced your packaging with the three digit-sensitivity number label on it, you can set an approximate sensitivity number. The first column of the Direct Thermal and Thermal Transfer Media Sensitivity Settings tables list the approximate sensitivity settings. To achieve acceptable print quality, enter the three-digit media sensitivity number (for example, 600).

If you are unsure of how to set the media sensitivity number, start with the highest setting, which provides the lowest energy (600 for thermal transfer and 400 for direct thermal), and work your way down until you achieve the best print quality.

Direct Thermal Media Sensitivity Settings

Approximate Sensitivity Settings

400 Medium 470 Duratherm Lightning-2

100 Low 180 Duratherm II-1

Sensitivity Setting Direct Thermal Media

460 European IR 440 European Thermal

170 European Tag 160 Duratherm II Tag 140 European Top

2-6

Page 37

HelvC

NugFont

Co de 39

Thermal Transfer Media and Ribbon Sensitivity Settings

Approximate Sensitivity Settings

600 Medium 687 Duratran TTR Polyester/Premium-3 (Plastic) 683 Duratran TTR Polyester/Premium-2

Sensitivity Setting

677 Duratran Syntran/Premium-3/6 673 Duratran Syntran/Premium-2 637 European Polyethelene/Prem.-3/6 633 European Polyester/Premium-2 627 Duratran Kimdura/Premium-3/6 623 Duratran Kimdura/Premium-2

Thermal Transfer Media (Media/Ribbon Stock)

500 Medium 567 Duratran II-1/Premium-3/6 (Paper) 563 Duratran II-1/Premium-2

557 Duratran 5 mil Tag/Premium-3/6 553 Duratran II Tag-5 mil/Premium-2 537 European Tag/Premium-3/6 533 European Tag/Premium-2 527 Duratran II Tag-7 mil/Prem.-3/6 523 Duratran II Tag-7 mil/Premium-2 517 European Coated/Premium-3/6 513 European Coated/Premium-2

300 Low (Plastic)

366 Super Premium Polyester/Super

Premium-1

2-7

Page 38

HelvC

NugFont

Co de 39

Adjusting the Print Darkness

Use the print darkness adjust to fine-tune the darkness of print on your labels. The fine adjustments compensate for variations in the media (“lot to lot”), the printhead, or the printer. The darkness adjustment is similar to the dark adjust available on a copier. An increase in print darkness increases the energy to the printhead and results in darker print. A decrease in print darkness decreases the energy to the printhead and results in lighter print.

Set the darkness after you enter the media sensitivity number. You can adjust the print darkness from + 10 to -10.

To adjust the print darkness with PrintSet

1. Start the PrintSet application software.

2. Click the Paper type button.

3. In the Print Quality Setup dialog box, adjust the Print Darkness slider bar until the setting that you want appears underneath it.

4. Click OK.

5. Download your change to the printer by pressing the button to send command updates to the attached printer.

2-8

Page 39

HelvC

NugFont

Co de 39

Adjusting the Label Gap Sensor

The label gap sensor detects the gap between labels while they are being printed. The gap sensor automatically calibrates itself when you first turn on power to the printer. This adjustment compensates for manufacturing differences in label stock that may make it difficult for the gap sensor to detect the gap between labels.

To adjust the label gap sensor

1. Turn the printer power off.

2. Turn the printer power on.

The printer Power light flashes yellow and the printer advances to the next label. When the label gap sensor adjustment is complete, the Power light stops flashing and turns green.

2-9

Page 40

HelvC

NugFont

Co de 39

Communicating With the Printer

Downloading is the universal term used to describe the transfer of information from the host to any connected peripheral device, such as your printer. When you transfer data from your printer to the PC or host, you are performing a process called uploading.

You can use several methods to download information to your printer. Use these products to communicate with your printer:

PrintSet Application Software Use the PrintSet application software to easily configure your printer from your PC. You can upload the current configuration settings, modify them, and then download them to your printer. PrintSet also lets you:

• download graphics and fonts.

• print test labels using resident fonts, user-defined bitmap

graphics, or resident bar code symbologies.

• allocate printer memory.

• download configuration files to multiple printers.

For help using PrintSet, refer to the online help portion of the application software.

Intermec Printer Language (IPL) Commands You can create labels by downloading formats (designs) and data with IPL commands. You can use the printer IPL commands to perform functions and activate features of the printer. See the IPL Programming Reference Manual for more information.

Third-Party Software You can use third-party software to set many of the printer parameters. You can use PrintSet or the IPL command set to configure the parameters that your software does not set.

Use your third-party software to create label formats and convert graphics into a user-defined character (UDC) format that the printer can interpret.

Printing a Test Label

If you would like to test your communications by downloading a label, follow the example below. Use the PrintSet application software to send a test label to the printer.

2-10

Page 41

HelvC

To print the test label

1. Start the PrintSet application software.

2. Click the Test Print button:

3. Select the Test Label option button.

NugFont

Co de 39

4. Select either the Text or the Bar Code option button. If you select text, you can choose any font in the Select Printer

Font list box. If you select bar code, you can choose any symbology in the

Select Symbology list box.

5. Click the Print button. Your 7421 printer prints out a test label.

2-11

Page 42

HelvC

NugFont

Co de 39

For example, if you choose to print a bar code with the Code 39 symbology, your printer prints out a label similar to this one:

*0123456789*

7421U.031

Using the Printhead Loading Modes

You can use two different printhead loading modes with the 7421 printer: Mirror Printing mode or Inverse Printing mode.

If you select Mirror Printing mode, the printer reverses the order of the data that is loaded into the printhead.

If you select Inverse Printing mode, the printer inverts all pixels in an image before it sends the data to the printhead. Only use Inverse Printing mode to print a small area of a label.

Note: Intermec does not recommend using Inverse Printing mode for printing multiple labels. The printhead is not covered under warranty if you use Inverse Printing mode for printing multiple labels.

2-12

Page 43

HelvC

To select Inverse or Mirror Printing mode

1. Start the PrintSet application software.

2. Click the Paper Handling button.

3. Select either the Enable Inverse Printing or the Enable Mirror

NugFont

Printing check box.

Co de 39

4. Click OK.

5. Download your change to the printer by pressing the button to send command updates to the attached printer.

2-13

Page 44

HelvC

NugFont

Co de 39

Page 45

Maintaining the Printer

Page 46

Page 47

This chapter contains cleaning procedures and a schedule detailing how often to perform maintenance procedures. You must clean the 7421 printer on a regular basis to keep it running at its highest performance level.

It is very important to perform the maintenance procedures if you expose the printer to dirt or debris.

Maintenance Schedule

Clean your printer regularly to maintain the print quality of your labels and extend the life of your printer. This table contains suggestions for cleaning the printer. Use the following illustration to locate the parts you need to clean.

Printer Component Maintenance Period

Printhead Inspect after every roll of media or ribbon.

Clean after every roll (1,800 inches or 46 m) of media or more often if necessary.

Printer Cover Clean as necessary.

Drive roller and peel-off bar

Label gap sensor

Label mark sensor

Label taken sensor

Clean after every five rolls of media. If you are using hi-tack adhesive, you must clean these parts after every roll of media. If you are using tag stock or continuous media, you may want to clean the parts after every five rolls of media or as necessary. Clean these parts more often in environments that are harsh or dusty.

3-3

Page 48

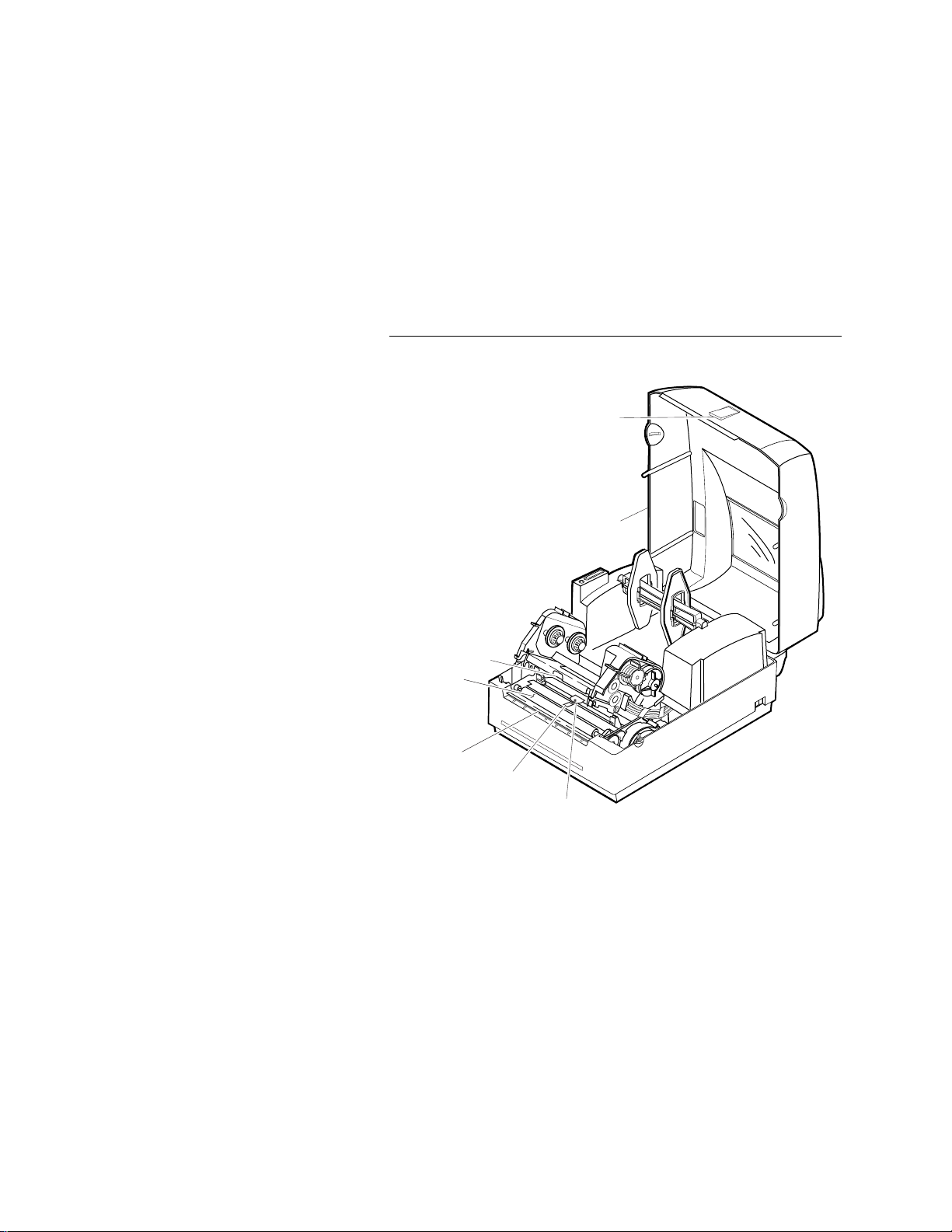

Locating the Printer Parts You Need to Maintain

Label taken sensor

Printer cover

Printhead

Drive roller

Peel-off bar

Label mark sensor

Label gap sensor

7421U.033

3-4

Page 49

Tools for Cleaning the Printer

To clean the printer safely and effectively, use the following items:

• Isopropyl alcohol

• Cotton swabs

• Clean lint-free cloth

• Soapy water/mild detergent

The following procedures explain how to access the printer parts and clean them without causing any harm to the printer or yourself.

Warning

Switch o

ower cord before cleaning any part of the rinter.

Avertissement

Mettez l’im le câble d’alimentation avant de netto parte de l’imprimante.

the printer power and remove the

rimante hors tension et débranchez

er une

3-5

Page 50

Cleaning the Printhead

propy

ge prop

In order for the printhead to provide good print quality, it must maintain close contact with the media. Therefore, cleaning media debris from the printhead is very important. Clean the printhead after every roll (1,800 inches or 46 m) of media or when necessary.

Caution

Do not use shar screwdrivers to scra Cleanin

rinthead. Clean with only a cotton swab, or a clean, lintiso

Conseil

N’utilisez ou tournevis Netto la tête d’im avec de la ouate ou avec un lin de d’isopropyl.

with sharp objects will damage the

l alcohol.

er avec des objets pointus endommagera

eluches, humecté avec de l’alcool

objects such as knives or

e the printhead clean.

ree cloth or tissue damp with

as d’objets pointus tels que couteaux

our nettoyer la tête d’imprimante.

rimante. Nettoyez-la seulement

re et libre

To clean the printhead

1. Turn the printer power off and remove the power cord.

2. Open the printer cover.

3. Open the printhead assembly by pulling the yellow release lever (on the left side of the printer) toward the front of the printer. Lift the printhead up into the full open position.

4. Remove the media and ribbon (if necessary).

5. Use a cotton swab moistened with alcohol to remove any dirt, adhesive, or debris from the print surface on the bottom of the printhead.

3-6

Page 51

Cleaning the Printhead

Printhead

7421U.035

6. Wait 5 to 10 seconds for the print surface to dry. Replace the media and ribbon.

7. Lower the printhead assembly and lock it into the operating position by pressing down firmly on both sides of the printhead.

8. If you are finished cleaning, close the printer cover.

Cleaning the Printer Covers

Use a general purpose cleaner (soapy water/mild detergent) to clean the printer cover. Do not use abrasive cleansers or solvents and make sure that the cleaning solution does not get inside of the printer. Be sure to clean the transparent panel on the printer cover so that the media supply inside the printer is visible when you close the cover.

3-7

Page 52

Cleaning the Drive Roller and Peel-Off Bar

Cleaning the drive roller and peel-off bar preserves print quality by maintaining close contact between the media and the printhead.

To clean the drive roller and peel-off bar

1. Turn the printer power off and remove the power cord.

2. Open the printer cover.

3. Open the printhead assembly by pulling the yellow release lever (on the left side of the printer) toward the front of the printer. Lift the printhead up into the full open position.

4. Remove the media and ribbon (if necessary).

5. Clean the drive roller by using a cloth dampened with isopropyl alcohol. Move the cloth over the drive roller in a side-to-side motion as shown.

6. Clean both sides of the peel-off bar with a cloth dampened with isopropyl alcohol. Remove all traces of dust, paper, and adhesive.

7. Replace the media and ribbon.

8. Lower the printhead assembly and lock it into the operating position by pressing down firmly on both sides of the printhead.

9. If you are finished cleaning, close the printer cover.

3-8

Page 53

Cleaning the Drive Roller and Peel-Off Bar

Peel-off bar

Drive roller

7421U.037

3-9

Page 54

Cleaning the Label Sensors

Three label sensors on the printer require regular cleaning:

• Label taken sensor

• Label mark sensor

• Label gap sensor

To clean the label sensors

1. Turn the printer power off and remove the power cord.

2. Open the printer cover.

3. Open the printhead assembly by pulling the yellow release lever (on the left side of the printer) toward the front of the printer. Lift the printhead up into the full open position.

4. Clean the label taken sensor, the label mark sensor, and the label gap sensor with a cotton swab moistened with isopropyl alcohol.

5. Lower the printhead assembly and lock it into the operating position by pressing down firmly on both sides of the printhead.

6. If you are finished cleaning, lower the printer cover.

3-10

Page 55

Cleaning the Label Sensors

Label taken sensor

Label mark sensor

Label gap sensor

7421U.038

3-11

Page 56

Page 57

Troubleshooting

Page 58

Page 59

This chapter provides some hints for troubleshooting error messages that the printer sends to the host and problems you may experience with the printer.

Troubleshooting Checklist

You may have printer operation, print quality, or printer communications problems at some time during the life of your printer. It is easy to fix most of the errors and consequently not delay operation of the printer for very long.

To troubleshoot your printer

1. First try cleaning the printer components and checking all of the connections. See Chapter 3, “Maintaining the Printer,” for details.

2. If cleaning the printer and checking the connections does not solve the problem, use the following tables to locate the symptom. Follow the solution in the table to fix your problem.

If you receive an error message on your PC, refer to your IPL Programming Reference Manual for a complete list of error messages and their solutions.

If the problem persists, contact your Intermec Customer Service Representative:

In the U.S. 1.800.755.5505 In Canada 1.800.688.7043

If you are an international customer, contact your local Intermec representative.

4-3

Page 60

Printer Operation Problems

If your printer is not operating correctly, try locating the problem in the table below.

Symptom Possible Causes Solution

No power or loss of power.

You have damaged or disconnected the power cable.

Make sure you have plugged the power cable into both the printer and a power source. Replace the cable if damaged.

The Power light flashes red and printing stops.

Test configuration label does not print.

Printing stops and the Power light glows orange.

Printhead has overheated.

You have incorrectly loaded media.

Media fault. Possible problem with the

Label jam. Remove any jammed labels

The printhead is up.

You have incorrectly loaded the media.

Let the printer cool down. It will resume printing on its own.

Try reloading the media. For help, see “Loading Media” in the Printer Setup Guide.

label gap sensor. Adjust the label sensor. For help, see “Adjusting the Label Gap Sensor” in Chapter 2.

from the printer and clean the printhead. For help, see “Cleaning the Printhead” in Chapter 3.

Make sure the printhead is down. Cycle printer power and press the Feed/Pause button to resume printing.

Try reloading the media. For help, see “Loading Media” in the Printer Setup Guide.

Printer appears to be working but nothing prints.

4-4

Media loaded incorrectly.

If you are using direct thermal media, make sure the roll is loaded with the thermal side facing up.

If you are using thermal transfer media, you must use a thermal transfer ribbon.

Page 61

Print Quality Problems

If your labels are not being printed properly, check the following table to locate the symptom and correct the problem.

Symptom Possible Causes Solution

Blotches printing on labels.

Dirty printhead. Clean the printhead. For

help, see “Cleaning the Printhead” in Chapter 3.

Printing is too light or too dark.

Labels are not stopping at the right point for removal.

Print quality is poor.

Poor quality label or ribbon stock.

Incorrect media sensitivity setting.

You have not set the label rest point command correctly.

Printhead is dirty.

Poor quality label or ribbon stock.

Ribbon wrinkling.

Use only Intermec label and ribbon stock to ensure superior print quality and product performance.

Change sensitivity setting to match the type of media you are using. If you set the sensitivity setting correctly, try changing the dark adjust. For help, see your PrintSet online help or the

Programming Reference

Manual

Adjust the label rest point. For help, see your PrintSet online help or the

Programming Reference

Manual

Clean the printhead. For help, see “Cleaning the Printhead” in Chapter 3.

Use only Intermec label and ribbon stock to ensure superior print quality and product performance.

Check to make sure that you installed the ribbon correctly. For help, see “Loading Thermal Transfer Media and Ribbon” in the Printer Setup Guide.

IPL

4-5

Page 62

Communication Problems

If your printer is not receiving downloaded data, try the solutions in this table.

Symptom Possible Causes Solution

Printer does not communicate with the host.

Using Data Line Print Mode

Use Data Line Print mode to troubleshoot communications between the printer and the host, and to test the operation of the printer. When the printer is in Data Line Print mode, it prints out all downloaded data with the hexadecimal equivalent directly underneath it.

Incorrect communications parameters.

Damaged or incorrect I/O cable.

Use PrintSet to make sure that you have the correct communications parameters set (such as baud rate).

Check the connections at both ends or replace the cable. See Appendix B for cable information.

To enter Data Line Print mode

1. Turn the On/Off switch to the off position.

2. Press down and hold the Feed/Pause button while turning on the printer.

The hardware configuration test label prints out and the firmware program and version number are sent to the host. You are now in Data Line Print mode.

3. Send a few characters down from the host. The printer prints out your data with the hexadecimal equivalent directly underneath it.

4-6

Page 63

4. Hold the Feed/Pause button down to momentarily suspend the test. The printer prints a software configuration test label.

5. If you press the Feed/Pause button again, the pitch label prints.

To exit Data Line Print mode

1. Turn the printer power off.

2. Turn the printer power back on.

Preventing Data Loss

Several problems can cause data loss or communications problems on the printer. Data loss can result in printing errors or missing field data.

Hardware handshaking involves the use of a hardware wire. Software handshaking involves a two-way datalink between the devices. The two devices communicate with each other without losing data through the use of handshaking. The printer sends both forms of handshaking simultaneously when the printer’s input buffer is full. Any loss of data can cause printing errors or missing data.

Hardware handshaking uses pin 6 or pin 9 of the RS-232 interface to control data flow. When the printer is using Intermec Standard protocol, it holds pins 6 and 9 high when the printer is ready to receive data. For help on understanding printer protocol, see Appendix B, “Communications Reference.”

The printer holds pins 6 and 9 low when the printer is in one of these conditions:

• Buffer full

• Ribbon fault

• No label stock

• Label at peel-off bar

4-7

Page 64

Your printer uses XON/XOFF protocol for software handshaking. When the input buffer is full, the printer transmits an XOFF character. This action alerts the host to the fact that the printer buffer is full and cannot receive any more data. When the printer is ready to receive more data, it sends the XON character.

To check for communications problems

1. Check the cabling from the printer to the host system.

2. Check the interfacing of the devices that are communicating with the printer.

3. Check the printer for proper electrical operation of the I/O port.

4. Test to see that the host system is not overrunning the printer’s input buffer.

5. Check to see that the data string being sent to the printer contains the correct information.

Resetting the Printer to Factory Defaults

Use memory reset if you want to return the printer to its default configuration.

To reset the printer to factory defaults

1. Turn off the printer.

2. Lift the printhead and remove all label stock from the paper path.

3. Turn the printer on while holding down the Feed/Pause button.

4. When the print mechanism starts to move, release the Feed/Pause button and press it again. The Power light should now be flashing red.

5. Press and hold the Feed/Pause button down for 8 seconds or until the Power light stops flashing. The printer resets all parameters to their factory default settings.

4-8

Page 65

Printer Specifications

Page 66

Page 67

Printer Specifications

This section describes the specifications for the 7421 printer.

Character Sets

• US ASCII • Norwegian/Danish • French

• UK ASCII • Swedish/Finnish • Swiss

• German • Italian • Spanish

• 8-bit ASCII • Code Page 850

Communications

• Asynchronous RS-232C, IEEE 1284 Bi-directional Parallel

• Serial ASCII code

• Hardware (Ready/Busy) Flow Control

• XON/XOFF Protocol

• Intermec Standard Block Protocol

• Baud Rates: 1200, 2400, 4800, 9600, 19200

Dimensions (no options installed)

Height 7 inches (17.8 cm) Width 8 inches (20.3 cm) Length 10 inches (25.4 cm) Weight 4.5 pounds (2.0 kg)

Electrical Requirements, External Power Supply

Input Voltage ~100 to 240V Frequency 50-60 Hz Current 2A maximum

Electrical Requirements, Printer

Input Voltage xw19-21V Current 2,5A

Environment

Operating 40°F to 104°F (5°C to 40°C) Humidity 10% to 90% noncondensing

A-3

Page 68

Fonts and Graphics

The printer contains 21 resident bitmap fonts and three outline fonts. You can use font ID 3 through 6 and 8 through 19 to download user-defined fonts. See Appendix C, “Character Sets,” for complete tables of all available fonts and their character sets.

Media Specifications

Roll 1,800 inches (46 m) Label Length 0.38 inch (10 mm) to 8.0 inches (203mm) Web Width 1.12 inches minimum (28 mm)

4.65 inches maximum (118 mm)

Thickness 0.0059 inch minimum (0.15 mm)

0.010 inch maximum (0.25 mm) Roll Inner Diameter 1.0 inch (25 mm) Roll Outer Diameter 5 inches maximum (127 mm)

Memory

Base 512K of DRAM Optional 1 or 4MB flash RAM modules

Printhead

Printed dot size 0.005 inch square (0.13 mm) Width 4.1 inches maximum (104 mm) Resolution 203 dots per inch (8 dots per mm) Number of elements 832 per printhead “X” dimensions 10 mil to 50 mil (0.25 mm to 1.27 mm); 5

mil (0.13 mm) in dra media only)

printing (specified

Printing Method

The 7421 printer is capable of direct thermal (DT) printing or optional thermal transfer (TTR) printing using thermal transfer ribbon.

A-4

Page 69

Printing Speed

2 inches per second (50.8 mm per second)

Ribbon Specifications

Roll 3,582 linear inches (91 m) Widths 1.33 inches (34 mm)

2.5 inches (64 mm)

3.29 inches (84 mm)

4.33 inches (110 mm)

Diameter 1.39 inches maximum (35 mm)

Printer Options

This section contains a list of the options you can use with the printer along with a brief description. Consult your Intermec representative to order any option.

Battery Pack The battery pack allows you to take your printer anywhere without the need to attach it to a power supply. When the battery pack is fully charged, you can run the printer for approximately 8 hours and print up to 500 labels.

Cutter Use the cutter option to cut continuous media into individual labels ready for use. This option works best for individual random lengths or short batches of different label lengths.

Memory Expansion The memory expansion card is available in 1 or 4 MB flash modules. You can use the flash memory cards for the storage of label formats, single- or double-byte fonts, and bitmap graphics.

A-5

Page 70

Bar Code Symbologies Supported

The 7421 printer supports these bar code symbologies:

• Codabar • Data Matrix

• Code 2 of 5 • EAN

• Code 11 • HIBC

• Code 16K • Interleaved 2 of 5

• Code 39 • Maxicode

• Code 49 • PDF417

• Code 93 • POSTNET

• Code 128 • UPC

• Code One

A-6

Page 71

Communications Reference

Page 72

Page 73

About Communications

The 7421 printer supports both serial and parallel communications. Using the parallel interface with an IEEE 1284 parallel interface cable (Part No. 590124) provides the best performance.

Your printer has the following hardware and software requirements:

• The host computer must use the American Standard Code for

Information Exchange (ASCII) for data communications.

• A serial port or a parallel port must be available on the host if

you are connecting directly to the printer.

• The host must support the RS-232 or data communications

interface.

For information on configuring the host computer, port concentrator, or network controller, see the reference manual for the controlling device.

Serial Communication Protocols

Communication protocols are important because they determine the transmission standards for communications between the printer and the host. The printer and the host must use the same protocol and parameters to communicate properly. The printer supports the flow control and block transfer protocols described in the next sections. All of these protocols are point-to-point. Application programs and/or ROM BIOS determine which protocols your computer can support. For more detailed information, refer to the Intermec Data Communications Reference Manual (Part No. 044737).

Intermec Printer Standard Protocol

Intermec Printer Standard Protocol is a half-duplex protocol. All data transmission to the printer consists of status enquiry (ENQ), status dump (VT), or message blocks. Each message block starts with the Start of Text (STX) characters and ends with the End of Text (ETX) characters. Each message block must be 255 characters or less, including the STX and ETX characters.

B-3

Page 74

The printer returns its highest priority status when it receives a valid block (<STX> data <ETX>) or when it receives the status request command <ENQ>. When the printer receives the status dump command (<VT>), the printer returns all active status. The printer status response time ranges from 30 ms to 100 ms depending on the complexity of the received message block. In the case of a transmission error, the printer responds with a <NAK> and discards the entire message block.

The table below shows printer status conditions in descending order of priority:

Printer Status Character

Buffer already full GS Ribbon fault US No label stock EM Buffer now full DC3 Printhead hot SI Label at strip pin FS Skipping DC1 Printing DC1 Ready/Online DC1

Note: Do not confuse the Buffer now full <DC3> status with the XON/XOFF characters <DC1> and <DC3>.

When the printer returns Buffer Now Full (<DC3>) status, it accepts the currently received message block. At this time, the printer can accept short messages to allow parsing of immediate commands such as Reset (<DLE>) or Cancel Batch Printing (<EM>). However, if the printer responds with a <GS> to any message block, the buffer is already full and the printer discards the entire message block. In case of a transmission error, the printer discards the whole message block and responds with a Negative Acknowledgment (NAK). You should retransmit the message block from the host.

B-4

Page 75

XON/XOFF Protocol

XON/XOFF protocol uses the ASCII characters <DC1> (XON) and <DC3> (XOFF) to start and stop the flow of data from the host to the printer. The printer does not restrict the message length for XON/XOFF protocol. That is, the printer processes information as it is being downloaded and stops when there is no more information.

<STX> and <ETX> are optional characters. However, if you send an STX, the printer ignores all other characters until you send an ETX.

Intermec provides two versions of the XON/XOFF protocol. The Intermec version of XON/XOFF has the printer respond to each message with its current status. The other version conforms to generally accepted industry standards that include no end-ofmessage response being sent to the host other than XOFF. In addition, a DC3 is sent to the host if the printer is offline or if media fault occurs. An XON is sent on power up.

Since the printer uses DC1 and DC3 for data flow control, the printer status characters are different from those of the Standard Protocol.

Printer Status Character

Buffer already full GS Ribbon fault US No label stock EM Printhead hot SI Buffer now full DC4 Label at strip pin FS Label skipping DC2 Printing DC2 Ready DC2

If the host ignores the printer sending an XOFF, the printer resends an XOFF after receiving every 15 characters from the host. In the case of transmission error, the printer discards the characters with the error and keeps the rest of the message block.

B-5

Page 76

Hardware Protocol

The printer uses Ready/Busy and DTR (data terminal ready) of the RS-232C interface to indicate the printer’s status. You can configure Ready/Busy and DTR independent of each other and independent of the software protocol you select for the serial port. You can set each pin to one of these four settings: default, high, flow control, and Ready/Busy.

When you set the pin to high, it stays high as long as the printer is powered up.

When you set the pin to flow control, the pin is high when the printer status is ready. The pin is held low when the printer is offline or if the buffer is full.

When you set the pin to Ready/Busy, the pin is high when the printer status is ready. The pin is held low when the printer is in one of these conditions:

• Offline

• Buffer full

• No label stock

• Ribbon fault

• Label at strip pin

When you set the pin to default, it uses flow control if the serial port is set for XON/XOFF protocol. If you are using Intermec Standard protocol, the printer uses Ready/Busy.

User-Defined Protocol

The printer provides the capability to change protocol characters. However, users may not define their own protocol. You can substitute characters you want to use as protocol characters, but the rules for the chosen protocol do not change. The printer does not use any protocol characters that you replace with the NUL character. One table of protocol characters exists. You may redefine these characters to create a table that all of the protocols can use. One possibility for the user to redefine protocol characters might be the replacement of control characters with printable characters.

B-6

Page 77

Note: Please use caution when replacing control characters with printable characters. You cannot replace one control character with more than one printable character.

The following table lists the protocol characters that you can redefine and the protocols they affect:

Character Protocol Affected

SOM IN STD, XON/XOFF EOM IN STD, XON/XOFF DLE IN STD, XON/XOFF XON IN XON/XOFF XOFF IN XON/XOFF NEG OUT STD DLE OUT STD XON OUT XON/XOFF XOFF OUT XON/XOFF PROTO-CMD 1 STD, XON/XOFF PROTO-CMD 2 STD, XON/XOFF

B-7

Page 78

Communications Boundaries

The information below applies to all protocols that the printer supports.

Parameter Maximum Capacity

Message delay 9999 milliseconds Character delay 9999 milliseconds Message block size 255 characters (including STX and ETX

characters) Unlimited block size for XON/XOFF

RS-232 Serial Interface

The printer supports serial communications with the RS-232 interface. Use the RS-232 serial interface in all asynchronous point-to-point full- or half-duplex direct data communications. The printer cable must have the pin assignments for an RS-232 serial interface shown in the following table.

B-8

Page 79

Pin Name Operation

3 Receive Data Input: Connect to transmit data pin of

connected device.

2 Transmit Data Output: Connect to receive data pin of

connected device.

6 Data Terminal

Ready (DTR)

5 Ground To enable communications, connect to

7 Clear to Send (CTS) Input: When you use a modem, connect to

8 Request to Send

(RTS)

9 Printer Status Output: When not using software flow

Output: When you use a modem, connect to modem DTR pin.

When using Intermec Standard Protocol, this pin indicates that the printer is switched on.

When using XON/XOFF or hardware flow control, this pin indicates the printer mechanical status and the status of the printer input buffer.

signal ground of connected device. Completes circuit for all RS-232 signals.

modem CTS pin. The modem must set CTS true before the printer transmits data. If not connected, CTS sets itself true.

Output: When you use a modem, connect to modem RTS pin. The modem sets RTS to true before transmission. The printer sets RTS to false after transmission.

control (XON/XOFF), connect to input of connected device (for example, CTS). Indicates printer mechanical status and status of printer input buffer.

B-9

Page 80

RS-232 Cable for 9-pin to 9-pin (Part No. 590123)

DB9 SOCKET

Receive Data

Transmit Data

Data Terminal Ready

Ground

Data Set Ready

Request to Send

Clear to Send

Ring Indicator

1 2 3 4 5 6 7 8 9

DB9 PLUG

1 2 3 4 5 6 7 8 9

PRINTER

RS-232 Null Modem Cable for PC for 25-pin to 9-pin

DB25 SOCKET

Receive Data

Transmit Data

Data Terminal Ready

Ground

Data Set Ready

Request to Send

Clear to Send

3 2

7 6 4 8

DB9 PLUG

1 2 3 4 5 6 7 8 9

+5V Transmit Data Receive Data AUX Ground Data Terminal Ready Clear to Send Request to Send Inactive

7421U.39

+5V Transmit Data Receive Data AUX Ground Data Terminal Ready Clear to Send Request to Send Inactive

B-10

HOST

PRINTER

7421U.040

Page 81

Character Sets

Page 82

Page 83

This chapter contains tables for the character sets that the 7421 supports. To select a character set, use PrintSet, your third-party software application, or the IPL command set.

International Character Sets

The following tables show which hex codes to download for international characters not available in the U.S. character set. To use the tables, find the hex code for the U.S. character that corresponds with the character in your language.

Advanced Character Table

If you are running your printer in Advanced mode (you are not using 86XX Emulation), use this table to find the right hex codes for the international character sets.

23 24 40 5E 5C 5D 5E 60 7E 7C 7D 7E

U.S. ASCII # $ @ [ \ ] ^ ` { ¦ } ~

U.K. ASCII £ $ @ [ \ ] ^ ` { ¦ }

Germany # $ § Ä Ö Ü ^ ` ä ö ü ß

France £ $ à ° ç § ^ ` é ù è _

Norway/Denmark # $ @ Æ Ø Å ^ ` æ ø å

Sweden/Finland #

Spain £ $ § ¡ Ñ ¿ ^ ` ° ñ ç ~

Switzerland # $ à ° ç é ^ ù ä ö ü è

Italy £ $ § ° ç é ^ ù à ò è ì

Code Page 850 # $ @ [ \ ] ^ ` { | } ~



ЙДЦЕЬй д ц еь

C-3

Page 84

86XX Character Table

This table shows the hex codes for the character sets that print if your printer is running under Emulation mode.

23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E

U.S. ASCII # $ @ [ \ ] ^ ` { ¦ } ~

U.K. ASCII £ $ @ [ \ ] ^ ` { ¦ } ~

Germany # $ § Ä Ö Ü ^ ` ä ö ü ß

France £ $ à ° ç § ^ ` é ù è ¨

Norway/Denmark # $ @ Æ Ø Å ^ ` æ ø å ~

Sweden/Finland # ¤ É Ä Ö Å Ü é ä ö å ü

Spain Pt$@¡Ñ¿^ ` ¨ ñç ~

Switzerland # $ à ° ç é ^ ù ä ö ü è

Italy # $ § ° ç é ^ ù à ò è ì

Code Page 850 # $ @ [ \ ] ^ ` { | } ~

C-4

Page 85

IBM Translation Character Table

If you are running your printer with IBM Translation enabled, use this table to find the right hex codes for the international character sets.

4F 7B 5B 7C 4A E0 5A 5F 79 C0 6A D0 A1

U.S. ASCII ¦ # $ @ ¢ \ !

U.K. ASCII ¦ # £ @ $ \ !

Germany ! # $ § Ä Ö Ü ^ ` ä ö ü ß

France ! £ $ à ° ç § ^ ` é ù è ¨

Norway/ Denmark

Sweden/ Finland

Spain ¦ Ñ Pt@[\]

Switzerland ! # $ à ° ç é ^ ù ä ö ü è

Italy ! £ $ § ° ç é ^ ù à ò è ì

Code Page 850 ! # $ @ [ \ ] ^ ` { | } ~

!ÆÅØ#\¤^`æøåü

!ДЕЦ§Й¤^йдцеь

`{¦}~

`{¦}_

`{ñ}¨

C-5

Page 86

Code Page 850 Character Table

♥

➝

♦

¶ § ÷

▲

@ABCDE FGHI J K LMN O

PQRST UVWX

p q r s t u v w x y z { }

á í ó ú ñ Ñ a o ¿ ® ¬

∂ D Ê Ë È 1 Í Î Ï

Ó ß Ô Ò õ Õ µ ρ ρ Ú Û Ù y Y -

➝

▲

1 2 3 4 5 6 7 8 9 : ; <

a b c d e f g h i j k l m n o

ьйвда

æÆô ö

♥

♣

Á Â

➝

ûùÿÖ Ü ø £ Ø X ƒ

ã Ã

➝

(

êëèïîìÄÅ

A8 ©

➝

∗

[

9B 1

1 3 2

)

➝

]

¢ ¥ ¬

➝

▼

▲

7421U.042

C-6

Page 87

Extended Character Sets

Each internal font in the 7421 has a different character set associated with it as shown in the following tables. The hex codes accompany each character.

Characters in Fonts c0 7 x 9 Standard

c1 7 x 11 OCR c2 10 x 14 Standard c7 5 x 7 Standard

ØØ Ø1 Ø2 Ø3 Ø4 Ø5 Ø6 Ø7 Ø8 Ø9 ØA ØB ØC ØD ØE ØF

1Ø 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F

2Ø 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F

3Ø 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F

4Ø 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F

5Ø 51 52 53 54 55 56 57 58 59 5A 5B 5C 5D 5E 5F

6Ø 61 62 63 64 65 66 67 68 69 6A 6B 6C 6D 6E 6F

7Ø 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E 7F

8Ø 81 82 83 84 85 86 87 88 89 8A 8B 8C 8D 8E 8F

9Ø 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9E 9F

AØ A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF

BØ B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF

CØ C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF

DØ D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF

EØ E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF

FØ F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF

7421U.044

C-7

Page 88

ØØ

1Ø

2Ø

3Ø

4Ø

5Ø

6Ø

7Ø

8Ø

9Ø

AØ

BØ

CØ

DØ

EØ

FØ

Ø1

Ø2

Ø3

Ø4

Ø5

Ø6

Ø7

Ø8

Ø9

ØA

ØB

ØC

ØD

ØE

7421U.047

Characters in Fonts c20 8 point

c21 12 point c22 20 point c25, c26, c28 outline fonts c30-c41 monospace fonts

Note: You cannot print these characters as 4 x 4 inch graphics because there is white space surrounding the characters that prevents the image from reaching the maximum graphic size.

C-8

Page 89

ØØ

1Ø

2Ø

3Ø

4Ø

5Ø

6Ø

7Ø

8Ø

9Ø

AØ

BØ

CØ

DØ

EØ

FØ

Ø1

Ø2

Ø3

Ø4

Ø5

Ø6

Ø7

Ø8

Ø9

ØA

ØB

ØC

ØD

ØE

7421U.047

Characters in Font c23 OCR A

C-9

Page 90

ØØ

1Ø

2Ø

3Ø

4Ø

5Ø

6Ø

7Ø

8Ø

9Ø

AØ

BØ

CØ

DØ

EØ

FØ

Ø1

Ø2

Ø3

Ø4

Ø5

Ø6

Ø7

Ø8

Ø9

ØA

ØB

ØC

ØD

ØE

7421U.049

Characters in Font c24 OCR B Size 2

C-10

Page 91

Index

Page 92

Page 93

adjustments

darkness adjust control, 2-8 label gap sensor, 2-9

Advanced mode, international

character sets, C-3

bar code

symbologies

Codabar, A-6 Code 11, A-6 Code 128, A-6 Code 16K, A-6 Code 2 of 5, A-6 Code 39, A-6 Code 49, A-6 Code 93, A-6 Code One, A-6 Data Matrix, A-6 EAN, A-6 HIBC, A-6 Interleaved 2 of 5, A-6 Maxicode, A-6 PDF417, A-6 POSTNET, A-6 supported, A-6

UPC, A-6 battery pack option, A-5 boundaries, communication,

B-8

cable, RS-232 serial schematics,

B-10 character sets

Advanced mode, C-3 Code Page 850, C-6 Emulation mode, C-4 extended, C-7 IBM translation, C-5 international, C-3 printer, A-3

checking for communications

problems, 4-8

cleaning

drive roller, 3-8 label sensors, 3-10 peel-off bar, 3-8 printer covers, 3-7 printhead, 3-6

tools, 3-5 cleaning the printer, 3-3 Codabar, A-6 Code 11, A-6 Code 128, A-6 Code 16K, A-6 Code 2 of 5, A-6 Code 39, A-6 Code 49, A-6 Code 93, A-6 Code One, A-6 Code Page 850, character table,

C-6

communicating with the

printer, 2-10 using PrintSet, 2-10 using the printer command

set, 2-10

using third-party software,

2-10

communications

boundaries, B-8 host requirements, B-3 interfaces, B-8 printer, B-3 problems, 4-6 problems, checking for, 4-8 protocol

user-defined, B-7 protocols

hardware, B-6

Intermec Standard, B-4

XON/XOFF, B-5 protocols, serial, B-3 reference

serial communication

protocols, See also

protocols specifications, A-3 troubleshooting printer, 4-6

I-3

Page 94

configuring

media sensitivity number,

2-3

printer, 2-3 covers, printer, cleaning, 3-7 cutter option, A-5

Data Line Print, 4-6

entering, 4-6

using to test the operation

of the printer, 4-6

using to troubleshoot

printer, 4-6 data loss, preventing, 4-7 Data Matrix, A-6 defaults, resetting factory, 4-8 dimensions

printer, A-3

drive roller, cleaning, 3-8

EAN, A-6 electrical requirements

external power supply, A-3 printer, A-3 Emulation mode,

international

character sets, C-4 environment, specifications,

A-3

extended character sets, C-7

factory defaults, resetting, 4-8 fanfold media, loading, 1-16 features, printer, 1-3 Feed/Pause button, 1-6

functions of, 1-6 using, 1-6

font

extended character sets,

C-7

tables, extended character

sets, C-7

fonts

described, A-4 printer, A-4

gap sensor, label, 2-9 graphics

defined, A-4 printer, A-4

hardware protocol, B-6 HIBC, A-6 host requirements,

communications, B-3

IBM translation, character

table, C-5

interfaces

communications, B-8

RS-232 serial, B-8 Interleaved 2 of 5, A-6 Intermec Standard protocol, B-

international character sets,

C-3

Inverse Printing mode, 2-12

selecting with PrintSet,

2-13

label

gap sensor, adjusting, 2-9

printing a test, 2-11

sensors, cleaning, 3-10 languages, international

character sets, C-3 light, Power, 1-5 loading

fanfold media, 1-16 media with the peel-off

option, 1-7

modes, printhead, 2-12

I-4

Page 95

maintaining the printer, 3-3 maintenance

schedule, 3-3

tools, 3-5 Maxicode, A-6 media

faults, 1-5

loading fanfold, 1-16

loading for peel-off

printing, 1-7

media sensitivity number

changing with PrintSet, 2-4

description of, 2-3

finding, 2-3

optimizing with Intermec

media and ribbon, 2-5

setting for other media and

ribbon, 2-6

settings table

direct thermal media,

2-6, 2-7

memory

card, inserting, 1-20

expansion option, A-5

specifications

printer, A-4

Mirror Printing mode, 2-12

selecting with PrintSet,

2-13

modes, printhead loading,

2-12

operating the printer, 1-5 operation, printer problems, 4-

options

battery pack, A-5

cutter, A-5

memory expansion, A-5

printer, A-5

orange light, media or system

faults, 1-5

over-temperature condition, 1-

parallel interface,

communications, B-3 PDF417, A-6 peel-off

bar, cleaning, 3-8

printing, 1-7 POSTNET, A-6 Power light, understanding,

1-5

power supply, electrical

requirements, A-3 preventing data loss, 4-7 print darkness, adjusting with

PrintSet, 2-8 print quality, problems, 4-5 printer

character sets, A-3 cleaning, 3-3 cleaning tools, 3-5 commands, using to

communicate, 2-10

communication problems,

4-6 communications, 2-10, A-3 components

back view, 1-4

front view, 1-3 configuring, 2-3 cover, cleaning, 3-7 dimensions, A-3 electrical requirements, A-3 features, 1-3 fonts and graphics, A-4 maintenance, 3-3 memory specifications, A-4 operation, 1-5

problems, 4-4

testing, 4-6

troubleshooting, 4-6

I-5

Page 96

printer (continued)

options, A-5

battery pack, A-5 cutter, A-5 memory expansion, A-5

printhead specifications,

A-4 printing speed, A-5 ribbon specifications, A-5 specifications, A-3

printhead

cleaning, 3-6 loading modes, using, 2-12 specifications, printer, A-4

printing

peel-off, 1-7 test label, 2-11

printing speed, A-5 PrintSet

using to adjust the print

darkness, 2-8 using to change the media

sensitivity number, 2-

4 using to communicate with

the printer, 2-10 using to select printhead

loading mode, 2-13

problems

communication, 4-6 communications, checking

for, 4-8 print quality, 4-5 printer operation, 4-4

protocol

hardware, B-6 Intermec Standard, B-4 user-defined, B-7 XON/XOFF, B-5

protocols, B-3

quality, print problems, 4-5

red light, over-temperature

condition, 1-5

I-6

resetting factory defaults, 4-8 ribbon specifications, A-5 RS-232 serial interface, B-8

schematics, B-10

schedule of maintenance, 3-3 sensors, cleaning label, 3-10 serial interface, B-8 setting, media sensitivity

number, 2-3 specifications, printer, A-3 speed, printing, A-5 Standard protocol, B-4 symbologies

bar code, A-6

Codabar, A-6

Code 11, A-6

Code 128, A-6

Code 16K, A-6

Code 2 of 5, A-6

Code 39, A-6

Code 49, A-6

Code 93, A-6

Code One, A-6

Data Matrix, A-6

EAN, A-6

HIBC, A-6

Interleaved 2 of 5, A-6

Maxicode, A-6

PDF417, A-6

POSTNET, A-6

UPC, A-6 system, faults, 1-5

Test and Service mode, Data

Line Print, 4-6 test label, printing, 2-11 third-party software, using to

communicate with the

printer, 2-10 troubleshooting, 4-3

checklist, 4-3 communication problems,

4-6

Page 97

print quality problems, 4-5 printer operation

problems, 4-4

UPC, A-6 user-defined protocol, B-7

XON/XOFF protocol, B-5

I-7

Page 98
