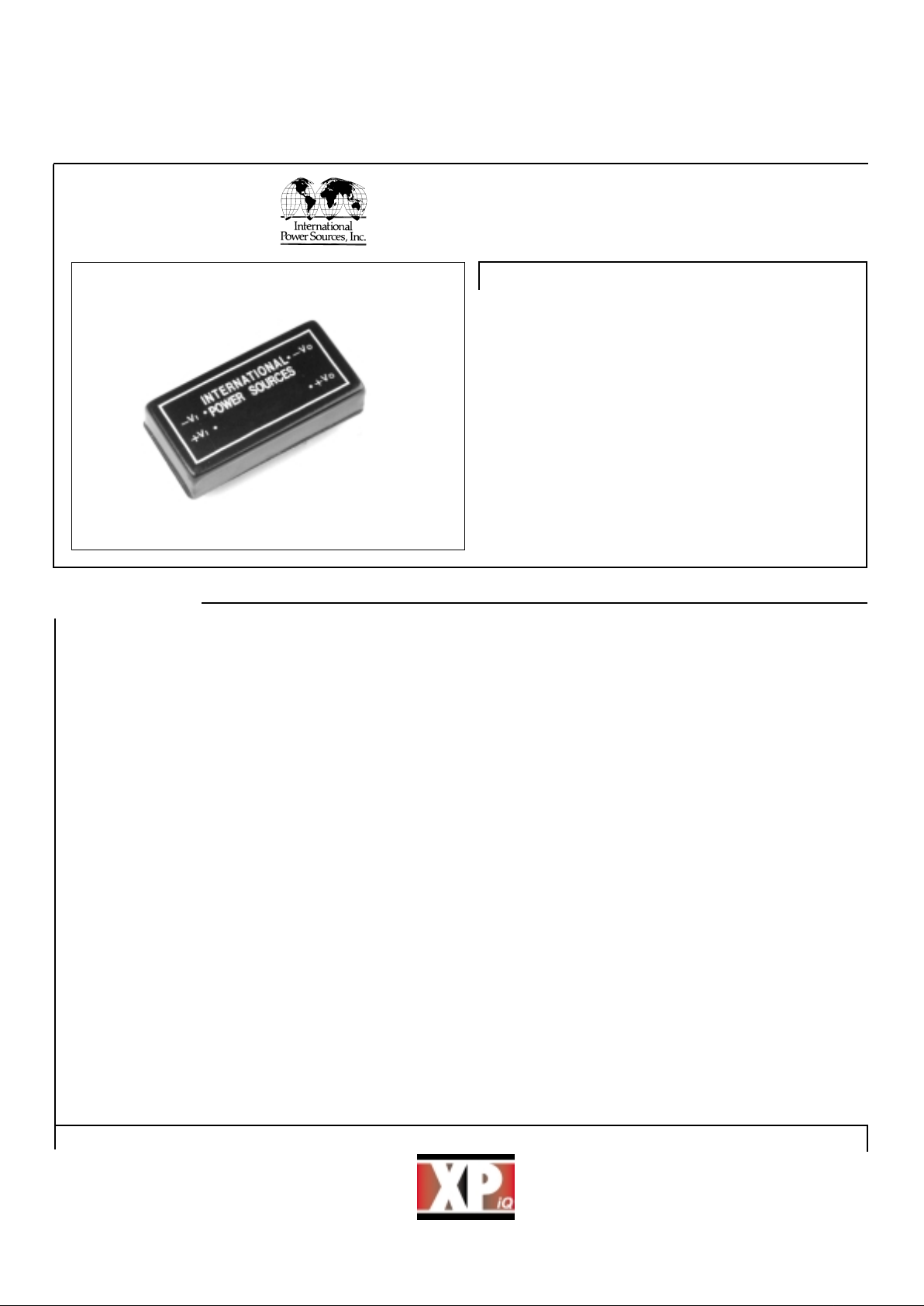

10/15 Watts
WD Series
2:1 Input Range
•
Isolated Outputs
•
Efficiency to 82%
•
200 kHz Switching Frequency
•
Input
π Filter
•
Fully Regulated Outputs
•
Six-sided Shield
•
•
•
Specification
Intelligent Design Quality Product
XPiQ inc.
DC/DC Converters
Input
Input Voltage Range • See Table
Input Filter • π Network
Output
Voltage Accuracy • ±1% max
Line Regulation • ±0.5% max
(Full Input Range)
Load Regulation • ±1% max
(1/4 Full Load)
Ripple & Noise • 100mV p-p max
(DC-20MHz)
Temperature • ±0.05%/°C max
Coefficient
Short Circuit • Indefinite
Protection
General
Switching • 200 kHz
Frequency
Efficiency • See Table
Isolation • 500 VDC
(Input-Output) (1000 Mohm/80pF)
Environmental
Operating • -25°C to +71°C
Temperature
Storage • -40°C to 100°C
Temperature
Safety
Safety Approvals • UL1950 for LU versions only
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xp-iq.com
Holliston, MA 01746 USA
www.XP-iQ.com
21
021-040 8/5/02 11:02 am Page 1
Mechanical Details
OUTPUT VOLTAGE & CURRENT RATINGS WD
Model Input Output Output Input Current %
Voltage Voltage Current No Load Full Load Efficiency
WD501 4.7-9.0VDC 5.0 VDC 1600 mA 15 mA 2130 mA 75
WD502 4.7-9.0VDC 12.0 VDC 666 mA 15 mA 2100 mA 76
WD503 4.7-9.0VDC 15.0 VDC 533 mA 15 mA 2100 mA 76
WD504 4.7-9.0VDC ±12.0 VDC ±333 mA 15 mA 2100 mA 76
WD505 4.7-9.0VDC ±15.0 VDC ±266 mA 15 mA 2100 mA 76
WD506 4.7-9.0VDC ±5.0 VDC ±800 mA 15 mA 2100 mA 76
WD100 9.0-18.0 VDC 3.3 VDC 3000 mA 20 mA 1056 mA 76
WD101 9.0-18.0 VDC 5.0 VDC 2000 mA 30 mA 1100 mA 76
WD102 9.0-18.0 VDC 12.0 VDC 830 mA 30 mA 1065 mA 78
WD103 9.0-18.0 VDC 15.0 VDC 666 mA 30 mA 1065 mA 78
WD104 9.0-18.0 VDC ±12.0 VDC ±415 mA 40 mA 1065 mA 78
WD105 9.0-18.0 VDC ±15.0 VDC ±333 mA 40 mA 1065 mA 78
WD106 9.0-18.0 VDC ±5.0 VDC ±1000 mA 40 mA 1065 mA 78
WD200 18.0-36.0 VDC 3.3 VDC 3000 mA 20 mA 543 mA 76
WD201 18.0-36.0 VDC 5.0 VDC 3000 mA 20 mA 800 mA 78
WD202 18.0-36.0 VDC 12.0 VDC 1250 mA 20 mA 780 mA 80
WD203 18.0-36.0 VDC 15.0 VDC 1000 mA 20 mA 780 mA 80
WD204 18.0-36.0 VDC ±12.0 VDC ±625 mA 30 mA 780 mA 80
WD205 18.0-36.0 VDC ±15.0 VDC ±500 mA 30 mA 780 mA 80
WD206 18.0-36.0 VDC ±5.0 VDC ±1500 mA 30 mA 780 mA 80
WD300 36.0-72.0 VDC 3.3 VDC 3000 mA 15 mA 272 mA 76
WD301 36.0-72.0 VDC 5.0 VDC 3000 mA 10 mA 390 mA 80
WD302 36.0-72.0 VDC 12.0 VDC 1250 mA 10 mA 380 mA 82
WD303 36.0-72.0 VDC 15.0 VDC 1000 mA 10 mA 380 mA 82
WD304 36.0-72.0 VDC ±12.0 VDC ±625 mA 15 mA 380 mA 82
WD305 36.0-72.0 VDC ±15.0 VDC ±500 mA 15 mA 380 mA 82
WD306 36.0-72.0 VDC ±5.0 VDC ±1500 mA 15 mA 380 mA 82
Nominal Input Voltage 5,12, 24 or 48 VDC.
For optional 10 watt version:
Add Suffix ”L” to WD2xx and WD3xx, except models WD200 and WD300.
UL1950 approvals available on 10 watt models only. Add suffix “LU” to models WD1xx, WD2xx or WD3xx.
Not available on WD5xx series.
Notes
•
SINGLE DUAL
PIN OUTPUT OUTPUT
1 + INPUT + INPUT
2 - INPUT - INPUT
3 + OUTPUT + OUTPUT
4 NO PIN COMMON
5 - OUTPUT - OUTPUT

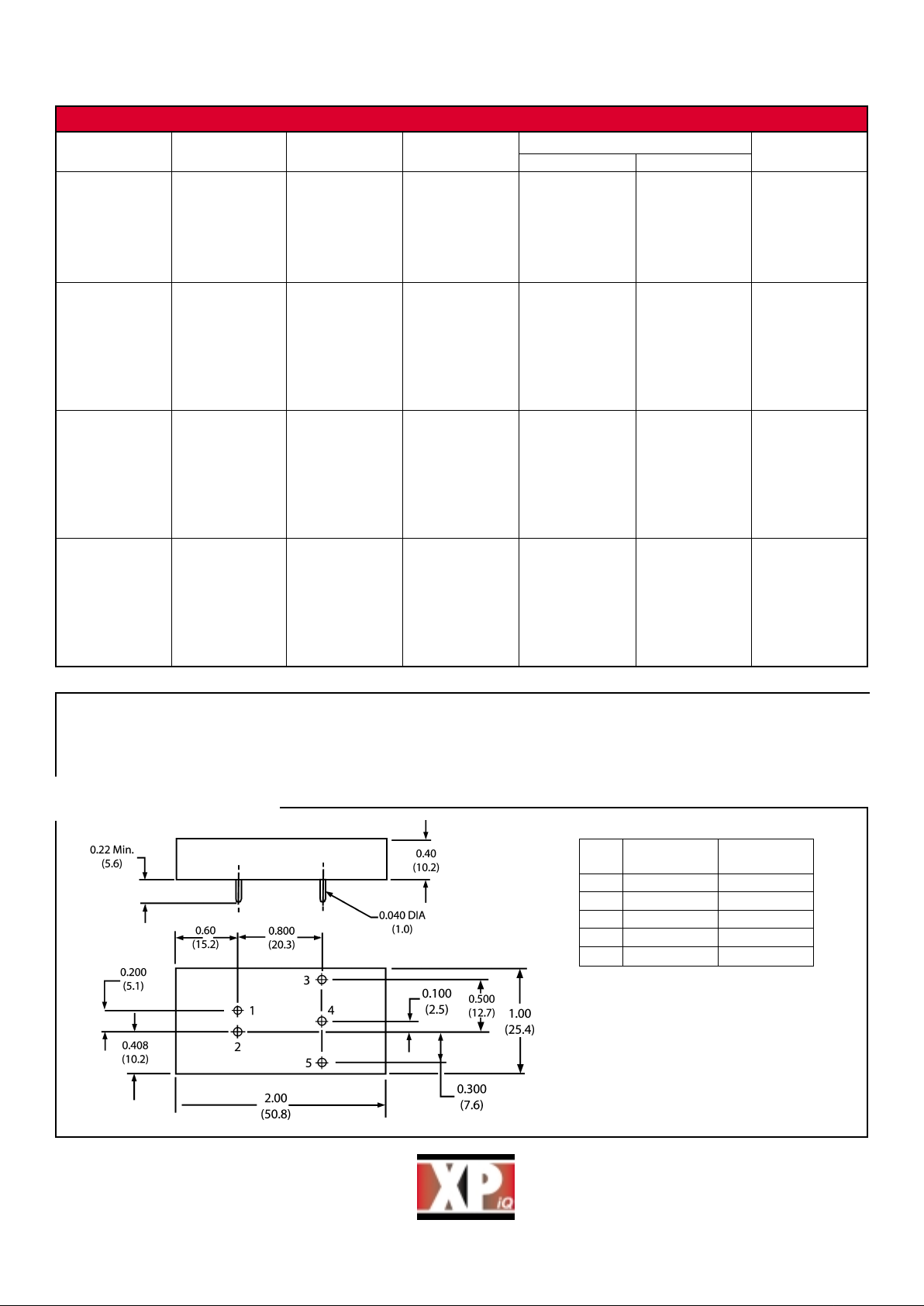

Dimensions in inches (mm)
