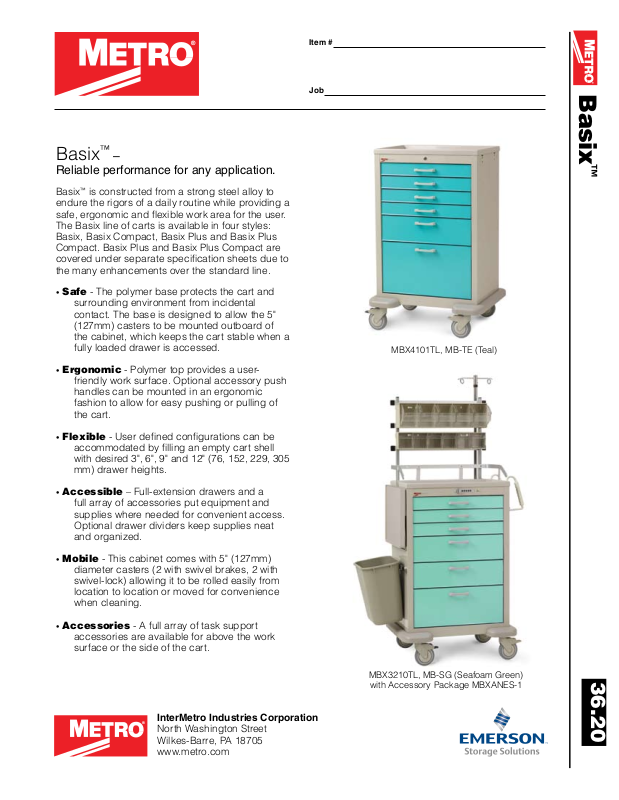

Page 1
®
®
Item #
®
Basix
™
–
Reliable performance for any application.
Basix™ is constructed from a strong steel alloy to
endure the rigors of a daily routine while providing a
safe, ergonomic and flexible work area for the user.
The Basix line of carts is available in four styles:
Basix, Basix Compact, Basix Plus and Basix Plus
Compact. Basix Plus and Basix Plus Compact are
covered under separate specification sheets due to
the many enhancements over the standard line.
· Safe - The polymer base protects the cart and
surrounding environment from incidental
contact. The base is designed to allow the 5"
(127mm) casters to be mounted outboard of
the cabinet, which keeps the cart stable when a
fully loaded drawer is accessed.
· Ergonomic - Polymer top provides a userfriendly work surface. Optional accessory push
handles can be mounted in an ergonomic
fashion to allow for easy pushing or pulling of
the cart.
Job
Basix
™
MBX4101TL, MB-TE (Teal)
· Flexible - User defined configurations can be
accommodated by filling an empty cart shell
with desired 3", 6", 9" and 12" (76, 152, 229, 305
mm) drawer heights.
· Accessible – Full-extension drawers and a
full array of accessories put equipment and
supplies where needed for convenient access.
Optional drawer dividers keep supplies neat
and organized.
· Mobile - This cabinet comes with 5" (127mm)
diameter casters (2 with swivel brakes, 2 with
swivel-lock) allowing it to be rolled easily from
location to location or moved for convenience
when cleaning.
· Accessories - A full array of task support
accessories are available for above the work
surface or the side of the cart.
InterMetro Industries Corporation
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
MBX3210TL, MB-SG (Seafoam Green)
with Accessory Package MBXANES-1
36.20
Page 2
Basix™
®
Carts and Drawers
M B X 3 1 1 0 S B
Metro Basix Standard 3" Drawers 6" Drawers 9" Drawers 12" Drawers Color Tone1 Lock Type
1
Color Tone: S- Solid - Cart body color matches drawer front color
T- Two Tone - Cart body color is light taupe
2
Lock Type: B- Breakaway Lock Bar L- Keyed Lock
Drawer Space Drawer Height Width Length Approx. Pkd. Wt.
Part No. (in.) (mm) Config. Color Lock (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg)
3 - 3" Breakaway
MBX3110SB 24 610 1 - 6" Solid Lock 381/2 978 241/8 613 30 762 151 72
1 - 9" Bar
3 - 3" Breakaway
MBX3110TB 24 610 1 - 6" Two Tone Lock 381/2 978 241/8 613 30 762 151 72
1 - 9" Bar
3 - 3"
MBX3110SL 24 610 1 - 6" Solid Key Lock 381/2 978 241/8 613 30 762 151 72
1 - 9"
3 - 3"
MBX3110TL 24 610 1 - 6" Two Tone Key Lock 381/2 978 241/8 613 30 762 151 72
1 - 9"
1 - 3"
MBX1210TL 24 610 2 - 6" Two Tone Key Lock 381/2 978 241/8 613 30 762 151 72
1 - 9"
4 - 3" Breakaway
MBX4101SB 30 762 1 - 6" Solid Lock 45 1140 241/8 613 30 762 159 75
1 - 12" Bar
4 - 3" Breakaway
MBX4101TB 30 762 1 - 6" Two Tone Lock 45 1140 241/8 613 30 762 159 75
1 - 12" Bar
3 - 3" Breakaway
MBX3210TB 30 762 2 - 6" Two Tone Lock 45 1140 241/8 613 30 762 159 75
1 - 9" Bar
4 - 3"
MBX4101SL 30 762 1 - 6" Solid Key Lock 45 1140 241/8 613 30 762 159 75
1 - 12"
4 - 3"
MBX4101TL 30 762 1 - 6" Two Tone Key Lock 45 1140 241/8 613 30 762 159 75
1 - 12"
2 - 3"
MBX2201TL 30 762 2 - 6" Two Tone Key Lock 45 1140 241/8 613 30 762 159 75
1 - 12"
3 - 3"
MBX3210TL 30 762 2 - 6" Two Tone Key Lock 45 1140 241/8 613 30 762 159 75
1 - 9"
2
Page 3
Basix™
®
Carts and Drawers
M B X 24 S B
Metro Basix Standard Vertical Color Tone Lock Type
Drawer
Space (in.)
MBX24SL with drawers
Empty Carts
Drawer Space Drawer Height Width Length
Part No. (in.) (mm) Config. Color Lock (in.) (mm) (in.) (mm) (in.) (mm)
MBX24SB 24 610 Empty Solid Breakaway Lock Bar 381/2 978 241/8 613 30 762
MBX24TB 24 610 Empty Two Tone Breakaway Lock Bar 381/2 978 241/8 613 30 762
MBX24SL 24 610 Empty Solid Key Lock 381/2 978 241/8 613 30 762
MBX24TL 24 610 Empty Two Tone Key Lock 381/2 978 241/8 613 30 762
MBX30SB 30 762 Empty Solid Breakaway Lock Bar 45 1140 241/8 613 30 762
MBX30TB 30 762 Empty Two Tone Breakaway Lock Bar 45 1140 241/8 613 30 762
MBX30SL 30 762 Empty Solid Key Lock 45 1140 241/8 613 30 762
MBX30TL 30 762 Empty Two Tone Key Lock 45 1140 241/8 613 30 762
Drawers
Interior Dimension
Height Width Length Weight Capacity
Part No. Description (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg)
MBX103 3" Deep Drawer 27/8 73 17
MBX106 6" Deep Drawer 61/4 159 17
MBX109 9" Deep Drawer 93/8 238 17
MBX112 12" Deep Drawer 121/2 318 17
432 221/
432 221/
432 221/
432 221/
565 50 24
4
565 50 24
4
565 50 24
4
565 50 24
4
Colors
MB-BG
Blue Gray
MB-LT
Light Taupe
MB-CB
Crash Cart
Blue
MB-MA
Mauve
MB-CR
Cranberry
MB-RE
Red
MB-DB
Dark Blue
MB-SB
Slate Blue
MB-DT
Dark Taupe
MB-SG
Seafoam
Green
MB-HG
Hunter
Green
MB-TE
Teal
MB-LA
Lavender
MB-YE
Yellow
Page 4
Job
®
®
®
36.20
Basix
Basix Specifications:
Cart Body: Double wall construction
Inner wall: 22 gauge (.030"/.8mm) steel
Outer wall: 20 gauge (.036"/.9mm) steel
Finish: Powder coated
Base: Blow-molded, high-density polyethylene
Steel reinforced caster channels
Caster mounts located outside of cart body footprint to provide counterbalance to full
extension drawers
Work Surface: .125" (3mm) ABS , raised on four sides
Dimensions: 11/4" H x 181/2" W x 263/4" L (32H x 470W x 679mm L)
Usable work space: 17" x 25" (432mm x 635mm)
Casters: 5" (127mm) diameter with polyurethane tread
2 swivel-brake, 2 swivel-lock (coverts from swivel to rigid)
200 lbs. (90kg) per caster, 600lbs. (270kg) per cart
Drawers: 50 lbs. (23kg) load rating per drawer
Body: 22 Gauge (.030"/ .8mm) steel w/16 gauge (.060"/2mm) lock clips
Finish: Powder coated
Fronts: .032" (.8mm) coated aluminum
Finish: Powder coated
Pull: Polymer
Slides: Zinc-Plated Steel
Load Rating: 100 Lbs.(45kg)/set
Lock: Bright Nickel Type 3
G Cam, 7/8" (22mm) Cylinder
2 Keys,
Coded on lock and keys
™
™
Basix
All Metro Catalog Sheets are available on our Web Site: www.metro.com
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
L03-244
Revised 1/09
Information and specifications are subject to change
without notice. Please confirm at time of order.
Copyright © 2003 InterMetro Industries Corp.
