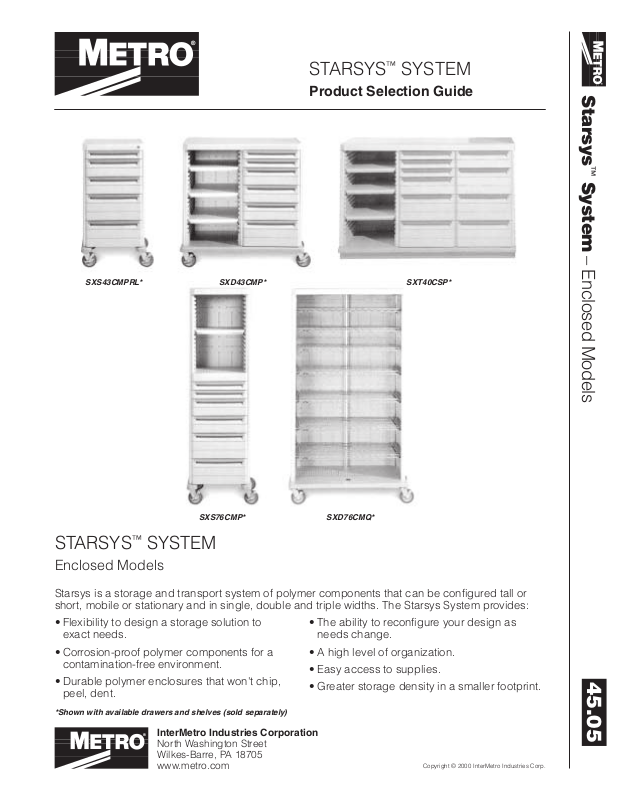

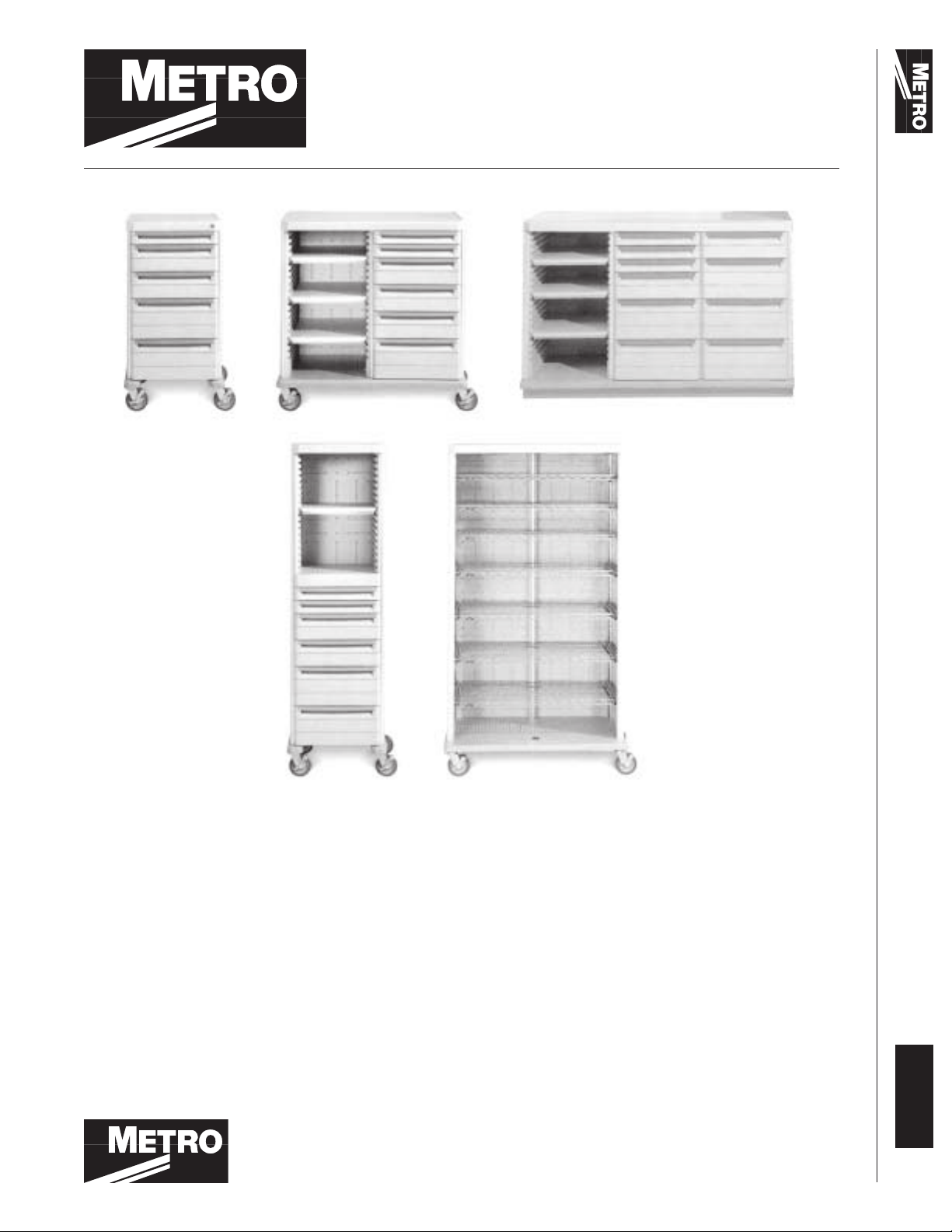

Page 1

STARSYS™ SYSTEM

Product Selection Guide

SXS43CMPRL* SXT40CSP*

SXD43CMP*

Starsys

™

System – Enclosed Models

SXD76CMQ*SXS76CMP*

STARSYS™ SYSTEM

Enclosed Models

Starsys is a storage and transport system of polymer components that can be configured tall or short, mobile or stationary and in single, double and triple widths. The Starsys System provides:

• Flexibility to design a storage solution to exact needs.

• Corrosion-proof polymer components for a contamination-free environment.

• Durable polymer enclosures that won't chip, peel, dent.

*Shown with available drawers and shelves (sold separately)

InterMetro Industries Corporation

North Washington Street Wilkes-Barre, PA 18705 www.metro.com

• The ability to reconfigure your design as needs change.

• A high level of organization.

• Easy access to supplies.

45.05

• Greater storage density in a smaller footprint.

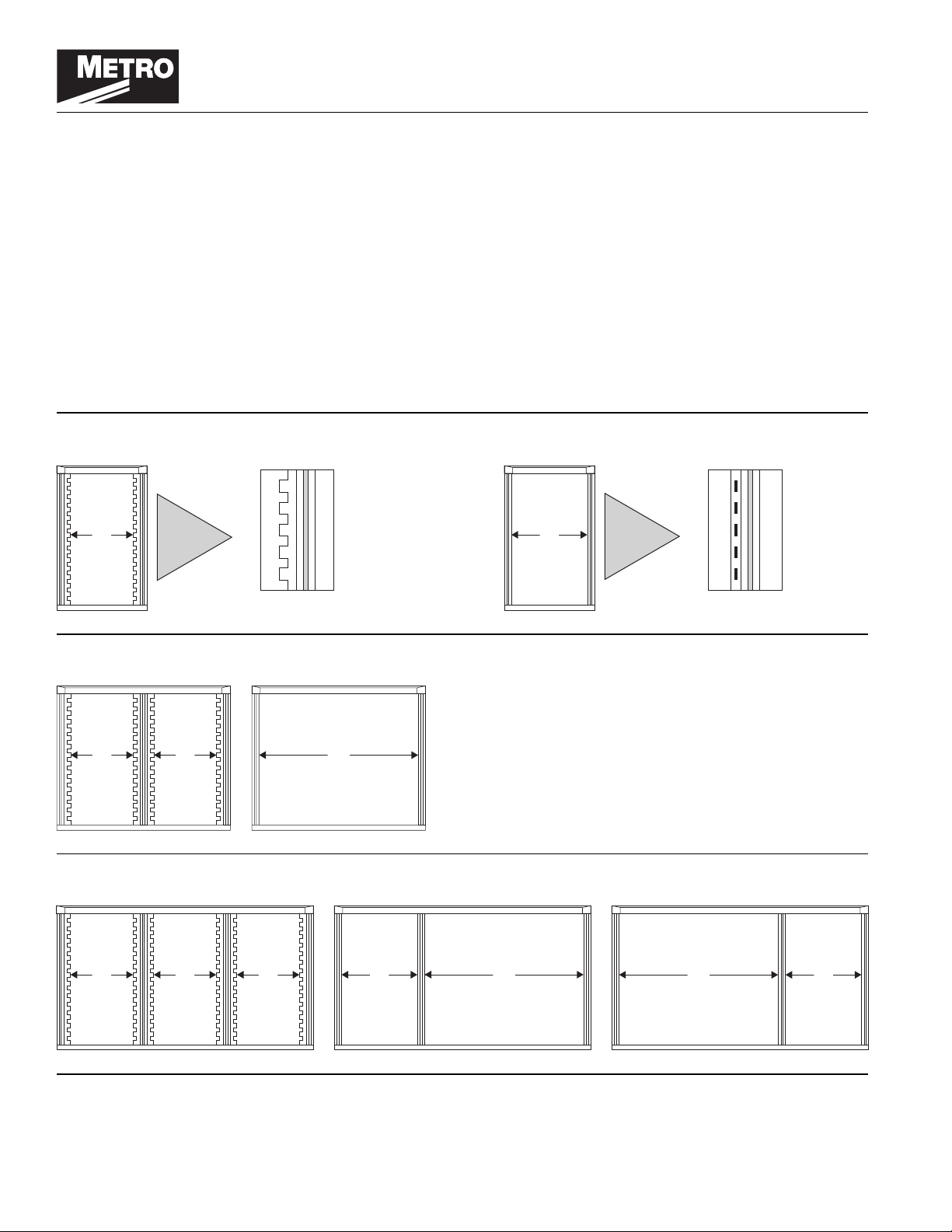

Page 2

38"

(965mm)

18"

(457mm)

I. Select a Shell

Base shells (shown below) utilize corrugated inner panels (Illustration “A”) which are used to hold drawers and

polymer shelves, or slotted post inserts (Illustration “B”) which are used for qwikSLOT stationary and/or full extension shelves, found in Section II.

Base shells are available in mobile or stationary models and can be ordered in various heights, as well as single, double, or triple wide configurations. Base shells are also available with mechanical key locks (MKL) in each bay.

For shell configurations not shown below, customized build to order shells may be developed utilizing the Starsys Worksheet found at the end of this guide. Build to order double wide and triple wide units with corrugated inner panels can be ordered with a combination of locking and non-locking bays.

NOTE: Locks are available for stationary units up to 43" (1092mm) high and on mobile units up to 46" (1168mm) high.

The diagrams below represent an elevation view of Starsys base shells available in multiple heights and mobile or stationary configurations as detailed on the following pages.

SINGLE WIDE SINGLE WIDE

17"

(432mm)

(Illustration “A”)

18"

(457mm)

DOUBLE WIDE

17"

(432mm)

17"

(432mm)

38"

(965mm)

TRIPLE WIDE

(Illustration “B”)

Slotted Post InsertCorrugated Inner Panel

17"

(432mm)

17"

(432mm)

17"

(432mm)

18"

(457mm)

38"

(965mm)

BASE SHELLS

Available with either corrugated inner panels or slotted post inserts.

BUILD TO ORDER SHELLS

Any shell with a combination of corrugated inner panels and slotted post inserts. Build to order shells are custom made. Contact your Metro representative for details.

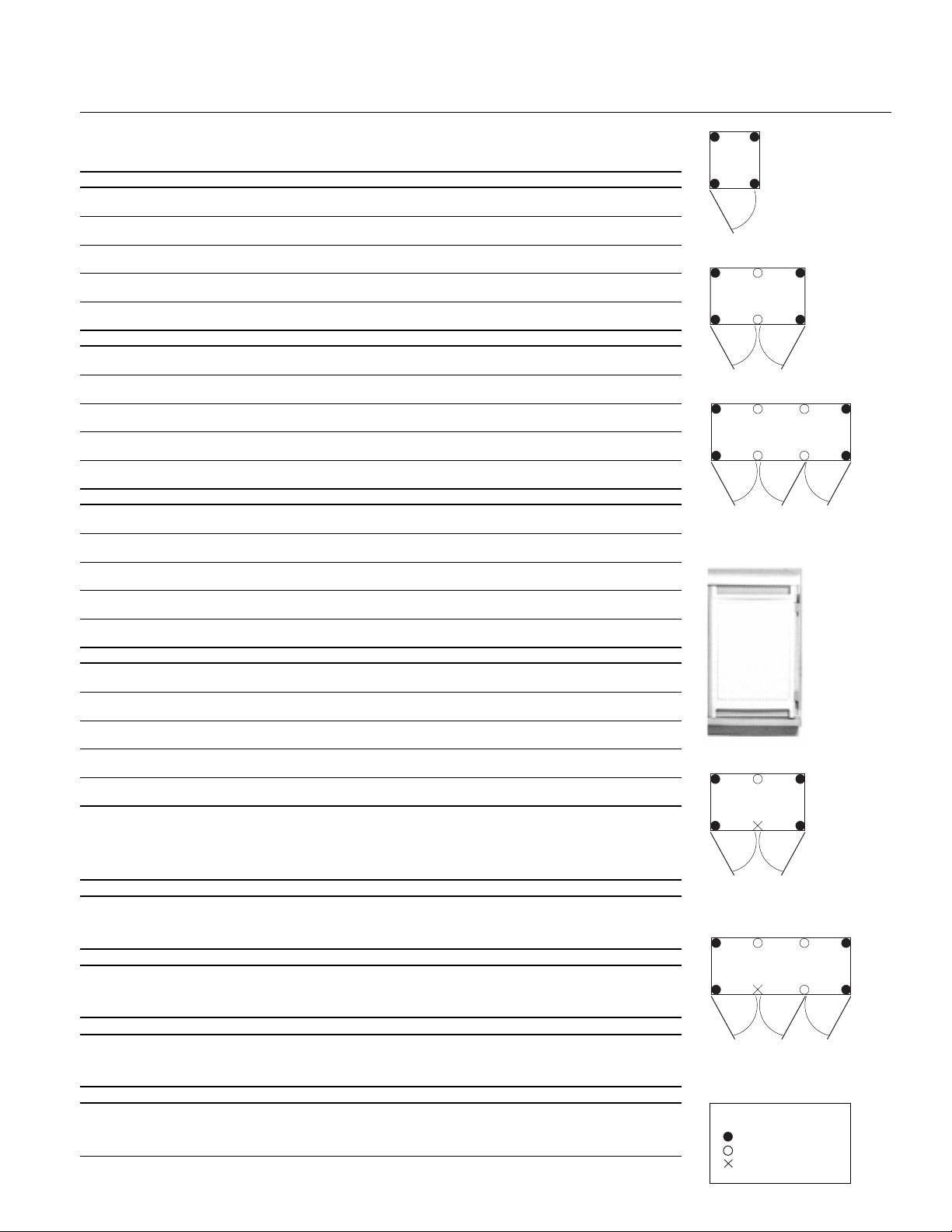

Page 3

Starsys Doors (Single Wide Doors — 1 each)

Description (in.) (mm) (lbs.) (kg) Cat. No.

Non-Locking Doors 90° (Actual opening = up to 135°) Left Hinged Non-Locking Door 90° 27 686 5.8 2.6 SXDRA27L1NS

Right Hinged Non-Locking Door 90° 27 686 5.8 2.6 SXDRA27R1NS Left Hinged Non-Locking Door 90° 30 760 6.5 2.9 SXDRA30L1NS

Right Hinged Non-Locking Door 90° 30 760 6.5 2.9 SXDRA30R1NS Left Hinged Non-Locking Door 90° 33 840 6.8 3.1 SXDRA33L1NS

Right Hinged Non-Locking Door 90° 33 840 6.8 3.1 SXDRA33R1NS Left Hinged Non-Locking Door 90° 36 915 7.5 3.4 SXDRA36L1NS

Right Hinged Non-Locking Door 90° 36 915 7.5 3.4 SXDRA36R1NS Left Hinged Non-Locking Door 90° 66 1675 16.5 7.5 SXDRA66L1NS

Right Hinged Non-Locking Door 90° 66 1675 16.5 7.5 SXDRA66R1NS Locking Doors 90° (Actual opening = up to 135°) Left Hinged Locking Door 90° 27 686 6.1 2.7 SXDRA27L1BS

Right Hinged Locking Door 90° 27 686 6.1 2.7 SXDRA27R1BS Left Hinged Locking Door 90° 30 760 7.0 3.2 SXDRA30L1BS

Right Hinged Locking Door 90° 30 760 7.0 3.2 SXDRA30R1BS Left Hinged Locking Door 90° 33 840 7.3 3.3 SXDRA33L1BS

Right Hinged Locking Door 90° 33 840 7.3 3.3 SXDRA33R1BS Left Hinged Locking Door 90° 36 915 8.5 3.9 SXDRA36L1BS

Right Hinged Locking Door 90° 36 915 8.5 3.9 SXDRA36R1BS Left Hinged Locking Door 90° 66 1675 17.5 7.9 SXDRA66L1BS

Right Hinged Locking Door 90° 66 1675 17.5 7.9 SXDRA66R1BS

Non-Locking Doors 270°

Left Hinged Non-Locking Door 270° 27 686 6.2 2.8 SXDRA27L2NS Right Hinged Non-Locking Door 270° 27 686 6.2 2.8 SXDRA27R2NS

Left Hinged Non-Locking Door 270° 30 760 11.2 5.1 SXDRA30L2NS Right Hinged Non-Locking Door 270° 30 760 11.2 5.1 SXDRA30R2NS

Left Hinged Non-Locking Door 270° 33 840 12.0 5.4 SXDRA33L2NS Right Hinged Non-Locking Door 270° 33 840 12.0 5.4 SXDRA33R2NS

Left Hinged Non-Locking Door 270° 36 915 12.5 5.7 SXDRA36L2NS Right Hinged Non-Locking Door 270° 36 915 12.5 5.7 SXDRA36R2NS

Left Hinged Non-Locking Door 270° 66 1675 25.3 11.5 SXDRA66L2NS Right Hinged Non-Locking Door 270° 66 1675 25.3 11.5 SXDRA66R2NS

Locking Doors 270°

Left Hinged Locking Door 270° 27 686 6.4 2.8 SXDRA27L2BS Right Hinged Locking Door 270° 27 686 6.4 2.8 SXDRA27R2BS

Left Hinged Locking Door 270° 30 760 12.7 5.7 SXDRA30L2BS Right Hinged Locking Door 270° 30 760 12.7 5.7 SXDRA30R2BS

Left Hinged Locking Door 270° 33 840 13.3 6.0 SXDRA33L2BS Right Hinged Locking Door 270° 33 840 13.3 6.0 SXDRA33R2BS

Left Hinged Locking Door 270° 36 915 14.0 6.3 SXDRA36L2BS Right Hinged Locking Door 270° 36 915 14.0 6.3 SXDRA36R2BS

Left Hinged Locking Door 270° 66 1675 26.5 12.0 SXDRA66L2BS Right Hinged Locking Door 270° 66 1675 26.5 12.0 SXDRA66R2BS

NOTE: A 90° door hinge is required when mounting a door to an intermediate post. A 270° door hinge cannot be used with a side storage

unit or SXEHAN. Doors cannot cover drawers.

Height Approx. Pkd. Wt.

Left-hinged door

Left- and right-hinged doors

One left-hinged and two right-hinged doors

33" (838mm) right-hinged non-locking door on 40" (1016mm) stationary shell

Center Closing Doors — 1 set (2 doors)

Description (in.) (mm) (lbs.) (kg) Cat. No.

Height Approx. Pkd. Wt.

Non-Locking Center Closing Doors 90° (Actual opening = up to 135°) Non-Locking Center Doors with 90° Hinge 30 760 13.0 5.8 SXDRA30C1NS

Non-Locking Center Doors with 90° Hinge 33 840 13.8 6.2 SXDRA33C1NS Non-Locking Center Doors with 90° Hinge 36 915 15.2 6.8 SXDRA36C1NS Non-Locking Center Doors with 90° Hinge 66 1675 33.3 15.0 SXDRA66C1NS

Locking Center Closing Doors 90° (Actual opening = up to 135°) Locking Center Doors with 90° Hinge 30 760 14.2 6.5 SXDRA30C1BS

Locking Center Doors with 90° Hinge 33 840 15.3 7.0 SXDRA33C1BS Locking Center Doors with 90° Hinge 36 915 16.5 7.5 SXDRA36C1BS Locking Center Doors with 90° Hinge 66 1675 36.1 16.4 SXDRA66C1BS

Non-Locking Center Closing Doors 270°

Non-Locking Center Doors with 270° Hinge 30 760 13.5 6.1 SXDRA30C2NS Non-Locking Center Doors with 270° Hinge 33 840 14.5 6.6 SXDRA33C2NS Non-Locking Center Doors with 270° Hinge 36 915 15.2 6.9 SXDRA36C2NS Non-Locking Center Doors with 270° Hinge 66 1675 34.5 15.7 SXDRA66C2NS

Locking Center Closing Doors 270°

Locking Center Doors with 270° Hinge 30 760 15.2 6.8 SXDRA30C2BS Locking Center Doors with 270° Hinge 33 840 16.2 7.3 SXDRA33C2BS Locking Center Doors with 270° Hinge 36 915 17.2 7.8 SXDRA36C2BS Locking Center Doors with 270° Hinge 66 1675 35.0 15.8 SXDRA66C2BS

NOTE: Center closing doors must be used with a double wide shelf. 27" doors are not available as center closing.

270° center closing doors cannot be used on triple wide units. Dutch doors (half height) cannot be used on 73" (1854mm) or 76" (1930mm) high shells.

One pair center closing doors for double wide bays (with no center post)

One pair of center closing doors and one right hinged door.

KEY

Corner post Intermediate post No post

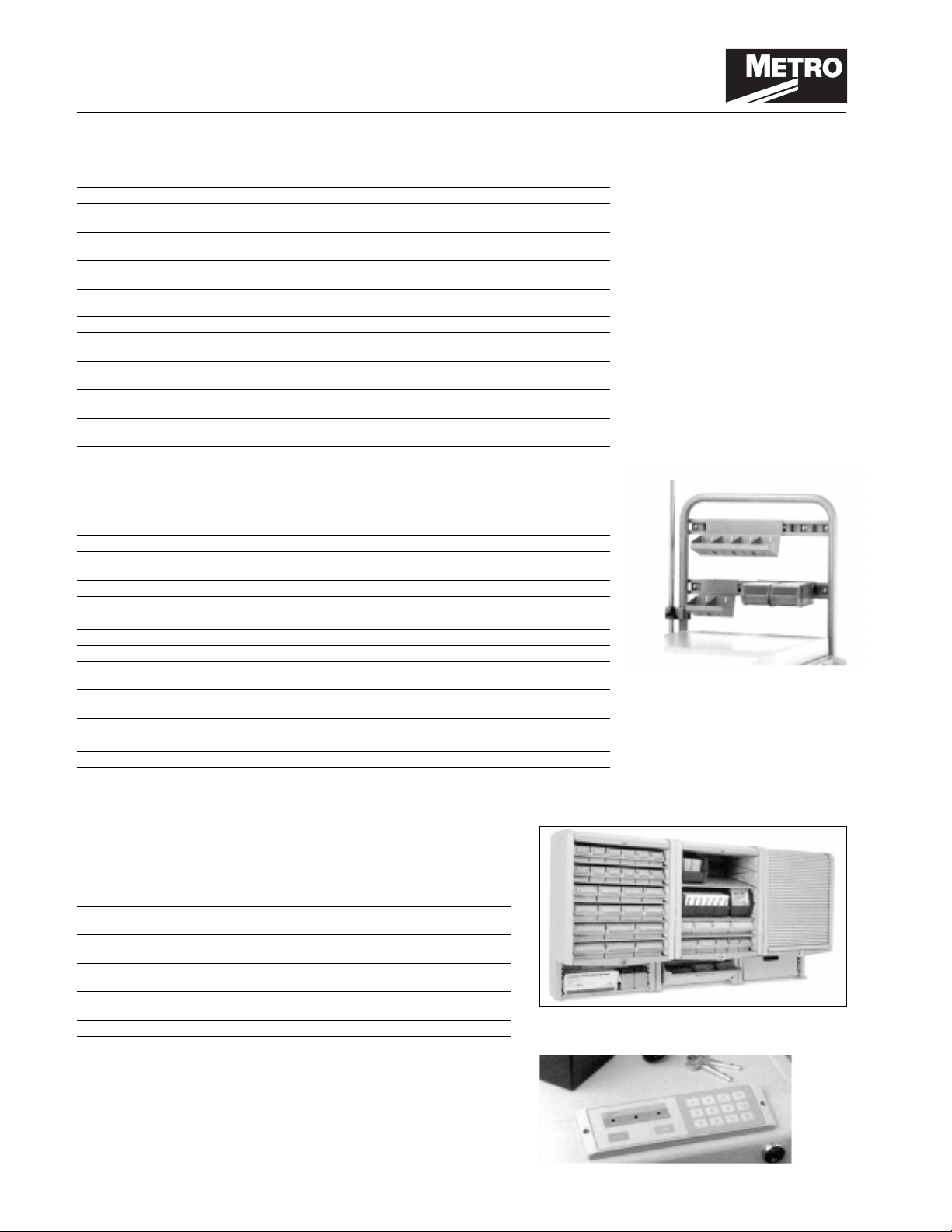

Page 4

STARSYS™ SYSTEM

Starsys Doors Locking Top Mounted Doors

Description (in.) (mm) (lbs.) (kg) Cat. No.

Locking Doors 90°

Left Hinged Locking Door 90° 27 686 6 2.7 SXDRA27L1TS Right Hinged Locking Door 90° 27 686 6 2.7 SXDRA27R1TS

Left Hinged Locking Door 90° 30 760 6.5 3 SXDRA30L1TS Right Hinged Locking Door 90° 30 760 6.5 3 SXDRA30R1TS

Left Hinged Locking Door 90° 33 840 7.1 3.2 SXDRA33L1TS Right Hinged Locking Door 90° 33 840 7.1 3.2 SXDRA33R1TS

Left Hinged Locking Door 90° 36 915 7.8 3.5 SXDRA36L1TS Right Hinged Locking Door 90° 36 915 7.8 3.5 SXDRA36R1TS

Locking Doors 270°

Left Hinged Locking Door 270° 27 686 6 2.7 SXDRA27L2TS Right Hinged Locking Door 270° 27 686 6 2.7 SXDRA27R2TS

Left Hinged Locking Door 270° 30 760 6.5 3 SXDRA30L2TS Right Hinged Locking Door 270° 30 760 6.5 3 SXDRA30R2TS

Left Hinged Locking Door 270° 33 840 7.1 3.2 SXDRA33L2TS Right Hinged Locking Door 270° 33 840 7.1 3.2 SXDRA33R2TS

Left Hinged Locking Door 270° 36 915 7.8 3.5 SXDRA36L2TS Right Hinged Locking Door 270° 36 915 7.8 3.5 SXDRA36R2TS

NOTE: Used on tall units that require a half height door located to the top of the unit. The lock would be conveniently

located at the bottom of the door.

(continued)

Height Approx. Pkd. Wt.

Overbridge & Accessories

May be used with single wide, low profile shells only.

Description Cat. No.

(A) Overbridge Assembly with two Hanger Rails SXSOB (B) Extra Hanger Rail SXOBSRAIL

(23/16" [55mm] H. x 1" [25.4mm] D. x 191/2" [495mm] L. usable space)

Utility Pole with mounting assembly (Attaches directly to cart) SXIV

(D) Universal Clamp SX570

Short Utility Hook (package of 4) (31/2" [89mm] usable length) SX571 Laryngoscope Blade/Specimen Holder SX575

(E) Half-Size Metal Utility Bin SX581

(53/4" [146mm] L. x 51/2" [140mm] H. x 51/2" [140mm] D.)

(F) Full-Size Metal Utility Bin SX582

(115/8" [292mm] L. x 51/2" [140mm] H. x 51/2" [140mm] D.) Label/Tape Dispenser SX583 Wire Supply Basket17" ([432mm] L. x 5" [127mm] D. x 7" [178mm] W.) SX585

(G) Utility Bin with Cover (Package of 6) SX586

Extended Handle Assembly SXEHAN (4" [102mm] H. x 211/2" [546mm] W. x 41/4" [108mm] D.)

*Unless otherwise requested, handle will be assembled on left side of unit.

C——

————————

D——

SXSOB Overbridge Assembly

(Shown with optional accessories)

—E

—F

—

A—

Overhead Storage and Accessories

Designed for wall mounting. Hardware not included.

Description Cat. No.

Overhead Cabinet Assembly (includes locking door assembly) (30" [760mm] H. x 191/2" [495mm] W. x 14" [355mm] D.)

Overhead Cabinet Shelf (for (121/4" [310mm] D. x 167/8" [429mm])

Overhead Cabinet Shelf (for (43/16" D. x 167/8" W.)

Supply Bin 107/8"x51/2"x5" (276x140x127mm) MB30230B (order in multiples of 12)

Supply Bin 107/8"x11"x5" (276x279x127mm) MB30235B (order in multiples of 6)

Tilt-out Bin 33/4" D. x 161/8" W. x 6 H. SXTLTBIN

upper

compartment) SXOHSHF

lower

compartment) SXFULSHLF

SXOH

Electronic Touch Pad (keyless drawer lock)

For use with low profile, single wide units.

Cat. No. SXSTP-B

• Three user-programmable PIN numbers

• Programmable automatic relock function

• Programmable access-denied function (Contact your Metro representative for more information)

SXOH

(Shown with accessories)

SXSTP-B

Page 5

Poly Shelf with Drawer Face (18 x 22 x 3) _________

Single Wide Q-Slot Wire Shelf (19

Single Wide Full Ext. Shelf (16

Double Wide Q-Slot Wire Shelf (39

Double Wide Full Extension (36

Shelf Dividers (21 x 3) _________

Shelf Ledges (15

Label Holders sglwd______ dblwd______

*Wire Shelves occupy 1.5" H.

Lock Style

Basic Touch Pad____

(for single wide, locking, low profile units)

Mechanical Key Lock

1st Bay____ 2nd Bay____ 3rd Bay____

If multiple locks indicate:

Keyed Alike____ Keyed Differently____

Note which accessories get keyed differently. Otherwise,

locks will be keyed to default scenario.

Shelf Assemblies & Accessories

Single Wide Poly Shelf

Handle _________ _________

IV Pole Kit (Attaches to Cart) _________ _________

*May not be used on swing out units.

Chart Holder _________ _________

Gas Tank Cylinder Holder* _________ _________

Sharps Container Holder _________ _________

Cup Holder _________ _________

Waste Basket and Holder _________ _________

Tilt out/Removable Bin _________ _________

Full Width Shelf _________ _________

Tray w/Dividers _________ _________

Lockable Tambour Door _________ _________

NOTE: Form must be completely filled out or request will

be rejected.

Side Accessories

Note: Side storage units are 19

Swingout Side Storage Unit _________ _________

Fixed Side Storage Unit _________ _________

___Stationary Application

Send hard copy: ❑ yes ❑ no

# of Units

(fill out rest of worksheet based on one unit)

Check one:

___Mobile Application

_________

(18 x 22 x 1

x 4

) _________

Filler Kit

(For tall Workcenter Application only)

Back filler _________

Corner filler, 45° _________

Corner filler, 90° _________

Quantity

non-locking unit can be quoted as “standard custom” with

cutting/surcharges. Nonstandard sized

NOTE: Any height (varying on 3" increments from standard)

quoted through the custom engineering department.

in grid. It occupies 3" vertical space.

x 21

) _________

Utility Bin w/Cover (pkg. of 6) (5 fit/rail) _________

) _________

Full-sized Metal Utility Bin _________

Label/Tape Dispenser _________

Wire Supply Basket _________

) _________

Quantity

Short Utility Hook (pkg. of 4) _________

Blade/Specimen Holder _________

Half-sized Metal Utility Bin _________

Overbridge w/2 shelves _________

Utility Pole w/Universal Clamp _________

Universal Clamp _________

Overbridge w/1 rail & 1 shelf _________

NOTE: Mid-level lock module for tall units should be drawn

(152mm)

(76mm)

15"

18"

(864mm)

21"

➨

12"

Overbridge & Accesories

Overbridge w/2 hanger rails _________

labels up to 18 bins per size and up to 18 bins per color

(Blue, Green or Mauve)

6" Wide Bin (3 per level) _________

Cassette Label Kit _________

Bin Divider Kit

NOTE: Bins are shipped with one label. Cassette label kit

(Divides up to 4 bins)

(1092mm)

(1016mm)

43"

40"

(1168mm)

(1092mm)

_________

(1219mm)

from floor

Quantity

(940mm)

37"

(1016mm)

48"

46"

43"

40"

34"

45"

42"

39"

36"

33"

30"

27"

24"

Four Level Cassette (15"H) (5 grid spaces) _________

Five Level Cassette (18"H) (6 grid spaces) _________

3" Wide Bin (6 per level) _________

4 –

" Wide Bin (4 per level) _________

shelves above

extension

No full

57"

54"

51"

48"

Cassette

Two Level Cassette (9"H) (3 grid spaces) _________

Three Level Cassette (12"H) (4 grid spaces) _________

Quantity

63"

60"

" x 5

Left Right

(495 x 146mm)

Miscellaneous Accessories

3" Drawer Divider Short_____Long_____Kit_____

6/9" Drawer Divider Short_____Long_____Kit_____

3" Exchange Tote (include “L” for locking) _________

6" Exchange Tote (include “L” for locking) _________

9" Exchange Tote (include “L” for locking) _________

Drawer Label Holders (10 pk) _________

NOTE: Choose drawers by drawing on grid.

NOTE: Choose locking drawer (w/cover) by writing “L”

on the appropriate drawer drawn on grid.

Quantity

STATIONARY

(1829mm)

Lower Shelf

OUTSIDE HEIGHTS INTERIOR HEIGHTS

6" Wide Bin (3 per shelf) _________

Tilt out Bin _________

MB30235B

3" Wide Bin (6 per shelf) _________

4.5" Wide Bin (4 per shelf) _________

MB30230B

72"

(order in multiples of 12)

(1929mm)

MOBILE

76"

" x 16

(order in multiples of 6)

66"

Color Options For Drawer Handles

❑ Default Taupe ❑ Mauve ❑ Yellow

❑ Slate Blue ❑ Jade

CLOSED

UNIT

WORKSHEET

❏ New ❏ Revision Worksheet_______of_______Total Sheets Faxed__________Planning Sheet____________

Today's Date____________Required Date____________Est. Order Date____________Account #______________

Acccount Name__________________________________Project Name___________________________________

Fax to_________________________________________________________Fax #_________________________

Rep

For questions: Contact Name_______________________________________Phone________________________

Overhead Storage Units/Accessories

Overhead Cabinet _________

Upper Shelf (12

___________________________________________________________

" x 16

locking units must be

1st Bay 3rd Bay

NOTE: Cassettes and 3" Drawers cannot occupy the bottom 3 inches.

_________

Outside Dimension:

Depth Length Stationary Mobile

Stationary = 24

Ext. Mobile = 27

Standard Mobile = 24

Front View

2nd Bay

_________

Tall Door w/270° Hinge & Lock ________ ________

Door Label Holders (10 pk) ________

Short Door w/90° Hinge & Lock ________ ________

Short Door w/270° Hinge & Lock ________ ________

Tall Door w/90° Hinge & Lock ________ ________

_________

Short Door w/270° Hinge ________ ________

Tall Door w/90° Hinge ________ ________

Tall Door w/270° Hinge ________ ________

Quantity

Doors

Short Door w/90° Hinge ________ ________

▼

" Single Wide 21

" Triple Wide 61" 62

" Double Wide 41

Left Hinge Right Hinge

"22

"42

Territory#_______________________

Page 6

STARSYS™ SYSTEM

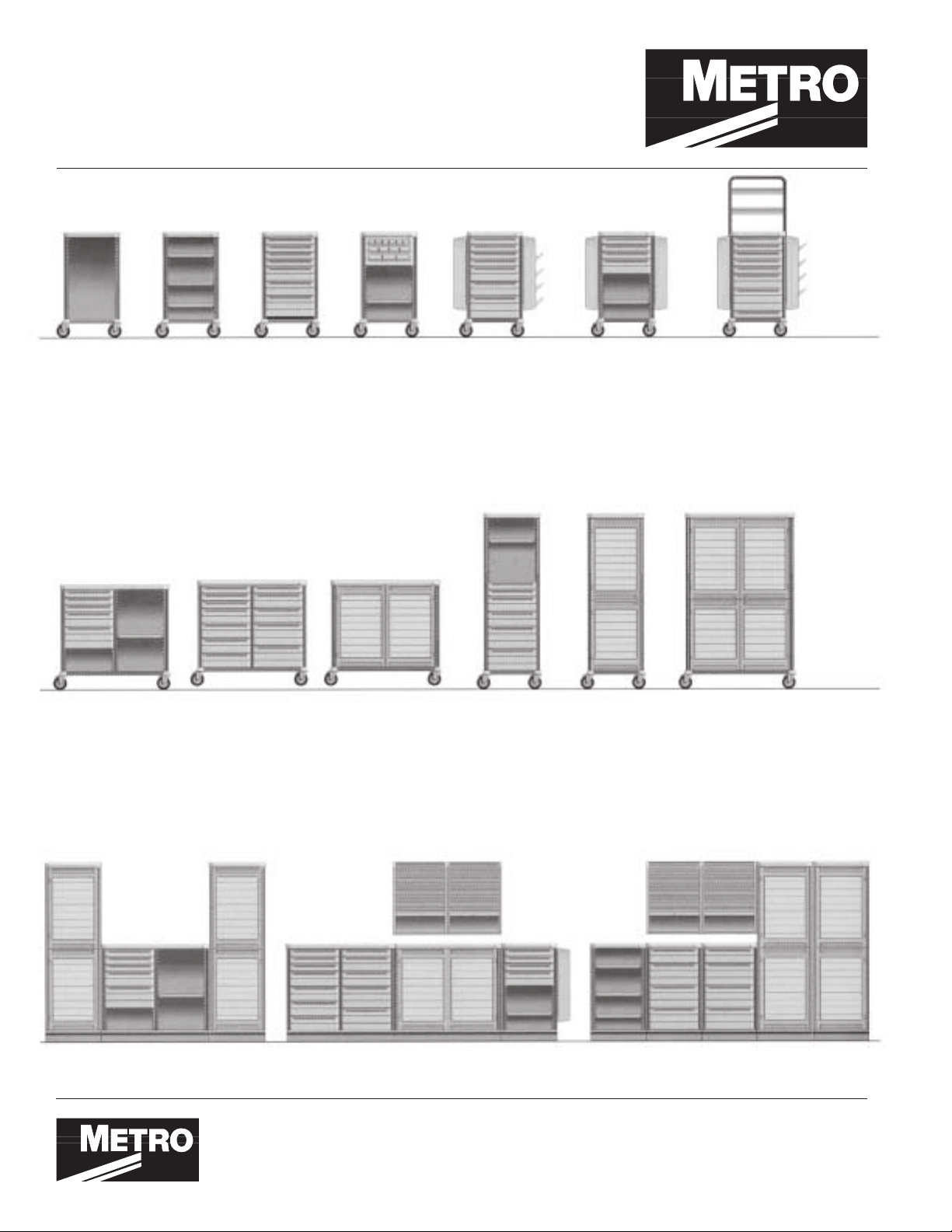

These illustrations show a representative sampling of the Starsys System's total capability. Contact us to develop the correct configuration to meet your exact needs.

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705 Phone: 570-825-2741 • Fax: 570-825-2852

For Product Information Call: 1-800-433-2232 Visit Our Web Site: www.metro.com

Information and specifications are subject to change

without notice. Please confirm at time of order.

L03-145

Rev. 11/00

Printed in U.S.A.
