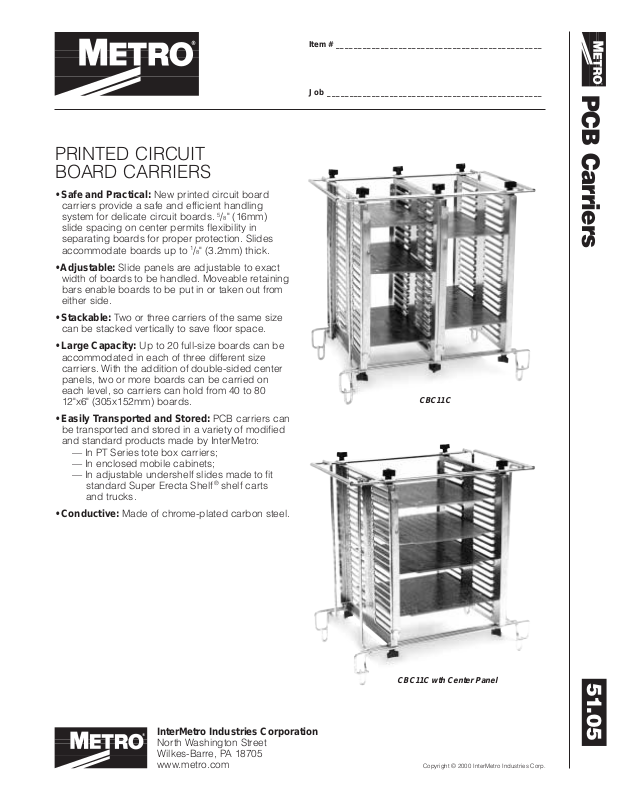

PRINTED CIRCUIT
BOARD CARRIERS
• Safe and Practical: New printed circuit board
carriers provide a safe and efficient handling
system for delicate circuit boards. 5/8" (16mm)
slide spacing on center permits flexibility in
separating boards for proper protection. Slides
accommodate boards up to 1/8" (3.2mm) thick.
• Adjustable: Slide panels are adjustable to exact
width of boards to be handled. Moveable retaining
bars enable boards to be put in or taken out from
either side.
• Stackable: Two or three carriers of the same size
can be stacked vertically to save floor space.
• Large Capacity: Up to 20 full-size boards can be
accommodated in each of three different size
carriers. With the addition of double-sided center
panels, two or more boards can be carried on
each level, so carriers can hold from 40 to 80
12"x6" (305x152mm) boards.
• Easily Transported and Stored: PCB carriers can
be transported and stored in a variety of modified
and standard products made by InterMetro:
— In PT Series tote box carriers;
— In enclosed mobile cabinets;
— In adjustable undershelf slides made to fit
standard Super Erecta Shelf® shelf carts
and trucks.
Job ________________________________________________
CBC11C
PCB Carriers
• Conductive: Made of chrome-plated carbon steel.

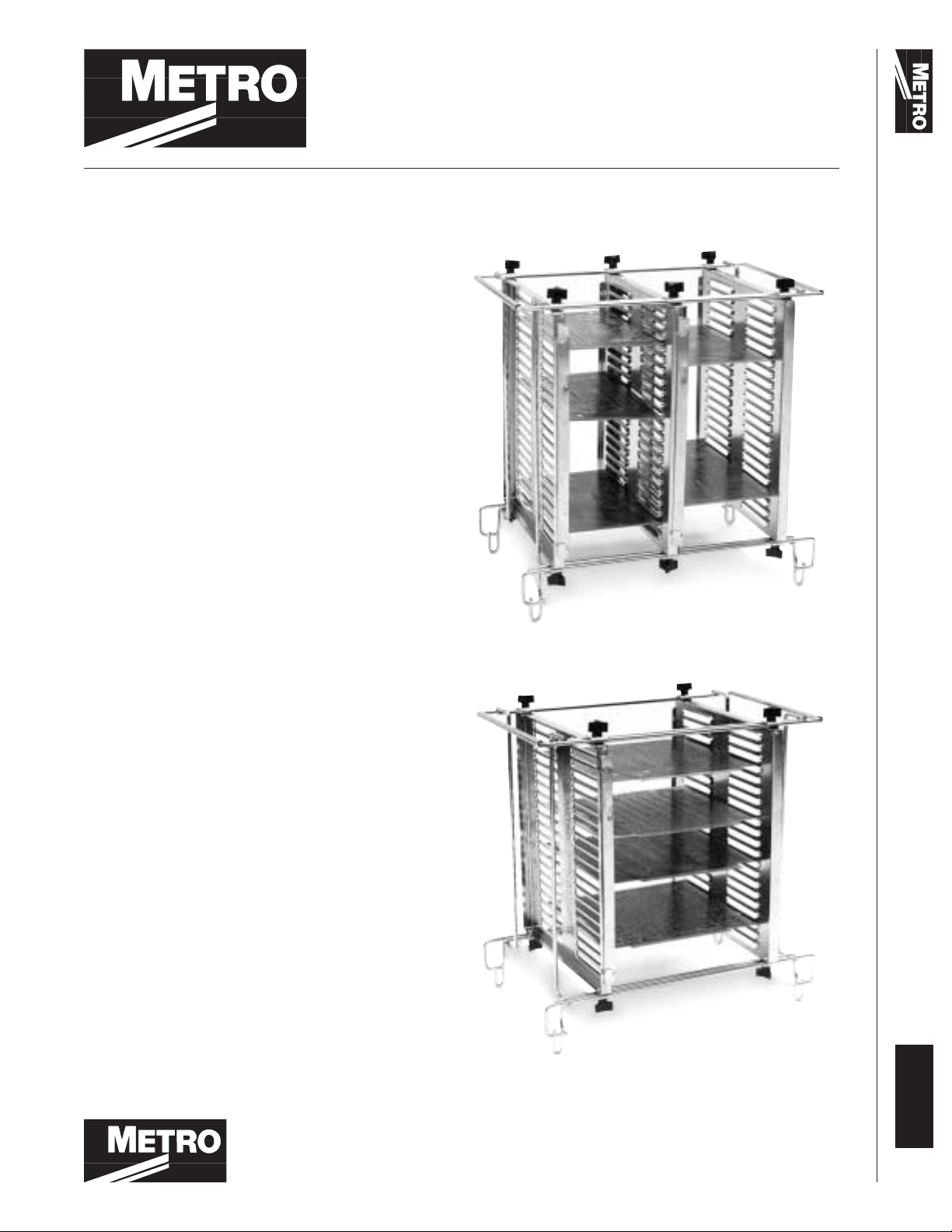

CBC11C wth Center Panel
InterMetro Industries Corporation
®
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Copyright © 2000 InterMetro Industries Corp.
51.05
Page 2
51.05
®
Job ________________________________________________
PRINTED CIRCUIT
BOARD CARRIERS
®

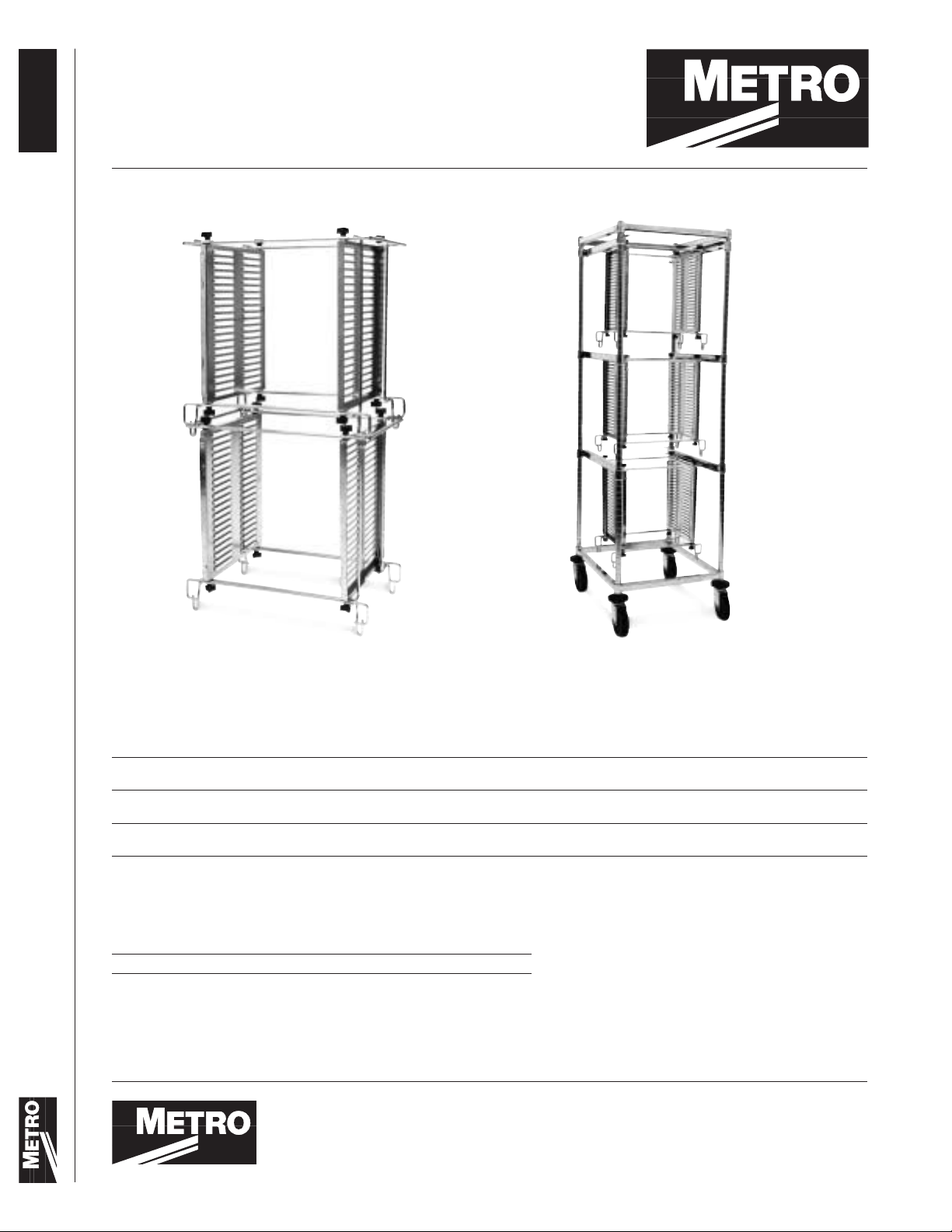

Two CBC11C’s
Stacked
Three CBC11C’s
in PT1C-5M Tote
Box Carrier
(Capacity six
CBC11C’s. Two-
and three-bay
Tote Box Carriers
also available).
Dimensions
Approx. Capacity Capacity with
Cat. No. (in.) (mm) (lbs.) (kg) (in.) (mm) Boards Boards
CBC11C 171/2x121/2x183/16 444x317x462 10 4.53 13x12 330x305 20
CBC13C 241/4x121/2x183/16 616x317x462 103/4 4.87 191/4x12 489x305 20
CBC14C 31x121/2x183/16 787x317x462 113/5 5.25 261/8x12 664x305 20
Length/Width/Height Per Unit Board Size Full-Size (305x152mm)
Pkd. Wt. Maximum with 12"x6"
40
(1 Center Panel)
60
(2 Center Panels)
80
(3 Center Panels)
Center Panel with Double Slide
Approx.
Cat. No. (in.) (mm) (lbs.) (kg)
CBCP2C
Load Rating: 5 lbs. (2kg) per slide, not to exceed 75 lbs. (34kg) per carrier.
PCB Carriers
Manufactured by:
Length/Width/Height Per Unit
7
/8x121/2x151/8 22x317x384 6 2.7
InterMetro Industries Corporation
®
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com
Pkd. Wt.
L02-133
Rev. 9/00
Printed in U.S.A.
Information and specifications are subject to change
without notice. Please confirm at time of order.
