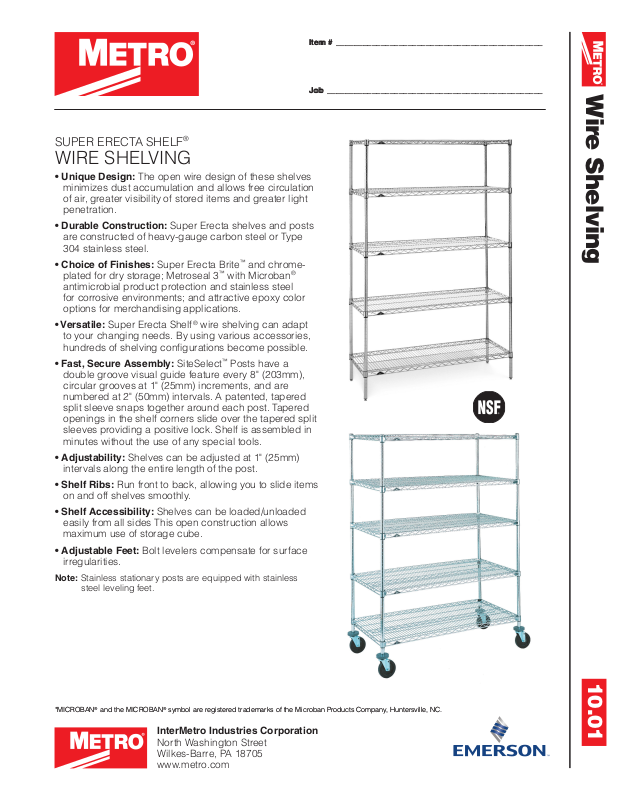

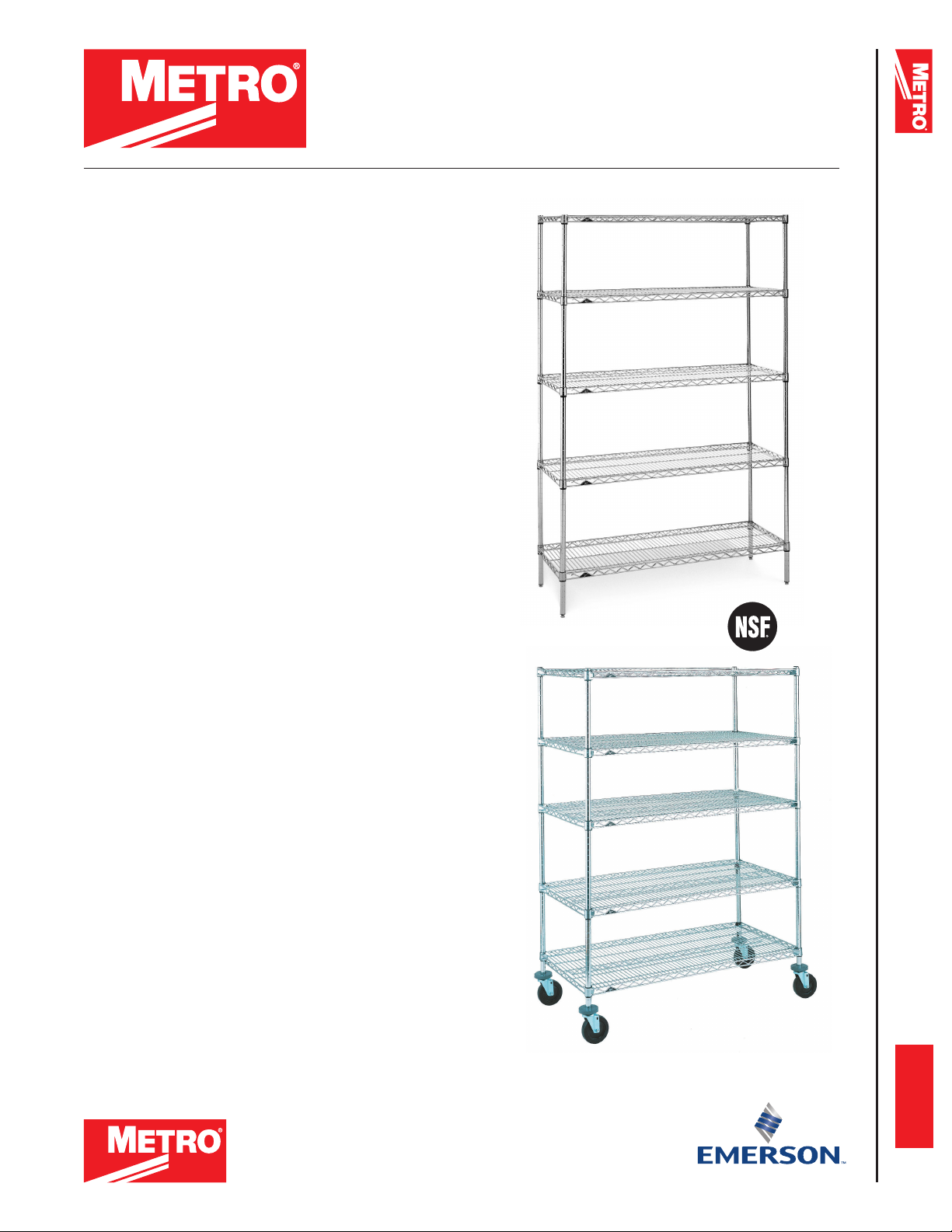

Intermetro 13P General Manual

Page 1

Item # ______________________________________________

Job ________________________________________________

SUPER ERECTA SHELF®

WIRE SHELVING

• Unique Design: The open wire design of these shelves minimizes dust accumulation and allows free circulation of air, greater visibility of stored items and greater light penetration.

• Durable Construction: Super Erecta shelves and posts are constructed of heavy-gauge carbon steel or Type 304 stainless steel.

• Choice of Finishes: Super Erecta Brite™ and chrome- plated for dry storage; Metroseal 3™ with Microban® antimicrobial product protection and stainless steel for corrosive environments; and attractive epoxy color options for merchandising applications.

• Versatile: Super Erecta Shelf® wire shelving can adapt to your changing needs. By using various accessories, hundreds of shelving conﬁgurations become possible.

• Fast, Secure Assembly: SiteSelect™ Posts have a double groove visual guide feature every 8" (203mm), circular grooves at 1" (25mm) increments, and are numbered at 2" (50mm) intervals. A patented, tapered split sleeve snaps together around each post. Tapered openings in the shelf corners slide over the tapered split sleeves providing a positive lock. Shelf is assembled in minutes without the use of any special tools.

• Adjustability: Shelves can be adjusted at 1" (25mm) intervals along the entire length of the post.

• Shelf Ribs: Run front to back, allowing you to slide items on and off shelves smoothly.

• Shelf Accessibility: Shelves can be loaded/unloaded easily from all sides This open construction allows maximum use of storage cube.

• Adjustable Feet: Bolt levelers compensate for surface irregularities.

Note: Stainless stationary posts are equipped with stainless

steel leveling feet.

Wire Shelving

*MICROBAN® and the MICROBAN® symbol are registered trademarks of the Microban Products Company, Huntersville, NC.

InterMetro Industries Corporation

North Washington Street Wilkes-Barre, PA 18705 www.metro.com

10.01

Page 2

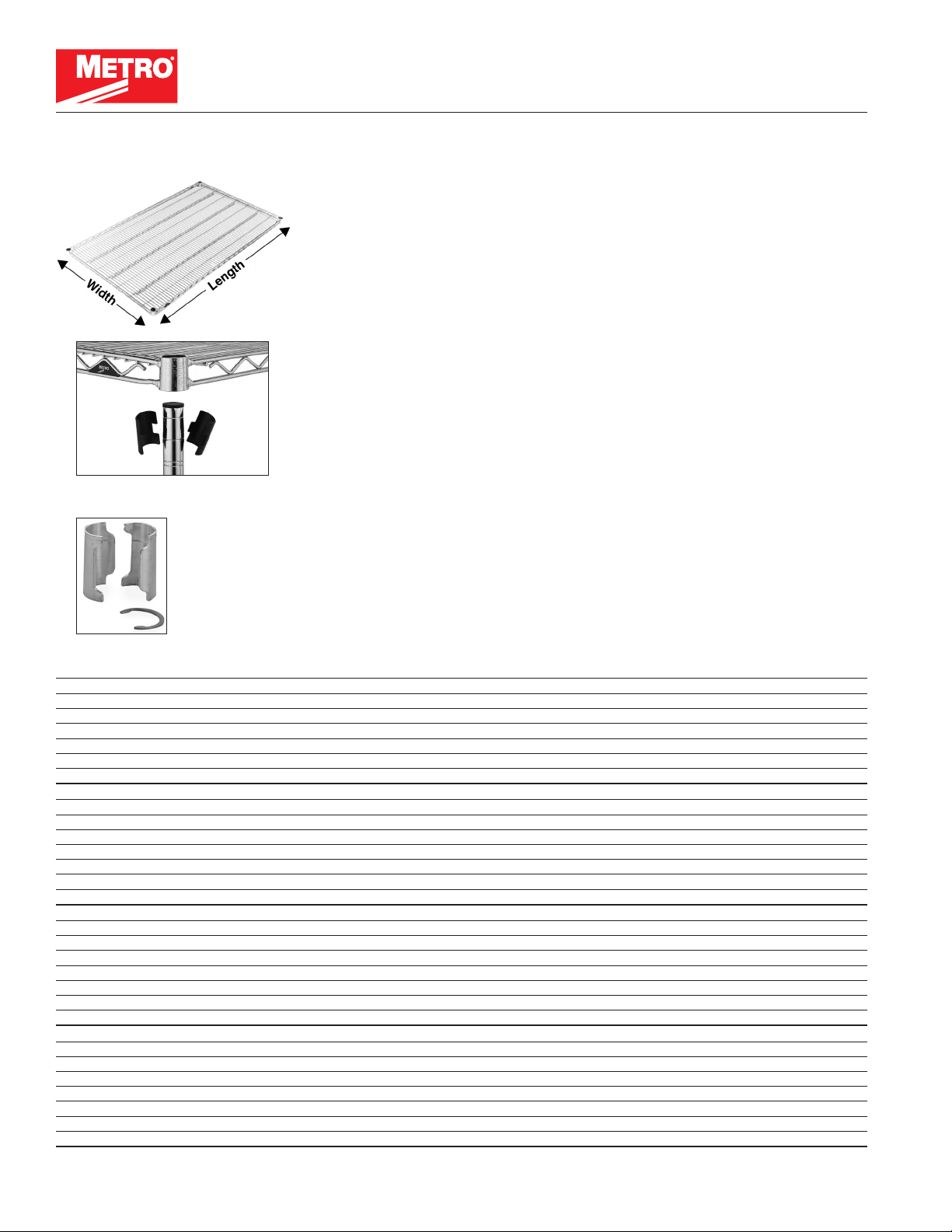

Wire Shelves

Split Sleeve

Aluminum Split Sleeve

SUPER ERECTA SHELF®

WIRE SHELVING

• Metroseal 3: Metro’s proprietary epoxy coating contains Microban® antimicrobial product protection. Microban antimicrobial protects the epoxy coating from bacteria, mold, mildew, and fungus that cause odors, stains, and product degradation.

• See spec sheet 10.14 for epoxy color options.

• Plastic split sleeves are included with each shelf Replacements are available: Cat. No. 9985 (bag of 4)

• Aluminum split sleeves are recommended for abusive mobile applications and autoclave applications.

Cat. No. 9986Z (bag of 4 with zinc C-rings) Cat. No. 9986S (bag of 4 with stainless steel C-rings)

• Load capacity (evenly distributed) per shelf Depths: 14" to 24" (355 to 610mm)

800 Ibs. (363kg) for lengths of 18" to 48" (457 to 1219mm) 600 Ibs. (272kg) for lengths of 54" (1370mm) or longer

• Load capacity (evenly distributed) per unit. Stationary shelving units have a maximum load capacity (evenly distributed) of 2,000 Ibs. (907kg)

Mobile units have a maximum capacity of three times the caster load rating up to but not exceeding 1,000 Ibs. (453kg) total. Consult the Metro catalog for caster load ratings

• SUPER ERECTA SHELF meets Government Speciﬁcations MIL-S-40144E.

Approx. Model No. Model No. Model No. Model No. Nominal Width/Length Pkd. Wt. Super Erecta Brite Chrome Metroseal 3 with Microban® Stainless (in.) (mm) (lbs.) (kg)

1424BR 1424NC 1424NK3 1424NS 14x24 355x610 6 2.7 1430 BR 1430NC 1430NK3 1430NS 14x30 355x760 7 3.2 1436BR 1436NC 1436NK3 1436NS 14x36 355x914 8 3.6 1442BR 1442NC 1442NK3 1442NS 14x42 355x1066 91/2 4.3 1448BR 1448NC 1448NK3 1448NS 14x48 355x1219 101/2 4.7 1460BR 1460NC 1460NK3 1460NS 14x60 355x1524 14 6.3 1472BR 1472NC 1472NK3 1472NS 14x72 355x1829 17 7.7

1824BR 1824NC 1824NK3 1824NS 18x24 457x610 7 3.2 1830BR 1830NC 1830NK3 1830NS 18x30 457x760 8 3.6 1836BR 1836NC 1836NK3 1836NS 18x36 457x914 91/2 4.3 1842BR 1842NC 1842NK3 1842NS 18x42 457x1066 11 5.0 1848BR 1848NC 1848NK3 1848NS 18x48 457x1219 12 5.4 1854BR 1854NC 1854NK3 1854NS 18x54 457x1370 141/2 6.6 1860BR 1860NC 1860NK3 1860NS 18x60 457x1524 17 7.7 1872BR 1872NC 1872NK3 1872NS 18x72 457x1829 20 9.1

2124BR 2124NC 2124NK3 2124NS 21x24 530x610 8 3.6 2130BR 2130NC 2130NK3 2130NS 21x30 530x760 9 4.1 2136BR 2136NC 2136NK3 2136NS 21x36 530x914 11 5.0 2142BR 2142NC 2142NK3 2142NS 21x42 530x1066 12 5.4 2148BR 2148NC 2148NK3 2148NS 21x48 530x1219 14 6.4 2154BR 2154NC 2154NK3 2154NS 21x54 530x1370 16 7.3 2160BR 2160NC 2160NK3 2160NS 21x60 530x1524 18 8.2 2172BR 2172NC 2172NK3 2172NS 21x72 530x1829 24 10.9

2424BR 2424NC 2424NK3 2424NS 24x24 610x610 9 4.1 2430BR 2430NC 2430NK3 2430NS 24x30 610x760 11 5.0 2436BR 2436NC 2436NK3 2436NS 24x36 610x914 13 5.9 2442BR 2442NC 2442NK3 2442NS 24x42 610x1066 15 6.8 2448BR 2448NC 2448NK3 2448NS 24x48 610x1219 16 7.3 2454BR 2454NC 2454NK3 2454NS 24x54 610x1370 19 8.6 2460BR 2460NC 2460NK3 2460NS 24x60 610x1524 21 9.5 2472BR 2472NC 2472NK3 2472NS 24x72 610x1829 26 11.8

Note: 14” (355mm) deep units. Free-standing units: Foot plates should be used and secured to the ﬂoor. Mobile units: maximum allowable post height is 54” (1370mm).

Page 3

SUPER ERECTA SHELF®

WIRE SHELVING

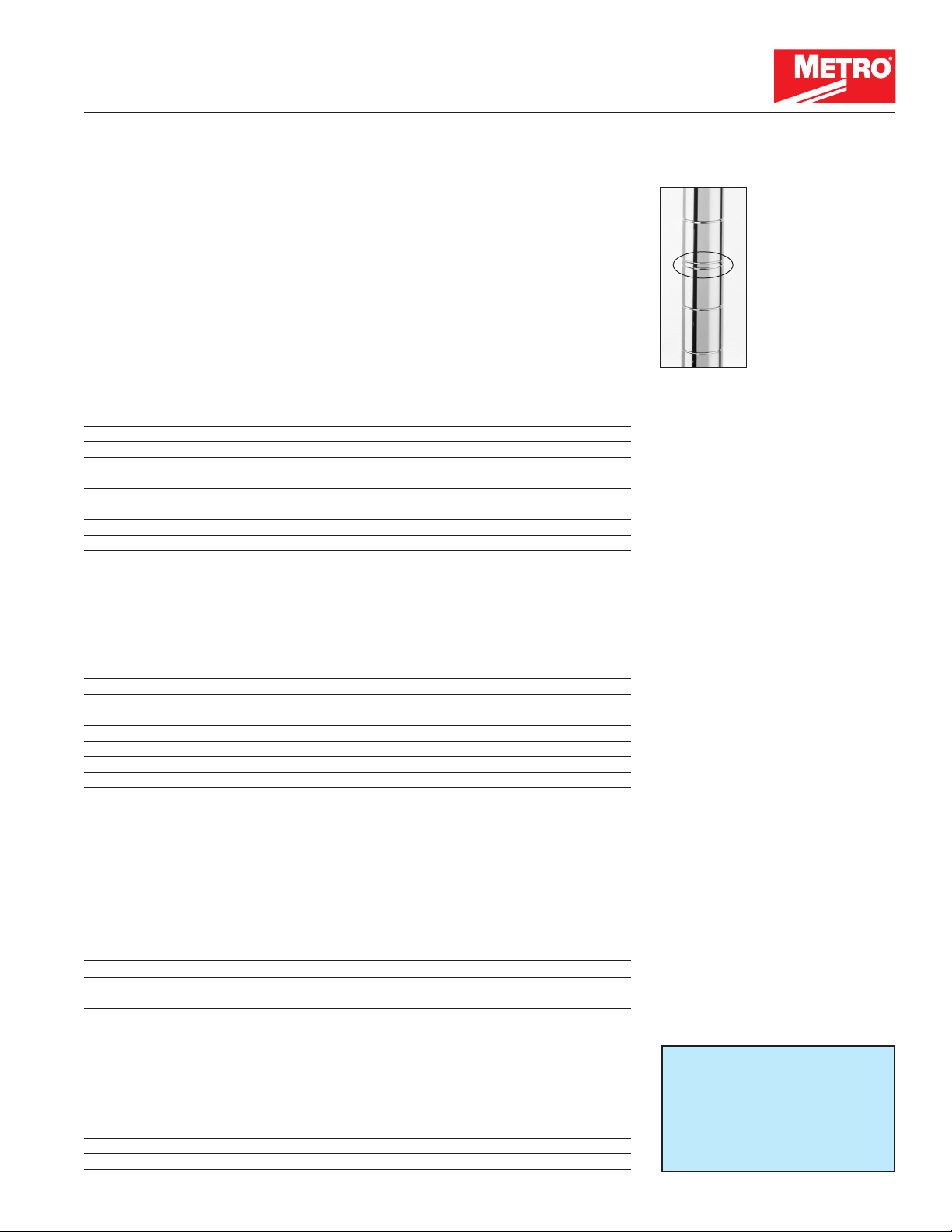

SiteSelect™ Posts

Stationary Posts

Stationary posts are equipped with a leveling bolt to account for uneven ﬂoors.

• Height includes leveling bolt (completely tightened) and post cap Leveling bolt can be adjusted 1/2" (13mm).

• Foot plates may be ordered separately and installed in place of leveling foot.

• Replacement leveling bolts Zinc Cat. No. RPF04-004 Stainless Steel Cat. No. RPF04-004C

• Replacement post cap for standard posts Black Cat. No. RPC06-035

Model No. Approx. Model No. Metroseal 3 Model No. Height Pkd. Wt. Chrome with Microban Stainless Steel (in.) (mm) (lbs.) (kg)

7P 73/8 187 1/2 0.3 13P 13PK3 13PS 14 27P 27PS 283/8 720 13/4 0.75 33P 33PK3 33PS 343/8 873 2 0.9 54P 54PK3 54PS 547/16 1382 3 1.4 63P 63PK3 63PS 627/16 1585 31/2 1.6 74P 74PK3 74PS 741/2 1892 4 1.8 86P 86PK3 86PS 861/2 2197 5 2.3 *96P 961/2 2450 51/2 2.5

*96P should not be used on units less than 24" (610mm) deep. Consult Metro Engineering for alternate recommendations.

/8 365 1 0.5

SiteSelect Posts feature double grooves every 8" (203mm) to aid assembly.

Mobile Posts

(For use with Stem Casters)

• Height includes post cap.

Model No. Approx. Model No. Metroseal 3 Model No. Height Pkd. Wt. Chrome with Microban Stainless Steel (in.) (mm) (lbs.) (kg)

27UP 27UPS 273/4 704 13/4 0.75 33UP 33UPK3 33UPS 333/4 857 2 0.9 54UP 54UPK3 54UPS 5313/16 1366 3 1.4 63UP 63UPK3 63UPS 6113/16 1570 31/2 1.6 70UPK3 693/4 1771 33/4 1.7 74UP 74UPK3 74UPS 737/8 1876 4 1.8 86UP 86UPK3 86UPS 857/8 2181 41/2 2.0

Staked Posts

(For use with Truck Dollies)

• Each post connects to the truck dolly through the stem receptacle. The stem receptacle is staked into the bottom of the post to ensure a durable connection in abusive mobile applications.

• Each includes a leveling/connecting bolt.

Approx. Model No. Model No. Height Pkd. Wt. Chrome Stainless Steel (in.) (mm) (lbs.) (kg)

54P-STKD 54PS-STKD 547/16 1382 3 1.4 63P-STKD 63PS-STKD 627/16 1585 31/2 1.6 74P-STKD 74PS-STKD 741/2 1892 4 1.8

Swedged Posts

(For use with Stem Casters in Cart Wash Applications)

• Each post has an aluminum cap swedged into the top of the post.

Approx. Model No. Height Pkd. Wt. Stainless Steel (in.) (mm) (lbs.) (kg)

33UPS-SW 333/4 857 2 0.9 54UPS-SW 5313/16 1366 3 1.4 63UPS-SW 6113/16 1570 31/2 1.6

Special Length Posts

Special length cut posts are available. Consult your Metro representative for more information.

Page 4

10.01

Job ________________________________________________Job ________________________________________________

SUPER ERECTA SHELF®

WIRE SHELVING

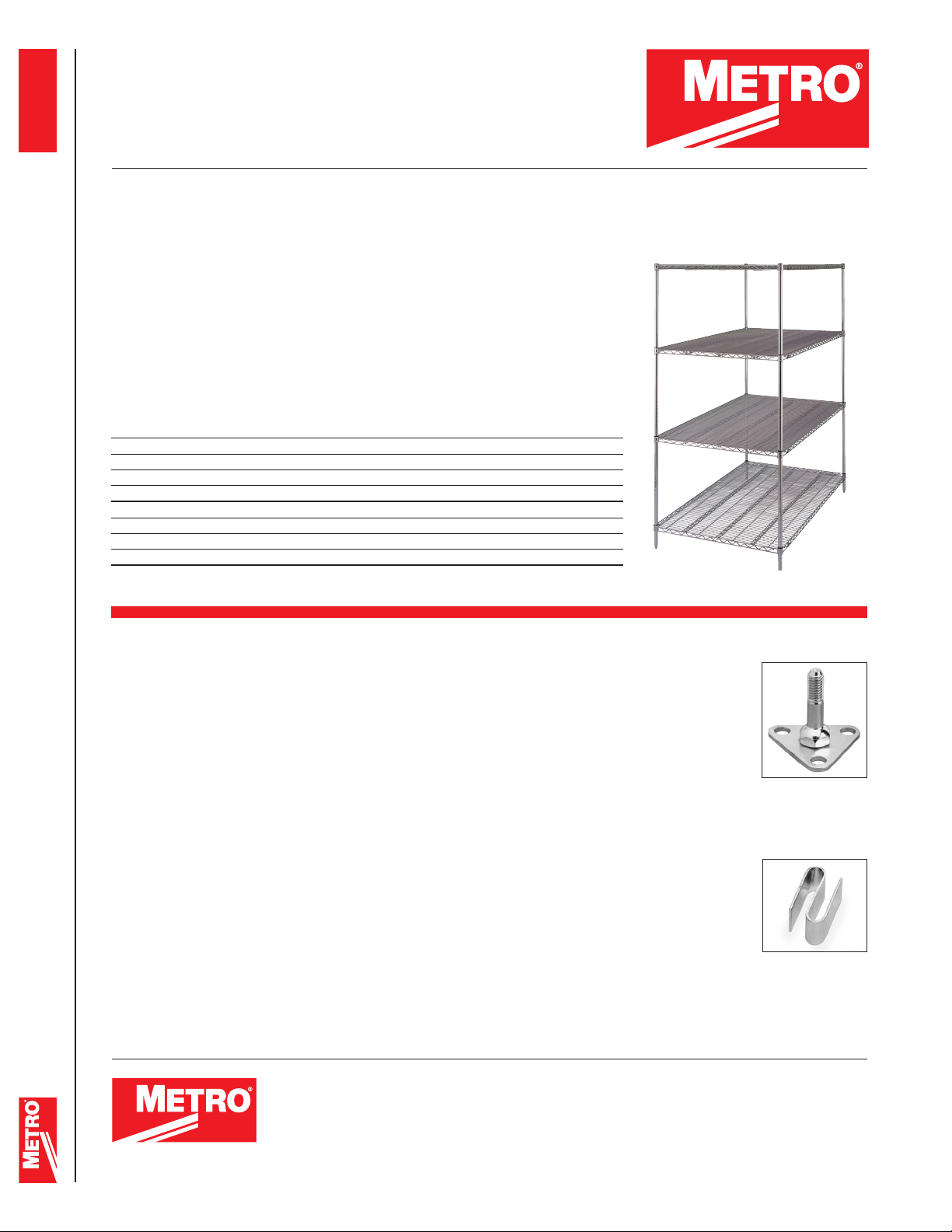

Super Wide Shelving

• High-density Storage: Super Wide™ shelves have a greater storage area for holding large quantities of supplies, especially large, bulky objects, providing maximum storage in minimum space.

• Load Capacity (evenly distributed) per shelf:

Depths: 30" and 36" (760 and 914mm)

600 lbs. (272kg) for lengths 48" (1219mm) or shorter.

400 lbs. (181kg) for lengths 54" (1370mm) or longer.

Model No. Approx. Model No. Metroseal 3 Model No. Nominal Width/Length Pkd. Wt. Chrome with Microban Stainless Steel (in.) (mm) (lbs.) (kg)

3036NC 3036NK3 3036NS 30x36 760x914 15 6.8 3048NC 3048NK3 3048NS 30x48 760x1219 21 9.5 3060NC 3060NK3 3060NS 30x60 760x1524 261/2 11.8 3072NC 3072NK3 3072NS 30x72 760x1829 31 14.0

3636NC 3636NK3 3636NS 36x36 910x914 18 8.2 3648NC 3648NK3 3648NS 36x48 910x1219 23 10.4 3660NC 3660NK3 3660NS 36x60 910x1524 29 13.1 3672NC 3672NK3 3672NS 36x72 910x1829 341/2 15.4

Foot Plates

• Use to bolt units to the ﬂoor, or when a broader, more stable foot is desired. Foot plates also help to protect ﬂoors by distributing the point load of the shelving unit across a larger contact point.

• Foot plates (completely tightened) add 1/8" (3mm) to the speciﬁed heights of each stationary post on the table.

Zinc Cat. No. 9993Z Stainless Steel Cat. No. 9993S

“S’’ Hook

• Used to add on shelving units with only two posts required. Order two per shelf level. Cat. No. 9995Z

All Metro Catalog Sheets are available on our Web Site: www.metro.com

Wire Shelving

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705 Phone: 570-825-2741 Fax: 570-825-2852

Printed in U.S.A. Rev. 11/08

Information and speciﬁcations are subject to change

without notice. Please conﬁrm at time of order.

L02-006
