Intermec Technologies UAPRFID-24 User Manual

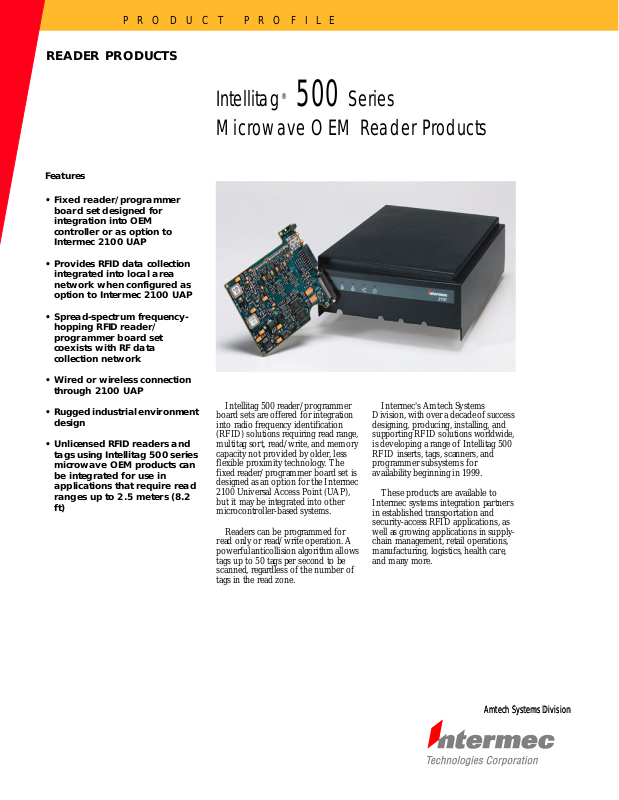

P R O D U C T P R O F I L E

READER PRODUCTS

Features

• Fixed reader/programmer
board set designed for
integration into OEM
controller or as option to
Intermec 2100 UAP

• Provides RFID data collection
integrated into local area
network when configured as
option to Intermec 2100 UAP

• Spread-spectrum frequency­hopping RFID reader/
programmer board set
coexists with RF data
collection network

• Wired or wireless connection
through 2100 UAP

• Rugged industrial environment
design

• Unlicensed RFID readers and
tags using Intellitag 500 series
microwave OEM products can
be integrated for use in
applications that require read
ranges up to 2.5 meters (8.2
ft)

Intellitag

®

500

Series

Microwave OEM Reader Products

Intellitag 500 reader/programmer
board sets are offered for integration
into radio frequency identification
(RFID) solutions requiring read range,
multitag sort, read/write, and memory
capacity not provided by older, less
flexible proximity technology. The
fixed reader/programmer board set is
designed as an option for the Intermec
2100 Universal Access Point (UAP),
but it may be integrated into other
microcontroller-based systems.

Readers can be programmed for
read only or read/write operation. A
powerful anticollision algorithm allows
tags up to 50 tags per second to be
scanned, regardless of the number of
tags in the read zone.

Intermec's Amtech Systems
Division, with over a decade of success
designing, producing, installing, and
supporting RFID solutions worldwide,
is developing a range of Intellitag 500
RFID inserts, tags, scanners, and
programmer subsystems for
availability beginning in 1999.

These products are available to
Intermec systems integration partners
in established transportation and
security-access RFID applications, as
well as growing applications in supply­chain management, retail operations,
manufacturing, logistics, health care,
and many more.

Amtech Systems DivisionAmtech Systems Division

S P E C I F I C A T I O N S

®

Intellitag

500

Series Microwave OEM Reader Products

COMMUNICATIONS

Frequency

Fixed reader/programmer board
set only: 2.45 GHz unlicensed FCC

spread-spectrum frequency-hopping

Intermec 2100 UAP with fixed
reader/programmer module: 2.45

GHz unlicensed FCC spread­spectrum frequency-hopping

Interfaces

Fixed reader/programmer board
set: serial interface

2100 UAP:

10BaseT
10Base2
(Optional)900MHz, 2.45 GHz

OpenAir™, IEEE 802.11 Direct
Sequence, or IEEE 802.11 Frequency
Hopping RFLAN

SOFTWARE FEATURES

Protocols

Fixed reader/programmer board
set: Intermec ASD interface

specification

Intermec 2100 UAP with fixed
reader/programmer module:

available software fully supports the
ANS NCITS 256 -1999 for item
management

Data Rate

Read 8 bytes of data from a tag in less
than 12 ms

Write a single byte of data to a tag in
less than 25 ms

Multitag Access

User-specified groups within a
population of tags can be selected,
read from, and/or written to using
multitag access commands.

POWER REQUIREMENTS

Fixed Reader/Programmer
Board Set Only

8 VDC

2100 UAP

100-240 VAC auto-ranging

ENVIRONMENTAL

Operating Temperature

0ºC to +50ºC (+32ºF to +122ºF)

Storage Temperature

-20ºC to +70ºC (+4ºF to +158ºF)

OPTIONS

General-Purpose Input/Output
Circuits (reader/programmer)

Interfaces for input and output
circuits to monitor sensors and
control other devices

READ/WRITE PERFORMANCE

Read/write performance varies with
RFID inserts, tags, and antenna
configurations.

Sample dual antenna configuration is
illustrated below.

Read/Write Ranges

Write ranges are approximately 70%
of the effective read ranges of the
RFID inserts.

Read Range Examples

Ranges are listed below for RFID
inserts using frequency-hopping FCC
unlicensed operation reader and dual
antennas.

1.8 Meters (5.9 ft): 2.45 GHz 6 x 30
x.5 mm (.24 x 1.18 x .02 in) RFID
insert

2.5 Meters (8.2 ft): 2.45 GHz 10 x 60
x .5 mm (.39 x 2.36 x .02 in) RFID
insert
