Intermec Technologies 700C-SMC45-1 User Manual

User’s Manual

700 Series Color
Mobile Computer

User’s Manual

700 Series Color
Mobile Computer

S NOTICE The information contained herein is proprietary and is provided solely for the purpose of allowing

customers to operate and service Intermec manufactured equipment and is not to be released,
reproduced, or u sed for any other purpose without written permission of Intermec.

DisclaimerofWarranties.Thesamplesourcecodeincludedinthisdocumentispresentedfor
reference only. The code does not necessarily represent complete, tested programs. The code is
provided “ASISWITHALLFAULTS.”ALLWARRANTIESAREEXPRESSLY

DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.

We welcome your comments concerning this publication. Although every effort has been made to
keep it free of errors, some may occur. When reporting a specific problem, please describe it
briefly and include the book title and part number, as well as the paragraph or figure number and
thepagenumber.

Send your comments to:
Intermec Technologies Corporation
Publications Department
550 Second Street SE
Cedar Rapids, IA 52401

ANTARES, INTERMEC, NORAND, NOR*WARE, PEN*KEY, ROUTEPOWER,
TRAKKER, and TRAKKER ANTARES are registered trademarks and ArciTech, ENTERPRISE
WIRELESS LAN, i-gistics, INCA, Mobile Framework, MobileLAN, TE 2000, UAP, and
UNIVERSAL ACCESS POINT are trademarks of Intermec Technologies Corporation.

 2002 Intermec Technologies Corporation. All rights reserved.

Acknowledgments

ActiveSync, ActiveX, Microsoft, MS, MS-DOS, Outlook, Pocket Outlook, Pocket PC, Windows,
Windows NT,andtheWindows logo are registered trademarks and MSDN, SQL Server, Visual
Basic, Visual C++ ,andWindows for Pen are trademarks of Microsoft Corporation in the United

States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing,
Inc., a wholly owned subsidiary of Microsoft Corporation.

Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

CDMA2000 is a trademark of the Telecommunications Industry Association (TIA).

GSM is a registered trademark of the GSM Association.

Microclean II is a registered trademark of Foresight International.

MultiMediaCard is a trademark of Infineon Technologies AG, Germany, and is licensed to

MMCA (MultiMediaCard Association).

SanDisk is a trademark of SanDisk Corporation.

Siemens is a registered trademark of Siemens AG. Siemens product names are either trademarks or

registered trademarks of Siemens or Siemens AG.

Sprint is a registered trademark of Sprint Communications Company L.P.

This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)

This product includes cryptographic software written by Eric Young ([e-mail])

ii

Contents

Before You Begin xv....................................................................

Introduction

Contents

Warranty Information xv...................................................

Safety Summar y xv........................................................

Warnings, Cautions, and Notes xvi...........................................

About This Manual xvi....................................................

Format Conventions for Input From a Keyboard or Keypad xvii......................

Related Publications xviii...................................................

Global Services and Support xviii.............................................

Web Support xviii........................................................

1

About the 700 Series Color Mobile Computer 2...............................................

Audio System 2...........................................................

Speaker 2...................................................

Internal Microphone 2........................................

External Headset Jack 2........................................

Battery 2................................................................

Low Battery Shutdown 3.......................................

System Status Maintained 4....................................

CAB Files Within 700C Software Tools CD 4...................................

Modem Support 4.........................................................

Network Support 4........................................................

Removeable Card Support 5.................................................

CompactFlash Cards 5........................................

SecureDigital Cards 5.........................................

MultiMediaCards 5...........................................

Software Build Version 5....................................................

What’ s New 6.........................................................................

iii700 Series Color Mobile Computer User’s Manual

Contents

Pocket PC 2002

2

Introduction 8.........................................................................

Premium versus Professional Editions 8......................................................

Where to Find Information 10............................................................

Basic Skills 11.........................................................................

Buttons and Stylus 11......................................................

Today Screen 11..........................................................

Programs 13.............................................................

Navigation Bar and Command Bar 14.........................................

Pop-up Menus 15.........................................................

Notifications 15..........................................................

Enter Information on Your 700 Series Computer 16...............................

Typing With the Soft Keyboard 17...............................

Using Block Recognizer 17.....................................

Using Letter Recognizer 18.....................................

Using Transcriber 18..........................................

Selecting Typed Text 18........................................

Writing on the Screen 19....................................................

Selecting the Writing 19.......................................

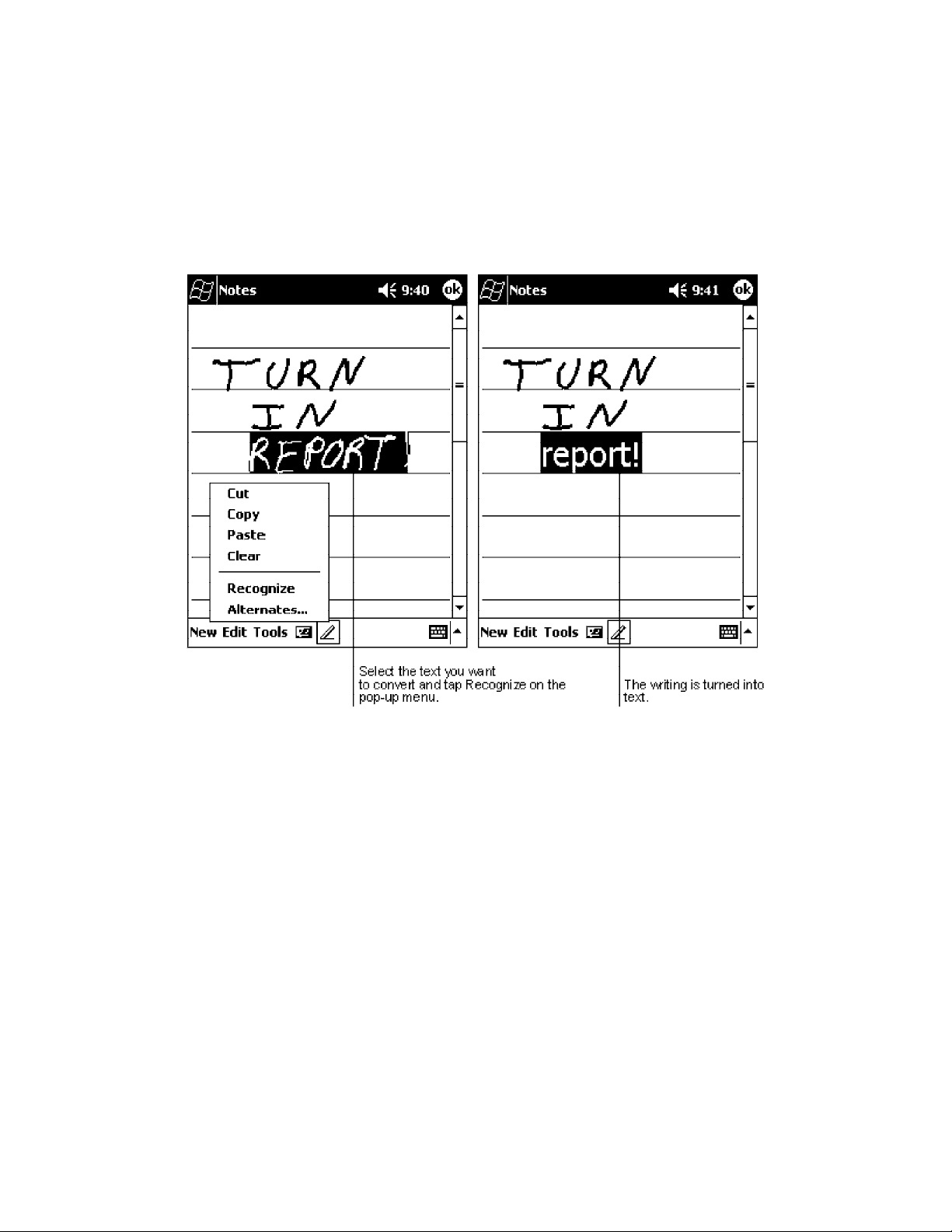

Converting Writing to Text 20..................................

Drawing on the Screen 22...................................................

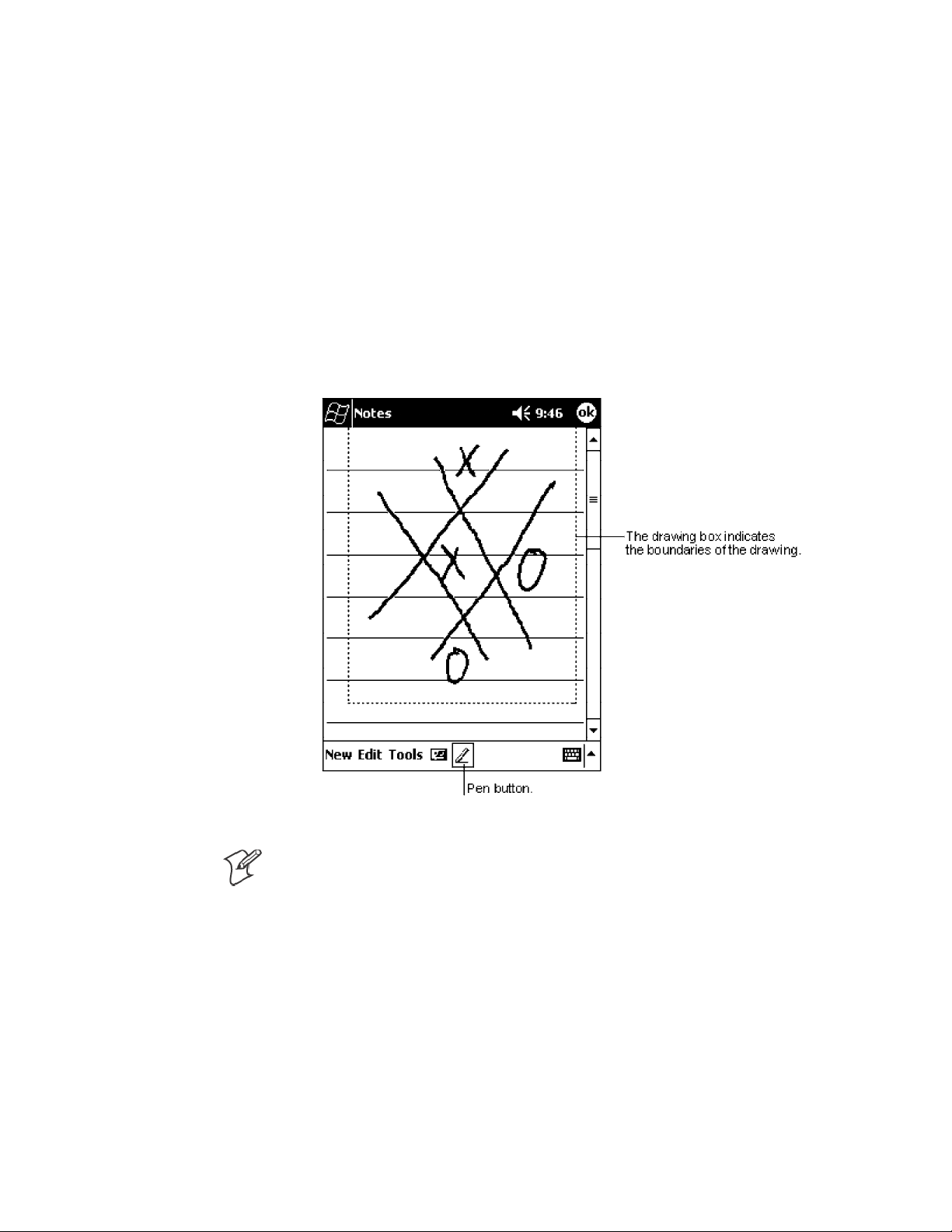

Creating a Drawing 22........................................

Selecting a Drawing 22........................................

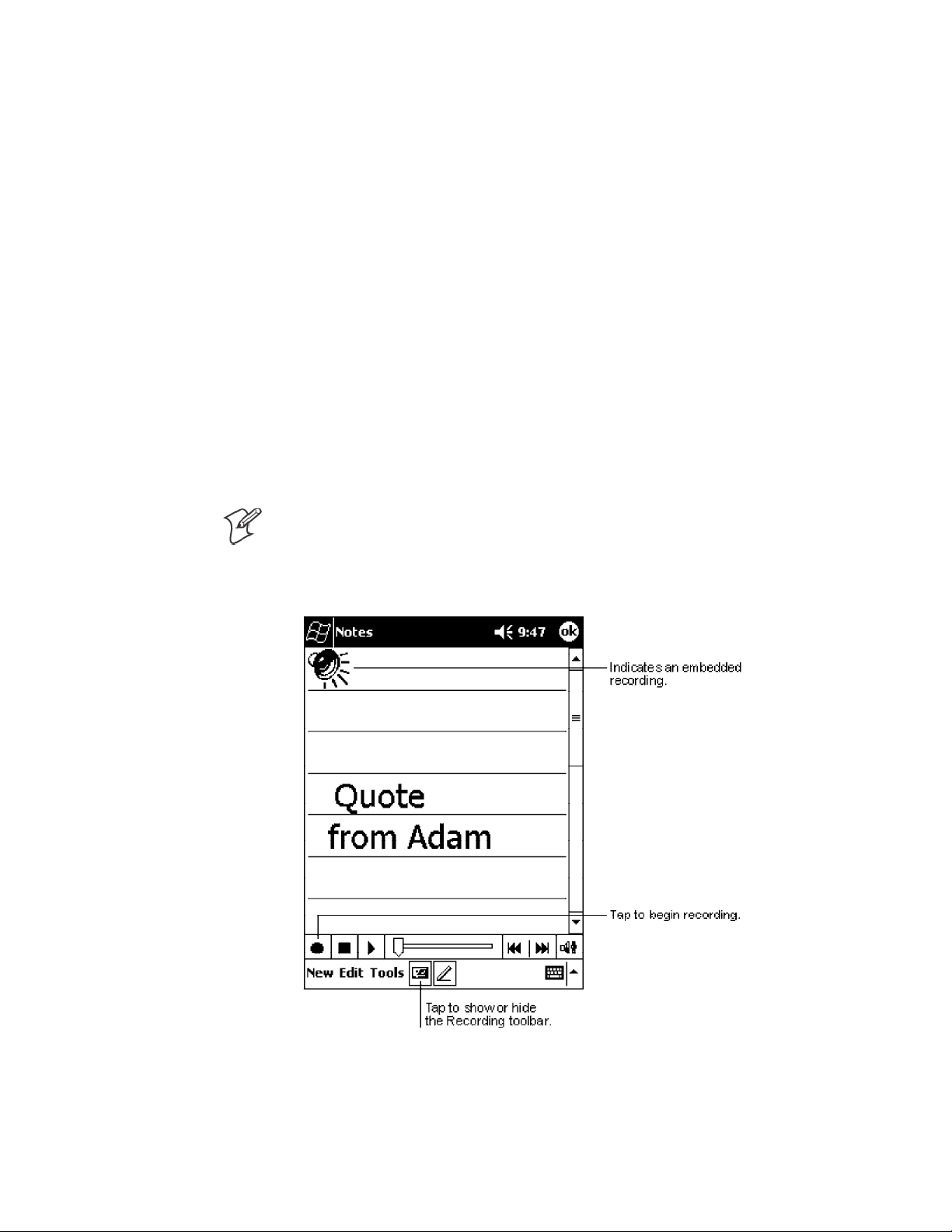

Recording a Message 23....................................................

Creating a Recording 23.......................................

Using My T ext 24.........................................................

Finding and Organizing Information 25........................................

Customizing Your 700 Series Computer 26......................................

Adjusting Settings 26.........................................

Adding or Removing Programs 26................................

Microsoft ActiveSync 29.................................................................

Microsoft Pocket Outlook 31.............................................................

Calendar: Scheduling Appointments and Meetings 31.............................

Creating an Appointment 32....................................

Using the Summary Screen 33..................................

Creating Meeting Requests 33...................................

Scheduling a Meeting 33.......................................

Contacts: Tracking Friends and Colleagues 34...................................

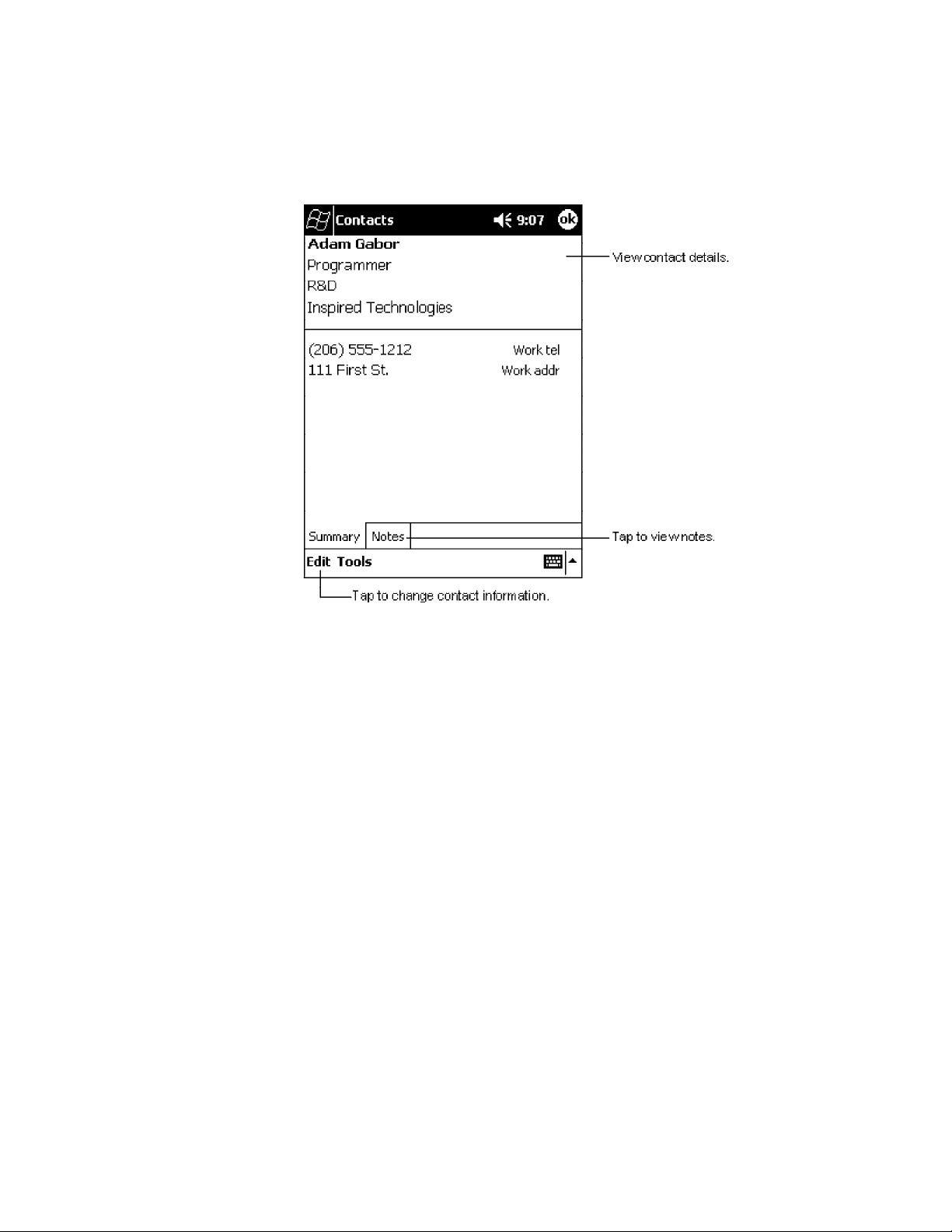

Creating a Contact 34.........................................

Finding a Contact 35.........................................

Using the Summary Screen 36..................................

Tasks: Keeping a To Do List 37...............................................

Creating a Task 38...........................................

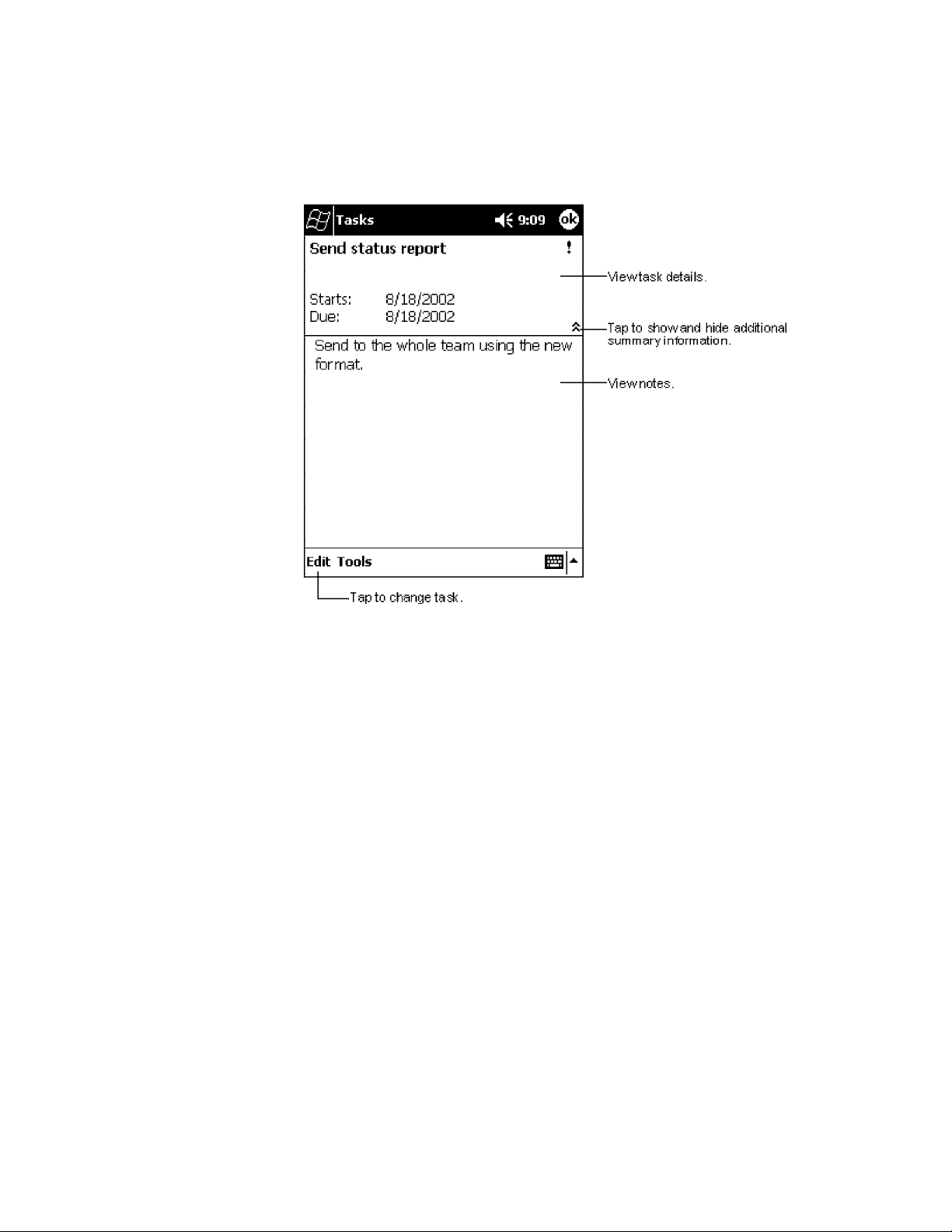

Using the Summary Screen 39..................................

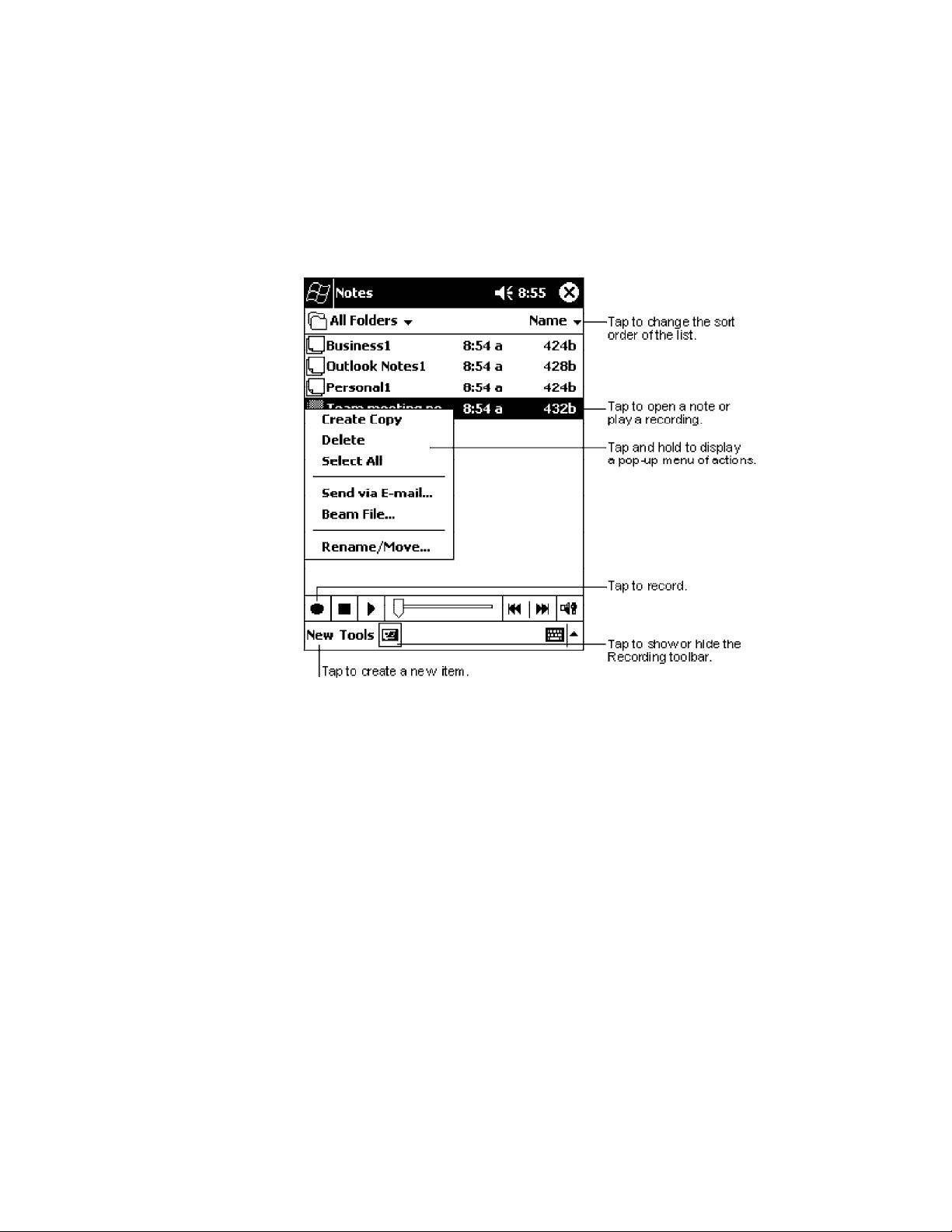

Notes: Capturing Thoughts and Ideas 40.......................................

Creating a Note 41...........................................

iv 700 Series Color Mobile Computer User’s Manual

Contents

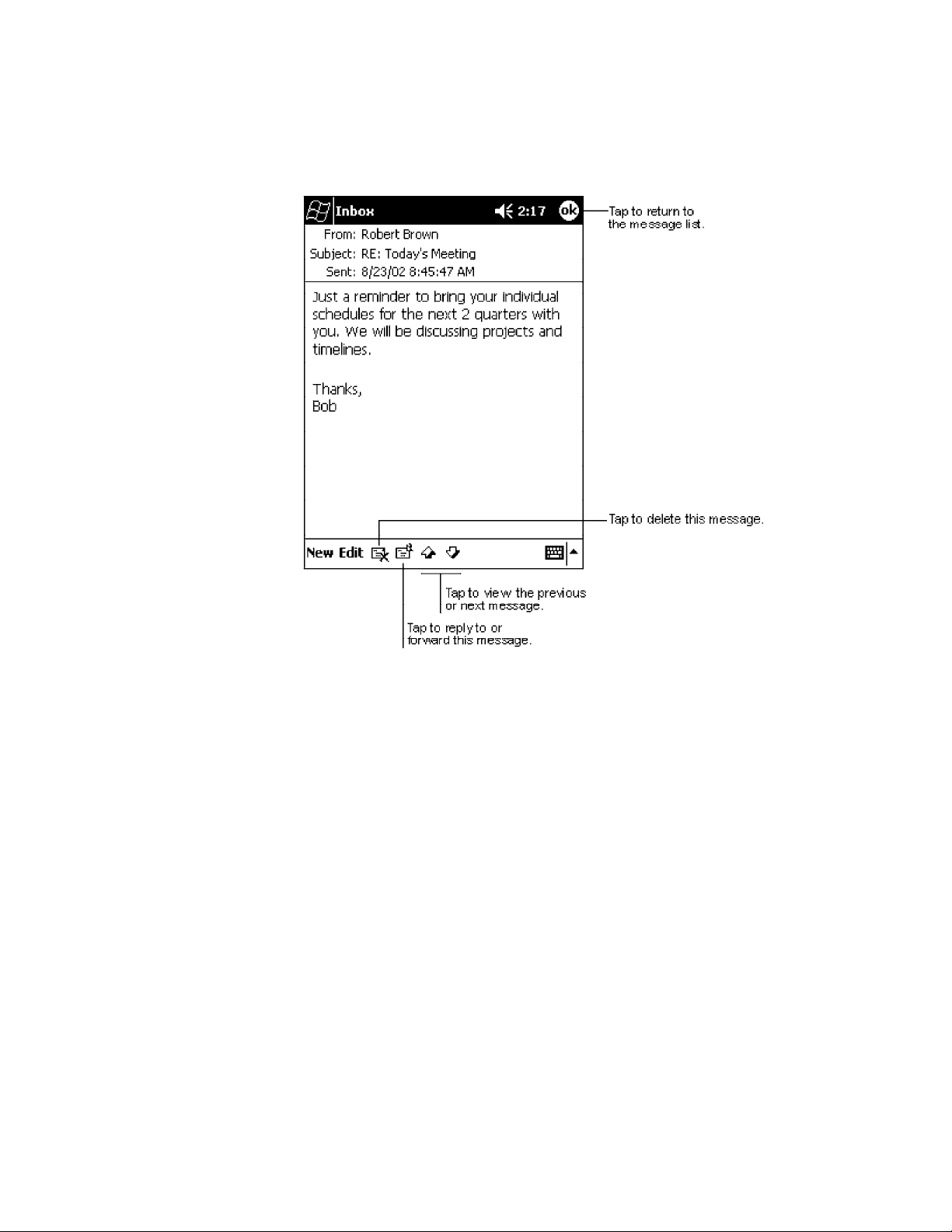

Inbox: Sending and Receiving E-mail Messages 42................................

Synchronizing E-mail Messages 42...............................

Connecting Directly to an E-mail Server 42........................

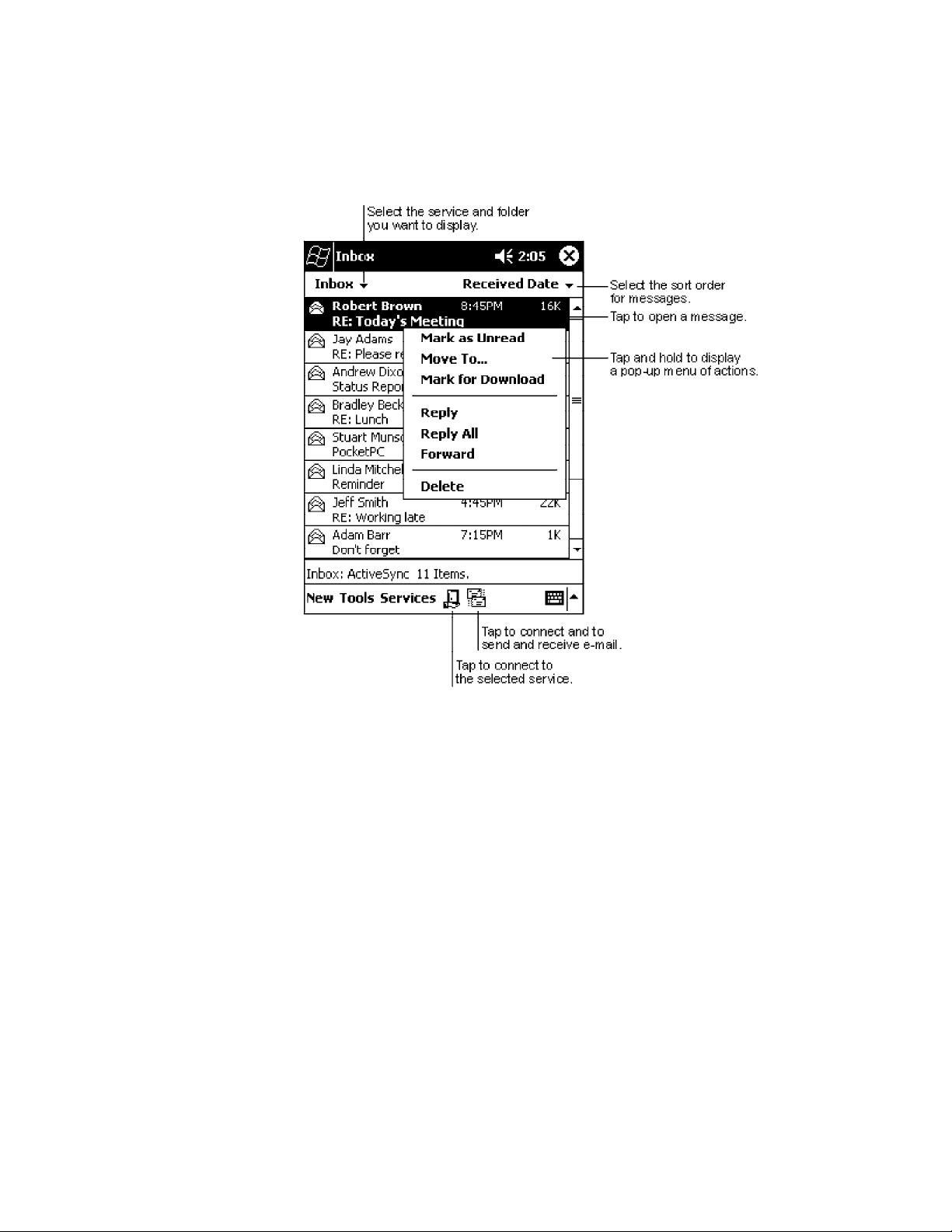

Using the Message List 43......................................

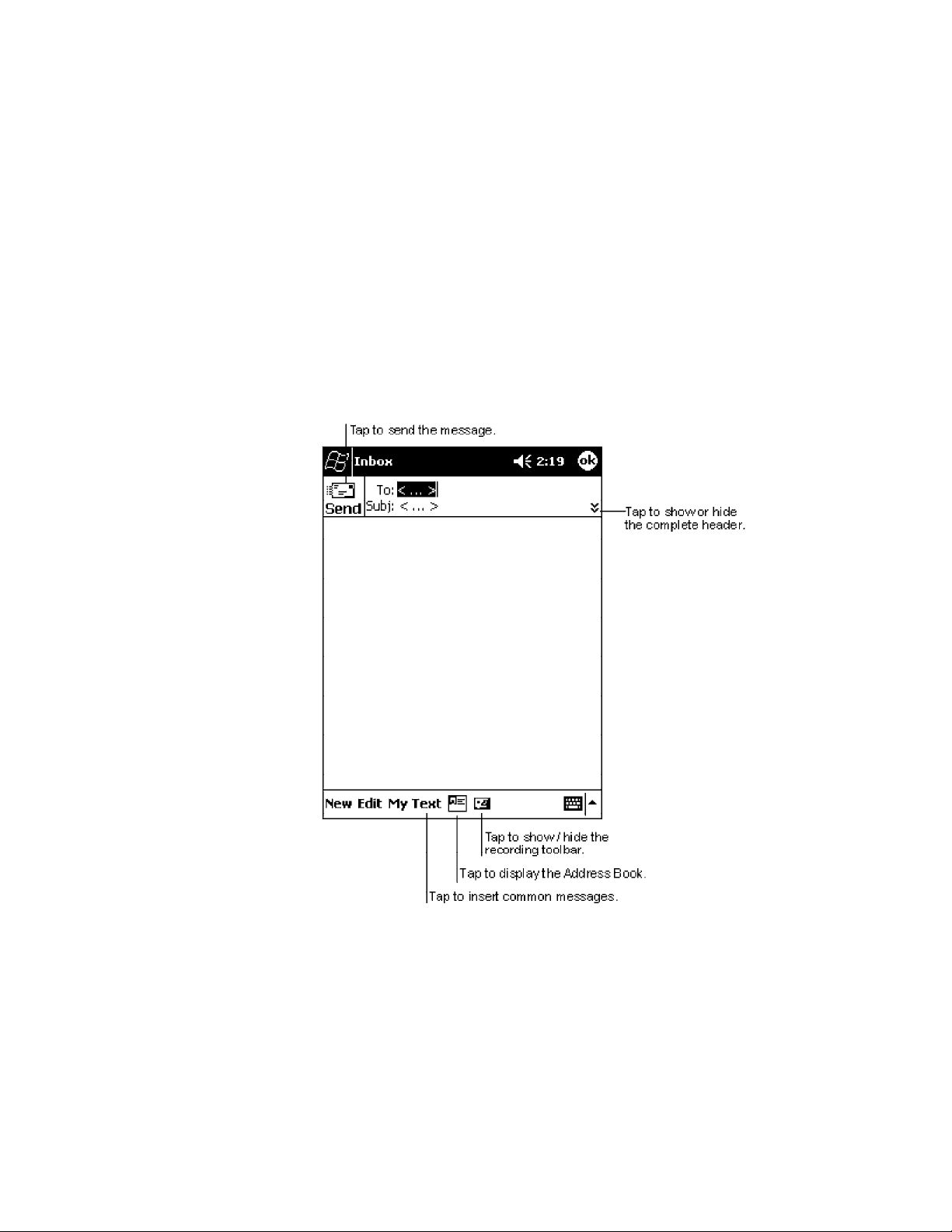

Composing Messages 45.......................................

Managing E-mail Messages and Folders 46.........................

Folder Behavior With a Direct Connection to an E-mail Server 46.......

Companion Programs 47................................................................

Pocket Word 47...........................................................

Creating a Document 47.......................................

Typ in g M ode 4 9.............................................

Writing Mode 50............................................

Drawing Mode 51............................................

Recording Mode 51...........................................

Pocket Excel 52...........................................................

Creating a Workbook 52.......................................

Tips for Working in Pocket Excel 53..............................

MSN Messenger 53........................................................

Setting Up 54...............................................

Working with Contacts 54.....................................

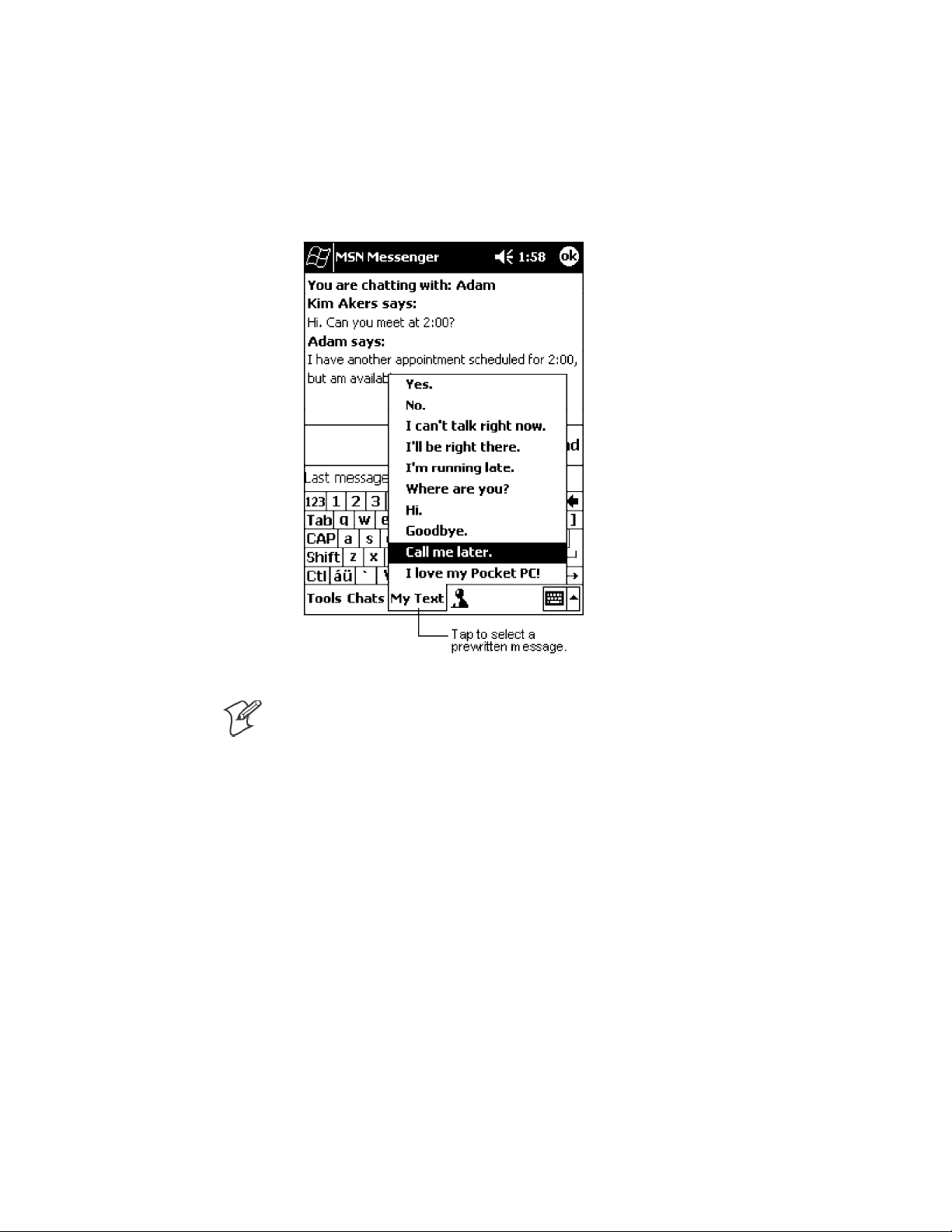

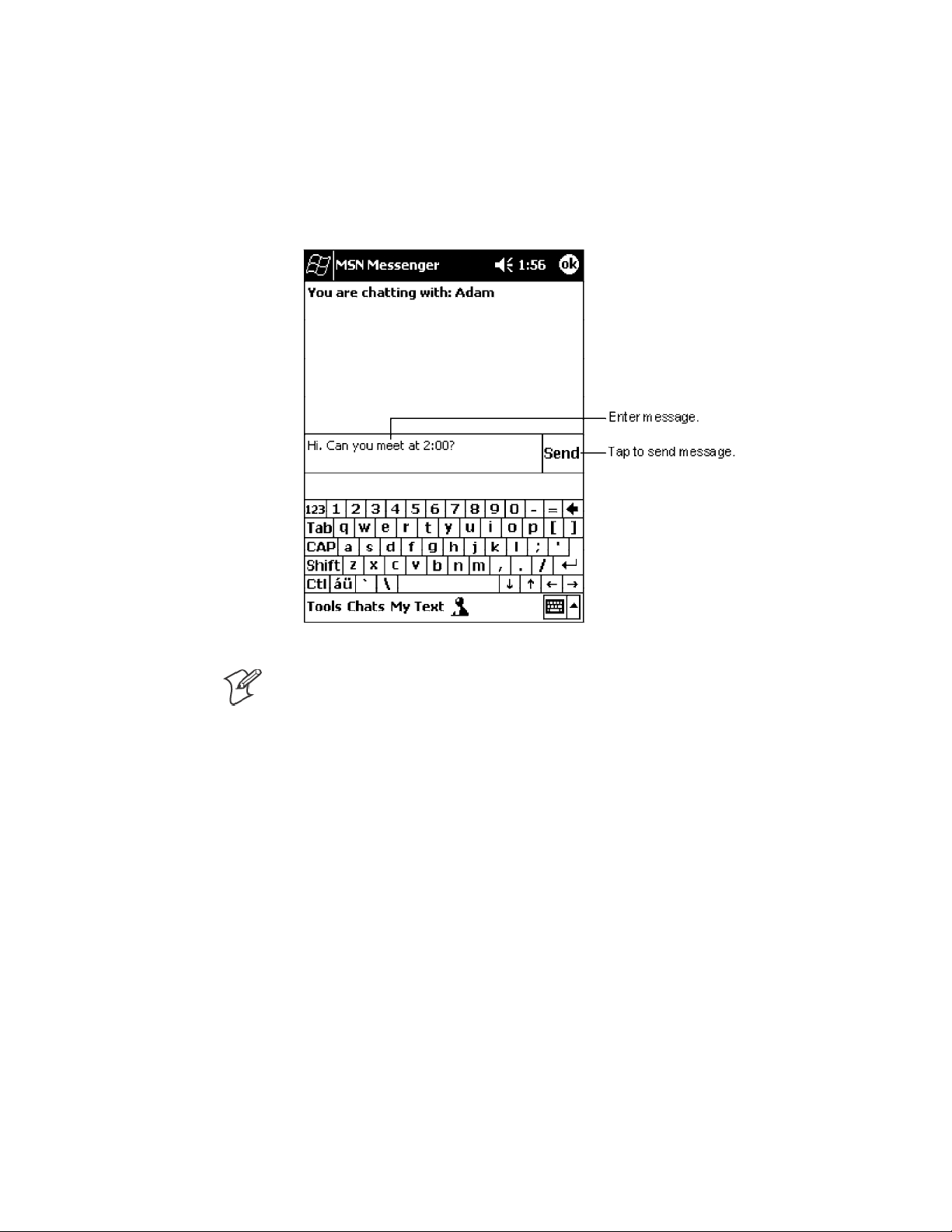

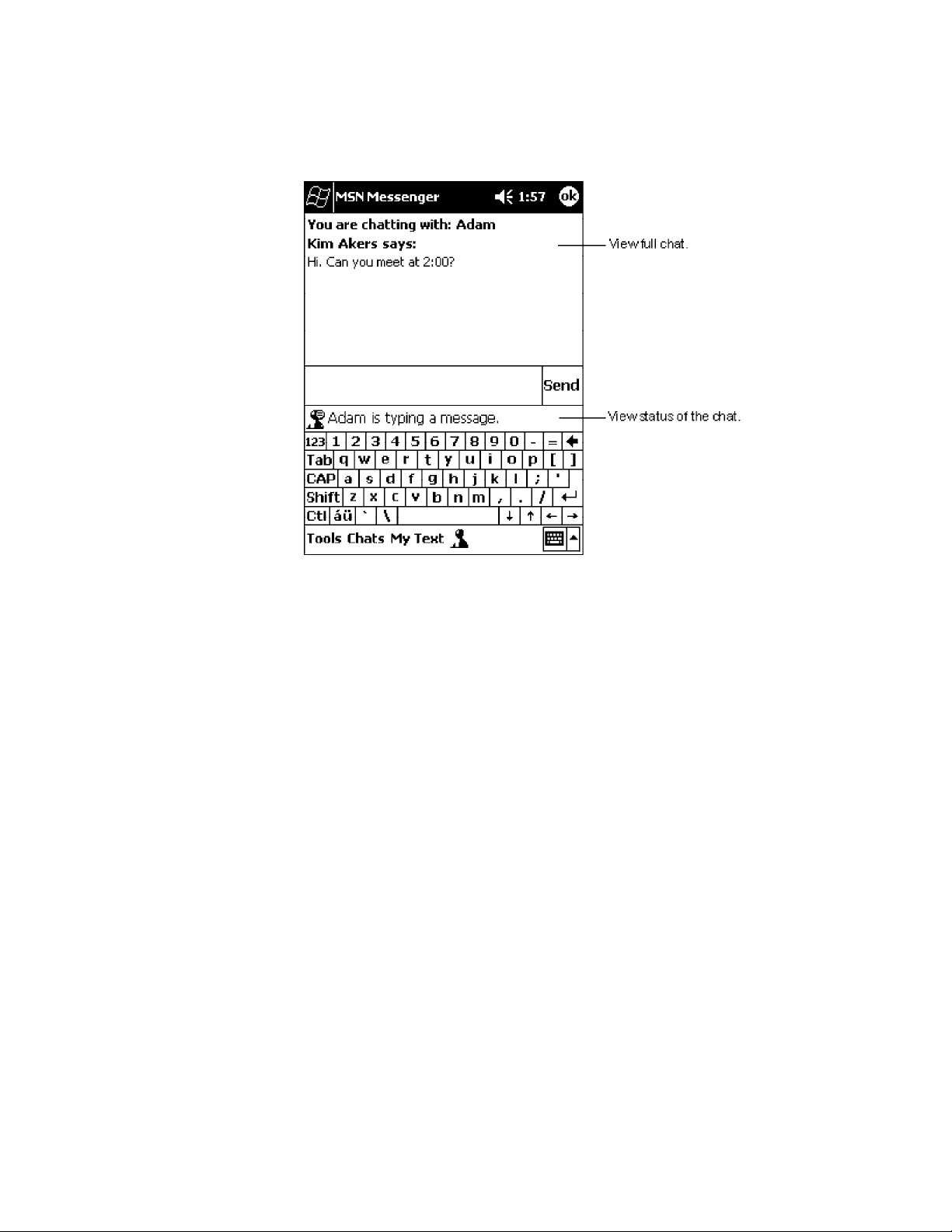

Chatting with Contacts 55.....................................

Windows Media Player for Pocket PC 57.......................................

Microsoft Reader 58.......................................................

Getting Books on Your 700 Series Computer 58.....................

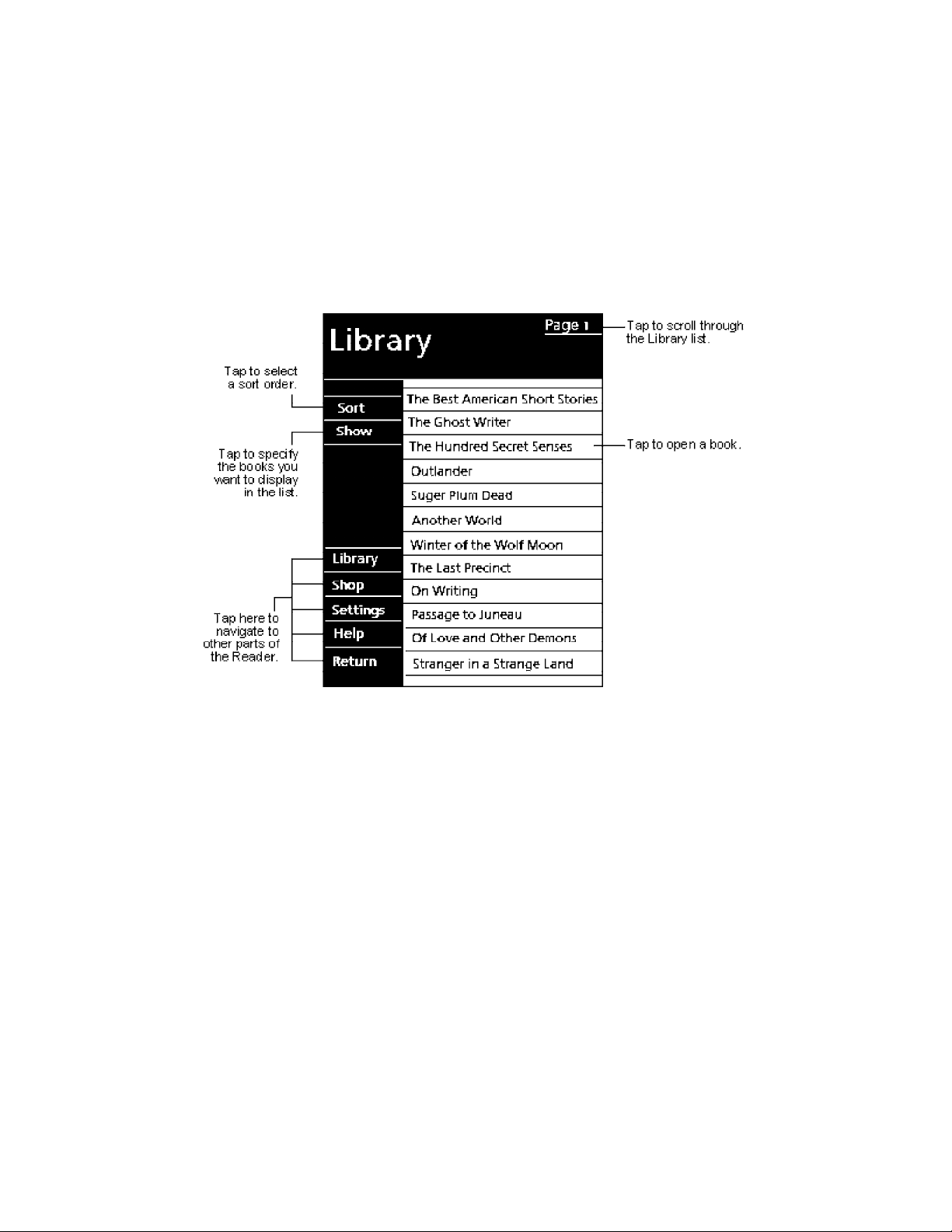

Using the Library 59..........................................

Reading a Book 60...........................................

Using Reader Features 61......................................

Removing a Book 61..........................................

Pocket Internet Explorer 62...............................................................

The Mobile Favorites Folder 62...............................................

Favorite Links 62..........................................................

Mobile Favorites 62........................................................

Using AvantGo Channels 64.................................................

Using Pocket Internet Explorer 65.............................................

Viewing Mobile Favorites and Channels 66........................

Browsing the Internet 66.......................................

Getting Connected 67...................................................................

Transferring Items Using Infrared 67...........................................

Sending Information 67.......................................

Receiving Information 67......................................

Connecting to an Internet Service Provider 68...................................

Creating a Modem Connection to an ISP 68.......................

Creating an Ethernet Connection to an ISP 69......................

Connecting to Work 70.....................................................

Creating a Modem Connection to Work 70........................

Creating an Ethernet Connection to Work 71.......................

Ending a Connection 72....................................................

Connecting Directly to an E-mail Server 72.....................................

Setting Up an E-mail Service 73..............................................

v700 Series Color Mobile Computer User’s Manual

Contents

Installing Applications

3

4

Packaging an Application 76..............................................................

Installing Applications 76................................................................

Using Microsoft ActiveSync 77...............................................

Using the FTP Server 78....................................................

Using the Application Manager in Unit Manager 78...............................

Using a Storage Card 78....................................................

Copying to a CompactFlash Card 78.............................

Copying to a SecureDigital Storage Card 79........................

Updating the System Software 79..........................................................

Application Migration 80................................................................

Cabinet File Installation 82...............................................................

Network Support

CORE 84............................................................................

Network Adapters 85...................................................................

Ethernet Communications 86................................................

802.11b Communications 87................................................

Profiles 87..................................................

Import/Export 96............................................

Scan List 97.................................................

Network Selection APIs 98.....................................

Function Summary 101.......................................

802.11b Radio CORE Module 107..............................

WWAN Radio Options 110.................................................

GSM/GPRS 110.............................................

CDMA/1xRTT SB555 110....................................

WAN Radio CORE Module 111................................

AT Command Interface 115....................................

Wireless Printing 120......................................................

Documentation 120..........................................

Bluealps CORE Module 120....................................

AutoIP/DHCP 122.....................................................................

SNMP Configuration 123................................................................

The Focus was “Simple” 123.................................................

Using SNMP 123.........................................................

Retrieval of Management Information 124......................................

An Early Approach to Getting More than One Item at a Time 124...................

Conclusion 124...........................................................

SNMP Configuration on the 700 Series Computer 125............................

Management Information Base 125..............................

Object Identifiers 126.........................................

Configuring with SNMP 126...................................

vi 700 Series Color Mobile Computer User’s Manual

Printer Support

Contents

5

Printing ASCII 128.....................................................................

Directly to a Port 128......................................................

Directly to a Generic Serial Port 128...........................................

IrDA Printer Driver 128.................................................................

NPCP Printer Driver 129................................................................

About NPCP 129.........................................................

NPCP Driver Installation and Removal 129.....................................

Opening the NPCP Driver 130..............................................

Closing the NPCP Driver 130...............................................

Reading from the NPCP Driver 130...........................................

Writing to the NPCP Driver 130.............................................

NPCP Driver I/O Controls 131..............................................

NPCP Printer Communications 132...........................................

Sample Code 132.........................................................

NPCP Error Codes 133....................................................

O’ Neil Printer Driver 134...............................................................

DTR Driver Installation and Removal 134......................................

Opening the DTR Driver 135...............................................

Closing the DTR Driver 135................................................

Writing to the DTR Driver 135..............................................

DTR Printer Communications 135............................................

6

Scanner Support

Scanner Control and Data Transfer 138.....................................................

Automatic Data Collection COM Interfaces 138..............................................

Multiple ADC COM Object Support 139......................................

How to Create and Use the ADC COM Interfaces 140............................

Read-Ahead Bar Code Data Access 140............................

Grid Data Filtering 141........................................

Filter Expression Values 142....................................

Editing Expression Values 144..................................

ADC Connection 145.........................................

2D Imager Overview 146...................................................

Data Collection Features 146...................................

Image Acquisition Features 147..................................

Create and Delete ADC COM Object Functions 149.............................

ITCDeviceOpen 149.........................................

ITCDeviceClose 150..........................................

vii700 Series Color Mobile Computer User’s Manual

Contents

IADC Functions 151......................................................

IADC::CancelReadRequest 152.................................

IADC::Initialize 153..........................................

IADC::QueryAttribute 154....................................

IADC::QueryData 155........................................

IADC::Read 156.............................................

IADC::SetAttribute 157.......................................

IBarCodeReaderControl Functions 159........................................

IBarCodeReaderControl::CancelReadRequest 160...................

IBarCodeReaderControl::ControlLED 161.........................

IBarCodeReaderControl::Initialize 162............................

IBarCodeReaderControl::IssueBeep 163...........................

IBarCodeReaderControl::QueryAttribute 164.......................

IBarCodeReaderControl::Read 165...............................

IBarCodeReaderControl::SetAttribute 167.........................

IBarCodeReaderControl::TriggerScanner 171.......................

IS9CConfig Functions 172..................................................

IS9CConfig::GetCodabar 173...................................

IS9CConfig::SetCodabar 174...................................

Codabar Default Settings 175...................................

Codabar Enumerations 175....................................

IS9CConfig::GetCode39 176...................................

IS9CConfig::SetCode39 177....................................

Code 39 Default Settings 177...................................

Code 39 Enumerations 178....................................

IS9CConfig::GetCode93 179...................................

IS9CConfig::SetCode93 179....................................

Code 93 Default Settings 179...................................

Code 93 Enumerations 180....................................

IS9CConfig::GetCode128 180..................................

IS9CConfig::SetCode128 181...................................

Code 128/EAN 128 Default Settings 181..........................

Code 128 Enumerations 182...................................

IS9CConfig::GetI2of5 183.....................................

IS9CConfig::SetI2of5 184......................................

Interleaved 2 of 5 Default Settings 184............................

Interleaved 2 of 5 Enumerations 185..............................

IS9CConfig::GetMatrix2of5 185................................

IS9CConfig::SetMatrix2of5 186.................................

Matrix 2 of 5 Default Settings 186...............................

Matrix 2 of 5 Enumerations 186.................................

IS9CConfig::GetMSI 187......................................

IS9CConfig::SetMSI 187......................................

MSI Default Settings 187......................................

MSI Enumerations 188........................................

IS9CConfig::GetPDF417 188..................................

IS9CConfig::SetPDF417 189...................................

PDF 417 Default Settings 190..................................

PDF 417 Enumerations 190....................................

IS9CConfig::GetPlessey 192....................................

IS9CConfig::SetPlessey 192....................................

Plessey Default Settings 193....................................

Plessey Enumerations 193......................................

IS9CConfig::GetStandard2of5 194...............................

IS9CConfig::SetStandard2of5 195...............................

viii 700 Series Color Mobile Computer User’s Manual

Contents

Standard 2 of 5 Default Settings 196..............................

Standard 2 of 5 Enumerations 196...............................

IS9CConfig::GetTelepen 197...................................

IS9CConfig::SetTelepen 197....................................

Telepen Default Settings 197....................................

Telepen Enumerations 198.....................................

IS9CConfig::GetUpcEan 198...................................

IS9CConfig::SetUpcEan 200...................................

UPC/EAN Default Settings 201.................................

UPC/EAN Enumerations 201...................................

IS9CConfig2 Functions 204.................................................

IS9CConfig2::GetCode11 205..................................

IS9CConfig2::SetCode11 205...................................

Code 11 Default Settings 206...................................

Code 11 Enumerations 206....................................

IS9CConfig2::GetCustomSymIds 207............................

IS9CConfig2::SetCustomSymIds 208.............................

Custom Identifier Assignments 209..............................

Custom Identifier Default Settings 210............................

Custom Identifier Example 210.................................

IS9CConfig2::GetGlobalAmble 211..............................

IS9CConfig2::SetGlobalAmble 212..............................

Postamble and Preamble Defaults 212.............................

IS9CConfig2::GetPDF417Ext 213...............................

IS9CConfig2::SetPDF417Ext 213...............................

PDF 417 Extended: Micro PDF 417 Default Settings 214.............

IS9CConfig2::GetSymIdXmit 214...............................

IS9CConfig2::SetSymIdXmit 214................................

Symbology ID Transmission Option 215..........................

IS9CConfig3 Functions 216.................................................

ISCP Commands 216.........................................

ISCP::GetConfig 217.........................................

ISCP::SetConfig 218..........................................

AIM Symbology ID Defaults 219.............................................

IImage Interface 221....................................................................

IImage::ReadSigCapBuffer 221...............................................

IImage::ReadSigCapFile 224.................................................

IImage::ReadImage 225....................................................

IImage::CancelReadImage 226...............................................

IImage::Start 226.........................................................

IImage::Stop 227..........................................................

IImage::Open 227.........................................................

IImage::Close 228.........................................................

Data Collection Configuration 229.........................................................

ix700 Series Color Mobile Computer User’s Manual

Contents

Tethered Scanner 230...................................................................

Enabling and Disabling 230.................................................

Changing Comm Settings 231...............................................

Tethered Scanner 231.........................................

Sabre 1551E or 1553 Tethered Scanner 232........................

Welch Allyn 1470 Imager Settings 232............................

Error Message 232.........................................................

Scanner Cabling 232...................................................

Limitations and Capabilities 233..........................................

Programming

7

Creating CAB Files 236.................................................................

Creating Device-Specific CAB Files 236........................................

Creating an .INF File 236......................................

Sample .INF File 245.........................................

Using Installation Functions in SETUP.DLL 248.................................

After the CAB File Extraction 248............................................

Creating CAB Files with CAB Wizard 249......................................

Troubleshooting the CAB Wizard 250.........................................

FTP Server 251........................................................................

Configurable Parameters Via the Registry Editor 252..............................

BlockSize 252...............................................

DeviceName 253.............................................

DeviceURL 253.............................................

IDNATarget 254.............................................

ManifestName 254...........................................

PauseAtStartup 255...........................................

Root 255...................................................

Transferring Files Over TCP/IP Networks 256...................................

Stopping the FTP Server from Your Application 260...............................

Autostart FTP 260........................................................

Full Screen 262........................................................................

Kernel I/O Controls 264.................................................................

IOCTL_HAL_GET_DEVICE_INFO 264.....................................

IOCTL_HAL_ITC_READ_PARM 265.......................................

IOCTL_HAL_ITC_WRITE_SYSPARM 270...................................

IOCTL_HAL_GET_DEVICEID 272.........................................

IOCTL_HAL_GET_OAL_VERINFO 273.....................................

IOCTL_HAL_GET_BOOTLOADER_VERINFO 274...........................

IOCTL_HAL_WARMBOOT 275............................................

IOCTL_HAL_COLDBOOT 275............................................

IOCTL_HAL_GET_RESET_INFO 276.......................................

IOCTL_HAL_GET_BOOT_DEVICE 277.....................................

IOCTL_HAL_REBOOT 278...............................................

IOCTL_PROCESSOR_INFORMATION 279..................................

IOCTL_GET_CPU_ID 280................................................

x 700 Series Color Mobile Computer User’s Manual

Contents

A

Reboot Functions 280...................................................................

IOCTL_HAL_REBOOT 280...............................................

IOCTL_HAL_COLDBOOT 280............................................

IOCTL_HAL_WARMBOOT 280............................................

Remapping the Keypad 281..............................................................

Unshifted Plane 281.......................................................

Gold Plane 281...........................................................

Alpha Plane 281..........................................................

Key Values 282...........................................................

How Key Values Are Stored in Registry 282.....................................

Change Notification 283....................................................

Advanced Keypad Remapping 283............................................

Scan Codes 283...........................................................

Sample View of Registry Keys 284............................................

Control Panel Applets

Configuration Parameters 286.............................................................

Changing a Parameter Setting 286............................................

About Configuration Parameters 287..........................................

Data Collection Control Panel Applet 288...................................................

Symbologies 289..........................................................

Code 39 290................................................

Standard 2 of 5 291...........................................

Codabar 292................................................

UPC/EAN 293..............................................

Code 93 294................................................

Code 128 295...............................................

Plessey 298.................................................

MSI 299...................................................

PDF 417 300...............................................

Interleaved 2 of 5 303.........................................

Matrix 2 of 5 304............................................

Telepen 305.................................................

Code 11 306................................................

QR Code 307...............................................

Data Matrix 308.............................................

Symbology Options 309....................................................

Symbology ID 309...........................................

Prefix 315..................................................

Suffix 316..................................................

Beeper/LED 31 7..........................................................

Beeper Volume 318...........................................

Beeper Frequency 320.........................................

Good Read Beeps 321.........................................

Good Read Beep Duration 322..................................

Imager 323..............................................................

Aimer LED duration 323......................................

Image Dimension 324.........................................

xi700 Series Color Mobile Computer User’s Manual

Contents

Virtual Wedge 325........................................................

Virtual Wedge 325...........................................

Preamble 326...............................................

Postamble 327...............................................

Grid 328...................................................

Code Page 329..............................................

SNMP Control Panel Applet 330..........................................................

Security 331.............................................................

Read Only Community 331....................................

Read/Write Community 332....................................

Read Encryption 333.........................................

Write Encryption 334.........................................

Encryption Key 335..........................................

Tr ap s 336...............................................................

Authentication 336...........................................

Threshold 337...............................................

Identification 338.........................................................

Contact 338................................................

Name 339..................................................

Location 340................................................

B

Unit Information Control Panel Applet 341..................................................

Versions 342.............................................................

Battery Status 343.........................................................

CAB Files 344............................................................

Unit Manager

Data Collection 348....................................................................

Symbologies 348..........................................................

Symbology ID 349........................................................

Beeper/LED 34 9..........................................................

Imager 350..............................................................

Virtual Wedge 350........................................................

SNMP 350...........................................................................

Security 350.............................................................

Tr ap s 351...............................................................

Identification 351.........................................................

Unit 352.............................................................................

Date/Time 352...........................................................

Backlight Timeout 353.....................................................

Key Clicks 354...........................................................

Automatic Shutoff 355.....................................................

Volume 356..............................................................

Using Reader Commands 357.............................................................

Change Configuration 357..................................................

Set Time and Date 358.....................................................

xii 700 Series Color Mobile Computer User’s Manual

Bar Codes

Contents

C

Bar Code Symbologies 360...............................................................

UPC 362................................................................

EAN 362................................................................

Codabar 362.............................................................

Code 11 363.............................................................

Code 39 363.............................................................

Encoded Code 39 (Concatenation) 363........................................

Encoded Code 39 (Full ASCII) 363...........................................

Code 93 364.............................................................

Code 128 364............................................................

I 2 of 5 (Interleaved) 366...................................................

S2of5(Standard2of5) 366................................................

Plessey 367..............................................................

MSI Code (Variant of Plessey) 367............................................

Bar Code Labels 368....................................................................

Audio Volume 368........................................................

Automatic Shutoff 369.....................................................

Backlight Timeout 369.....................................................

Key Clicks 370...........................................................

Virtual Wedge Grid, Preamble, Postamble 371...................................

Grid 371...................................................

Preamble 371...............................................

Postamble 371...............................................

I

Index

Classes and Functions 374...............................................................

General Index 377......................................................................

Files Index 398........................................................................

xiii700 Series Color Mobile Computer User’s Manual

Contents

xiv 700 Series Color Mobile Computer User’s Manual

Before You Begin

Warranty Information

Safety Summary

Before You Begin

This section introduces you to standard warranty provisions, safety
precautions, warnings and cautions, document formatting conventions,
and sources of additional product information. A documentation roadmap
is also provided to guide you in finding the appropriate information.

To receive a copy of the standard warranty provision for this product, con­tact your local Intermec support services organization. In the U.S. call
1-800-755-5505, and in Canada call 1-800-668-7043. If you live outside
of the U.S. or Canada, you can find your local Intermec support services
organization on the Intermec Web site at www.intermec.com.

Note: Opening this product may void the warranty. The internal workings
of this product can only be accessed by Intermec service personnel. Radio
replacements and upgrades require Intermec service personnel.

Your safety is extremely important. Follow these guidelines:

S Read and follow all warnings and cautions in this book before handling

and operating Intermec equipment. You can be seriously injured, and
equipment and data can be damaged if you do no follow the safety
warnings and cautions.

S Do not repair or adjust energized equipment alone under any circum-

stances. Someone capable of providing first aid must always be present
foryoursafety.

S Always obtain first aid or medical attention immediately after an injury.

Never neglect an injury, no matter how slight it seems.

S Begin resuscitation immediately if someone is injured and stops breath-

ing. Any delay could result in death. To work on or near high voltage,
you s hould be familiar with approved industrial first aid methods.

S Never work on energized equipment unless authorized by a responsible

authority. Energized electrical equipment is dangerous. Electrical shock
from energized equipment can cause death. If you must perform autho­rized emergency work on energized equipment, be sure that you comply
strictly with approved safety regulations.

xv700 Series Color Mobile Computer User’s Manual

Before You Begin

Warnings, Cautions, and Notes

The warnings, cautions, and notes in this manual use this format:

A warning alerts you of an operating procedure, practice, condition, or
statement that must be strictly observed to avoid death or serious injury
to the persons working on the equipment.

Attention Danger: Un avertissement vous avertit d’une procédure de
fonctionnement, d’une méthode, d’un état ou d’un rapport qui doit être
strictement respecté pour éviter l’occurrence de mort ou de blessures
graves aux personnes manupulant l’équipement.

A caution alerts you to an operating procedure, practice, condition, or
statement that must be strictly observed to prevent equipment damage or
destruction, or corruption or loss of data.

Attention: Une précaution vous avertit d’une procédure de
fonctionnement, d’une méthode, d’un état ou d’un rapport qui doit être
strictement respecté pour empêcher l’endommagement ou la destruction
de l’équipement, ou l’altération ou la perte de données.

About This Manual

Note: Notes are statements that either provide extra information about a
topic or contain special instructions for handling a particular condition or
set of circumstances.

The 700 Series Color Mobile Computer User’ s Manual provides you with
information about the features of the 700 Series Color Mobile Computer
and how to configure, troubleshoot, and support it. You must be familiar
with your host PC, your network, and your other Intermec equipment.

S Chapter 1 — Introduction

Introduces the 700 Series Color Mobile Computer.

S Chapter 2 — Pocket PC 2002

Introduces the Pocket PC 2002 operating system from Microsoft Cor­poration, and explains how to use its Outlook, ActiveSync, Internet Ex­plorer, and other companion programs.

S Chapter 3 — Installing Applications

Provides methods to install applications and CAB files, also covers ap­plication migration.

S Chapter 4 — Network Support

Introduces the CORE application, network adapters such as Ethernet,

802.11b radios, GSM/GPRS or CDMA/1xRTT embedded radio mod­ules, and wireless printing equipped with a Bluetooth module, SNMP
configuration, and Network Selection APIs.

S Chapter 5 — Printer Support

Provides information on printing ASCII to either a port or to a generic
serial port, and on working with IrDA, NPCP, and O’ Neil printer driv­ers.

xvi 700 Series Color Mobile Computer User’s Manual

Before You Begin

S Chapter 6 — Scanner Support

Provides Automatic Data Collection COM and IImage interfaces and
lists settings via Data Collection parameters.

S Chapter 7 — Programming

Programming information that includes creating CAB files, the FTP
Server, Full Screen, Kernel I/O Control Functions, Reboot Functions,
and remapping the keypad.

S Appendix A — Control Panel Applets

Contains detailed information about the Data Collection, SNMP, and
Unit Information control panel applets.

S Appendix B — Unit Manager

Describes how to configure some parameters via the Unit Manager ap­plication and includes reader commands.

S Appendix C — Bar Codes

Describes some of the more common bar code symbologies and includes
bar code labels that can be scanned to configure your 700 Series Com­puter.

Format Conventions for Input From a Keyboard or Keypad

This table describes the formatting conventions for input from PC or host
computer keyboards and device keypads.

Format Conventions

Convention Description

text

Special

Italic text Indicates a variable that you must replace the parameter with a value.

text

Bold

where This word introduces a list of parameters and explains the values you

Shows the command as you should enter it into the device.

Indicates the keys you must press on a PC or host computer key­board. For example, “press
“Enter” on the PC or host computer keyboard.

can specify for them.

Enter

” means you press the key labeled

xvii700 Series Color Mobile Computer User’s Manual

Before You Begin

Related Publications

To order printed versions of the Intermec manuals, contact your local In­termec representative or distributor. Following are related Intermec
manuals, CD-ROMs, and part numbers (P/N). For other versions and
languages, consult your Intermec sales representative.

S 700 Series Color Mobile Computer Quick Start Guide

(P/N: 962-054-053)

S 700 Color Recovery CD PPC 2002 Professional Edition WWE

(P/N: 235-100-001 Kit)

S 700 Color Recovery CD PPC 2002 Premium Edition WWE

(P/N: 235-101-001 Kit)

S 700 Series Color Software Tools CD (P/N: 235-099-001)

S Windows 95 and Windows CE Configuration Utilities Reference Manual

(P/N: 978-054-010)

Global Services and Support

Web Support

Select any of the following services available from Intermec Technologies
Corporation:

S Factory Repair and On-site Repair

To request a return authorization number for one of our authorized ser­vice centers, or to request an on-site repair technician, call
1-800-755-5505, then select option 1.

S Technical Support

For technical support on your Intermec product, call 1-800-755-5505,
then select option 2.

S Service Contract Status

To inquire about an existing contract, or to renew a contract, call
1-800-755-5505, then select option 3.

S Schedule Site Surveys or Installations

To schedule a site survey, or to request a product or system installation,
call 1-800-755 -5505, then select option 4.

Visit our Web site at http://www.intermec.com to download many of our
current manuals in PDF format.

Visit our technical knowledge base (Knowledge Central) at
http://intermec.custhelp.com to review technical information or to request
technical help for all Intermec products.

xviii 700 Series Color Mobile Computer User’s Manual

Introduction

1

This chapter introduces the 700 Series Color (700C) Mobile Computer,
developed by Intermec Technologies Corporation to enhance wireless con­nectivity needs.

1700 Series Color Mobile Computer User’s Manual

IntroductionChapter —1

About the 700 Series Color Mobile Computer

Audio System

Speaker

A speaker capable of variable volume levels is located on the back of the
computer. This speaker has a transducer volume of 85 dB min at 10 CM
and a frequency range of 1-8 KHz.

Internal Microphone

The internal microphone is located on the bottom of the unit to the left of
the hirose connector.

External Headset Jack

The external headset jack connects a mono headset to your mobile com­puter for use in noisy environments. The jack is a 2.5 mm, three-conduc­tor jack, with autosensing of the headset jack insertion which disables the
internal speaker and microphone. The external headset jack is located on
the bottom of the mobile computer to the right of the hirose connector.

Battery

The 700 Series Computer comes equipped with a nominal 14.4
Watt-hour, 7.2V (two 2000 mAh cells), replaceable Lithium-Ion (LiIon)
battery. To view the status of this battery from the 700 Series Computer,
tap Start → Settings → the System tab → the Power icon to view the
current status of both the main battery and the backup battery. Tap ok to
exit this information.

2 700 Series Color Mobile Computer User’s Manual

Introduction—Chapter 1

Note: The Unit Information control panel applet is only available in the
700 Series Computer if Intermec Content is enabled, the Plus region is
enabled and installed, and a laser scanner is installed.

You can also view the battery status for the 700 Series Computer by
accessing the Unit Information control panel applet. Tap the Unit
Information icon, then tap the Battery Status tab to view the current
status. Tap ok to exit this information.

Low Battery Shutdown

If your computer shuts down because of low battery conditions, your com­puter will not operate. This is done to ensure that data is protected. Al­though the battery will protect the data against loss for several hours, you
should connect your computer to a power source when you first detect a
low battery condition.

Your computer contains an internal super capacitor, a temporary power
storage device, that protects data for up to ten minutes. This is to give you
time to replace the main battery pack before that data is lost. Be sure to put

the computer in a suspend mode before doing so.

The battery power fail level is set so that after the system shuts down in a
low battery condition, there is still sufficient charge to allow the unit to
remain configured, keep proper time, and maintain DRAM (Dynamic
Random Access Memory) for at least 72 hours at room temperature if the
main battery remains in the mobile computer. The configuration and time
are lost if:

S The battery discharges beyond this level.

S The battery is removed when the computer is not in suspend mode.

S A cold reset is performed on the computer.

3700 Series Color Mobile Computer User’s Manual

IntroductionChapter —1

System Status Maintained

System status is maintained in “suspend” when the main battery is re­moved:

S 10 minutes for 64 MB low-power chips

S 5 minutes for 128 MB low-power chips

CAB Files Within 700C Software Tools CD

If you leave the default destination while you install the “\700 Color
Mgmt Tools” directory onto your desktop PC, then “C:\Intermec\Inter­mec 700 Color Mgmt Tools\Cab Files” will be the default directory. There
are folders within the “\Cab Files” directory that contain demos and pro­gram files. See the 700 Series Color Software Tools CD User’ s Manual for
more information about these files.

Modem Support

Modem PC Cards are not supported by the 700 Series Computer. Howev­er, modem options do include the following:

Network Support

S Switchable dock that includes a built-in modem and a serial port be-

tween which an application can switch.

S Mini-Landline Modem that can be tethered to the port on the bottom

of the 700 Series Computer.

S Other external modems that may be connected to the bottom of the

700 Series Computer or to the dock.

Radio CompactFlash Cards cannot be installed by a user. The 700 Series
Computer must be serviced to install or replace radios. See Chapter 4,
“Network Support” for more information.

S 802.11b radio

S Integrated GSM/GPRS radio

S CDPM/1xRTT radio

S Wireless printing equipped with a Bluetooth qualified module by Socket

Communications

4 700 Series Color Mobile Computer User’s Manual

Removeable Card Support

To access either the CompactFlash (CF) or SecureDigital (SD) card slot,
locate the access door at the top of the 700 Series Computer, remove its
two screws, then remove the door.

CompactFlash Cards

Support is limited to one CompactFlash (CF) Storage Card in the 700 Se­ries Computer, either for storage or for the 802.11b radio.

SecureDigital Cards

Support is limited to one SecureDigital (SD) Storage Card in the 700 Se­ries Computer for storage.

MultiMediaCards

MultiMediaCards (MMCs) are not supported in the 700 Series Comput­ers because current technology shows that SD cards will quickly surpass
MMC cards in storage capacity.

Introduction—Chapter 1

Software Build Version

To check to see if your 700 Series Computer has the latest build, select
Start → Internet Explorer → the Intermec logo.

The latest software build version is displayed beneath the Patent Informa-
tion title. This information will be useful should you need customer assis­tance.

Note: The Unit Information control panel applet is only available in the
700 Series Computer if Intermec Content is enabled, the Plus region is
enabled and installed, and a laser scanner is installed.

5700 Series Color Mobile Computer User’s Manual

IntroductionChapter —1

You can also view the latest software build version on your 700 Series
Computer by accessing the Unit Information control panel applet. Select

Start → Settings → the System tab → the Unit Information icon → the
Versions tab to view the current build version on your 700 Series

Computer.

What’s New

The newest functionality is available in software build versions 1.30 or
greater. The following changes have occurred since the last release of this
manual:

S Applied new publications standards to this manual.

S Adapted instructions using Ethernet connections to fit Intermec require-

ments in Chapter 2, “Pocket PC 2002.”

S Moved “Updating System Software” and “EFlash” information to the Re-

covery CD User’ s Manual from Chapter 3, “Installing Applications.”

S Removed several 802.11 APIs not related to the 700 Series Color Com-

puter from Chapter 4, “Network Support.”

S Added the Siemens MC45 radio module to Chapter 4, “Network Sup-

port.”

S Added tethered scanner information to Chapter 6, “Scanner Support.”

S Added CAB extraction information and FTP Server parameters to

Chapter 7, “Programming.”

S Added imager option information via the Data Collection control panel

applet to Appendix A, “Control Panel Applets.” Note that this is for 700

Series Computers using an imager.

6 700 Series Color Mobile Computer User’s Manual

Pocket PC 2002

2

This chapter introduces the Pocket PC 2002 operating system from
Microsoft Corporation.

7700 Series Color Mobile Computer User’s Manual

Pocket PC 2002Chapter —2

Introduction

Congratulations on purchasing a Pocket PC. Due to the size and capabili­ties of this 700 Series Color Mobile Computer, you can keep your most
important business and personal information up-to-date and close at hand.
Microsoft ActiveSync increases the power of your 700 Series Computer by
allowing you to synchronize the information on your desktop or laptop
computer with your 700 Series Computer. Picture yourself in the follow­ing situations:

S A Calendar reminder alerts you that it is time to catch the bus. You grab

your 700 Color Pocket PC Mobile Computer and catch the bus just in
time. Because ActiveSync keeps the information on your 700 Series
Computer up-to-date, you leisurely review your task list, make notes
about the new books and CDs you want to buy, and read a nd respond
to e-mail messages. When you get back to the office, ActiveSync trans­fers any task changes you made, your notes, and your e-mail message
responses to your desktop computer. For more information on Active­Sync, see “Microsoft ActiveSync” on page 29.

S While walking with a colleague, your 700 Color Pocket PC Mobile

Computer rings. You look at the caller ID and see it is your manager
who is calling. She asks if you two are free this afternoon for an emer­gency meeting. While your colleague fumbles through his paper orga­nizer, you press a button on your 700 Series Computer and instantly see
a list of today’ s appointments and meetings. You are quickly able to tell
your manager your available times, and make a note of the new meeting
while on the call. You hang up, send an e-mail with a schedule request
for the three of you at the desired location. For more information on
scheduling appointments and meetings, see “Microsoft Pocket Outlook”
on page 31.

S You are meeting your friends tonight for dinner and a movie. You

download the latest movie information from the Internet to your desk­top computer and then synchronize it with your 700 Series Computer.
At dinner, you pull out your 700 Color Pocket PC Mobile Computer
and review your movie options with your friends. For more information
on downloading Web pages to your 700 Series Computer, see “Pocket
Internet Explorer” on page 62.

Premium versus Professional Editions

Your 700 Series Computer will have either the Premium Edition or the
Professional Edition of Pocket PC 2002. Do the following to determine
which edition of Pocket PC 2002 is on your unit.

1 Select Start → Internet Explorer → the Intermec logo.

8 700 Series Color Mobile Computer User’s Manual

Pocket PC 2002—Chapter 2

2 Note the “Software Build” information displayed beneath the Version

Information title.

Note: If you have an older software build, your unit may say either

“PREM” (which indicates the Premium Edition) or “PRO” (which indicates
the Professional Edition).

3 Tap the Close icon in the top right corner to exit the Internet Explorer.

Below is a list of components for each edition of Pocket PC 2002:

Premium

Component

Microsoft ActiveSync Client (page 29) XX

Microsoft Pocket Outlook (page 31) X X

Pocket Word (page 47) XX

Pocket Excel (page 52) X X

MSN Messenger (page 53) X

Windows Media Player for Pocket PC (page 57) X RAM

Microsoft Reader (page 58) XRAM

Pocket Internet Explorer (page 62) X X

Edition

Professional
Edition

Note: Components marked with “RAM” are provided on a Companion
CD for download into RAM rather than burned into Flash ROM.

9700 Series Color Mobile Computer User’s Manual

Pocket PC 2002Chapter —2

Where to Find Information

This chapter d escribes your 700 Series Computer hardware, provides an
overview of the programs on your 700 Series Computer, and explains how
to connect your 700 Series Computer to a desktop computer, a network,
or the Internet. For instructions on setting up your 700 Series Computer
and installing ActiveSync, see the Quick Start Card. The following is a
guide to more information to assist you use your 700 Series Computer.

For information on: See this source:

Programs on your mobile computer. This chapter and mobile computer Help. To view Help,

tap

Start → Help

Additional programs that can be installed on the mobile
computer.

Connecting to and synchronizing with a desktop com­puter.

Last-minute updates and detailed technical information. The Read Me files, located in the Microsoft ActiveSync

Up-to-date information on your Pocket PC. http://www.microsoft.com/mobile/pocketpc

The Pocket PC Companion CD.

The Quick Start Card or AutoSync Help on your desktop
computer. To view Help, click

veSync Help

folder on the desktop computer and on the Pocket PC
Companion CD.

.

Help → Microsoft Acti-

.

Pocket PC and many of the technologies supported by the 700 Series
Computer are not from Intermec Technologies. Many of the utilities and
features on a Pocket PC device come directly from Microsoft without any
modification from Intermec Technologies. There may be certain Micro­soft-specific issues that Intermec Technologies would not be able to sup­port, so you will have to contact Microsoft Corporation. Use these URLs
to determine your Microsoft support options:

S http://msdn.microsoft.com/support/

S http://support.microsoft.com/

S news://news.microsoft.com (a free support option)

10 700 Series Color Mobile Computer User’s Manual

Basic Skills

Buttons and Stylus

Pocket PC 2002—Chapter 2

Learning to use your 700 Series Computer is easy. This describes the basic
concepts of using and customizing your 700 Series Computer.

Your 700 Series Computer has hardware buttons that control actions and
scroll functions, and a stylus for selecting items and entering information.
On the 700 Series Computer, the stylus replaces the mouse.

S Tap:

Touch the screen once with the stylus to open items and select options.

S Drag:

Hold the stylus on the screen and drag across the screen to select text
and images. Drag in a list to select multiple items.

S Tap and hold:

Tap and hold the stylus on an item to see a list of actions available for
that item. On the pop-up menu that appears, tap the action to be per­formed.

Today Screen

When you turn on your 700 Series Computer for the first time each day
(or after four hours of inactivity), you will see the Today screen. You can
also display it by tapping the Start flag (shown left) and then Today.On
the Today screen, you can see at a glance important information for the
day.

11700 Series Color Mobile Computer User’s Manual
