Intermec Technologies 1555-2450, 1555-900 User Manual

Getting Started Guide

Sabre 1555 Laser Scanner

P/N x-xxxx49-01

& RFID Reader/Programmer

Guida IntroduttivaGuía de Iniciación

Guia de IniciaçãoGuide de Démarrage

Anleitung für Einsteiger

Introduction

Use this Getting Started Guide to set up the Sabre 1555 laser scanner and RFID reader/
programmer for most terminal connections and symbologies. If necessary, use the
EasySet setup software or Installation Manual for additional configuration possibilities
and terminal connections.

Basic setup

Configuración básica
Configuration de base
Grundkonfiguration
Configurazione di base

Full setup

Configuración completa
Configuration complète
Vollständige Konfiguration
Configurazione completa

Configuração completa

Getting Started Guide

EasySet

EasySet setup software

Installation Manual

(on the CD-ROM or to order)

Operating

Uso
Utilisation
Betrieb
Utilizzazione

Interactive Programming

(need translations to other
languages)

Operator’s Guide

Interactive Programming

Guide

2

Connect scanner cable (standard version shown)

Scanner cable depends

on your terminal

Cables
Accessories

3

RFID reader/programmer operation

"beep"

RFID reader/programmer reading distance

Sabre 1555

2450 MHz

1 cm - 60 cm

(0.4" - 24")

Sabre 1555

915 MHz

4

2.5 cm - 200 cm
(1" - 80")

Scanner operation

"beep"

Scanner reading distance

Sabre 1555

Standard Range

6 cm - 34 cm

(2.5" - 13.5")

Sabre 1555

Long Range

28 cm - 100 cm

(11" - 39")

5

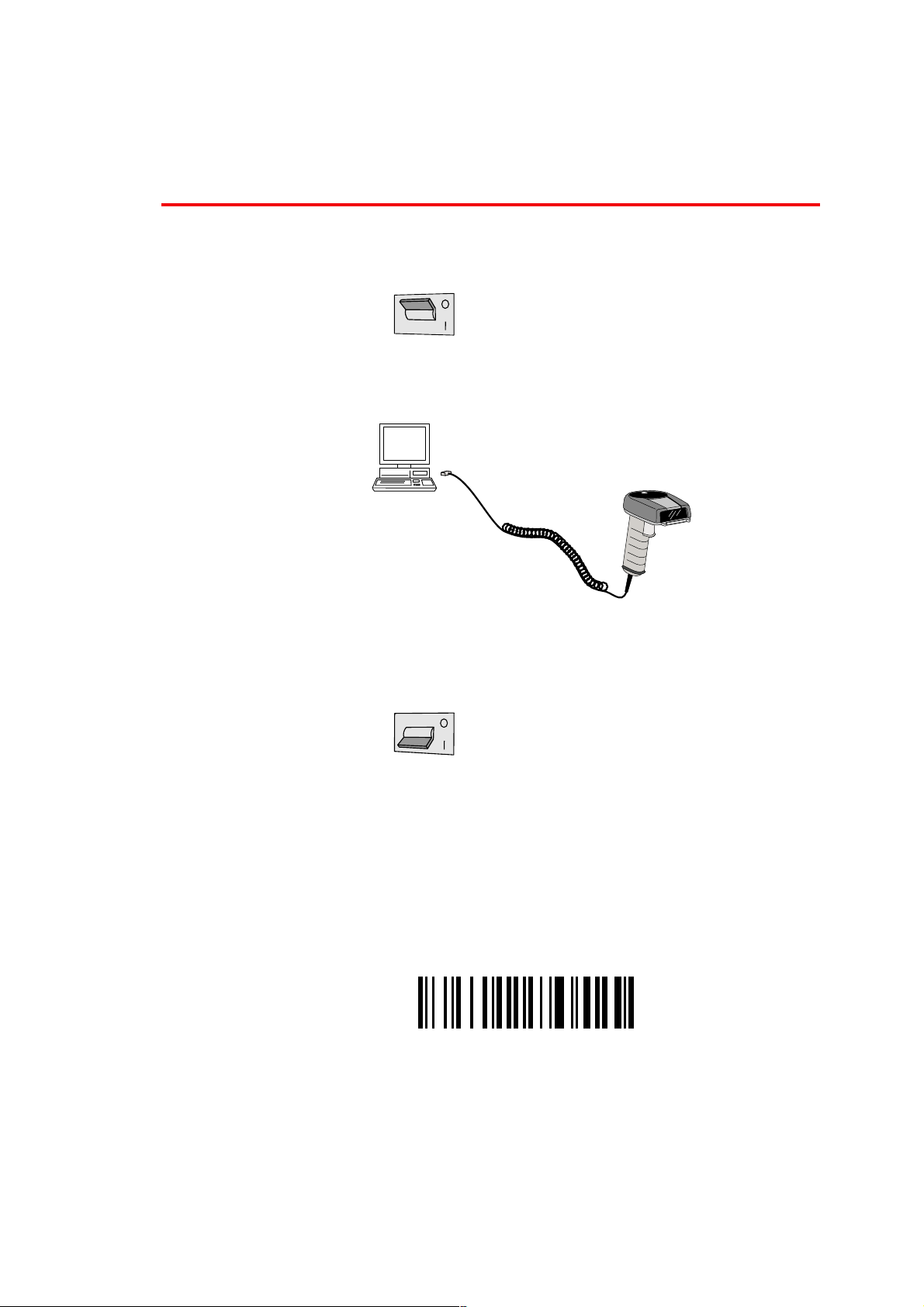

RS-232 C

System power OFF

Ê

Ê

Connect cable

Ë

Ë

Scanner power ON

Ì

Ì

Direct RS-232 C cable

P/N 3-604032-00

System power ON

Í

Í

Select standard RS-232 C

Î

Î

(PC serial port compatible)

9600 baud, 7 data bits, even parity, 2 stop bits
postamble = carriage return + line feed

6

Customize parameters (optional)

Ï

(*) = default value
9600 baud (*)

7 data bits (*)

Even parity (*)

19200 baud

8 data bits

No parity

Postamble = Carriage Return + Line Feed (*)

Postamble = none

7

Odd parity

Postamble = Carriage Return

RS-232 TTL

System power OFF

Ê

Ê

Connect cable

Ë

Ë

Scanner power ON

Ì

Ì

Direct RS-232 TTL cable

P/N x-xxxxxx-xx

System power ON

Í

Í

Select RS-232 TTL

Î

Î

9600 baud, 7 data bits, even parity, 2 stop bits
postamble = carriage return + line feed

8

Customize parameters (optional)

Ï

(*) = default value
9600 baud (*)

7 data bits (*)

Even parity (*)

19200 baud

8 data bits

No parity

Postamble = Carriage Return + Line Feed (*)

Postamble = none

9

Odd parity

Postamble = Carriage Return

Universal Serial Bus (USB)

System power OFF

Ê

Ê

Connect cable

Ë

Ë

Scanner power ON

Ì

Ì

Direct USB cable

P/N x-xxxxxx-xx

System power ON

Í

Í

Select standard USB

Î

Î

(PC serial port compatible)

9600 baud, 7 data bits, even parity, 2 stop bits
postamble = carriage return + line feed

10

Customize parameters (optional)

Ï

(*) = default value

Intermec representative needs to supply USB symbologies when
the symbols are available.

11

Symbology

Disable all symbologies

Ê

Select symbology

Ë

Code 39

Code 128 / EAN 128

Test

Ì

UPC-A, UPC-E, EAN-8, EAN-13

(UPC-A -> EAN-13)

UPC-A, UPC-E, EAN-8, EAN-13

(UPC-A -> UPC-A)

Code 39

UPC-A

CODE-39

Code 128

CODE-128

EAN 13

1234567890128

12

Reset

Online setup

System power OFF

Ê

Connect RS-232 C cable

Ë

(P/N 3-604032-00)

Scanner power ON

Ì

System power ON

Í

Scan EasySet setup code

Î

Start EasySet software

Ï

EasySet

13

Laser warnings

The Sabre 1555 has a maximum laser output of 1mW at 630-680 nm and complies with the following safety
standards:
USA: CDRH - Class II Laser Product (CFR 21 Subpart J)
IEC 825-1 EN 60825-1 - Class 2 Laser Product

Fix these warning labels onto the product if they are not already present.
Collez les étiquettes d’avertissement sur votre produit.

Bringen Sie Warnetiketten auf dem Produkt an.
Fije la etiqueta de advertencia en el producto.

Cole as etiquetas de precaução no equipamento.
Un’etichetta di avviso per il laser è da applicare sul prodotto.

CAUTION – Use of controls or adjustments or performance of procedures other than those specified herein result in
hazardous laser light.
VORSICHT – Bei einer anders als hier beschriebenen Verwendung der Bedienelemente oder Veränderungen oder
einer anderen Ausführung der Arbeitsabläufe entsteht gefährliches Laserlicht.
ATTENTION – L’utilisation de contrôles/commandes ou de réglages ou l’exécution de procédures autres que ceux
précisés par le présent document provoquent une lumière laser dangereuse.

14

Regulatory statements

USA & Canada: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

This device requires a radio license, unless it is used totally inside of a building. (The user must obtain this license.)
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une

license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.)
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant
to Part 15 of the FCC Rules, and it must not be used in a residential environment. It generates, uses, and can radiate radio frequency energy. If
not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes
interference, the user will be required to correct the interference at the user’s own expense.

T o maintain compliance with the FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral (such as a
reader) must be as specified by Intermec.

Operator Warning: FCC regulations limit exposure to radio frequency (RF) radiation. T o comply with these regulations, the operator of this
device must maintain a distance of at least 4 cm (2 inches) from the front part of the device to any bystanders under normal operating conditions.

While the device is on, the operator’s body and parts of the body , such as eyes, hands, or head, must be 4 cm (2 inches) or farther
from the front of the device.

This device is UL listed (UL 1950/C22.2 No. 950) for safety when powered by a host system or by one of the following external Intermec power
supplies: Catalog No. and P/N 043230 ~100V , 50/60 Hz or Catalog No. and P/N 047793 ~120V , 60 Hz.

Intermec hereby declares that the Sabre 1555 has been tested and found compliant with the below listed standards as required by the
EMC Directive 89/336/EEC as amended by 92/31/EEC and by the Low Voltage Directive 73/23/EEC as amended by 93/68/EEC:
EN55022, EN50082-2, EN60950

This device is TÜV GS licensed (EN 60950 and EN 60825-1) for safety when powered by a host system or by the following external Intermec power
supply: Catalog No. and P/N 047795 ~230V , 50 Hz. For 240V applications use the power supply: Catalog No. 047794 (P/N 5014UK) ~240V , 50
Hz.

Australia-New Zealand: This equipment has been tested and found to conform to the Australian EMC framework concerning

Class B digital devices, prescribed by the Australian and New Zealand
standard AS/NZS 3548.

Mexico: Este equipo cumple con la certificatión NOM.

The information contained in this document is for informational purposes only and is subject to change without notice. No part of this document
may be copied or reproduced in any manner without the prior written permission of Intermec T echnologies Corporation.

Sabre products are covered by patents issued or pending in the USA and other countries.
The word Intermec, the Intermec logo, Sabre and EasySet are either trademarks or registered trademarks of Intermec.
Throughout this document, trademarked names may be used. Rather than put a trademark (™ or ®) symbol in every occurrence of a trademarked

name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement.

Caution
Changes or modifications not expressly approved by Intermec could void the user's authority to operate this equipment.

The device is CSA certified.

N309
