1
Using the Data Collection PC
This chapter introduces the CV61 (Model 1011CM01) Data Collection PC with Windows® 7 or Microsoft Windows XP operating system. Use this chapter to learn about the basic features and available accessories.
1
Chapter 1 — Using the Data Collection PC
Safety Information
Your safety is extremely important. Read and follow cautions in this
document before handling and operating Intermec equipment. You
can be seriously injured, and equipment and data can be damaged if
you do not follow the safety cautions.
This section explains how to identify and understand cautions and
notes that are in this document.
A caution alerts you to an operating procedure, practice,
condition, or statement that must be strictly observed to prevent
equipment damage or destruction, or corruption or loss of data.
Note: Notes either provide extra information about a topic or contain
special instructions for handling a particular condition or set of
circumstances.
About the CV61 Data Collection PC
The rugged CV61 Data Collection PC is designed for real-time data
collection applications in warehousing, distribution, work-in-process,
time and attendance, and stationary applications. The CV61 is highly
configurable and runs on the Microsoft Windows 7 or Microsoft
Windows XP operating system. Additionally, the CV61 supports the
use of terminal emulation applications, browser-based applications, or
custom applications.
2 CV61 Data Collection PC User Guide
CV61 Data Collection PC
Chapter 1 — Using the Data Collection PC
Overview of CV61 Features
The CV61 includes these standard features:
• 12.1” color sunlight-readable XGA display
• Two USB ports, two COM ports, a CANBUS port, an Ethernet port,
a headphone jack, and a microphone jack
• 1 GB of RAM expandable to 3 GB of RAM
• Customer-accessible SD slot for memory cards up to 32 GB
• 802.11a/b/g/n and Bluetooth® radios
• Accelerometer
• Intel D425 1.8 GHz processor
The CV61 Data Collection PC has an IEEE 802.11a/b/g/n radio
installed and Wi-Fi® certified for interoperability with other
802.11a/b/g/n wireless LAN devices.
CV61 Data Collection PC User Guide 3
Chapter 1 — Using the Data Collection PC
Power
button
Power
connector
Keyboard
connector
Reset
switch
COM 1
port
COM 2
port
CANBUS
port
Serial
port
Headphone
jack
Microphone
jack
Ethernet
port
CV61 Ports and Buttons
CV61 Port and Buttons
Port and Buttons Description
Power button Turns the CV61 on or off.
Power connector Connect the CV61 to an AC or DC/DC power
supply. For more information, see
the CV61 to Power” on page 7
“Connecting
.
Reset button Perform a hard resert to the CV61.
Keyboard connector Connect a PS2 keyboard to the CV61.
COM 1 and COM2
port

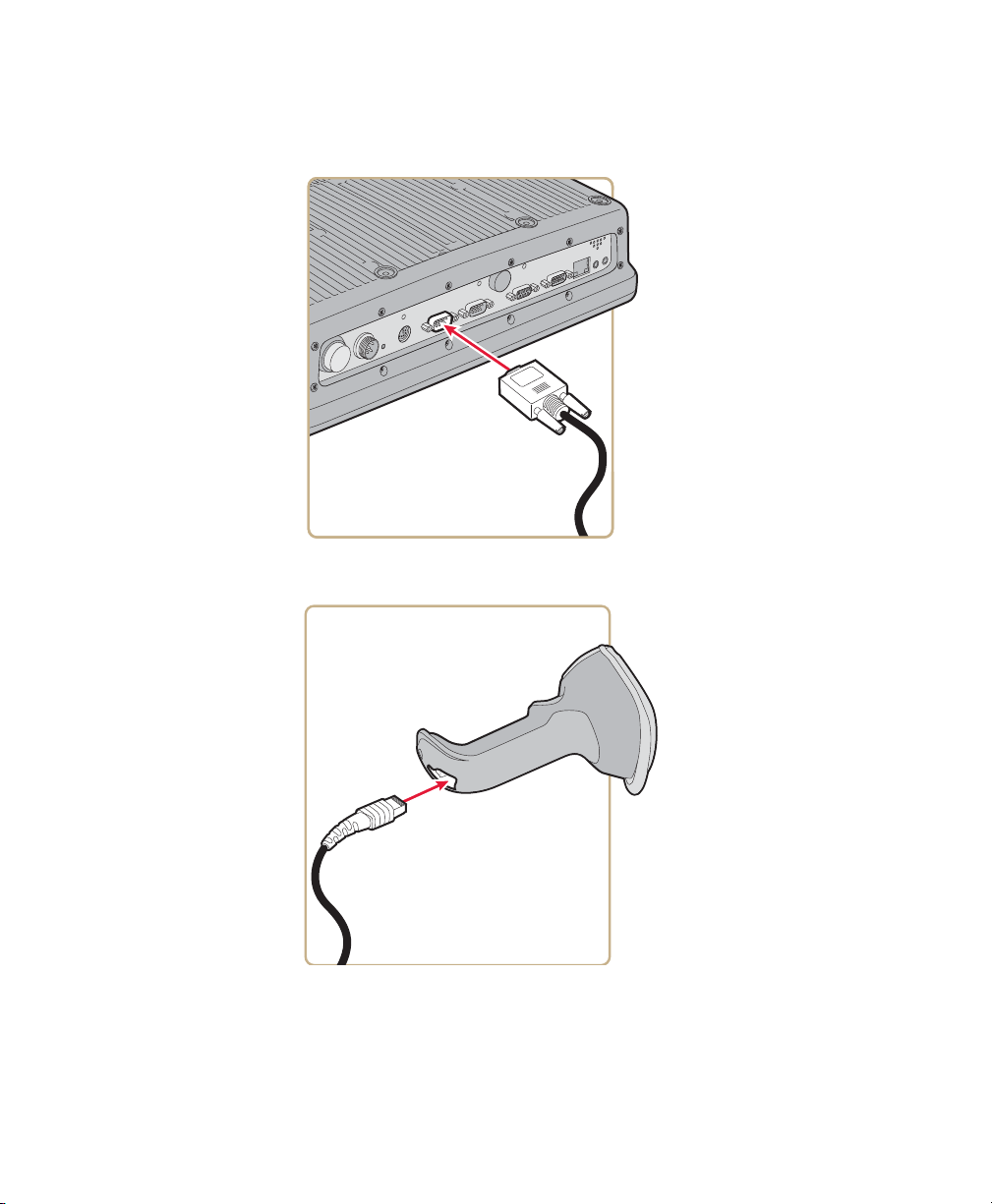

Connect RS-232 devices such as a printer or scanner
to the CV61.
CANBUS port Connect a CANBUS cable to allow devices to
communicate with each other within a vehicle
without a host computer.
4 CV61 Data Collection PC User Guide
USB port Connect USB devices such as a printer or scanner to
the CV61.
Chapter 1 — Using the Data Collection PC
Read-to-Work
indicator
Port and Buttons Description
Ethernet port Connect the CV61 to an Ethernet interface.
Headphone jack Connect headphones to the CV61.
Microphone jack Connect a microphone to the CV61.
About the Ready-to-Work Indicator
The Ready-to-Work indicator is a status LED on the CV61 that
indicates the state of the CV61.
Ready-to-Work Indicator Location
Ready-to-Work Indicator Status
LED Description
On The CV61 is powered on.
CV61 Data Collection PC User Guide 5
Chapter 1 — Using the Data Collection PC
LED Description
Blinking The backup battery is low on power.
Off The CV61 is off.
CV61 Accessories
The CV61 does not ship with any accessories. All accessories are sold
and ordered separately. For help, contact your local Intermec sales
representative.
CV61 Accessories
Accessory Description
AC Power Supply Use this power supply kit to supply AC
DC/DC (15-96 VDC) Power
Supply
Desktop Mounting Kit Use the desktop mounting kit to attach
Vehicle Mounting Kit Use the vehicle mounting kit to attach the
Keyboard Use the CV61 keyboard to input text. The
Keyboard Tray Mounting Kit Use the keyboard tray mounting kit to
power to the CV61. The AC power supply
comese with a North American power
cord. You need to purchase a
country-specific power cord for your local
power source.
Use this power supply kit with 15-96 V
powered vehicles requiring a 60 V or
higher DC interface.
the CV61 to a flat surface such as a
desktop.
CV61 to a vehicle such as a forklift or
truck. This kit does not include a power
supply, which can be purchased
separetely. For more information, contact
your local Intermec sales representative.
keyboard is rugged and has an IP65 seal
rating.
attach the CV61 keyboard to the CV61.
6 CV61 Data Collection PC User Guide
Chapter 1 — Using the Data Collection PC
Mounting the CV61
To properly mount the CV61 to a desktop or vehicle, you must
purchase either a Desktop or Vehicle Mounting Kit.
There are two mounting kit options sold separately:
• Standard Vehicle Mounting Kit
• Desktop Mounting Kit
For more information on installing the mounting kits, see the CV61
Vehicle Mounting Kit Installation Instructions.
Connecting the CV61 to Power
The CV61 has an internal 9-60 VDC power supply. For the CV61 to
operate, you must provide power to the CV61 through a DC/DC power
supply or an AC/DC power supply.
There are two power options for the CV61. You must order one of
these power options separately:
• DC/DC Converter Kit (15-96 V) for non-heated displays
• AC Wall Charging Kit
Use the AC power supply and power cord when you are using the CV61
with the Desktop Mounting Kit. For more information on installing
the DC power options, see the Vehicle Power Supply Installation
Guide.
Installing an SD Card
You can use an SD card to increase file storage and install software.
The computer supports an optional 32 GB maximum capacity SD
card.
To install an SD card on the CV61:
1 Turn off the CV61.
2 Remove the power cord.
CV61 Data Collection PC User Guide 7
Chapter 1 — Using the Data Collection PC
3 Using a small Phillips screwdriver, remove the eight screws that
secures the radome cover to the CV61.
Screw
(8 places)
4 Gently lift up the radome cover to expose the SD card slot. 5 Insert the SD card into place.
8 CV61 Data Collection PC User Guide
