70 Series
DRAFT
Mobile Computer
CK70, CK70NI, CK71, CK71NI, CN70, CN70NI, CN70e, CN70eNI
User Manual
Intermec Technologies Corporation
DRAFT
Worldwide Headquarters
6001 36th Ave.W.
Everett, WA 98203
U.S.A.
www.intermec.com
The information contained herein is provided solely for the purpose of allowing customers to
operate and service Intermec-manufactured equipment and is not to be released, reproduced, or
used for any other purpose without written permission of Intermec Technologies Corporation.
Information and specifications contained in this document are subject to change without prior
notice and do not represent a commitment on the part of Intermec Technologies Corporation.
© 2011 by Intermec Technologies Corporation. All rights reserved.
The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar,
dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license),
Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work, RoutePower,
Sabre, ScanPlus, ShopScan, Smart Mobile Computing, SmartSystems, TE 2000, Trakker Antares,
and Vista Powered are either trademarks or registered trademarks of Intermec Technologies
Corporation.
There are U.S. and foreign patents as well as U.S. and foreign patents pending.
Wi-Fi is a registered certification mark of the Wi-Fi Alliance.
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.
ii 70 Series Mobile Computer User Manual
Document Change Record
DRAFT
This page records changes to this document. The document was
originally released as Revision 001.
Version
Number
002 A 06/2011 Revised to add information on non-
Revision
Letter
Date Description of Change
incendive (NI) versions of the computer,
provisioning the computer, the new
ScanDiagnostics application, and how to
use the 70 Series as a USB mass storage
device. Also corrected the cold boot
procedure and removed the compass.
70 Series Mobile Computer User Manual iii
iv 70 Series Mobile Computer User Manual
DRAFT
Contents
DRAFT
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Global Services and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Web Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Send Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Service Location Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Who Should Read This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Using the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1
About the 70 Series Mobile Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
What’s New in This Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview of 70 Series Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About the Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
70 Series Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Contents
About Language Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
About the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Changing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
About Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
About Battery Life and Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

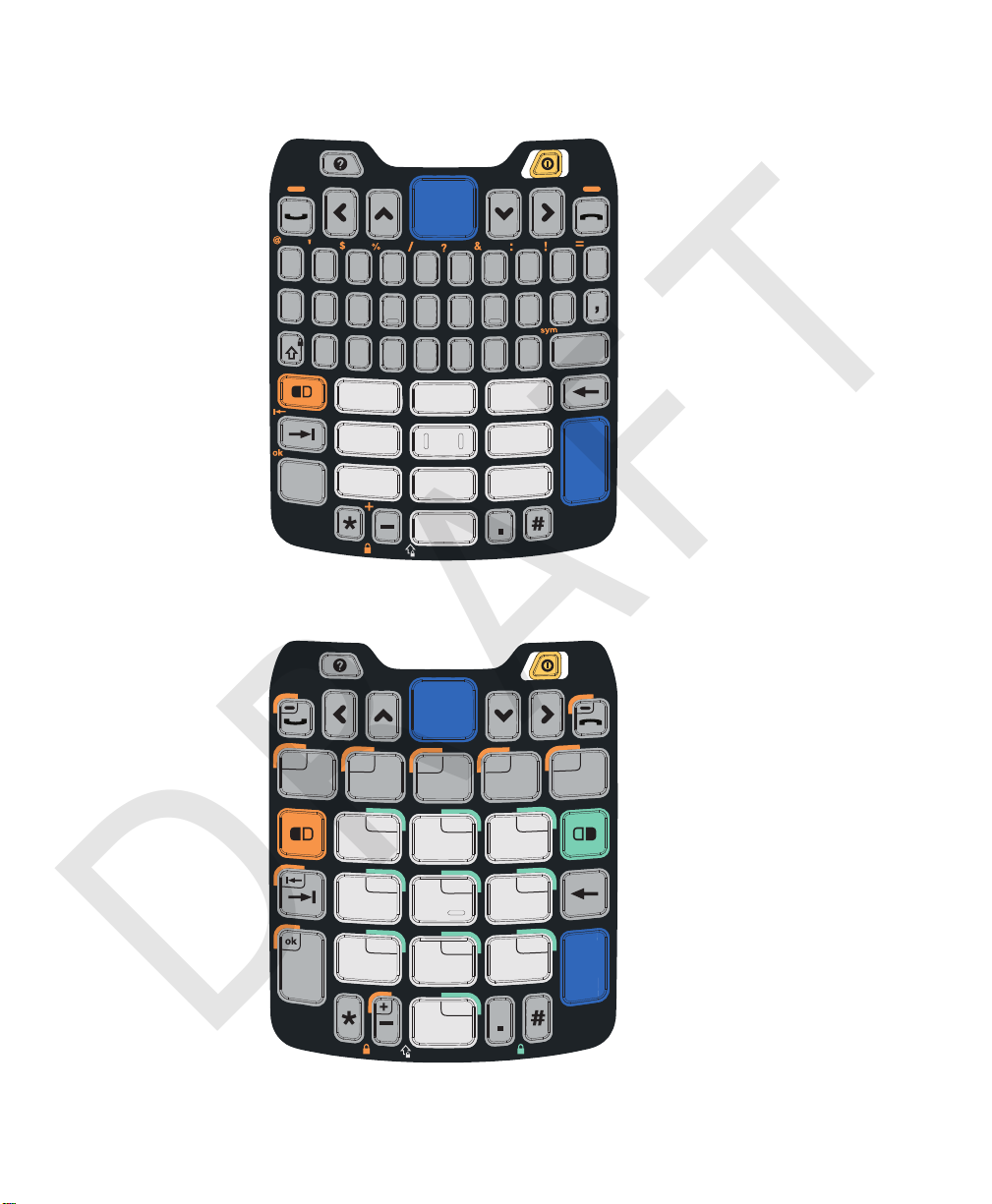

About the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Entering Characters on the QWERTY Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Entering Characters on the Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Entering Characters on the CK70 and CK71 Keypads . . . . . . . . . . . . . . . . . . . . . . .23
About the Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
About the Intermec Dashboard Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Configuring the Screen Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Reading Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
70 Series Mobile Computer User Manual v
Contents
DRAFT
Inserting a microSD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing a microSD Card in a CN70 or CN70e . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing a microSD Card in a CK70 or CK71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Transferring Files To and From Your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using Microsoft ActiveSync to Transfer Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using the Computer as a Mass Storage Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Understanding the User Interface and Intermec Applications. . . . . 37
2
About the User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
About the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Interacting With the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

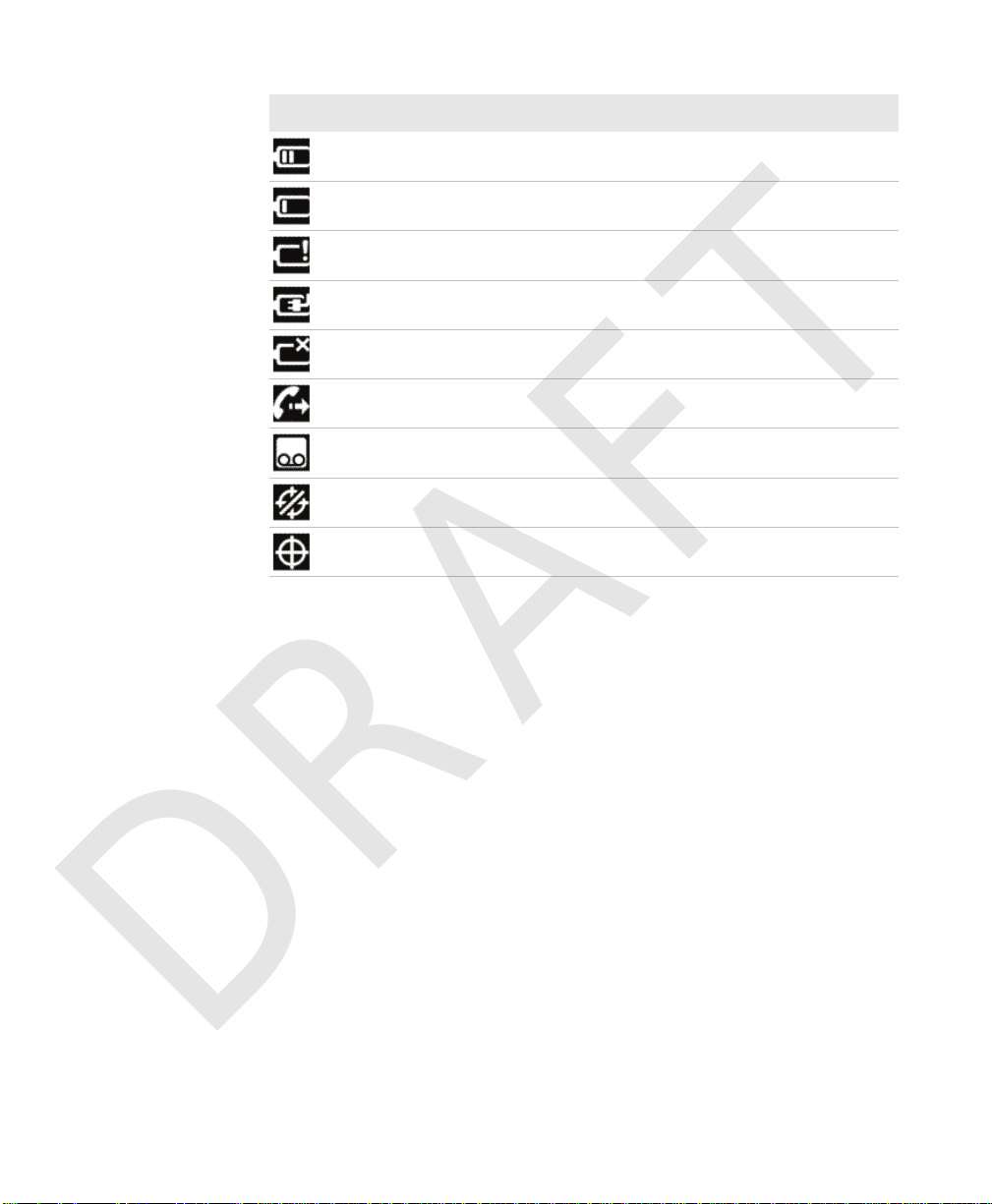

Title Bar Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Aligning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
About Intermec Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Applications Available on the Mobile Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Applications You Can Download to the Mobile Computer. . . . . . . . . . . . . . . . . . . 45
Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3
About the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Activating the UMTS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Activating the CDMA Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Turning the Phone On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Switching Network Carriers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Making a Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Making an Emergency Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Using the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
4
About the Color Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Taking a Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Recording a Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Saving Pictures and Videos to an SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
vi 70 Series Mobile Computer User Manual
Using GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
DRAFT
5
About the Integrated GPS on Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

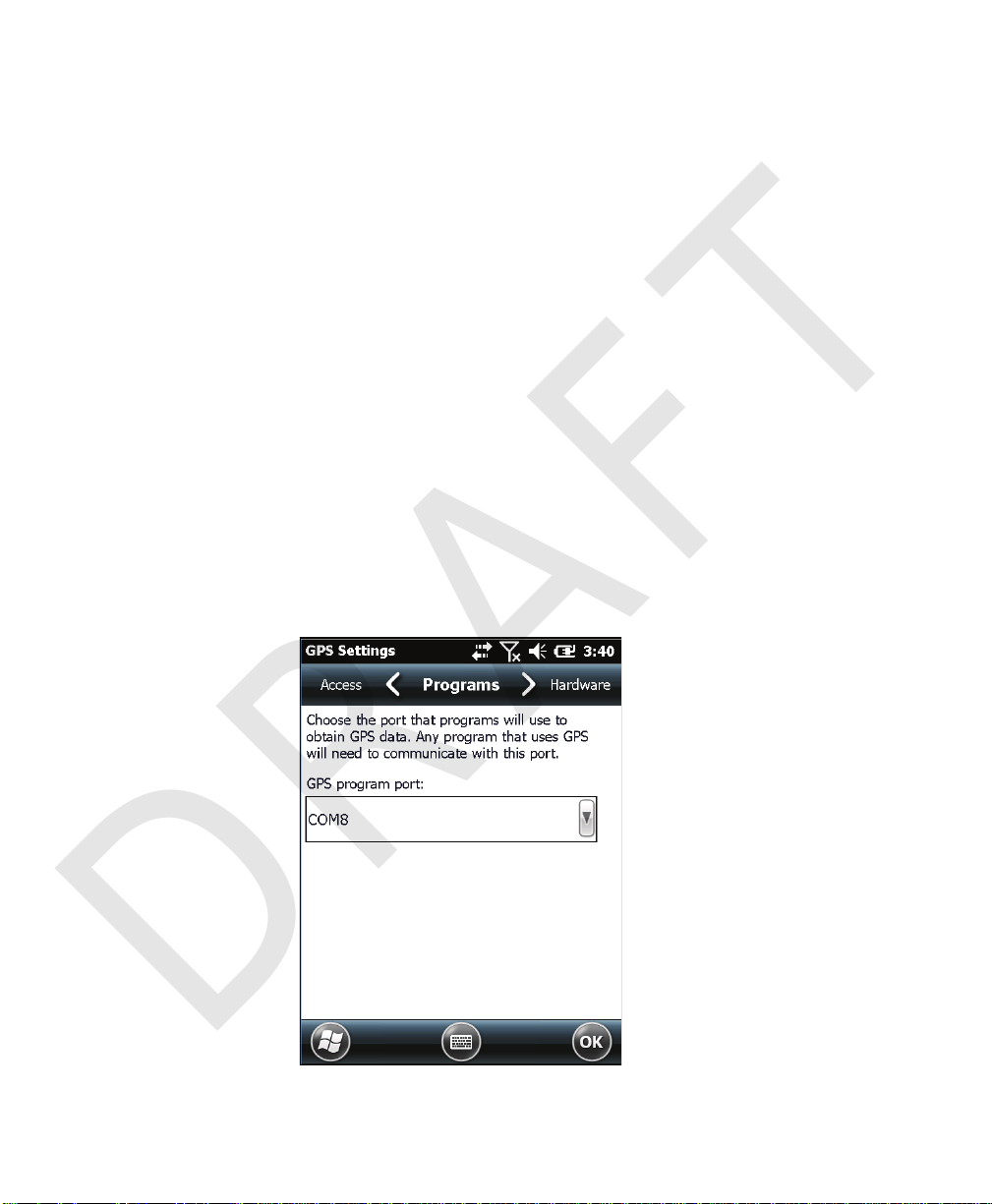

Using the GPSID Installed on the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Improving GPS Performance on the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Configuring the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6
How to Configure the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

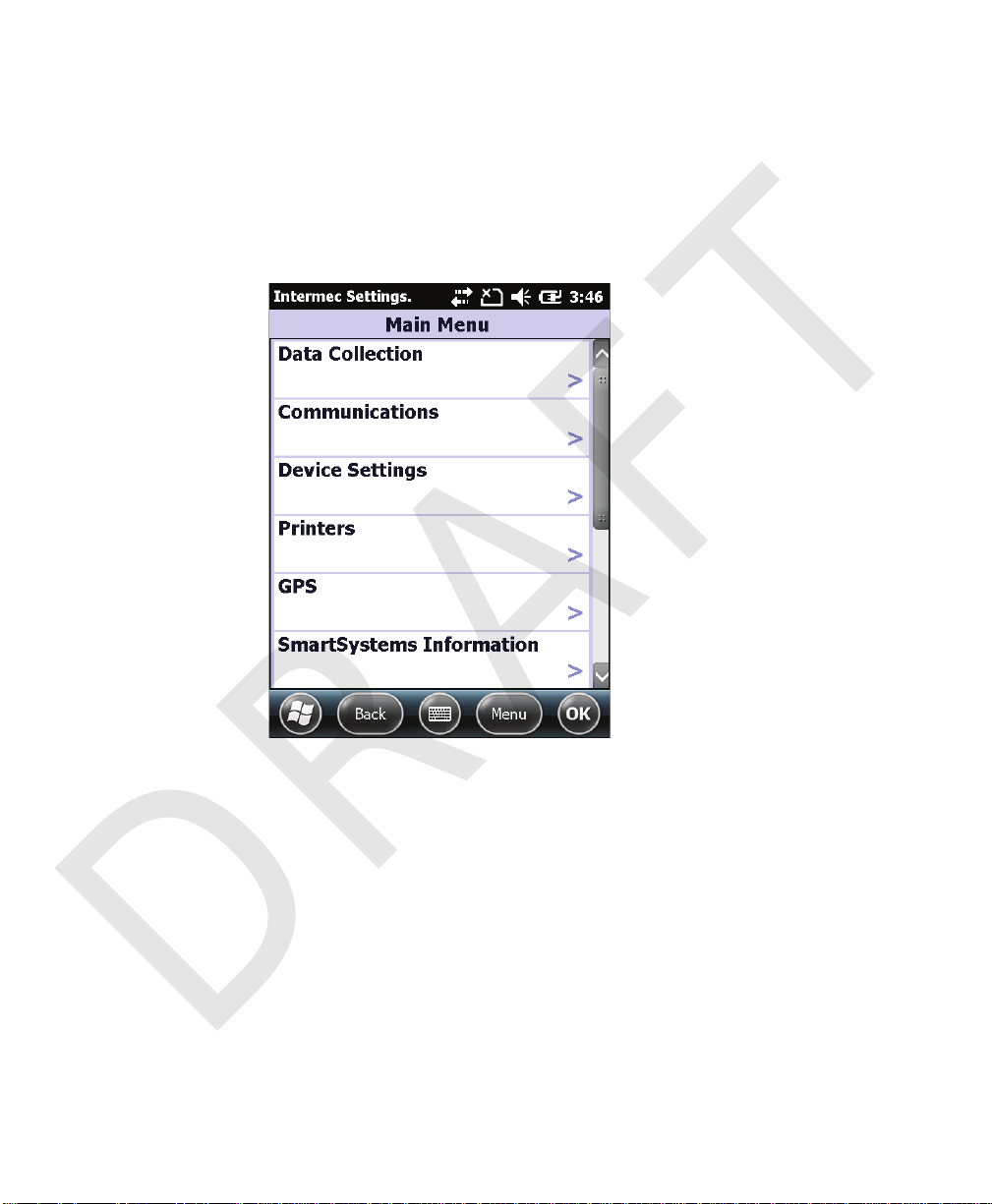

Using Intermec Settings on the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Starting Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
About the Structure of Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Navigating in Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Configuring Profile Settings With Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . 70
Restoring Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Hiding Menu Items in Intermec Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Using Intermec Settings Remotely With SmartSystems Foundation . . . . . . . . . . . . . . . . . . 72
About Network Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Configuring 802.11a/b/g/n (Wi-Fi) Radio Communications . . . . . . . . . . . . . . . . .72
Configuring Ethernet Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Configuring Bluetooth Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
About Serial and USB Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Creating an ISP Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Creating a VPN Server Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Contents
About Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Choosing Between Microsoft and Funk Security . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Loading a Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Managing the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
7
Managing the Computer in Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Managing the Computer Using SmartSystems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Managing the Computer Using Third-Party Software . . . . . . . . . . . . . . . . . . . . . . . 95
Developing and Installing Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Packaging Your Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Choosing a Target Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Installing Applications Using SmartSystems Foundation Console. . . . . . . . . . . .96
70 Series Mobile Computer User Manual vii
Contents
DRAFT
Installing Applications Using Microsoft ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . 97
Installing Applications Using a Storage Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Launching Applications Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Updating the System Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Updating Multiple Computers Using SmartSystems Console . . . . . . . . . . . . . . . . 99
Updating Individual Mobile Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Troubleshooting and Maintaining the Computer . . . . . . . . . . . . . . . . . . 103
8
About the Intermec Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Troubleshooting Your Mobile Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Troubleshooting the Wi-Fi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Troubleshooting 802.1x Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Checking 802.11 Network Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Troubleshooting Reading Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Using ScanDiagnostic to Troubleshoot the Scanner. . . . . . . . . . . . . . . . . . . . . . . .110
Troubleshooting Operating the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Calling Product Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Finding Your Configuration Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Finding Your Operating System Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Resetting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Rebooting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Cold Booting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Clean Booting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Cleaning the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Specifications and Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
A
Physical and Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
CN70 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
CN70e Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
CK70 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
CK71 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Power and Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
70 Series Non-Incendive Computer Specifications . . . . . . . . . . . . . . . . . . . . . . . . .119
Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
viii 70 Series Mobile Computer User Manual
Back Accessory Interface Pin-outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
DRAFT
Touch Screen Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Standard Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
Bar Code Symbologies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
Imager Reading Distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
B
Standard Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
CN70 Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
CN70e Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
CK70 Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
CK71 Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
ScanNGo Wi-Fi Configuration Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
C
Radio Configuration Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
2D Configuration Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
1D Configuration Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167
Contents
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
I
70 Series Mobile Computer User Manual ix
Contents
DRAFT
x 70 Series Mobile Computer User Manual
Before You Begin
DRAFT
This section provides you with safety information, technical support
information, and sources for additional product information.
Safety Information
Your safety is extremely important. Read and follow cautions in this
document before handling and operating Intermec equipment. You
can be seriously injured, and equipment and data can be damaged if
you do not follow the safety cautions.
This section explains how to identify and understand cautions and
notes that are in this document.
A caution alerts you to an operating procedure, practice,
condition, or statement that must be strictly observed to prevent
equipment damage or destruction, or corruption or loss of data.
Note: Notes either provide extra information about a topic or contain
special instructions for handling a particular condition or set of
circumstances.
Before You Begin
Global Services and Support
Warranty Information
To understand the warranty for your Intermec product, visit the
Intermec web site at www.intermec.com and click Support >
Returns and Repairs > Warranty.
Disclaimer of warranties: The sample code included in this document
is presented for reference only. The code does not necessarily
represent complete, tested programs. The code is provided “as is with
all faults.” All warranties are expressly disclaimed, including the
implied warranties of merchantability and fitness for a particular
purpose.
Web Support
Visit the Intermec web site at www.intermec.com to download our
current manuals (in PDF).
70 Series Mobile Computer User Manual xi
Before You Begin
DRAFT
Visit the Intermec technical knowledge base (Knowledge Central) at
www.intermec.com and click Support > Knowledge Central to
review technical information or to request technical support for your
Intermec product.
Send Feedback
Your feedback is crucial to the continual improvement of our
documentation. To provide feedback about this manual, please
contact the Intermec Technical Communications department directly
at TechnicalCommunications@intermec.com.
Telephone Support
In the U.S.A. and Canada, call 1-800-755-5505.
Outside the U.S.A. and Canada, contact your local Intermec
representative. To search for your local representative, from the
Intermec web site, click About Us > Contact Us.
Service Location Support
For the most current listing of service locations, click Support >
Returns and Repairs > Repair Locations.
For technical support in South Korea, use the after service locations
listed below:
AWOO Systems
102-1304 SK Ventium
522 Dangjung-dong
Gunpo-si, Gyeonggi-do Korea, South 435-776
Contact: Mr. Sinbum Kang
Telephone: +82-31-436-1191
Email: mjyun@awoo.co.kr
IN Information System PTD LTD
6th Floor
Daegu Venture Center Bldg 95
Shinchun 3 Dong
Donggu, Daegu City, Korea
E-mail: jmyou@idif.co.kr or korlim@gw.idif.co.kr
xii 70 Series Mobile Computer User Manual
Who Should Read This Manual
DRAFT
This manual is written for the person who is responsible for
installing, configuring, and maintaining the 70 Series Mobile
Computer.
This manual provides you with information about the features of the
70 Series mobile computer, and how to install, configure, operate,
maintain, and troubleshoot it.
Before you work with the 70 Series mobile computer, you should be
familiar with your network and general networking terms, such as IP
address.
Related Documents
This is a list of related Intermec documents.
• Intermec Settings Command Reference Manual
• Intermec Developer Library (IDL) Resource Kit Developer’s Guide
The Intermec web site at www.intermec.com contains our
documents (as PDF files) that you can download for free.
To download docu m ents
1 Visit the Intermec web site at www.intermec.com.
Before You Begin
2 Click the Products tab.
3 Using the Products menu, navigate to your product page. For
example, to find the CN70 computer product page, click
Computers > Handheld Computers > CN70.
4 Click the Manuals tab.
If your product does not have its own product page, click Support >
Manuals. Use the Product Category field, the Product Family field,
and the Product field to help you locate the documentation for your
product.
70 Series Mobile Computer User Manual xiii
Before You Begin
DRAFT
Patent Information
Product is covered by one or more of the following patents:
4882476; 4894523; 4953113; 4961043; 4970379; 4988852; 5019699;
5021642; 5038024; 5081343; 5095197; 5144119; 5144121; 5182441;
5187355; 5187356; 5195183; 5216233; 5216550; 5195183; 5195183;
5218191; 5227614; 5233172; 5241488; 5243602; 5258606; 5278487;
5288985; 5308966; 5322991; 5331136; 5331580; 5342210; 5349678;
5359185; 5371858; 5373478; 5389770; 5397885; 5410141; 5414251;
5416463; 5442167; 5464972; 5468947; 5468950; 5477044; 5486689;
5488575; 5500516; 5502297; 5504367; 5508599; 5514858; 5530619;
5534684; 5536924; 5539191; 5541419; 5548108; 5550362; 5550364;
5565669; 5567925; 5568645; 5572007; 5576529; 5592512; 5594230;
5598007; 5608578; 5616909; 5619027; 5627360; 5640001; 5657317;
5659431; 5671436; 5672860; 5684290; 5719678; 5729003; 5742041;
5761219; 5764798; 5777308; 5777309; 5777310; 5786583; 5793604;
5798509; 5798513; 5804805; 5805807; 5811776; 5811777; 5818027;
5821523; 5828052; 5831819; 5834753; 5834749; 5837987; 5841121;
5842070; 5844222; 5854478; 5862267; 5869840; 5873070; 5877486;
5878395; 5883492; 5883493; 5886338; 5889386; 5892971; 5895906;
5898162; 5902987; 5902988; 5912452; 5923022; 5936224; 5949056;
5969321; 5969326; 5969328; 5979768; 5986435; 5987192; 5987499;
5992750; 6003775; 6012640; 6016960; 6018597; 6024289; 6034379;
6036093; 6039252; 6064763; 6075340; 6095422; 6097839; 6102289;
6102295; 6109528; 6119941; 6128414; 6138915; 6149061; 6149063;
6152370; 6155490; 6158661; 6164542; 6164545; 6173893; 6195053;
6234393; 6234395; 6244512; 6249008; 6328214; 6330975; 6345765;
6356949; 6367699; 6375075; 6375076; 6375344; 6431451; 6435411;
6484944; 6488209; 6497368; 6532152; 6538413; 6539422; 6621942;
6641046; 6681994; 6687403; 6688523; 6732930
There may be other U.S. and foreign patents pending.
xiv 70 Series Mobile Computer User Manual
1
DRAFT
Using the Computer
This chapter introduces the 70 Series Mobile Computers with
Windows® Embedded Handheld operating system. Use this
chapter to learn about the basic features and functions of each
computer, as well as the available accessories for it.
1
Chapter 1 — Using the Computer
Scan button
On/o button
Microphone
Cell phone speaker
Notification LED
Good read LED
Battery status LED
DRAFT
About the 70 Series Mobile Computers
The ergonomically designed Intermec 70 Series Mobile Computers are
built on the Microsoft Windows Embedded Handheld operating
system. They are lightweight, easy-to-use, and run most software
developed for the Windows Embedded platform, including
standalone, client-server, and browser-based applications.
The 70 Series family of computers consists of four different models:
the CN70, CN70e, CK70 and CK71. The CN70 and CN70e have the
same features except that the CN70e offers a larger keypad for
data-input intensive applications. The CK70 and CK71 have most of
the same features, but the CK71 offers a choice of imager options and
does not offer a WWAN radio option (phone). For intrinsically safe
environments, Intermec offers non-incendive (NI) models of each 70
Series computer. Throughout this manual, all versions of the mobile
computer are referred to as 70 Series unless information is specific to
a particular model of computer.
In most of the user’s manual, pictures of the CN70 and CK70 represent
the four models of the 70 Series computers.
2 70 Series Mobile Computer User Manual
CN70 Front View
CN70 Back View
IrDa port
Speaker port
Imager
Camera
Battery
Scan button
Microphone
On/o button
Cell phone speaker
Notification LED
Good read LED
Battery status LED
DRAFT
CK70 Front View
Chapter 1 — Using the Computer
70 Series Mobile Computer User Manual 3
Chapter 1 — Using the Computer
DRAFT
CK70 and CK71 Back View
Imager
Camera
Imager
Camera
Battery
What’s New in This Release
This version of the user’s manual contains these updates:
Left speaker
port
IrDA port
Battery
Left speaker
port
IrDA port
4 70 Series Mobile Computer User Manual
Overview of 70 Series Features
DRAFT
The 70 Series includes these standard features:
• EA30 area imager that can read bar codes and capture images
• (CK71 only) Choice of EA30, EX25, or EV12 imagers
• Multi-processor architecture with 512 MB DRAM and 1G Flash
• CDMA, UMTS, or Flexible Network Radio capability (not available
on CK71)
• 802.11a/b/g/n and Bluetooth® radios
• GPS radio on CDMA, UMTS, or Flexible Radio Network
computers (not available on CK71)
• 5-megapixel auto-focus color camera
• Customer-accessible microSD slot for memory cards up to 32 GB
• Customer-accessible SIM card slot
• IrDA port with speeds up to 4 Mbps
The 70 Series Mobile Computer with an IEEE 802.11a/b/g/n
radio installed is Wi-Fi® certified for interoperability with
other 802.11a/b/g/n wireless LAN devices.
Chapter 1 — Using the Computer
70 Series Mobile Computer User Manual 5
Chapter 1 — Using the Computer
Green key
status LED
Shift key
status LED
Orange key
status LED
Battery status LED
Good Read and Ready-to-Work
Status LED
Notification LED
DRAFT
About the Status LEDs
Use the following illustrations and table to understand the status
LEDs on your computer. All six status LEDS are not available on every
70 Series computer. For example, the QWERTY versions of the CN70
and CN70e do not have a Green key status LED.
Location of the CN70 Status LEDs
6 70 Series Mobile Computer User Manual
Location of the CK70 Status LEDs
Green key
status LED
Shift key status LED
(CK70 alphanumeric
and CK71 function numeric)
Shift key status LED
(CK70 numeric and
CK71 alphanumeric)
Orange key
status LED
Notification LED
Good Read and Ready-to-Work
status LED
Battery status LED
DRAFT
Chapter 1 — Using the Computer
Status LED Descriptions
70 Series Mobile Computer User Manual 7
LED Color Description
Notification Amber This LED is user-programmable.
Good Read Green The computer successfully decoded a bar code.
Ready-to-Work Blue If you have Intermec Terminal Emulator (ITE),
Battery See “About Battery Status” on page 13.
Key Status Green The Green function key is enabled.
Shift Red The Shift key is enabled.
Blinking
blue
Orange The Orange function key is enabled.
the application is running and connected to the
host. If you do not have ITE, you can configure
the Ready-to-Work indicator to turn on or off to
indicate a healthy state.
ITE is running but not connected to the host.
Chapter 1 — Using the Computer
DRAFT
70 Series Accessories
The 70 Series computer ships with a battery. All other accessories are
sold and ordered separately. For help, contact your local Intermec sales
representative.
70 Series Accessories
Accessory Description
Audio Snap-On Adapter Use the audio adapter to connect the
Back Accessory Interface Use the back accessory interface to attach
CK70/CK71 Battery This battery provides main power to the
CK70/CK71 Magstripe Reader
Adapter
CN70/CN70e Battery This battery provides main power to the
CN70/CN70e Magstripe Reader
Snap-On Adapter
Desktop Stand Use the desktop stand to hold the 70
DEX/UCS Snap-On Adapter Use this adapter to receive and send serial
DX1 Desktop Dock with USB
connectivity
DX2 Dual Dock and DX4 Quad
Dock. The DX2 and DX4 are
available in charge-only and
Ethernet configurations.
computer to a headset.
accessories such as the magstripe reader
adapter to the CK70 and CK71.
CK70 and CK71.
Use the magnetic stripe reader to be able
to read magnetic cards with the CK70 and
CK71 computer.
CN70 and CN70e.
Use the magnetic stripe reader to be able
to read magnetic cards with the CN70
and CN70e computer.
Series computer on your desk or a stable
surface.
communications through a DEX/UCS
connection.
Use the desktop dock with the:
• Computer cup to charge the battery
while it is installed in the computer.
• Battery cup to charge the battery.
Use these charger bases with the:
• Computer cup to charge batteries
while they are installed in the
computer.
• Battery cup to charge two batteries.
8 70 Series Mobile Computer User Manual
Chapter 1 — Using the Computer
DRAFT
Accessory Description
Ethernet Snap-On Adapter Use the Ethernet adapter to be able to
connect the computer to an Ethernet
network.
Handstrap Replacement Kit You can order and install a replacement
handstrap for the CN70, CN70e, and
CK70/CK71. Each kit contains 5
handstraps.
Holster Use the holster to store the computer
when you need your hands free.
RS-232 Snap-On Adapter Use the RS-232 adapter to convert the
connector on the bottom of the computer
to a serial connector.
Scan Handle Use the scan handle to provide better
ergonomics to the computer for
high-volume scanning applications.
Tethered Stylus Replacement Kit You can order and install a replacement
stylus.
USB Snap-On Adapter Use this adapter to convert the bottom
connector of the computer to a USB
connector.
Vehicle Dock Use the vehicle dock to provide power and
hold your computer while you are using it
in a vehicle.
Vehicle Holder Use the vehicle holder to hold your
computer while you are using it in a
vehicle.
Vehicle Power Adapter Use the vehicle power adapter to provide
power to the computer from your vehicle.
Vocollect
® Snap-On Adapter
Use this adapter to be able to use the
Vocollect voice solution in your
warehouse.
About Language Provisioning
If your 70 Series computer includes language provisioning, you are
prompted to select a language provision when the computer starts for
the first time. It may take up to 15 minutes to load your language.
70 Series Mobile Computer User Manual 9
Chapter 1 — Using the Computer
DRAFT
Make sure you select the correct language before you tap Provision. If
you need to have the language provisioning changed, you will need to
send your computer to an Intermec Global Repair Center.
About the Battery
The computers use these rechargeable Lithium-ion battery pack as the
main power source:
• 3.7 V, 4000 mAH (14.8 Wh) battery for the CN70 and CN70e
• 3.7 V, 5200 mAH (19.2 Wh) battery for the CK70 and CK71
The battery used in this device may present a fire or chemical burn
hazard if it is mistreated. Do not disassemble it, heat it above
100°C (212°F) or incinerate it. Dispose of used batteries
promptly. Keep away from children.
Charging the Battery
You need to fully charge the battery before using your computer for the
first time. Use one of the charging accessories listed in the next table to
charge the battery.
70 Series Charging Accessories
Charging Accessory Charging Time
Snap-on adapters Up to 6 hours
DX1, DX2, or DX4 dock Up to 6 hours
CN70, CN70e, CK70, and CK71 Vehicle Power Adapter Up to 6 hours
Changing the Battery
If your battery power is low, you need to either charge the battery in the
computer, or replace it with a charged battery.
To change the battery:
1 Save your files and close any open applications.
2 Press the Power button and choose Hibernate from the menu to
suspend the computer.
10 70 Series Mobile Computer User Manual
Chapter 1 — Using the Computer
DRAFT
3 Detach the handstrap from the computer.
Detaching the Handstrap From a CN70 or CN70e
Detaching the Handstrap From a CK70 or CK71
4 Make sure the computer is in hibernate mode and that the screen
has turned off.
5 Remove the battery.
70 Series Mobile Computer User Manual 11
Chapter 1 — Using the Computer
DRAFT
• On the CN70 or CN70e, push the battery release toward the
bottom of the computer until the battery releases and then lift
it away from the computer.
• On the CK70 or CK71, push the battery release toward the top
of the computer until the battery releases and then lift it away
from the computer.
6 Insert the top end of a fully charged battery into the computer, and
press down firmly on the bottom of the battery. Make sure that the
battery release is fully engaged.
12 70 Series Mobile Computer User Manual
About Battery Status
DRAFT
Use the battery icon on the Title bar to see the power status of your
battery. If you want more detailed information on your battery such as
usage time or voltage, use the Intermec Dashboard. For more
information on the Dashboard, see “About the Intermec
Dashboard” on page 104.
Understanding the Battery Icon Status
Battery Icon Status
Chapter 1 — Using the Computer
Battery is fully charged.
Battery has a high charge.
Battery has a medium charge. You should be able to work for
several more hours before changing batteries.
Battery is low. You need to charge or replace the battery soon.
Battery is critically low. You need to replace the battery now.
Battery is charging.
The battery is not installed.
70 Series Mobile Computer User Manual 13
Chapter 1 — Using the Computer
Battery status LED
DRAFT
You can also use the battery status LED to see the charging status of
your battery.
Understanding the Battery Status LED
LED State Description
Steady green The computer is connected to a charger and the
Blinking red The battery is very low. The computer will soon go
Steady red The computer is connected to a charger and the
Blinking red-amber The battery charging system has encountered an
Steady amber The battery is outside of the allowable charging
Off The computer is not on external power and the
battery is more than 95% charged.
into Suspend mode. Charge or replace the battery.
battery is charging.
error. The battery is not charging.
temperature range. Charging will resume when the
battery temperature is back in the acceptable range of
0° to 45°C (32° to 113°F).
battery is operating normally.
14 70 Series Mobile Computer User Manual
About Battery Life and Conservation
DRAFT
Batteries that are stored outside the computer for long periods of time
slowly discharge. Intermec recommends storing the battery in a
charger to maintain battery performance.
Battery Conservation Tips
When You Want To: Do This to Save Battery Power:
Chapter 1 — Using the Computer
Use the computer and the Low
Battery status icon appears or the
Battery light comes on.
Stop using the computer for 5
minutes or longer.
Store the computer for more than
a day.
Store the battery outside the
computer.
• Connect the computer to an external
power source.
• Or, save your data and press the Power
button and select Hibernate. After the
computer turns off, remove the battery
and insert a fully charged battery.
Make sure that the low battery icon is not
on the screen and the Battery LED is not
on. Press the Power button and choose
Suspend to suspend the computer.
If you are storing the computer for a few
days, like over the weekend, install a
charged battery or connect the computer
to a power source.
If you are storing the computer for longer,
remove and charge the battery, and then
store both the battery and computer in a
cool location. If you store the battery for
several months, recharge the battery to
keep it at peak performance.
Store the batteries in a charger.
70 Series Mobile Computer User Manual 15
Chapter 1 — Using the Computer
Space
F
D
S
A
G H
J
K
L
C
X
Z
V
B
N
M
Esc
Enter
R
E
Q
W
T Y
I
O
P
U
%
&
?
@
$
sym
1
2
3
4
5
6
7
8
0
9
+
/
1
2
3
4
5
6
7
8
0
9
Caps
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
Space
WXYZ
Esc
Enter
DRAFT
About the Keypad
The CN70 comes with either a QWERTY keypad or a numeric keypad.
The CN70e comes with either a QWERTY numeric keypad or numeric
keypad. The computer has an ambient light sensor that detects low
light and turns on the keypad backlight. By default, the keypad
backlight is enabled in low light conditions. You can disable the
keypad backlight to conserve power. Use Intermec Settings to
configure the backlight. For help, see “Using Intermec Settings on
the Computer” on page 64.
CN70 QWERTY Keypad
CN70 Numeric Keypad
16 70 Series Mobile Computer User Manual
CN70e QWERTY Numeric Keypad
E
N
T
E
R
1
2
3
4
5
6
7
8
0
9
Esc
Space
F
D
S
A
G H
J
K
L
R
E
Q
TY
I
O
P
U
C
X
Z
VB
N
M
W
1
4
7
3
6
9
Caps
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
Space
WXYZ
F1
F2
F3
F4
F5
Esc
E
N
T
E
R
2
5
8
0
F6
F7
F8
F9
F10
DRAFT
CN70e Numeric Keypad
Chapter 1 — Using the Computer
70 Series Mobile Computer User Manual 17
Chapter 1 — Using the Computer
Esc
Ctrl
Y
Z
Enter
Space
AB C
D
H
L
PR
STUV
W
X
EF
GI
KM
OQ
0
123
456
789
J
N
@
Send End
DeleteInsert
\
[ ]
+
=
F1 F2 F3
F4
F8
F5 F6
F7 F9
F10
><
%
( )
sym
DRAFT
The CK70 comes with either a large alpha or an alphanumeric keypad.
The CK71 comes with either a numeric function keypad or an
alphanumeric keypad. The computer has an ambient light sensor that
detects low light and turns on the keypad backlight. By default, the
keypad backlight is enabled in low light conditions. You can disable
the keypad backlight to conserve power. Use Intermec Settings to
configure the backlight. For help, see “Using Intermec Settings on
the Computer” on page 64.
CK70 Large Alpha Keypad
18 70 Series Mobile Computer User Manual
CK70 Alphanumeric Keypad
0
564
897
312
F1
F2
F3
F4
F5
Ctrl
Space
Enter
Esc
Alt
A
E
F
G
H
IJ
K
L
M
N
O
P
Q
R
S
T
UV
W
X
Y
Z
B
CD
EndSend
F13 F14F11 F12 F15 F16
F19 F20
F17
F18
F23
F24
F21
F22
F6
F7
F8
F9
F10
DeleteInsert
DRAFT
Chapter 1 — Using the Computer
70 Series Mobile Computer User Manual 19
Chapter 1 — Using the Computer
Ctrl
0
564
897
312
Enter
Enter
F1 F2 F3 F4
F5 F6 F7 F8
F9
F10 F11
F12
Esc
Fld
Exit
Space
Alt
Delete
F13 F14 F15 F16
F17 F18 F19 F20
F21 F22
Return
Return
NxtScrPrvScr
Roll
SysRq
Fld+Fld-
Home
Roll
Reset
Clear
Attn
Insert
A B C
DEF
GHI
MN O
PQRS
TUYVW
X
JK
L
Z
View
View
F24F23
PA3PA2PA1
P
a
g
e
DRAFT
CK71 Numeric Function Keypad
20 70 Series Mobile Computer User Manual
CK71 Alphanumeric Keypad
Fld
Exit
0
564
897
312
F1
F2
F3
F4
F5
Ctrl
Space
Enter
Esc
A
E
F
G
H
IJ
K
L
M
N
O
P
Q
R
S
T
UV
W
X
Y
Z
B
CD
F13 F14F11 F12 F15 F16
F19 F20
F17
F18
F23
F24
F21
F22
Return
NxtScr
Alt
PrvScr Roll
Fld+Fld-
Roll Clear
Reset
Erase FindDupAttn
EEOF
Autolog
Keypd
Hex
Home
FldMk
Remove
Print
Select
Mode
NewLn
Menu
?
SysRq
PA1
PA2
PA3
F6
F7
F8
F9
F10
Delete
Hel
p
Insert
View
P
a
g
e
DRAFT
Chapter 1 — Using the Computer
Entering Characters on the QWERTY Keypad
70 Series Mobile Computer User Manual 21
You need to use the orange modifier key b and the Shift key y to
access all characters and functions on the QWERTY keypad.
To type a character:
• Press the key for that character.
To type a character or access a function on the overlay:
• Press
b and then press the key for the character or function.
Chapter 1 — Using the Computer
DRAFT
To only type characters or access functions on the overlay:
• Press
To type a single uppercase letter:
• Press
To type all uppercase letters:
• Press y y to turn on Caps Lock, and then press the letter keys.
You can still type orange modifier characters by pressing
the key for that character.
To turn off Caps Lock, press
b twice to lock the orange modifier key to stay on, and then
press the keys for the characters or functions.
y and then the letter key.
y.
Entering Characters on the Numeric Keypad
You need to use the orange modifier key b and the green modifier key
c to access all characters and functions on the Numeric keypad.
To type a character or access a function printed in orange on the
overlay:
• Press
To type a character or access a function printed in green on the overlay:
• Press
To type letters in the upper right corner of a key:
b and then press the key for the character or function.
c and then press the key for the character or function.
b and then
• Press
For example, in the upper right corner of the
letters “ABC”:
• To type “c”, press
• To type “C,” press
To only type letters:
• Press
While the green modifier key is locked, press
uppercase and lowercase letters.
To unlock the green modifier key, press
22 70 Series Mobile Computer User Manual
c and then press the key one to three times depending on the
position of the letter.
2 key there are the
c 2 2 2.
c 1 and then press c 2 2 2.
c c to lock the green modifier key, and then press the key
one to four times depending on the position of the letter.
1 to toggle between only
c.
Chapter 1 — Using the Computer
DRAFT
Note: If uppercase letters are enabled and you unlock the green
modifier key, you may need to press
Entering Characters on the CK70 and CK71 Keypads
You need to use the orange modifier key b, the green modifier key c,
and the Shift or Caps Lock key
on the Alpha, Alphanumeric, and Numeric Function keypads.
To type a character or access a function printed in orange on the
overlay or in the upper left corner of a key:
c 1 to type lowercase letters.
y to access all characters and functions
• Press
To type a character or access a function printed in green on the overlay:
• Press
To type a single uppercase letter:
• Press
To type all uppercase letters:
• Press y y to turn on Caps Lock, and then press the letter keys.
You can still type orange or green modifier characters by pressing
c and then the key for that character.
To turn off Caps Lock, press
About the Power Button
When you press the Power button, a dialog appears with a list of power
options. If you do not select a power options setting, the currently
selected action (the button outlined in bold) occurs after the timeout.
b and then press the key for the character or function.
c and then press the key for the character or function.
y and then the letter key.
b or
y.
70 Series Mobile Computer User Manual 23
Chapter 1 — Using the Computer
DRAFT
The Intermec Power Options Default Screen
Use the following table to understand the Intermec Power Options.
Note: The Real Time Clock (RTC) will persist through all of the power
options as long as it receives power from the Real Time Clock battery.
Intermec Power Options
Option Description
Hibernate
(battery swap)
Suspend Medium power saving mode. The computer powers off all
24 70 Series Mobile Computer User Manual
High power saving mode. Use this setting only for
swapping the battery. The computer saves the current
system state, registry, and file system and then powers off
all radios and internal devices. You can wake the computer
by pressing the Power button or connecting the computer
to external power.
radios and internal devices not involved in saving the
system state, but the phone stays on to receive calls. This
option is the default setting. You can wake the computer
by pressing the Power button, pulling the scanner trigger,
receiving a call, scheduling an event such as an alarm, or by
connecting external power.
Option Description
DRAFT
Reboot The computer does not save the current system state, but
the registry and file systems are saved. The computer shuts
down all running processes and restarts.
Cancel The Power Options menu is cancelled.
Screen Off Lowest power saving mode. The screen turns off, but the
phone, all radios, and internal devices stay on. Tap the
screen to turn the screen back on.
Shutdown Very high power saving mode. The computer turns off
everything. You must press Power or apply external power
to restart the computer.
The Intermec Power Options screen is customizable. You can use
Intermec Settings to determine which options are available to end
users, the timeout until the default choice is selected, the default
action if no option is selected, or to disable the Power Options screen.
For more information on customizing the screen using Intermec
Settings, see “Using Intermec Settings on the Computer” on page
64 or see the Intermec Settings Command Reference Manual.
About the Intermec Dashboard Button
Chapter 1 — Using the Computer
If the Ready-to-Work light blinks, your computer may be experiencing
a problem. Press the Intermec Dashboard button (
Intermec Dashboard application and view troubleshooting and status
information.
You can press the
Dashboard. If the computer is not healthy, the current issues are
displayed at the top of the screen. If the device is healthy, you can use
the Dashboard to view device information. For more information, see
“About the Intermec Dashboard” on page 104.
m button at any time to bring up the Intermec
m) to launch the
Configuring the Screen Backlight
The display has an ambient light sensor that automatically adjusts the
backlight intensity to conserve power and ensure the display is
readable.
By default, the screen turns off when there is no activity with the
computer. Press a key or tap the screen to resume activity.
70 Series Mobile Computer User Manual 25
Chapter 1 — Using the Computer
DRAFT
To configure the screen backlight to turn off:
1 Tap Start > Settings > Power.
2 Tap Advanced on the horizontal scroll bar.
3 Select the screen power off settings for when the computer is on
battery power or external power.
To configure the screen brightness:
1 Tap Start > Settings > System > Backlight.
2 Adjust the slider to the desired brightness level.
3 Tap OK.
Adjusting the Volume
You can adjust the computer volume for your needs and your
environment. The volume includes sounds you hear when you tap the
screen or read bar codes with the imager. You can set the volume to off,
very low, low, medium, high, very high (default), or vibrate.
You can also use the buttons on the right side of the computer to
adjust the volume:
• The upper button increases the volume.
• The lower button decreases the volume.
To adjust the volume:
1 Tap the Volume icon at the top of the screen, and then tap the
volume icon on the horizontal scroll menu.
2 Use your stylus or the u and d keys to adjust the volume slider to
the volume you want, select Vibrate, or select Off.
26 70 Series Mobile Computer User Manual
Reading Bar Codes
DRAFT
The computer ships with an internal imager. Depending on the imager
model in your computer, you can read 1D and 2D bar code
symbologies, composite symbologies, and postal codes.
You can also connect the computer to:
• cordless scanners, such as the SF51 and SR61 through Bluetooth
communications. For help, see “Connecting to a Bluetooth
Scanner” on page 74.
• tethered scanners, such as the SR30, and SR61T through the
RS-232 adapter (Model 1000AA03). For help, see “Connecting to
a Tethered Scanner” on page 78.
Note: When the Pictures & Videos application is running, you cannot
use the imager.
To read a bar code:
1 Enable only the bar code symbologies that you need.
2 Use Intermec Settings to choose the predefined imager mode that
best suits your environment:
Chapter 1 — Using the Computer
Predefined Mode For Scanning
1D Only 1D labels.
1D and 2D Standard (Default) All types of bar code labels.
1D and 2D Bright Environment In high ambient light, such as outdoors in
the sunshine.
1D and 2D Reflective Surface Glossy labels.
Note: You can also select the imager predefined mode in Profile
Settings by tapping Start > Profile Settings > Scanning.
3 Point the imager window at the bar code label, and hold the
computer steady a few inches from the label.
4 Press the Scan button. The laser pointer and illumination beam or
frame appear.
70 Series Mobile Computer User Manual 27
Chapter 1 — Using the Computer
DRAFT
Scanning With the EA30 Imager
5 Use the laser pointer as a guide and aim toward the middle of the
bar code. Make sure that the illumination beam or frame covers the
bar code you are trying to decode.
When the computer successfully reads a bar code label, you hear a
high beep, and the Good Read LED turns on briefly.
6 Release the Scan button.
Inserting a microSD Card
You can use a microSD™ card to increase file storage and install
software. The computers support an optional 32 GB maximum
capacity microSD card.
Note: The computer resets when you open the card access door to
insert the microSD card. Make sure you completely close the card
access door before you use your computer.
Installing a microSD Card in a CN70 or CN70e
To install a microSD card in a CN70 or CN70e:
1 Press the Power button to turn off the computer.
2 Remove the handstrap and the battery.
28 70 Series Mobile Computer User Manual
Chapter 1 — Using the Computer
DRAFT
3 Remove the two Phillips screws and open the card access door.
4 Slide the SIM card door to the left to unlock it and open the door.
70 Series Mobile Computer User Manual 29
Chapter 1 — Using the Computer
DRAFT
5 Slide the microSD card door towards the top of the computer to
unlock it and open the door.
6 Slide the microSD card into place.
7 Close the microSD card door and slide it towards the bottom of the
computer to lock it in place.
8 Close the SIM card door and slide it to the right to lock it in place.
9 Close the card access door and replace the two screws.
10 Install the battery. Press down firmly on the bottom of the battery,
and make sure that the battery release tab is fully engaged.
30 70 Series Mobile Computer User Manual
Chapter 1 — Using the Computer
DRAFT
11 Reattach the handstrap.
12 Press the Power button. The computer cold boots.
Installing a microSD Card in a CK70 or CK71
To install a microSD card in a CK70 or CK71:
1 Press the Power button to turn off the computer.
2 Remove the handstrap.
3 Remove the two screws that attach the interface adapter cover to
the back of the computer.
70 Series Mobile Computer User Manual 31
Chapter 1 — Using the Computer
DRAFT
4 Slide the SIM card door to the left to unlock it and open the door.
5 Slide the microSD card door towards the top of the computer to
unlock it and open the door.
32 70 Series Mobile Computer User Manual
Chapter 1 — Using the Computer
DRAFT
6 Slide the microSD card into place.
7 Close the microSD card door and slide it towards the bottom of the
computer to lock it in place.
8 Close the SIM card door and slide it to the right to lock it in place.
9 Replace the interface adapter cover and attach with the two screws
removed in Step 2.
10 Install the battery. Press down firmly on the bottom of the battery,
and make sure that the battery release tab is fully engaged.
11 Reattach the handstrap.
12 Press the Power button. The computer cold boots.
Transferring Files To and From Your PC
The 70 Series computer supports these two methods for transferring
files to and from your PC:
• Using Microsoft ActiveSync or Windows Mobile Device Center.
• Using the 70 Series computer as a mass storage device.
70 Series Mobile Computer User Manual 33
Chapter 1 — Using the Computer
DRAFT
Using Microsoft ActiveSync to Transfer Files
You can use Microsoft ActiveSync (Windows XP or earlier) or Windows
Mobile Device Center (Windows Vista or Windows 7) to establish a
connection between your computer and a PC. After you connect to
your PC, you can transfer files, synchronize files, remotely debug, and
perform other device management activities. ActiveSync and Windows
Mobile Device Center are free applications available from the
Microsoft web site at www.windowsmobile.com/getstarted.
To establish a partnership between your computer and a PC, you need
to physically connect your computer to your PC using these
accessories:
• USB snap-on adapter (Model 1000AA07)
• USB cable
To transfer files to and from your PC using ActiveSync:
1 Connect your mobile computer to your desktop PC using the
adapter and USB cable.
2 Download ActiveSync from the Microsoft web site and install
ActiveSync on your PC.
3 Follow the onscreen instructions to establish a partnership. When
the partnership is established, the Microsoft ActiveSync screen
appears on your PC.
34 70 Series Mobile Computer User Manual
Chapter 1 — Using the Computer
DRAFT
Using the Computer as a Mass Storage Device
You can connect the 70 Series computer as a mass storage device to
your desktop PC. When connected as a mass storage device, you can
easily copy files to and from the mobile computer.
To use the mobile computer as a mass storage device:
1 Go to www.datalight.com and download the Reliance Nitro
Windows Driver (RNWD). You will need to login before you can
download the driver.
2 Connect the mobile computer to your desktop PC using a USB
cable.
3 Open Intermec Settings on the mobile computer by tapping
Start > Settings > System > Intermec Settings.
4 From the Intermec Settings Main Menu, tap Device Settings >
USB Connections.
5 From the USB Connections menu, select Mass storage - Flash File
Store and tap OK.
6 Copy files to and from your desktop PC to the mobile computer.
70 Series Mobile Computer User Manual 35
Chapter 1 — Using the Computer
DRAFT
36 70 Series Mobile Computer User Manual
2
DRAFT
Understanding the User Interface and
Intermec Applications
Use this chapter to learn about the Windows Embedded
Handheld user interface and how to interact with the screen.
You can also use this chapter to learn about the Intermec
applications on your computer, as well as additional Intermec
applications you can download.
37
Chapter 2 — Understanding the User Interface and Intermec Applications
Horizontal scroll bar
Title bar
Tile bar
DRAFT
About the User Interface
The user interface for the Windows Embedded Handheld 6.5
operating system is different from previous versions of Windows
Mobile. The interface is touch-friendly and easy to navigate. Use the
following sections to understand how to interact with Windows
Embedded Handheld 6.5.
About the Home Screen
When you turn on your mobile computer, the Home screen is the first
screen that appears. The Home screen contains three navigation bars:
the Title bar, the horizontal scroll bar, and the Tile bar.
The Windows Embedded Handheld 6.5 Home Screen
Use the Title bar icons to view the current status of information such
as signal strength and battery power remaining. For more information
on the Title bar icons, see “Title Bar Status Icons” on page 40.
38 70 Series Mobile Computer User Manual
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
A horizontal scroll bar appears when you tap an icon in the Title bar.
This horizontal scroll bar makes it easy to access the applications
associated with the Tile bar icons. The horizontal scroll bar also
contains a magnifier which improves the touch experience by making
parts of the screen large enough to tap with your finger.
The horizontal scroll bar also replaces tabs within Windows screens
and allows for easier navigation.
Clock & Alarms Screen With Horizontal Scroll Bar
Use the Tile bar to navigate between screens and within applications.
The icons available on the Tile bar change depending on the
application you are using.
Interacting With the Screen
The Windows Embedded Handheld 6.5 interface supports the use of
gestures with the finger or stylus to move around the screen. The table
below explains the supported gestures.
Gesture Description
Tap Represents the left click of a mouse.
Double-tap Represents the left double-click of a mouse.
Hold Represents the right click of a mouse when you press and hold
on the screen and a context menu appears.
70 Series Mobile Computer User Manual 39
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
Gesture Description
Flick Initiates scrolling in the direction (horizontal or vertical) the
finger or stylus moves across the screen.
Pan Press and hold on the screen and then drag in any direction.
Title Bar Status Icons
Tappable icons in the Title bar immediately show you the status of
your network, your phone, the volume, the battery, and the time. Use
the following table to understand what the icons mean.
Title Bar Status Icon Descriptions
Icon Description
You have a new notification.
You have a new text message.
You have a new e-mail message.
You have a new instant message.
You missed a call.
The speakerphone is on.
The phone is roaming.
An alarm is set.
The microphone is on.
An internet call is in progress.
A Bluetooth headset is detected.
An ActiveSync connection has been established.
There is a problem with the ActiveSync synchronization.
40 70 Series Mobile Computer User Manual
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
Icon Description
An ActiveSync synchronization is in progress over USB.
A UMTS network is available.
Connecting to a UMTS network.
A UMTS connection is active.
A 3G+ network is available.
An EDGE network is available.
Connecting to an EDGE network.
An EDGE connection is active.
A GPRS network is available.
Connecting to a GPRS network.
A GPRS connection is active.
An HSDPA network is available.
Connecting to an HSDPA network.
An HSDPA connection is active.
Bluetooth is on.
Wi-Fi is on but not connected, and no networks are detected.
Wi-Fi is not connected to a network, and other networks are
detected.
Other wireless networks are detected.
Connected to a wireless network.
70 Series Mobile Computer User Manual 41
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
Icon Description
Synchronizing through a Wi-Fi connection.
Connected to a wireless network, and other networks are
detected.
Information about a new wireless network is available.
A network connection is active.
A network connection is inactive.
The phone has maximum signal strength.
The phone has no signal.
The phone capability is off.
The phone has no service.
The phone is searching for service.
Data is being transferred.
A voice call is in progress.
A voice call is on hold.
There is no SIM card present in the computer.
The volume is off and the phone is set to vibrate.
The volume is on.
The volume is off.
The battery has a full charge.
The battery has a high charge.
42 70 Series Mobile Computer User Manual
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
Icon Description
Aligning the Screen
The battery has a medium charge.
The battery has a low charge.
The battery has a very low charge.
The battery is attached to external power and is charging.
No battery is installed in the computer.
Call forwarding is on.
Voice mail is off.
GPS locator is off.
GPS locator is on.
You may need to align your screen if you tap on one area and it
registers in a different part of the screen. Make sure you only use the
stylus to complete the alignment process.
To align the screen:
1 Tap Start (t) > Settings > System > Screen.
2 Follow the prompts on the screen to complete the alignment
process.
About Intermec Applications
Intermec provides many useful applications to help you configure,
troubleshoot, and connect your computer to other devices and
networks. You can also download additional applications from the
Intermec web site to help you use all of the features of your computer.
70 Series Mobile Computer User Manual 43
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
Applications Available on the Mobile Computer
Use this table to understand some of the Intermec applications
available on your computer.
Intermec Applications Available on the Mobile Computer
Icon Application Description
Bluetooth
Audio
Carrier
Selection
iGPS Use the iGPS application to improve the
Intermec
Settings
ISpyWiFi Use ISpyWiFi to check your 802.11 status and
Profile Settings Use Profile Settings to easily configure the
Use the Bluetooth Audio application to connect to
a Bluetooth headset or hands-free device. For more
information, see “Connecting to a Bluetooth
Audio Device” on page 77.
Use the Carrier Selection application to quickly
change your network carrier. For more
information, see “Switching Network Carriers”
on page 54.
performance of GPS on your computer. For more
information, see “Improving GPS Performance
on the Computer” on page 61. iGPS is only
available on computers with phone capability.
Use Intermec Settings to configure your computer.
You can use Intermec Settings to individually
configure a computer or you can use it through
SmartSystems to configure all of your computers.
For more information, see “Using Intermec
Settings on the Computer” on page 64.
diagnose issues with the connection. For more
information, see “Checking 802.11 Network
Status” on page 107.
computer for a specific use. You can choose
predefined values for the Camera, Power, and
Scanning.
To apply a profile setting:
• Tap the Profile Setting you want to use.
You will see a message that changes are saved and a
check mark appears next to your choice.
For more information on modifying Profile
Settings options, see “Configuring Profile
Settings With Intermec Settings” on page 70.
44 70 Series Mobile Computer User Manual
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
Icon Application Description
ScanDiagnostic Use the ScanDiagnostic application to
troubleshoot problems with the internal or
external scanner. For more information, see
“Using ScanDiagnostic to Troubleshoot the
Scanner” on page 110.
Wireless Center Use the Wireless Center to turn radios (Wi-Fi,
Bluetooth, phone) on and off and configure
settings for each radio.
Wireless
Printing
Wireless
Scanning
Use the Wireless Printing application to connect to
a Bluetooth printer. For more information, see
“Connecting to a Bluetooth Printer” on page 76.
Use the Wireless Scanning application to connect
to a Bluetooth scanner. For more information, see
“Connecting to a Bluetooth Scanner” on page
74.
Applications You Can Download to the Mobile Computer
You can download several Intermec applications from the web site that
extend the capabilities of your 70 Series computer. All of the
applications listed below are available from the Intermec web site.
Some of the applications require the purchase of a license to run. To
find the application you want, go to www.intermec.com > Support >
Downloads and then enter the information to find your 70 Series
computer.
About eMDI
Intermec Enhanced Mobile Document Imaging Application (eMDI) is
a professional document capture application that enables you to
capture images of full page documents (8.5 x 11 or A4 paper sizes) with
the camera. You can transfer the images from your mobile computer
to a PC or server. For more information, see the Intermec Enhanced
Mobile Document Imaging User Guide. You can download and use
eMDI for a 30-day evaluation period. After the evaluation period
expires, you will need to purchase a license.
70 Series Mobile Computer User Manual 45
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
About Features Demo
Intermec Features Demo provides a simple way to explore the key
features of your mobile computer. You will find applications that
demonstrate scanning, document imaging, image capture, printing,
and GPS functionality. Many of the applications that are part of
Features Demo also have separate full-featured versions that you can
download and license for your computer.
About Image Capture
The Intermec Image Capture application is provided for use on the 70
Series computers with an EA30 imager. Image capture provides a way
for users to capture a high quality grayscale image with a mobile
computer. Image Capture also allows you to change settings to provide
the best image possible for the conditions present. You do not need to
license Image Capture.
About Intermec Browser
Intermec Browser is a locked-down web application for your computer
that is compatible with Internet Explorer 6.0. You can configure
Intermec Browser for your specific application requirements and
design your own web pages. You can download and use Intermec
Browser for a 60-day evaluation period. After the evaluation period
expires, you will need to purchase a license.
About Intermec Connection Manager
Intermec Connection Manager is a software application and API
interface that provides seamless network roaming for Intermec mobile
computers configured with one or more wired or wireless technologies
(Ethernet, 802.11, GPRS, CDMA). Intermec Connection Manager
works in the background to automatically establish and maintain
connections. You can download and use Intermec Connection
Manager for a 60-day evaluation period. the evaluation period expires,
you will need to purchase a license.
46 70 Series Mobile Computer User Manual
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
About Intermec Launcher
Intermec Launcher is a Microsoft Windows application, designed for
Intermec mobile computers, that provides a platform from which
other applications may be launched while attempting to provide a
locked-down environment. You can configure Intermec Launcher for
your specific application requirements. You can download and use
Intermec Launcher for a 60-day evaluation period. After the evaluation
period expires, you will need to purchase a license.
About Intermec Terminal Emulator (ITE)
Intermec Terminal Emulator (ITE), part of Intermec Client Pack (ICP),
is the next generation of Intermec’s popular terminal emulation client
designed for enterprise-level data collection. It provides a consistent
user interface and a common menu structure to simplify the use and
management of applications running on Intermec mobile and wireless
computers.
ITE is packed with enhancements that improve productivity, reduce
errors, and deliver fast return on investment. It supports multiple
emulation protocols in a single client and has new features such as
session persistence, remote management and configuration, and offers
a maintenance plan to keep you up-to-date with the latest releases and
upgrades. You can download and use ITE for a 60-day evaluation
period. After the evaluation period expires, you will need to purchase a
license and maintenance plan.
About SmartSystems Foundation
SmartSystems™ Foundation is an easy-to-use software platform that
provides IT Administrators and Integrators a single, integrated portal
for hands-free provisioning, deployment, and management of
Intermec devices minimizing the effort spent on software upgrades,
equipment monitoring, maintenance and troubleshooting.
SmartSystems Foundation provides a consistent way to manage
Intermec devices including mobile computers, RFID readers, printers
and bar code scanners, located on-site or remote, to make the most of
limited IT resources, and lower the total cost of ownership for
Intermec data collection equipment. SmartSystems Foundation can
be downloaded at no charge from the Intermec web site. For more
information, visit www.intermec.com/SmartSystems.
70 Series Mobile Computer User Manual 47
Chapter 2 — Understanding the User Interface and Intermec Applications
DRAFT
48 70 Series Mobile Computer User Manual
3
DRAFT
Using the Phone
You can use the phone feature to make and receive telephone
calls, as well as transmit data through cellular wide-area
networks (WANs).
49
Chapter 3 — Using the Phone
DRAFT
About the Phone
The 70 Series mobile computer supports two types of cellular
technology:
• CDMA
• UMTS
Phone features on the computer include a speaker and a microphone.
You can also use a Bluetooth headset or hands-free kit. The phone
feature is enabled by default on WWAN-equipped mobile computers.
After you turn on the phone and activate service with your wireless
carrier, you can customize the phone features and network settings.
For more information, see the online help on your mobile computer.
Activating the UMTS Phone
You use a SIM card to activate the UMTS phone on your computer.
You can purchase the SIM card from your network provider.
To install the SIM card and activate the UMTS radio:
1 Press the Power button to turn off the computer.
2 On the CN70 or CN70e:
a Push the battery release tab forward until the battery releases,
and lift the battery away from the computer.
b Remove the two Phillips screws and open the card access door.
50 70 Series Mobile Computer User Manual
Chapter 3 — Using the Phone
DRAFT
3 On the CK70, remove the two screws and lift the card access door
away from the computer.
4 Slide the SIM card door to the left to unlock it and open the door.
5 Slide the SIM card into the slot in the card access door.
6 Close the SIM card door and slide it to the right to lock it in place.
7 Close the card access door and replace the two screws.
70 Series Mobile Computer User Manual 51
Chapter 3 — Using the Phone
DRAFT
8 Install the battery. Press down firmly on the bottom of the battery,
and make sure that the battery release tab is fully engaged.
9 Press the Power button. The computer cold boots.
Activating the CDMA Phone
To activate the CDMA radio module in your mobile computer, you
need to contact your wireless carrier and set up an account for each
mobile computer. The following table lists the carriers that Intermec
currently supports. If your carrier is not listed in the table, please
contact Intermec product support to see if it is now supported.
Currently Supported Carriers
Country Carriers
United States Sprint, Verizon
The carrier will require the Electronic Serial Number (ESN) to start the
activation process. You can find the ESN:
• on a label located in the upper right corner of the battery
compartment.
• on the outside of the computer shipping box.
The activation process is slightly different for each CDMA carrier.
Your carrier sales contact and an Intermec representative can guide
you through the process.
After you supply the ESN to your carrier, they will respond with values
that you must enter using the Windows Mobile Activation Wizard (if
required). Some of the supported carriers do not require you to enter
any values. The following table shows the carriers, the correct
activation method to use, and the values that you need to activate your
phone.
52 70 Series Mobile Computer User Manual
Chapter 3 — Using the Phone
DRAFT
Values Required for CDMA Phone
Carrier Activation Method Activation Values You Need
Sprint Activation Wizard
Verizon
• Dial *22899
• Activation Wizard
After activation, the settings are permanently stored in the CDMA
module. Changing the OS or SSPB loads will not affect any of the
settings or activation parameters stored in the WAN modem.
Starting the Activation Wizard
Depending on your wireless carrier, you may need to use the Windows
Mobile Activation Wizard to activate your phone.
To start the activation wizard:
1 Tap Start > Phone, or tap the Phone button on the Tile bar.
The phone application starts.
• Master Subsidy Lock (MSL) or activation code
• MDN
• Mobile Station Identifier (MSID)
None. All parameters are automatically
transferred wirelessly.
2 Tap Menu > Activation Wizard.
Turning the Phone On and Off
Before you can start using your phone, you need to enable it. You can
use Wireless Center to enable and disable your phone, as well as
Bluetooth and Wi-Fi communications.
To turn on the phone using Wireless Center:
1 Tap Start > Settings > Connections > Wireless Center.
2 Tap Phone to turn on the Phone
3 (Optional) To configure the phone, tap Menu in the tile bar at the
bottom of the screen.
4 Tap OK when you are done configuring the options.
5 Tap OK to close Wireless Center.
70 Series Mobile Computer User Manual 53
Chapter 3 — Using the Phone
DRAFT
Switching Network Carriers
Use the Carrier Selection application to quickly change your WWAN
radio network carrier on your Flexible Radio Network enabled CN70,
CN70e, or CK70 mobile computer.
To change the selected carrier:
1 Tap Start > Carrier Selection.
2 From the Carrier drop-down menu, select the new carrier and tap
OK. A dialog box appears asking if you want to switch carriers.
3 Tap Yes to switch carriers.
If the update is successful, the Carrier Selection screen appears and
displays the updated carrier information.
If the update is unsuccessful, a message box appears. Tap Ok to
return to the Carrier Selection screen.
Making a Phone Call
After you activate your UTMS or CDMA phone, you are ready to start
making phone calls.
To make a phone call:
1 Press Phone.
2 Tap the keys to enter the telephone number you want to call, and
tap Talk.
Making an Emergency Phone Call
You can use the UMTS phone to make an emergency phone call even
if the SIM card is missing. When the SIM card is not installed, the
phone will show that you have no service. However, if you dial certain
emergency numbers (such as 112, 911, 000, 08, 118, 119, and 999) the
call will go through.
54 70 Series Mobile Computer User Manual
4
DRAFT
Using the Camera
You can use the color camera to take pictures and record
videos.
55
Chapter 4 — Using the Camera
DRAFT
About the Color Camera
The camera and flash are located on the back of the computer. You run
the Pictures & Videos application to access the camera features. In this
application, you can:
• take, view, and edit pictures.
• record and launch video clips stored on the computer or a microSD
card.
• configure camera options.
You can also send pictures and video clips to others or save an image
as the background on the Home screen. If you download the eMDI
application, it uses the camera to capture images.
Note: While the Pictures & Videos application is running, you cannot
use the imager.
Taking a Picture
You can take photos in high, normal, or low quality, with image sizes
up to 2048 x 1536 pixels. When you take a picture, the image is saved
as a .jpg file and stored in the /My Documents/My Pictures folder.
To take a picture:
1 Tap Start > Pictures & Videos.
2 Tap the Camera icon in the grid or the Camera button on the Tile
bar, or press Enter.
3 Using the screen as a viewfinder, move the camera until you have
the image you want to take a picture of.
4 Press Enter to take and save the picture. If you choose to save your
pictures to Main memory, they are saved to permanent storage on
your mobile computer.
56 70 Series Mobile Computer User Manual
Recording a Video
DRAFT
You need to switch to video mode to record video. When you record
video, the video is saved as an .mp4 file and stored in the /My
Documents/My Pictures folder.
To switch to Video mode and record video:
1 Tap Start > Pictures & Videos.
2 Tap the Camera icon in the grid or the Camera button on the Tile
bar, or press Enter.
3 Tap Menu > Video.
4 Using the screen as a viewfinder, move the video camera until you
see the scene you want to video record.
5 Press Enter to start recording.
6 When you are done, tap Stop or press Enter to stop recording and
save the video.
If you choose t o save you r videos to M ain mem ory, they ar e saved to
permanent storage on the computer.
Chapter 4 — Using the Camera
Saving Pictures and Videos to an SD Card
Pictures and videos are automatically saved to the main memory on
your computer. You can save your pictures and video to an SD card to
easily transport them to another device.
To save picture and video files to an SD card:
1 Install a microSD card. For help, see “Inserting a microSD Card”
on page 28.
2 Tap Start > Pictures & Videos.
3 Tap the camera icon.
4 Tap Menu > Options.
5 From the Save files to list, select SD card, and tap OK.
70 Series Mobile Computer User Manual 57
Chapter 4 — Using the Camera
DRAFT
58 70 Series Mobile Computer User Manual
5
DRAFT
Using GPS
The 70 Series computer comes equipped with an integrated
Global Positioning System (GPS) receiver if your computer has
phone capability (WWAN radio). The GPS receiver can deliver
standards-based National Marine Electronics Association
(NMEA) data strings to GPS applications.
59
Chapter 5 — Using GPS
DRAFT
About the Integrated GPS on Your Computer
Intermec recommends that you use the GPS Intermediate Driver
(GPSID) instead of directly accessing the GPS hardware. The GPSID is
a Microsoft software component that interacts between applications
and the GPS hardware.
As a Microsoft software component, the GPSID:
• allows multiple applications to simultaneously access the GPS data
stream.
• provides access to GPS data without requiring applications to
recognize and parse NMEA syntax.
Using the GPSID Installed on the Computer
To use the GPSID installed on your mobile computer, you need to
configure the GPSID settings.
To configure your GPSID settings:
1 Tap Start > Settings > System > External GPS. The GPS Settings
screen appears with Programs selected.
60 70 Series Mobile Computer User Manual
Chapter 5 — Using GPS
DRAFT
2 Select the COM port that you want your programs to use to get
GPS data from your computer.
3 Tap Access in the horizontal scroll bar and select the Manage GPS
automatically check box.
4 Tap OK.
Improving GPS Performance on the Computer
Use the iGPS application to improve the performance of the GPS on
your CN70, CN70e, or CK70 computer. The integrated GPS module
has three operating modes:
• Standalone
• MS Assisted
• gpsOneXTRA™ (UMTS computers only)
In Standalone mode, the GPS module relies solely on GPS satellites to
determine position.
70 Series Mobile Computer User Manual 61
Chapter 5 — Using GPS
DRAFT
In MS Assisted mode, the computer can determine position without
receiving GPS signals directly from satellites; instead, the computer
receives GPS signals and information provided by the cellular network.
Even when the computer can receive a satellite signal, MS Assisted can
improve position accuracy and reduce the time to determine initial
position (Time-To-First-Fix). Check with your cell phone carrier for
availability and pricing for MS Assisted service.
Qualcomm’s gpsOneXTRA Assistance technology provides enhanced
operation for Standalone GPS. This option enables the UMTS-enabled
computer to automatically download a small assistance data file from
the XTRA servers through a brief internet access session.
Another option you can configure with iGPS is the fix interval. The fix
interval defines how often the GPS should provide new information.
Larger intervals use less power, but many applications require small
intervals to work correctly. The default for fix interval is 4.
Note: Anytime you change the GPS settings, the phone module will
reset automatically. It will not affect the functionality of the computer.
To improve GPS performance:
1 Go to Start > Settings > System > iGPS.
2 In the Fix Interval tab, enter a value for the fix interval. The default
setting is 4 and should be optimized for most applications.
3 Tap the Fix Type tab and select one of these options: Standalone
(1), MS assisted (2), or Enable gpsOneXTRA (check box).
4 Tap OK.
62 70 Series Mobile Computer User Manual
6
DRAFT
Configuring the Computer
Use this chapter to learn about the available methods for
configuring your mobile computer and how to use Intermec
Settings. You can also use this chapter to learn how to
configure network communications and wireless security.
63
Chapter 6 — Configuring the Computer
DRAFT
How to Configure the Computer
You can configure many parameters on the computer such as the bar
code symbologies it decodes or the network settings. The values you
set for these parameters determine how the computer operates.
There are several ways to configure the computer:
• Directly on the computer. You can use Intermec Settings directly
on the computer to change only the settings on that computer. For
more information, see “Using Intermec Settings on the
Computer” on page 64.
• Remotely using Intermec SmartSystems Foundation. When you
use SmartSystems, you can remotely configure all of your 70 Series
mobile computers as well as other SmartSystems-enabled Intermec
computers and peripherals. For more information, see “Using
Intermec Settings Remotely With SmartSystems Foundation”
on page 72.
• You can use a third-party device management product that
supports the computer and Intermec Settings, such as Soti
MobiControl or Wavelink Avalanche. For more information, visit
the Device Management page on the Intermec web site.
You can also configure the computer with configuration bundles that
you create using SmartSystems Foundation. For more information,
see the SmartSystems Foundation Online Help.
Using Intermec Settings on the Computer
Use Intermec Settings to configure parameters for Intermec
applications on the computer as well as some device-specific
parameters like volume. You can configure parameters for important
functions like data collection and communications.
64 70 Series Mobile Computer User Manual
Starting Intermec Settings
DRAFT
Intermec Settings is located on the System screen.
To start Intermec Settings:
• Tap Start > Settings > System > Intermec Settings.
The Intermec Settings Main Menu appears.
Chapter 6 — Configuring the Computer
About the Structure of Intermec Settings
Use the tables below to help find the parameters in Intermec Settings
that you want to configure. Each table contains the parameters for one
of the Intermec Settings Main Menu options.
If you see > next to a menu option, there are more screens available in
the next level. If you see ... next to a menu option, there is only one
more screen available.
Most parameters are saved as soon as you tap OK. Some settings such
as the Serial Port Switch require you to reboot the computer for the
changes to take effect.
70 Series Mobile Computer User Manual 65
Chapter 6 — Configuring the Computer
DRAFT
Data Collection Menu
Data Collection Options Parameters You Can Configure
Internal Scanner
Bluetooth Scanner
Dock Tethered Scanner
Camera
BT-Configure on Connect Bluetooth-configure on connect
Magstripe Reader
• Symbologies
• Scanner settings
• Imager settings
• Decode security
• Symbologies
• Scanner settings
• Imager settings
• Decode security
• Symbologies
• Scanner settings
• Scanner port settings
• Imager settings
• Decode security
• Symbologies
• Scanner settings
• Camera settings
• Decode security
• Enable magstripe reader
• Reader model (read-only)
Communications Menu
Communications Options Parameters You Can Configure
Device Name Device name
802.11 Radio
Ethernet Adapter IP settings
Bluetooth Bluetooth settings (power, discoverable,
66 70 Series Mobile Computer User Manual
• Security choice (supplicant)
• Security settings (includes Wi-Fi
settings such as enable/disable radio)
• IP settings
• Certificates
connectable, and so on)
Chapter 6 — Configuring the Computer
DRAFT
Communications Options Parameters You Can Configure
WWAN Radio • Add WWAN connection
• Edit WWAN connections
• Manage WWAN radio
• Carrier Selection
• WWAN information
Serial Port Switch Serial port switch settings (IrDA, docking
connector, and back interface)
Device Settings Menu
Device Settings Options Parameters You Can Configure
Date and Time Date and time settings
Good Read
Volume Volume settings (beeper and voice,
Backlight Backlight settings (display backlight,
Screen Screen rotation
Keypad Scan button remapping
Power Management
Sensors
USB Connections USB connections
System Component Versions System component versions (read-only)
IDL Runtime Versions ITC50 (read-only)
Profile Settings Application Whether these parameter options appear
Features Disabled by Policy None (read-only)
• Internal scanner
• Dock tethered scanner
• Bluetooth scanner
headset beeper, and vibrate mode)
keypad backlight, and light level)
• Power button
• Battery power
• External power
• Screen rotation
• Device off
in Profile Settings:
• Camera
• Power
• Scanning
70 Series Mobile Computer User Manual 67
Chapter 6 — Configuring the Computer
DRAFT
Printer Menu
Printer Options Parameters You Can Configure
Printer (if connected through
Bluetooth)
Note: The Printer menu displays settings for Bluetooth connected
printers. The settings that appear in the menu are dependent on the
printer that is paired with the device. The printer needs to be using the
Wireless Printer applet.
GPS Menu
GPS Options
GPS Bread crumbing settings
SmartSystems Information Menu
SmartSystems Information Options Parameters You Can Configure
Identity Identity information (hardware
Administrator Administrator settings (name, phone,
Location Location settings (country, state, city,
Information Device Notes (read-only)
Printer settings (Auto detect printer,
memory, display, and so on)
version, firmware version, OS version,
and so on) (read-only)
and email)
campus, and detail)
Virtual Wedge Menu
Virtual Wedge Options Parameters You Can Configure
Enable Virtual Wedge Enable virtual wedge
Bar Code Scanner Wedge Bar code scanner wedge settings (bar code
scanner grid and label encoding)
Magstripe Reader Wedge Magstripe Reader Grid
68 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
Core Messaging Service Menu
Core Messaging Service Options Parameters You Can Configure
Server IP Server IP (read-only)
Associated Server IP Associated server IP
Broadcast Name Broadcast name
Port Port (read-only)
Keep Alive Ping Interval Keep alive ping interval
Device Monitor Menu
Device Monitor Options Parameters You Can Configure
Device Health Controls
Device Health Screen Captures Device health screen capture settings
Disabled Executables None (read-only)
Device Wipe Device wipe settings (enable wipe and
License Manager Menu
License Manager Options Parameters You Can Configure
About About settings (read-only)
License Vault None (displays applications that are
Location Services Menu
Location Services Options Parameters You Can Configure
Server Server settings (port and enable server)
Virtual GPS Virtual GPS settings
• Enable health data collection
• Enable Blue light
• Set rule file location
• Set data refresh periods
(directory and screen capture allowed)
interval)
licensed)
For more information on all parameters in Intermec Settings, see the
Intermec Settings Command Reference Manual.
70 Series Mobile Computer User Manual 69
Chapter 6 — Configuring the Computer
DRAFT
Navigating in Intermec Settings
You can easily navigate through the screens in Intermec Settings to
find the parameter you need to configure.
To move down a level in Intermec Settings:
• Tap the menu item in the list.
To move back a level in Intermec Settings:
• Tap Back or Cancel on the Tile bar.
To save a parameter setting:
• Tap OK.
To exit Intermec Settings:
• Tap Menu > Exit or OK.
Configuring Profile Settings With Intermec Settings
A profile is a set of predefined values that you can easily apply to the
computer to ensure optimal performance in a specific scenario. The
end user does not need to figure out the “right” settings because we
have already done that work for you. Profile Settings is available from
the Start menu so you can make it available to the end user for easy
configuration.
Use Intermec Settings to determine the profiles you want the end user
to see in the Profile Settings application.
To configure the profile information an end user can access:
1 Go to Device Settings > Profile Settings Application.
2 Select Camera, Power, or Scanning.
3 From the Camera, Power, or Scanning submenu, check or clear the
Display check box for the settings you want to have available to the
end user.
4 Click OK to save your selection.
70 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
Restoring Default Settings
You can easily restore a menu to its default settings or all of the
Intermec Settings parameters to their default settings if necessary.
To restore menu defaults:
1 Navigate to the menu that you want to restore to defaults.
2 Tap Menu > Restore Menu Defaults.
3 When prompted, tap Yes to restore the menu default settings.
4 If prompted to refresh the computer, tap Yes.
To restore all defaults:
1 Tap Menu > Restore All Defaults. The applications asks if you are
sure you want to restore all defaults.
2 Tap Yes.
After several minutes, all of the default settings are restored.
Hiding Menu Items in Intermec Settings
You can hide items in the Intermec Settings menus if you do not want
to have them available for other users to access. Hidden items are not
saved when you back up your settings in the SmartSystems console.
On the mobile computer, you can:
• hide menu items by tapping and holding the item, and then
choosing Hide Menu Item from the popup list. When asked if you
want to hide the menu, tap Yes.
• restore all hidden items in all menus, by tapping Menu > Unhide
All Items.
Note: When you restore default settings in Intermec Settings, only the
settings for visible items are restored to defaults. The settings for
hidden menu items are not affected.
70 Series Mobile Computer User Manual 71
Chapter 6 — Configuring the Computer
DRAFT
Using Intermec Settings Remotely With
SmartSystems Foundation
Your mobile computer is SmartSystems-enabled, which lets you open
Intermec Settings from the SmartSystems console to remotely
configure all of your mobile computers. For more information on
SmartSystems, see “Managing the Computer Using SmartSystems”
on page 94.
To open Intermec Settings from the SmartSystems console:
1 In the SmartSystems console, select a mobile computer and
right-click.
2 From the menu, select Intermec Settings.
3 Configure the settings you need to change. As you choose
parameters from the tree structure, help for each parameter
appears in the upper right pane of Intermec Settings.
4 When you are done making changes, choose File > Save Settings.
For help using Intermec Settings, click Help > Contents. For
information on all of the parameters in Intermec Settings, see the
Intermec Settings Command Reference Manual.
About Network Communications
You can easily add the mobile computer to your wireless or wired data
collection network. You can connect your computer using:
• 802.11a/b/g/n radio communications.
• Ethernet communications.
• Bluetooth communications.
• USB and serial communications.
Configuring 802.11a/b/g/n (Wi-Fi) Radio Communications
Make sure all components with antennas are at least 30 cm (1 ft)
apart when power is applied. Failure to comply could result in
equipment damage.
72 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
The mobile computer contains an 802.11 radio to transfer data using
wireless communications and to support the TCP/IP network
protocols. This section of the manual assumes that your wireless
network is set up, including your access points.
By default, the 802.11 radio is disabled. Use the following procedure to
enable the Wi-Fi radio using Intermec Settings. If you would like to use
ScanNGo bar codes to easily enable the radio and set the default
security settings, see Appendix C “ScanNGo Wi-Fi Configuration
Bar Codes” on page 165.
To enable the Wi-Fi radio on your computer and configure
communications:
1 Tap Start > Settings > System > Intermec Settings.
2 From the Intermec Settings main menu, tap Communications >
802.11 Radio > Radio Enabled.
3 Select the Radio Enabled check box and tap OK. By default, the
computer uses Funk security and enables DHCP.
4 Use Intermec Settings to configure any other parameters you need
to use for communication with your network.
5 Configure 802.11 security. For help, see “About Wireless
Security” on page 81.
Configuring Ethernet Communications
To configure Ethernet communications, connect your mobile
computer to your Ethernet network using the Ethernet Snap-On
Adapter (Model 1000AA01) or an Ethernet dock.
To configure Ethernet communications:
1 Connect the Ethernet snap-on adapter to your mobile computer.
2 Connect the Ethernet cable from your network to the snap-on
adapter or dock.
Ethernet communications are automatically enabled on your
mobile computer.
3 Make s ure tha t you r com put er i s communicating with the network.
The network connection icon ( ) should appear on the title bar.
70 Series Mobile Computer User Manual 73
Chapter 6 — Configuring the Computer
DRAFT
Configuring Bluetooth Communications
Your mobile computer is Bluetooth™-enabled, which lets you connect
to other Bluetooth devices, such as scanners, printers, or audio devices.
You need to turn on the Bluetooth radio before you can discover and
connect to other Bluetooth devices. By default, the radio is turned off.
To turn on the Bluetooth radio and configure Bluetooth settings:
1 Tap Start > Settings > Bluetooth > Mode.
2 Select the Turn on Bluetooth check box.
3 (Optional) If you want your computer to be visible to other
Bluetooth devices, choose Make this device visible to other
devices.
4 Tap OK.
The Bluetooth radio maintains its state through a reboot or cold
boot and maintains virtual COM ports. But, if you clean boot your
computer you need to recreate pairings to devices.
Connecting to a Bluetooth Scanner
You can connect the computer to an Intermec Bluetooth scanner, such
as the SF51 or SR61.
74 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
To connect to an Intermec Bluetooth scanner:
1 Tap Start > Settings > System > Wireless Scanning.
2 Tap Add Device.
3 Select Quick Connect, Search, or Manual. Follow the onscreen
instruction to add a wireless scanner.
70 Series Mobile Computer User Manual 75
Chapter 6 — Configuring the Computer
DRAFT
Connecting to a Bluetooth Printer
To configure your computer for Bluetooth wireless printing, you need
to:
• create an application that opens the wireless printing COM port on
your computer. For help, see the Bluetooth Resource Kit, which is
part of the Intermec Developer Library (IDL), available from the
Intermec web site at www.intermec.com/idl.
• select the current wireless printer on your computer. For help, see
the next procedure.
Note: You can also print wirelessly using Microsoft APIs with
Bluetooth extensions for Winsock and Bluetooth virtual COM ports.
For help, see the Bluetooth Resource Kit documentation.
To select the current wireless printer:
1 Tap Start > Settings > System > Wireless Printing.
2 Tap Search to find a printer, or tap Manual to enter a device
address. Follow the onscreen instructions to select the current
wireless printer.
3 (Optional) Tap Print Test Page. The printer prints out a test page.
76 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
Connecting to a Bluetooth Audio Device
Use the Bluetooth Audio enabler to discover, activate, and connect to
Bluetooth audio devices such as a headset. This enables system sounds
to be monitored through the headset.
To connect to a Bluetooth audio device:
1 Tap Start > Settings > System > Bluetooth Audio.
2 Tap Search to find your Bluetooth headset or hands-free device.
3 Select your device from the list and configure any settings.
4 Click OK when you are done.
About Serial and USB Communications
You can use these 70 Series accessories to transmit data to and receive
data from another device through serial or USB communications:
• RS-232 Snap-On Adapter (Model 1000AA03)
• USB Snap-On Adapter (Model 1000AA07)
For more information about these accessories and how to order them,
see “70 Series Accessories” on page 8.
70 Series Mobile Computer User Manual 77
Chapter 6 — Configuring the Computer
DRAFT
Connecting to a Tethered Scanner
Use this procedure to connect your mobile computer to an SR30,
SR61T, or ASCII tethered scanner and enable RS-232
communications.
To connect the computer to a tethered scanner:
1 Tap Start > Settings > System > Intermec Settings >
Communications > Serial Port Switch.
2 Select Standard docking and IrDA and tap OK.
If the serial port switch is set to one of the other options, you need
to select Standard docking and IrDA and then save and reboot
the computer before you proceed.
3 Tap Back to return to the Main Menu.
4 Tap Data Collection > Dock Tethered Scanner > Enable
scanner auto-detect.
5 Select the Enable scanner auto-detect check box and tap OK.
6 Perform one of these items based on the type of scanner you are
connecting:
• For an SR30 or SR61T scanner, tap Scanner Settings, select SR
Intermec Scanner, and then tap OK.
• For an ASCII scanner, tap Scanner Settings, select ASCII, and
then tap OK. Set up the appropriate COM port settings by
selecting Scanner Port Settings.
7 Connect the RS-232 snap-on adapter with the attached scanner to
the bottom of the mobile computer.
Creating an ISP Connection
You can create an Internet Service Provider (ISP) connection to send
and receive e-mail messages using Messaging (Outlook E-mail) and
view web pages using Internet Explorer Mobile. You need to get your
ISP dial-up access telephone number, a user name, and a password
from your ISP.
78 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
To create an ISP Connection:
1 Tap Start > Settings > Connections > Connections.
2 Under My ISP, tap Add a new modem connection.
3 Enter a name for the connection, such as “ISP Connection.”
4 If you are using an external modem connected to your mobile
computer with a cable, select Hayes Compatible on COM1 from
the Select a modem list.
5 Tap Next.
6 Enter the access phone number and then tap Next.
7 Enter the User name, Password, and Domain (if provided by an
ISP or your network administrator).
8 Tap Finish.
9 On the Connections screen, tap Advanced on the horizontal scroll.
10 Tap Dialing Rules.
11 When the Enable Dialing Rules box appears, tap OK.
12 Tap Edit.
70 Series Mobile Computer User Manual 79
Chapter 6 — Configuring the Computer
DRAFT
13 In the Name field, enter your phone type (Home, Mobile, or
Work).
14 Tap OK until you exit the Connections screen.
Creating a VPN Server Connection
You can create a Virtual Private Network (VPN) connection to securely
connect to servers, such as a corporate network, through the Internet.
Before you can create a VPN connection, you need this information
from your network administrator:
• User name
• Password
• Domain name
• TCP/IP settings
• Host name or IP address of the VPN server
To create a VPN server connection:
1 Tap Start > Settings > Connections > Connections.
2 Under My Work Network, tap Add a new VPN server
connection.
3 Step through the screens to set up your VPN connection.
80 70 Series Mobile Computer User Manual
About Wireless Security
DRAFT
The computer provides four types of security for your wireless
network:
• Wi-Fi Protected Access 2 (WPA2™)
• Wi-Fi Protected Access (WPA)
• 802.1x
• WEP
This section explains how to configure wireless security on your
mobile computer. Intermec recommends that you implement WPA2
security using PSK (Personal) or 802.1X (Enterprise) key management
as appropriate.
You must use either Funk or Microsoft security to implement your
security solution. For details, see the next section, “Choosing
Between Microsoft and Funk Security.”
If you are using WPA-802.1x, WPA2-802.1x, or 802.1x security, this
section also assumes that your authentication server and
authenticators are properly configured.
Chapter 6 — Configuring the Computer
Note: Your security choice does not depend on your authentication
server. For example, you can choose Funk security if you use Microsoft
Active Directory® to issue certificates.
Choosing Between Microsoft and Funk Security
The computer supports both Funk and Microsoft security, which
dynamically select wireless networks based on your preferences. The
option you choose depends on your network security needs.
• If you are using the computer in a static environment that requires
a high level of security, you should use Funk security, which offers
CCX v4.0 compliance, support for LEAP and TTLS, and
configuration for up to four profiles.
To use Funk security, you need to select a profile. For help, see the
next section, “Selecting a Funk Security Profile.”
70 Series Mobile Computer User Manual 81
Chapter 6 — Configuring the Computer
DRAFT
• If you are primarily using the computer to connect to Wi-Fi
hotspots, you may want to use Microsoft security.
To use Microsoft security, you need to select it as your security
choice. For help, see “Selecting Microsoft as Your Security
Choice” on page 86.
Selecting a Funk Security Profile
You can define up to four profiles for Funk security. Different profiles
let your computer communicate in different networks without having
to change all of your security settings. For example, you may want to
set up one profile for the manufacturing floor and one for the
warehouse. By default, the active profile is Profile 1.
Selecting a Funk Security Profile
Use the following procedure to select a Funk security profile.
1 Start Intermec Settings.
2 Choose Communications > 802.11 Radio > Funk Security.
3 Choose a profile. A list of configurable settings appears.
4 (Optional) In the Profile Label text box, enter a meaningful name
for your profile.
5 Configure your security settings. For help, see the next sections.
6 Repeat Steps 3 through 5 for each profile you want to define.
7 Set an active profile by choosing it in the Active Profile list.
8 Save your settings.
Configuring WPA or WPA2 Enterprise (802.1x) Security With
Funk
Use these procedures to set WPA-802.1x or WPA2-802.1x security on
your comptuer with Funk security.
1 Make sure the communications and radio parameters on your 70
Series are configured.
2 Make sure Funk is selected as your security choice.
3 Start Intermec Settings.
82 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
4 Choose Communications > 802.11 Radio > Funk Security.
5 Select the profile you want to configure.
6 For Association, choose WPA or WPA2. Encryption
automatically defaults to TKIP or AES, respectively.
7 For 8021x, choose TTLS, PEAP, EAP-FAST, or TLS.
8 If you choose TTLS, EAP-FAST, or PEAP:
a For Prompt for Credentials, choose Enter credentials now.
b Enter a User Name and User Password.
c For Validate Server Certificate, choose Yes.
Note: The correct date must be set on your computer when you enable
Validate Server Certificate.
9 If you choose TLS:
a Load a user and root certificate on your computer. For help, see
“Loading a Certificate” on page 90.
b Enter a User Name and Subject Name.
c For Validate Server Certificate, choose Yes.
Configuring WPA or WPA2 Personal (PSK) Security With Funk
Use the following procedure to configure WPA-PSK or WPA2-PSK
with Funk security.
1 Make sure the communications and radio parameters on your
computer are configured.
2 Make sure Funk is selected as your security choice.
3 Start Intermec Settings.
4 Choose Communications > 802.11 Radio > Funk Security.
5 Select the profile you want to configure.
6 For Association, choose WPA or WPA2.
7 For 8021x, choose None.
70 Series Mobile Computer User Manual 83
Chapter 6 — Configuring the Computer
DRAFT
8 For Pre-Shared Key, enter the pre-shared key or passphrase.
The pre-shared key must be a value of 32 hex pairs preceded by 0x
for a total of 66 characters. The value must match the key value on
the access point. The passphrase must be from 8 to 63 characters.
After you enter a passphrase, the 70 Series internally converts it to
a pre-shared key. This value must match the passphrase on the
authenticator.
9 Save your settings.
Configuring 802.1x Security With Funk Security
Use the following procedure to configure 802.1x-WEP security with
Funk security. Intermec recommends that you use WPA2-802.1x
instead of 802.1x-WEP if possible.
1 Make sure the communications and radio parameters on your
computer are configured.
2 Make sure Funk is selected as your security choice.
3 Start Intermec Settings.
4 Choose Communications > 802.11 Radio > Funk Security.
5 Select the profile you want to configure.
6 For Association, choose Open.
7 For Encryption, choose WEP.
8 For 8021x, choose TTLS, PEAP, or TLS.
9 If you chose TTLS or PEAP:
a Enter a User Name.
b For Prompt for Credentials, choose Enter credentials now.
c Enter a User Password.
d For Validate Server Certificate, choose Yes.
10 If you choose TLS:
a Load a user and root certificate on your computer. For help, see
“Loading a Certificate” on page 90.
b For Validate Server Certificate, choose Yes.
84 70 Series Mobile Computer User Manual
Chapter 6 — Configuring the Computer
DRAFT
c Enter a User Name and Subject Name.
11 Save your settings.
Configuring Static WEP Security With Funk Security
Use the following procedure to configure static WEP security with
Funk. Intermec recommends that you use WPA2-PSK instead of WEP
if possible.
1 Make sure the communications and radio parameters on your
computer are configured.
2 Make sure Funk is selected as your security choice.
3 Start Intermec Settings.
4 Choose Communications > 802.11 Radio > Funk Security.
5 Select the profile you want to configure.
6 For Association, choose Open.
7 For Encryption, choose WEP.
8 For 8021x choose None.
9 Define a value for the keys you want to use. You can define up to
four keys (Key 1 through Key 4).
Enter an ASCII key or a hex key that is either 5 bytes or 13 bytes
long depending on the capability of the radio. Set a 5- byte value for
64-bit WEP or a 13-byte value for 128-bit WEP. Hex keys must be
preceded by 0x and contain 5 or 13 hex pairs.
10 For Transmit key, choose the key you want to use for transmitting
data.
11 Save your settings.
Using Open (No Security) Associations with Funk
Use the following procedure to configure your mobile computer for
open security using Funk.
1 Start Intermec Settings.
2 Choose Communications > 802.11 Radio > Funk Security.
3 Select the active profile you are using.
70 Series Mobile Computer User Manual 85
Chapter 6 — Configuring the Computer
DRAFT
4 For Association, choose Open.
5 For Encryption, choose None.
6 Tap OK. Your settings are saved.
Selecting Microsoft as Your Security Choice
The default security setting is Funk. If you want to use Microsoft
Wireless Zero Configuration (WZC) security, you need to select it as
your security choice. After you select Microsoft as your security choice,
you will be prompted to save your settings and reset the computer for
your change to take effect.
With Microsoft as your security choice, you can configure:
• WPA or WPA2
• 802.1x
• Static WEP
Selecting Microsoft Security
Use the following procedure to select Microsoft security.
1 Start Intermec Settings. For help, see “Configuring the
Computer” on page 63.
2 Choose Communications > 802.11 Radio > Security Choice.
3 From the Security Choice list, select Microsoft Security. An alert
box appears telling you that you must save your settings and reboot
the computer for the new security choice to take effect.
4 Choose Yes. The computer resets and starts with Microsoft
Security as the Security Choice.
Configuring WPA or WPA2 Enterprise (802.1x) Security With
Microsoft
Use these procedures to set WPA-802.1x security on your computer
with Microsoft security.
1 Make sure the communications and radio parameters on your
computer are configured.
2 Start Intermec Settings.
86 70 Series Mobile Computer User Manual
