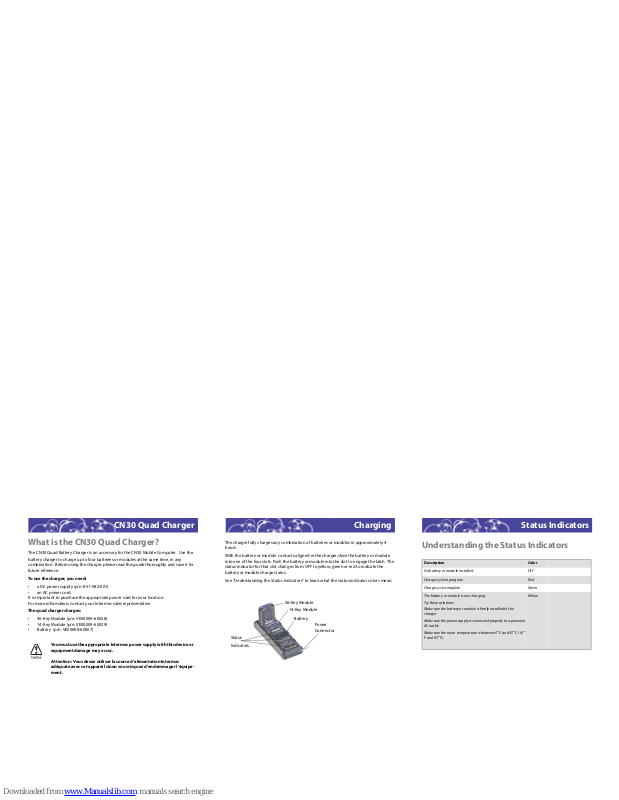

What is the CN30 Quad Charger?
The CN30 Quad Battery Charger is an accessory for the CN30 Mobile Computer. Use the
battery charger to charge up to four batteries or modules at the same time, in any
combination. Before using the charger, please read this guide thoroughly and save it for
future reference.
To use the charger, you need:
• a DC power supply (p/n: 851-082-001)
•an AC power cord.
It is important to purchase the appropriate power cord for your location.
For more information, contact your Intermec sales representative.
The quad charger charges:
• 56-Key Module (p/n: VE00009-60028)
• 14-Key Module (p/n: VE00009-60029)
• Battery (p/n: VE00009-60007)
The charger fully charges any combination of batteries or modules in approximately 4
hours.

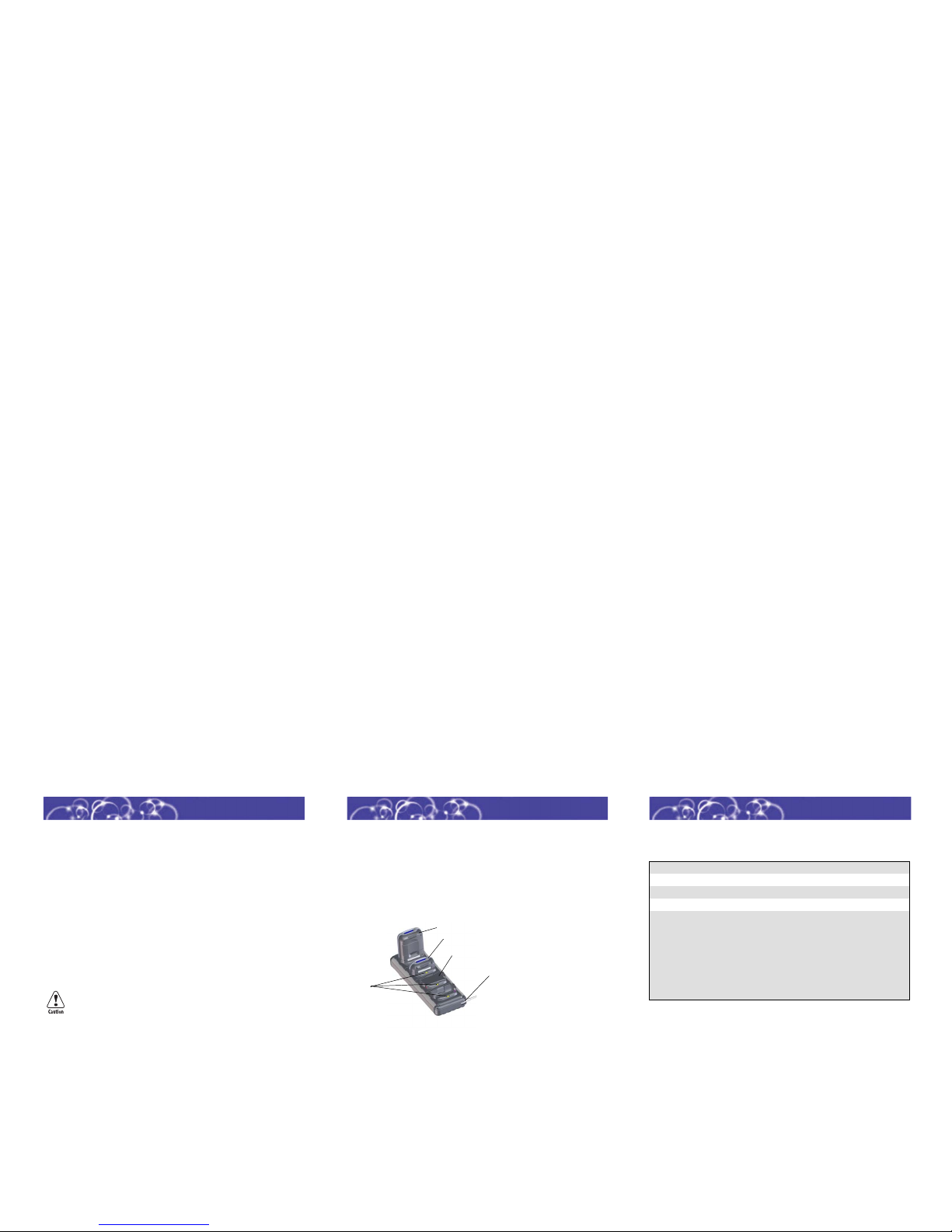

With the battery or module contacts aligned in the charger, slide the battery or module
into one of the four slots. Push the battery or module into the slot to engage the latch. The
status indicator for that slot changes from OFF to yellow, green or red to indicate the
battery or module charge status.
See “Understanding the Status Indicators” to learn what the status indicator colors mean.
Understanding the Status Indicators
You must use the appropriate Intermec power supply with this device or
equipment damage may occur.
Attention: Vous devez utiliser la source d’alimentation Intermec
adéquate avec cet appareil sinon vous risquez d’endommager l’équipement.
CN30 Quad Charger Charging
Description Color
No battery or module installed. Off
Charge cycle in progress. Red
Charge cycle complete. Green
The battery or module is not charging.
Try these solutions:
Make sure the battery or module is firmly installed in the
charger.
Make sure the power supply is connected properly to a powered
AC outlet.
Make sure the room temperature is between 5
° C and 35° C (41°
F and 95
° F).
Yell ow
Status Indicators
Status
Indicators
Power
Connector
56-Key Module
14-Key Module
Battery
Page 2
Installing the CN30 Quad Charger
To charge batteries or module
Place the battery charger in a well-ventilated area.
Connect the DC power supply plug to the power connector on the charger, then connect
the AC power cord to an AC power outlet.
The CN30 Quad Charger is factory configured to charge a module in the charging bay. To
charge a battery in the charging bay, remove the module alignment clip and insert battery.
Do not discard the module alignment clip.
Physical Dimensions
Length:30.48 cm (12 in)
Width: 11.43 cm (4.5 in)
Electrical Specifications
Electrical rating: 12 VDC, 4 A
Temperature and Humidity Specifications
Charging temperature +5
° to +35° C (41°F to +95°F)
Storage temperature: -30
° to +70° C (-22 °F to +158° F)
Relative Humidity: non-condensing, 5 to 95%
Patent Information
Product is covered by one or more of the following
patents: 5,052,943, 5,544,010, 5,644,471.
There may be other U.S. and foreign patents pending.
CN30 Quad Battery Charger Quick Start Guide
*962-000-061A*
P/N: 962-000-061A
CN30 Model AC9 Quad Charger
To prevent fire or electric shock, do not expose the CN30 Quad Charger
to rain or moisture.
Avertissement: Pour éviter des risques d’incendie ou de choc électrique,
ne pas exposer le CN30 Quad Charger à la plui ou l’humidité.

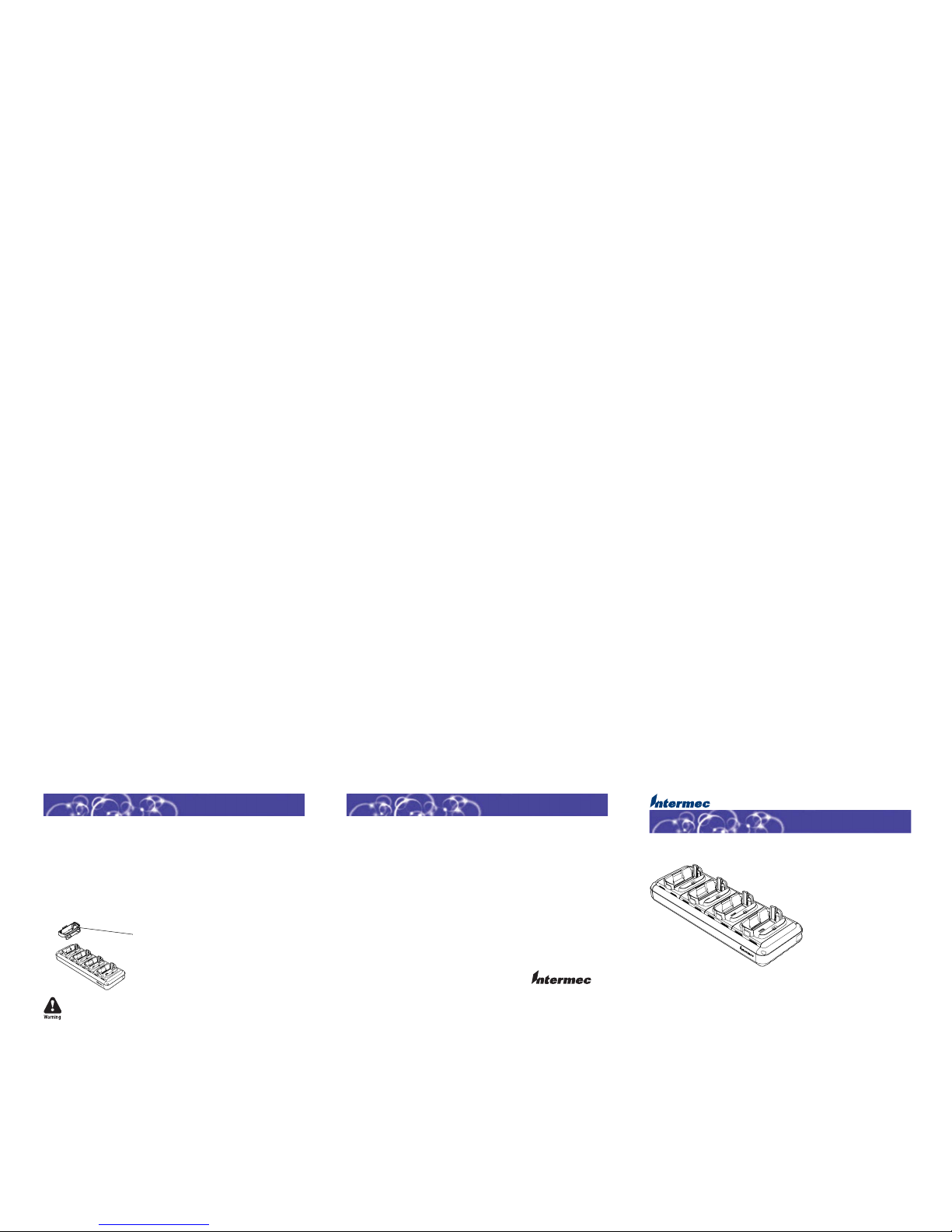

Installation
Module Alignment Clip
Remove to Charge Battery
Specifications
Corporate Headquarters
6001 36th Avenue West
Everett, Washington 98203 U.S.A.
tel 425.348.2600
www.intermec.com
© 2005 Intermec Technologies
Corporation. All rights reserved.
Quick Start Guide
