Reference Manual
97XX Wedge
Interface
Intermec Technologies Corporation
6001 36th Avenue West
Everett, WA 98203
U.S.A.
U.S. service and technical support: 1-800-755-5505
U.S. media supplies ordering information: 1-800-227-9947
Canadian service and technical support: 1-800-668-7043
Canadian media supplies ordering information: 1-800-268-6936
Outside U.S.A. and Canada: Contact your local Intermec service supplier.
The information contained herein is proprietary and is provided solely for the purpose of allowing customers to
operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any
other purpose without written permission of Intermec.
Information and specifications in this manual are subject to change without notice.
2003 by Intermec Technologies Corporation
All Rights Reserved
The word Intermec, the Intermec logo, INCA (under license), MobileLAN, JANUS, IRL, Trakker Antares,
EZBuilder, TE 2000, Data Collection Browser, dcBrowser, Universal Access Point, UAP, Duratherm,
EasyCoder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are either trademarks or registered
trademarks of Intermec.
Throughout this manual, trademarked names may be used. Rather than put a trademark ( or ) symbol in
every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and
to the benefit of the trademark owner, with no intention of infringement.
There are U.S. and foreign patents pending.
Manual Change Record
This page records the changes to this manual. The manual was originally released as version A.
Version Date Description of Change
B 6/91 The configuration I.D. for the Unisys PW2 286 was changed from 0 to 339. A separate section was
made for the AT&T 6580 and 6591 stations. The terminal cable number for the AT&T 65XX
section was changed back to the old number: 054228.
C 10/91 A new section was added which combined the NEC 386, the IBM PC/ST/AT Series, and the
Compaq/PS-2 Series sections into one sectio n.
D 2/92 The Wang 4230 section was added to the reference manual. The existing Wang 4230, 4430 section
was changed to the Wang 4230A, 4430 section.
001 9/96 Reformatted and updated to wedge software release F.
002 2/03 Corrected bar code errors.
Blank page
Contents
AT&T 615 and 65XX Series 1
AT&T 6286 3
AT&T 6580 and 6591 4
Bull DKU 710X Series 5
Bull Questar 210 6
Burroughs UniSys Series 7
Compaq/PS-2 Series 8
DEC VT and VXT Series 12
Decision Data 349X Series 16
Decision Data 3791 18
Decision Data Series 19
Harris Series 26
HP 2392A 27
HP HIL Series 29
IBM 3151 and 34XX Series 35
IBM 316X and 319X Series 45
IBM 3178 48
IBM 7552 49
IBM PC/XT/AT Series 50
Idea Courier 55
I-O Corporation Series 56
LynkLyte Series 58
Macintosh II and SE Series 59
Memorex/Telex 2291 and 2391 62
Memorex/Telex Series 63
Microterm 5530 65
NEC 386 66
Nokia 4111 and 9164 Series 67
Nokia 9014 DU 68
PC/AT, PS/2 Universal 69
Sun Stations Series 86
Unisys 1120 87
Unisys 1224 89
Unisys SVT 1220 91
WANG 4230 92
WANG 4230A, 4430 93
Wyse 50 94
Wyse Series 95
Contents
v
97XX Wedge Interface Reference Manual
Alphabetical List of Contents
Note: The bold entries represent individual Wedge Interface Guide (WIF) headings as
well as workstation models. The regular entries represent workstation models contained
within the individual WIF Guides.
Alfaskop DS/DT 50, 69
AST 286/386 50, 69
AT&T 605 50, 69
AT&T 615 1
AT&T 615 and 65XX Series 1
AT&T 6286 3
AT&T 6386SX 8
AT&T 6386SX and
6386WGS 69
AT&T 6386WGS 8
AT&T 6518 1
AT&T 6528 1
AT&T 6529 1
AT&T 6538 1
AT&T 6539 1
AT&T 6578 1
AT&T 6579 1
AT&T 6580 4
AT&T 6580 and 6591 4
AT&T 6591 4
Bull DKU 7102 5
Bull DKU 7104 5
Bull DKU 7105 5
Bull DKU 7107 5
Bull DKU 710X Series 5
Bull Questar 210 6
Burroughs UniSys B25 7
Burroughs UniSys B28 7
Burroughs UniSys Series 7
Compaq 286/386 50, 69
Compaq 286/e 8, 69
Compaq 386/20e 8, 69
Compaq 386/33 8, 69
Compaq 386/s 8, 69
Compaq 486 8, 69
Compaq Prolinea 69
Compaq/PS-2 Series 8
DEC 486 69
DEC VT and VXT Series 12
DEC VT1000 12
DEC VT1200 12
DEC VT220 12
DEC VT240 12
DEC VT241 12
DEC VT320 12
DEC VT330 12
DEC VT340 12
DEC VT420 12
DEC VT510 69
DEC VT520 69
DEC VT525 69
DEC VXT2000 12
Decision Data 3496 16
Decision Data 3497 16
Decision Data 349X Series 16
Decision Data 3596 19
Decision Data 3597 19
Decision Data 3697 19
Decision Data 3776 19
Decision Data 3777 19
Decision Data 3791 18
Decision Data Series 19
Dell Dimension 386 and
486 69
Dell Optiplex 486 PC 69
Gateway 2000 386 69
Gateway 2000 486 69
Harris 179 26
Harris 180 26
Harris 192 26
Harris Series 26
HP 2392A 27
HP 486 69
HP 700/32 19
HP 700/43 19
HP 700/44 19
HP 700/60 19
HP 700/92 19
HP 700/94 19
HP 700/96 19
HP 700/98 19
HP HIL Series 29
HP Vectra ES 50
HP Vectra ES 69
HP X-Station 700/RX 69
IBM 3151 35
IBM 3151 and 34XX Series 35
IBM 3161 45
IBM 3162 45
IBM 3163 45
vi
Contents
IBM 3164 45
IBM 316X and 319X Series 45
IBM 3178 48
IBM 3191 45
IBM 3192 45
IBM 3193 45
IBM 3196 45
IBM 3197 45
IBM 3471 35
IBM 3472 35
IBM 3476 35
IBM 3477 35
IBM 3481 35
IBM 3482 35
IBM 3486 35
IBM 3487 35
IBM 3488 35
IBM 7531 50
IBM 7531 69
IBM 7532 50
IBM 7552 49
IBM AT 50, 69
IBM PC/XT 50, 69
IBM PC/XT/AT Series 50
IBM PS/1 69
IBM PS/2 25, 69
IBM PS/2 30 69
IBM PS/2 50 69
IBM PS/2 50Z 69
IBM PS/2 55SX 69
IBM PS/2 60 69
IBM PS/2 70 69
IBM PS/2 80 69
IBM PS/2 90 69
IBM PS/2 95 69
IBM ValuePoint 69
Idea Courier 55
Idea Courier 12471 55
Idea Courier 12472-01C 55
Idea Courier 9292 50, 69
I-O Corporation 1181D 56
I-O Corporation 1181EP 56
I-O Corporation 1181ES 56
I-O Corporation 1181WP 56
I-O Corporation 1196 56
I-O Corporation 1196D 56
I-O Corporation 1197 56
I-O Corporation 2196 56
I-O Corporation 2476C 56
I-O Corporation 2497C 56
I-O Corporation 2497D 56
I-O Corporation Series 56
ITF Keyboard 46020A or
46021A 29
LynkLyte Series 58
Macintosh II 59
Macintosh II and SE Series 59
Macintosh SE 59
Memorex/Telex 1191 63
Memorex/Telex 1192 63
Memorex/Telex 1196 63
Memorex/Telex 1197 63
Memorex/Telex 1471 63
Memorex/Telex 1472 63
Memorex/Telex 1476 63
Memorex/Telex 1477 63
Memorex/Telex 2291 62
Memorex/Telex 2291 and
2391 62
Memorex/Telex 2296 63
Memorex/Telex 2391 62
Memorex/Telex Series 63
Microterm 5530 65
NCD X-Station 15-b 69
NEC 286 50
NEC 386 69
NEC 386 66
Nokia 4111 and 9164 Series 67
Nokia 4111 DU 67
Nokia 7414-0011 50, 69
Nokia 9014 DU 68
Nokia 9164 DU 67
Nokia ASC/AWS 50, 69
Nokia Mikro Mikko 3/4
50, 69
Nokia VDU 192 50, 69
PC/AT, PS/2 Universal 69
PS/2 25 8
PS/2 30 8
PS/2 50 8
PS/2 50Z 8
PS/2 55SZ 8
PS/2 60 8
PS/2 70 8
PS/2 80 8
PS/2 90 8
PS/2 95 8
Sun Stations Series 86
Tandy 1000 50
Tandy 1000 69
Tandy 2500 8, 69
Tandy 4016 8, 69
Tandy 5000 8, 69
Tektronix X-Station XP11 69
vii
97XX Wedge Interface Reference Manual
Unisys 1120 87
Unisys 1224 89
Unisys PW2 286 50, 69
Unisys SVT 1220 91
Vectra Keyboard 46030A 29
Wang 240 50, 69
Wang 280 50, 69
Wang 380 50, 69
WANG 4230 92
WANG 4230A, 4430 93
WANG 4430 93
Wyse 150 95
Wyse 160 95
Wyse 185 95
Wyse 2108 95
Wyse 2112 95
Wyse 2116 95
Wyse 2200 95
Wyse 285 95
Wyse 30 95
Wyse 3116SX 95
Wyse 3216 95
Wyse 3225 95
Wyse 325 95
Wyse 50 94
Wyse 60 95
Wyse 85 95
Wyse Series 95
Wyse WM-15C 95
Wyse WM-17C 95
viii
This reference manual is a collection of all the individual wedge interface reference
(WIF) guides. It lists the part numbers for wedge interface kit, keyboard and terminal
cables, and gives the power supply requirements and bar codes for configuring the
wedge (reader) for a specific terminal. Use this reference manual with a Wedge
Reader User’s Manual for complete instructions on using a reader.
AT&T 615 and 65XX Series
This section covers these workstations:
• AT&T 615 • AT&T 6538
• AT&T 6518 • AT&T 6539
• AT&T 6528 • AT&T 6578
• AT&T 6529 • AT&T 6579
The individual Wedge Interface Guide corresponding to this section is part number
0542351.
Cd39
AT&T 615 and 65XX Series
Cables

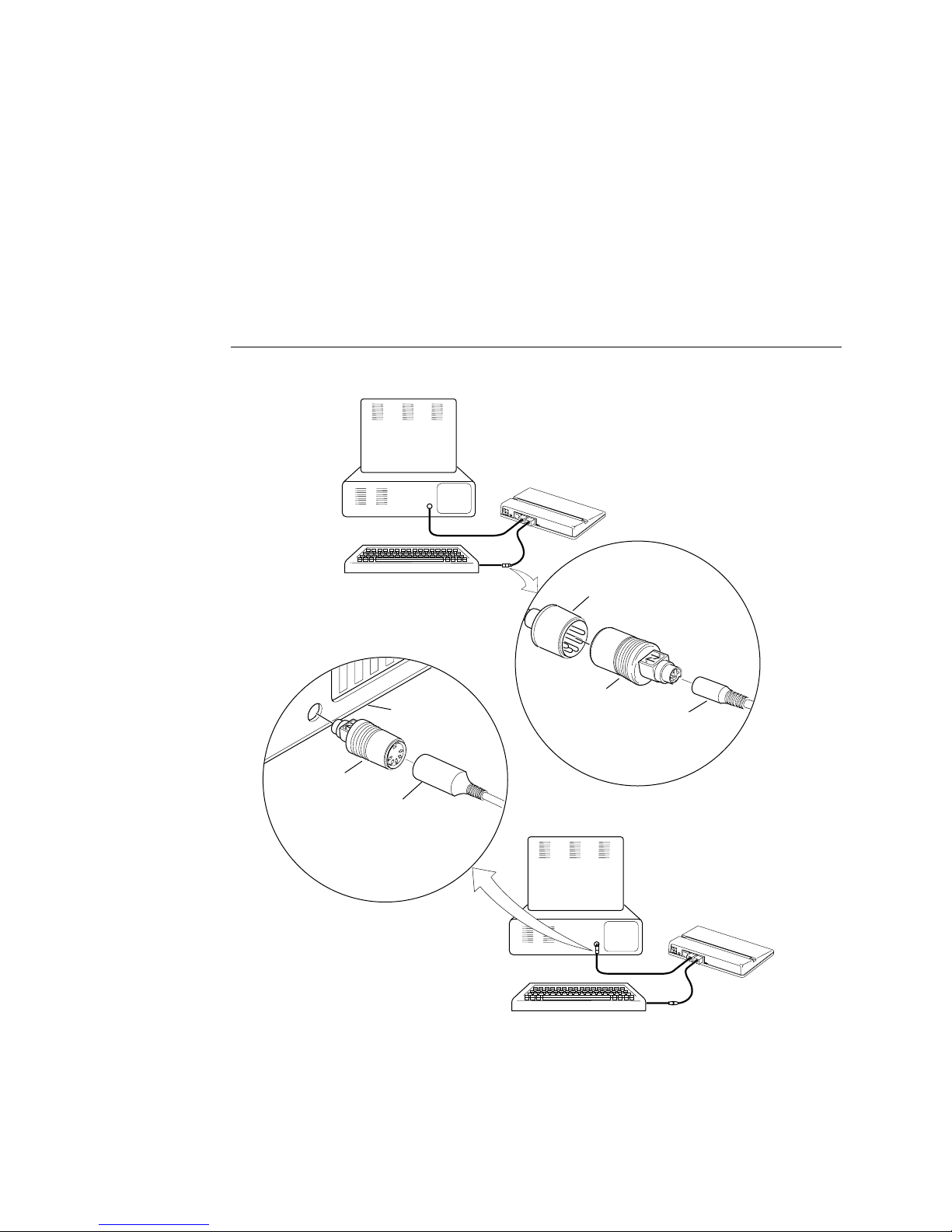

Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use these part numbers:
• Wedge interface kit (P/N 054230)
• Keyboard cable (P/N 054229)
• Terminal cable (P/N 054228)
Power Supply
The reader does not require an external power supply to work with the workstations. Set
the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
1
AT&T 615 and 65XX Series
Configuring the Reader
Scan the appropriate label in this table to configure the reader for your workstation.
After the label is scanned, the reader emits one low beep followed by four low beeps.
The four low beeps indicate the reader has successfully stored the configuration and is
ready to read labels. If the reader emits a different beep sequence, refer to the Wedge
Reader User’s Manual, Section 2, for beep identification.
To Set Workstation Configuration to Scan This Bar Code
AT&T 615
AT&T 6518, 6578
AT&T 6528
AT&T 6529
Cd39
*$+TA320*
*$+TA320*
*$+TA104*
*$+TA104*
*$+TA105*
*$+TA105*
*$+TA106*
*$+TA106*
AT&T 6538
*$+TA107*
AT&T 6539
*$+TA107*
*$+TA108*
AT&T 6579
*$+TA108*
*$+TA110*
*$+TA110*
2
AT&T 6286
Cd39
This section covers the AT&T 6286 workstation. The individual Wedge Interface Guide
corresponding to this section is P/N 054235.
Note: The AT&T 6286 terminal is not supported with the introduction of wedge
software release F (November 1995).
AT&T 6286
Cables
Connecting the reader to the workstation requires two cables: a keyboard cable and a
terminal cable. The interface kit contains both the keyboard and terminal cables. If you
need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 054234)
• Keyboard cable (P/N 054233)
• Terminal cable (P/N 054232)
Power Supply
The reader does not require an external power supply to work with the AT&T 6286
workstation. Set the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
Configuring the Reader
Scan this label to configure the reader for your worksta tion. After the lab el is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
AT&T 6286
*$+TA102*
*$+TA102*
3
AT&T 6580 and 6591
Cd39
AT&T 6580 and 6591
This section covers these workstations:
• AT&T 6580
• AT&T 6591
Note: These terminals are not supported with the introduction of wedge software release
F (November 1995).
The individual Wedge Interface Guide corresponding to this section is part number
056310.
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 056309)
• Keyboard cable (P/N 054229)
• Terminal cable (P/N 056307)
Power Supply
The reader does not require an external power supply to work with the workstations. Set
the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
Configuring the Reader
Scan this label to configure the reader for your worksta tion. After the lab el is scan ned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
AT&T 6580, 6591
*$+TA111*
*$+TA111*
4
Bull DKU 710X Series
This section covers these workstations:
• Bull DKU 7102
• Bull DKU 7104
• Bull DKU 7105
• Bull DKU 7107
The individual Wedge Interface Guide corresponding to this section is part number
054275.
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 054274)
Cd39
Bull DKU 710X Series
• Keyboard cable (P/N 054273)
• Terminal cable (P/N 054272)
Power Supply
The reader does not require an external power supply to work with this workstation. Set
the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
Configuring the Reader
Scan this label to configure the reader for your worksta tion. After the lab el is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
Bull DKU 7102, 7104, 7105, 7107
*$+TA113*
*$+TA113*
5
Bull Questar 210
Cd39
Bull Questar 210
This section covers the Bull Questar 210 workstation. The individual Wedge Interface
Guide corresponding to this section is part number 054146.
Cables
Connecting the reader to this workstation requires two cables: a keyboard cable and a
terminal cable. The interface kit contains both the keyboard and terminal cables. If you
need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 054145)
• Keyboard cable (P/N 054144)
• Terminal cable (P/N 054143)
Power Supply
The reader does not require an external power supply to work with this workstation. Set
the PCB jumper to connect pins 2 and 3 on the reader’s rear panel even though an
external power supply is not used. This is an exception for the Bull Questar 210.
Caution
Failure to comply could result in equipment damage.
Conseil
Faute de quoi vous risquez d'endommager l'équipement.
Configuring the Reader
Scan this label to configure the reader for your worksta tion. After the lab el is scan ned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
Bull Questar 210
*$+TA4*
*$+TA4*
6
Burroughs UniSys Series
This section covers these workstations:
• Burroughs UniSys B25
• Burroughs UniSys B28
The individual Wedge Interface Guide corresponding to this section is part number
055398.
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 055397)
• Keyboard cable (P/N 055396)
• Terminal cable (P/N 055395)
Cd39
Burroughs UniSys Series
Power Supply
The reader does not require an external power supply to work with the workstation. Set
the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
Configuring the Reader
Scan this label to configure the reader for your worksta tion. After the lab el is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
Burroughs UniSys B25, B28
*$+TA103*
*$+TA103*
7
Compaq/PS-2 Series
Cd39
Compaq/PS-2 Series
This section covers these workstations:
• AT&T 6386SX • PS/2 50Z
• AT&T 6386WGS • PS/2 55SZ
• Compaq 286/e • PS/2 60
• Compaq 386/s • PS/2 70
• Compaq 386/20e • PS/2 80
• Compaq 386/33 • PS/2 90
• Compaq 486 • PS/2 95
• PS/2 25 • Tandy 2500
• PS/2 30 • Tandy 4016
• PS/2 50 • Tandy 5000
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 056944)
• Keyboard cable (P/N 054140)
• Terminal cable (P/N 056311)
• Adapter (P/N 056943)
Power Supply
The reader does not require an external power supply to work with these workstations.
Set the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
8
Cd39
Compaq/PS-2 Series
Configuring the Reader
Scan the appropriate label to configure the reader for your workstation. The reader
should emit one low beep followed by four low beeps, indicating that the reader has
successfully stored the configuration and is ready to read labels. If the reader emits a
different beep sequence, refer to the Wedge Reader User’s Manual, Section 2, for
beeper identification.
To Set Workstation Configuration to Scan This Bar Code
AT&T 6386SX, AT&T 6386 WGS
*$+TA1*
Compaq
US Keyboard
Compaq
Danish Keyboard
Compaq
French Keyboard
*$+TA1*
*$+TA5*
*$+TA5*
*$+TA7*
*$+TA7*
*$+TA8*
*$+TA8*
Compaq
French Canadian Keyboard
Compaq
German Keyboard
Compaq
Italian Keyboard
Compaq
Norwegian Keyboard
Compaq
Spanish Keyboard
Compaq
Swedish/Finnish Keyboard
*$+TA9*
*$+TA9*
*$+TA15*
*$+TA15*
*$+TA10*
*$+TA10*
*$+TA11*
*$+TA11*
*$+TA12*
*$+TA12*
*$+TA13*
*$+TA13*
9
Compaq/PS-2 Series
Cd39
To Set Workstation Configuration to Scan This Bar Code
Compaq
Swiss Keyboard
Compaq
United Kingdom Keyboard
PS/2 101/102-keys
US Keyboard
PS/2 101/102-keys
Arabic Keyboard
PS/2 101/102-keys
Belgian Keyboard
*$+TA14*
*$+TA14*
*$+TA6*
*$+TA6*
*$+TA87*
*$+TA87*
*$+TA208*
*$+TA208*
*$+TA195*
*$+TA195*
PS/2 101/102-keys
Danish Keyboard
PS/2 101/102-keys
Dutch Keyboard
PS/2 101/102-keys
French Keyboard
PS/2 101/102-keys
French Canadian Keyboard
PS/2 101/102-keys
German Keyboard
PS/2 101/102-keys
Israeli Keyboard
PS/2 101/102-key
Italian Keyboard
*$+TA196*
*$+TA196*
*$+TA197*
*$+TA197*
*$+TA199*
*$+TA199*
*$+TA198*
*$+TA198*
*$+TA200*
*$+TA200*
*$+TA209*
*$+TA209*
*$+TA201*
*$+TA201*
10
Cd39
To Set Workstation Configuration to Scan This Bar Code
PS/2 101/102-keys
Latin American
Spanish Keyboard
PS/2 101/102-keys
Norwegian Keyboard
PS/2 101/102-keys
Portuguese Keyboard
PS/2 101/102-keys
Spanish Keyboard
PS/2 101/102-keys
Swedish Keyboard
*$+TA202*
*$+TA202*
*$+TA203*
*$+TA203*
*$+TA204*
*$+TA204*
*$+TA205*
*$+TA205*
*$+TA206*
*$+TA206*
Compaq/PS-2 Series
PS/2 101/102-keys
Swiss Keyboard
PS/2 101/102-keys
United Kingdom Keyboard
Tandy 2500, 4016, 5000
Tandy 2500, 4016, 5000
Host-Connected Keyboard
*$+TA207*
*$+TA207*
*$+TA194*
*$+TA194*
*$+TA1*
*$+TA1*
*$+TA450*
*$+TA450*
11
DEC VT and VXT Series
Cd39
DEC VT and VXT Series
This section covers these workstations:
• DEC VT240 • DEC VT420
• DEC VT220 • DEC VT340
• DEC VT241 • DEC VT1000
• DEC VT320 • DEC VT1200
• DEC VT330 • DEC VXT2000
The individual Wedge Interface Guide corresponding to this section is part number
054134.
Cables
Use the two cables supplied with this WIF kit to connect the reader to your workstation
and keyboard, as shown in your Wedge Reader User’s Manual. To order a replacement
cable, use these part numbers:
• Wedge interface kit (P/N 054133)
• Keyboard cable (P/N 054132)
• Terminal cable (P/N 054131)
Power Supply
The reader requires an external power supply only if you use a laser scanner with these
workstations. Otherwise, the reader does not require an external power supply. For
either type of power supply, set the PCB jumper to connect pins 2 and 3 on the reader’s
rear panel.
Note: If you use an external power supply with the reader, you must plug in the power
supply before switching on the workstation. If you do not, the reader will lock up.
DEC VT420 Firmware Version
If you are using a DEC VT420, you must determine the terminal’s firmware version
(1.x or 2.x) before you configure the reader.
To determine the firmware version
1. Turn on the VT420 terminal.
2. Press F2 (Alt-Setup). The firmware version (1.x or 2.x) is displayed on the right
side of the screen. Take note of the number.
12
Cd39
3. Scan the correct configuration label from the next section, “Configuring the
Reader,” making sure it matches your terminal’s firmware version.
For example, the table below contains two configuration labels for VT420 terminals
with German keyboards:
DEC VT 420 (1.x Firmware)
LK201 and LK401 German
Keyboard
DEC VT 420 (2.x Firmware)
LK201 and LK401 German
Keyboard
If your VT420 has version 1.0 firmware and a German keyboard, you must scan the first
label to configure your reader.
DEC VT and VXT Series
*$+TA401*
*$+TA401*
*$+TA406*
*$+TA406*
Configuring the Reader
Scan the appropriate label to configure the reader for your workstation. The reader
should emit one low beep followed by four low beeps, indicating that the reader has
successfully stored the configuration and is ready to read labels. If the reader emits a
different beep sequence, refer to the Wedge Reader User’s Manual, Section 2, for
beeper identification.
To Set Workstation Configuration to Scan This Bar Code
DEC VT 220, 240, 241, 320, 330, 340
LK201 US/United Kingdom Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 Danish Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 Finnish Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 French Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 French Canadian Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 German Keyboard
*$+TA16*
*$+TA16*
*$+TA18*
*$+TA18*
*$+TA19*
*$+TA19*
*$+TA20*
*$+TA20*
*$+TA17*
*$+TA17*
*$+TA21*
*$+TA21*
13
DEC VT and VXT Series
Cd39
To Set Workstation Configuration to Scan This Bar Code
DEC VT 220, 240, 241, 320, 330, 340
LK201 Italian Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 Norwegian Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 Spanish Keyboard
DEC VT 220, 240, 241, 320, 330, 340
LK201 Swedish Keyboard
DEC VT 420 (1.x Firmware)
LK201 and LK401 US Keyboard
DEC VT 420 (1.x Firmware)
LK201 and LK401 French Keyboard
*$+TA212*
*$+TA212*
*$+TA213*
*$+TA213*
*$+TA214*
*$+TA214*
*$+TA215*
*$+TA215*
*$+TA22*
*$+TA22*
*$+TA400*
*$+TA400*
DEC VT 420 (1.x Firmware)
LK201 and LK401 German
Keyboard
DEC VT 420 (1.x Firmware)
LK201 and LK401 Italian
Keyboard
DEC VT 420 (1.x Firmware)
LK201 and LK401 Spanish
Keyboard
DEC VT 420 (2.x Firmware)
LK201 and LK401 US Keyboard
DEC VT 420 (2.x Firmware)
LK201 and LK401 French
Keyboard
DEC VT 420 (2.x Firmware)
LK201 and LK401 German Keyboard
DEC VT 420 (2.x Firmware)
LK201 and LK401 Italian
Keyboard
*$+TA401*
*$+TA401*
*$+TA402*
*$+TA402*
*$+TA403*
*$+TA403*
*$+TA404*
*$+TA404*
*$+TA405*
*$+TA405*
*$+TA406*
*$+TA406*
*$+TA407*
*$+TA407*
14
Cd39
To Set Workstation Configuration to Scan This Bar Code
DEC VT 420 (2.x Firmware)
LK201 and LK401 Spanish
Keyboard
DEC VT 1000, 1200
LK401 US Keyboard
DEC VXT2000
LK401-AA
US/United Kingdom Keyboard
DEC VT and VXT Series
*$+TA408*
*$+TA408*
*$+TA22*
*$+TA22*
*$+TA16*
*$+TA16*
15
Decision Data 349X Series
Cd39
Decision Data 349X Series
This section covers these workstations:
• Decision Data 3496
• Decision Data 3497
The individual Wedge Interface Guide for this section is part number 054271.
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
• Wedge interface kit (P/N 054270)
• Keyboard cable (P/N 054269)
• Terminal cable (P/N 054268)
Power Supply
The reader does not require an external power supply to work with the Decision Data
349X workstations. Set the PCB jumper to connect pins 1 and 2 on the reader’s rear
panel.
Configuring the Reader
Scan the appropriate label to configure the reader for your workstation. After the label is
scanned, the reader emits one low beep followed by four low beeps. The four low beeps
indicate the reader has successfully stored the configuration and is ready to read labels.
If the reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
To Set Workstation Configuration to Scan This Bar Code
Decision Data 3496
83-key Keyboard
Decision Data 3496
102-key Keyboard
*$+TA90*
*$+TA90*
*$+TA217*
*$+TA217*
16
Cd39
To Set Workstation Configuration to Scan This Bar Code
Decision Data 3496
122-key Keyboard
Decision Data 3497
83-key Keyboard
Decision Data 3497
102-key Keyboard
Decision Data 3497
122-key Keyboard
Decision Data 349X Series
*$+TA218*
*$+TA218*
*$+TA219*
*$+TA219*
*$+TA220*
*$+TA220*
*$+TA221*
*$+TA221*
17
Decision Data 3791
Cd39
Decision Data 3791
This section covers the Decision Data 3791 workstation. The individual Wedge
Interface Guide corresponding to this section is part number 054765.
Cables
Connecting the reader to the Decision Data 3791 workstation requires two cables: a
keyboard cable and a terminal cable. The interface kit contains both the keyboard and
terminal cables. If you need to order a replacement cable, use the part numbers listed
below:
• Wedge interface kit (P/N 054764)
• Keyboard cable (P/N 054763)
• Terminal cable (P/N 054762)
Power Supply
The reader does not require an external power supply to work with the workstation. Set
the PCB jumper to connect pins 1 and 2 on the reader’s rear panel.
Workstation Configuration
Scan the appropriate label to configure the reader for your workstation. After the label is
scanned, the reader emits one low beep followed by four low beeps. The four low beeps
indicate the reader has successfully stored the configuration and is ready to read labels.
If the reader emits a different beep sequence, refer to the Wedge Reader User’s Manual,
Section 2, for beeper identification.
To Set Workstation Configuration to Scan This Bar Code
83-key Keyboard
*$+TA227*
122-key Keyboard
*$+TA227*
*$+TA314*
*$+TA314*
18
Decision Data Series
This section covers these workstations:
• Decision Data 3596 • HP 700/32 • HP 700/94
• Decision Data 3597 • HP 700/43 • HP 700/96
• Decision Data 3697 • HP 700/44 • HP 700/98
• Decision Data 3776 • HP 700/60
• Decision Data 3777 • HP 700/92
The individual Wedge Interface Guide corresponding to this section is part number
054288.
Cables
Use the two cables supplied with this WIF kit to connect the reader to your workstation
and keyboard, as shown in your Wedge Reader User’s Manual. To order a replacement
cable, use these part numbers:
Cd39
Decision Data Series
• Wedge interface kit (P/N 054287)
• Keyboard cable (P/N 054286)
• Terminal cable (P/N 054285)
Power Supply
The reader might require external power, depending on the type of workstation you use:
Workstation Power Supply and Jumper Setting
Decision Data 3776
Decision Data 3777
Decision Data 3697
HP 700/43
HP 700/92
HP 700/94
HP 700/96
Workstation Power Supply and Jumper Setting
Decision Data 3596
Decision Data 3597
HP 700/32
HP 700/44
HP 700/60
HP 700/98
The reader does not require an external power supply to
work with these workstations. Set the PCB jumper to
connect pins 1 and 2 on the reader’s rear panel.
The reader requires an external power supply to work with
these workstations. Set the PCB jumper to connect pins 2
and 3 on the reader’s rear panel.
19
Decision Data Series
Cd39
Note: If you use an external power supply for the reader, plug in the power supply
before switching on the workstation. If you do not, the reader will lock up.
Configuring the Reader
Scan the appropriate label to configure the reader for your workstation. The reader
should emit one low beep followed by four low beeps, indicating that the reader has
successfully stored the configuration and is ready to read labels. If the reader emits a
different beep sequence, refer to the Wedge Reader User’s Manual, Section 2, for
beeper identification.
To Set Workstation Configuration to Scan This Bar Code
Decision Data 3596, 3597, 3697
83-key Keyboard
Decision Data 3596, 3597, 3697
102-key Keyboard
*$+TA173*
*$+TA173*
*$+TA222*
*$+TA222*
Decision Data 3596, 3597, 3697
122-key Keyboard
Decision Data 3776, 3777
102-key Keyboard
Decision Data 3776, 3777
122-key Keyboard
HP 700/32
ANSI US Keyboard
HP 700/32
ANSI French Keyboard
HP 700/32
ANSI German Keyboard
HP 700/32
ANSI Italian Keyboard
*$+TA172*
*$+TA172*
*$+TA460*
*$+TA460*
*$+TA461*
*$+TA461*
*$+TA413*
*$+TA413*
*$+TA414*
*$+TA414*
*$+TA415*
*$+TA415*
*$+TA416*
*$+TA416*
HP 700/32
ANSI Spanish Keyboa rd
20
*$+TA417*
*$+TA417*
Cd39
To Set Workstation Configuration to Scan This Bar Code
HP 700/43
US Keyboard
HP 700/43
Canadian/Fr e nch Ca nad ian
Keyboard
HP 700/43
Danish Keyboard
HP 700/43
Dutch Keyboard
HP 700/43
Finnish/Swedish Keyboard
HP 700/43
Flemish/French Keybo a rd
Decision Data Series
*$+TA298*
*$+TA298*
*$+TA328*
*$+TA328*
*$+TA336*
*$+TA336*
*$+TA342*
*$+TA342*
*$+TA335*
*$+TA335*
*$+TA334*
*$+TA334*
HP 700/43
German Keyboard
HP 700/43
Latin American Keyboard
HP 700/43
Norwegian Keyboard
HP 700/43
Spanish Keyboard
HP 700/43
Swiss (French/German)
Keyboard
HP 700/43
United Kingdom Keyboard
*$+TA329*
*$+TA329*
*$+TA331*
*$+TA331*
*$+TA332*
*$+TA332*
*$+TA340*
*$+TA340*
*$+TA337*
*$+TA337*
*$+TA333*
*$+TA333*
21
Decision Data Series
Cd39
To Set Workstation Configuration to Scan This Bar Code
HP 700/44
US Keyboard
HP 700/44
French Keyboard
HP 700/44
German Keyboard
HP 700/44
Italian Keyboard
HP 700/44
Spanish Keyboard
*$+TA423*
*$+TA423*
*$+TA424*
*$+TA424*
*$+TA425*
*$+TA425*
*$+TA426*
*$+TA426*
*$+TA427*
*$+TA427*
HP 700/60
ANSI US Keyboard
HP 700/60
PC US Keyboard
HP 700/60
ANSI French Keyboard
HP 700/60
PC French Keyboard
HP 700/60
ANSI German Keyboard
HP 700/60
PC German Keyboard
HP 700/60
ANSI Italian Keyboard
*$+TA418*
*$+TA418*
*$+TA462*
*$+TA462*
*$+TA419*
*$+TA419*
*$+TA463*
*$+TA463*
*$+TA420*
*$+TA420*
*$+TA464*
*$+TA464*
*$+TA421*
*$+TA421*
22
Loading...
