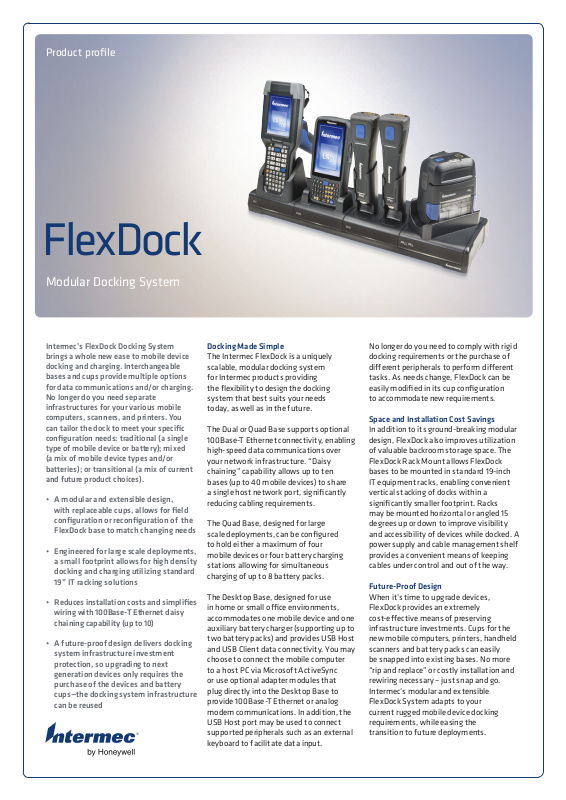

Intermec 852-916-002 Product Data Sheet

Product profile

FlexDock

Modular Docking System

Intermec’s FlexDock Docking System
brings a whole new ease to mobile device
docking and charging. Interchangeable
bases and cups provide multiple options
for data communications and/or charging.
No longer do you need separate
infrastructures for your various mobile
computers, scanners, and printers. You
can tailor the dock to meet your specific
configuration needs: traditional (a single
type of mobile device or battery); mixed
(a mix of mobile device types and/or
batteries); or transitional (a mix of current
and future product choices).

• A modular and extensible design,
with replaceable cups, allows for field
configuration or reconfiguration of the
FlexDock base to match changing needs

• Engineered for large scale deployments,
a small footprint allows for high density
docking and charging utilizing standard
19” IT racking solutions

• Reduces installation costs and simplifies
wiring with 100Base-T Ethernet daisy
chaining capability

• A future-proof design delivers docking
system infrastructure investment
protection, so upgrading to next
generation devices only requires the
purchase of the devices and battery
cups—the docking system infrastructure
can be reused

(up to 10)

Docking Made Simple

The Intermec FlexDock is a uniquely
scalable, modular docking system
for Intermec products providing
the flexibility to design the docking
system that best suits your needs
today, as well as in the future.

The Dual or Quad Base supports optional
100Base-T Ethernet connectivity, enabling
high-speed data communications over
your network infrastructure. “Daisy
chaining” capability allows up to ten
bases (up to 40 mobile devices) to share
a single host network port, significantly
reducing cabling requirements.

The Quad Base, designed for large
scale deployments, can be configured
to hold either a maximum of four
mobile devices or four battery charging
stations allowing for simultaneous
charging of up to 8 battery packs.

The Desktop Base, designed for use
in home or small oce environments,
accommodates one mobile device and one
auxiliary battery charger (supporting up to
two battery packs) and provides USB Host
and USB Client data connectivity. You may
choose to connect the mobile computer
to a host PC via Microsoft ActiveSync
or use optional adapter modules that
plug directly into the Desktop Base to
provide 100Base-T Ethernet or analog
modem communications. In addition, the
USB Host port may be used to connect
supported peripherals such as an external
keyboard to facilitate data input.

No longer do you need to comply with rigid
docking requirements or the purchase of
dierent peripherals to perform dierent
tasks. As needs change, FlexDock can be
easily modified in its cup configuration
to accommodate new requirements.

Space and Installation Cost Savings

In addition to its ground-breaking modular
design, FlexDock also improves utilization
of valuable backroom storage space. The
FlexDock Rack Mount allows FlexDock
bases to be mounted in standard 19-inch
IT equipment racks, enabling convenient
vertical stacking of docks within a
significantly smaller footprint. Racks
may be mounted horizontal or angled 15
degrees up or down to improve visibility
and accessibility of devices while docked. A
power supply and cable management shelf
provides a convenient means of keeping
cables under control and out of the way.

Future-Proof Design

When it’s time to upgrade devices,
FlexDock provides an extremely
cost-eective means of preserving
infrastructure investments. Cups for the
new mobile computers, printers, handheld
scanners and batter y packs can easily
be snapped into existing bases. No more
“rip and replace” or costly installation and
rewiring necessary – just snap and go.
Intermec’s modular and extensible
FlexDock System adapts to your
current rugged mobile device docking
requirements, while easing the
transition to future deployments.

Physical Charac teristics

Dimensions (L x W x H) & Weight

(Base heights vary slightly based on type of cup used)

Desktop Base: 23.1 x 12.7 x 4 cm (9.10 x 5.0 x 1.58 in);

541.5g (19.1 oz)

Dual Base: 23.1 x 12.7 x 4 cm (9.10 x 5.0 x 1.58 in); 553
g (18.8 oz) or 654.9 g (23.1 oz) with Ethernet

Quad Base: 44.45 x 12.7 x 4 cm (1 7.5 x 5.0 x 1.58 in)
Power Supply (Dual/Desktop B ase): 13 x 7.6 x 3.3 cm

(5.1 x 3.0 x 1.3 in); 272.2 g (9.6 oz)
Power Supply (Quad Base): 18 x 5.8 x 3.9 cm (7.09 x

2.27 x 1.52 in); 688.9 g (24.3 oz)

Cups: 10.6 x 12.5 cm (4.18 x 4.94 in); Cup height varies
from 4.8 to 10.2 cm (1.9 to 4.0 in); Cup weight varies
from 90.7 to 124.8 g (3.2 to 4.4 oz)

Supported Mobile Computers

CK3, CK70, CK71, CN3, CN3e, CN4, CN4e, CN50, CN51,
CN70, CN70e, CS40

Supported Mobile Printers

PR2, PR3

Supported Handheld Scanners

SF61B

Cups

Mobile Computer: Accommodates one mobile
computer; provide charging and data communication
connectivity; front-mounted Ethernet connectivity
indicator (where applicable)
Handheld Scanner: Accommodates one handheld
scanner; provides charging with status via indicators
on scanner.
Mobile Printer: Accommodates one mobile printer;
provides char ging with status via indicators on
printer.
Battery P ack: Accommodates up to two batter y
packs per cup; provides charging; front-mounted
charge status indicator for each pack.

Data Communications

Quad & Dual Base: Optional Ethernet 100Base-T;
RJ45 Uplink and Downlink por ts
Desktop Base: USB 2.0 Full Speed, Standard USB-A
Host port, Micro USB -B Client port
Desktop Base accepts optional Ethernet 100Base-T
or 56 Kbps Analog Modem modules via USB Host por t

Battery Char ging Time

Typically less than 4 hours; maximum 6 hour s for
fully discharged packs

Mounting Options

Rack Mou nting Kit: Shelf for mounting one Quad Base
or one Dual B ase with Pow er Supply Shelf undernea th.
Options for moun ting horizontal; adapters for 15
degree upwar d or downwar d angle mounting.

Regulatory Approvals and Compliance
Docks: 1002UU01, 1002UU02, 1002UU03,

1002UU04, 1002UU05
Cups: 1002UD01, 1002UD02, 1002UD03, 1002UD04,
1002UD05, 1002UD06, 1002UC01, 1002UC02, 1002UC05

Power Supplies: 9004AE01, 9006AE01
Safe ty: cULus Listed (pending), DEMKO (pending )
EMC: Class B – FCC/ICES/EN (Desktop Base and Dual

Base configurations)
Class A – FCC/IC/EN (Dual Base, Quad B ase Ethernet
and Quad Base Charge-only configurations)
Environmental: EU Direc tives – WEEE, RoHS,
Packaging& Waste Packaging

Contact your In termec Par tnerNet Reseller
or Sales Representative for full information
on available configurations.

Dual Dock with two CK70s

Dual Dock configur ed as 4-position
External Batter y Charger

Dual Dock with CN7 0 and PR2

For a comprehensive overview of
FlexDock cups available by product line,
see the FlexDock System Accessory Guide
located at: www.intermec.com/FlexDock
