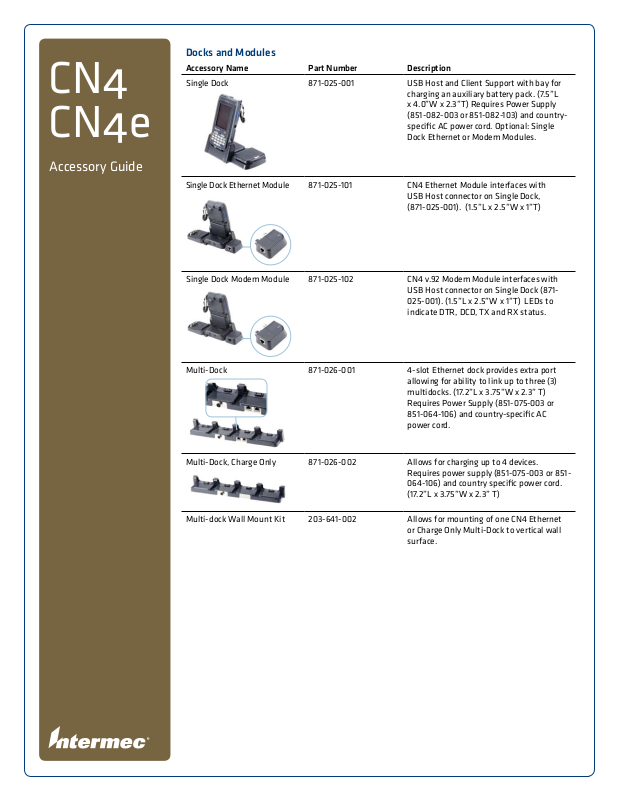

Accessory Guide
Docks and Modules
Accessory Name Part Number Description
Single Dock 871-025-001 USB Host and Client Support with bay for
charging an auxiliary battery pack. (7.5”L
x 4.0”W x 2.3”T) Requires Power Supply
(851-082-003 or 851-082-103) and countryspecific AC power cord. Optional: Single
Dock Ethernet or Modem Modules.
Single Dock Ethernet Module
Single Dock Modem Module 871-025-102 CN4 v.92 Modem Module interfaces with
871-025-101 CN4 Ethernet Module interfaces with
USB Host connector on Single Dock,
(871-025-001). (1.5”L x 2.5”W x 1”T)
USB Host connector on Single Dock (871025-001). (1.5”L x 2.5”W x 1”T) LEDs to
indicate DTR, DCD, TX and RX status.
Multi-Dock 871-026-001 4-slot Ethernet dock provides extra port
allowing for ability to link up to three (3)
multidocks. (17.2”L x 3.75”W x 2.3” T)
Requires Power Supply (851-075-003 or
851-064-106) and country-specific AC
power cord.
Multi-Dock, Charge Only 871-026-002 Allows for charging up to 4 devices.
Requires power supply (851-075-003 or 851064-106) and country specific power cord.
(17.2”L x 3.75”W x 2.3” T)
Multi-dock Wall Mount Kit 203-641-002 Allows for mounting of one CN4 Ethernet
or Charge Only Multi-Dock to vertical wall
surface.
Page 2
CN
CNe
Docks and Modules
Accessory Name Part Number Description
Vehicle Dock 871-027-001 (CN4)
871-027-101 (CN4e)
Provides 3.5 mm headphone (output) jack
to allow for integration into the vehicle
audio system. Cabled RS232 or USB Host
support is also available. Requires use of
Intermec RS232 Serial cable (225-737-001)
or Intermec USB cable (VE011-2016).
Accessory Guide
Handsfree speakerphone capabilities will
be supported via standard, o-the-shelf
Bluetooth headset and handsfree
speakerphone systems.
The CN4 vehicle dock uses the same
mounting
power kits (see below) as the CN3 and 700
Series vehicle dock. (5.65”L x 5.31” W x
2.84”T)
Vehicle Dock Install Kit 203-802-001 Preferred Solution. For connection of
Vehicle Dock (871-027-001 or 871-027-101)
directly to vehicle battery. Includes power
cables and cable mounting hardware.
Order instructions (962-000-021)
separately.
Vehicle Dock Fuse
Block Power Kit
Vehicle Dock Serial Cable 225-737-001 Adapts CN4 Vehicle Dock (871-027-001 or
Cable, Power, Dock
to Fuse Block
Vehicle Dock Mounting Kit 805-611-001 Allows mounting of Vehicle Dock
Auto Adapter, V-Docks,
3S Circular
203-803-001 Provides connection to vehicle fuse
block. Requires Power Cable (226-109-
003). Order instructions (962-040-004)
separately.
871-027-101) Comm Connector to RS232
Serial (DB9M) for connectivity to serial
peripherals.
226-109-003 Used with Vehicle Dock Fuse Block
Power Kit (203-803-001).
(871-027-001 or 871-027-101) in route
vehicle applications. Consists of one
4¾” adjustable pivot arm with two
1½” stainless steel balls, and assembly
hardware. Due to wide range of possible
applications, this kit does not include
hardware for securing mount to vehicle.
(Same as used with CN3 and 700 Series.)
852-057-005 Auto Cigarette Lighter Adapter used to
power the CN4 Vehicle Dock (871-027 001).
Connects to 3-pin circular power supply
found on back of the v-dock.
system (805-611-001) and vehicle
USB Cable VE011-2016 Adapts CN4 Vehicle Dock (871-027-001
or 871-027-101) Comm Connector or
USB Snap-on adapter (850-559-001) to
USB-A Female for connectivity to USB
peripherals. Optional: Use 203-810001 Cable Retainer Kit to secure USB
connectors.
2
USB Cable, Developers VE011-2018 For use with USB Snap-on adapter (850-
559-001) to support USB active sync/client
requirements.
Page 3
CN
CNe
Accessory Guide
Holsters & Handles
Accessory Name Part Number Description
Standard Belt Holster 815-060-001 (CN4)
815-065-001 (CN4e)
Lightweight holster designed for use with
handheld applications where scan handle
is not required. Includes integrated belt
clip that allows for easy attachment to
belt.
Snap-on Adapters
Accessory Name Part Number Description
Mag Strip Reader 850-557-001 Attaches to heel of CN4 devices and
provides magnetic stripe reader. Optional:
Power Supply (851-089-003) and countryspecific AC power cord.
RS232/DEX Snap-on Adapter 850-558-002 Snap-on adapter for enabling RS232 or
DEX cabled support from bottom of CN4.
Must order cables separately. Adapter
provides DB9M connector. Must order DEX
cable (236-194-001) separately. Supports
use of auto power charger(852-066-001) or
AC power supply (851-089-003).
USB Pass-through
Snap-on Adapter
Ethernet Snap-on Adapter 850-560-001 Supports RJ45 connection. Must purchase
Power/Audio Snap-on Adapter 850-561-002 Snap-on power adapter recommended for
850-559-001 Snap-on adapter for enabling USB host
or client communications from bottom
of CN4. Must order cables separately.
Adapter provides DB15M connector.
Requires use of USB adapter cable (VE0112016 or VE011-2018). Supports use of auto
power charger (852-066-001) or AC power
supply (851-089-003).
cable separately. Supports use of auto
power charger (852-066-001) or AC power
supply (851-089-003).
in-field charging solutions not requiring
vehicle dock. Also provides 2.5mm
standard audio jack for use of headset
with right angle connector. Supports use
of auto power charger (852-066-001) or AC
power supply (851-089-003 or 851-089-
103).
3
Page 4
CN
CNe
Batteries and Chargers
Accessory Name Part Number Description
STD Capacity Battery Pack 318-016-001 One (1) standard 8.1 watt hours battery pack
for the CN4 mobile computer.
For use with CN4 only.
Accessory Guide
EXT Capacity Battery Pack 318-016-002 One (1) extended 14.8 watt hours battery
pack for CN4 or CN4e.
Quad Battery Charger 852-065-001 Charges four CN4 battery packs. Requires
Power Supply (851-082-003 or 851-082-103)
and country-specific AC power cord.
Cables
Accessory Name Part Number Description
RS232 Cable, DB9 F to DB25
M, 6 feet
USB-A to USB-B Cable,
2 meter
USB-A to USB-Mini B Plug
Cable, 2 meter
DB9 to DEX, Cable 236-194-001
226-084-002 Connects Vehicle Dock RS232 Adapter (225-
737-001) to External Modem, 6820 Printer,
or other serial device.
321-576-004 Use with CN4 Single Dock (871-025-001)
or Vehicle Dock USB Adapter Cable for
ActiveSync (VE011-2016) connection to
PC USB port. Also connects to peripherals
equipped with USB-B Female jack.
321-611-102 Use with CN4 Single Docks (871-025-001)
or Vehicle Dock USB Adapter Cable (VE011-
2016) for connection to PB42 printer or
other peripherals equipped with USB-Mini
B Female jack.
For use with Snap-on RS232/DEX Adapter
(850-558-002). Includes thumb screws for
secure attachment.
Cable, Vehicle Power 236-065-001 Split (Y) Power Cable from Truck battery
Cable (206-875-xxx) to PB42 (or PB42
Vehicle Cradle), CK60, CN3 or CN4 Series
Vehicle Dock
4
Page 5
CN
Power Supplies and Adapters
Accessory Name Part Number Description
Universal Power Supply,
12VDC, 3Skt Output
851-075-003
851-064-106
America, New Zealand,
Australia only)
(North
Use with CN4 Multi-docks (871-026-001 &
871-026-002). Order country-specific AC
power cord separately.
CNe
Accessory Guide
Universal Power Supply,
12VDC 50W FW5012
Universal Power Supply, 5V
FW1805 2.35x0.7
AC/DC Power Adapter 851-090-001 Attaches to the bottom of the CN4
Auto Power Adapter, RoHS 852-066-001 Auto Cigarette Lighter Adapter with
851-082-003
851-082-103
America only)
851-089-003
851-089-103
America only)
(North
(North
Use with CN4 Single Dock (871-025-001)
or CN4 Quad Battery Charger (852-065-
001). Order country-specific AC power cord
separately.
AC power supply with barrel jack. Allows
for charging CN4 devices without a dock,
however requires use of CN4 Power
Adapter (851-090-001) or Power Snap-on
Adapter (850-561-002). Order countryspecific AC power cord separately.
device’s docking connector to support
barrel jack connections. Supports casual
inpremise use of universal AC Power
supply (851-089-003/103) or the Auto
Cigarette Lighter Power Adapter (852-066-
001).
barrel jack that allows for charging CN4
handheld. Requires use of AC/DC Power
Adapter (851-090-001) or Power Snap-on
Adapter (850-561-002).
Copy right © 200 9 Intermec
Technolo gies Corpo ration. Al l
righ ts reser ved. Inter mec is a
regi stered tr ademark of In termec
Technolo gies Corpo ration.
All oth er trademar ks are the
prope rty of th eir respec tive
owner s. Printe d in the U.S.A .
611 941-0 1A 04/09
Replacement Parts
Accessory Name Part Number Description
Cable Retainer Replacement
Kit
Screen Cleaner Kit,
Pre-Moist Wipes
Screen Protector,
10 Each
Screen Protector, CN3, CN4 or
CK3, 25 Ea
Kit, Stylus,tethered CN3 and
CN4 Series (5 pack)
Kit, Handstrap, CN4 (5 pack) 203-814-001
Handstrap, Kit, CN3e and
CN4e (5 Pack)
203-810-001 Contains five (5) sets of Cable Retainers
used to secure USB connections.
346-065-101 Includes 24 pre-moistened, non-abrasive,
non-streaking 4x7” wipes.
346-069-107 Contains ten (10) self-adhesive screen
protectors.
346-069-207
203-812-001
203-853-001
Contains twenty-five (25) self-adhesive
screen protectors
Contains five (5) replacement styli with
tether
Contains five (5) sets of replacement
handstraps.
Contains five (5) sets of replacement
handstraps.
