Intermec 815-090-001 Product Data Sheet

Docks and Modules

CN51
CN50

Accessory Guide

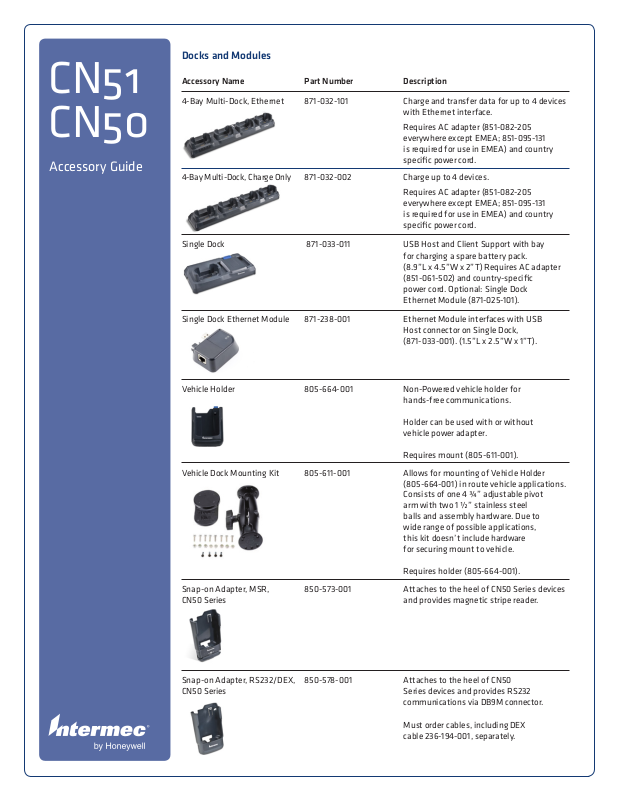

Accessory Name Part Number Description

4-Bay Multi-Dock, Ethernet 871-032-101 Charge and transfer data for up to 4 devices

with Ethernet interface.

Requires AC adapter (851-082-205
everywhere except EMEA; 851-095-131
is required for use in EMEA) and country
specific power cord.

4-Bay Multi-Dock, Charge Only

Single Dock 871-033-011 USB Host and Client Support with bay

Single Dock Ethernet Module 871-238-001 Ethernet Module interfaces with USB

871-032-002 Charge up to 4 devices.

Requires AC adapter (851-082-205
everywhere except EMEA; 851-095-131
is required for use in EMEA) and country
specific power cord.

for charging a spare battery pack.
(8.9”L x 4.5”W x 2”T) Requires AC adapter
(851-061-502) and country-specific
power cord. Optional: Single Dock
Ethernet Module (871-025-101).

Host connector on Single Dock,
(871-033-001). (1.5”L x 2.5”W x 1”T).

Vehicle Holder 805-664-001 Non-Powered vehicle holder for

hands-free communications.

Holder can be used with or without
vehicle power adapter.

Requires mount (805-611-001).

Vehicle Dock Mounting Kit 805-611-001 Allows for mounting of Vehicle Holder

(805-664-001) in route vehicle applications.
Consists of one 4 ¾” adjustable pivot
arm with two 1 ½” stainless steel
balls and assembly hardware. Due to
wide range of possible applications,
this kit doesn’t include hardware
for securing mount to vehicle.

Requires holder (805-664-001).

Snap-on Adapter, MSR,
CN50 Series

Snap-on Adapter, RS232/DEX,
CN50 Series

850-573-001 Attaches to the heel of CN50 Series devices

and provides magnetic stripe reader.

850-578-001 Attaches to the heel of CN50

Series devices and provides RS232
communications via DB9M connector.

Must order cables, including DEX

1

cable 236-194-001, separately.

Docks and Modules (cont’d)

CN51
CN50

Accessory Guide

Accessory Name Part Number Description

Snap-on Adapter, USB,
CN50 Series

Desktop Adapter, USB,
CN50 Series

850-581-001 Attaches to the heel of CN50 Series

devices and provides USB Host and Client
communications via HDB15M connector.
Requires USB cable VE011-2018 (Client) and/
or VE011-2016 (Host).

Must order cables separately.

852-073-001 Desktop adapter with Micro-AB USB port

provides USB Host and Client connectivity
for CN50 and CN51, and charging (via USB)
for CN51.

Must order cables and power adapters
separately.

Batteries and Chargers

Accessory Name Part Number Description

Battery Pack, CN50

318-039-001 Spare or replacement battery pack for

CN50 (one pack included with each
mobile computer), 3900 mAH, 3.7 V Li-Ion
Prismatic Cell. Provides 14.4 watt hours.

Battery Pack, CN51

Quad Battery Charger 852-068-001 Simultaneously charge up to 4 batteries.

AC Adapter for Multi-Dock 851-082-205;

AC Adapter for Quad Battery
Charger and Single Dock

318-052-001 Spare or replacement battery pack for

CN51 (one pack included with each mobile
computer), 3920 mAH, 3.7 V, Li-Ion
Prismatic Cell. Provides 14.5 watt hours.

Requires AC adapter (851-061-502)
and country specific power cord.

AC adapter for multi-docks (871-032-101)
851-095-131 is required
for use in EMEA

851-061-502 AC adapter for quad charger (852-068-001)

and (871-032-002).

Not for Quad Battery Charger (852-068-001)

Requires country specific

power cord (page 3).

and single dock (871-033-001).

Not to be used for the “Ethernet” multi-dock

(871-032-101) and the “charge only”

multi-dock (871-032-002)

Requires country specific

power cord (page 3).

2

2

Batteries and Chargers (cont’d)

CN51
CN50

Accessory Guide

Accessory Name Part Number Description

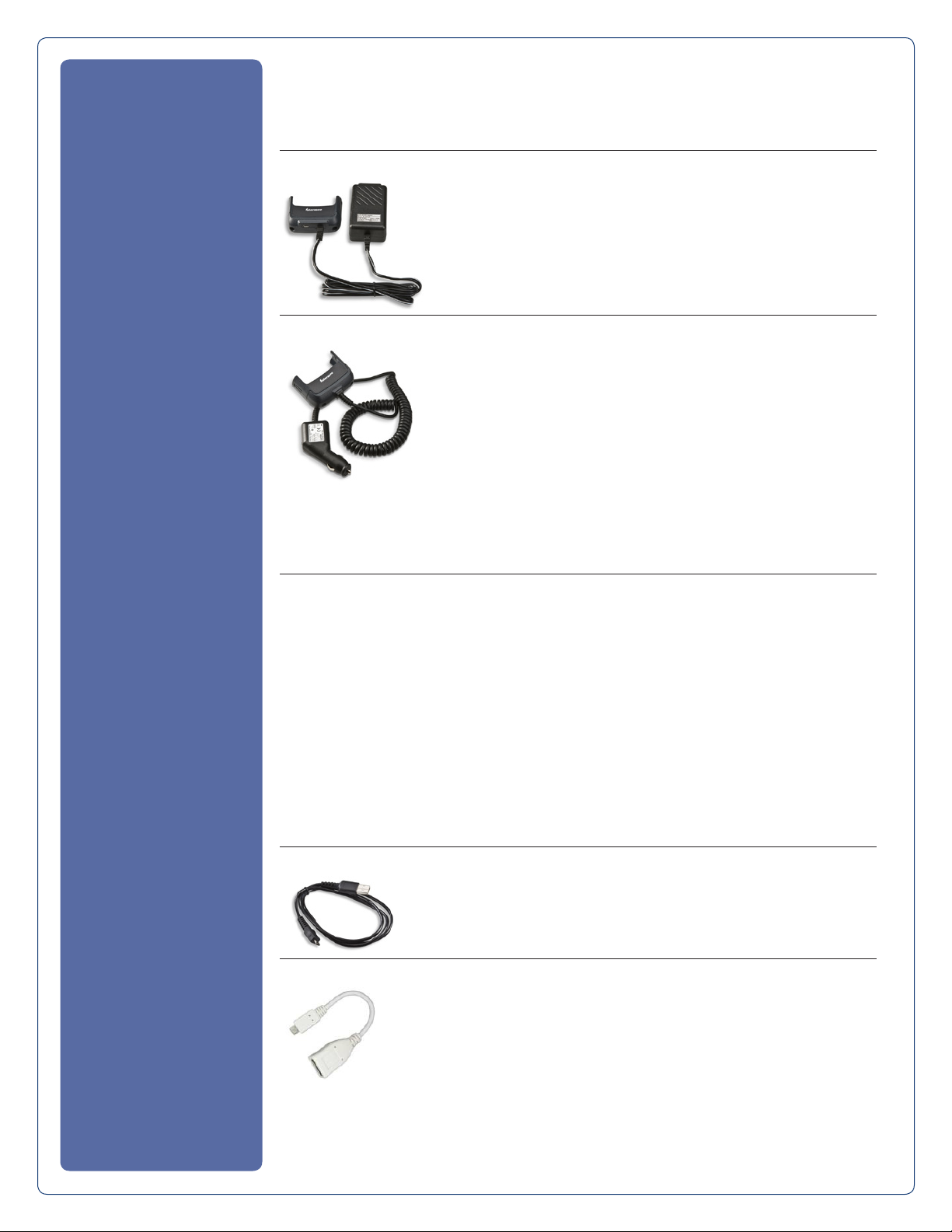

AC Power Adapter 851-093-201 Desktop AC power and communication

adapter with USB port, enabling

desktop charging and data transfer.

Requires country specific

power cord (page 3).

Vehicle Power Adapter 852-070-011 Vehicle 12V–24V adapter for

charging on the go.

Can be used as a heel clip on CN50 Series

devices or it can be permanently mounted

to the bottom of the vehicle holder.

Power Cords

Accessory Name Part Number Description

AC Power Cord 321-470-001

321-500-001
071918
1-974027-025
1-974028-025
1-974029-020
1-974030-025
321-471-002
321-501-002
321-502-002

AC Power Cord, Switzerland

AC Power Cord, Japan

AC Power Cord, China RoHS

AC Power Cord, Europe RoHS

AC Power Cord, US RoHS

AC Power Cord, UK RoHS

AC Power Cord, Australia RoHS

AC Power Cord, Italy RoHS

AC Power Cord, Denmark RoHS

AC Power Cord, India/S Africa RoHS

Data Cables

Accessory Name Part Number Description

USB Data Cable 236-209-001

USB Data Cable Product Links

USB-A to USB Micro-B Plug (2 meters)

Connects the desktop adapter (851-093-001)

to PC USB port enabling quick data transfer.

Micro USB (Male) to Standard USB (Female)

For connecting an accessory

such as a memory stick.

See Digi-key # H11576-ND

33

Data Cables (cont’d)

CN51
CN50

Accessory Guide

Accessory Name Part Number Description

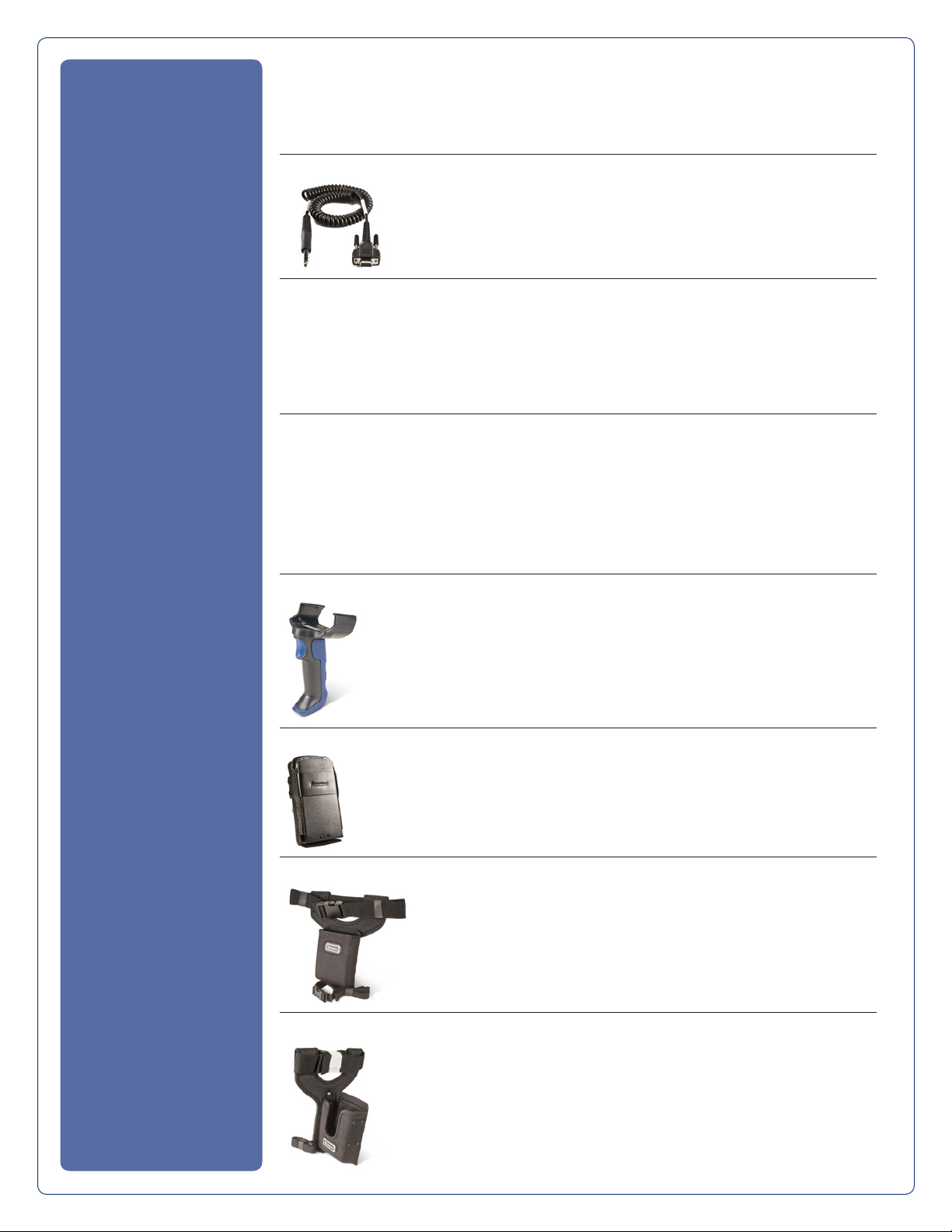

DB9 to DEX Cable 236-194-001

Cable, Single USB Host VE011-2016

Cable, Single USB Client VE011-2018 For use with USB Snap-on Adapter (850-

Handles and Holsters

Accessory Name Part Number Description

For use with RS232/DEX Adapter

(850-578-001). Includes thumb

screws for secure attachment.

For use with USB Snap-on Adapter (850-

581-001) to USB-A Female receptacle for

connectivity to USB Host peripherals. Includes

thumb screws for secure attachment.

581-001) to provide USB Client (ActiveSync)

connection to host PC. Includes thumb

screws for secure attachment.

Scan Handle, CN51 805-679-001 Snaps easily on or o CN51. Ergonomic

handle which angles mobile computer

to enable viewing while scanning.

Not compatible with CN50, Vehicle

Docks or Vehicle Holder.

Belt Holster, CN50 Series 815-066-001 Belt holster for CN50 Series devices

without Scan Handle.

Holster, CN50 Series 815-089-001 Holster, CN50 Series devices

without Scan Handle

Holster, CN51 w/Scan Handle 815-090-001 Holster, CN51 with Scan Handle

4

4

Replacement Parts

CN51
CN50

Accessory Guide

Accessory Name Part Number Description

Kit – Handstrap, CN50 203-899-001 Handstrap replacement for CN50 (5 Pack)

Kit – Handstrap, CN51 213-008-001 Handstrap replacement for CN51 (5 Pack)

Kit – Handstrap,
Stretch-Limiter, CN51

Kit – Stylus Tethered, CN50 203-900-001

Kit – Stylus Tethered, CN51 213-025-001

Kit – Screen Protector, CN50 346-069-104 Clear plastic LCD overlays for CN50. Same

Kit - Screen Protector, CN51 346-085-001 Clear plastic LCD overlays for CN51 (10 Pack)

213-024-001 Handstrap replacement for CN51 (5 Pack)

Stylus tethered replacement for CN50 (5 pack)

Stylus tethered replacement for CN51 (5 Pack)

as CK3. (10 Pack)

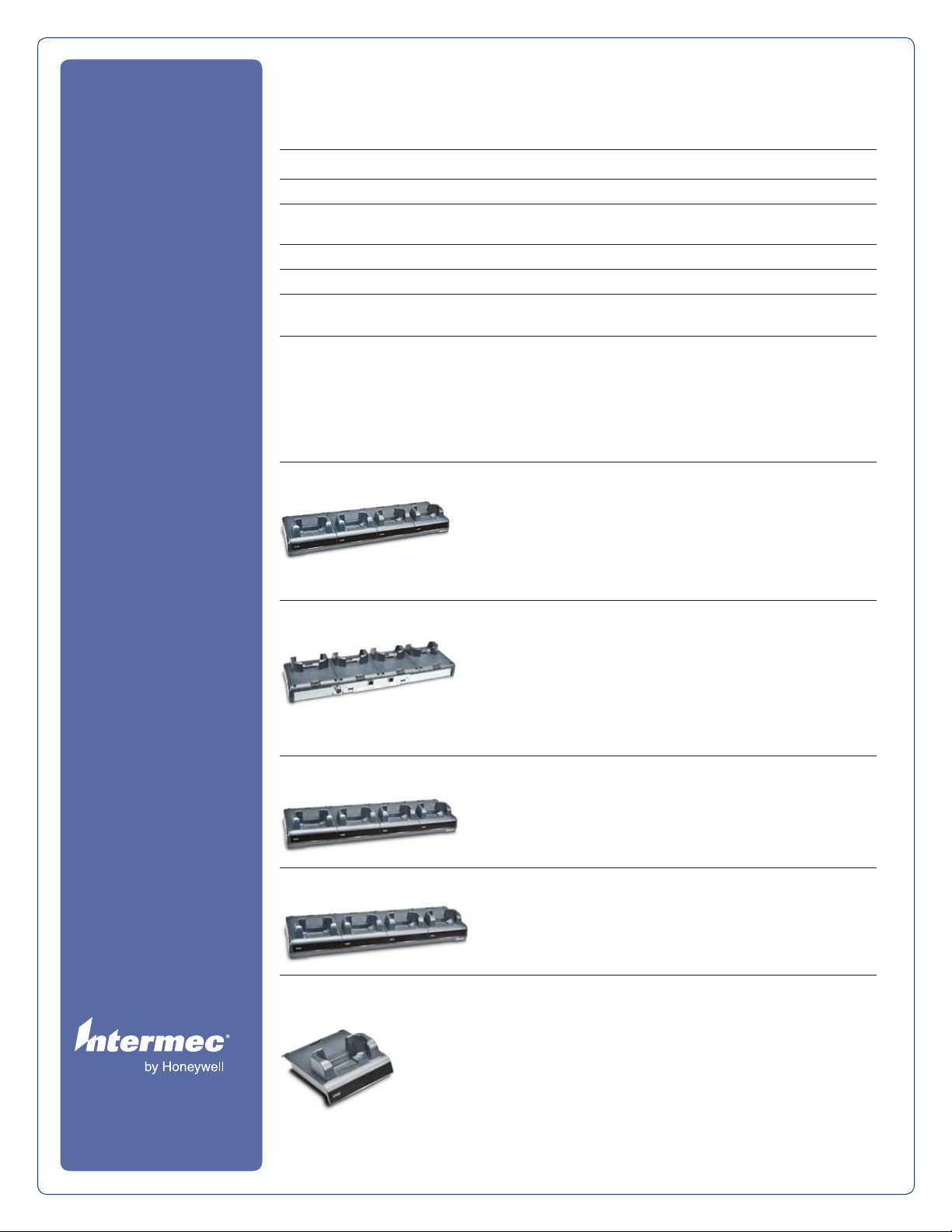

FlexDock Supplies

Accessory Name Part Number Description

Quad Dock-Ethernet DX4A1555510 Accommodates four mobile computers.

Includes power supply, North American
Power Cord. Features 100Base-T
Ethernet connectivity; provides 2 –
RJ45 jacks for upstream connections

front view

and downstream “daisy-chain”
connections of up to 10 docks.

Quad Dock-Ethernet DX4A1555500 Accommodates four mobile computers.

Includes power supply. Order power cord
separately. Features 100Base-T Ethernet
connectivity; provides 2 – RJ45 jacks for
upstream connections and downstream

back view

Quad Dock-Charge Only DX4A2555510 Accommodates four mobile computers –

Quad Dock-Charge Only DX4A2555500 Accommodates four mobile computers –

Mobile Computer Cup,
CN50 Series

203-918-001 Supports (1) mobile computer when

“daisy-chain” connections of up to 10
docks. Country specific power cords must
be ordered separately.

CHARGE ONLY. Includes power supply and
North American Power Cord.

CHARGE ONLY. Includes power supply.
Country specific power cords must be
ordered separately.

snapped into a bay of base unit.
