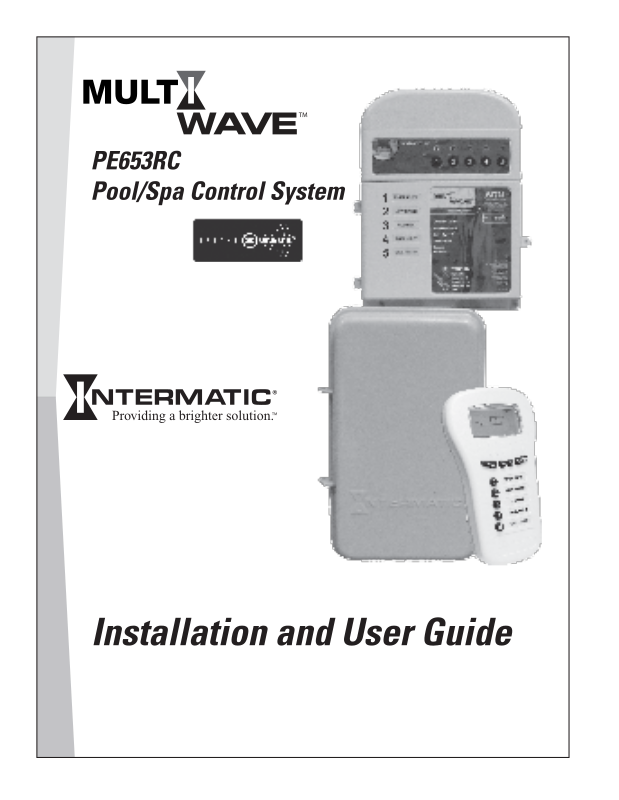

Intermatic PE000653, PE000953 Users Manual

2 Multi-Wave PE653-PE953 Installation Guide

Important Safety Instructions

All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

DANGER: To reduce the risk of injury, do not remove the suction ﬁttings of your spa or hot tub. Never operate a spa or hot tub if the suction ﬁttings are broken or missing. Never replace a suction ﬁtting with one rated less than the ﬂow rate marked on the equipment assembly.

WARNING: Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6°F. The symptoms of hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia include: 1) unawareness of impending danger; 2) failure to perceive heat; 3) failure to recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women; 6) unconsciousness resulting in a danger of drowning.

WARNING: To Reduce the Risk of Injury —

The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F • (38°C) and 104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.

Since excessive water temperatures have a high potential for causing fetal damage during • the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C).

Before entering a spa or hot tub, the user should measure the water temperature with an • accurate thermometer since the tolerance of water temperature-regulating devices varies.

The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to • unconsciousness with the possibility of drowning.

Obese people and people with history of heart disease, low or high blood pressure, • circulatory system problems, or diabetes should consult a physician before using a spa.

People using medication should consult a physician before using a spa or hot tub since some • medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.

WARNING: Risk of electric shock – Install the control center at least ﬁve (5) feet (152.4cm) from the inside wall of the pool and/or hot tub using non-metallic plumbing. Canadian installations must be at least three (3) meters from the water.

• Children should not use spas or hot tubs without adult supervision.

Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair • entrapment.

People using medications and/or having an adverse medical history should consult a • physician before using a spa or hot tub.

People with infectious diseases should not use a spa or hot tub.•

To avoid injury, exercise care when entering or exiting the spa or hot tub.•

Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid • unconsciousness and possible drowning

Pregnant or possibly pregnant women should consult a physician before using a spa or hot • tub.

Water temperature in excess of 100°F (38°C) may be injurious to your health.•

Before entering a spa or hot tub measure the water temperature with an accurate • thermometer.

Do nut use a spa or hot tub immediately following strenuous exercise.•

Prolonged immersion in a spa or hot tub may be injurious to your health.•

Safety 3

Do not permit any electric appliance (such as a light, telephone, radio, or television) within 5 • feet (1.5m) of a spa or hot tub.

The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in • hot tubs and spas.

Water temperature in excess of 100°F (38°C) may be hazardous to your health.•

WARNING: To reduce the risk of electrical shock, connect the grounding terminal in the metal enclosure to the grounding terminal of your electric service or supply panel with a continuous copper conductor having green insulation and one that is equivalent in size to the circuit conductors supplying this equipment. In addition, a second wire connector should be bonded with a no. 8 AWG (4.115mm) copper wire to any metal ladders, water pipes, or other metal within ﬁve (5) feet (1.52m) of the tub.

WARNING: A ground-fault circuit-interrupter must be provided if this device is used to control underwater lighting ﬁxtures. The conductors on the load side of the ground-fault circuitinterrupter shall not occupy conduit, boxes or enclosures containing other conductors unless the additional conductors are also protected by a ground-fault circuit-interrupter. Refer to local codes for complete details.

Providing a brighter solution.™

4 Multi-Wave PE653-PE953 Installation Guide

Contents

Important Safety Instructions ...........................................................................................................2

Section 1: System Overview .........................................................................................................8

Additional Detail on Key Components ......................................................................................... 9

Hand-Held Controller (PE953) ................................................................................................9

24-Volt Valve Actuator (PE24VA) ............................................................................................ 9

Water Temperature Sensor (PA122) .........................................................................................9

24-Volt Valve/Pump Switch (P4243ME) ................................................................................ 10

Optional — Freeze (Air Temperature) Sensor (178PA28A) ....................................................10

Section 2: Plumbing Examples ....................................................................................................11

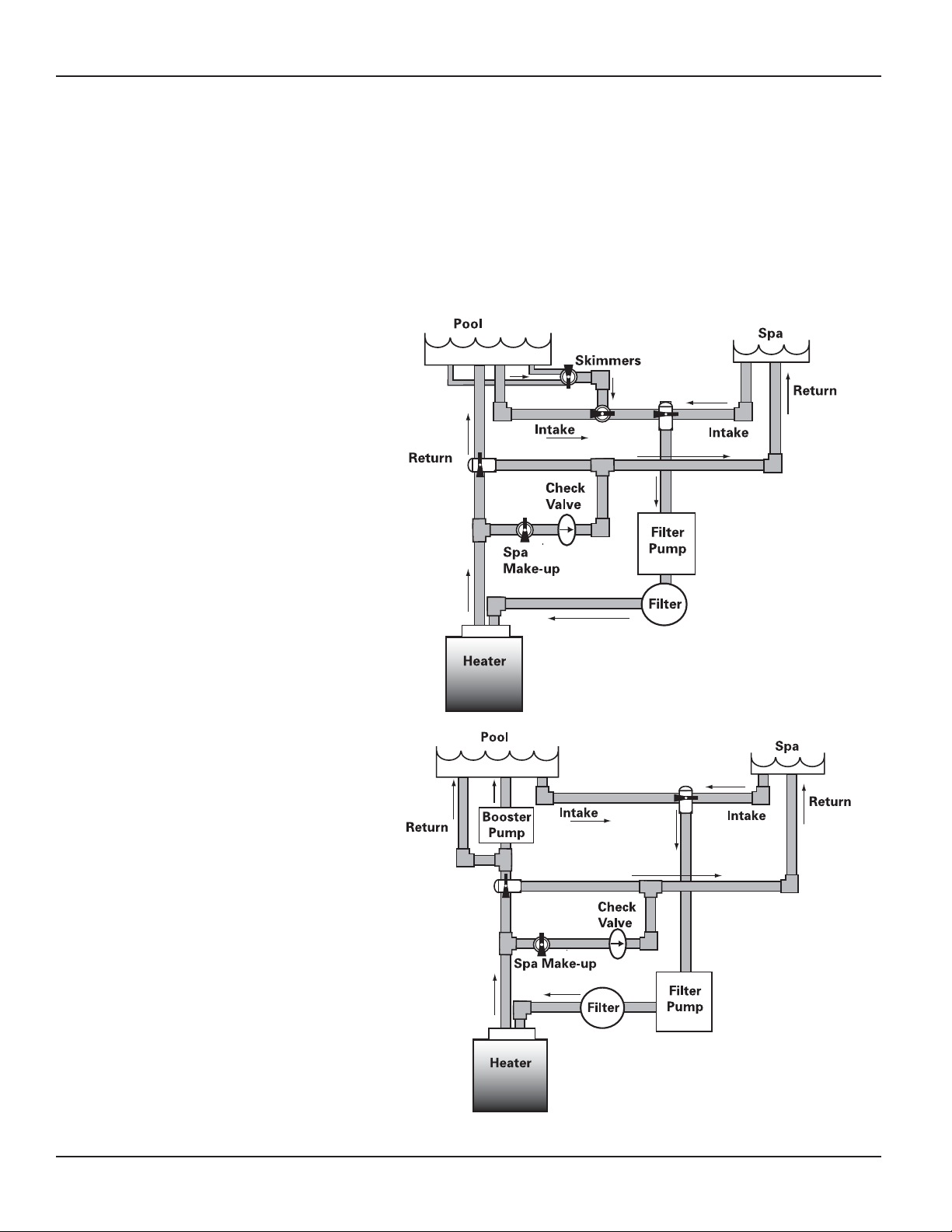

For Pool and Spa Combo Installations ........................................................................................11

For Booster Pump Pool Cleaner Installations............................................................................... 11

For Non-Booster Pump Pool Cleaner Installations....................................................................... 12

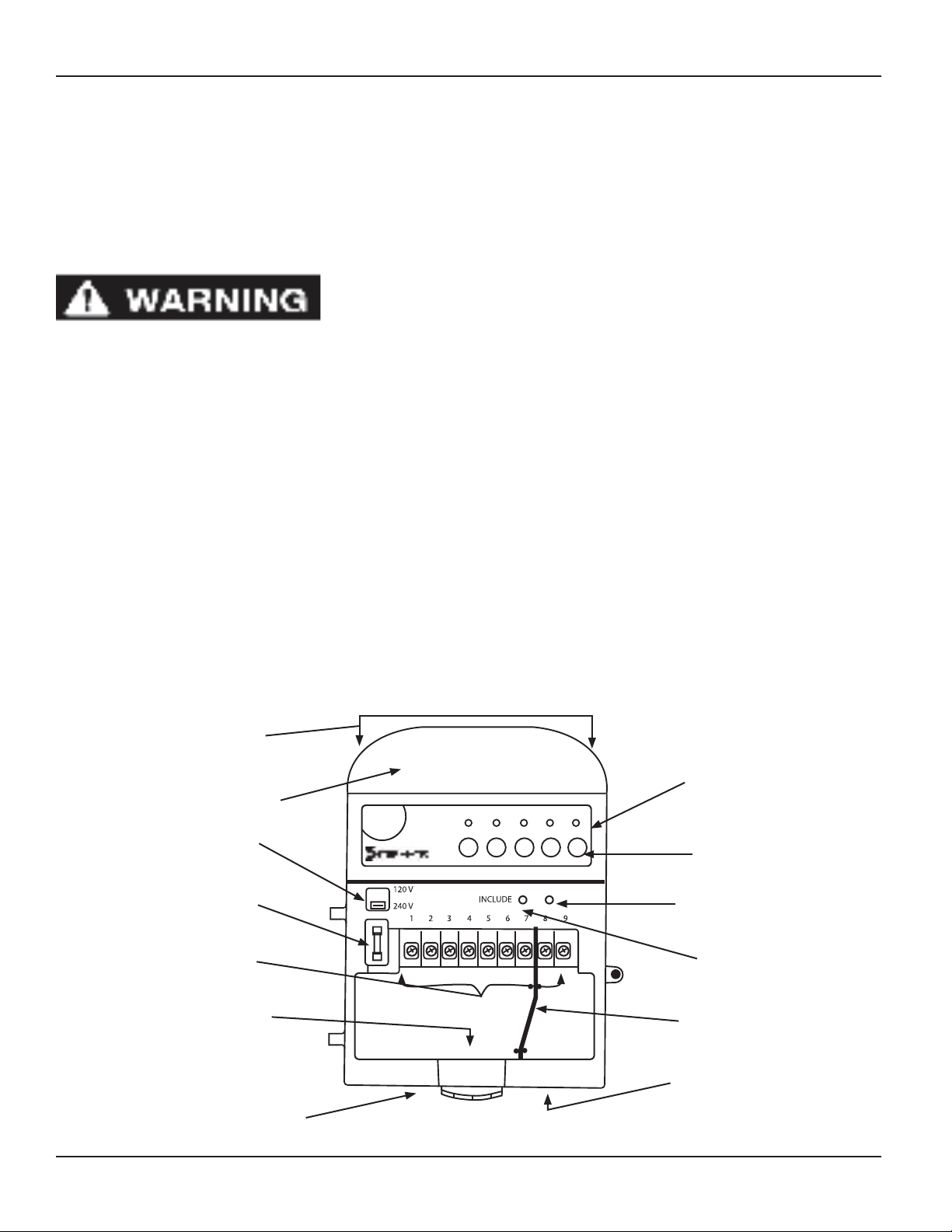

Section 3: Installing and Wiring the PE653 Receiving Device ....................................................13

Ratings .......................................................................................................................................13

Wiring Instructions ..................................................................................................................... 14

Power Connections ...............................................................................................................14

Upper Terminal Connections ................................................................................................. 15

Installation Instructions .........................................................................................................15

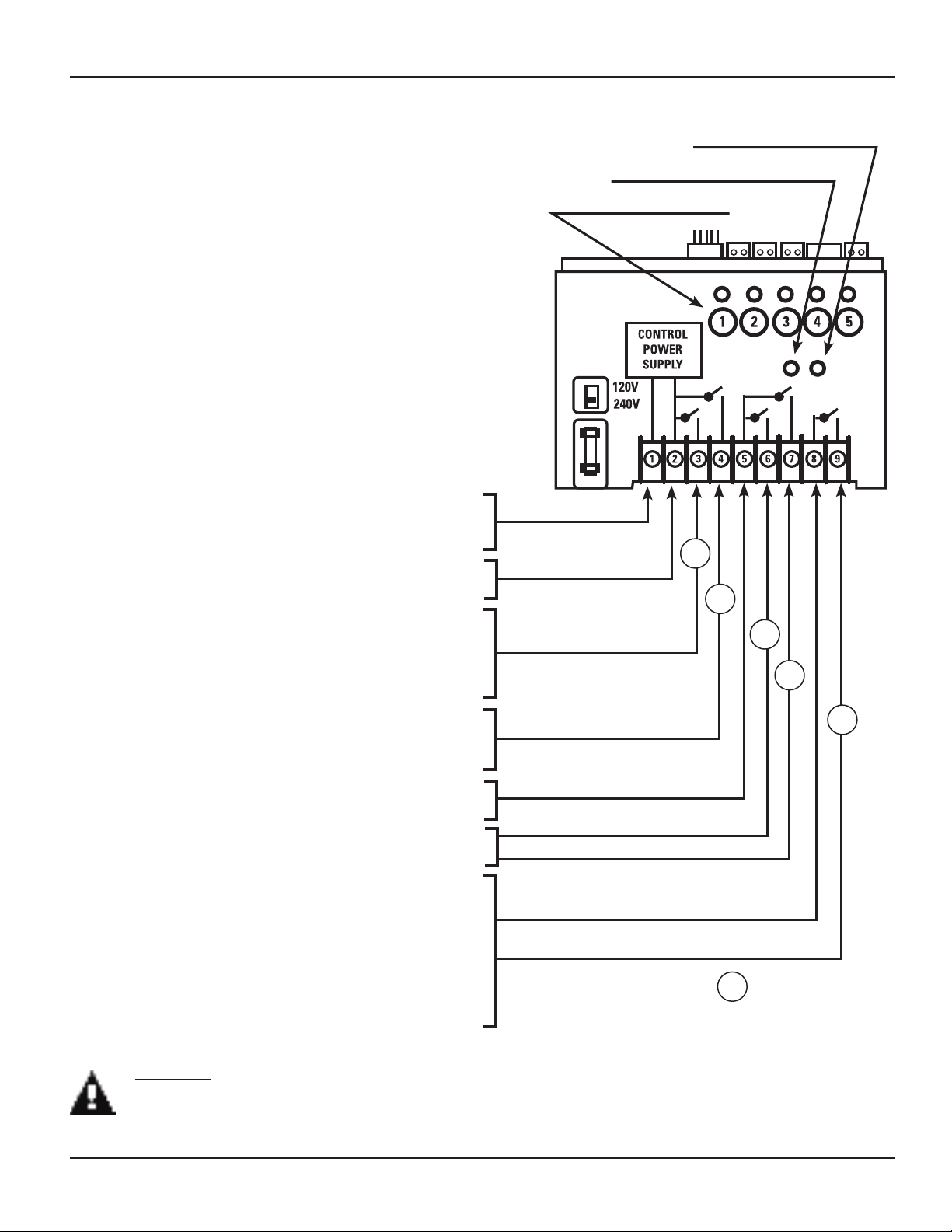

List of Wiring Diagrams .........................................................................................................16

Variable-Speed Pumps ............................................................................................................... 17

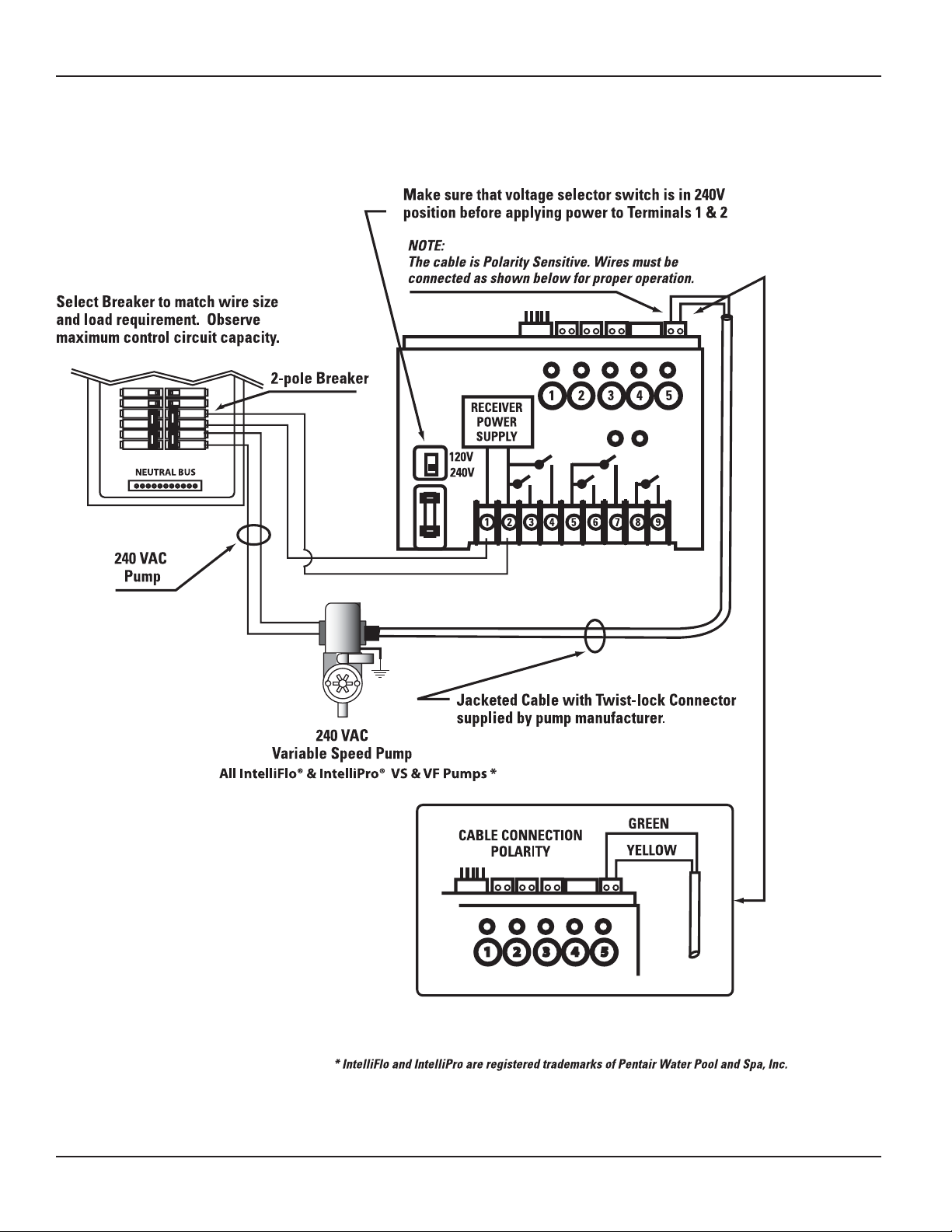

240V Variable-Speed Pump ...................................................................................................17

1-Speed Pumps .......................................................................................................................... 18

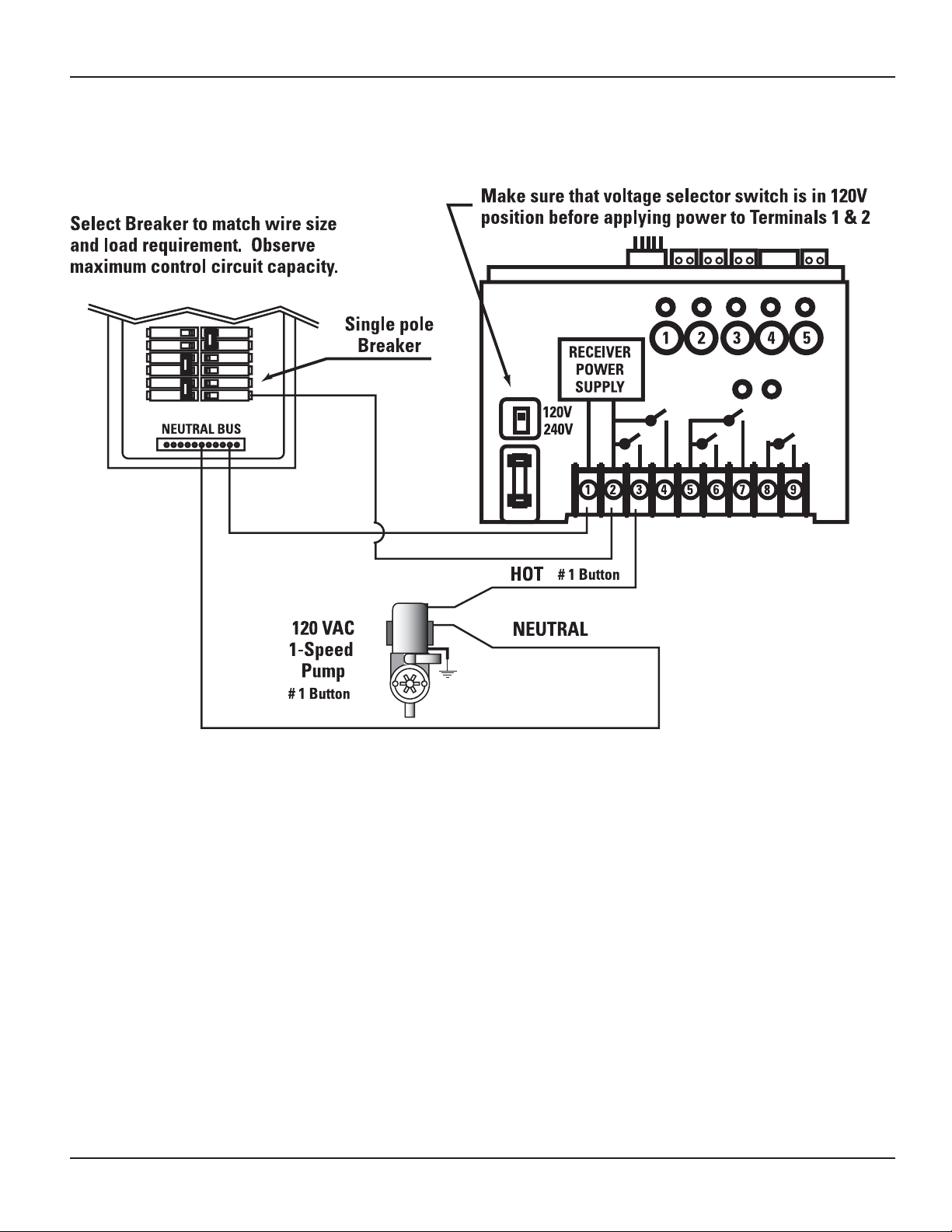

120V 1-speed pump ..............................................................................................................18

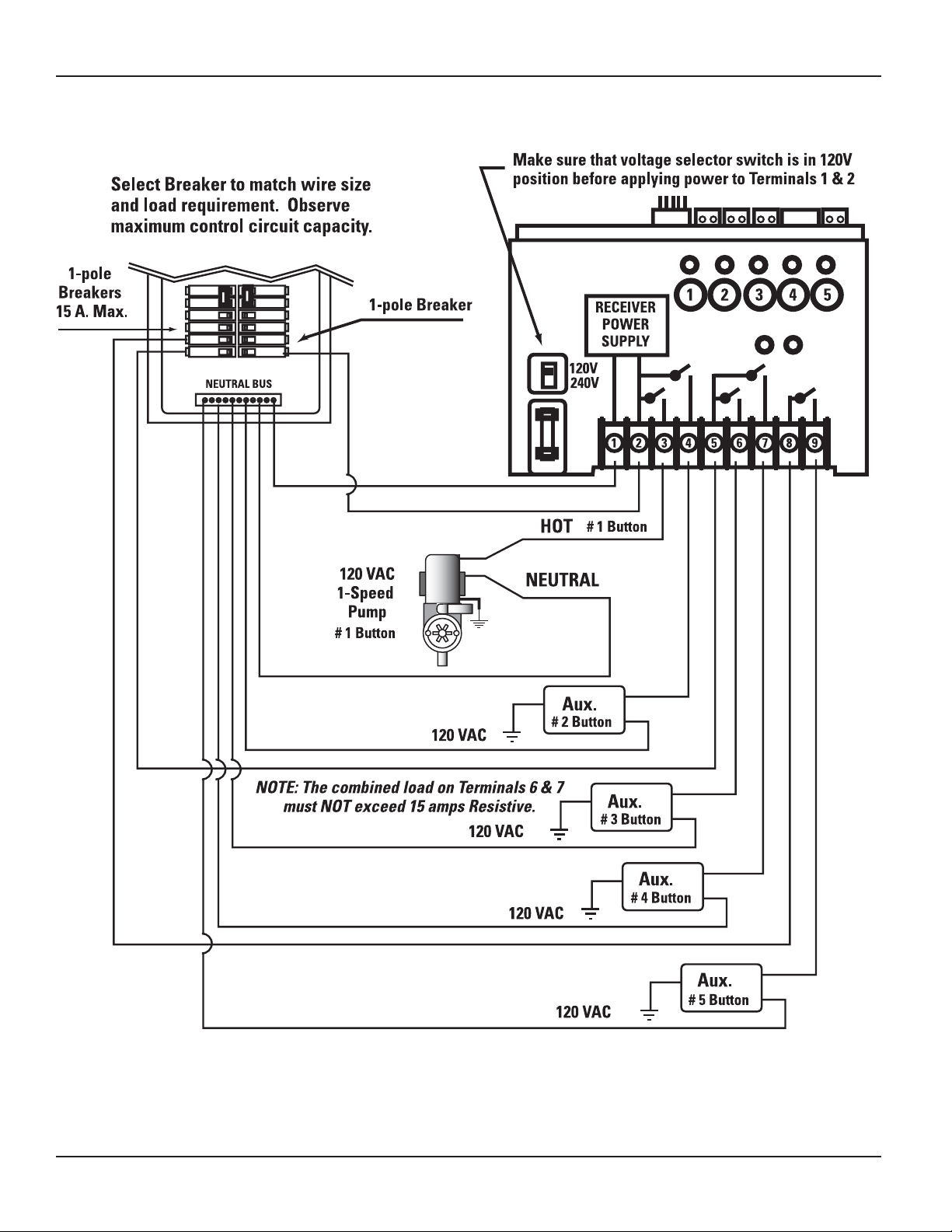

120V 1-speed pump + any four 120 VAC auxiliary equipment .............................................. 19

120V 1-speed pump + 120 VAC blower or lights + 120V booster pump +

120V actuator + heater .................................................................................................... 20

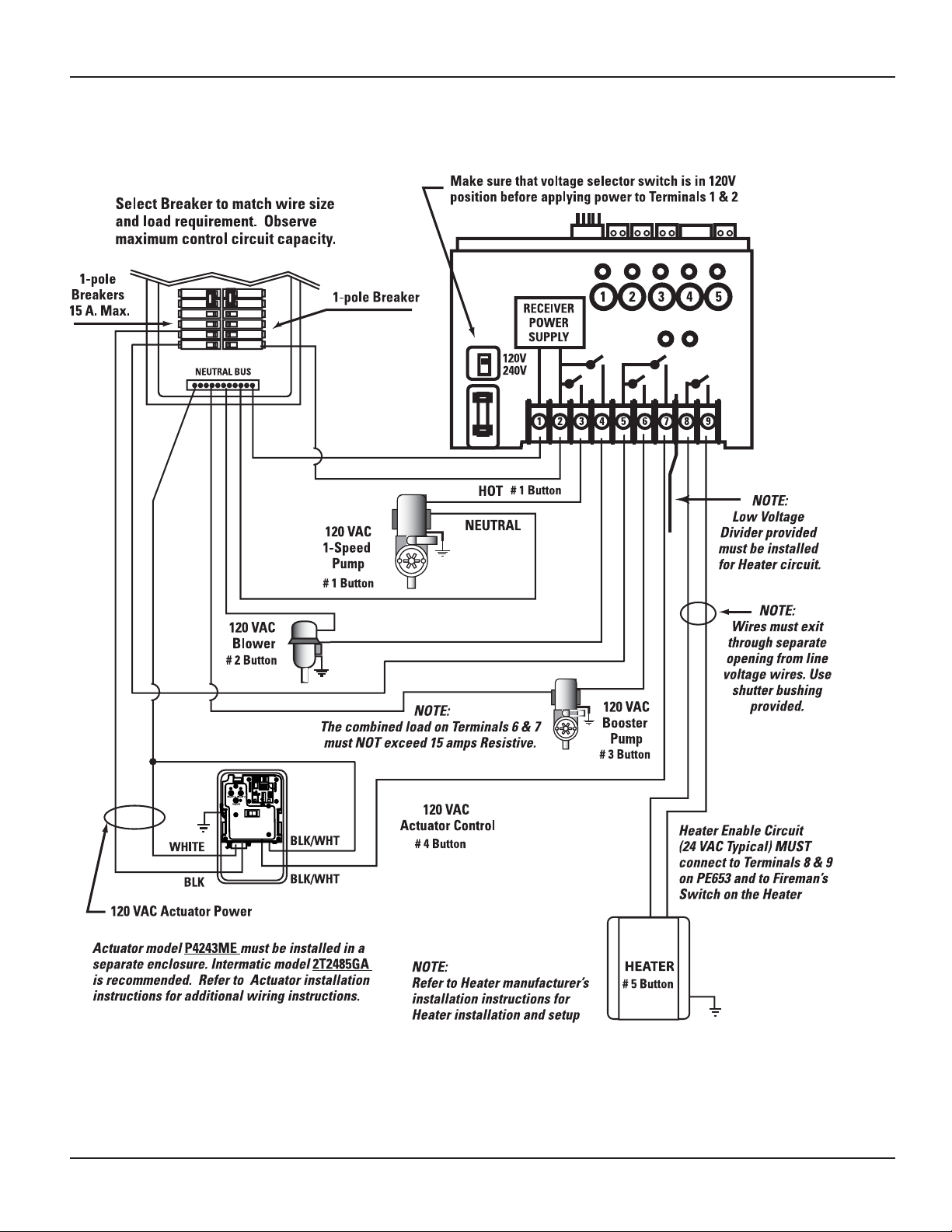

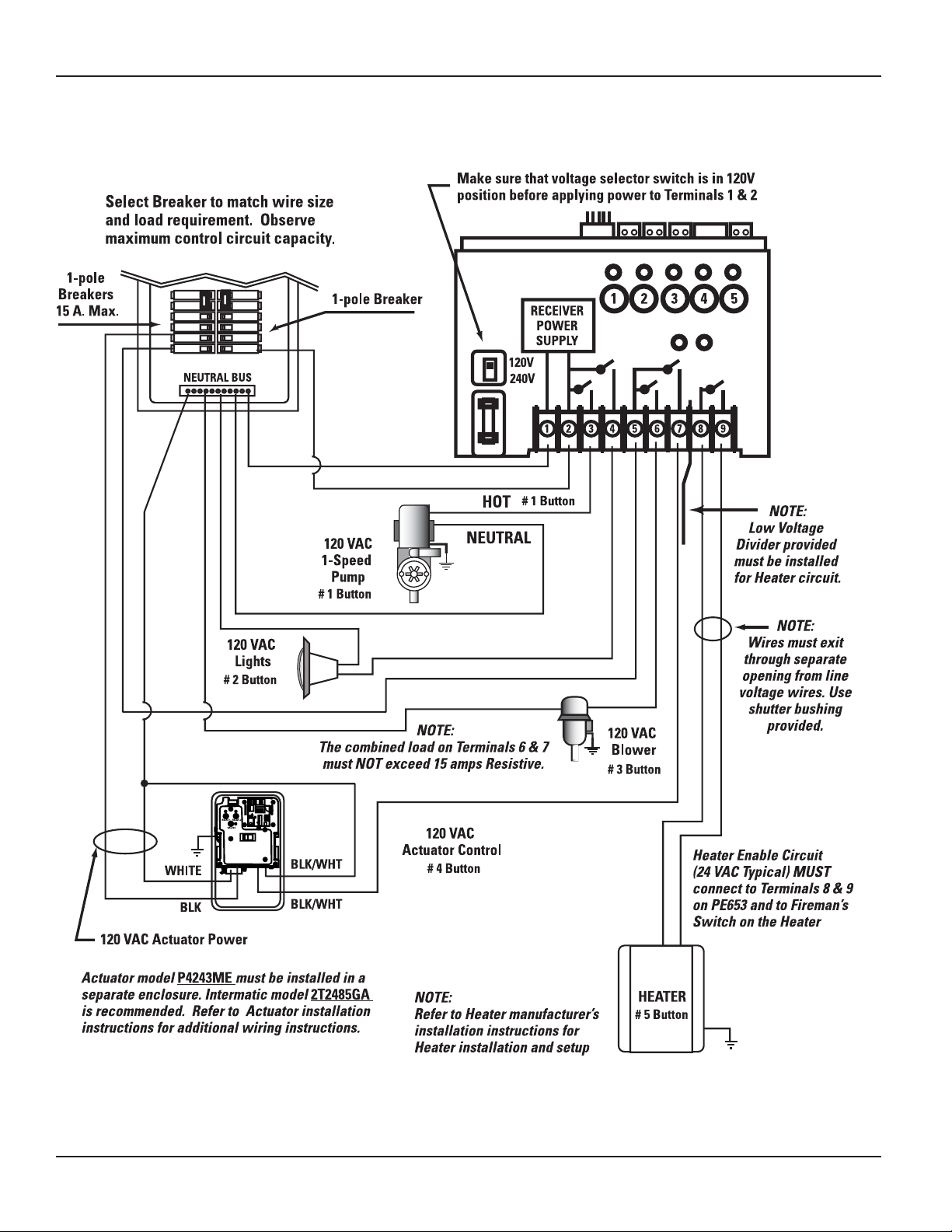

120V 1-speed pump + 120V blower + 120V lights + 120V actuator + heater ........................21

240V Pumps ..............................................................................................................................22

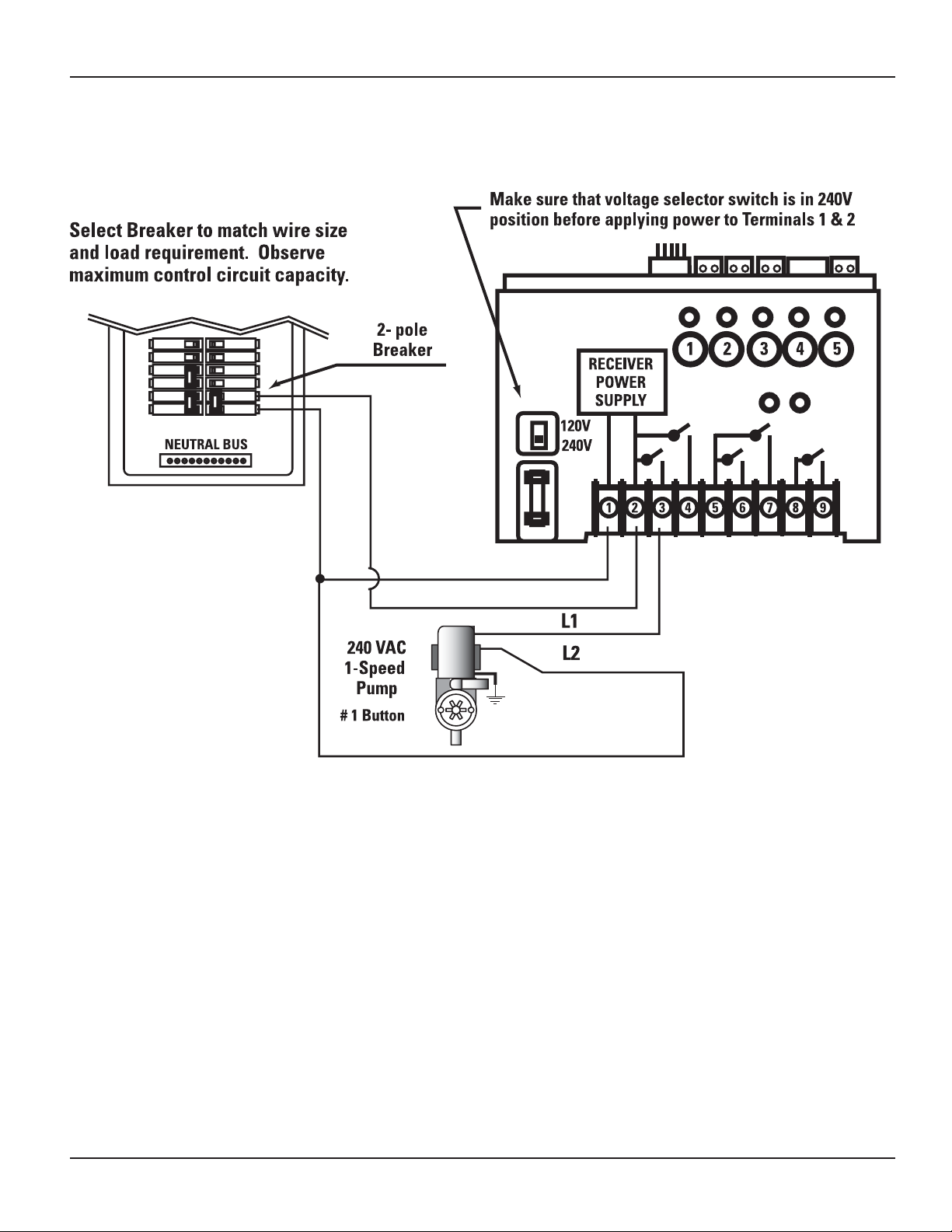

240V 1-speed pump ..............................................................................................................22

240V 1-speed pump + any four 240 VAC auxiliary equipment .............................................. 23

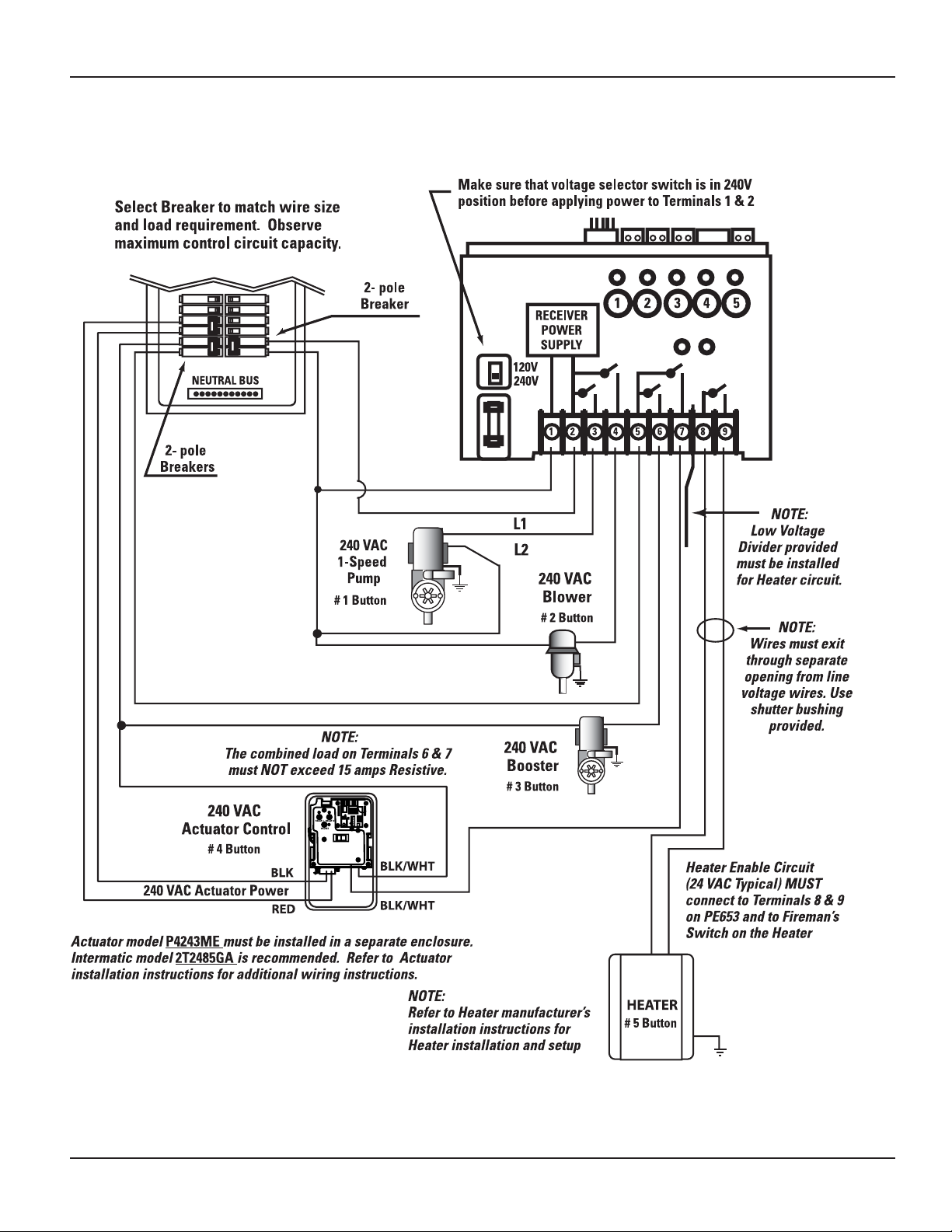

240V 1-speed pump + 240V blower + 240V booster pump + 240V actuator + heater ...........24

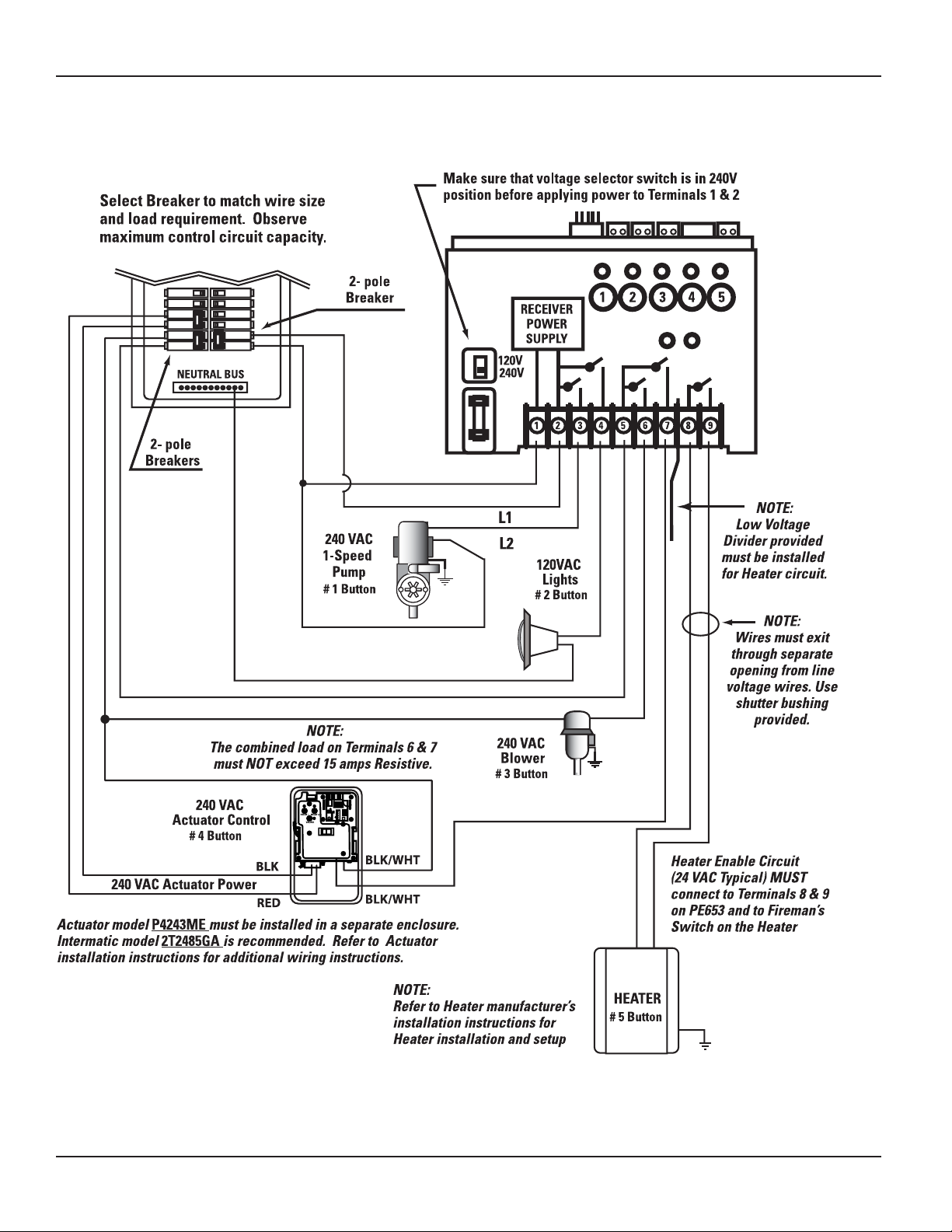

240V 1-speed pump + 120V lights + 120V blower + 240V actuator + heater ........................25

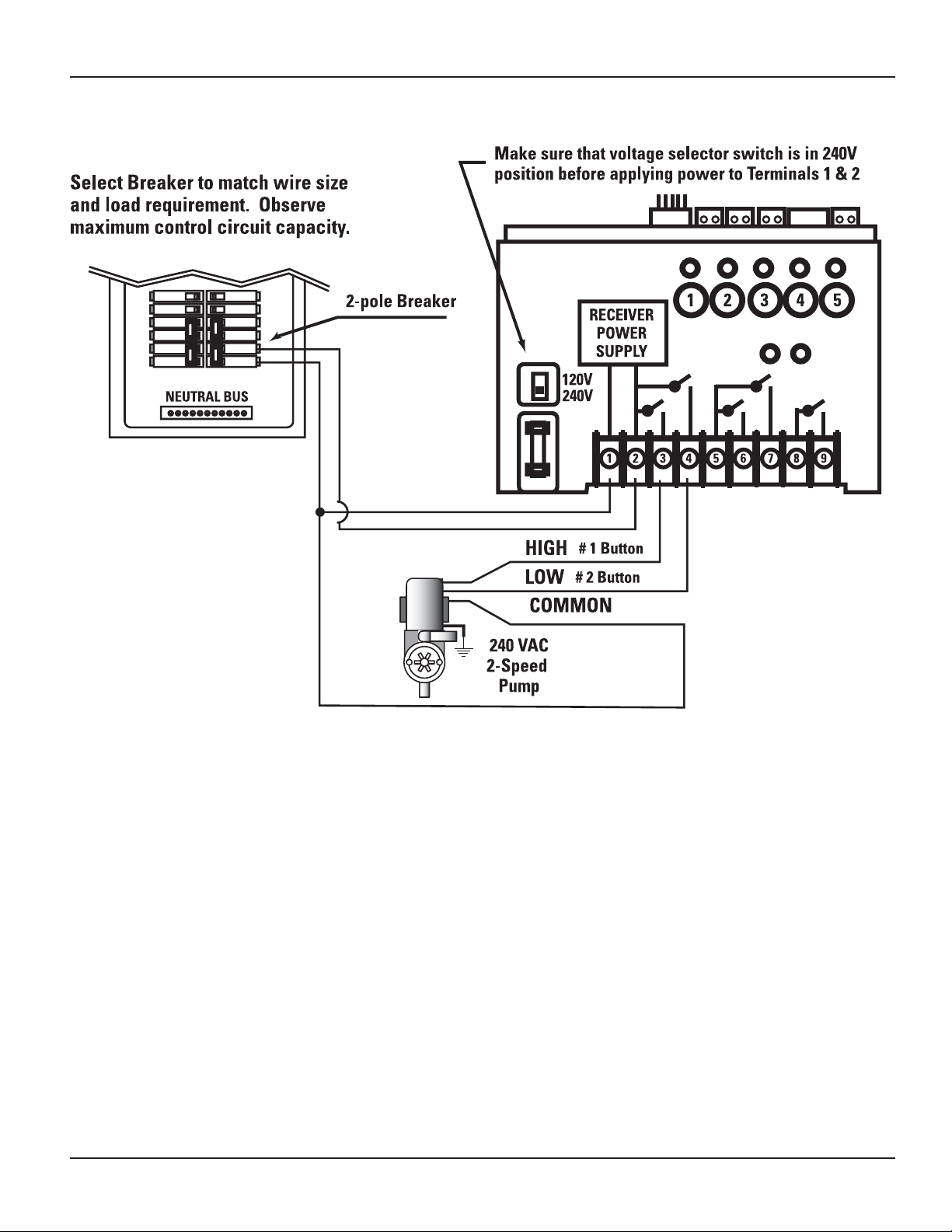

240V 2-Speed Pump .............................................................................................................26

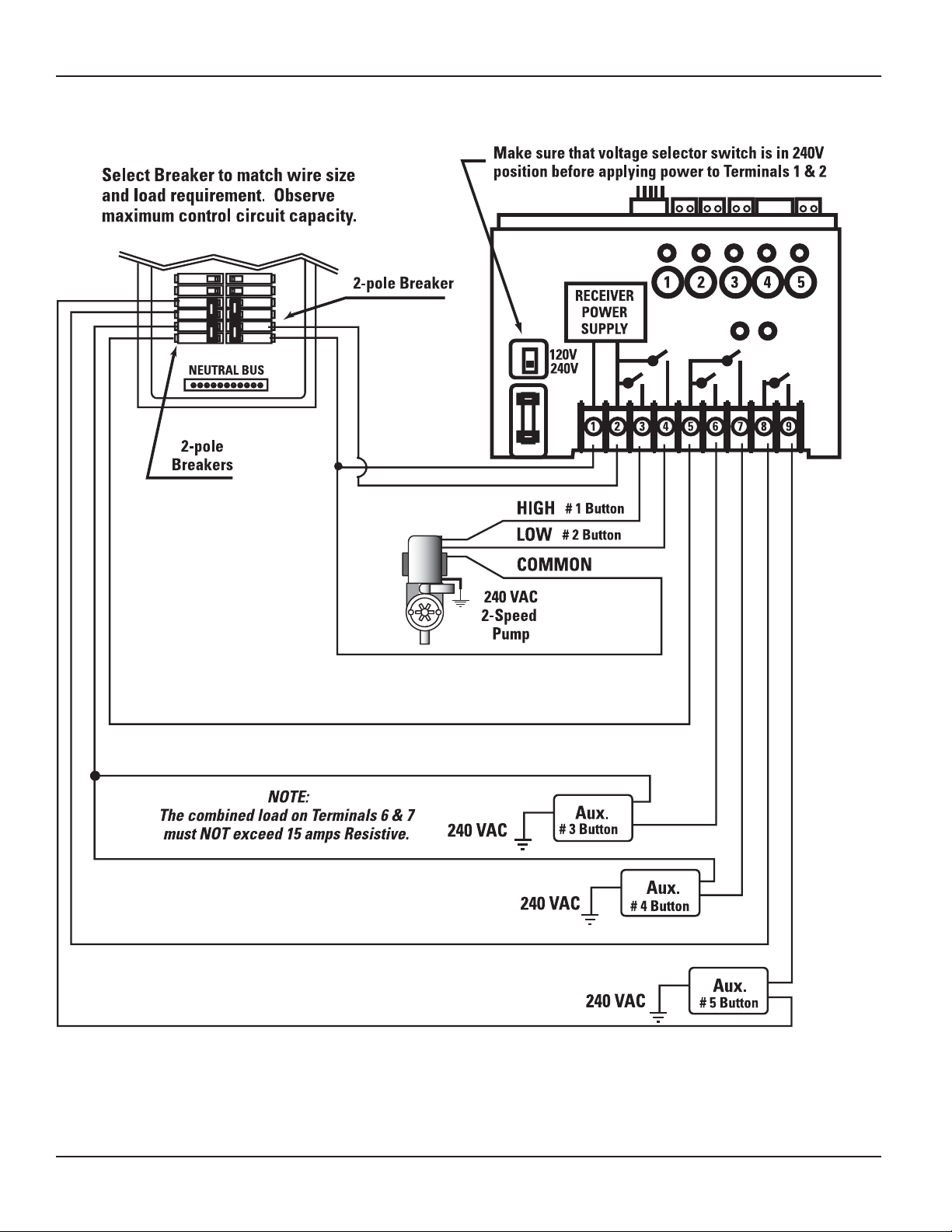

240V 2-speed pump + any three 240VAC auxiliary equipment .............................................27

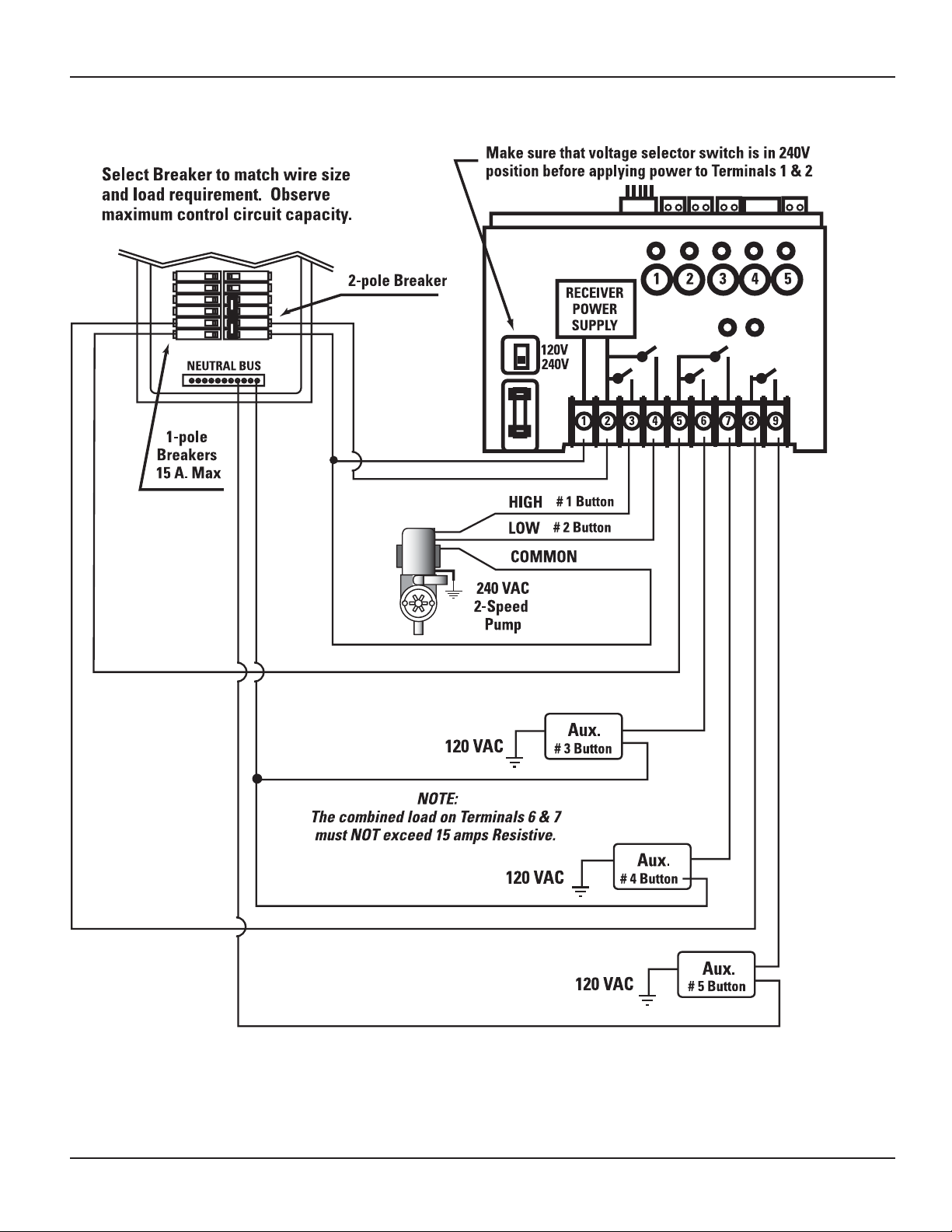

240V 2-Speed pump + any 3 120 VAC auxiliary equipment ..................................................28

240V 2-Speed pump + 240V Booster Pump + 240V Actuator + Heater ................................29

240V 2-speed pump + 120V lights + 240V blower + heater ..................................................30

240V 2-speed pump + 240V blower + 240V actuator + heater ..............................................31

240V 2-speed pump + 240V booster pump + 240V blower + heater .....................................32

240V 2-speed pump + 240V booster pump + 120V light + heater .........................................33

240V 2-speed pump + 240V booster pump + other 120 VAC equipment + heater .................34

Contents 5

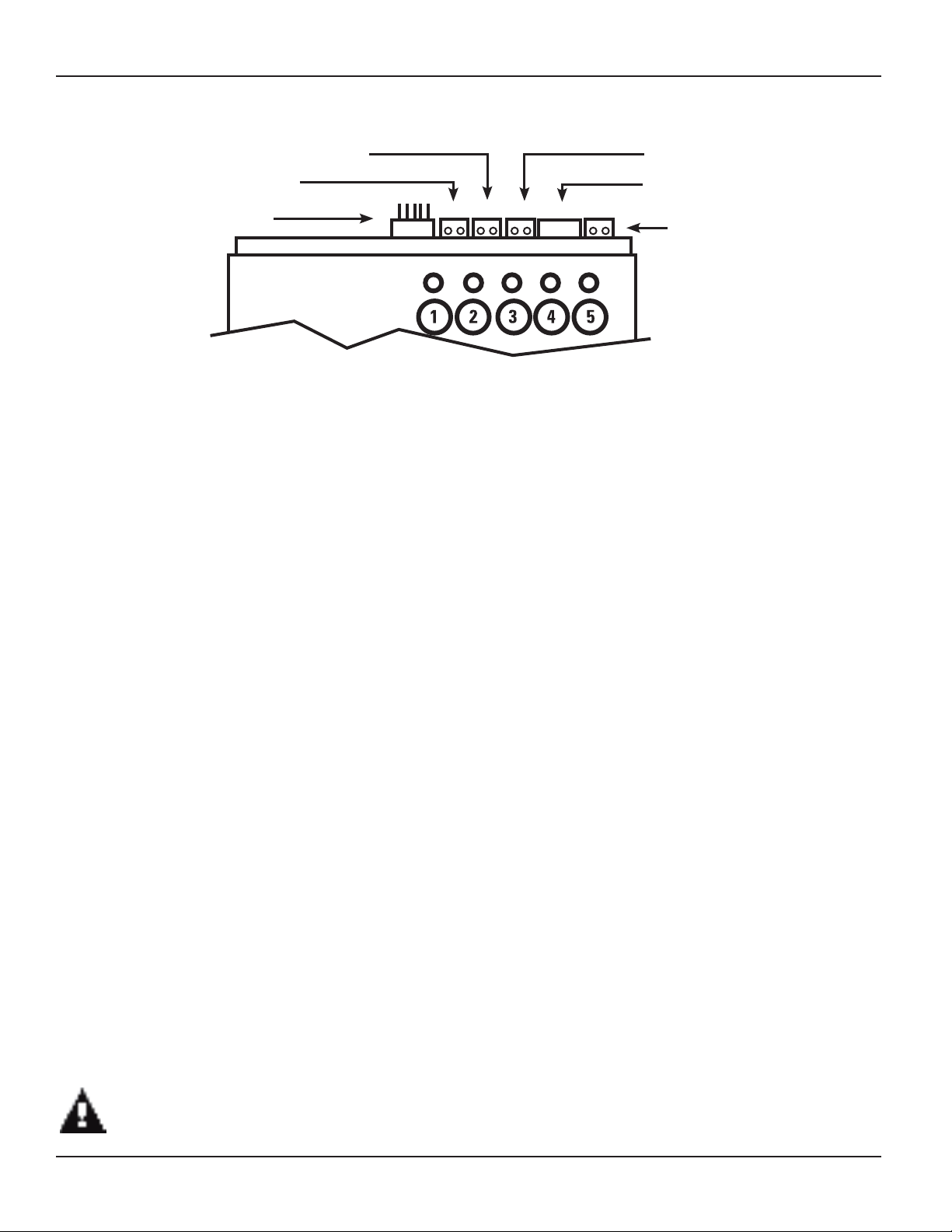

Low-Voltage Wiring ................................................................................................................... 35

Water Temperature Sensor .....................................................................................................35

Freeze/Air Temperature Sensor ...............................................................................................35

Communications to a Variable-Speed Pump ......................................................................... 36

Motorized Valve Actuator Connection and Synchronizing ..................................................... 36

Fireman’s Switch Connection .....................................................................................................37

Connection for Jandy Heaters ................................................................................................37

Connection for Raypak Heaters .............................................................................................38

Connection for Hayward Heaters ..........................................................................................38

Connection for Pentair Heater ...............................................................................................39

Connection for Sta-Rite / Pentair Heater with DDTC ..............................................................40

Section 4: Programming the PE953 Hand-Held Controller .........................................................41

Overview ...................................................................................................................................41

Creating a Network Connection between the Hand-Held Controller and

the PE653 Receiving Device .................................................................................................41

Deleting Any Existing Programming .......................................................................................41

Linking the Hand-Held Controller to the PE653 Receiving Device .........................................43

Conﬁguring for a 1-Speed or 2-Speed Pump ...............................................................................44

Calibrating Pool, Spa and Air Temperature Settings ..................................................................... 44

Conﬁguring for a Booster (Cleaner) Pump ..................................................................................45

Conﬁguring the Fireman Switch Time Interval .............................................................................46

Setting the Time of Day ..............................................................................................................47

Setting Up Schedules .................................................................................................................47

Conﬁguring the Freeze Temperature (optional) ...........................................................................48

Conﬁguring for a Variable Speed Pump (optional) ......................................................................49

Testing Z-Wave Reception ..........................................................................................................50

Moving the Antenna to a Better Location ...............................................................................50

Labeling for the PE653 Screen ...............................................................................................51

Labeling for the Z-Wave Screen .............................................................................................51

Labeling for the Variable-Speed Pump Screen ........................................................................ 51

Labeling for the PE650 Screen ...............................................................................................51

Section 5: Everyday Use of the Hand-Held Controller ...............................................................52

Controlling the PE653 Receiving Device ....................................................................................53

Operating Programmed Functions .........................................................................................53

Changing between Pool and Spa ...........................................................................................53

Setting Pool and Spa Temperatures.........................................................................................54

Controlling a Variable-Speed Pump ............................................................................................54

Naming the Speeds ...............................................................................................................54

Changing Pump Speeds .........................................................................................................55

Controlling Z-Wave Devices ...................................................................................................... 55

Controlling PE650 Functions ......................................................................................................56

Changing Batteries in the Hand-Held Controller ........................................................................56

Manually Turning Equipment On and Off .............................................................................. 57

Providing a brighter solution.™

6 Multi-Wave PE653-PE953 Installation Guide

Section 6:Advanced Features ......................................................................................................58

Conﬁguring Two or More Hand-Held Controllers ..................................................................58

Changing a Secondary Remote Control into a Primary Control ..............................................60

Including the PE953 Controller into a non-Multi-Wave (other manufacturer’s) network. ........61

Section 7:Programming for Use with Z-Wave Home Control Devices ........................................62

Deleting Any Existing Programming .......................................................................................62

Including Z-Wave Devices into the Network .........................................................................63

Including the PE653 Receiver onto a non-Multi-Wave remote controller ...............................63

Adding Z-Wave Devices to Scenes for Everyday Control ........................................................64

Renaming a Scene .................................................................................................................65

Removing Z-Wave Devices from Scenes ................................................................................ 66

Removing Z-Wave Devices from a Network ..........................................................................66

Setting Up Z-Wave Associations with Capable Devices ........................................................67

Removing Z-Wave Devices from an Association ...................................................................69

Section 8:Using the PE953 with the PE650 Receiving Device ..................................................... 70

Linking the PE953 Hand-Held Controller with the PE650 Receiving Device ..........................70

Section 9: Checking Out and Verifying the System .....................................................................71

Section 10: Troubleshooting ......................................................................................................75

Section 11: Appendix ................................................................................................................80

Glossary of Z-Wave Terminology ................................................................................................ 80

FCC Statement ...........................................................................................................................81

Section 12: Warranty .................................................................................................................82

7

Notes

________________________________________________________________________________________________

Providing a brighter solution.™

8 Multi-Wave PE653-PE953 Installation Guide

Section 1:

System Overview

The Intermatic Multi-Wave Pool/Spa PE653RC Wireless Control System brings wireless control to a new level of simplicity and affordability. The following features make the system distinctive:

Easy to Use — with simple, push button controls and a clear, easy-to-read display panel•

Everything You Need — includes the functionality and control called for in nearly every • installation.

Dependable — with Z-Wave• inexpensive repeaters that plug into available electrical outlets to help extend the RF signal range of the entire system. Z-Wave technology eliminates intermittent signal problems experienced with many other systems.

Cost Efﬁciency — a superior system, easier to install and maintain, with better • dependability, and at a cost that’s competitive with any other system available.

The standard conﬁguration for the Multi-Wave PE653RC Pool/Spa Wireless Control System conﬁguration is shown in Figure 1-1. You can order individual components for a custom conﬁguration or system as indicated.

Receiving Device (PE653)

®

technology that lets you expand your system with

Two-wire connection (RS485) for control of variable-speed motors

Antenna can be remotely located using a Standard Cat 5 Ethernet cable with RJ45 plugs.

Internal selector switch for 120 / 240 VAC operation

Spare 0.10 Amp Fuse

Offers timer capability and can control up to ﬁve preprogrammed conﬁgurable circuits.

Metal Indoor/outdoor enclosure

provides for easy and secure

mounting and a large space for

conduit wire connections.

Terminals for two-wire connections to remote temperature sensors

Weatherproof outdoor enclosure can be mounted directly to an existing enclosure.

Approved snap-in wiring separator for use with low voltage heater control circuit

Hand-Held Controller (PE953). Additional units can be ordered separately.

Figure 1-1

Z-Wave is a registered trademark of

Sigma Designs and/or its subsidiaries.

Additional Detail on Key Components

ENTER

Hand-Held Controller (PE953)

The main function of the Hand-Held Controller is to transmit user commands to the PE653 Receiving Device, PE650 Receiving Device, and/ or Z-Wave home control devices, and to display the status of the installed equipment.

The unit ﬂoats if thrown in the pool or spa, is water-submersible, shock resistant, and requires three (3) AA batteries. Expected battery life is about one year in typical use.

When the components of a speciﬁc system are linked together into a network, unique network ID codes supplied by the PE953 prevent unauthorized use of the system by neighboring systems.

24-Volt Valve Actuator (PE24VA)

Designed with quality in mind, Intermatic’s 24-volt valve actuators provide reliable control of 2-way and 3-way diverter valves for pool/ spa combinations and water features. The water ﬂow can be altered for speciﬁc applications through the adjustable cam, which rotates diverter valves to multiple degree settings. The cam settings can be easily adjusted by simply removing the lid. These valve actuators are compatible with all pool/spa valves currently offered in the industry and will retroﬁt into all pool/spa control systems.

One: System Overview 9

24VAC Input Voltage• Automates compatible diverter valves for •

pool/spa combos Adjustable cam rotates diverter valves to •

multiple degree settings

Designed to operate most 2-way and 3-way diverter valves • Shipping Weight - 3 lbs. (1.4 kg) • Agency Approval - CSA/C-US•

Water Temperature Sensor (PA122)

The Intermatic Water Sensor (PA122) monitors both pool and spa water temperature, depending on the position of the diverter valves. Installation is necessary for the thermostatic control to work. The sensor can be ordered separately.

Providing a brighter solution.™

Intermatic PE000653, PE000953 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
