VCD-741VI
Low Light Color Dome Camera
Operating
Manual
B370031OC03OC03
VCD-741VI
Screw(4EA)
O/P Manual
Unpacking and Installation
Although it is neither complicated to install nor difficult to operate your
set, a few minutes of your time is required to read this manual for a
properly wired installation and becoming familiar with its many
features and how to use them. Please take a great care in unpacking
your set and do not discard the carton and other packing materials.
They may be needed when moving your set and are required if it
ever becomes necessary to return your set for service.
Never place the unit near radiators, in front of heating vents, in
excessively humid or dusty location to avoid early damage and for
your years of quality use. Connect your complementary components
as illustrated in the following page.

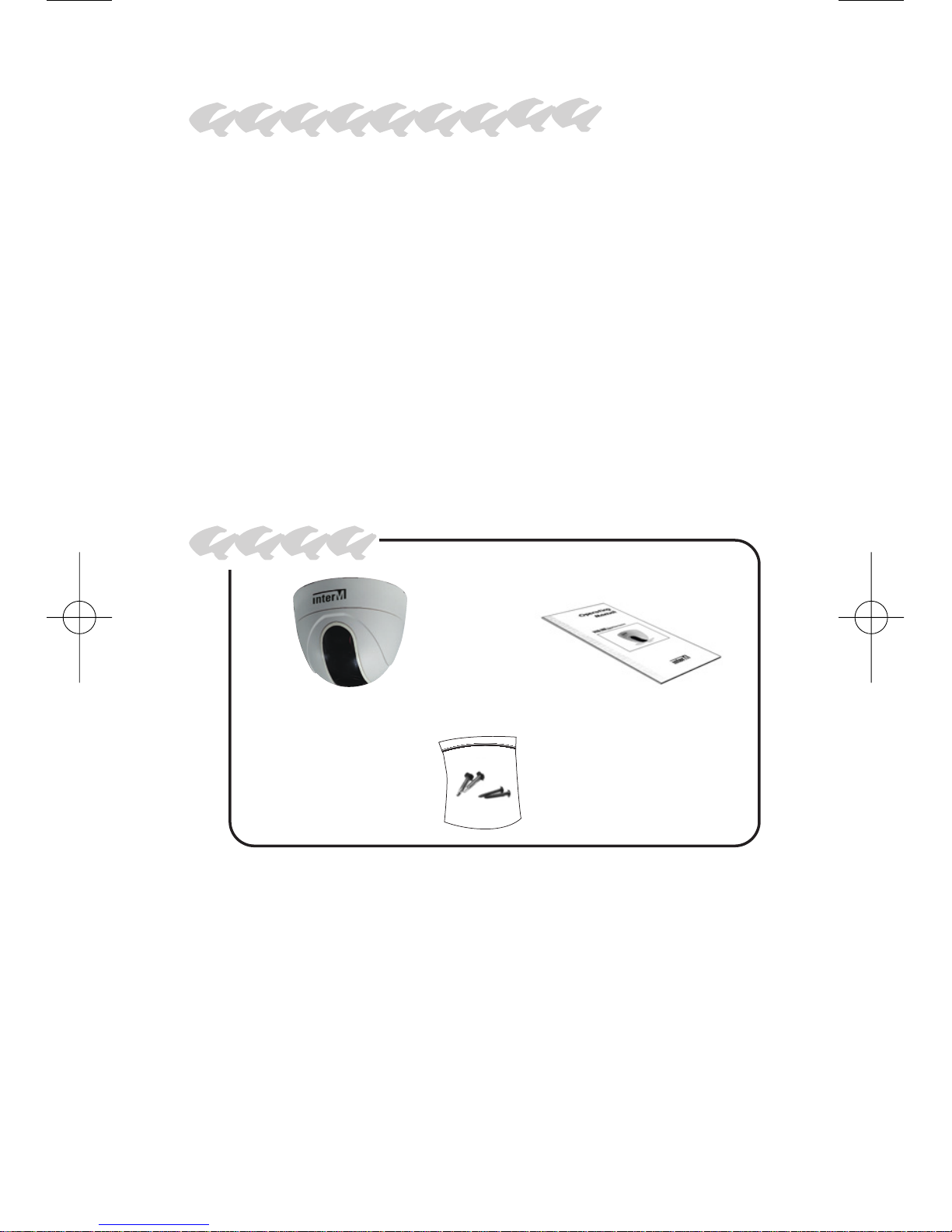

Accessory
Contents
Definition...........................................................................1
Features ............................................................................1
Precautions.......................................................................2
Term of the Unit ...............................................................4
Several Switch Function .................................................6
Specifications...................................................................8
Trouble Shooting.............................................................9
Definition
This camera is a high efficiency and performance surveillance
camera and VCD-741VI is high-class camera adapting 410000
pixels SONY CCD. And DSS (Digital Slow Shutter) is adopted
for accumulating video signal in low illumination.
The minimum luminance is 0.005 Lux.
Features
■■
■
Adopted 1/3” 410,000 pixel Sony SUPER HAD CCD,
provid-ing a clear picture quality with the horizontal resolution
of over 480 TV image
■■
■
The minimum illumination of 0.005 Lux by slow shutter.
■
■
Equipped with functions of electric level control (ELC)
■■
■
Equipped with backlight compensation function (BLC)
■
■
Possible to compensate for image blinking with flickering
function in areas of frequency-interference
■■
■
Auto / Manual White Balance Function
■
■
DSS (Digital Slow Shutter) Function
■■
■
Day & Night Function
■
■
Equipped with VARIFOCAL DC IRIS LENS (2.6~6mm)
1
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
2
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions
in the literature accompanying the appliance.
Caution: These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not any
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette fiche
polarisée avec un prolongateur, une prise de courant on une
autre sortie de courant, sauf si les lames peuvent étre
insérées à fond sans en laisser aucune partie à découvert.
Precaution
3
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
Precautions
DO NOT INSTALL THE CAMERA IN
EXTREME TEMPERATURE CONDITION
DO NOT INSTALL THE CAMERA
UNDER UNSTABLE LIGHTING
CONDITION
Unstable lighting can
cause the camera to
work improperly.
Do not use the camera under
condition where temperature
is over -10°C to 50°C.
Especially be careful for
ventilation under high
temperature.
DO NOT DROP OR SHAKE THE
CAMERA
DO NOT INSTALL THE CAMERA FACE
UNDER STRONG LIGHTING
CONDITION
It can cause
malfunction of
CCD.
It can cause malfunction.
DO NOT TOUCH THE LENS DO NOT INSTALL THE CAMERA
UNDER WET OR RAIN
It can cause the image
quality to be poor.
If it gets wet, it can cause the
camera out of order.
DO NOT INSTALL THE CAMERA
CLOSELY AT THE MAGNETIC
DO USE A DRY CLOTH TO CLEAN THE
CAMERA
It can cause
malfunction.
To sweep the camera, use a dry
and soft cloth.
4
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)

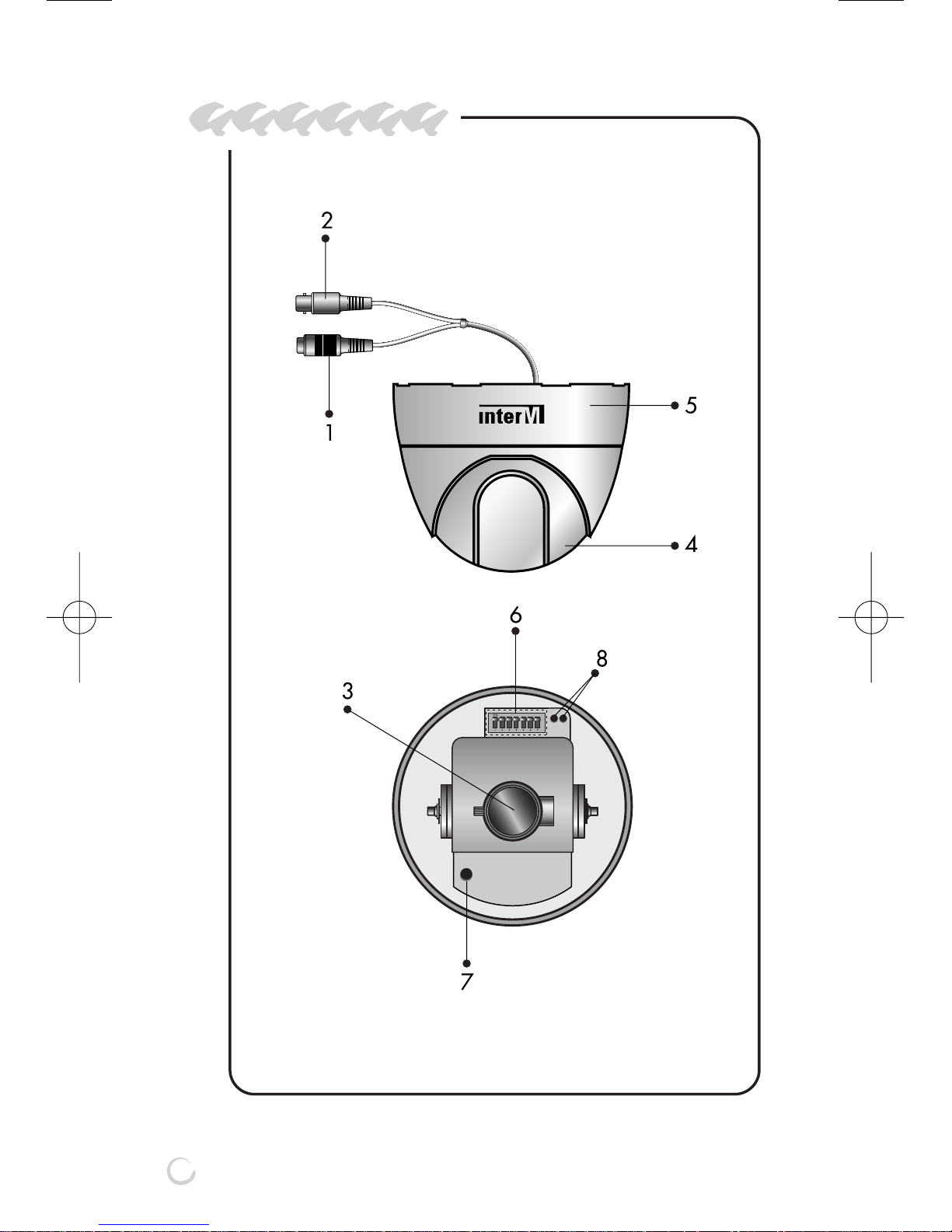

Term of the Unit
5
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
11
1. DC JACK
This jack is an input of DC Power Source (DC 12V).
22
2. BNC JACK
This jack is an output of Video Signal.
33
3. DC IRIS LENS
This lens is DC IRIS LENS as one of AUTO IRIS LENS.
This Varifocal lens varies 2.6mm to 6mm.
44
4. TOP BASE
This base is very graceful and unique dome cover. If TOP
BASE rotates, the lens of internal circuit is also rotated. So
it’s very useful to install.
55
5. BOTTOM BASE
This BOTTOM BASE is very simple design and well matched
with TOP BASE.
66
6. SWITCH BUTTON
This switch control ON/OFF of several functions.
77
7. DC IRIS LENS VOLUME
This Volume controls the brightness of DC IRIS LENS. In
case of rotating the volume in left, the brightness of LENS will
be darken. And if the rotating is right, the brightness of DC
IRIS LENS will be lighted up.
88
8. MANUAL WHITE BALANCE ADJUSTING BUTTON
This button is for adjusting RED or BLUE of WHITE
BALANCE, When Manual white balance is selected.
6
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
1234567 8 9

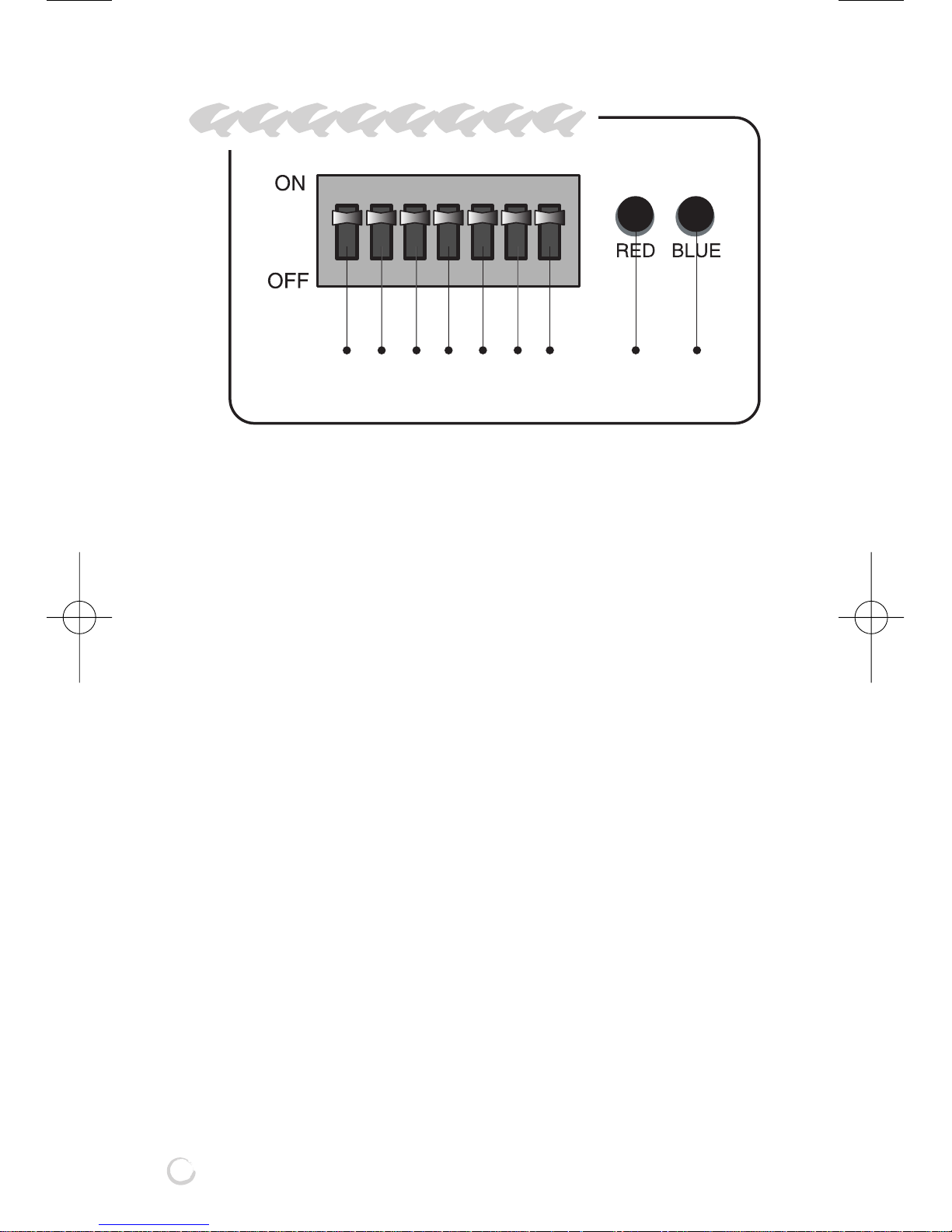

Serveral Switch Function
1
1. ELC(ELECTRIC LEVEL CONTROL) Function
According to the brightness of Video Signal, CCD control the
time of light accumulation. So the brightness will be adjusted
automatically.
Please use this function in case of installing MANUAL LENS.
22
2. BLC(BACK LIGHT COMPENSATION) Function
If the switch is ON, BLC Function will be operated.
33
3. FLICKERLESS
When this unit photographs the fluorescence lamp or the
lamp using ac power source, the blinking of video signal
might be happened. Like this phenomenon is FLICKER.
This function prevents the flicker phenomenon.
44
4. AGC (AUTO GAIN CONTROL) Function
If the switch is ON, AGC Function will be operated.
*When AGC is off, DSS won’t operated.
7
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
55
5. AW/MW
This switch is selecting AUTO or MANUAL of WHITE
BALANCE. If AUTO is selected, White Balance is automatically tracing the white point. And In opposite case, White
Balance is moving toward RED or BLUE according to
pushing tact switch.
66
6. DSS (DIGITAL SLOW SHUTTER) Function
If this switch is ON, the speed of shutter will be varied from 2
sec to 1/100000 sec. If OFF, the speed will be varied from
1/60 sec to 1/100000 sec.
77
7. DN (Day & Night)
If this function is ON, the image automatically changes to BW
mode in low illumination. So the image of video signal may
display more efficiency in low illumination environment.
88
8. RED Button
When Manual White Balance is selected, white point is
moving toward RED in case of pushing this button.
99
9. BLUE Button
When Manual White Balance is selected, white point is
moving toward BLUE in case of pushing this button.
8
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
Specifications
■
■
ELECTRICAL
■■
■
GENERAL
Image Sensor
1/3IT SUPER HAD SONY CCD(410,000 pixels)
Effective Pixels NTSC 768(H)×494(V)
PAL 752(H)×582(V)
Scanning System 2:1 INTERLACE
Synchronizing System INTERNAL
Scanning Frequency NTSC H 15.734kHz
V 59.94Hz
PAL H 15.625kHz
V 50Hz
MIN. Illumination 0.005 LUX(F1.4)
Video Output VBS 1.0Vp-p 75Ω COMPOSITE
Horizontal Resolution 480 TV Lines
S/N Ratio more than 50dB
Shutter Speed 2 ~ 1/100,000 sec with DSS
Applied Lens Varifocal Lens (2.6~6mm)
Lens Control DC Iris Lens
Gamma Ratio 0.45
Operating Temperature -10°C ~ +50°C
Power Source DC 12V
Power Consumption 2.6W
Weight 240g, 0.52912 lb
Dimensions
115(ø) x 91.5(H)mm, 4.527(ø) x 3.5433(H) in
Trouble Shooting
IF YOU HAVE TROUBLE OPERATING IN YOUR CAMERA,
REFER TO THE FOLLOWING.
Problem Solution
THE IMAGE ON THE SCREEN IS DARK ★ Check the line of power source.
THE IMAGE ON THE SCREEN IS DARK ★ Check the cable of video signal
THE IMAGE ON THE SCREEN IS DIM ★ Check if the lens is stained.
THE IMAGE ON THE SCREEN IS DIM ★ Adjust the focus of the lens again.
★ Check the condition of Monitor.
THE CAMERA IS NOT WORK PROPERLY. AND ★ Check that you have connected the
THE SURFACE OF THE CAMERA CASE IS HOT ★ camera to a proper power source
★ (DC 12V 400mA).
THE CHROMA OF IMAGE IS EXTRAORDINARY ★ Check WHITE BALANCE of the camera.
9
VCD-741VI(LOW LIGHT COLOR DOME CAMERA)
MADE IN KOREA
www.inter-m.com
January 2005 9007103510
