Inter-m PA-2100M, PA-2200M Technical Specifications

Mixer/Amplifier

y

PA-2100M/

Features

• 100W (P A-2100M) or 200W (PA-2200M)
of Output Power into 4

• Three Balanced Mic Inputs and
T wo Aux Inputs

• CD/MP3 Player

• Cassette Deck with Play and Record

Capabilities

• Five-Band Equalizer

• V oice-Activated Priority Muting

via Mic1

• Four-Tone Manual Pre-Page Chime

• Pre-Amp Out (Post-T one Controls)

for External Signal Processing

• Power Amp Input (Normalized)
for Patching of External Signals

• T wo-Zone Speaker Selector Buttons

Ω Ω

Ω or 70V/100V

Ω Ω

with CD/MP3/Cassette

Technical Specifications

2200M

Description

The PA-2100M/2200M is a mixer/amplifier designed for
applications where a variety of music and paging sources
are required, including restaurants, banquet halls,
community centers and retail shops. It has 100W(PA-

2100) or 200W(PA-2200) of output power and offers an

auto-reverse cassette deck, CD/MP3 player, two
auxiliary inputs and three balanced microphone inputs.
All sources are mixable, with individual gain controls.
Voice-activated priority muting, with an adjustable
muting level on Mic1 for muting all other channels . A
five-band equalizer provides ±12dB tone adjustment and
a four-note chime button provides a pleasant pre-page
tone. The cassette deck features auto-reverse and
record/playback capabilities. Indication of amplifier
output levels and AC power is supplied by front-panel
LED displays. Speaker outputs are provided for either
low impedance 4Ω loads or switch-selectable70V/100V
high impedance loads. Two speaker zones for high
impedance loads are independently selectable from the
front panel. The PA-2100M/2200M is powered by 100­120VAC or 220-240VAC 50/60Hz (depending on country
requirements), and comes packaged in a shelf-mount
enclosure.

ELECTRICAL PA-2100M PA-2200M

Rated Output (RMS) 100W 200W
Speaker Output/Impedance 20V/4Ω,

70V/49Ω,

100V/100Ω
Input Sensitivit
MIC 1-3
AUX
AMP IN
Frequency Response
MIC 1-3
AUX
AMP IN
THD
Signal-to-Noise Ratio
MIC 1-3
AUX
CD
Type
Frequency Response
THD
Cassette Deck
Frequency Response
THD

GENERAL

Power Source
Power Consumption 120W 230W
Weight

Dimensions (W x H x D)

/Impedance

1mV/20kΩ

350mV/20kΩ

100Hz -12kHz

60Hz - 15kHz

150Hz - 12kHz

Single Disc

20Hz - 20kHz

Less than 0.2%

125Hz - 8kHz
Less than 2%

100-120VAC or 220-240VAC

31.7lbs. 39.7lbs.

14.5kg 18kg

17.3" x 7" x 15.4"

440mm x 177mm x 390mm

28.3V/4Ω,

70V/24.5Ω,

100V/50Ω

1V/10kΩ

<1%

>60dB
>75dB

PA-2100M/2200M

Architects and Engineers Specifications

The mixer/amplifier shall be capable
of 100W (PA-2100M) or 200W (PA­2200M) RMS output. An auto­reverse cassette deck shall provide
record and playback capabilities. A
mode switch shall allow selection of
single side, auto-reverse or
continuous playback functions. A CD/
MP3 player shall also be provided.
Inputs shall be provided for three
microphones and two line level
auxiliary inputs. Mic1 input shall be
located on the front panel and shall
feature priority voice activated muting
of all other channels. All sources
shall be fully mixable, with individual
gain controls for each channel. A
master volume control shall regulate
the amplifier signal level. A five-band
equalizer shall be provided to adjust
the tonal balance. A front-panel
chime button shall provide a four-tone
signal for pre-announcement
applications.

The chime shall mute all channels
except Mic1. Line level pre-amp
output (post-tone controls and
premaster) and power amplifier input
jacks normalized for a plug to break
the internal pre-amp signal input to
the amp shall provide for connection
of external signal processing
equipment. Speaker zone switches
shall provide two selectable 75V/
100V outputs. Front panel indicators
shall indicate amplifier output level,
as well as power-on indication.

The amplifier section shall meet the
following performance criteria:

Total harmonic distortion shall be
less than 1%; frequency response
shall be 150Hz to 12kHz; and signal­to-noise ratio shall exceed 75dB.
Input sensitivity and impedance shall
be 1mV@20kΩ. for Mic 1-3 and
350mV@20kΩ. for Aux1/2.

The auto-reverse cassette deck shall
meet the following performance
criteria:

Frequency response shall be
125Hz to 8kHz and signal-to-noise
ratio shall exceed 40dB.

The CD/MP3 player shall meet the
following performance criteria:

Total harmonic distortion shall be
less than 0.2% and frequency
response shall be 20Hz to 20kHz.

The mixer/amplifier shall measure

17.3”(440mm) wide x 7”(177mm) high
x 15.4”(390mm) deep, and shall be
shelf mounting. The power source
shall be either 100-120VAC or 220­240VAC 50/60Hz (depending on
country requirements). The power
shall be controlled from a front-panel
push-on/push-off switch, and indi­cated with a front-panel LED.

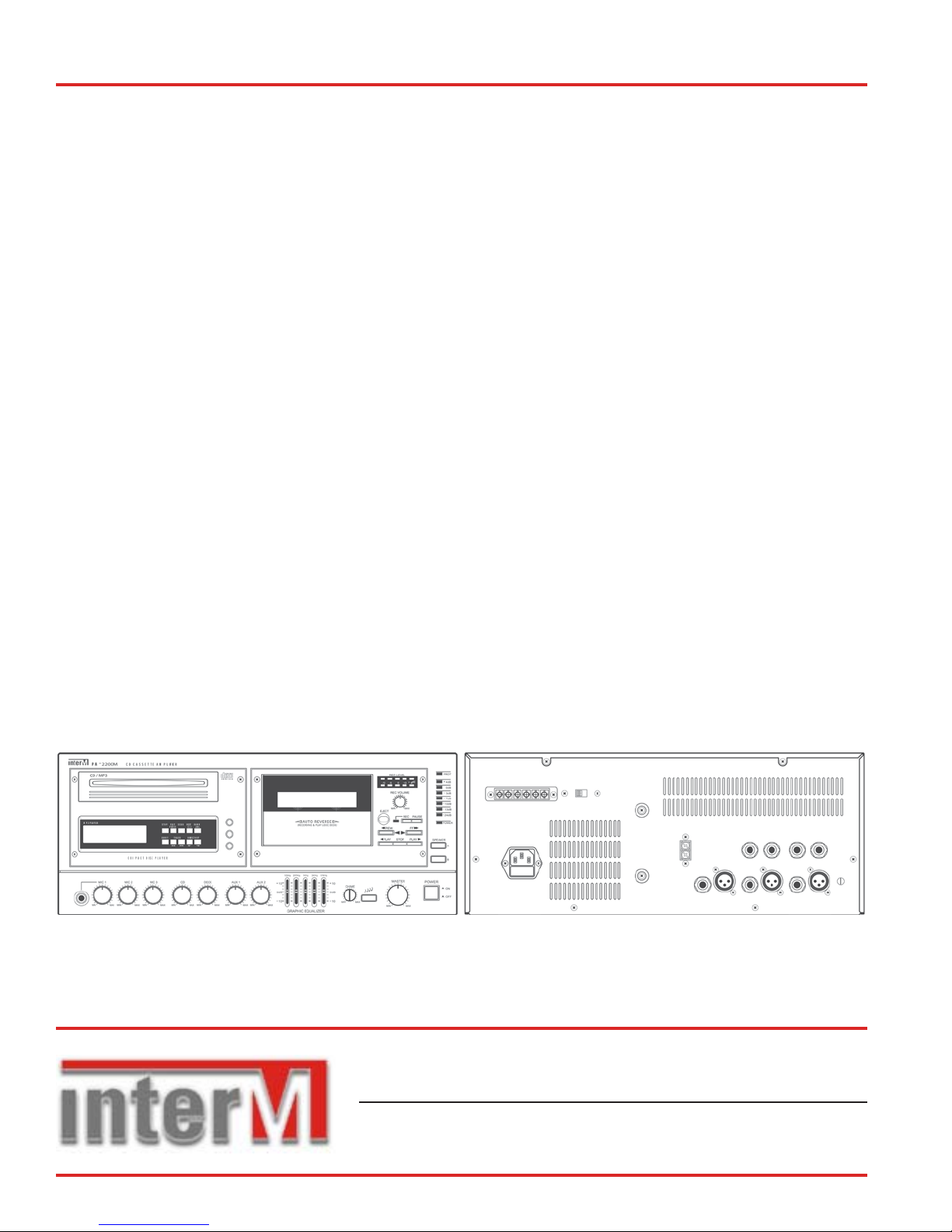

PA-2100M/2200M Front and Rear Views
