Inter-m PA-2000, PA-2000R, PA-4000, PA-4000R Operating Manual

PA-2000/PA-4000/

PA-2000R/PA-4000R

Public Address Amplifier

Copyright 2004 Inter-M Corporation

PA-2000/PA-4000/PA-2000R/PA-4000R Public Address Amplifier

Contents

Welcome ..................................................................................................................................... 3

Unpacking ............................................................................................................................... 3

Warnings .................................................................................................................................. 3

Operation................................................................................................................................. 5

Features ....................................................................................................................................... 6

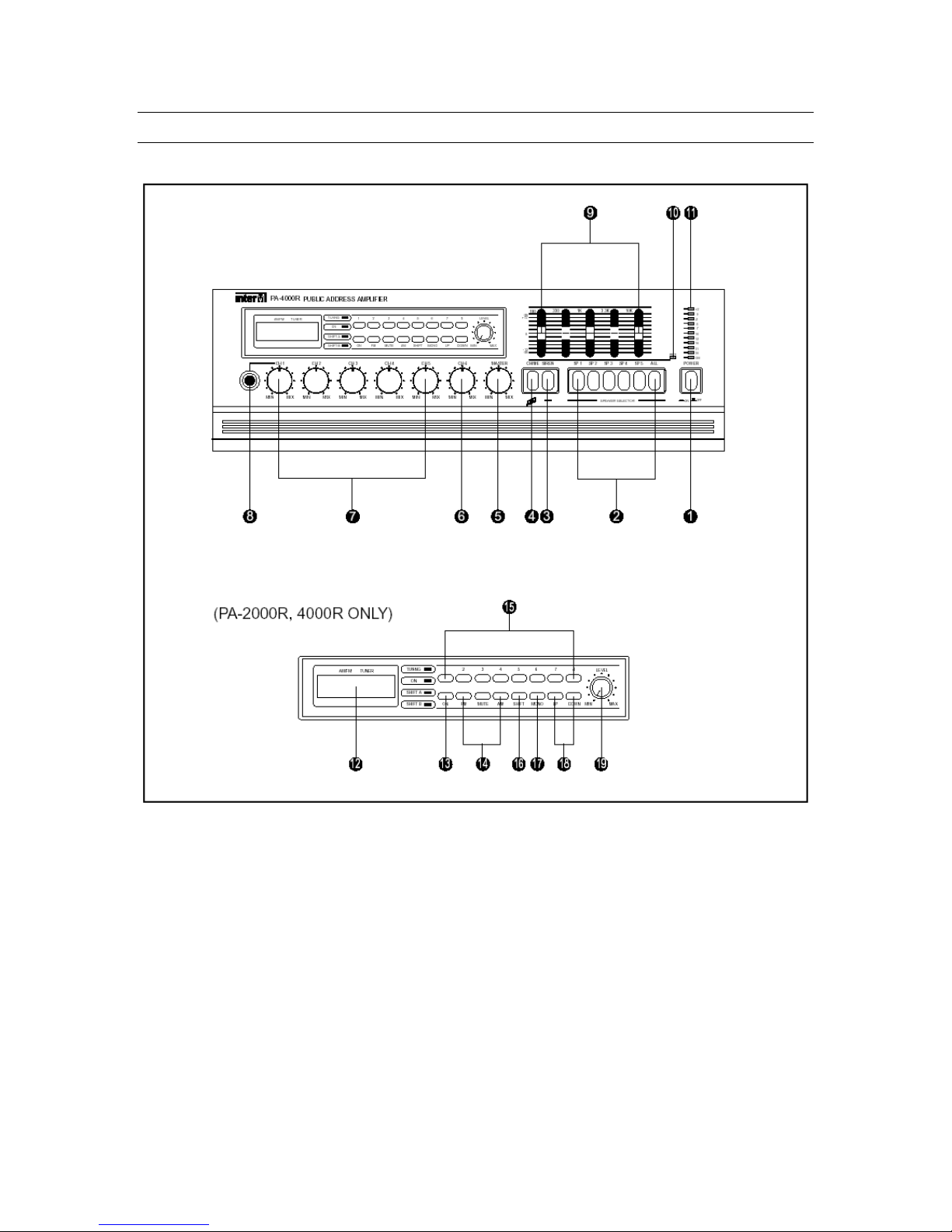

Front Panel Controls.................................................................................................................... 7

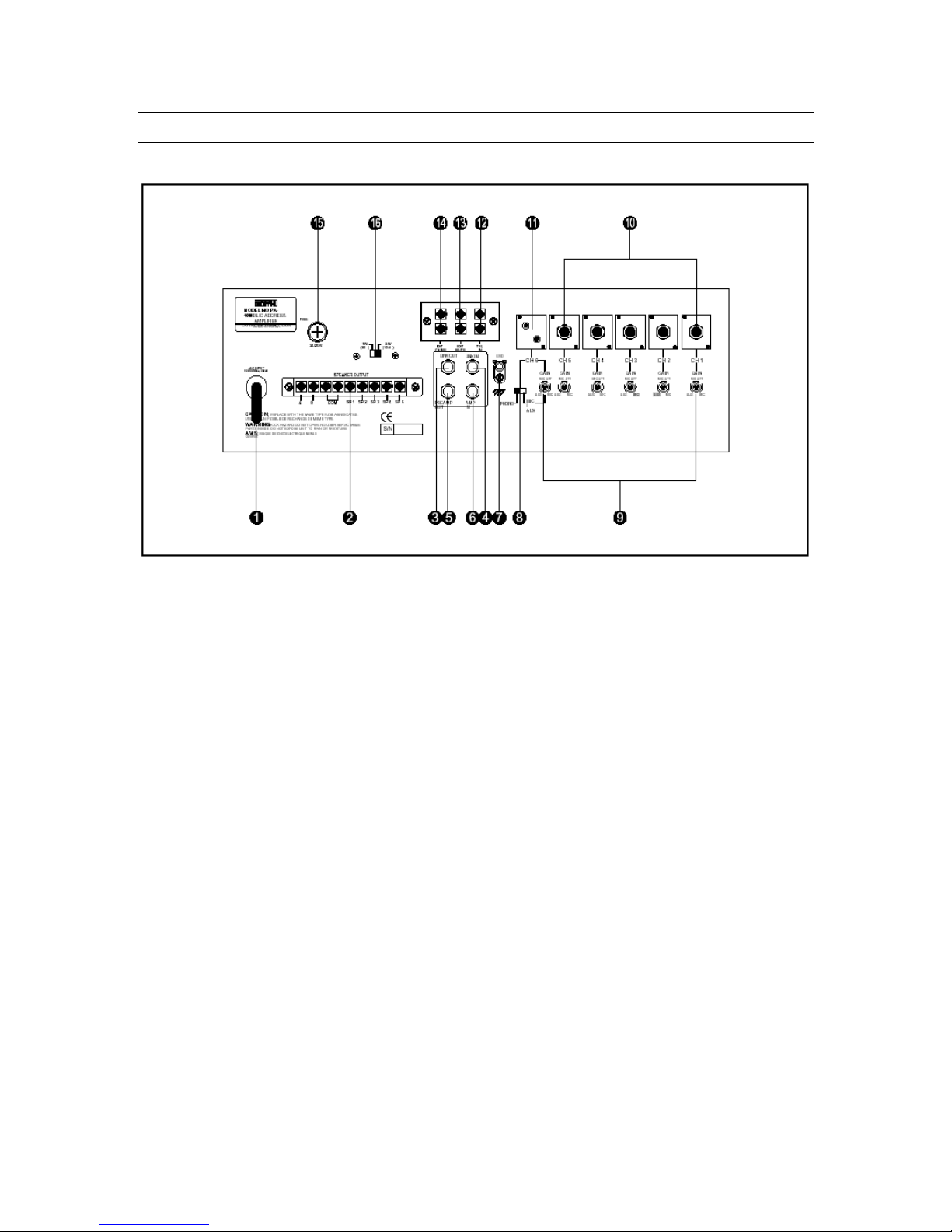

Rear Panel Controls .................................................................................................................. 10

Connection of the Antenna and Grounding Cables............................................................. 13

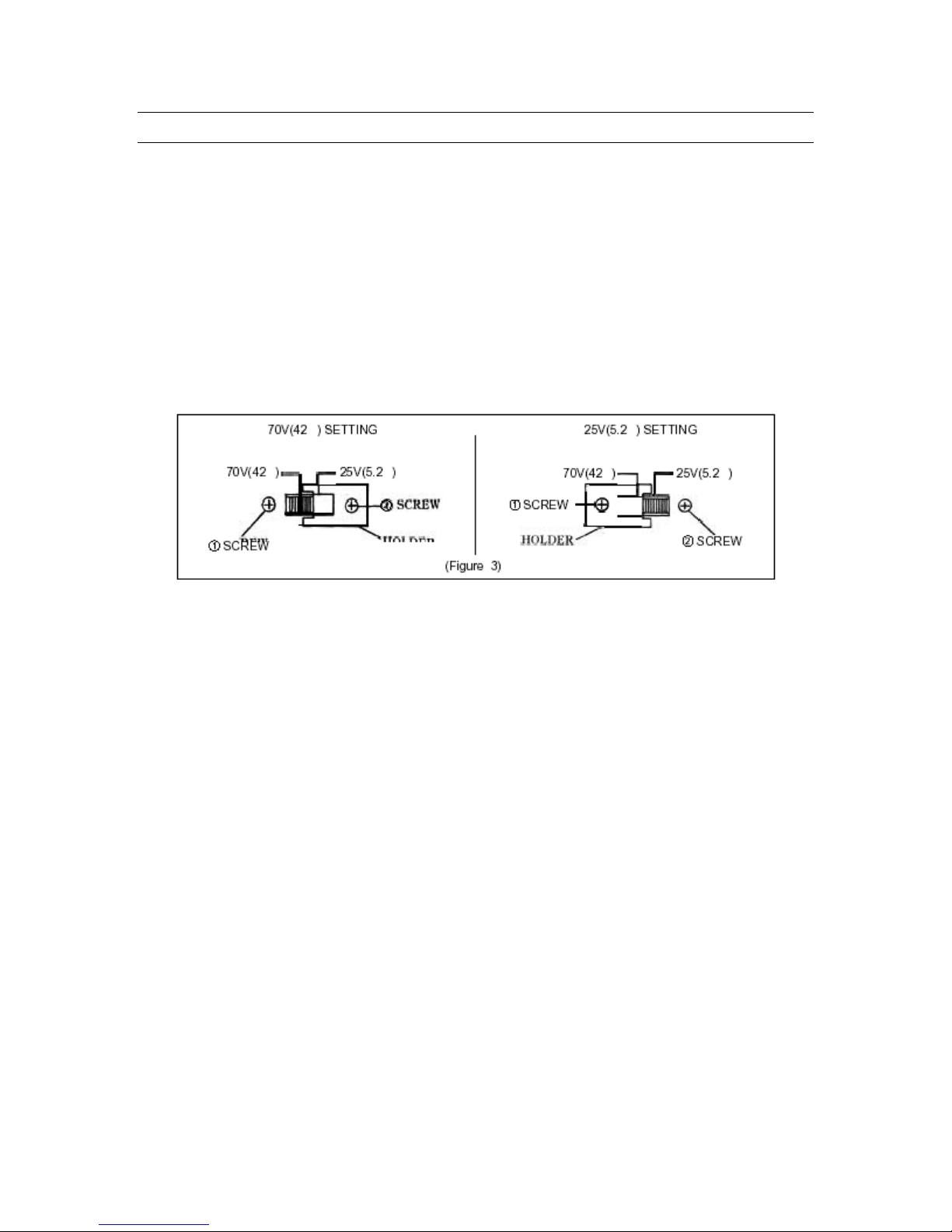

Impedance Selector ................................................................................................................ 14

Connecting Speakers............................................................................................................... 15

Block Diagram .......................................................................................................................... 16

Specifications............................................................................................................................ 17

2

PA-2000/PA-4000/PA-2000R/PA-4000R Public Address Amplifier

Welcome

A personal welcome to you from the management and employees of Inter-M

Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated
to providing you with the highest quality products and the best value.

We sincerely trust this product will provide you with years of satisfactory service, but if
anything is not to your complete satisfaction, we will endeavor to make things right.

Welcome to Inter-M, and thank you for becoming a part of our worldwide extended
family!

Unpacking

Although your PA-2000/4000 is neither complicated nor difficult to operate, we
recommend you take a few minutes to read this brief manual and familiarize yourself
with the important information regarding product features, setup and operation.

As with most electronic devices, we strongly recommend you retain the original
packaging. In the unlikely event the product must be returned for servicing, the original
packaging (or reasonable equivalent) is required.

Warnings

Environment

Never place this product in an environment that could alter its performance or reduce its
service life. Such environments are usually characterized by high levels of heat, dust,
moisture, or vibration.

Safety

1. Read these instructions carefully.

2. Follow all instructions.

3. Keep all warnings.

4. Do not operate this apparatus near water.

5. Clean only with a damp cloth.

6. Do not block any of the ventilation openings.

7. Install only in accordance with the instructions in this manual.

3

PA-2000/PA-4000/PA-2000R/PA-4000R Public Address Amplifier

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades, with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where it is attached to the apparatus.

11. Use only the attachments/accessories specified.

12. Use only with a cart, stand, tripod, bracket, or table specified, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid overturning.

13. Unplug this apparatus during lightning storms or when unused for long periods of
time.

14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.

4

PA-2000/PA-4000/PA-2000R/PA-4000R Public Address Amplifier

Operation

Make certain that speakers and input sources are properly connected before switching
on.

Keep volume levels at minimum gain before switching on.

NOTE: The system’s operation is delayed by approximately three seconds after pressing
the AC Mains power switch. This is due to the built-in protection circuitry, designed to
protect the speakers and other system components.

5

PA-2000/PA-4000/PA-2000R/PA-4000R Public Address Amplifier

PA-2000/4000/2000R/4000R
Public Address Amplifier

Features

Six Input Channels with Adjustable Input Sensitivity and Individual Level Controls

• Rear-panel level controls adjust each input channel from Mic to Aux level.

Five-Band Graphic Equalizer

• Five-band graphic equalizer allows you to shape the tonal balance of your program
material.

Speaker Select

• Six speaker select switches enable you to select any combination of up to five
speakers.

Tuner Memory (PA-2000R, PA-4000R Only)

• Integrated AM/FM tuner with 16 programmable memory locations to easily store and
recall your favorite preset stations. (Available on the PA-2000R and PA-4000R only.)

Telephone Paging Input/Music-on-Hold (PA-2000R, PA-4000R Only)

• Telephone input for connection with telephone system. Music-on-Hold function
available on PA-2000R and PA-4000R only.

Phono Level Input

• Switchable input level on Channel 6 allows for connection of phono level source.

Announcement Chime and Siren

• Convenient four-tone chime and electronic siren for use with announcements.

6
