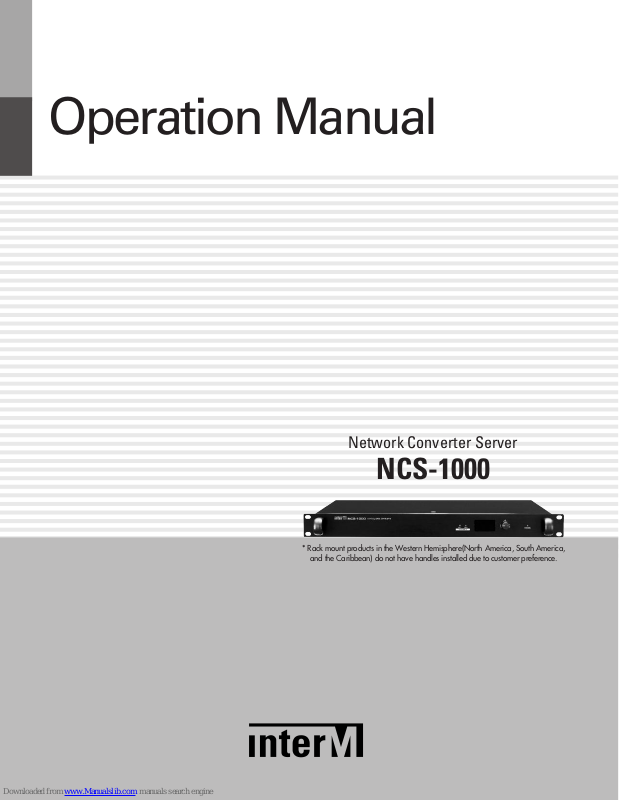

Inter-m NCS-1000, NC-M01 Operation Manuals

Operation Manual

Network Converter Server

NCS-1000

* Rack mount products in the Western Hemisphere(North America, South America,

and the Caribbean) do not have handles installed due to customer preference.

NETWORK CONVERTER SERVER

Welcome

Welcome

A personal welcome to you from the management and employees of Inter-M

All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.

We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.

Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!

his symbol is i ntend ed t o alert t he u ser to the

T

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

presence of uninsulated “dangerous voltage” within
the product’s e nclosur e that may be of suff icient
magnitude to constitute a risk of electric shock to
persons.

AUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

C

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

EFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

R

ATTENTION : RISQUE DE CHOC ELECTRIQUE

NE PAS QUVRIR

Caution: To prevent electric shock do not use this (polarized) plug with

Attentions: Pour prévenir les chocs électriques ne pas utiliser cette

WARNING

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near water(e.g.

near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do

not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases,

should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.

*
*

The mains plug of the power supply cord shall remain readily accessible.

CAUTION

*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing

other than that contained in the operating instructions unless you are qualified to do so.

NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

This s ym bol is intende d to a lert the user to t he
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.

an exten sion cord, rece ptacl e or other outlet unless the
blades can be fully inserted to prevent blade exposure.

fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre ins ér ées à fond sans e n la isser auc un e pa rtie à
découvert.
Pour decon ne ct er c omplete me nt l ’a ppareil du rese au
d’alimentation. deconnecter le cordon d’alimentation de la
prise murale.
La prise du reseau d’alimentation doit demeurer aisement
accessible.

NETWORK CONVERTER SERVER

Contents

Contents

Unpacking .......................................................................................................................................2

Installation

Environment....................................................................................................................................2

Important Safety Instructions.............................................................................................................2

Overview .........................................................................................................................................3

Features ...........................................................................................................................................3

Contents and Accessories .............................................................................................................3

Front Panel ......................................................................................................................................4

Rear Panel .......................................................................................................................................5

Operation ........................................................................................................................................6

System Connection.........................................................................................................................7

Block Diagram ................................................................................................................................8

Specifications ..................................................................................................................................9

Service

Procedures....................................................................................................................................10

Schematic.....................................................................................................................................10

Parts List .......................................................................................................................................10

Variations and Options...............................................................................................................10

Warranty .......................................................................................................................................10

NCS-1000

1

NETWORK CONVERTER SERVER

Unpacking

Unpacking

Although your NCS-1000 is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.

As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.

Installation

Installation

Environment

Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

S3125A

NCS-1000

2

NETWORK CONVERTER SERVER

Overview

Overview

The NCS-1000 acts as a server in network systems that provide an integrated transmission solution via network
infrastructure. It provides integrated control software for voice reproduction and BGM control by interworking
between complex and wide systems (PA, SR, AV) and provides ideal solution for various spaces such as large
industrial complex, hospital, restaurant, and school.

Features

Features

- INTEGRATED CONTROL OF ALL THE SOUND AND VIDEO DEVICES CONNECTED TO THE NETWORK

- APPLYING STANDARD NETWORK PROTOCOL

- SUPPORTING 10/100/1000 MBPS

- SUPPORTING DHCP, STATIC IP

- SUPPORTING NETWORK BONDING

- WEB-BASED INTEGRATED CONTROL SOFTWARE

- SETTING BROADCAST AREA CONVENIENTLY

- WEB-BASED SYSTEM MONITORING

- SUPPORTING WEB USER SECURITY FEATURE

- LOG FILE SAVING FUNCTION

- AVAILABLE TO SELECT UP TO 24 SOURCE DEVICES (CDP, TUNER, RM, ETC.)

- AVAILABLE TO SELECT UP TO 512 LOCAL ZONES

- AVAILABLE TO SPECIFY UP TO 12 GROUPS

Contents and Accessories

Contents and Accessories

1. AC Power Cord x 1EA

2. 4P Terminal Block x 1EA

3. Rack Mounting Screw x 4EA

4. User Manual x 1EA

NCS-1000

3

NETWORK CONVERTER SERVER

1

92.168.1.99

1 2

43

Front Panel

Front Panel

1. NETWORK STATUS LED

The status of network Primary/Secondary operation is displayed. If connected to the network, green LED
blinks.

2. OLED DISPLAY

Network status is displayed on OLED DISPLAY.

- IP Address, Subnet mask, DNS Server, Mac Address Information

3. DISPLAY CONTROL SWITCH

You can check your desired information by rotating the switch.

4. POWER LED

If the device is powered on, green LED is turned on.

NCS-1000

4

Rear Panel

1

54

2

3

ACT
LINK

Rear Panel

NETWORK CONVERTER SERVER

1. DC POWER INPUT TERMINAL

It supplies power to this unit. The power source is AC 120-240V, 50/60Hz. Do not bend, pull, twist, heat,
or cut the power cord excessively. It may damage the cord and cause a fire or electric shock.

2. AC POWER SWITCH

It turns the AC power of the device on and off.

3. DC 24V INPUT TERMINAL

Emergency spare battery (DC 24V) connection terminal. If an AC power failure occurs, the device will
operate with a connected spare battery. When DC 24V power is applied to the device, the device is always
operated regardless of the power switch.

4. NETWORK (SECONDARY & PRIMARY) CONNECTING TERMINAL

It is a terminal to connect the device to the network. You can control the broadcasting by using integration
software.
※ For more information on how to set up, refer to the integration software manual. Download the manual at

home page. (http://www.inter-m.net)

5. RESET SWITCH

Press the switch for more than 10 seconds to reset the settings of the device.

NCS-1000

5

NETWORK CONVERTER SERVER

Pri. 192.168.1.99

Sec. 0.0.0.0

NCS-100 0 0.1.0.0

INS 192.168.32.190

MAC 00:1d:1d:02:a5:0e

Mask 255.255.254.0

IP 192.168.47.45

Network Pri.

TX KB/s

0.00

0.00

RX KB/s

Network Pri.

INS 192.168.32.190

MAC 00:1d:1d:02:a5:0f

M

ask 0.0.0.0

IP 0.0.0.0

N

etwork Sec.

TX KB/s

0.00

0.00

R

X KB/s

Network Sec.

①

②

③

④ ⑤

Operation

Operation

① Standby screen of the device. The model name and primary/secondary network information are displayed.

②In the standby screen, turn the Display Control Switch on front panel to the right to display the Network

Primary details (IP Address, Subnet Mask, DNS Server, and Mac Address). In the Network Primary details
screen, turn the Display Control Switch on the front panel to the left, the standby screen (model name,
primary/secondary network information) is displayed.

③In the Network Primary details screen, turn the Display Control Switch to the right to display the Network

Primary status (RX/TX data rate). In the Network Primary status screen, turn the Display Control Switch to the
left to display the Network Primary details (IP Address, Subnet Mask, DNS Server, and Mac Address).

④In the Network Primary status screen, turn the Display Control Switch to the right to display the Network

Secondary details (IP Address, Subnet Mask, DNS Server, and Mac Address). In the Network Secondary
details screen, turn the Display Control Switch to the left to display the Network Primary status (RX/tX data
rate).

⑤In the Network Secondary details screen, turn the Display Control Switch to the right to display the Network

Secondary status (RX/tX data rate). In the Network Secondary status screen, turn the Display Control Switch
to the left to display the Network Secondary details (IP Address, Subnet Mask, DNS Server, and Mac
Address).

NCS-1000

6

System Connection

CD-6208 NC-S01

NC-M01

NC-900

NC-900

NC-900

NC-900

NC-900

6000 Analog

Broadcasting Room #1

Broadcasting Room #2

RM-6016

EP-6216

ES-6116

P

S-6116I

ES-6116

PS-6116I

AMPLIFIER

RG-6116

RG-6116

6000 Analog

Broadcasting Room #3

CD-6208

RM-6016

NC

900900

C

NC-

NC-

900900

NC-NC

900

900NC900

900

NC-

M01

NC9009

00

Network

Audio(MIC/Line)

Audio(Network)

C

ontact

Network

RS-232, 422, 485, USB

P

RI. SEC.

N

ETWORK

P

OWER

NC M01

NETWORK CONVERTER

P

RI. SEC.

POWER

NC S01

NETWORK CONVERTER

NETWORK

NC-S01

NC-M01

PRI. SEC.

N

ETWORK

POWER

NC M01

NETWORK CONVERTER

P

RI. SEC.

POWER

NC S01

NETWORK CONVERTER

NETWORK

NCS-1000

NCS-1000

MS-N300

System Connection

NETWORK CONVERTER SERVER

NCS-1000

7

NETWORK CONVERTER SERVER

+5VD

+12V

REG

REG

+3V3

Euro Terminal

REG

+3V3_FPGA

REG

+1V8_FPGA

FPGA Module

PHY

Ethernet Primary

Ethernet Secondary

RS-232(D-sub 9P) RM-6024(Modular 8P)

Factory Switch

Link LED

+24V Input

DC FAN

REG

Transceiver Transceiver

PWR LED

SMPS

DC +24V OUT

+24V

Block Diagram

Block Diagram

NCS-1000

8

NETWORK CONVERTER SERVER

280

44

440

482

Specifications

Specifications

NCS-1000

Network Communications 10/100/1000 Base-T (RJ-45)

Operating Temperature

Power Source 120-240V, 50/60Hz, 10W, DC 24V, 350mA

Weight(SET) 3.02kg/6.66lb

Dimensions(SET) 482(W) x 44(H) x 280(D)mm/19(W) x 1.7(H) x 11(D)in

* Design and specification are subject to be changed for the improvement of product quality without pre notice.

※ DIMENSIONS

0℃~40℃

NCS-1000

9

NETWORK CONVERTER SERVER

Service

Service

Procedures

Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.

Schematic

A Schematic is available by contacting your warranty provider.

Parts List

A Parts List is available by contacting your warranty provider.

Variations and Options

Variations and Options

Variations

Products supplied through legitimate sources are compatible with local AC power requirements.

Options

No optional items are available for this product.

Warranty

Warranty

Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.

To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.

10

NCS-1000

NOTE

NCS-1000

11

NOTE

12

NCS-1000

Inter-M, Ltd. (Korea) began operations in 1983.

Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.

Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).

The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.

With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.

Inter-M Americas, INC.

5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [e-mail]

Inter-M Corporation

SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [e-mail]

MADE IN KOREA

May 2018 145760
