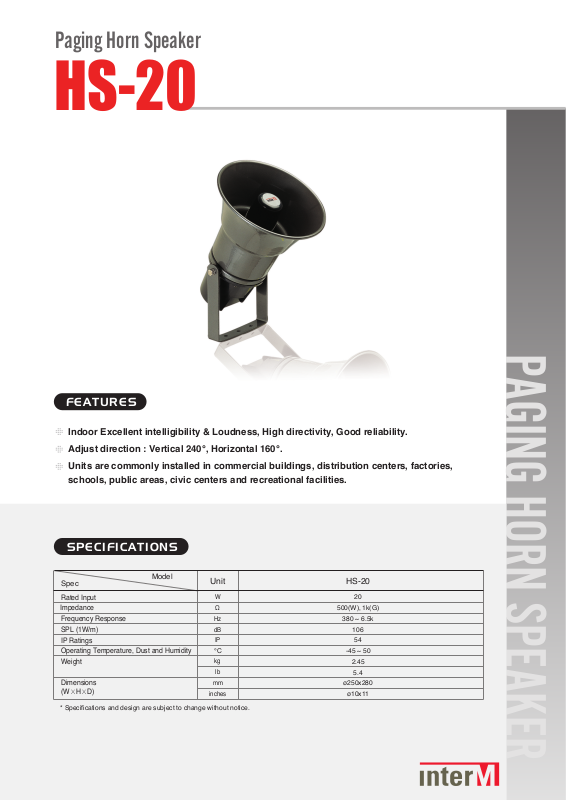

Inter-M HS-20 User Manual
Paging Horn Speaker
HS-20
FEATURES
Indoor Excellent intelligibility & Loudness, High directivity, Good reliability.
Adjust direction : Vertical 240°, Horizontal 160°.
Units are commonly installed in commercial buildings, distribution centers, factories,
schools, public areas, civic centers and recreational facilities.
SPECIFICATIONS
Spec
Rated Input
Impedance
Frequency Response
SPL (1W/m)
IP Ratings
Operating Temperature, Dust and Humidity
Weight
Dimensions
(W×H×D)
* Specifications and design are subject to change without notice.
Model
Unit
W
Ω
Hz
dB
IP
°C
kg
lb
mm
inches
HS-20
20
500(W), 1k(G)
380 ~ 6.5k
106
54
-45 ~ 50
2.45
5.4
ø250x280
ø10x11
PAGING HORN SPEAKER
Paging Horn Speaker
A: Frequency Response, Magn dB re 20.00 µPa/V
120
110
100
90
80
70
20 200 Hz 2k 20k
dB
0
30
60
90
120
150
180
210
240
270
300
330
500Hz
1000Hz
2000Hz
4000Hz
-
35
-
30
-
25
-20
-15
-
10
-
5
0
5
HS-20
Polar Pattern Diagram
▶
HS-20
Frequency Response
▶
HS-20 SPL DATA
Inter-M Corporation
- OFFICE: 653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
- TEL : +82-2-2289-8140~8, FAX : +82-2-2289-8149
- Home page: http://www.inter-m.com
- E-mail: overseas@inter-m.com
- Printed in korea
