Inter-M FTA-108S User Manual
Operation Manual
2/8 Channel Audio Transmitter/Receiver
Transmitter:
Receiver
* Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean)
FTA-108S/ITX-108/ITX-102
:
FRA-108S/IRX-108/IRX-102
do not have handles installed due to customer preference.
2/8 CHANNEL AUDIO TRANSMITTER/RECEIVER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
This symbol is intend ed to aler t the user to the
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Caution: To prevent electric shock do not use this (polarized) plug with
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
*
*
The socket-outlet shall be installed near the equipment and shall be easily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
presence of uninsulated “dangerous voltage” within
the prod ucts enclos ure t hat m ay be of suffi cient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intend ed to aler t the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fon d sa ns en laisser auc une par tie à
découvert.
2/8 CHANNEL AUDIO TRANSMITTER/RECEIVER
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Front/Rear Panels of Transmitter
- Name and Function of Front Panel..................................................................................................4
- Name and Function of Rear Panel ..................................................................................................5
Front/Rear Panel of Receiver

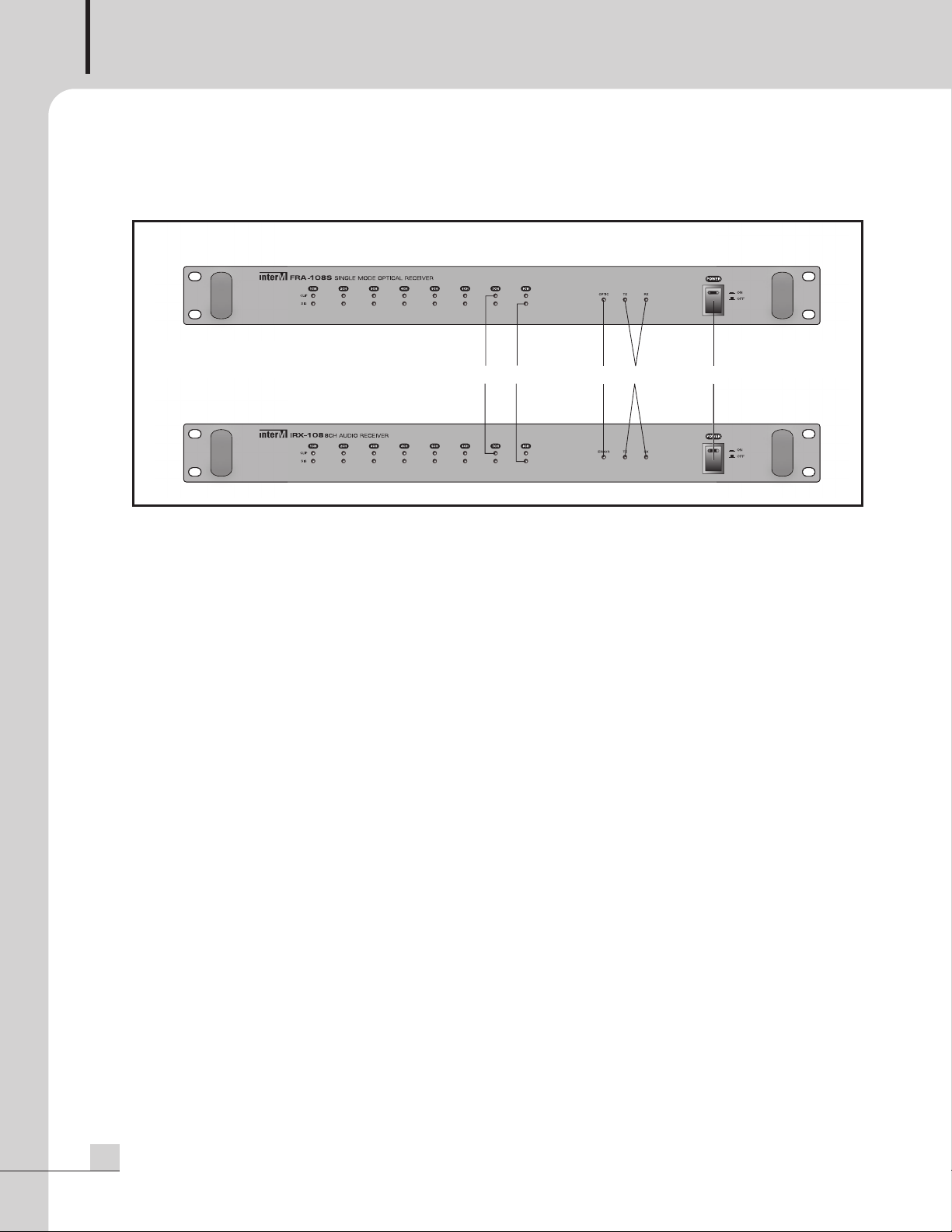

- Name and Function of Front Panel..................................................................................................6
- Name and Function of Rear Panel ..................................................................................................7
Applications ....................................................................................................................................8
Assembling the Cables ..................................................................................................................9
RJ45 Data Protection Connector..................................................................................................9

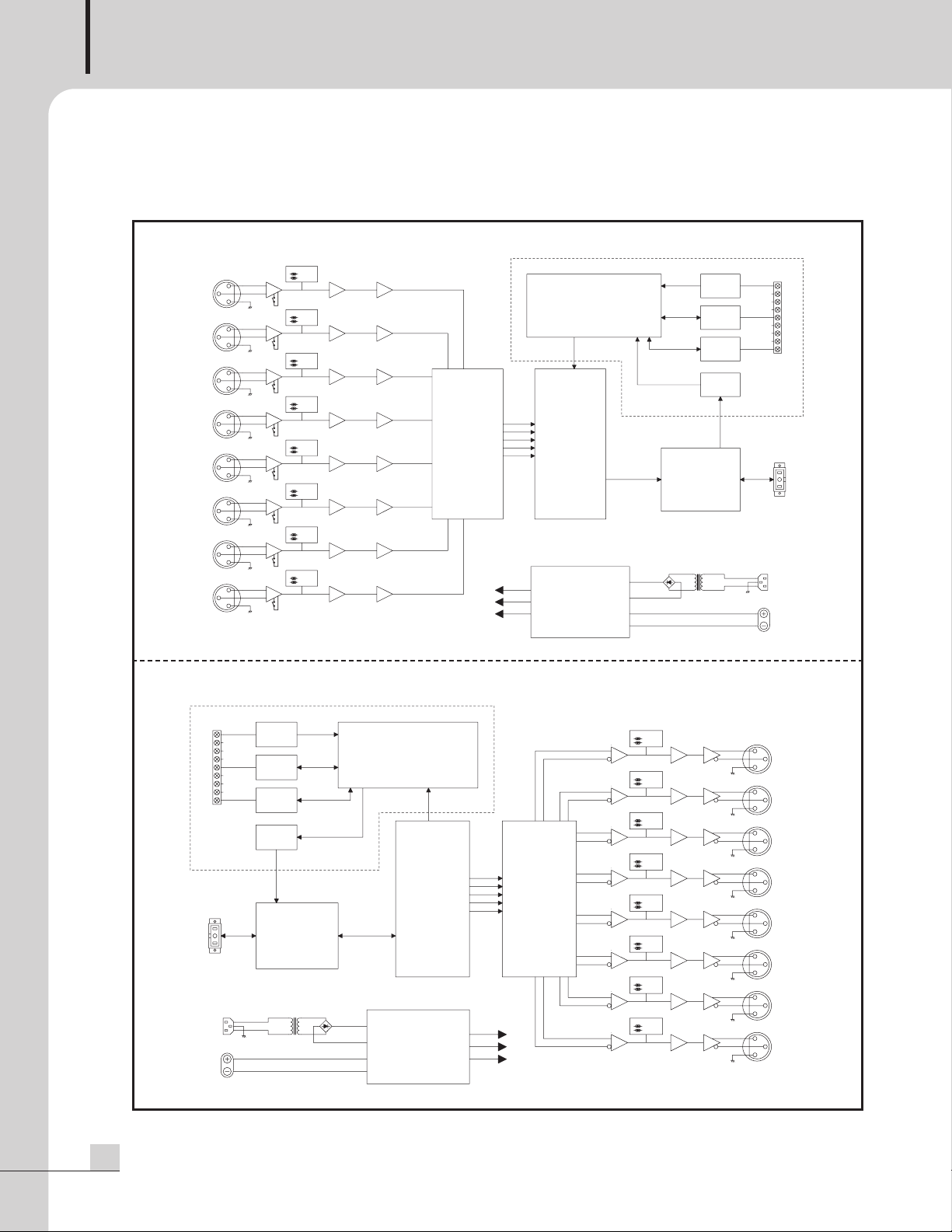

Block Diagram ..............................................................................................................................10
Standards and Functions ............................................................................................................11
Service............................................................................................................................................12
Procedures....................................................................................................................................12
Schematic.....................................................................................................................................12
Parts List .......................................................................................................................................12
Variations and Options ...............................................................................................................12
Warranty .......................................................................................................................................12
FTA-108S/ITX-108/ITX-102, FRA-108S/IRX-108/IRX-102
1
2/8 CHANNEL AUDIO TRANSMITTER/RECEIVER
S3125A
Unpacking
Unpacking
Although your ECS-6216MS is neither complicated nor difficult to operate, we recommend you take a few
minutes to read this brief manual and familiarize yourself with the important information regarding product
features, setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A
2
FTA-108S/ITX-108/ITX-102, FRA-108S/IRX-108/IRX-102
2/8 CHANNEL AUDIO TRANSMITTER/RECEIVER
Features
Features
Features
- TRANSMIT THE 2 CHANNEL AND 8 CHANNEL BALANCED AUDIO SIGNAL
2 Channel Model: ITX/IRX-102, 2 channel balanced audio signal transmission
8 Channel Model: FTA/FRA/ITX/IRX-108, 8 channel balanced audio signal transmission
- THE SOLUTION OF SENDING A SOUND SOURCE IN LONG DISTANCE
Optical Cable Communication [FTA/FRA-108S] : Sending a signal in long distance (maximum 15km)
UTP Cable Communication [ITX/IRX-108(102)] : Sending a signal in long distance (maximum 150m)
- HIGH QUALITY AUDIO SIGNAL
It sends the digital signal converted to 24Bit, 48kHz to provide the high quality audio signal
(higher than S/N 90dB, less than THD 0.01%)
- AC/DC SUPPORTS
It responses to the field conditions with supporting AC and DC power input terminals
- INPUT SENSITIVITY CONTROL FUNCTION THROUGH PAD SWITCHES
If it is clipped due to high input audio signal level, push the PAD switch to decrease the input signal in 10dB
- INPUT SIGNAL DISPLAY
Detects the audio signal and clip approved to each channel and display on the front panel.
- RS-232/RS-422/CONTACT POINT DATA RECEIVING/SENDING (OPTION MODULE)
The optional module (CT-100M/CR-100M) can be installed to make a possible to receive and send a RS-232,
RS-422 and 8 channel contact point data.
FTA-108S/ITX-108/ITX-102, FRA-108S/IRX-108/IRX-102
3
