Operation Manual
Emergency Combination System
ECS-6216P/S
* Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean)
do not have handles installed due to customer preference.
EMERGENCY COMBINATION SYSTEM
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*CLASS 2 WIRING (Adjacent to speaker terminal): The speaker output of this apparatus can exceed 10 Watts and could be a shock injury.
Connection to speakers should be performed by a skilled person.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
*
The socket-outlet shall be installed near the equipment and shall be easily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour préve nir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
EMERGENCY COMBINATION SYSTEM
1
ECS-6216P/S
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Equipment Setting and Checking.................................................................................................4
Front Panel ......................................................................................................................................5
Rear Panel .......................................................................................................................................6
Applications ..................................................................................................................................10
Block Diagram ..............................................................................................................................11
Specifications ................................................................................................................................12
Service............................................................................................................................................13
Procedures....................................................................................................................................13
Schematic.....................................................................................................................................13
Parts List .......................................................................................................................................13
Warranty .......................................................................................................................................13
"We, Inter-M to apply the appropriate set of E4 & Class A for Electromagnetic Environment Condition."
EMERGENCY COMBINATION SYSTEM
2
ECS-6216P/S
Installation
Unpacking
Unpacking
Although your ECS-6216P/S is neither complicated nor difficult to operate, we recommend you take a few
minutes to read this brief manual and familiarize yourself with the important information regarding product
features, setup and operation.
As with most electronic devices, we strongly recommend you to retain the original packaging. In the unlikely
event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A
S3125A
EMERGENCY COMBINATION SYSTEM
3
ECS-6216P/S
Features
Features
Features
- INTEGRATED SYSTEM
System consists of EMERGENCY SWITCHER, MATRIX, RELAY GROUP, SPEAKER SELECTOR, and TERMINAL
BOARD functions.
- BROADCAST CONTROL DEPENDING ON PRIORITIES
It controls the priority broadcasting by connecting to emergency panel (EP-6216) and remote MIC (RM-6024).
It switches to remote or emergency broadcasting due to priorities of emergency signals or outside remote signals
(remote MIC broadcasting signals) even if during general broadcasting.
- AUTOMATIC FIRE DETECTING FUNCTION
With 16-channels corresponding to fire contact point signals, fire alarm broadcasting will be transmitted
automatically.
- MANUAL CONTROL OF EMERGENCY AND GENERAL BROADCASTS
It can broadcast to desired channels by manually selecting emergency or general broadcasting.
- DISPLAY BROADCASTING STATUS
It displays the priority and broadcasting status on LED, so user can verify the broadcasting status without any
effort.
- MEMORY/SAVE FUNCTION
Fire/RM Macro information will be saved in internal PC memory allowing for normal operation in event of PC
error.
- CHANNEL EXPANSION AND RS-485 COMMUNICATION INTERFACE
Long distance transmission is available and system can be expanded to 160 Zones by utilizing ECS-6216S.
- INSTALLATION TIME AND SPACE
Since it is an integrated system, it is easy to install and can save installation labor, time and space.
EMERGENCY COMBINATION SYSTEM
4
ECS-6216P/S
Equipment Setting and Checking
Equipment Setting and Checking
1. Address Setting
1) Entire system uses only one ECS-6216P; if expansion is needed, additional ECS-6216S units must be
added.
2) The equipment numbers for each wiring condition is set by the rear panel DIP switch.
Caution: ECS-6216P should be setting as No. 1.
3) The table below shows the setting methods; the ON switch setting/number will be the equipment number.
Caution: If an equipment number is not set, all zone indicator LEDs will be blink. If the number is
already in-use, communication will be impossible. In case of above cases, please check the
equipment number set-up status.
4) Zone allocation is as follows.
.
2. TERMINATION Switch (LOAD/OPEN) Setting
1) For the system linked by using RS-485 communication interface, it is necessary to set the termination
switch (LOAD/OPEN) on the rear panel to stabilize data transfer.
2) Set the termination switch to LOAD only for the first and last-numbered equipment units. All others must be
set to OPEN.
Caution: Communication error may occur if setting is performed incorrectly.
DIP Switch 1 2 3 4 5 6 7 8 9 10
1
2
Equipment
3
No.
10
ECS-
6216P
ECS-
6216S
ECS-
6216S
ECS-
6216S
Equipment No. 1 2 3 4 5 6 7 8 9 10
ZONE Allocation 1~16 17~32 33~48 49~64 65~80 81~96
97~112 113~128 129~144 145~160
Equipment 1
S/W: LOAD
IN OUT
Equipment 2
S/W: OPEN
IN OUT
Equipment 3
S/W: OPEN
IN OUT
Equipment N
S/W: LOAD
IN OUT
EMERGENCY COMBINATION SYSTEM
5
ECS-6216P/S

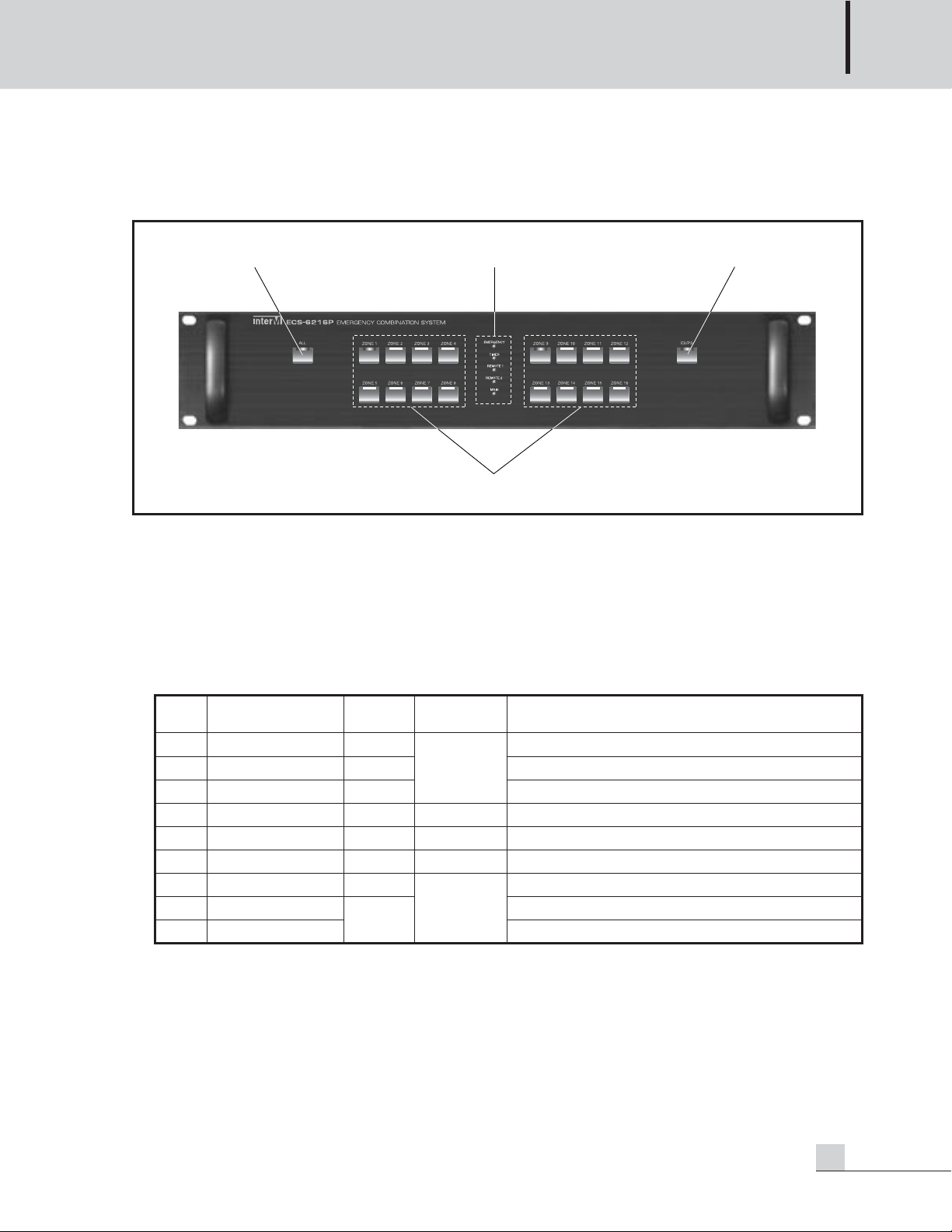

Front Panel
Front Panel
1. ALL BUTTON
Button used when selecting the all zones (1~16).
In case of emergency broadcasting (ES), red light will be ON, and green for general broadcasting (PS).
2. BROADCASTING STATUS LEDS
Displays which broadcast is being transmitted according to broadcasting priorities.
Broadcasting priority displays are Emergency > Timer > Remote1 > Remote2 > Main (BGM).
Detailed operations of priority is as follows:
3. ES/PS SELECTING BUTTON
Emergency System (ES) or Public-address System (PS) selection button.
LED will be red in case of emergency broadcasting (ES), and green for general broadcasting (PS).
4. SPEAKER ZONE SELECTING BUTTON (1~16)
LED will be ON for the zone selected by each individual zone selection button.
LED will be red in case of emergency broadcasting (ES), and green for general broadcasting (PS).
Priority Operations PC Display
ECS-6216P/S
Remark
LED
1 Emergency broadcast EM EM mode switch, EM MIC broadcasting
2 Fire broadcast FIRE EMERGENCY Fire Sensor input
3 Civil broadcast EM When inputting EXT terminal contact point of ECS directly
4PWTIMER broadcast TIME TIMER When using PW-6242A device (Speaker ALL)
5 RM1 broadcast RM1 REMOTE1
When using the PW equipment instead of PC TIMER (Speaker ALL)
6 RM2 broadcast RM2 REMOTE2
7 PC TIMER broadcast TIME
8 PC MIC broadcast
BMG
MAIN Clint PC
9 MP3, CDP, TUNER
123
4
EMERGENCY COMBINATION SYSTEM
6
ECS-6216P/S

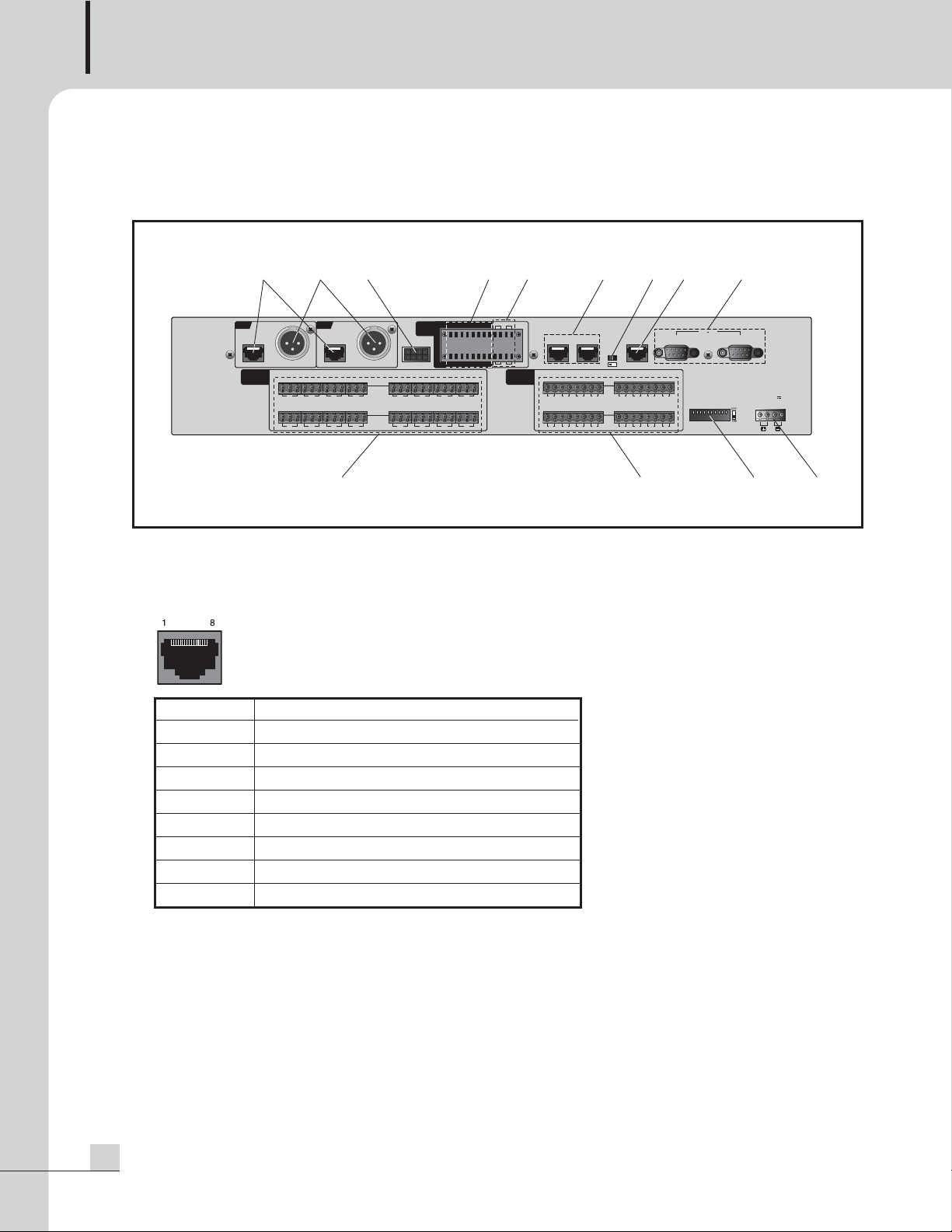

Rear Panel
Rear Panel
1. RM 1,2 COMMUNICATION TERMINAL (EXCLUSIVE FOR ECS-6216P)
Terminal that connects the RM-6024(REMOTE MIC) or RME-6108(RM EXTENDER).
<PIN OUT Specifications>
2. RM1 AND RM2 AUDIO OUTPUT TERMINAL (EXCLUSIVE FOR ECS-6216P)
Terminal that outputs the voice signals from remote MIC input terminal (RM1, RM2).
3. EMERGENCY PANEL (EP) CONNECTING TERMINAL (EXCLUSIVE FOR ECS-6216P)
Connects to the emergency panel (EP) manufactured by Inter-M to control the priority.
(EM/FIRE/TIMER/RM1/RM2).
PIN NO. Functions
1 RS-422 Data - RX+
2 RS-422 Data - RX3 RS-422 Data - TX4 Live Data Input
5 GND
6 RS-422 Data - TX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD
123
RM1
INPUT
SPEAKER
OUTPUT
RM2
INPUT
AUDIO
OUT
1234 5678
HEHCECEHCEHC EEHCEHCEHC HC HCHCHCHC HCHCHCHC
9101112 13 14 15 16
AUDIO
FIRE
SENSOR
OUT
EMG PANEL
/
45 6 78 9
PD TIMER
12345678
910111213141516
LINK IN LINK OUT UPGRADE
EXTCOM
AMP
INPUT
1234 5678
9101112 13 14 15 16
TERM.
LOAD OPEN
10 11 12 13
SOURCE 1
RS 232
ADDRESS
12345678910
SOURCE 2
DC 24V
EMERGENCY COMBINATION SYSTEM
7
ECS-6216P/S
<PIN OUT Specification>
4. FIRE SENSOR INPUT TERMINAL
Connects to the sensor output of a fire receiver to transmit the emergency and evacuation broadcasts.
1) With MACRO function, it can select and memorize the multiple zones to be broadcast for each input
channel. However, it can only be used with the Windows program provided by Inter-M. The setting
information is downloaded from a PC to the ECS unit and saved in its memory. (Refer to System
Operation Manual)
2) A maximum of 160 zones can be selected and saved in one input channel. For example, if zones 1, 2
and 3 are set to channel No. 1, emergency broadcasting will be simultaneously transmitted to zones 1, 2
and 3 when a fire sensor is received on channel No. 1.
5. PD, TIMER, EXT, COM TERMINAL
1) PD Contact Point Output Terminal
Used to control the power distributor.
Contact point will be transmitted when one speaker zone is ON or there is one fire sensor input.
It is connected to remote SW terminal of power distributor (PD).
2) TIMER Contact Point Terminal (Exclusive for ECS-6216P)
Connects to timer equipment (PW), manufactured by Inter-M.
If PC TIMER function is not used or PC is not connected:
- When contact point is input from TIMER, broadcasting mode will be converted to TIMER, and all speaker
zones will be ON.
However, if PC TIMER on PC Windows program is operated, contact point input by PW operation will be
ignored by priorities. (PC TIMER has priority)
3) EXT Terminal (Exclusive for ECS-6216P)
If PC TIMER is used and PW product is not used, the TIMER audio input terminal not being used in EP can
be used for other purposes.
System operation will be all ZONE ON in EM mode and has a higher priority than TIMER and lower than
FIRE broadcasting.
4) COM Terminal
Connects to COM terminal of fire panel.
5678
4321
PIN NO. Functions
1 COM
2 DC 24V
3 DC +24V
4EM SUM
5 TIMER SUM
6RM1 SUM
7RM2 SUM
8 FIRE SUM
EMERGENCY COMBINATION SYSTEM
8
ECS-6216P/S
6. LINK IN/OUT TERMINAL
Connect LINK IN terminal to previous equipment, and connect LINK OUT terminal to next equipment.
Same for all IN/OUT terminals.
7. TERMINATION SWITCH (LOAD/OPEN)
Switch being set for stable data receive/transmit of LINK IN/OUT.
Refer to Equipment Setting and Checking (page 4) for detailed setting methods.
Caution: Communication error may occur if setting is performed incorrectly.
8. UPGRADE TERMINAL (ISP)
Utilized for software upgrades and is not used otherwise.
9. RS-232 SOURCE DEVICE CONTROLLING TERMINAL (EXCLUSIVE FOR ECS-6216P)
Used to control Inter-M source devices (CD, TUNER) with Windows program.
1) Connectable source devices: Inter-M products equipped with RS-232 communication terminal
2) Maximum recommended communication distance is 12M(40 feet).
3) PIN OUT Specification
10. SPEAKER OUT TERMINAL
Connects to each channel’s speaker. It consists of 3-wire type.
1) In PS mode, it is transmitted only through HOT terminal.
2) In ES mode, it is transmitted through both HOT/EM terminals.
PIN NO. Functions
1 RS-485 Data - A
2 RS-485 Data - B
3 RS-485 Data - Z
4NA
5 GND
6 RS-485 Data - Y
7NA
8NA
Pin No. 1 2 3 4 5 6~9
Purpose Not Used Receive Transmit Not Used Ground Not Used
11. AMP IN TERMINAL
Connects with output of AMP.
12. ADDRESS SWITCH
Sets the role for each system when equipment is expanded and linked.
Refer to Basic Setting and Checking (Page 4) for setting methods.
13. POWER INPUT TERMINAL
- Power input terminal. Check polarity before connecting DC 24V.
- When connecting to PD (Power Distributor), connect to unswitched terminal.
EMERGENCY COMBINATION SYSTEM
9
ECS-6216P/S
EMERGENCY COMBINATION SYSTEM
10
ECS-6216P/S
Applications
Applications
RME-6108
RME-6108
PROGRAM TIMER
PV-6232
EMERGENCY PANEL
(SLIDE S/W: EXT)
ECS-6216P
(MASTER)
PRE AMPLIFIER
OUTPUT
RM 1 RM 2RM 3RM 4RM 5RM 6RM 7RM 8
OUTPUT
RM 1 RM 2RM 3RM 4RM 5RM 6RM 7RM 8
REMOTE MIC
MIC SW
RM1
RM2
INPUT
INPUT
AUDIO
T
OU
SPEAKER
OUTPUT
1234 567
HEHCECEHCEHC EEHCEHCEHC HC HCHCHCHC HCHCHCHC
12 13 14 15 16
91011
1
1
2
2
PRIORITY
MASTER
SUB OUTOUTPUT
INSERTREC OUT
INPUT
INPUT
MATRIX
SIREN/VOLUME
AUTO.ANN
T
EXT INT
EXT IN
12 0
DC OUT
24V
CONTROL OUT (TOAUTOANN)
PD
TIMER
12345678
FIRE
SENSOR
AUDIO
OUT
EMGPANEL
/
1
2
AUX
INPUTINPUT
+-
DC INPUT
24V
910111213141516
MIC IN
LINE IN
8
COM
EXT
AMP
INPUT
MIC IN
LINE IN
LINK IN LINK OUT UPGRADE
1234 5678
91011
MIC IN
LINE IN
LRRLRL
DC 24V
DC 24V
PRE IN REMOTE IN 2 REMOTE IN 1 TIMER IN AUTO ANN IN PRE OUT
RS 232
SOURCE 1
LOAD OPEN
12 13 14 15 16
MIC IN
LINE IN
TERM.
LINE IN
SOURCE 2
ADDRESS
12345678910
MIC IN
MIC IN
MIC IN
MIC IN
LINE IN
LINE IN
LINE IN
DUCK P.PWR
CH3CH4CH5CH6CH7CH8CH9
RM #1
RM #9
RM #8
RM #16
RM-6024+RM-6012KP
RM-01
PC(GUI)
DIB-6000
MIC
LINE
VOL INPUT OUTPUT
MUTE
PRI.
LEVEL
OFF
MAXMIN
ON
INPU
T
DC 24V
MIC IN
LINE IN
DUCK P.PWR
CH1CH2
TO PC
VOL
+
+
DIB 6000
DIRECT BOX
LINK
POWER
INPUT OUTPUT
TERM.
OPEN
LOAD
LINE
GND.
FLOAT
FRAME
INPUT OUTPU
T
ER-6116
ECS-6216S
(SLAVE)
ER-6116
PROGRAM
DISTRIBUTOR
AMPLIFIER
LINK
IN OUT
VOICEFILE
TERM.
ADDRESS
LOAD OPEN
12345678910
FIRE
SENSOR
SPEAKER
OUTPUT
1234 567
HEHCECEHCEHC EEHCEHCEHC HC HCHCHCHC HCHCHCHC
12 13 14 15 16
91011
LINK
IN OUT
VOICEFILE
TERM.
ADDRESS
LOAD OPEN
12345678910
~AC INPUT
E
FUS
INPUT
OUTPUT
A
B
COM
43.8V(4)
70V(10.2 )
100V(20.8 )
~
AC INPUT
220V 60Hz
BALANCED
INPUT
LINK
1V/10K
INPUT(ADJ)
HPF
ON OFF
12dB0dB
FUSE
GROUND
LIF
12345678
910111213141516
8
T
FRAMEFLOAT
FIRE SENSOR
PD
TIMER
COM
EXT
AMP
INPUT
FIRE SENSOR
OUTPUT
DC INPUT
24V
12345678COM
910111213141516
COM
LINK IN LINK OUT
1234 5678
12 13 14 15 16
91011
12345678COM
910111213141516
COM
RELAY
DC 24V
OUTPUT
COMNO NC
DC 24V
ADDRESS
12345678910
RELAY
DC 24V
OUTPUT
COMNO NC
CH1
CH2CH3CH4CH 5CH 6
RECEIVER
SPEAKER
EMERGENCY COMBINATION SYSTEM
11
ECS-6216P/S
Block Diagram
Block Diagram
RM1 AUDIO OUT
RM2 AUDIO OUT
EP CONTROL JACK
RM2 MUTE CONTROL
RM1 MUTE CONTROL
RS232 COMM PORT1
RS232 COMM PORT2
MCU
RS485 COMM
SWITCH
RS485 TERMINATION
FRONT
LED DISPLAY
RELAY CONTROL
CH1
AMP OUTPUT
AMP OUTPUT
CH2
CH16
AMP OUTPUT
RM1 AUDIO IN
RM1 RS-422 COMM
RM COMM
SELECTOR
RM1 AUDIO IN
RM1 RS-422 COMM
ADDRESS SWITCH
EXT INPUT
TIMER INPUT
KEY INPUT
FIRE CONTACT
INPUT CH1~16
CH1
AMP INPUT
CH2
AMP INPUT
AMP INPUT
CH16
EMERGENCY COMBINATION SYSTEM
12
ECS-6216P/S
ECS-6216P/S
Priority Emergency>Timer>Remote 1>Remote 2>Main
Channel 16CH
Communications Protocol LINK IN/OUT RS-485 (Maximum: 1km/3,280 feet)
RM INPUT (RM1, 2) RS-422 (Maximum: 1km/3,280 feet)
SOURCE RS-232 (Maximum: 12m/40 feet)
Fire Sensor Dry Contact
Operating Temperature -10°C ~ +40°C/14°F~104°F
Power Source DC 24V, 900mA
Weight (Set) 4.3kg/9.5lbs
Dimensions (Set) 482(W)x88(H)x280(D)mm/19(W)x3.5(H)x11(D)in
Specifications and design are subject to change without notice.
Specifications
Specifications
DIMENSIONS
440
482
482
280
280
88
88
EMERGENCY COMBINATION SYSTEM
13
ECS-6216P/S
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
MADE IN KOREA
January 2012 127746
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, Inc.
13875 Artesia Blvd. Cerritos, CA 90703 USA
TEL : +1-562-921-0313, FAX : +1-562-921-0370
Home Page : http://www.inter-m.net, E-mail : info@inter-m.net
Inter-M Corporation
Seoul OFFICE:653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : +82-2-2289-8140~8, FAX : +82-2-2289-8149
Home Page : http://www.inter-m.com, E-mail : overseas@inter-m.com
Loading...
