International Fiber Systems, Incorporated ■ DESIGN CENTER (888)999-9IFS or [phone]

FAX [phone]

■ [e-mail]

Europe, Middle East, Africa TEL[phone]

■ Asia Pacific TEL [phone]

Australia TEL [phone]

■ Latin America TEL [phone]

• Frequency Modulation for High Quality Video
Transmission

• Exceeds Requirements For RS-250C Medium-Haul
Transmission

• Directly Compatible with All NTSC, PAL, or SECAM
CCTV Camera Systems

• LED Status Indicators Provide Rapid Indication of
Critical Operating Parameters

• Integrated WDM for Greater Reliability

• Solid-State Current Limiters on All Power Lines
Provide Equipment Protection

• Wide Optical Dynamic Range: Optical Attenuators
are Never Required

• Exceeds NEMA TS-1/TS-2 and Caltrans Traffic

Signal Control Equipment Environmental Specifications
for Operating Temperature, Shock, Vibration, Humidity,
and Voltage Transient
Protection

• Robust Design Ensures Extremely
High Reliability In
Unconditioned Roadside
Environments

• Lifetime Warranty

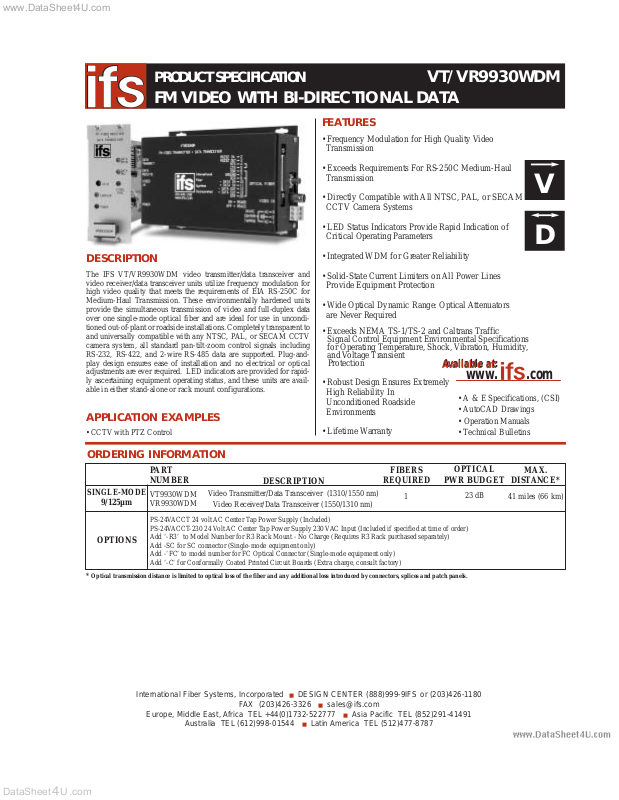

PRODUCT SPECIFICATION

FM VIDEO WITH BI-DIRECTIONAL DATA

VT/VR9930WDM

FEATURES

• CCTV with PTZ Control

APPLICATION EXAMPLES

DESCRIPTION

The IFS VT/VR9930WDM video transmitter/data transceiver and
video receiver/data transceiver units utilize frequency modulation for
high video quality that meets the requirements of EIA RS-250C for
Medium-Haul Transmission. These environmentally hardened units
provide the simultaneous transmission of video and full-duplex data
over one single-mode optical fiber and are ideal for use in uncondi­tioned out-of-plant or roadside installations. Completely transparent to
and universally compatible with any NTSC, PAL, or SECAM CCTV
camera system, all standard pan-tilt-zoom control signals including
RS-232, RS-422, and 2-wire RS-485 data are supported. Plug-and­play design ensures ease of installation and no electrical or optical
adjustments are ever required. LED indicators are provided for rapid­ly ascertaining equipment operating status, and these units are avail­able in either stand-alone or rack mount configurations.

V
D

ORDERING INFORMATION

PART
NUMBER

OPTICAL

PWR BUDGET

MAX.

DISTANCE*

SINGLE-MODE

9/125µm

1

41 miles (66 km)

OPTIONS

PS-24VACCT 24 volt AC Center Tap Power Supply (Included)
PS-24VACCT-230 24 Volt AC Center Tap Power Supply 230 VAC Input (Included if specified at time of order)
Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)
Add -SC for SC connector (Single-mode equipment only)
Add -‘FC’ to model number for FC Optical Connector (Single-mode equipment only)
Add ‘-C’ for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)

VT9930WDM
VR9930WDM

FIBERS

REQUIRED

23 dB

* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

DESCRIPTION

Video Transmitter/Data Transceiver (1310/1550 nm)

Video Receiver/Data Transceiver (1550/1310 nm)

.comwww.

Available at:

Available at:

• A & E Specifications, (CSI)

• AutoCAD Drawings

• Operation Manuals

• Technical Bulletins

DataSheet

U

.com

4

www.DataSheet4U.com

International
Fiber
Systems
Incorporated

203.426.1180

International
Fiber
Systems
Incorporated

203.426.1180

SYSTEM DESIGN

VIDEO

Video Input: 1 volt pk-pk, (75 ohms)
Bandwidth: 5 Hz - 10 MHz min., @ -3 dB
Differential Gain: <2%
Differential Phase: <1.3°
Tilt: <1%
Signal-to-Noise Ratio: >60 dB @ Maximum Optical Loss Budget

DAT A

Data Interface: RS-232, RS-422, RS-485 two-wire
Data Format: NRZ, NRZI, Manchester, Bi-phase
Operating Mode: Simplex or Full Duplex
Data Rate: DC-100 Kbps (NRZ)
Bit Error Rate: <1 in 10-9@ Maximum Optical Loss Budget

WAVELENGTH 1310/1550 nm, Single-mode
OPTICAL EMITTER Laser Diode
NUMBER OF FIBERS 1

LED INDICATORS

VT Transmitter/ Data Transceiver Unit:

• Video Input Sync Presence

• Transmitted Data

• Received Data

• Optical Carrier Detect

• Operating Power

VR Receiver/ Data Transceiver Unit:

• Video Output Sync Presence

• Transmitted Data

• Received Data

• Optical Carrier Detect

• Operating Power

CONNECTORS

Power: Terminal Block w/Screw Clamps

•

Data: Type DB-25S
Video: BNC (Gold Plated Center-Pin)
Optical: Type ST, SC, or FC

(see ordering information)

ELECTRICAL & MECHANICAL

Power:
Surface Mount: VT: 24 VAC C.T. @ 300 mA

VR: 24 VAC C.T. @ 600 mA
Rack: From Rack
Number of Rack Slots: 2
Current Protection: Automatic Resettable Solid-State Current

Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 7.0 x 4.0 x 2.0 in., 17.8 x 12.5 x 5.1 cm
Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5.1 cm
Shipping Weight: < 2 lbs./0.9 kg

ENVIRONMENTAL

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C, ambient
Storage Temp: -40° C to +85° C, ambient
Relative Humidity: 0% to 95% (non-condensing)†

† May be extended to condensation conditions by adding suffix ‘–C’to model
number for conformal coating.

• Optional Type DB-9P: Specify connector style at time of order.

SPECIFICATIONS

TEL [phone] ■ FAX [phone] ■ www.ifs.com ■ [e-mail]

16 Commerce Road

■ Newtown, CT 06470

Due to our continued effort to advance technology, product specifications are subject to change without notice.

TECHNICAL SPECIFICATION

FM VIDEO WITH BI-DIRECTIONAL DATA

VT/VR9930WDM

OPTICAL POWER BUDGET

FIBER

WAVELENGTH

TRANSMITTER

RECEIVER

OPTICAL

PWR BUDGET

MAX.

DISTANCE*

MODEL

OUTPUT MODEL

SENSITIVITY

VT9930WDM

200 µw
(-7 dB)

1 µw

(-30 dB)

Single-mode

9/125µm

1310/1500 nm

* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

VR9930WDM

23 dB

41 miles (66 km)

09/20/02

AGENCY COMPLIANCE

MADE IN THE USA

Video

(Coax)

Control

Data

VT9930WDM

International
Fiber
Systems

ifs

Incorporated

203.426.1180

up to 41 miles

(66 km)

1 Fiber

9/125µm SM

VR9930WDM

International
Fiber
Systems

ifs

Incorporated

203.426.1180

Video

(Coax)

Control

Data
