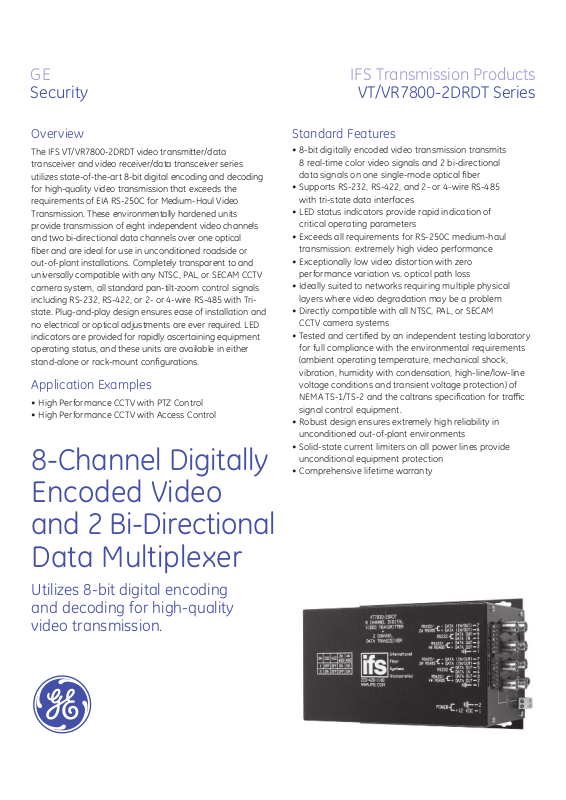

Interlogix VT7820-2DRDT-R3 Specsheet

IFS Transmission Products

Security

Overview

The IFS VT/VR7800-2DRDT video transmitter/data transceiver and video receiver/data transceiver series utilizes state-of-the-art 8-bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of eight independent video channels and two bi-directional data channels over one optical ﬁber and are ideal for use in unconditioned roadside or out-of-plant installations. Completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera system, all standard pan-tilt-zoom control signals including RS-232, RS-422, or 2- or 4-wire RS-485 with Tristate. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. LED indicators are provided for rapidly ascertaining equipment operating status, and these units are available in either stand-alone or rack-mount conﬁgurations.

Application Examples

• High Performance CCTV with PTZ Control

• High Performance CCTV with Access Control

8-Channel Digitally

VT/VR7800-2DRDT Series

Standard Features

• 8-bit digitally encoded video transmission transmits 8 real-time color video signals and 2 bi-directional data signals on one single-mode optical ﬁber

• Supports RS-232, RS-422, and 2- or 4-wire RS-485 with tri-state data interfaces

• LED status indicators provide rapid indication of critical operating parameters

• Exceeds all requirements for RS-250C medium-haul transmission: extremely high video performance

• Exceptionally low video distortion with zero performance variation vs. optical path loss

• Ideally suited to networks requiring multiple physical layers where video degradation may be a problem

• Directly compatible with all NTSC, PAL, or SECAM CCTV camera systems

• Tested and certiﬁed by an independent testing laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the caltrans speciﬁcation for traﬃc signal control equipment.

• Robust design ensures extremely high reliability in unconditioned out-of-plant environments

• Solid-state current limiters on all power lines provide unconditional equipment protection

• Comprehensive lifetime warranty

Encoded Video and 2 Bi-Directional Data Multiplexer

Utilizes 8-bit digital encoding and decoding for high-quality video transmission.

Security

North America T 888-GE-SECURITY

888-437-3287 F 503-691-7566 E sales@ifs.com

Asia T 852-2907-8108 F 852-2142-5063

Australia and New Zealand T 613-9239-1200 F 613-9239-1299

Europe T 32-2-719-9847 F 32-2-719-9846

Latin America T 305-593-4301 F 305-593-4300

gesecurity.com/ifs

Speciﬁcations subject to change without notice

Agency compliance

Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J

Speciﬁcations

Video

Video Input: 1 volt pk-pk (75 ohms) Input/Output Channels: 8 Bandwidth (minimum): 10 Hz - 6.5 MHz per channel Diﬀerential Gain: <2% Diﬀerential Phase: <0.7° Tilt: <1% Signal-to-Noise Ratio (SNR): 60 dB @ Max. Optical Loss Budget

Data

Data Channel: 2 Data Format: RS-232, RS-422, 2-w or 4-w RS-485 with Tri-State, Manchester, Bi-phase

and Sensornet

Wavelength 1310/1550 nm, Multimode or Single Mode

Optical Emitter Laser Diode

Number of Fibers 1

Connectors

Optical: ST, SC or FC (see ordering information) Power: Terminal Block with Screw Clamps Video: BNC (Gold-Plated Center-Pin)

Electrical & Mechanical

Power: 12 VDC @ 500 mA (stand-alone) Number of Rack Slots: 4 Current Protection: Automatic Resettable Solid-State Current Limiters Circuit Board: Meets IPC Standard Size (in./cm.) (LxWxH) Surface Mount (Transmitter): 7.0 x 4.9 x 3.0 in., 17.8 x 12.5 x 7.6 cm Surface Mount (Receiver): 7.0 x 4.9 x 4.0 in., 17.8 x 12.5 x 10.4 cm Rack Mount: 7.7 x 5.0 x 4.0 in., 19.6 x 12.7 x 10.4 cm Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours Operating Temp: -40° C to +74° C Storage Temp: -40° C to +85° C Relative Humidity: 0% to 95% (non-condensing)†

†May be extended to condensation conditions by adding suﬃx ‘–C’ to model number for conformal coating.

Ordering Information

Part Number Optical Pwr. Budget Max. Distance*

Multimode

62.5/125μm**

Single Mode 9/125μm

Accessories

♦

Options

* Optical transmission distance is limited to optical loss of the ﬁber and any additional loss introduced by connectors, splices and patch panels.

Distance can also be limited by ﬁber bandwidth. **For 50/125 ﬁber, subtract 4 dB from optical power budget.

*** This product may be used with 62.5 μm graded index multimode ﬁber having

a maximum run length of 2 km and/or a maximum optical loss budget of 10 dB.

♦

All accessories are third-party manufactured.

VT7820-2DRDT VR7820-2DRDT

VT7830-2DRDT VR7830-2DRDT

VT7830-2DRDT-HP VR7830-2DRDT-HP

PS-12VDC 12 Volt DC Plug-in Power Supply (Included) PS-12VDC-230 12 Volt DC Plug-in Power Supply, 230 VAC Input (Included if speciﬁed at time of order)

Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately) Add ‘-SC’ to model number for SC Optical Connector (For Single-Mode equipment only) Add ‘-C’ for Conformally Coated Printed Circuit Boards (Extra charge, consult factory) Add ‘-HP’ to V T Model Number for 26 dB Single-Mode Optical Power Budget Add ‘-FC’ to model number for FC Optical Connector (For Single-Mode equipment only)

Description

8-Channel Video Transmitter/Data Transceiver (1310/1550 nm) 8-Channel Video Receiver/Data Transceiver (1310/1550 nm)

System Design

8 Video Inputs

(Coax)

Control

Data

Fibers Required

VT7830-2DRDT VR7830-2DRDT

Data

Communications

Remote

Panel

up to 22 miles

(35 km)

1 Fiber

9/125μm SM

18 dB

17 dB

23 dB

RS-232

Data

Communications

Master

Controller

1.2 miles (2 km)***

31 miles (51 km)

43 miles (69 km)

8 Video Outputs (Coax) to monitors or switches

Control

Data

PTZ Control
