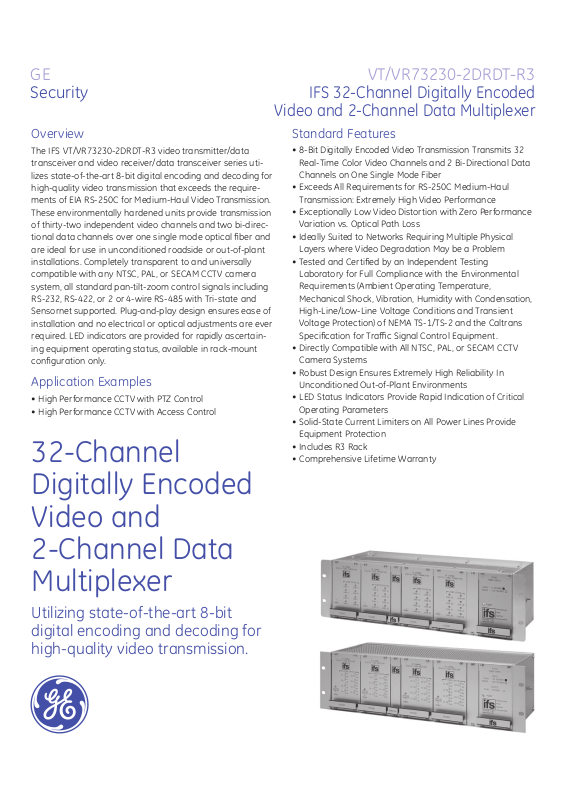

VT/VR73230-2DRDT-R3
Security
The IFS VT/VR73230-2DRDT-R3 video transmitter/data
transceiver and video receiver/data transceiver series utilizes state-of-the-art 8-bit digital encoding and decoding for
high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission.
These environmentally hardened units provide transmission
of thirty-two independent video channels and two bi-directional data channels over one single mode optical fiber and
are ideal for use in unconditioned roadside or out-of-plant
installations. Completely transparent to and universally
compatible with any NTSC, PAL, or SECAM CCTV camera
system, all standard pan-tilt-zoom control signals including
RS-232, RS-422, or 2 or 4-wire RS-485 with Tri-state and
Sensornet supported. Plug-and-play design ensures ease of
installation and no electrical or optical adjustments are ever
required. LED indicators are provided for rapidly ascertaining equipment operating status, available in rack-mount
configuration only.
Application Examples
• High Performance CCTV with PTZ Control
• High Performance CCTV with Access Control
32-Channel
IFS 32-Channel Digitally Encoded
Video and 2-Channel Data Multiplexer
Standard FeaturesOverview
• 8-Bit Digitally Encoded Video Transmission Transmits 32
Real-Time Color Video Channels and 2 Bi-Directional Data
Channels on One Single Mode Fiber
• Exceeds All Requirements for RS-250C Medium-Haul
Transmission: Extremely High Video Performance
• Exceptionally Low Video Distortion with Zero Performance
Variation vs. Optical Path Loss
• Ideally Suited to Networks Requiring Multiple Physical
Layers where Video Degradation May be a Problem
• Tested and Certified by an Independent Testing
Laboratory for Full Compliance with the Environmental
Requirements (Ambient Operating Temperature,
Mechanical Shock, Vibration, Humidity with Condensation,
High-Line/Low-Line Voltage Conditions and Transient
Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment.
• Directly Compatible with All NTSC, PAL, or SECAM CCTV
Camera Systems
• Robust Design Ensures Extremely High Reliability In
Unconditioned Out-of-Plant Environments
• LED Status Indicators Provide Rapid Indication of Critical
Operating Parameters
• Solid-State Current Limiters on All Power Lines Provide
Equipment Protection
• Includes R3 Rack
• Comprehensive Lifetime Warranty
Digitally Encoded
Video and
2-Channel Data
Multiplexer
Utilizing state-of-the-art 8-bit
digital encoding and decoding for
high-quality video transmission.
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E sales@ifs.com
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 32-2-719-9847
F 32-2-719-9846
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com/ifs
Specifications subject to
change without notice
© 2008 General Electric Company
All Rights Reserved
Agency compliance
Made in the USA
Complies with FDA Performance
Standard for Laser Products, Title 21,
Code of Federal Regulations, Subchapter J
Ordering Information
PartNumber OpticalPwr.Budget Max.Distance*
Description
Specifications
Video
Video Input: 1 volt pk-pk (75 ohms)
Input/Output Channels: 32
Bandwidth (minimum): 10 Hz - 6.5 MHz per channel
Differential Gain: <2%
Differential Phase: <0.7°
Tilt: <1%
Signal-to-Noise Ratio (SNR): 60 dB @ Maximum Optical Loss Budget
Data
Data Channels: 2
Data Format: RS-232, RS-422, 2 wire or 4 wire RS-485 with Tri-State, Manchester,
Bi-phase and Sensornet
Data Rate: DC - 100 kbps (NRZ)
Bit Error Rate: <1 in 10˚ @ Maximum Optical Loss Budget
Operating Mode: Simplex or Full-Duplex
Wavelength 1310/1510/1530/1550/1570 nm, Single Mode
Opticalemitter Laser Diode
Numberoffibers 1
Connectors
Optical: ST, SC or FC (see ordering information)
Data: Terminal Block with Screw Clamps
Video: BNC (Gold Plated Center-Pin)
Electrical&Mechanical
Power: 115/230 VAC
Number of Rack Slots: 13
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Rack Mount: 19.0 x 7.0 x 5.3 in., 48.3 x 17.8 x 13.3 cm
Shipping Weight: < 12 lbs./5.4 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to model number for conformal coating.
System Design
up to 15 miles
32 Video Inputs
(Coax)
Control
Data
VT73230-2DRDT-R3 VR73230-2DRDT-R3
Communications
Remote
Panel
(25 km)
1 Fiber
9/125µm SM
Data
FibersReq’d
Data
Communications
Master
Controller
32 Video Outputs (Coax)
to monitors or switches
Control
Data
PTZ Control
Single Mode
9/125μm
VT73230-2DRDT-R3
VR73230-2DRDT-R3
VT73230-2DRDT-R3-HP∗∗
Add ‘-C’ to Model Number for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)
Options
∗ Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. Distance can also be limited by fiber bandwidth.
∗∗ Minimum optical loss of 6 dB required.
Add ‘-SC” to Model Number for SC Connector
Add ‘-FC’ to Model Number for FC Optical Connector
32 Channel Video Transmitter/Multiplexer w/2 Bi-Directional Data Channels
32 Channel Video Receiver/Demultiplexer w/2 Bi-Directional Data Channels
32 Channel Video Transmitter/Multiplexer w/2 Bi-Directional Data Channels
1
7dB
12 dB
15 miles (25 km)
22 miles (36 km)
