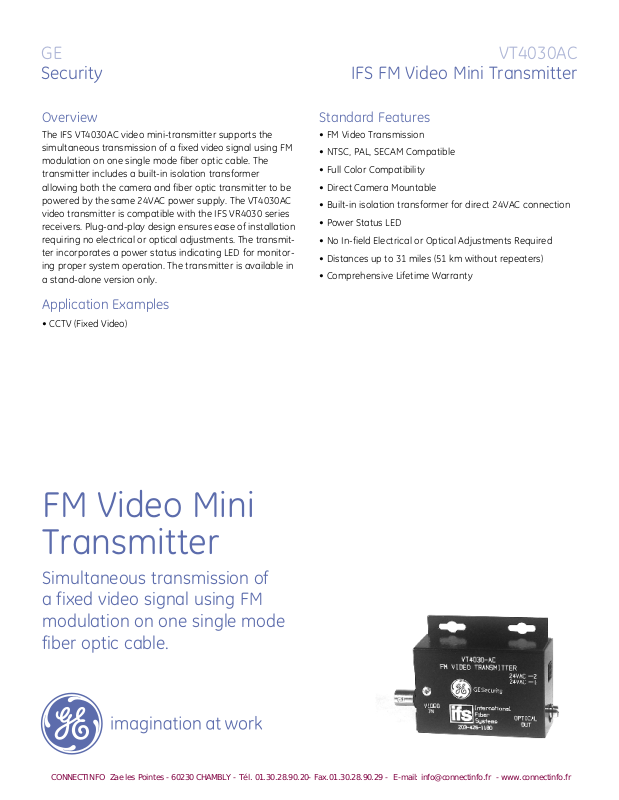

Interlogix VT4030AC, VT4030-C, VT4030AC-C Specsheet

GE

VT4030AC

Security

Overview

The IFS VT4030AC video mini-transmitter supports the
simultaneous transmission of a fixed video signal using FM
modulation on one single mode fiber optic cable. The
transmitter includes a built-in isolation transformer
allowing both the camera and fiber optic transmitter to be
powered by the same 24VAC power supply. The VT4030AC
video transmitter is compatible with the IFS VR4030 series
receivers. Plug-and-play design ensures ease of installation
requiring no electrical or optical adjustments. The transmit­ter incorporates a power status indicating LED for monitor­ing proper system operation. The transmitter is available in
a stand-alone version only.

Application Examples

• CCTV (Fixed Video)

IFS FM Video Mini Transmitter

Standard Features

• FM Video Transmission

• NTSC, PAL, SECAM Compatible

• Full Color Compatibility

• Direct Camera Mountable

• Built-in isolation transformer for direct 24VAC connection

• Power Status LED

• No In-field Electrical or Optical Adjustments Required

• Distances up to 31 miles (51 km without repeaters)

• Comprehensive Lifetime Warranty

FM Video Mini
Transmitter

Simultaneous transmission of
a fixed video signal using FM
modulation on one single mode
fiber optic cable.

CONNECTINFO Zae les Pointes - 60230 CHAMBLY - Tél. [phone]- Fax.[phone] - E-mail: [e-mail] - www.connectinfo.fr

VT4030-AC

Video

(Coax)

24VAC

Camera

Power

mounted to back

of camera

VR4030

ifs

ifs

International

Fiber

Systems

Incorporated

203.426.1180

up to 31 miles

(51 km)

1 Fiber

62.5/125µm SM

GE

Security

North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E [e-mail]

Asia
T 852-2907-8108
F 852-2142-5063

Australia and New Zealand
T 613-9239-1200
F 613-9239-1299

Europe
T 44-113-238-1668
F 44-113-253-8121

Latin America
T 305-593-4301
F 305-593-4300

gesecurity.com/ifs

Specifications subject to
change without notice

© 2008 General Electric Company
All Rights Reserved

Specifications

Video

Video Input: 1 volt pk-pk (75 ohms)
Bandwidth: 5 Hz - 10 MHz
Differential Gain: <5%
Differential Phase: <5°
Tilt: <1%
Signal-to-Noise Ratio (SNR): 60 dB

Wavelength 1310 nm, Single Mode

Number Of Fibers 1

Connectors

Optical: ST
Power: Flying Lead
Video: BNC (Gold Plated Center-Pin)

Electrical & Mechanical

Power: 24 VAC @ 150 mA
Max. RG59 Cable Length: 750 ft.
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 2.5 x 2.0 x 2.0 in., 6.4 x 5.08 x 5.08 cm
Shipping Weight: < 1 lbs./.45 kg

Environmental

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†

†May be extended to condensation conditions by adding suffix ‘–C’ to model number for conformal coating.

Agency compliance

Made in the USA

Complies with FDA Performance
Standard for Laser Products, Title 21,
Code of Federal Regulations, Subchapter J

System Design

Ordering Information

Part Number Optical Pwr. Budget Max. Distance*Fibers RequiredDescription

Single Mode

VT4030AC

FM Video Transmitter (1310 nm)

9/125µm

VR4030

Options

* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. ** For 50/125 Fiber, subtract 4 dB from Optical Power Budget.

Add ‘-C’ for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)

FM Video Transmitter (1310 nm)

1

17 dB

31 miles (51 km)
