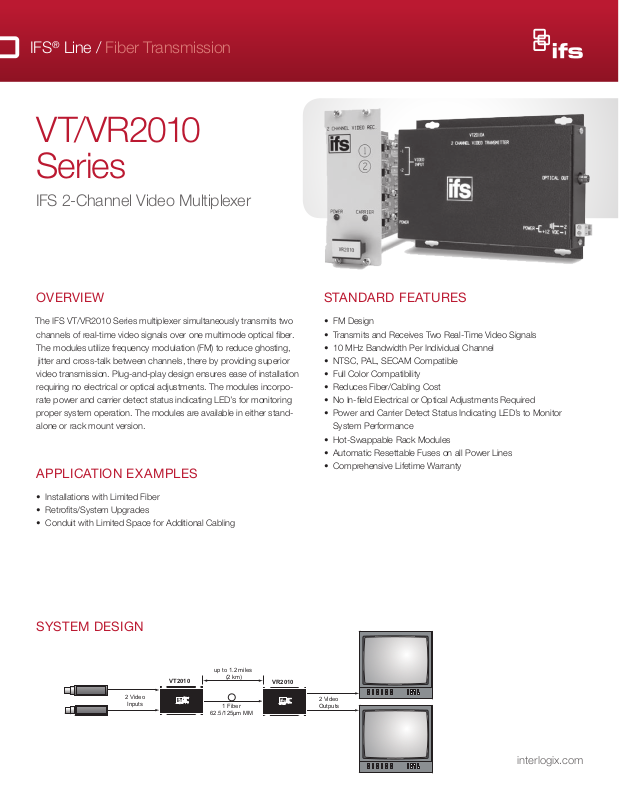

Interlogix VT2010-R3 Specsheet
®
System Design
IFS
Line / Fiber Transmission
V T/ VR2010
Series
IFS 2-Channel Video Multiplexer
OVERVIEW
ch
annels of real-time video signals over one multimode optical fiber.
T
he modules utilize frequency modulation (FM) to reduce ghosting,
jitter and cross-talk between channels, there by providing superior
video transmission. Plug-and-
play design ensures ease of installation
requiring no electrical or optical adjustments. The modules incorporate power and carrier detect status indicating LED’s for monitoring
proper system operation. The modules are available in either standalone or rack mount version.
APPLICATION EXAMPLES
• Installations with Limited Fiber
• Retrofits/System Upgrades
• Conduit with Limited Space for Additional Cabling
STANDARD FEATURES
• FM Design
• Transmits and Receives Two Real-Time Video Signals
• 10 MHz Bandwidth Per Individual Channel
• NTSC, PAL, SECAM Compatible
• Full Color Compatibility
• Reduces Fiber/Cabling Cost
• No In-field Electrical or Optical Adjustments Required
• Power and Carrier Detect Status Indicating LED’s to Monitor
System Performance
• Hot-Swappable Rack Modules
• Automatic Resettable Fuses on all Power Lines
• Comprehensive Lifetime Warranty
SYSTEM DESIGN
2 Video
Inputs
VT2010
ifs
203.426.1180
International
Fiber
Systems
Incorporated
up to 1.2 miles
(2 km)
1 Fiber
62.5/125μm MM
VR2010
ifs
203.426.1180
International
Fiber
Systems
Incorporated
2 Video
Outputs
interlogix.com
Specifications
Data
Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚
Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM
D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM
Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2
D1030: 2 D1030WDMA: 1 D1030WDMB: 1
Connectors
Optical: ST
Data and Power: Terminal Block with Screw Clamps
Electrical & Mechanical
Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E sales@ifs.com
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 44-113-238-1668
F 44-113-253-8121
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com/ifs
Specifications subject to
change without notice
© 2008 General Electric Company
All Rights Reserved
VT/VR2010 Series
IFS 2-Channel Video Multiplexer
Ordering Information
Multimode 62.5/125µm** VT2010
Accessories ♦
Options Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)
*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.
*** This product may be used with 62.5 µm graded index multimode fiber having a maximum run length of 2 km and/or a maximum optical loss budget of 10 dB.
♦All accessories are third party manufactured.
Specifications
Video
Video Input: 1 Volt pk-pk (75 ohms)
Bandwidth: 10 Hz - 10 MHz (Typical)
Differential Gain: <5%
Differential Phase: <5°
Tilt: <1%
Signal-to-Noise Ratio (SNR): 55 dB (typical)
Wavelength
Number Of Fibers
Connectors
Optical: ST
Power and Audio: Terminal Block with Screw Clamps
Video: BNC (Gold Plated Center-Pin)
Electrical & Mechanical
Power:
Surface Mount: 12 VDC @ 450 mA
Rack: From Rack
Number of Rack Slots: 2
Current Protection: Automatic Resettable Solid-State Current Limiters
Max. RG59 Cable Length: 750 ft.
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5.1 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)
North America
T 855-286-8889
Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*
-Channel Video Transmitter/Multiplexer (850 nm) 1 10 dB 1.2 miles (2 km)***
2
VR2010
PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)
850 nm, Multimode
1
2-Channel Video Receiver/Demultiplexer (850 nm)
1 10 dB 1.2 miles (2 km)***
Latin America
T 561-998-6114
Interlogix is par t of UTC Building & Industrial Systems,
Code of Federal Regulations, Subchapter J
Specifications subject to change without notice.
© 2014 United Technologies Corporation
a unit of United Technologies Corporation.
Agency Compliance
Complies with FDA Performance
Standard for Laser Products, Title 21,
interlogix.com
All rights reser ved.
