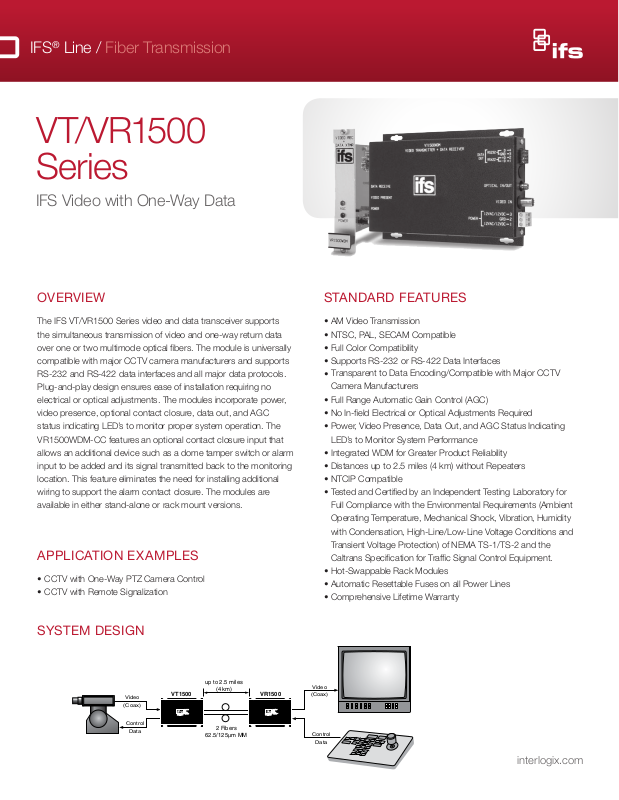

Interlogix VT1500WDM-R3, VT1500WDM-R3-C Specsheet

®

100 v, 0.5 A Contact Rating (Normally Open)

Optical Pwr. Budget

Max. Distance*

2.5 miles (4 km)

2.5 miles (4 km)

2

1

Fibers Required

14 dB

24 dB

System Design

◆

All accessories are third party manufactured.

Line / Fiber Transmission

IFS

V T/ VR1500
Series

IFS Video with One-Way Data

OVERVIEW

The IFS VT/VR1500 Series video and data transceiver supports
the simultaneous transmission of video and one-way return data
over one or two multimode optical fibers. The module is universally
compatible with major CCTV camera manufacturers and supports
RS-232 and RS-422 data interfaces and all major data protocols.
Plug-and-play design ensures ease of installation requiring no
electrical or optical adjustments. The modules incorporate power,
video presence, optional contact closure, data out, and AGC
status indicating LED’s to monitor proper system operation. The
VR1500WDM-CC features an optional contact closure input that
allows an additional device such as a dome tamper switch or alarm
input to be added and its signal transmitted back to the monitoring
location. This feature eliminates the need for installing additional
wiring to support the alarm contact closure. The modules are
available in either stand-alone or rack mount versions.

APPLICATION EXAMPLES

• CCTV with One-Way PTZ Camera Control

• CCTV with Remote Signalization

STANDARD FEATURES

• AM Video Transmission

• NTSC, PAL, SECAM Compatible

• Full Color Compatibility

• Supports RS-232 or RS-422 Data Interfaces
T

ransparent to Data Encoding/Compatible with Major CCTV

•
Camera Manufacturers

• Full Range Automatic Gain Control (AGC)

• No In-field Electrical or Optical Adjustments Required

• Power, Video Presence, Data Out, and AGC Status Indicating
LED’s to Monitor System Performance

• Integrated WDM for Greater Product Reliability

• Distances up to 2.5 miles (4 km) without Repeaters

• NTCIP Compatible

• Tested and Certified by an Independent Testing Laboratory for
Full Compliance with the Environmental Requirements (Ambient
Operating Temperature, Mechanical Shock, Vibration, Humidity
with Condensation, High-Line/Low-Line Voltage Conditions and
Transient Voltage Protection) of NEMA TS-1/TS-2 and the
Caltrans Specification for Traffic Signal Control Equipment.

• Hot-Swappable Rack Modules

• Automatic Resettable Fuses on all Power Lines

• Comprehensive Lifetime Warranty

SYSTEM DESIGN

Video

(Coax)

Control

Data

VT1500

ifs

203.426.1180

International

Fiber

Systems

Incorporated

up to 2.5 miles

(4 km)

2 Fibers

62.5/125µm MM

VR1500

International

Fiber

Systems

ifs

Incorporated

203.426.1180

Video

(Coax)

Control

Data

interlogix.com

Specifications

Data

Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚

Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM

D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM

Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2

D1030: 2 D1030WDMA: 1 D1030WDMB: 1

Connectors

Optical: ST
Data and Power: Terminal Block with Screw Clamps

Electrical & Mechanical

Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†

†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.

GE

Security

North America
T 888-GE-SECURITY

888-437-3287
F 503-691-7566
E [e-mail]

Asia
T 852-2907-8108
F 852-2142-5063

Australia and New Zealand
T 613-9239-1200
F 613-9239-1299

Europe
T 44-113-238-1668
F 44-113-253-8121

Latin America
T 305-593-4301
F 305-593-4300

gesecurity.com/ifs

Specifications subject to
change without notice

© 2008 General Electric Company
All Rights Reserved

VT/VR1500 Series

IFS Video with One-Way Data

Ordering Information

Multimode 62.5/125µm** VT1500 Video Transmitter/Data Receiver (850 nm) 2 14 dB 2.5 miles (4 km)

Accessories ♦

Options

*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.

♦

All accessories are third party manufactured.

Specifications

Video

Video Input: 1 volt pk-pk (75 ohms)

Bandwidth: 5 Hz - 10 MHz

Differential Gain: <5%

Differential Phase: <5°

Tilt: <1%

Signal-to-Noise Ratio (SNR): >55 dB @ 10 dB ATTN.

Data

Data Interface: RS-232, RS-422

Data Format: NRZ, NRZI, Manchester, Bi-phase

Data Rate: DC-100 Kbps (NRZ)

Loss of Relay

Loss of Video

Relay (Optional): SPST Relay 100 v, 0.5 A Contact Rating (Normally Open)

Wavelength

Number Of Fibers

Connectors

Optical: ST

Power and Data: Terminal Block with Screw Clamps

Video and Sync: BNC (Gold Plated Center-Pin)

Electrical & Mechanical

Power: 10-12 VDC @ 150 mA

VT: 24 VAC C.T., 11-14 VDC @ 200 mA

VR: 12 VDC @ 200 mA

Rack: From Rack

Number of Rack Slots: 1

Current Protection: Automatic Resettable Solid-State Current Limiters

Max. RG59 Cable Length: 750 ft.

Circuit Board: Meets IPC Standard

Size (in./cm.) (LxWxH)

Surface Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm

Rack Mount: 7.7 x 5.0 x 1.0 in., 19.6 x 12.7 x 2.5 cm

Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours

Operating Temp: -40° C to +74° C

Storage Temp: -40° C to +85° C

Relative Humidity: 0% to 95% (non-condensing)

North America

T 855-286-8889

Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*

VR1500 Video Receiver/Data Transmitter (850 nm) 2 14 dB 2.5 miles (4 km)

VT1500WDM

VR1500WDM Video Receiver/Data Transmitter (1310/850 nm) 1 14 dB

PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)

Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)

Add ‘-CC’ for Contact Closure on Receiver Only

850/1310 nm, Multimode

VTVR1500: 2, VTVR1500WDM: 1

Video Transmitter/Data Receiver (850/1310 nm) 1 14 dB

Interlogix is part of UTC Building & Industrial Systems,

Code of Federal Regulations, Subchapter J

Specifications subject to change without notice.

© 2013 United Technologies Corporation

a unit of United Technologies Corporation.

Agency Compliance

Complies with FDA Performance

Standard for Laser Products, Title 21,

Latin America

T 561-998-6114

2.5 miles (4 km)

2.5 miles (4 km)

interlogix.com

All rights reserved.

VT/ VR15 0 0 S e r ies
