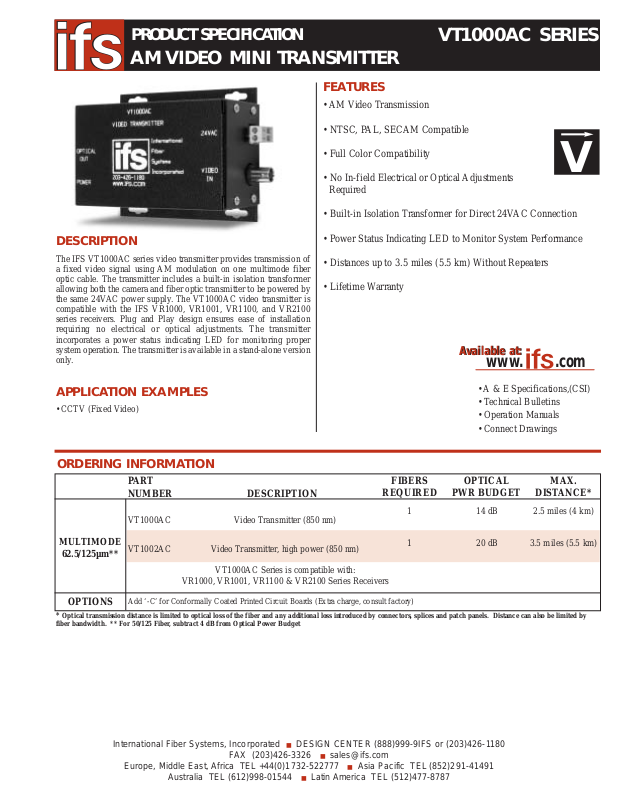

Interlogix VT1000AC Specsheet

PRODUCT SPECIFICATION

.comwww.

Available at:

Available at:

AM VIDEO MINI TRANSMITTER

FEATURES

• AM Video Transmission

• NTSC, PAL, SECAM Compatible

• Full Color Compatibility

• No In-field Electrical or Optical Adjustments
Required

• Built-in Isolation Transformer for Direct 24VAC Connection

VT1000AC SERIES

V

DESCRIPTION

The IFS VT1000AC series video transmitter provides transmission of
a fixed video signal using AM modulation on one multimode fiber
optic cable. The transmitter includes a built-in isolation transformer
allowing both the camera and fiber optic transmitter to be powered by
the same 24VAC power supply. The VT1000AC video transmitter is
compatible with the IFS VR1000, VR1001, VR1100, and VR2100
series receivers. Plug and Play design ensures ease of installation
requiring no electrical or optical adjustments. The transmitter
incorporates a power status indicating LED for monitoring proper
system operation. The transmitter is available in a stand-alone version
only.

APPLICATION EXAMPLES

• CCTV (Fixed Video)

ORDERING INFORMATION

PART
NUMBER

VT1000AC

DESCRIPTION

Video Transmitter (850 nm)

• Power Status Indicating LED to Monitor System Performance

• Distances up to 3.5 miles (5.5 km) Without Repeaters

• Lifetime Warranty

• A& E Specifications,(CSI)

• Technical Bulletins

• Operation Manuals

• Connect Drawings

FIBERS

REQUIRED

1

OPTICAL

PWR BUDGET

14 dB

MAX.

DISTANCE*

2.5 miles (4 km)

MULTIMODE

62.5/125µm**

OPTIONS

Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. Distance can also be limited by

*

fiber bandwidth. ** For 50/125 Fiber, subtract 4 dB from Optical Power Budget

VT1002AC

Add ‘-C’ for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)

International Fiber Systems, Incorporated ■ DESIGN CENTER (888)999-9IFS or [phone]

Europe, Middle East, Africa TEL[phone]

Australia TEL [phone]

Video Transmitter, high power (850 nm)

VT1000AC Series is compatible with:

VR1000, VR1001, VR1100 & VR2100 Series Receivers

FAX [phone]

■ [e-mail]

■ Asia Pacific TEL [phone]

■ Latin America TEL [phone]

1

20 dB

3.5 miles (5.5 km)

VT1000AC

Video

(Coax)

Video

(Coax)

1 Fiber

62.5/125 µMM

VR1100

up to 2.5 miles

(4 km)

24 VAC
camera

power

ifs

InternationalInternational
FiberFiber
SystemsSystems
IncorporatedIncorporated

203.426.1180

ifs

InternationalInternational
FiberFiber
SystemsSystems
IncorporatedIncorporated

203.426.1180203.426.1180

TECHNICAL SPECIFICATION

AM VIDEO MINI TRANSMITTER

VT1000AC SERIES

SPECIFICATIONS

VIDEO

Video Input: 1 volt pk-pk (75 ohms)
Bandwidth: 5 Hz - 10 MHz
Differential Gain: <5%
Differential Phase: <5°
Tilt: <1%
Signal-to-Noise Ratio (SNR): 60 dB

WAVELENGTH 850 nm

NUMBER OF FIBERS 1

CONNECTORS

Optical: ST
Power: Terminal Block with Screw Clamps
Video: BNC (Gold Plated Center-Pin)

ELECTRICAL & MECHANICAL

Power: 24 VAC @ 150 mA
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 3.5 x 2.0 in., 10.7 x 8.9 x 5.1 cm
Shipping Weight: < 2 lbs./0.9 kg

ENVIRONMENTAL

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)*

* May be extended to condensation conditions by adding suffix ‘C’ to model
number for conformal coating.

AGENCY COMPLIANCE

OPTICAL POWER BUDGET

FIBER

Multimode

62.5/125µm**

WAVELENGTH

MODEL

VT1000AC

850 nm

VT1002AC

TRANSMITTER

OUTPUT MODEL

25µw

(-16 dBm)

100 µw

(-10 dBm)

VR1000
VR1001
VR1100
VR2100

RECEIVER

SENSITIVITY

1 µw

(-30 dBm)

OPTICAL

PWR BUDGET

14 dB

20 dB

MADE IN THE USA

MAX.

DISTANCE*

2.5 miles (4 km)

3.5 miles (5.5 km)

* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. Distance can also be limited by

fiber bandwidth. ** For 50/125 Fiber, subtract 4 dB from Optical Power Budget

SYSTEM DESIGN

TEL [phone] ■ FAX [phone] ■ www.ifs.com ■ [e-mail]

16 Commerce Road

Due to our continued effort to advance technology, product specifications are subject to change without notice.

■ Newtown, CT 06470

04.26.01
