Interlogix VR9930WDM-SC, VR9930WDM-R3 Specsheet

IFS® Line / Fiber Transmission

-9

@ Maximum Optical Loss Budget

VT Transmitter/ Data Transceiver Unit:

• Video Input Sync Presence

• Transmitted Data

• Received Data

• Optical Carrier Detect

• Operating Power

VR Receiver/ Data Transceiver Unit:

• Video Output Sync Presence

• Transmitted Data

• Received Data

• Optical Carrier Detect

• Operating Power

CONNECTORS

Power: Terminal Block w/Screw Clamps

•

Data: Type DB-25S
Video: BNC (Gold Plated Center-Pin)
Optical: Type ST, SC, or FC

(see ordering information)

ELECTRICAL & MECHANICAL

Power:
Surface Mount: VT: 24 VAC C.T. @ 300 mA

VR: 24 VAC C.T. @ 600 mA
Rack: From Rack
Number of Rack Slots: 2
Current Protection: Automatic Resettable Solid-State Current

Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 7.0 x 4.0 x 2.0 in., 17.8 x 12.5 x 5.1 cm
Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5.1 cm
Shipping Weight: < 2 lbs./0.9 kg

ENVIRONMENTAL

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C, ambient
Storage Temp: -40° C to +85° C, ambient
Relative Humidity: 0% to 95% (non-condensing)†

† May be extended to condensation conditions by adding suffix ‘–C’ to model
number for conformal coating.

• Optional Type DB-9P: Specify connector style at time of order.

VT/VR9930WDM

TRANSMITTER

RECEIVER

OPTICAL

PWR BUDGET

MAX.

DISTANCE*

MODEL

OUTPUT MODEL

SENSITIVITY

VT9930WDM

200 µw

(-7 dB)

1 µw

(-30 dB)

VR9930WDM

23 dB

41 miles (66 km)

AGENCY COMPLIANCE

MADE IN THE USA

Federal Supply Schedule

Contract No. GS-07F-0049M

Complies with FDA Performance Standard for Laser Products,
Title 21, Code of Federal Regulations, Subchapter J

VT/VR9930WDM

eries

S

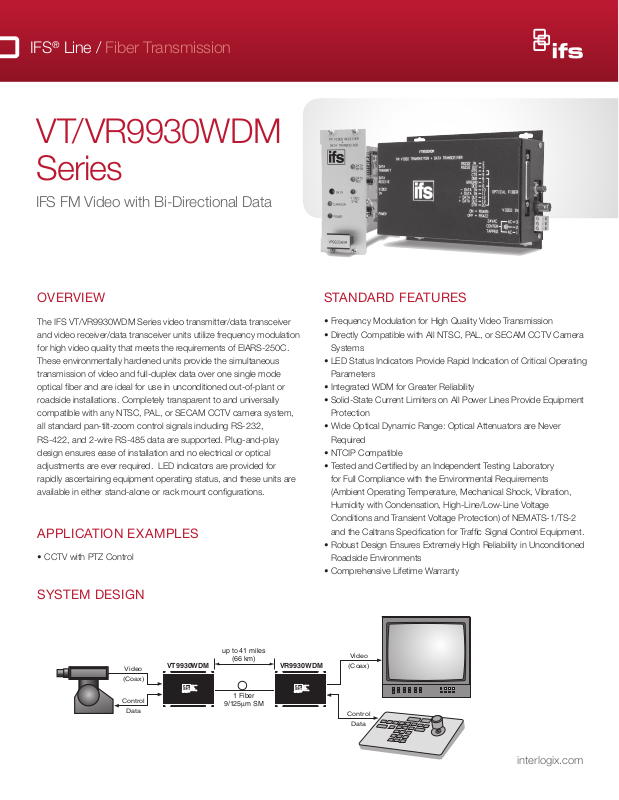

IFS FM Video with Bi-Directional Data

OVERVIEW

he IFS VT/VR9930WDM Series video transmitter/data tran

T
and video receiver/data transceiver units utilize frequency modulation
for high video quality that meets the requirements of EIARS-250C.
These environmentally hardened units provide the simultaneous
transmission of video and full-duplex data over one single mode
optical fiber and are ideal for use in unconditioned out-of-plant or
roadside installations. Completely transparent to and universally
compatible with any NTSC, PAL, or SECAM CCTV camera system,
all standard pan-tilt-zoom control signals including RS-232,
RS-422, and 2-wire RS-485 data are supported. Plug-and-play
design ensures ease of installation and no electrical or optical
adjustments are ever required. LED indicators are provided for
rapidly ascertaining equipment operating status, and these units are
available in either stand-alone or rack mount configurations.

sceiver

APPLICATION EXAMPLES

• CCTV with PTZ Control

STANDARD FEATURES

• Frequency Modulation for High Quality Video Transmission

• Directly Compatible with All NTSC, PAL, or SECAM CCTV Camera
Systems

• LED Status Indicators Provide Rapid Indication of Critical Operating
Parameters

• Integrated WDM for Greater Reliability

• Solid-State Current Limiters on All Power Lines Provide Equipment
Protection

• Wide Optical Dynamic Range: Optical Attenuators are Never
Required

• NTCIP Compatible

• Tested and Certified by an Independent Testing Laboratory

for Full Compliance with the Environmental Requirements

(Ambient Operating Temperature, Mechanical Shock, Vibration,
Humidity with Condensation, High-Line/Low-Line Voltage

Conditions and Transient Voltage Protection) of NEMATS-1/TS-2

and the Caltrans Specification for Traffic Signal Control Equipment.

• Robust Design Ensures Extremely High Reliability in Unconditioned
Roadside Environments

• Comprehensive Lifetime Warranty

SYSTEM DESIGN

Video

(Coax)

Control

Data

VT9930WDM

International

Fiber

Systems

ifs

Incorporated

203.426.1180

up to 41 miles

(66 km)

1 Fiber

9/125µm SM

VR9930WDM

International

Fiber

Systems

ifs

Incorporated

203.426.1180

Video

(Coax)

Control

Data

interlogix.com

Specifications

Data

Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚

Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM

D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM

Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2

D1030: 2 D1030WDMA: 1 D1030WDMB: 1

Connectors

Optical: ST
Data and Power: Terminal Block with Screw Clamps

Electrical & Mechanical

Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†

†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.

GE

Security

North America
T 888-GE-SECURITY

888-437-3287
F 503-691-7566
E [e-mail]

Asia
T 852-2907-8108
F 852-2142-5063

Australia and New Zealand
T 613-9239-1200
F 613-9239-1299

Europe
T 44-113-238-1668
F 44-113-253-8121

Latin America
T 305-593-4301
F 305-593-4300

gesecurity.com/ifs

Specifications subject to
change without notice

© 2008 General Electric Company
All Rights Reserved

T/VR9930WDM Series

V

IFS FM Video with Bi-Directional Data

Ordering Information

Single Mode 9/125µm VT9930WDM Video Transmitter/Data Transceiver (1310/1550 nm) 1 23 dB 41 miles (66 km)

Accessories ♦

Options Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)

*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.

♦

All accessories are third party manufactured.

Specifications

Video

Video Input: 1 volt pk-pk (75 ohms)

Bandwidth: 5 Hz - 10 MHz min., @ -3 dB

Differential Gain: <2%

Differential Phase: <1.3°

Tilt: <1%

Signal-to-Noise Ratio (SNR): >60 dB @ Maximum Optical Loss Budget

Data

Data Interface: RS-232, RS-422, RS-485 two-wire

Data Format: NRZ, NRZI, Manchester, Bi-phase

Operating Mode: Simplex or Full Duplex

Data Rate: DC-100 Kbps (NRZ)

Bit Error Rate: <1 in 10

Wavelength

Optical Emitter

Number Of Fibers

LED Indicators

VT Transmitter/Data Tranceiver Unit: Video Input Sync Presence

VR Receiver/ Data Transceiver Unit: Video Output Sync Presence

Connectors

Power: Terminal Block with Screw Clamps

Data: Type DB-25S

Video: BNC (Gold Plated Center-Pin)

Optical: ST

Electrical & Mechanical

Power:

Surface Mount: VT: 24 VAC C.T. @ 300 mA

Rack: From Rack

Number of Rack Slots: 1

Current Protection: Automatic Resettable Solid-State Current Limiters

Circuit Board: Meets IPC Standard

Size (in./cm.) (LxWxH)

Surface Mount: 7.0 x 4.0 x 2.0 in., 17.8 x 12.5 x 5.1 cm

Rack Mount: 7.7 x 5.0 x 2.0 in., 19.6 x 12.7 x 5.1 cm

Shipping Weight: < 2 lbs./0.9 kg

Environmental

MTBF: > 100,000 hours

Operating Temp: -40° C to +74° C, ambient

Storage Temp: -40° C to +85° C, ambient

Relative Humidity: 0% to 95% (non-condensing)

North America

T 855-286-8889

Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*

VR9930WDM Video Receiver/Data Transceiver (1550/1310 nm) 1 23 dB 41 miles (66 km)

PS-24VACCT 24 volt AC Center Tap Power Supply (Included)

PS-24VACCT-230 24 Volt AC Center Tap Power Supply 230 VAC Input (Included if specified at time of order)

-9

@ Maximum Optical Loss Budget

1310/1550 nm, Singlemode

Laser Diode

2

Transmitted Data

Received Data

Optical Carrier Detect

Operating Power

Transmitted Data

Received Data

Optical Carrier Detect

Operating Power

VR: 24 VAC C.T. @ 600 mA

Specifications subject to change without notice.

Interlogix is part of UTC Building & Industrial Systems,

Standard for Laser Products, Title 21,

Code of Federal Regulations, Subchapter J

© 2013 United Technologies Corporation

a unit of United Technologies Corporation.

Agency Compliance

Complies with FDA Performance

Latin America

T 561-998-6114

interlogix.com

All rights reserved.

VT/VR9930WDM
