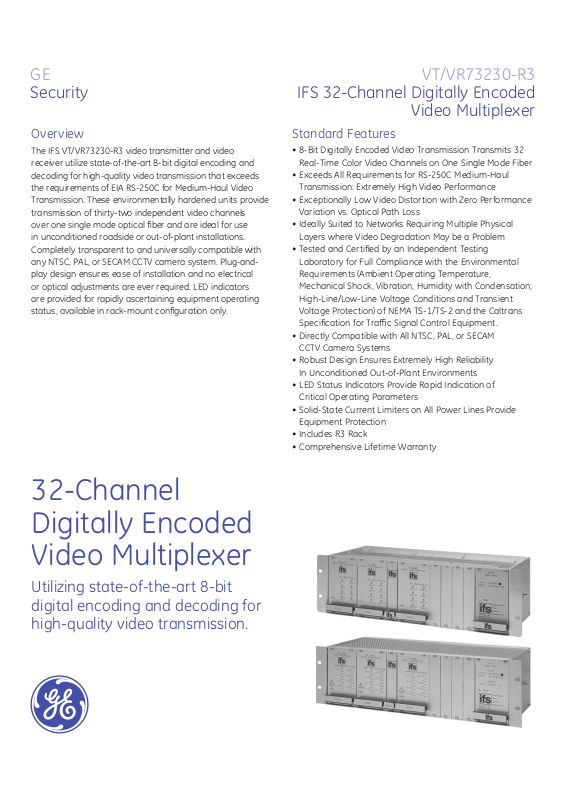

Interlogix VR73230-R3 Specsheet
GE
VT/VR73230-R3
Security
The IFS VT/VR73230-R3 video transmitter and video
receiver utilize state-of-the-art 8-bit digital encoding and
decoding for high-quality video transmission that exceeds
the requirements of EIA RS-250C for Medium-Haul Video
Transmission. These environmentally hardened units provide
transmission of thirty-two independent video channels
over one single mode optical fiber and are ideal for use
in unconditioned roadside or out-of-plant installations.
Completely transparent to and universally compatible with
any NTSC, PAL, or SECAM CCTV camera system. Plug-andplay design ensures ease of installation and no electrical
or optical adjustments are ever required. LED indicators
are provided for rapidly ascertaining equipment operating
status, available in rack-mount configuration only.
IFS 32-Channel Digitally Encoded
Video Multiplexer
Standard FeaturesOverview
• 8-Bit Digitally Encoded Video Transmission Transmits 32
Real-Time Color Video Channels on One Single Mode Fiber
• Exceeds All Requirements for RS-250C Medium-Haul
Transmission: Extremely High Video Performance
• Exceptionally Low Video Distortion with Zero Performance
Variation vs. Optical Path Loss
• Ideally Suited to Networks Requiring Multiple Physical
Layers where Video Degradation May be a Problem
• Tested and Certified by an Independent Testing
Laboratory for Full Compliance with the Environmental
Requirements (Ambient Operating Temperature,
Mechanical Shock, Vibration, Humidity with Condensation,
High-Line/Low-Line Voltage Conditions and Transient
Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment.
• Directly Compatible with All NTSC, PAL, or SECAM
CCTV Camera Systems
• Robust Design Ensures Extremely High Reliability
In Unconditioned Out-of-Plant Environments
• LED Status Indicators Provide Rapid Indication of
Critical Operating Parameters
• Solid-State Current Limiters on All Power Lines Provide
Equipment Protection
• Includes R3 Rack
• Comprehensive Lifetime Warranty
32-Channel
Digitally Encoded
Video Multiplexer
Utilizing state-of-the-art 8-bit
digital encoding and decoding for
high-quality video transmission.
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E sales@ifs.com
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 32-2-719-9847
F 32-2-719-9846
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com/ifs
Specifications subject to
change without notice
© 2008 General Electric Company
All Rights Reserved
Specifications
Video
Video Input: 1 volt pk-pk (75 ohms)
Input/Output Channels: 32
Bandwidth: 10 Hz - 6.5 MHz
Differential Gain: <2%
Differential Phase: <0.7°
Tilt: <1%
Signal-to-Noise Ratio (SNR): 60 dB @ Maximum Optical Loss Budget
Wavelength 1510/1530/1550/1570 nm, Single Mode
Opticalemitter Laser Diode
Numberoffibers 1
Connectors
Optical: ST, SC or FC (see ordering information)
Video: BNC (Gold Plated Center-Pin)
Electrical&Mechanical
Power: 115/230 VAC
Number of Rack Slots: 13
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Rack Mount: 19.0 x 7.0 x 5.3 in., 48.3 x 17.8 x 13.3 cm
Shipping Weight: < 12 lbs./5.4 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to model number for conformal coating.
Agency compliance
System Design
Made in the USA
Complies with FDA Performance
Standard for Laser Products, Title 21,
Code of Federal Regulations, Subchapter J
32 Video Inputs
(Coax)
VT73230 VR73230
up to 22 miles
(36 km)
1 Fiber
9/125µm SM
32 Video Outputs (Coax)
to monitors or switches
Ordering Information
PartNumber OpticalPwr.Budget Max.Distance*
Single Mode
9/125μm
Options
* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels. Distance can also be limited by fiber bandwidth.
VT73230-R3
VR73230-R3
Add ‘-C’ to Model Number for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)
Add ‘-SC” to Model Number for SC Connector
Add ‘-FC’ to Model Number for FC Optical Connector
Description
32 Channel Video Transmitter/Multiplexer
32 Channel Video Receiver/Demultiplexer
FibersRequired
1
12 dB
22 miles (36 km)
