Interlogix VR7230-2DRDT Specsheet
®
System Design
1.2 miles (2 km)
31 miles (51 km)
43 miles (69 km)
1
1
1
Fibers Required
7 dB
17 dB
23 dB
♦
All accessories are third party manufactured.
IFS
Line / Fiber Transmission

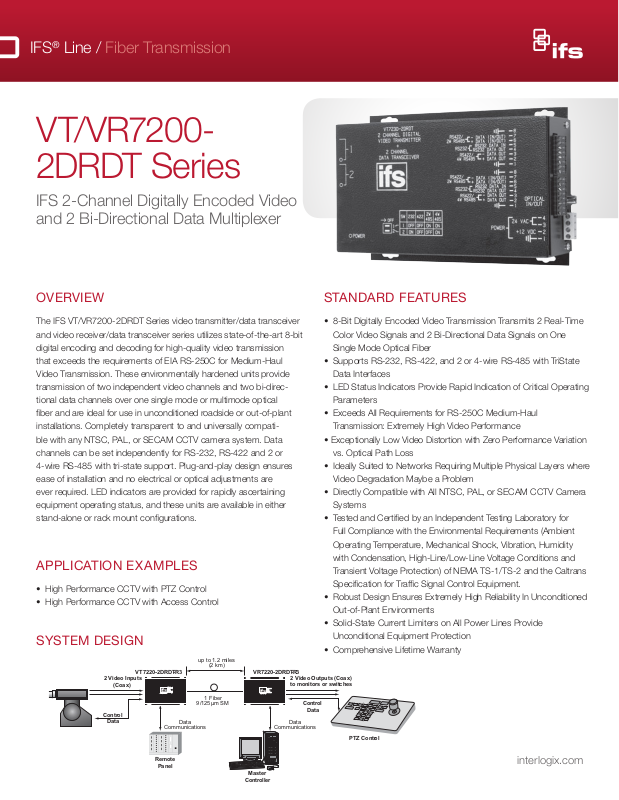

VT/VR72002DRDT Series
IFS 2-Channel Digitally
and 2 Bi-Directional Data Multiplexer
OVERVIEW
T
he IFS VT/VR7200-2DRDT Series video transmitter/data transceiver
an
d video receiver/data transceiver series utilizes state-of-the-art 8-bit
digital encoding and decoding for high-quality video transmission
that exceeds the requirements of EIA RS-250C for Medium-Haul
Video Transmission. These environmentally hardened units provide
transmission of two independent video channels and two bi-directional data channels over one single mode or multimode optical
fiber and are ideal for use in unconditioned roadside or out-of-plant
installations. Completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera system. Data
channels can be set independently for RS-232, RS-422 and 2 or
4-wire RS-485 with tri-state support. Plug-and-play design ensures
ease of installation and no electrical or optical adjustments are
ever required. LED indicators are provided for rapidly ascertaining
equipment operating status, and these units are available in either
stand-alone or rack mount configurations.
APPLICATION EXAMPLES
• High Performance CCTV with PTZ Control
• High Performance CCTV with Access Control
SYSTEM DESIGN
2 Video Inputs
Control
Encoded Video
VT7220-2DRDT-R3 VR7220-2DRDT-R3
(Coax)
Data
ifs
203.426.1180
Communications
up to 1.2 miles
(2 km)
International
Fiber
Systems
Incorporated
Data
1 Fiber
9/125μm SM
International
Fiber
Systems
ifs
Incorporated
203.426.1180
Communications
STANDARD FEATURES
• 8-Bit Digitally Encoded Video Transmission Transmits 2 Real-Time
C
olor Video Signals and 2 Bi-Directional Data Signals on One
Single Mode Optical Fiber
• Supports RS-232, RS-422, and 2 or 4-wire RS-485 with TriState
Data Interfaces
• LED Status Indicators Provide Rapid Indication of Critical Operating
Parameters
• Exceeds All Requirements for RS-250C Medium-Haul
Transmission: Extremely High Video Performance
2 Video Outputs (Coax)
to monitors or switches
Data
• Exceptionally Low Video Distortion with Zero Performance Variation
vs. Optical Path Loss
• Ideally Suited to Networks Requiring Multiple Physical Layers where
Video Degradation Maybe a Problem
• Directly Compatible with All NTSC, PAL, or SECAM CCTV Camera
Systems
• Tested and Certified by an Independent Testing Laboratory for
Full Compliance with the Environmental Requirements (Ambient
Operating Temperature, Mechanical Shock, Vibration, Humidity
with Condensation, High-Line/Low-Line Voltage Conditions and
Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
Specification for Traffic Signal Control Equipment.
• Robust Design Ensures Extremely High Reliability In Unconditioned
Out-of-Plant Environments
• Solid-State Current Limiters on All Power Lines Provide
Unconditional Equipment Protection
• Comprehensive Lifetime Warranty
Control
Data
PTZ Control
Remote
Panel
Master
Controller
interlogix.com
Specifications
Data
Data Interface: RS-232 (data lines only), or RS-422 (see note)
Data Rate: DC - 1.5 Mbps (NRZ)
Operating Mode: Asynchronous Simplex or Full-Duplex
Bit Error Rate: <1 in 10˚
Wavelength D1010: 850 nm, MM D1010WDMA: 850/1310 nm, MM
D1010WDMB: 1310/850 nm, MM D1020: 1310 nm, MM
D1030: 1310 nm, SM D1030WDMA: 1310 nm, SM
D1030WDMB: 1550 nm, SM
Number Of Fibers D1010: 2 D1010WDMA: 1 D1010WDMB: 1 D1020: 2
D1030: 2 D1030WDMA: 1 D1030WDMB: 1
Connectors
Optical: ST
Data and Power: Terminal Block with Screw Clamps
Electrical & Mechanical
Power:
Surface Mount: 12 VDC @ 150 mA
Rack: From Rack
Number of Rack Slots: 1
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount: 4.2 x 4.0 x 1.0 in., 10.7 x 8.9 x 2.5 cm
Rack Mount: 7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)†
†May be extended to condensation conditions by adding suffix ‘–C’ to
model number for conformal coating.
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
E sales@ifs.com
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 44-113-238-1668
F 44-113-253-8121
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com/ifs
Specifications subject to
change without notice
© 2008 General Electric Company
All Rights Reserved
VT/VR7200-2DRDT Series
IFS 2-Channel Digitally Encoded Video and 2 Bi-Directional Data Multiplexer
Ordering Information
Multimode 62.5/125µm** VT7220-2DRDT 2-Channel Video Transmitter/Data Transceiver (1310/1550 nm) 1 7 dB 1.2 miles (2 km)
Single Mode 9/125µm VT7230-2DRDT 2-Channel Video Transmitter/Data Transceiver (1310/1550 nm) 1 17 dB 31 miles (51 km)
Accessories ♦
Options Add ‘-R3’ to Model Number for R3 Rack Mount - No Charge (Requires R3 Rack purchased separately)
*Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. **For 50/125 Fiber, subtract 4 dB from Optical Power Budget.
*All accessories are third party manufactured.
Specifications
Video
Video Input: 1 Volt pk-pk (75 ohms)
Input/Output Channels: 2
Bandwidth: 10 Hz - 6.5 MHz per channel
Differential Gain: <2%
Differential Phase: <0.7°
Tilt: <1%
Signal-to-Noise Ratio (SNR): 60 dB @ Maximum Optical Loss Budget
Data
Data Channel: 2
Data Format:
Wavelength
Optical Emitters
Number Of Fibers
Connectors
Optical: ST
Power: Terminal Block with Screw Clamps
Video: BNC (Gold Plated Center-Pin)
Electrical & Mechanical
Power: 12 VDC @ 500 mA (stand-alone)
Number of Rack Slots: 3
Current Protection: Automatic Resettable Solid-State Current Limiters
Circuit Board: Meets IPC Standard
Size (in./cm.) (LxWxH)
Surface Mount (Transmitter): 7.0 x 4.9 x 2.0 in., 17.8 x 12.5 x 5.1 cm
Surface Mount (Receiver): 7.0 x 4.9 x 3.0 in., 17.8 x 12.5 x 7.5 cm
Rack Mount: 7.7 x 5.0 x 3.0 in., 19.6 x 12.7 x 7.5 cm
Shipping Weight: < 2 lbs./0.9 kg
Environmental
MTBF: > 100,000 hours
Operating Temp: -40° C to +74° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)
North America
T 855-286-8889
Part Number Description Fibers Required Optical Pwr. Budget Max. Distance*
VR7220-2DRDT 2-Channel Video Receiver/Data Transceiver (1310/1550 nm) 1 7 dB 1.2 miles (2 km)
VR7230-2DRDT 2-Channel Video Receiver/Data Transceiver (1310/1550 nm) 1 17 dB 31 miles (51 km)
PS12VDC1.5A-U 12VDC, 1.5A Plug-in Power supply (110/220VAC) with Universal power plug adapter kit (Included)
RS-232, RS-422, 2-w or 4-w RS-485 with Tri-State, Manchester,
Bi-phase
1310/1550 nm, Multimode or Single Mode
Latin America
T 561-998-6114
Laser Diode
1
Interlogix is part of UTC Building & Industrial Systems,
Code of Federal Regulations, Subchapter J
Specifications subject to change without notice.
© 2014 United Technologies Corporation
a unit of United Technologies Corporation.
Agency Compliance
Complies with FDA Performance
Standard for Laser Products, Title 21,
VT/VR7200-2DRDT Series
interlogix.com
All rights reserved.
