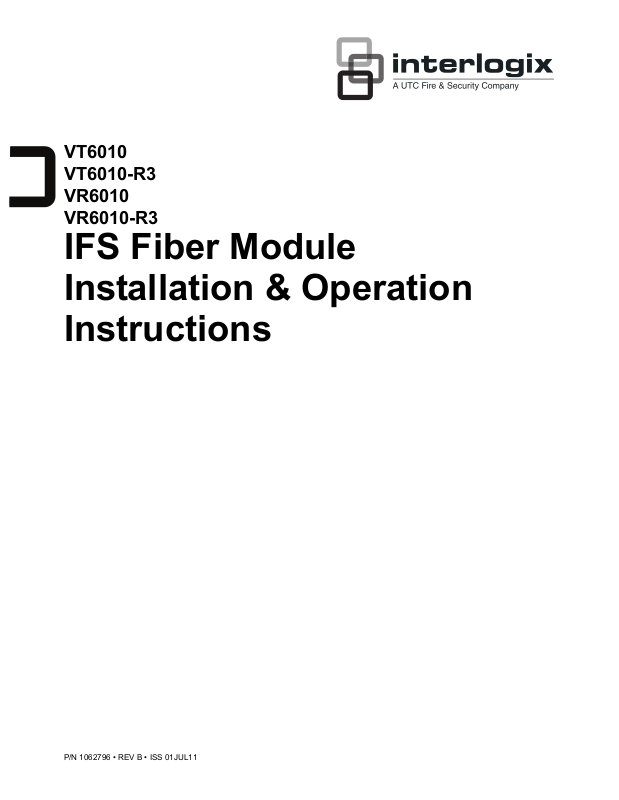

VT6010
VT6010-R3
VR6010
VR6010-R3
IFS Fiber Module
Installation & Operation
Instructions
P/N 1062796 • REV B • ISS 01JUL11
![](/html/14/1411/1411f89d954c4305d24166cdba3beb1f7e7050933eb29a3c0285e0f20e0dd1b6/bg2.png)
4 BNC Cables
NOTE: WITHOUT PROPER FIBER CONNECTION, LED's DO NOT INDICATE
CORRECT OPERATIONAL STATUS OF THE UNIT.
(Input from cameras)
1 -
VT6010A
4 CHANNEL VIDEO TRANSMITTER
2 -
3 -
4 -
POWER
VIDEO
INPUT
ifs
International
Fiber
Systems
Incorporated
POWER
OPTICAL OUT
- 2
+ 12 VDC- 1
NOTE: When the VT6010 is set in a rack (-R3) configuration, there is an additional set
of four (4) BNC connectors. These additional connecttors allow for the video inputs
to be inserted from the front OR back of the unit BUT NOT BOTH.
VR6010A
4 CHANNEL VIDEO RECEIVER
1 -
Black wire
Black with
white stripe
Simplex multimode
fiber optic cable
4 BNC Cable
(Output to monitors)
CARRIER (YELLOW)
POWER (GREEN)
ifs
International
Fiber
Systems
Incorporated
VIDEO
OUTPUT
OPTICAL INPUT
POWER
- 2
+ 12 VDC- 1
2 -
3 -
4 -
Black wire
Black with
white stripe
